Management Topics Manfred Bester THEMIS FDMO CDR Peer
Management Topics Manfred Bester THEMIS FDMO CDR Peer Review − Management Topics 1 June 1 -2, 2004

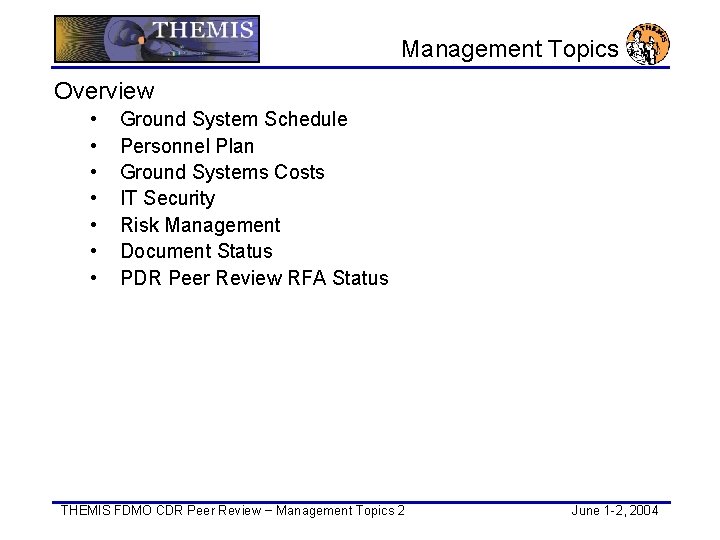

Management Topics Overview • • Ground System Schedule Personnel Plan Ground Systems Costs IT Security Risk Management Document Status PDR Peer Review RFA Status THEMIS FDMO CDR Peer Review − Management Topics 2 June 1 -2, 2004

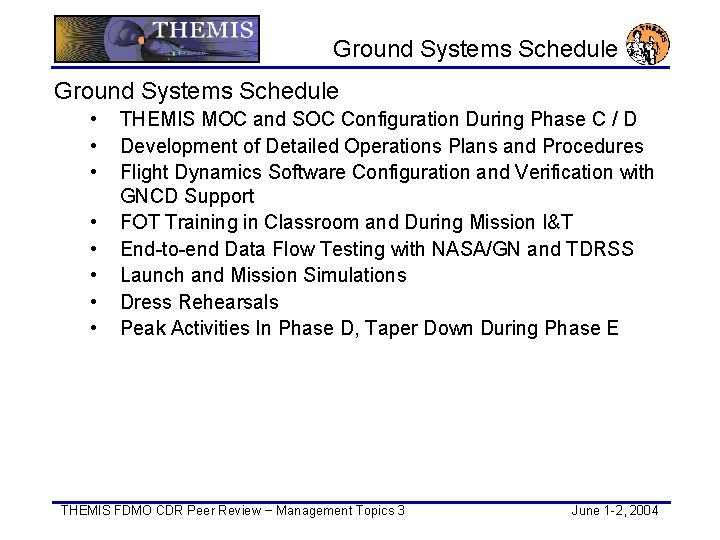

Ground Systems Schedule • • THEMIS MOC and SOC Configuration During Phase C / D Development of Detailed Operations Plans and Procedures Flight Dynamics Software Configuration and Verification with GNCD Support FOT Training in Classroom and During Mission I&T End-to-end Data Flow Testing with NASA/GN and TDRSS Launch and Mission Simulations Dress Rehearsals Peak Activities In Phase D, Taper Down During Phase E THEMIS FDMO CDR Peer Review − Management Topics 3 June 1 -2, 2004
Ground Systems Schedule THEMIS FDMO CDR Peer Review − Management Topics 4 June 1 -2, 2004

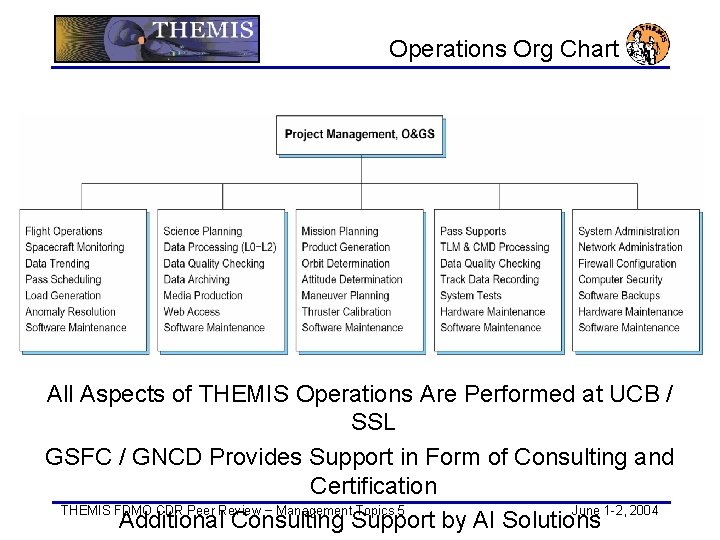

Operations Org Chart All Aspects of THEMIS Operations Are Performed at UCB / SSL GSFC / GNCD Provides Support in Form of Consulting and Certification THEMIS FDMO CDR Peer Review − Management Topics 5 June 1 -2, 2004 Additional Consulting Support by AI Solutions
O&GS Team Members THEMIS Operations & Ground Systems Team – • Mission Operations – – • Flight Dynamics Lead (S. Frey) Flight Dynamics Engineers (J. Mc. Donald, TBH) Student Aides (2) Ground Station Operations – – – • Science Operations Manager (T. Quinn) Programmer/Analysts (J. Vernetti, TBH) Student Aides (4) Flight Dynamics – – – • Deputy Mission Operations Manager (M. Lewis) Flight Controllers (M. Eckert, J. Mc. Donald, T. Neal, J. Thorsness, TBH) Programmer/Analyst (J. Din) Student Aides (4) Science Operations – – – • Mission Operations Manager (M. Bester) Ground Station Manager (R. Sterling) Ground Station Technician (H. Bersch) Student Aide (1) IT Network Systems – – IT Network Systems Manager (J. Loran) System Administrators (R. Boyd, W. Herrick, C. Quan, B. Satow, K. Edgecomb) THEMIS FDMO CDR Peer Review − Management Topics 6 June 1 -2, 2004

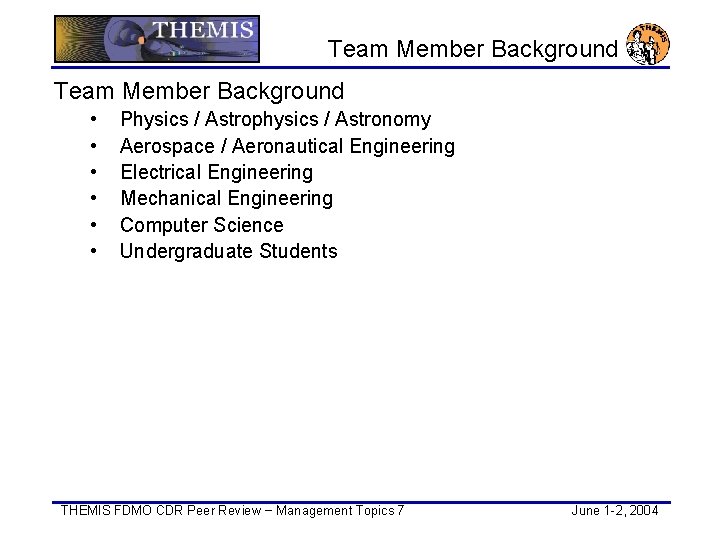

Team Member Background • • • Physics / Astrophysics / Astronomy Aerospace / Aeronautical Engineering Electrical Engineering Mechanical Engineering Computer Science Undergraduate Students THEMIS FDMO CDR Peer Review − Management Topics 7 June 1 -2, 2004

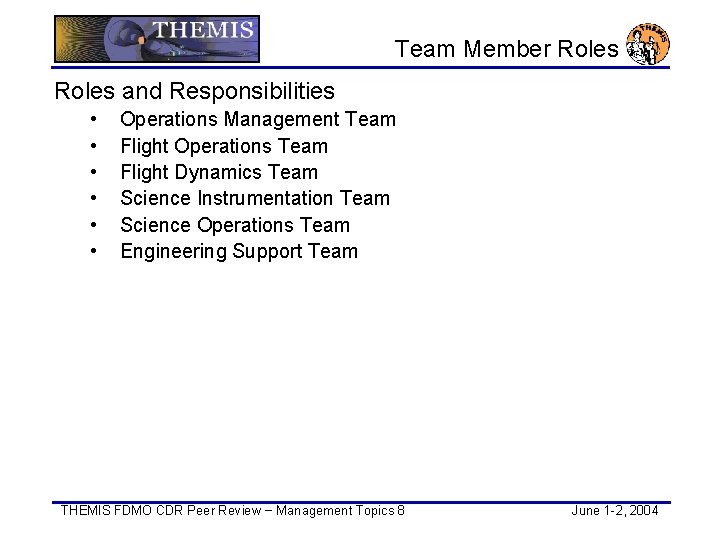

Team Member Roles and Responsibilities • • • Operations Management Team Flight Operations Team Flight Dynamics Team Science Instrumentation Team Science Operations Team Engineering Support Team THEMIS FDMO CDR Peer Review − Management Topics 8 June 1 -2, 2004

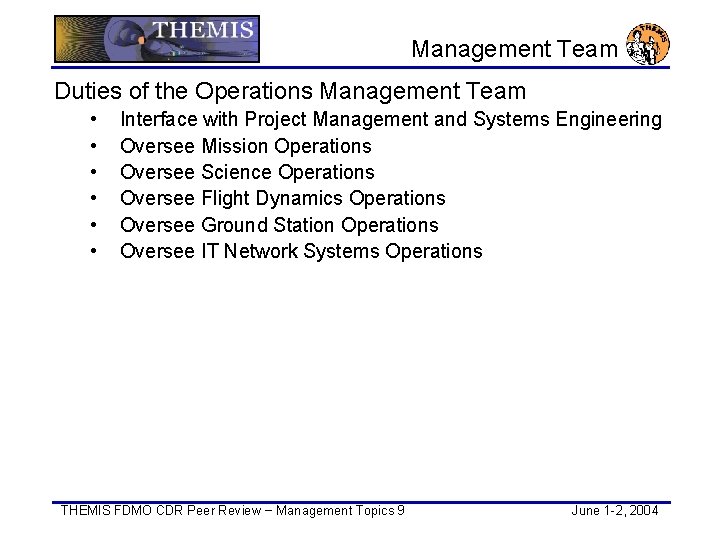

Management Team Duties of the Operations Management Team • • • Interface with Project Management and Systems Engineering Oversee Mission Operations Oversee Science Operations Oversee Flight Dynamics Operations Oversee Ground Station Operations Oversee IT Network Systems Operations THEMIS FDMO CDR Peer Review − Management Topics 9 June 1 -2, 2004
Flight Operations Team Duties of the Flight Operations Team • • • • Participate in Probe Integration and Testing as Test Conductors Support Launch and Mission Simulations Support Launch Operations Plan and Support Real-time Contacts Monitor Health and Safety of the Constellation and Each Probe Generate Command Loads Perform Probe Command Control Functions Perform Probe Data Trending Analyses Interface with Science Instrumentation Team Interface with Science Operations Team Deliver Telemetry Data to the Science Operations Center Maintain Telemetry and Command Databases Maintain Probe Simulator Test Flight Software Patches and New Procedures on Probe Simulator Prior to Upload THEMIS FDMO CDR Peer Review − Management Topics 10 June 1 -2, 2004

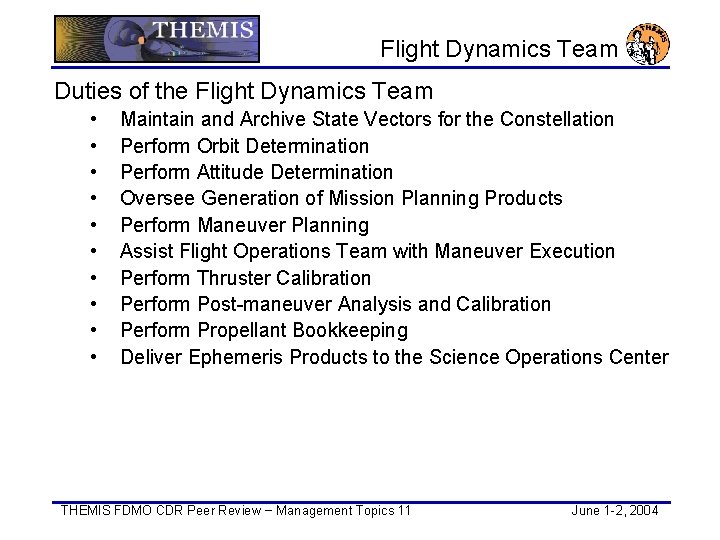

Flight Dynamics Team Duties of the Flight Dynamics Team • • • Maintain and Archive State Vectors for the Constellation Perform Orbit Determination Perform Attitude Determination Oversee Generation of Mission Planning Products Perform Maneuver Planning Assist Flight Operations Team with Maneuver Execution Perform Thruster Calibration Perform Post-maneuver Analysis and Calibration Perform Propellant Bookkeeping Deliver Ephemeris Products to the Science Operations Center THEMIS FDMO CDR Peer Review − Management Topics 11 June 1 -2, 2004
Science Operations Team Duties of the Science Operations Team • • Develop and Maintain Data Processing Software Assess Completeness of Recovered Science Data Provide Feedback for Science Data Recovery to the Flight Operations Team Perform Data Processing Functions Perform Data Archiving Functions Generate and Distribute Media Provide Online Access to Archived Data THEMIS FDMO CDR Peer Review − Management Topics 12 June 1 -2, 2004
Engineering Support Team Duties of the Engineering Support Team • • Monitor Health and Safety of Each Probe During Early Orbit Commissioning Provide Sustaining Engineering Support to the Flight Operations Team THEMIS FDMO CDR Peer Review − Management Topics 13 June 1 -2, 2004

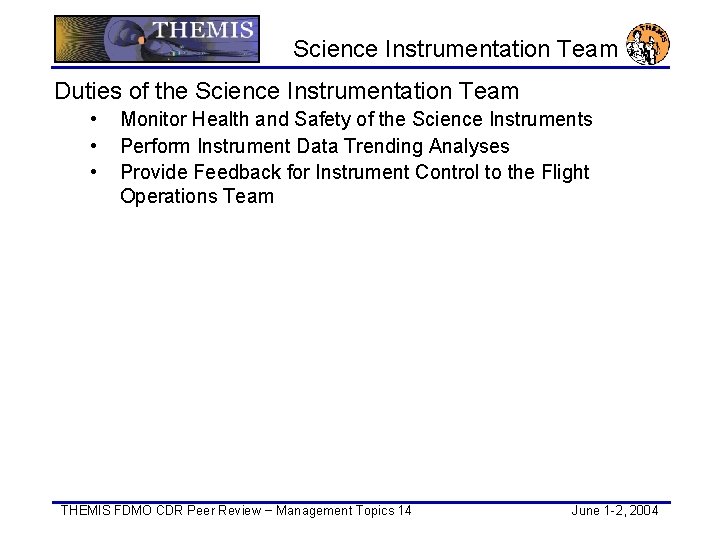

Science Instrumentation Team Duties of the Science Instrumentation Team • • • Monitor Health and Safety of the Science Instruments Perform Instrument Data Trending Analyses Provide Feedback for Instrument Control to the Flight Operations Team THEMIS FDMO CDR Peer Review − Management Topics 14 June 1 -2, 2004
MOC Staffing During Launch & Early Orbit Operations • • • UCB Flight Operations Team 24 Hour Staffing with Prime and Secondary Shifts Critical Commanding During Prime Shift Only Swales and UCB Engineering Team on Console During Prime Shift Instrument Scientists on Console During Instrument Commissioning Additional Support Teams Monitor Probe Status Remotely MOC Staffing During Normal Operations • • THEMIS Follows FAST / RHESSI / CHIPS Model Normal Operations Eventually Run with 8 x 5 Staffing Transition to Autonomous Operations After First Tail Season Orbit and Attitude Maneuvers Always Treated as Special Operations THEMIS FDMO CDR Peer Review − Management Topics 15 June 1 -2, 2004

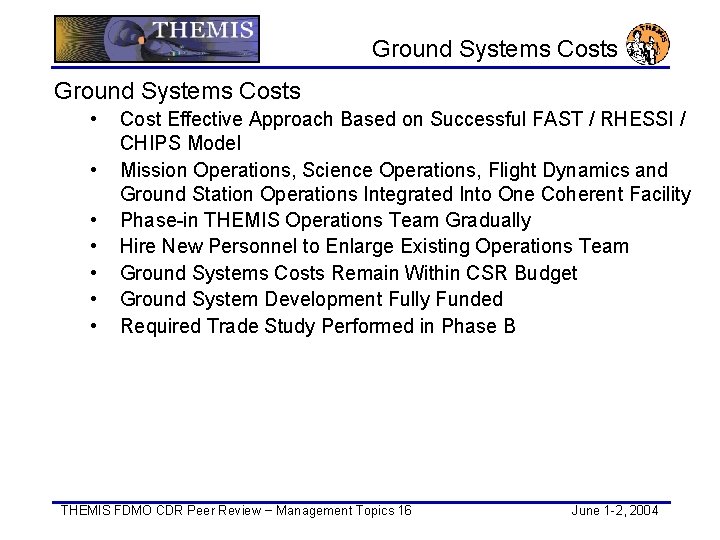

Ground Systems Costs • • Cost Effective Approach Based on Successful FAST / RHESSI / CHIPS Model Mission Operations, Science Operations, Flight Dynamics and Ground Station Operations Integrated Into One Coherent Facility Phase-in THEMIS Operations Team Gradually Hire New Personnel to Enlarge Existing Operations Team Ground Systems Costs Remain Within CSR Budget Ground System Development Fully Funded Required Trade Study Performed in Phase B THEMIS FDMO CDR Peer Review − Management Topics 16 June 1 -2, 2004
Ground Systems Supporting Analyses • • • RF Link Analysis Data Volume Analysis Ground Station and TDRSS Coverage Analysis Maneuver Analysis Tracking Accuracy Analysis Interface Control Documents • • • Probe to Ground Stations to MOC to SOC, FDC to MOC, FDC to SOC Support Agreements with Various Organizations • • • NASA/GSFC GNCD (Code 570) NASA/GSFC MSP (Code 450) Ground Stations (WGS, MILA, AGO, HBK) and Space Network THEMIS FDMO CDR Peer Review − Management Topics 17 June 1 -2, 2004
GSFC/GNCD Support NASA GSFC/GNCD Support • FDAB Support – – – – • Analysis of Orbit Determination Accuracy (M. Beckman) GTDS Software Support (Updates) GMAN Maneuver Planning Support (R. De. Fazio) Support of MSASS/MTASS (R. Harman) Training of UCB Personnel (S. Frey) on GTDS Training of UCB Personnel (TBH) on GMAN Training of UCB Personnel (J. Mc. Donald) on MSASS/MTASS FDMO Peer Reviews (K. Richon) FDF Support – Assignment of BGS Transmit and Receiver Tracker IDs – Verification and Certification of BGS Two-way Doppler Tracking – Orbit Determination Support Following Launch THEMIS FDMO CDR Peer Review − Management Topics 18 June 1 -2, 2004

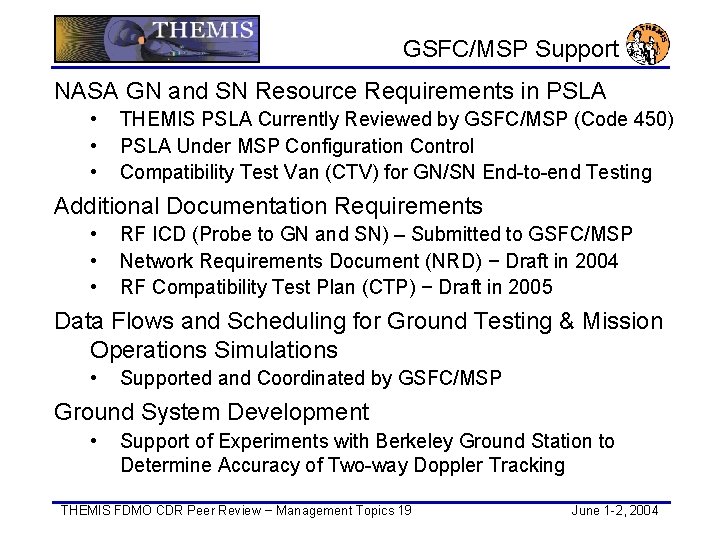

GSFC/MSP Support NASA GN and SN Resource Requirements in PSLA • • • THEMIS PSLA Currently Reviewed by GSFC/MSP (Code 450) PSLA Under MSP Configuration Control Compatibility Test Van (CTV) for GN/SN End-to-end Testing Additional Documentation Requirements • • • RF ICD (Probe to GN and SN) – Submitted to GSFC/MSP Network Requirements Document (NRD) − Draft in 2004 RF Compatibility Test Plan (CTP) − Draft in 2005 Data Flows and Scheduling for Ground Testing & Mission Operations Simulations • Supported and Coordinated by GSFC/MSP Ground System Development • Support of Experiments with Berkeley Ground Station to Determine Accuracy of Two-way Doppler Tracking THEMIS FDMO CDR Peer Review − Management Topics 19 June 1 -2, 2004
AI Solutions Support • • • Supply Free. Flyer Provide Spacecraft Definition Files for THEMIS Probes Provide Software User Training Flight Dynamics Support Maneuver Planning Operations Support THEMIS FDMO CDR Peer Review − Management Topics 20 June 1 -2, 2004

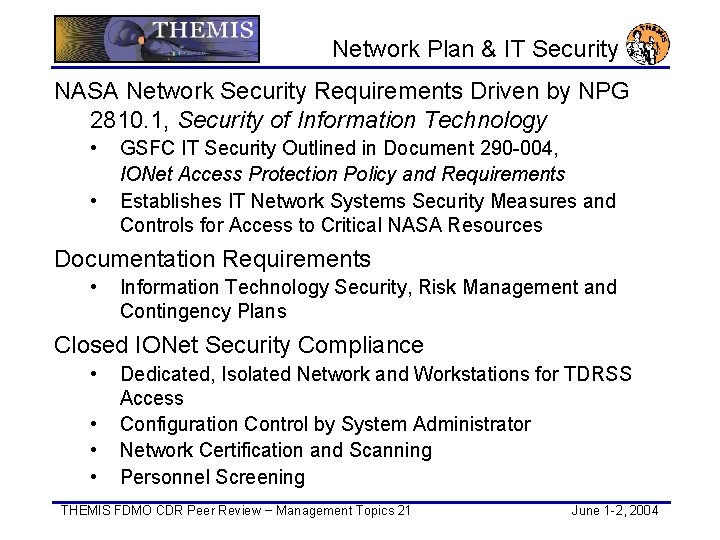

Network Plan & IT Security NASA Network Security Requirements Driven by NPG 2810. 1, Security of Information Technology • • GSFC IT Security Outlined in Document 290 -004, IONet Access Protection Policy and Requirements Establishes IT Network Systems Security Measures and Controls for Access to Critical NASA Resources Documentation Requirements • Information Technology Security, Risk Management and Contingency Plans Closed IONet Security Compliance • • Dedicated, Isolated Network and Workstations for TDRSS Access Configuration Control by System Administrator Network Certification and Scanning Personnel Screening THEMIS FDMO CDR Peer Review − Management Topics 21 June 1 -2, 2004
Risk Management Documents Relevant to Ground Systems Risk Management • • NPG 7120. 5 B, NASA Program and Project Management Processes and Requirements NPG 8000. 4, Risk Management Procedures and Guidelines NPD 8700. 1, NASA Policy for Safety and Mission Success NPG 8715. 3, NASA Safety Manual NPG 2810. 1, Security of Information Technology NPD 8621. 1, Mishap Reporting and Investigating Policy NPG 8621. X (Draft), NASA Procedures and Guidelines for Mishap Reporting, Investigating and Record Keeping SP-6105, NASA Systems Engineering Handbook Risk Management Approach • • Continuous Risk Management (CRM) Identify, Analyze, Plan, Track and Control Risks THEMIS FDMO CDR Peer Review − Management Topics 22 June 1 -2, 2004

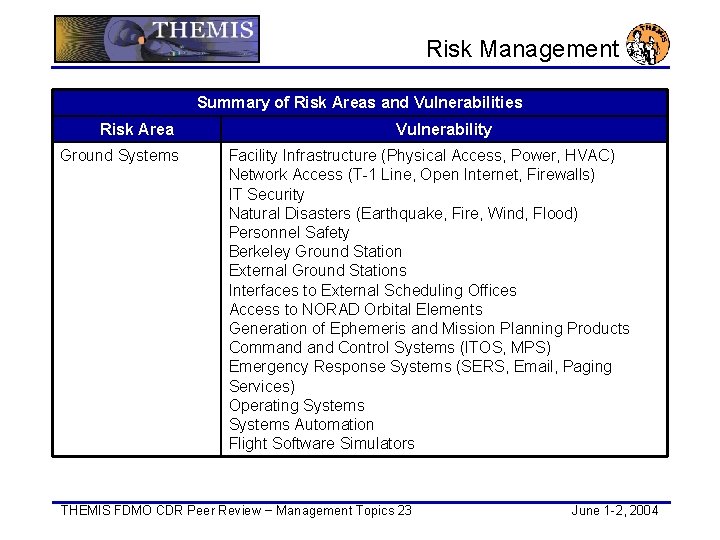

Risk Management Summary of Risk Areas and Vulnerabilities Risk Area Ground Systems Vulnerability Facility Infrastructure (Physical Access, Power, HVAC) Network Access (T-1 Line, Open Internet, Firewalls) IT Security Natural Disasters (Earthquake, Fire, Wind, Flood) Personnel Safety Berkeley Ground Station External Ground Stations Interfaces to External Scheduling Offices Access to NORAD Orbital Elements Generation of Ephemeris and Mission Planning Products Command Control Systems (ITOS, MPS) Emergency Response Systems (SERS, Email, Paging Services) Operating Systems Automation Flight Software Simulators THEMIS FDMO CDR Peer Review − Management Topics 23 June 1 -2, 2004
Risk Management Summary of Risk Areas and Vulnerabilities Risk Area Flight Systems Vulnerability Power Systems Attitude Control Systems Communications Systems Sensors Flight Computers Flight Software Instruments Instrument Computers Solid State Recorders Safe Modes Work-arounds Natural Disasters (Meteorite Hits, Solar Events) On-orbit Accidents (Collisions) THEMIS FDMO CDR Peer Review − Management Topics 24 June 1 -2, 2004
Risk Management Summary of Risk Areas and Vulnerabilities Risk Area Vulnerability Procedures Normal Operations Procedures Contingency Procedures Documentation Normal Operations Procedures Contingency Procedures Personnel and Facility Contact Lists Interface Control Documents Circuit Diagrams Test Reports On-line Manuals Lessons Learned Database Personnel Training and Experience Personnel Turn-over (Preservation of Know-how) Personnel Workload Personnel Management Communications within Team Budget Adequacy of Financial Resources THEMIS FDMO CDR Peer Review − Management Topics 25 June 1 -2, 2004
Risk Analysis • • • Estimate Likelihood (Probability), Consequences (Impact) and Time Frame in Which Action Must Be Taken to Prevent Harm Results of Analysis Stated Quantitatively to Facilitate Assignment of Priorities Calculated by Multiplying Assigned Impact (1 -5) by Assigned Probability (1 -5) with GPMC Assigned Colors Probability 5 5 10 15 20 25 4 4 8 12 16 20 3 3 6 9 12 15 2 2 4 6 8 10 1 1 2 3 4 5 Impact THEMIS FDMO CDR Peer Review − Management Topics 26 June 1 -2, 2004

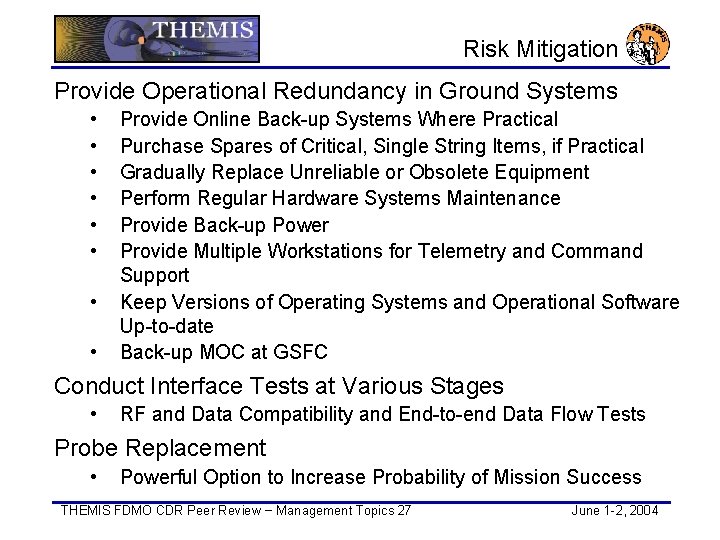

Risk Mitigation Provide Operational Redundancy in Ground Systems • • Provide Online Back-up Systems Where Practical Purchase Spares of Critical, Single String Items, if Practical Gradually Replace Unreliable or Obsolete Equipment Perform Regular Hardware Systems Maintenance Provide Back-up Power Provide Multiple Workstations for Telemetry and Command Support Keep Versions of Operating Systems and Operational Software Up-to-date Back-up MOC at GSFC Conduct Interface Tests at Various Stages • RF and Data Compatibility and End-to-end Data Flow Tests Probe Replacement • Powerful Option to Increase Probability of Mission Success THEMIS FDMO CDR Peer Review − Management Topics 27 June 1 -2, 2004

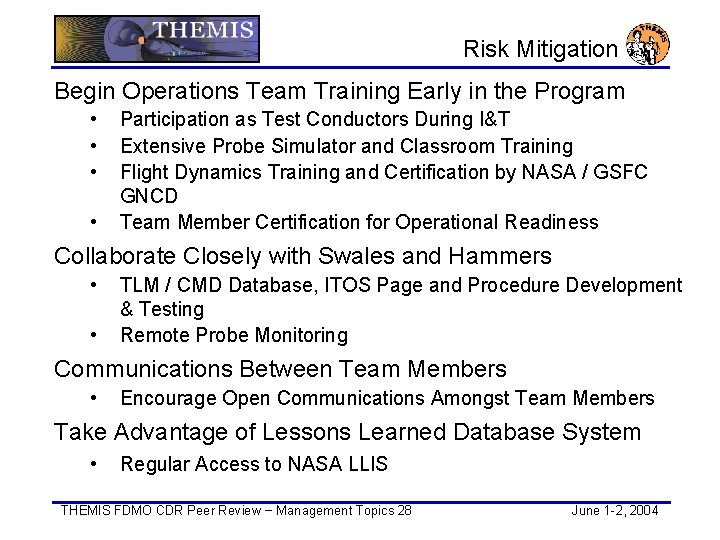

Risk Mitigation Begin Operations Team Training Early in the Program • • Participation as Test Conductors During I&T Extensive Probe Simulator and Classroom Training Flight Dynamics Training and Certification by NASA / GSFC GNCD Team Member Certification for Operational Readiness Collaborate Closely with Swales and Hammers • • TLM / CMD Database, ITOS Page and Procedure Development & Testing Remote Probe Monitoring Communications Between Team Members • Encourage Open Communications Amongst Team Members Take Advantage of Lessons Learned Database System • Regular Access to NASA LLIS THEMIS FDMO CDR Peer Review − Management Topics 28 June 1 -2, 2004

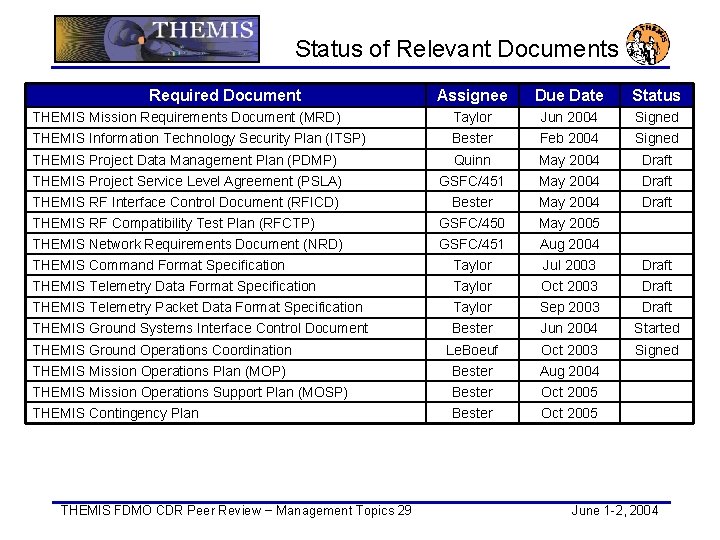

Status of Relevant Documents Required Document Assignee Due Date Status THEMIS Mission Requirements Document (MRD) Taylor Jun 2004 Signed THEMIS Information Technology Security Plan (ITSP) Bester Feb 2004 Signed THEMIS Project Data Management Plan (PDMP) Quinn May 2004 Draft THEMIS Project Service Level Agreement (PSLA) GSFC/451 May 2004 Draft THEMIS RF Interface Control Document (RFICD) Bester May 2004 Draft THEMIS RF Compatibility Test Plan (RFCTP) GSFC/450 May 2005 THEMIS Network Requirements Document (NRD) GSFC/451 Aug 2004 THEMIS Command Format Specification Taylor Jul 2003 Draft THEMIS Telemetry Data Format Specification Taylor Oct 2003 Draft THEMIS Telemetry Packet Data Format Specification Taylor Sep 2003 Draft THEMIS Ground Systems Interface Control Document Bester Jun 2004 Started THEMIS Ground Operations Coordination Le. Boeuf Oct 2003 Signed THEMIS Mission Operations Plan (MOP) Bester Aug 2004 THEMIS Mission Operations Support Plan (MOSP) Bester Oct 2005 THEMIS Contingency Plan Bester Oct 2005 THEMIS FDMO CDR Peer Review − Management Topics 29 June 1 -2, 2004
FDMO PDR Peer Review RFAs RFA Title Rationale Reviewer Response Status FDMO-1 Investigate monthly lunar Lunar perturbations can Richon perturbation effects to determine be used to reduce fuel optimal time during month to launch. required if judicious selection of launch date is made. However, lunar perturbations can also increase fuel required by decreasing orbit energy & negatively impacting orbit inclination. The THEMIS team has already CLOSED built tools which allowed investigation of lunar perturbations on orbits P 1, P 2 and P 3 as well as on the LV insertion orbit in order to minimize potential for re-entry on the science orbits, and to maximize the potential for re-entry within 10 years for the LV to adhere to orbital debris requirements. Lunar effects due to different launch dates on the P 3, P 4 and P 5 orbits were found to be very small. FDMO-2 Decide on one pre-injection nomenclature for each probe. Should not be names associated with integers 1 -5 since the probes will be numbered Probe 1, Probe 2, etc. post-launch according to their final orbit positions (similar to TDRSS). Richon The team agreed that the pre. CLOSED launch assignment of probe names shall be THEMIS A-E. These names are uniquely related to the CCSDS telemetry and command IDs for each probe bus. Probe constellation IDs P 1 -P 5 are assigned post-launch, once the probes and their instruments have been checked out and the probe placement decision has been made. FDMO-3 Resolve time tag issue. Harman The THEMIS attitude sensor read- CLOSED out timing and attitude determination system is closely modeled after the FAST system which has been operational on orbit for 7. 5 years. Currently probes are designated as “Themis 1, Themis-2, …”, “red, green…”, and “A, BC…”. Multiple names for same probe causes confusion & misidentification of specific probes. THEMIS FDMO CDR Peer Review − Management Topics 30 June 1 -2, 2004
FDMO PDR Peer Review RFAs RFA Title Rationale Reviewer Response Status FDMO-4 Get initial 3 rd-stage separation states Needed for orbit Richon (attitude & orbit) for each probe from injection analysis. If Boeing. Delta PMA is being done, these states should be available soon. UCB received the nominal launch trajectory ephemeris from KSC. These data are used to perform subsequent studies such as communications coverage and probe re-contact analyses. FDMO-5 GMAN modeling issues: define each ‘maneuver mode’ including type of maneuver, which thrusters used, pulsed/continuous, etc. Then determine if GMAN can model maneuver correctly. Richon All anticipated orbit and attitude CLOSED maneuvers have been summarized analyzed. Bob De. Fazio verified that all planned maneuvers can be modeled with GMAN. FDMO-6 Determine ground station contact tracking requirements such as pass frequency & duration, number of stations, for maneuver planning & recovery versus regular OD, etc. Richon Mark Beckman performed an OD CLOSED covariance analysis showing the number of passes and arc lengths required to meet THEMIS OD 3 -σ position requirements of 100 km near apogee and 10 km near perigee. In case of the P 1 orbit, the required position accuracy can be achieved with 4 BGS passes taken over a 5. 5 -day arc. Some of the orbit fine tuning maneuvers require a delta V of 30 -50 cm/s. An adequate pre-maneuver orbit solution can be obtained by collecting two-way Doppler data from three different ground stations, e. g. Berkeley, Wallops Island Santiago. Further analyses are under way. Several questions regarding whether GMAN can be used to model finite maneuvers in all maneuver configurations. THEMIS FDMO CDR Peer Review − Management Topics 31 CLOSED June 1 -2, 2004

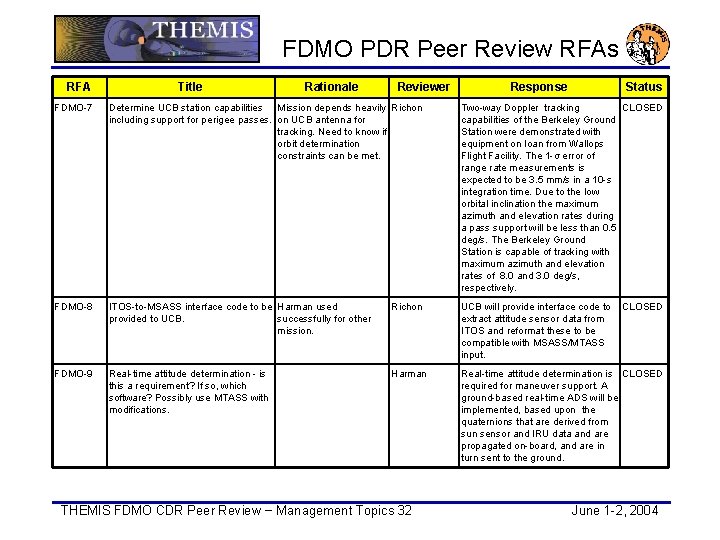

FDMO PDR Peer Review RFAs RFA Title Rationale Reviewer Response Status FDMO-7 Determine UCB station capabilities Mission depends heavily Richon including support for perigee passes. on UCB antenna for tracking. Need to know if orbit determination constraints can be met. Two-way Doppler tracking CLOSED capabilities of the Berkeley Ground Station were demonstrated with equipment on loan from Wallops Flight Facility. The 1 -σ error of range rate measurements is expected to be 3. 5 mm/s in a 10 -s integration time. Due to the low orbital inclination the maximum azimuth and elevation rates during a pass support will be less than 0. 5 deg/s. The Berkeley Ground Station is capable of tracking with maximum azimuth and elevation rates of 8. 0 and 3. 0 deg/s, respectively. FDMO-8 ITOS-to-MSASS interface code to be Harman used provided to UCB. successfully for other mission. Richon UCB will provide interface code to extract attitude sensor data from ITOS and reformat these to be compatible with MSASS/MTASS input. FDMO-9 Real-time attitude determination - is this a requirement? If so, which software? Possibly use MTASS with modifications. Harman Real-time attitude determination is CLOSED required for maneuver support. A ground-based real-time ADS will be implemented, based upon the quaternions that are derived from sun sensor and IRU data and are propagated on-board, and are in turn sent to the ground. THEMIS FDMO CDR Peer Review − Management Topics 32 CLOSED June 1 -2, 2004

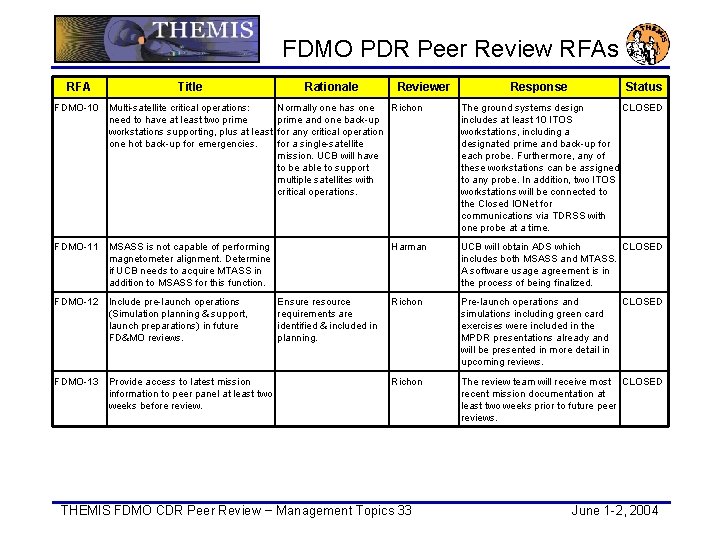

FDMO PDR Peer Review RFAs RFA Title FDMO-10 Multi-satellite critical operations: need to have at least two prime workstations supporting, plus at least one hot back-up for emergencies. FDMO-11 MSASS is not capable of performing magnetometer alignment. Determine if UCB needs to acquire MTASS in addition to MSASS for this function. FDMO-12 Include pre-launch operations (Simulation planning & support, launch preparations) in future FD&MO reviews. FDMO-13 Provide access to latest mission information to peer panel at least two weeks before review. Rationale Reviewer Normally one has one Richon prime and one back-up for any critical operation for a single-satellite mission. UCB will have to be able to support multiple satellites with critical operations. Ensure resource requirements are identified & included in planning. Response Status The ground systems design CLOSED includes at least 10 ITOS workstations, including a designated prime and back-up for each probe. Furthermore, any of these workstations can be assigned to any probe. In addition, two ITOS workstations will be connected to the Closed IONet for communications via TDRSS with one probe at a time. Harman UCB will obtain ADS which CLOSED includes both MSASS and MTASS. A software usage agreement is in the process of being finalized. Richon Pre-launch operations and simulations including green card exercises were included in the MPDR presentations already and will be presented in more detail in upcoming reviews. Richon The review team will receive most CLOSED recent mission documentation at least two weeks prior to future peer reviews. THEMIS FDMO CDR Peer Review − Management Topics 33 CLOSED June 1 -2, 2004

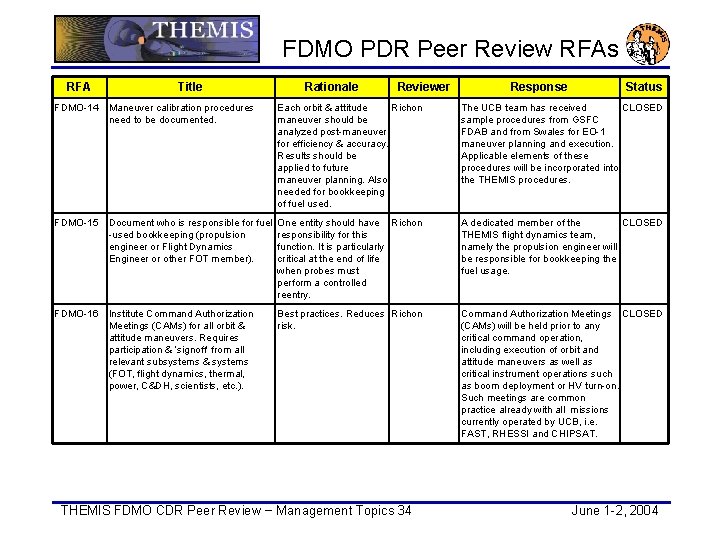

FDMO PDR Peer Review RFAs RFA Title Rationale Reviewer Response Status FDMO-14 Maneuver calibration procedures need to be documented. Each orbit & attitude Richon maneuver should be analyzed post-maneuver for efficiency & accuracy. Results should be applied to future maneuver planning. Also needed for bookkeeping of fuel used. The UCB team has received CLOSED sample procedures from GSFC FDAB and from Swales for EO-1 maneuver planning and execution. Applicable elements of these procedures will be incorporated into the THEMIS procedures. FDMO-15 Document who is responsible for fuel -used bookkeeping (propulsion engineer or Flight Dynamics Engineer or other FOT member). One entity should have Richon responsibility for this function. It is particularly critical at the end of life when probes must perform a controlled reentry. A dedicated member of the CLOSED THEMIS flight dynamics team, namely the propulsion engineer will be responsible for bookkeeping the fuel usage. FDMO-16 Institute Command Authorization Meetings (CAMs) for all orbit & attitude maneuvers. Requires participation & ‘signoff’ from all relevant subsystems & systems (FOT, flight dynamics, thermal, power, C&DH, scientists, etc. ). Best practices. Reduces Richon risk. Command Authorization Meetings CLOSED (CAMs) will be held prior to any critical command operation, including execution of orbit and attitude maneuvers as well as critical instrument operations such as boom deployment or HV turn-on. Such meetings are common practice already with all missions currently operated by UCB, i. e. FAST, RHESSI and CHIPSAT. THEMIS FDMO CDR Peer Review − Management Topics 34 June 1 -2, 2004
FDMO PDR Peer Review RFAs RFA Title Rationale Reviewer Response Status FDMO-17 Provide MAP Anomalous Forces technical paper to UCB. Outgassing of Richon instruments & other hardware may introduce anomalous forces creating torques on probes). FDMO-18 Provide JON/WBS to Code 595 for THEMIS support. Code 595 flight Angelopoulos GNCD has received a JON for CLOSED dynamics engineers & Richon support of THEMIS flight dynamics cannot support THEMIS support. without charge number. THEMIS FDMO CDR Peer Review − Management Topics 35 UCB received a copy of the MAP anomalous force paper. CLOSED June 1 -2, 2004
