Management for the private cloud HyperV Platform for
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-1.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-2.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-3.jpg)
![Management for the private cloud Hyper-V Platform for the private cloud Infrastructure for the Management for the private cloud Hyper-V Platform for the private cloud Infrastructure for the](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-4.jpg)
![Deployment SCVMM Templates Easy to move from test to production deployments VM Mobility Host Deployment SCVMM Templates Easy to move from test to production deployments VM Mobility Host](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-5.jpg)
![Host Cluster OS Health Detection � VM Mobility � App Health in VM App Host Cluster OS Health Detection � VM Mobility � App Health in VM App](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-6.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-7.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-8.jpg)
![What can you monitor? Services Events Any NT Service For instance: SQL, IIS, Print What can you monitor? Services Events Any NT Service For instance: SQL, IIS, Print](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-9.jpg)
![Host Recovery Configuration Host Recovery Configuration](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-10.jpg)
![SAN SAN](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-11.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-12.jpg)
![Power. Shell: Add-Cluster. VMMonitored. Item –vm <machine Name> –service spooler http: //blogs. msdn. com/b/clustering/archive/2012/04/18/10295158. Power. Shell: Add-Cluster. VMMonitored. Item –vm <machine Name> –service spooler http: //blogs. msdn. com/b/clustering/archive/2012/04/18/10295158.](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-13.jpg)
![Add Get Remove Reset Add Get Remove Reset](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-14.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-15.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-16.jpg)
![Cluster i. SCSI Cluster i. SCSI](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-17.jpg)
![Host Clustering • VM’s move from server to server • Zero downtime to move Host Clustering • VM’s move from server to server • Zero downtime to move](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-18.jpg)
![Fault Host Cluster Guest Cluster Host hardware failure P P Parent partition failure P Fault Host Cluster Guest Cluster Host hardware failure P P Parent partition failure P](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-19.jpg)
![Storage Fiber Channel (FC) Host Cluster P Guest Cluster P (WS 2012) P Serial Storage Fiber Channel (FC) Host Cluster P Guest Cluster P (WS 2012) P Serial](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-20.jpg)
![• Where to configure: • Effect: Parameter Fast Failover Relaxed Maximum Same. Subnet. • Where to configure: • Effect: Parameter Fast Failover Relaxed Maximum Same. Subnet.](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-21.jpg)
![• Where to configure: • Effect: Power. Shell: (Get-Cluster. Group *vm*). Anti. Affinity. • Where to configure: • Effect: Power. Shell: (Get-Cluster. Group *vm*). Anti. Affinity.](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-22.jpg)
![i. SCSI i. SCSI](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-23.jpg)
![Microsoft Cluster Service (MSCS) support on ESX v. Sphere 4. 0 v. Sphere 4. Microsoft Cluster Service (MSCS) support on ESX v. Sphere 4. 0 v. Sphere 4.](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-24.jpg)
![Host Cluster OS Health in VM � VM Mobility � App Health in VM Host Cluster OS Health in VM � VM Mobility � App Health in VM](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-25.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-26.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-27.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-28.jpg)
![Simply share virtual disks to provide shared storage for Guest Clustering New in Windows Simply share virtual disks to provide shared storage for Guest Clustering New in Windows](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-29.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-30.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-31.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-32.jpg)

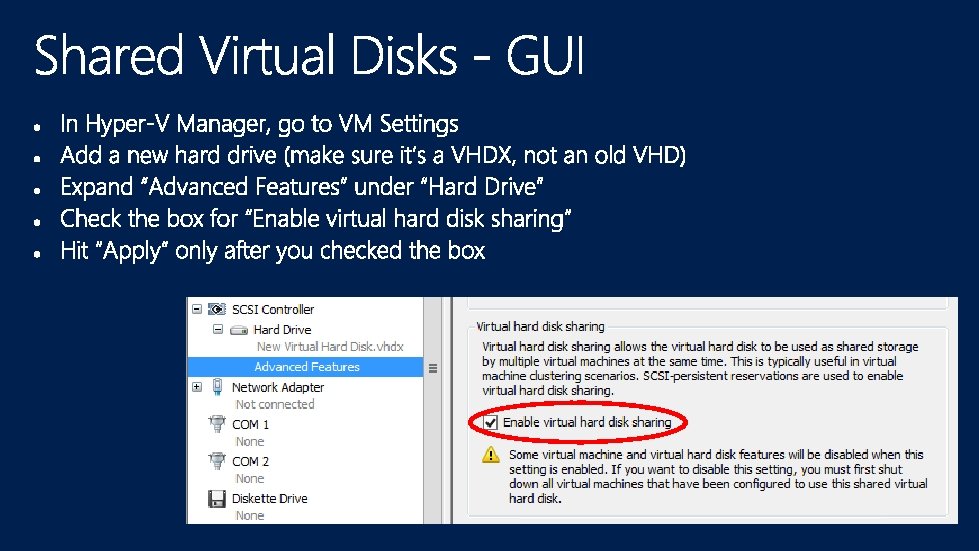

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-33.jpg)
![1 2 Share. Virtual. Disk Support. Persistent. Reservations 1 2 Share. Virtual. Disk Support. Persistent. Reservations](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-34.jpg)

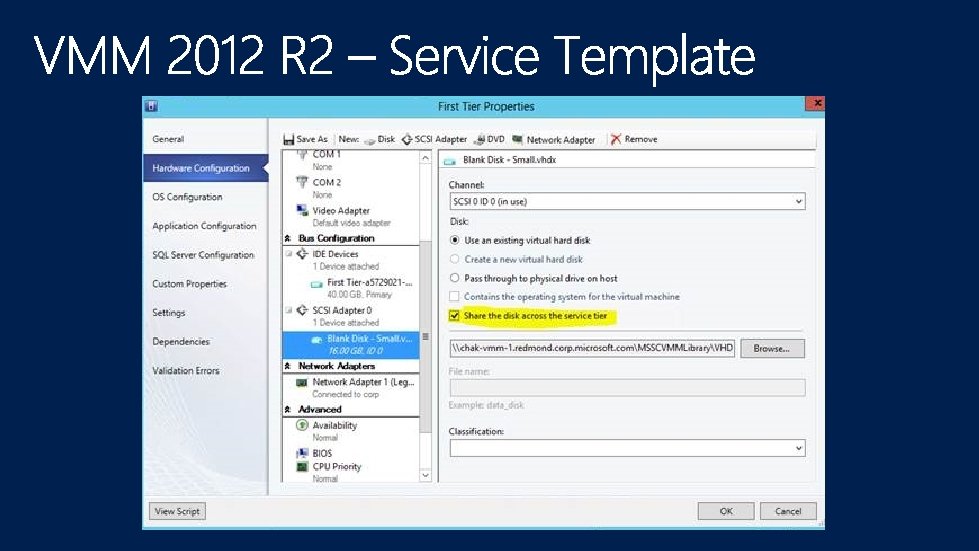

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-35.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-36.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-37.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-38.jpg)

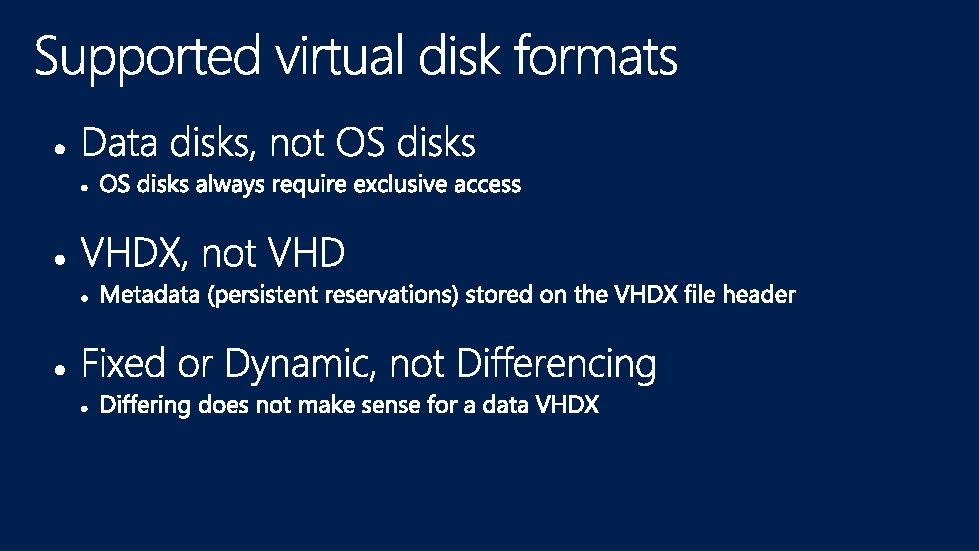

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-39.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-40.jpg)

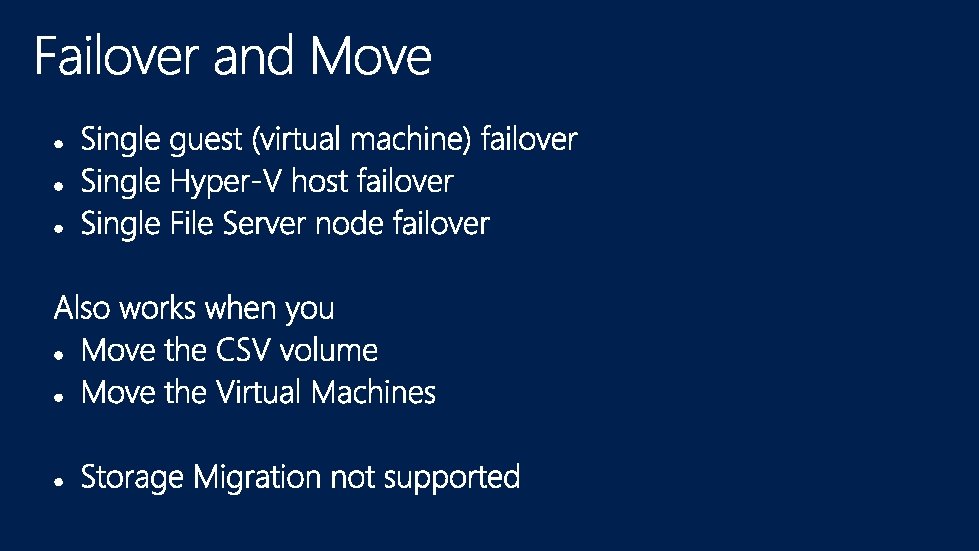

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-41.jpg)
![Capability Shared VHDX Virtual FC i. SCSI to the Guest Storage Spaces, SAS, FC, Capability Shared VHDX Virtual FC i. SCSI to the Guest Storage Spaces, SAS, FC,](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-42.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-43.jpg)

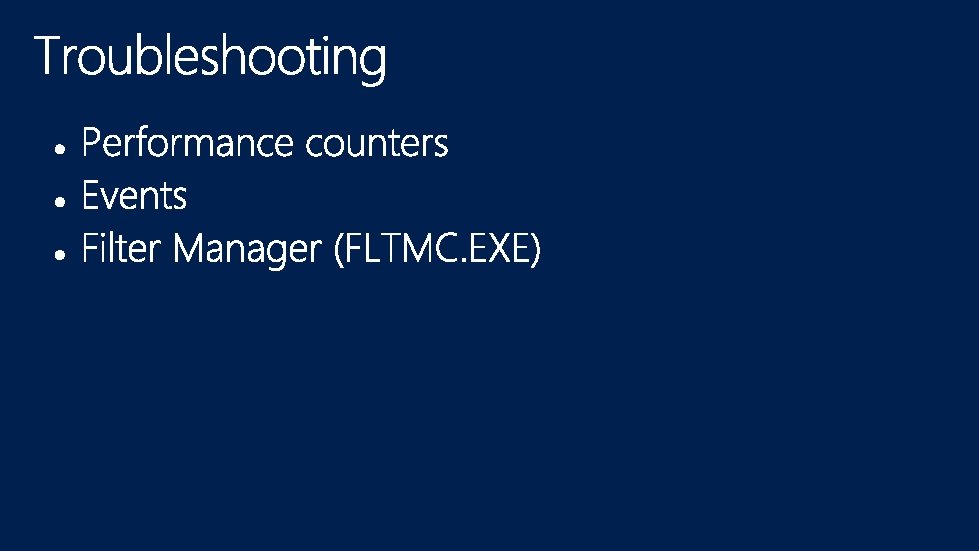

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-44.jpg)

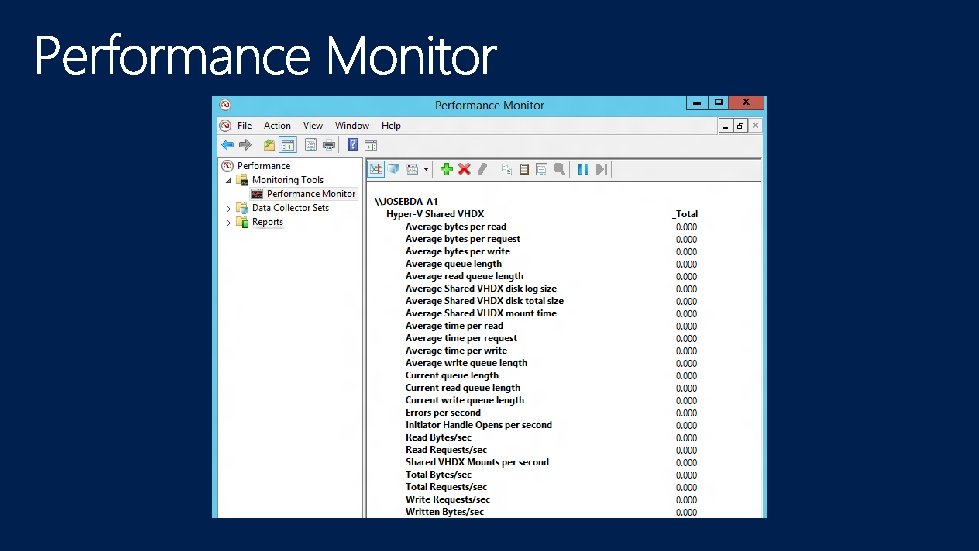

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-45.jpg)
![Get-Win. Event -Log. Name Microsoft-Windows-Hyper-V-Shared-VHDX/Operational Get-Win. Event -Log. Name Microsoft-Windows-Hyper-V-Shared-VHDX/Reservation Get-Win. Event -Log. Name Microsoft-Windows-Hyper-V-Shared-VHDX/Operational Get-Win. Event -Log. Name Microsoft-Windows-Hyper-V-Shared-VHDX/Reservation](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-46.jpg)

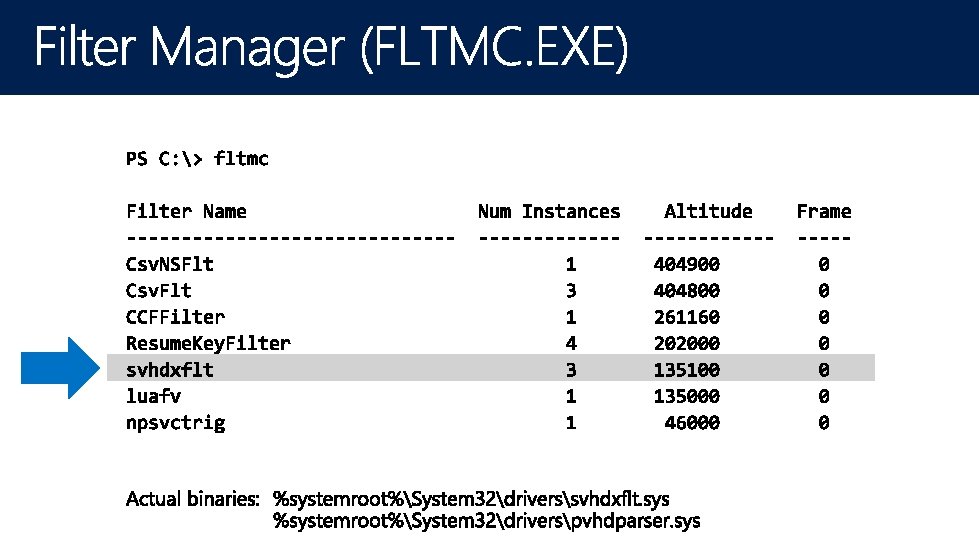

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-47.jpg)
![! Not a supported scenario Not really highly available ! Not a supported scenario Not really highly available](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-48.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-49.jpg)
![http: //blogs. msdn. com/b/clustering/archive/2012/04/18/10295158. aspx http: //blogs. msdn. com/b/clustering/archive/2012/10/30/10364265. aspx http: //blogs. technet. com/b/josebda http: //blogs. msdn. com/b/clustering/archive/2012/04/18/10295158. aspx http: //blogs. msdn. com/b/clustering/archive/2012/10/30/10364265. aspx http: //blogs. technet. com/b/josebda](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-50.jpg)
![http: //aka. ms/WS 2012 R 2 http: //aka. ms/SC 2012 R 2 http: //aka. ms/WS 2012 R 2 http: //aka. ms/SC 2012 R 2](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-51.jpg)
![http: //channel 9. msdn. com/Events/Tech. Ed www. microsoft. com/learning http: //microsoft. com/technet http: //microsoft. http: //channel 9. msdn. com/Events/Tech. Ed www. microsoft. com/learning http: //microsoft. com/technet http: //microsoft.](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-52.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-53.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-54.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-55.jpg)
![Hyper-V Cluster Shared VHDX Parser Boot VM 1 Hyper-V Host 1 Shared Data Physical Hyper-V Cluster Shared VHDX Parser Boot VM 1 Hyper-V Host 1 Shared Data Physical](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-56.jpg)
![Hyper-V Cluster Shared VHDX Parser Boot VM 1 Hyper-V Host 1 Shared Data SMB Hyper-V Cluster Shared VHDX Parser Boot VM 1 Hyper-V Host 1 Shared Data SMB](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-57.jpg)

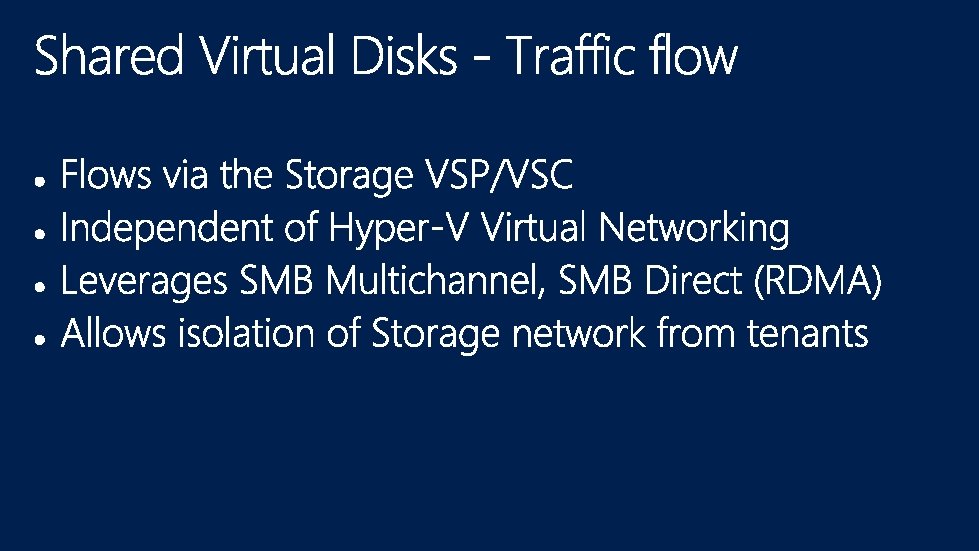

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-58.jpg)
![Hyper-V Cluster v. NIC Boot VM 1 Hyper-V Host 1 Shared Data i. SCSI Hyper-V Cluster v. NIC Boot VM 1 Hyper-V Host 1 Shared Data i. SCSI](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-59.jpg)
![Hyper-V Cluster v. NIC Boot VM 1 Shared Data VM Switch Physical NIC SMB Hyper-V Cluster v. NIC Boot VM 1 Shared Data VM Switch Physical NIC SMB](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-60.jpg)

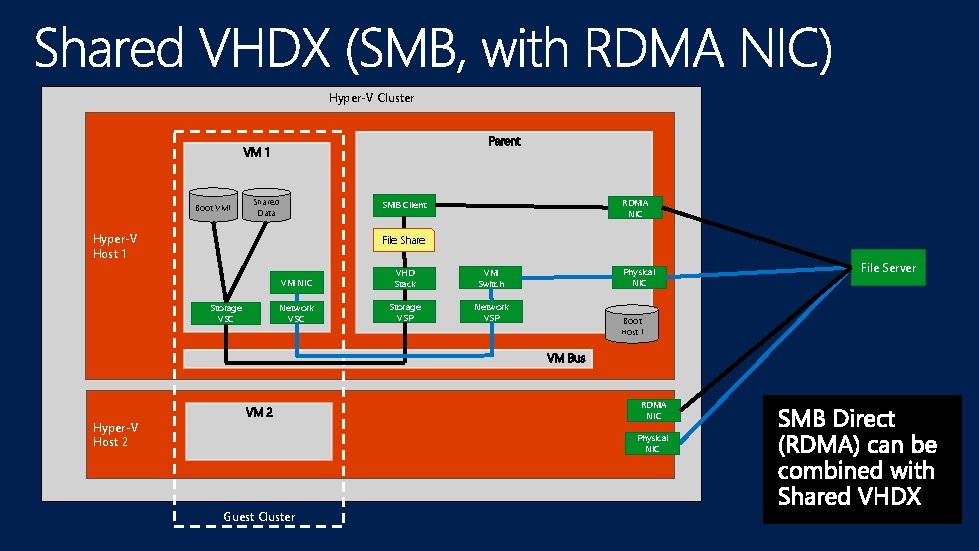

![Hyper-V Cluster Boot VM 1 Shared Data RDMA NIC SMB Client Hyper-V Host 1 Hyper-V Cluster Boot VM 1 Shared Data RDMA NIC SMB Client Hyper-V Host 1](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-61.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-62.jpg)
![Hyper-V Heart Beat Hyper-V VMBus VM Parent Partition Virtual Machine Management Service COM Heart Hyper-V Heart Beat Hyper-V VMBus VM Parent Partition Virtual Machine Management Service COM Heart](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-63.jpg)
![Cluster Recovery Hyper-V VMBus Parent Partition ! Virtual Machine Management Service COM Heart Beat Cluster Recovery Hyper-V VMBus Parent Partition ! Virtual Machine Management Service COM Heart Beat](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-64.jpg)
![Application Monitor Hyper-V VMBus VM Application Monitor COM Heart Beat Service Parent Partition Virtual Application Monitor Hyper-V VMBus VM Application Monitor COM Heart Beat Service Parent Partition Virtual](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-65.jpg)
![Enabling Host Side Recovery VM Application Monitor COM Heart Beat Service Hyper-V VMBus Parent Enabling Host Side Recovery VM Application Monitor COM Heart Beat Service Hyper-V VMBus Parent](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-66.jpg)
- Slides: 66
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-1.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-2.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-3.jpg)
![Management for the private cloud HyperV Platform for the private cloud Infrastructure for the Management for the private cloud Hyper-V Platform for the private cloud Infrastructure for the](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-4.jpg)
Management for the private cloud Hyper-V Platform for the private cloud Infrastructure for the private cloud
![Deployment SCVMM Templates Easy to move from test to production deployments VM Mobility Host Deployment SCVMM Templates Easy to move from test to production deployments VM Mobility Host](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-5.jpg)
Deployment SCVMM Templates Easy to move from test to production deployments VM Mobility Host Patching Resource Optimization Disaster Recovery Data Protection Manager Hyper-V Replica 3 rd Party Replication Availability Host based failure detection and recovery. VM based failure detection and recovery.
![Host Cluster OS Health Detection VM Mobility App Health in VM App Host Cluster OS Health Detection � VM Mobility � App Health in VM App](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-6.jpg)
Host Cluster OS Health Detection � VM Mobility � App Health in VM App Mobility in VM Cluster service is unable to take remedial action
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-7.jpg)

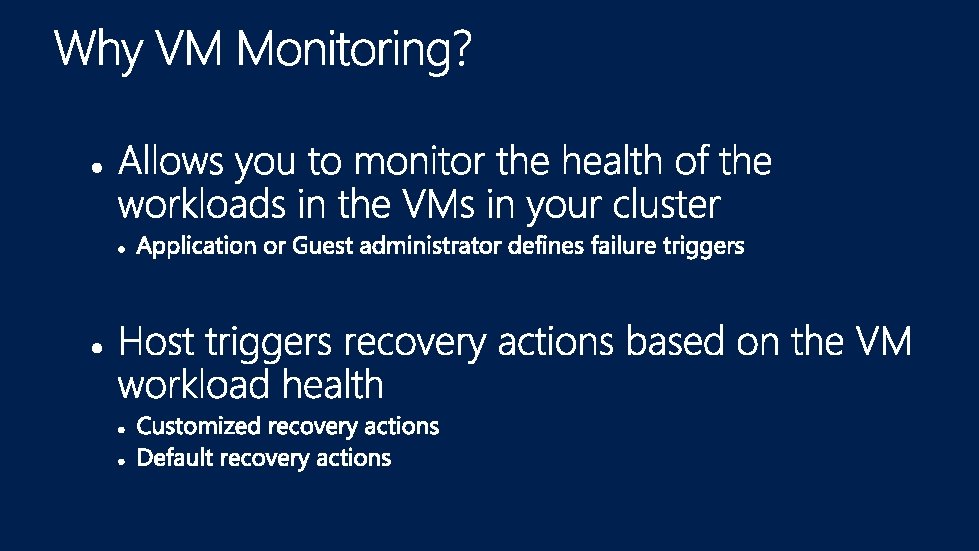

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-8.jpg)
![What can you monitor Services Events Any NT Service For instance SQL IIS Print What can you monitor? Services Events Any NT Service For instance: SQL, IIS, Print](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-9.jpg)
What can you monitor? Services Events Any NT Service For instance: SQL, IIS, Print Spooler System, Application, Security Logs Customized applications using ETW logging
![Host Recovery Configuration Host Recovery Configuration](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-10.jpg)
Host Recovery Configuration
![SAN SAN](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-11.jpg)
SAN

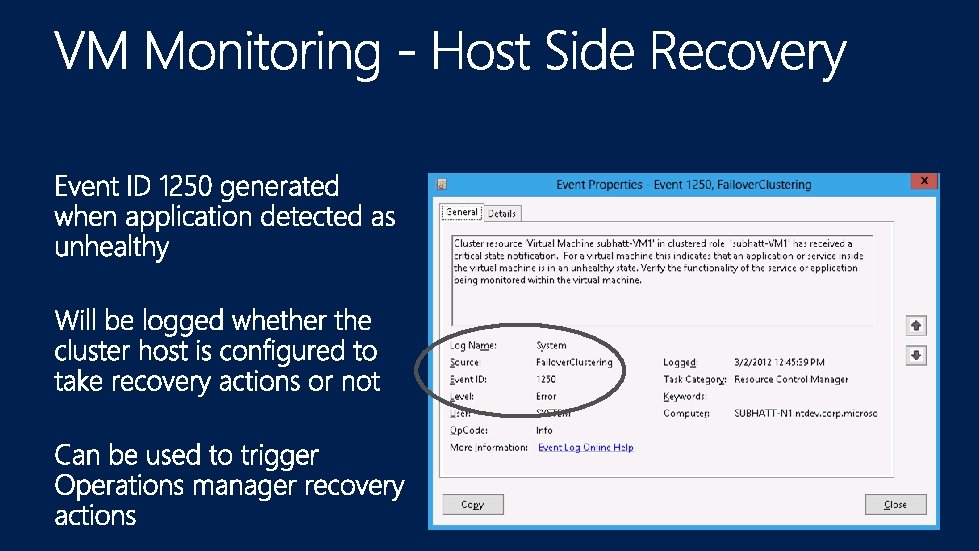

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-12.jpg)
![Power Shell AddCluster VMMonitored Item vm machine Name service spooler http blogs msdn combclusteringarchive2012041810295158 Power. Shell: Add-Cluster. VMMonitored. Item –vm <machine Name> –service spooler http: //blogs. msdn. com/b/clustering/archive/2012/04/18/10295158.](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-13.jpg)
Power. Shell: Add-Cluster. VMMonitored. Item –vm <machine Name> –service spooler http: //blogs. msdn. com/b/clustering/archive/2012/04/18/10295158. aspx
![Add Get Remove Reset Add Get Remove Reset](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-14.jpg)
Add Get Remove Reset

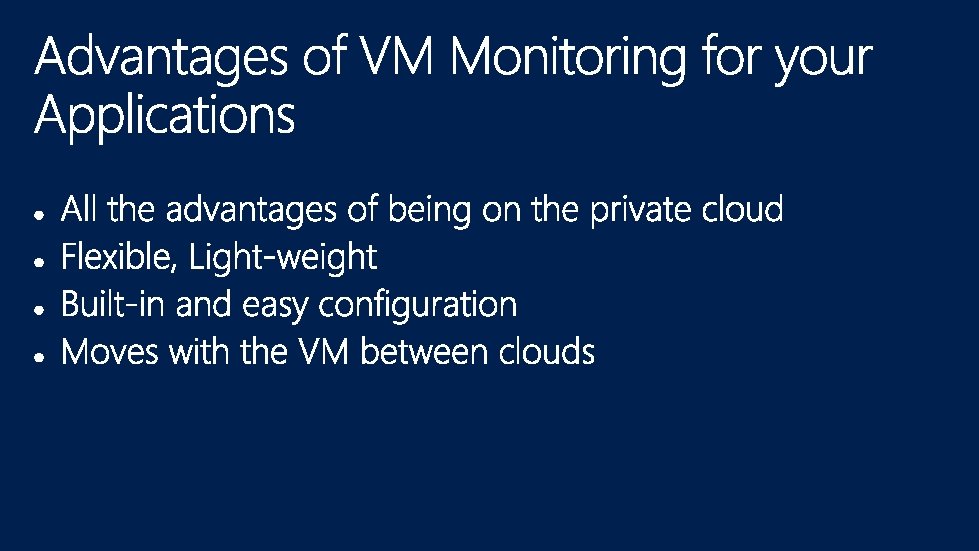

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-15.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-16.jpg)
![Cluster i SCSI Cluster i. SCSI](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-17.jpg)
Cluster i. SCSI
![Host Clustering VMs move from server to server Zero downtime to move Host Clustering • VM’s move from server to server • Zero downtime to move](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-18.jpg)
Host Clustering • VM’s move from server to server • Zero downtime to move a VM • Works with any application or guest OS Guest Clustering • • Apps move from VM to VM Downtime when moving applications Requires “cluster aware” applications running on Windows Server Requires double the resources – 2 VM’s for single workload
![Fault Host Cluster Guest Cluster Host hardware failure P P Parent partition failure P Fault Host Cluster Guest Cluster Host hardware failure P P Parent partition failure P](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-19.jpg)
Fault Host Cluster Guest Cluster Host hardware failure P P Parent partition failure P P P P VM failure Guest OS failure Application Failure

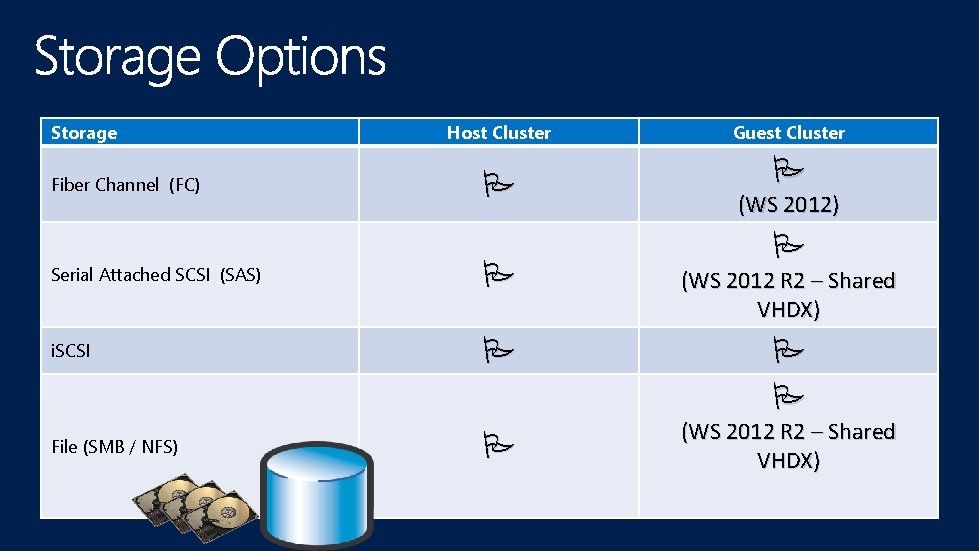

![Storage Fiber Channel FC Host Cluster P Guest Cluster P WS 2012 P Serial Storage Fiber Channel (FC) Host Cluster P Guest Cluster P (WS 2012) P Serial](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-20.jpg)
Storage Fiber Channel (FC) Host Cluster P Guest Cluster P (WS 2012) P Serial Attached SCSI (SAS) P (WS 2012 R 2 – Shared VHDX) i. SCSI P P P File (SMB / NFS) P (WS 2012 R 2 – Shared VHDX)
![Where to configure Effect Parameter Fast Failover Relaxed Maximum Same Subnet • Where to configure: • Effect: Parameter Fast Failover Relaxed Maximum Same. Subnet.](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-21.jpg)
• Where to configure: • Effect: Parameter Fast Failover Relaxed Maximum Same. Subnet. Delay 1 second 2 seconds Same. Subnet. Threshold 5 heartbeats 10 heartbeats 120 heartbeats Power. Shell: (get-cluster). Same. Subnet. Threshold = 10
![Where to configure Effect Power Shell GetCluster Group vm Anti Affinity • Where to configure: • Effect: Power. Shell: (Get-Cluster. Group *vm*). Anti. Affinity.](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-22.jpg)
• Where to configure: • Effect: Power. Shell: (Get-Cluster. Group *vm*). Anti. Affinity. Class. Names = “Guest. Cluster”
![i SCSI i. SCSI](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-23.jpg)
i. SCSI
![Microsoft Cluster Service MSCS support on ESX v Sphere 4 0 v Sphere 4 Microsoft Cluster Service (MSCS) support on ESX v. Sphere 4. 0 v. Sphere 4.](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-24.jpg)
Microsoft Cluster Service (MSCS) support on ESX v. Sphere 4. 0 v. Sphere 4. 1 or later Windows NT Server 4. 0 ESX 3. 5 or earlier No No No Windows 2000 Server No No No Windows Server 2003 No No Windows Server 2008 No Yes (limited hardware configurations) Yes (restricted configurations) Windows Server 2008 R 2 Windows Server 2012 No Yes (restricted configurations) No Not SVVP certified Support Statement Yes (restricted configurations)
![Host Cluster OS Health in VM VM Mobility App Health in VM Host Cluster OS Health in VM � VM Mobility � App Health in VM](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-25.jpg)
Host Cluster OS Health in VM � VM Mobility � App Health in VM App Mobility in VM VM Monitoring � Guest Cluster � � �
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-26.jpg)
![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-27.jpg)

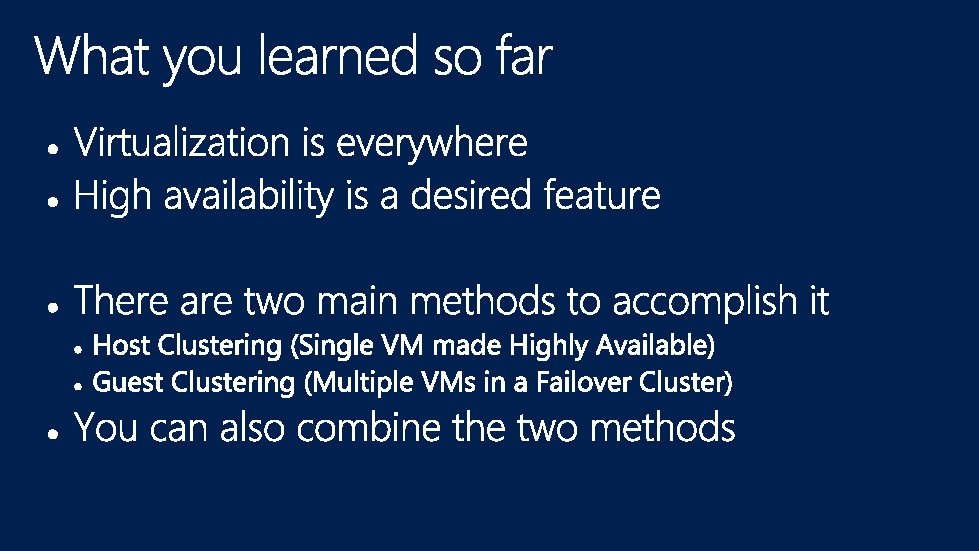

![](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-28.jpg)

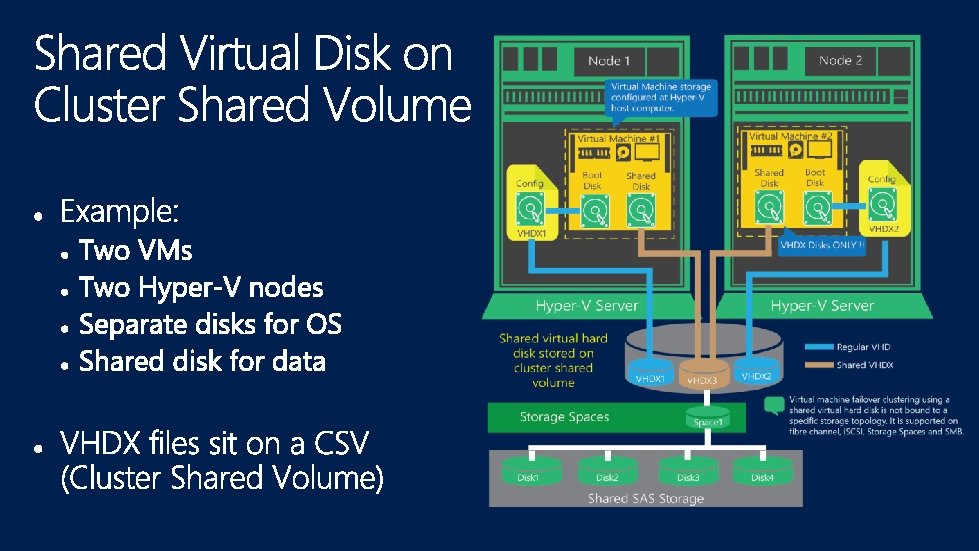

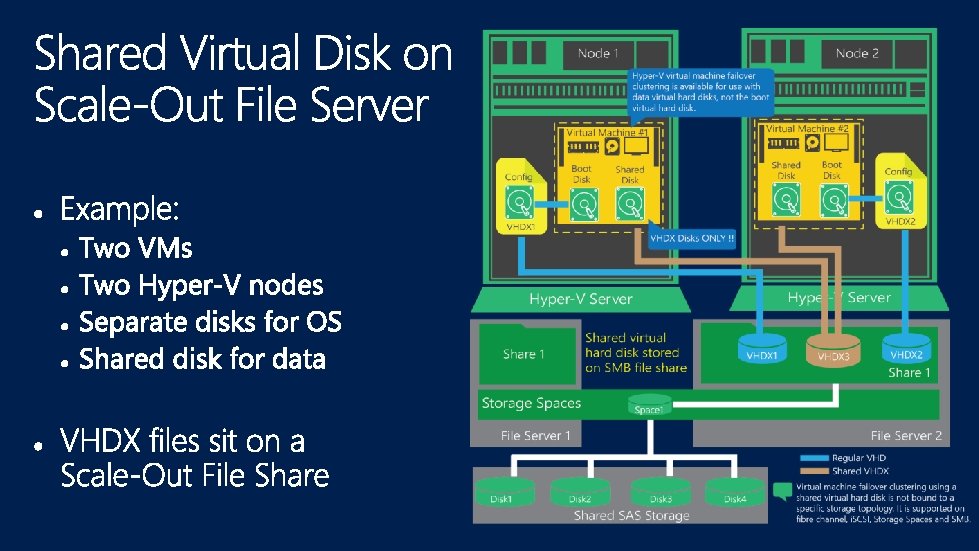

![Simply share virtual disks to provide shared storage for Guest Clustering New in Windows Simply share virtual disks to provide shared storage for Guest Clustering New in Windows](https://slidetodoc.com/presentation_image_h/bc888b34a41faffacc22eca10c552312/image-29.jpg)
