Malware Reverse Engineering Man In The Browser (MITB) Jeet Morparia Software Engineer, Malware Analysis and Response Malware Reverse Engineering 1

Agenda 1 Today’s malware landscape 2 Reverse engineering a malware 3 Man In The Browser Malware Reverse Engineering 2

Today’s malware landscape Malware Reverse Engineering 3

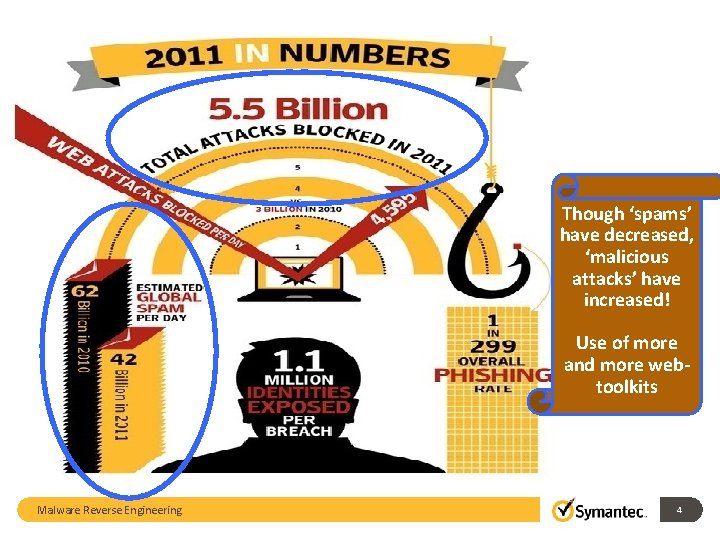

Though ‘spams’ have decreased, ‘malicious attacks’ have increased! Use of more and more webtoolkits Malware Reverse Engineering 4

>50% increase in unique variants of malware >10 k unique malicious web domains ~50% increase in mobile vulnerabilities Malware Reverse Engineering 5

2 main reasons for this trend: Malware Reverse Engineering - Part of large organizations ecosystem providing stepping stone to larger attack - Less defended 6

Reverse Engineering A Malware Black boxing and White boxing Malware Reverse Engineering 7

Analysis of a malware 8 Malware Reverse Engineering 8

HIEW VIRTUAL MEMORY FILE PROPERTIES 9 Malware Reverse Engineering Presentation Identifier Goes Here 9

PACKED CODE UPX Packed Sections UNPACKED CODE Unpacked Sections 10 Malware Reverse Engineering 10

Embedded Resources Version Information 11 Malware Reverse Engineering 11

Monitoring Tools 12 Malware Reverse Engineering 12

Olly. Dbg Break Points 13 Malware Reverse Engineering 13

IDA PRO 14 Malware Reverse Engineering 14

Man In The Browser Malware Reverse Engineering 15

Man-in-the-middle (Mi. M) Transfer $2500 to Mom E D Transfer $10000 to Trudy D E E D Transferred $10000 to Trudy Transferred $2500 to Mom ALICE TRUDY End User Attacker Malware Reverse Engineering D E BOB Bank server 16

Man-in-the-browser (MITB) ALICE’S Browser Transfer $10000 to Trudy Transfer $2500 to Mom Transferred $10000 to Trudy Transferred $2500 to Mom ALICE BOB Captured form data End User Bank server Infect Alice’s system with a Trojan TRUDY Attacker Malware Reverse Engineering 17 17

CLEAN BROWSER - No extra fields - Just the required information INFECTED BROWSER - Extra fields e. g. : PIN: - Asks for critical information usually not required Malware Reverse Engineering 18

Mi. M vs MITB Parameters Mi. M MITB Hardware/Software requirements Usually requires compromised hardware Injects malicious software (Trojan) in web browser Communication Has to deal with secure communication Immune to secure communication such as SSL Targets are directed or location-based Targets can be anywhere on the internet Malware Reverse Engineering 19

Purpose of MITB • Subvert secure communication, SSL • Steal and modify form data • Didn’t I say MONEY ! Malware Reverse Engineering 20

Types of MITB Hooking Windows API • Trojan. Clampi Using BHO (Browser Helper Objects) in IE ---OR--- Using Firefox Extensions • Trojan. Neloweg Using Self Signed Certificates • Trojan. Tatanarg Malware Reverse Engineering 21

MITB by hooking Windows APIs What is a hook ? A piece of code that intercepts function calls to modify function of the application. • Internet. Connect. A • Internet. Open. A • Internet. Read. File • Internet. Write. File {- - - - - - - -} HOOKING FUNCTION ORIGINAL FUNCTION {- - - - - - - -} Hooks itself to original API when its called Malware Reverse Engineering Monitors and hooks several API calls monitored by Windows DLL, urlmon. dll Can be detected by scanning for injected process {- - - - - - - - - - - - - - - -} 3 2 Trojan. Clampi injects malicious thread into IE browser {- - - - - - - -} 1 4 Grab data from IE browser before its encrypted, hence overcoming SSL 22

MITB using BHO/ Browser extension • Trojan. Neloweg – Sets up Namespace and associates it with Winsock 2 – Loads the dll in memory when any program tries to connect to the internet using Winsock 2 – No process injection needed ! Malware Reverse Engineering 23

• The dll file creates the browser extension files if its running under Firefox. exe – %Program. Files%Mozilla Firefoxchromeerror. manifest – %Program. Files%Mozilla Firefoxchromeerror. jar – %Program. Files%Mozilla Firefoxcomponentsns. Lego. js – %Program. Files%Mozilla Firefoxcomponentsns. ILEgo. xpt • Error. jar contains the main code form grabbing. • Can be detected by in browser security software which block APIs form browser extensions. Eg Trusteer Rapport. Malware Reverse Engineering 24

MITB using self signed certificates • Trojan. Tatanarg – Much like Mi. M: Creates proxy service between bank and client – On the bank side of proxy: Outbound traffic encrypted using bank credentials – On the browser side of proxy: Encrypt traffic using its own credentials – Can be detected by scanning injected process Malware Reverse Engineering 25

Other MITB prevention/detection techniques • Client-side java-script to encrypt some fields before the form grabbing component – Already broken • Multi factor authentication – Already broken • Out of band transaction verification (OOB) – Verifying the transaction over a channel other than the browser • Web frauds detection – Automated checks for fraud detection patterns by the banks Malware Reverse Engineering 26

Summary of MITB Hooking win APIs BHO Self signed certificate Trojan name Trojan. Clampi Trojan. Neloweg Trojan. Tatanarg Injected process required ? Yes No Yes Encrypts/decrypts secure communication ? No No Yes Detection Scan injected browser process In browser security Scan injected browser process Malware Reverse Engineering 27

Conclusion • Attackers are using newer ways to infect machines – Targeted attacks – Use of web tool kits • Comprehensive analysis of a malware involves combination of black-boxing and white-boxing techniques • MITB is an innovative way used by attackers to break security • MITB prevention is still work in progress (Good research project!) • Malware reverse engineering as a profession has a broad scope Malware Reverse Engineering 28

Reverse engineering tools • Hex View – http: //www. hiew. ru/ • Unpacking tools – http: //www. woodmann. com/collaborative/tools/index. php/Category: Unpacking_Tools • Resource hacker – http: //www. angusj. com/resourcehacker/ • Monitoring tools – http: //www. woodmann. com/collaborative/tools/index. php/Category: Monitoring_Tools • Olly. Dbg – http: //www. ollydbg. de/ • Ida. Pro – http: //www. hex-rays. com/ • Process Dumper – http: //www. microsoft. com/en-us/download/details. aspx? id=4060 – http: //www. woodmann. com/collaborative/tools/index. php/Category: Process_Dumpers Malware Reverse Engineering 29

References • http: //www. symantec. com/content/en/us/enterprise/media/security_respo nse/whitepapers/inside_trojan_clampi. pdf • http: //www. symantec. com/content/en/us/enterprise/media/security_respo nse/whitepapers/Trojan_Neloweg_Bank_Robbing_Bot_in_the_Browser. pdf • http: //www. symantec. com/connect/blogs/banking-proxy-trojantatanarg • http: //www. symantec. com/threatreport/ • https: //www. owasp. org/index. php/OWASP_Anti-Malware__Knowledge_Base#Appendix_A: _Security_Considerations_about_Authentica tion_Solutions_and_Malware • http: //www. scis. ulster. ac. uk/~kevin/IJACI-Vol 4 No 1 -maninbrowser. pdf Malware Reverse Engineering 30

VIDEO • http: //www. youtube. com/watch? v=USCHPIQB 8_Y Malware Reverse Engineering 31
