What is Virtualization? The act of abstracting the physical boundaries of a technology.
The Virtualization Umbrella Server Virtualization Clustering Network Virtualization Storage Virtualization

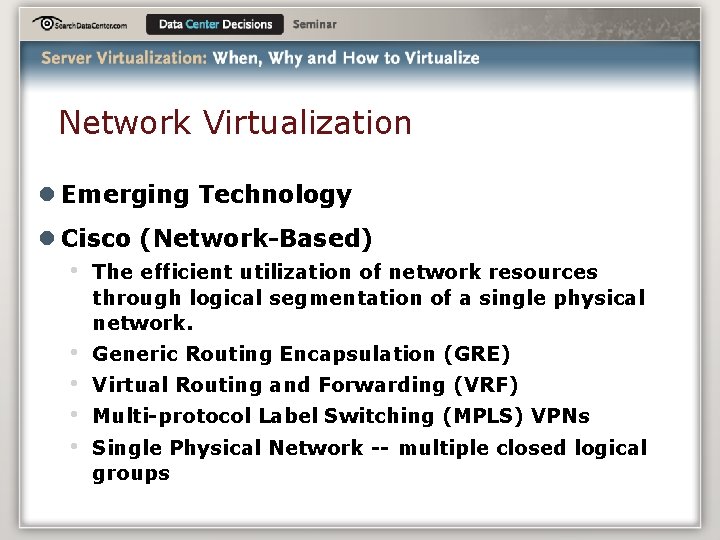

Network Virtualization l Emerging Technology l Cisco (Network-Based) • The efficient utilization of network resources through logical segmentation of a single physical network. • • Generic Routing Encapsulation (GRE) Virtual Routing and Forwarding (VRF) Multi-protocol Label Switching (MPLS) VPNs Single Physical Network -- multiple closed logical groups
Network Virtualization l Sun Crossbow (Host-Based) • • Physical NIC divided into multiple virtual NICs • Bandwidth and priority dynamically assigned to services (FTP, SMB, etc) or Virtual Machines Bandwidth resource control and virtualization included in the network stack

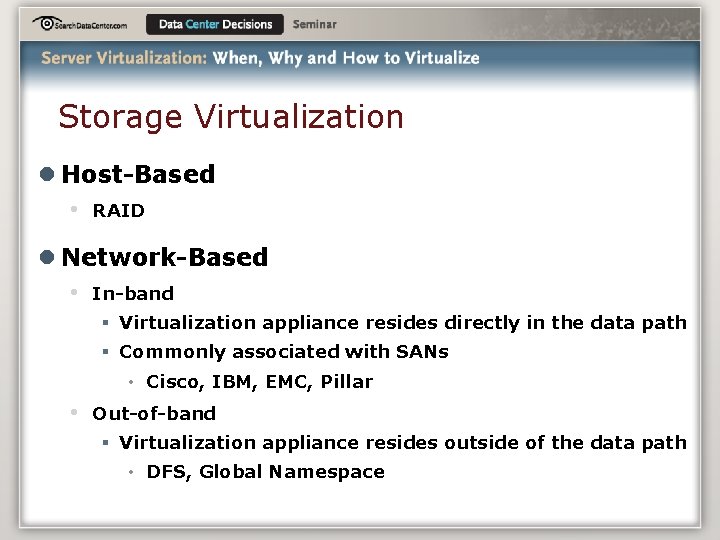

Storage Virtualization l Host-Based • RAID l Network-Based • In-band § Virtualization appliance resides directly in the data path § Commonly associated with SANs • Cisco, IBM, EMC, Pillar • Out-of-band § Virtualization appliance resides outside of the data path • DFS, Global Namespace
In-band Virtualization • Physical storage resources translated into virtual resources • Replication • Data Management Virtualization Appliance • Combined with server virtualization
Distributed File Systems l Abstract the physical storage location from the data path \mercurysales DFS Root Public Marketing \venusengineering Engineering Sales \marsmarketing
Clustering l Applications run within virtual servers that reside on one or more physical host systems. l Common Implementations: • • • Failover Clusters Load Balanced Clusters Shared Data Clusters
Failover Clustering Virtual Server Shared Storage Physical Node Switch (to public LAN) Physical Node
Server Virtualization l Host systems, such as servers are virtualized l Servers run as virtual machines
Virtual Machines l VM = Independent OS running on top of another OS l Host = System running the Virtualization software l Run several logical servers on one physical system • • Decommission older, slower systems Supports server consolidation l Managed exactly the same as physical systems l Emulates all system hardware • AMD and Intel are changing this
Why Virtualize? l Consolidate Physical Resources • Logical resources may remain the same! l Reduce Power Consumption l Streamline System Recovery l Optimize Resource Utilization l Testing and Development l Training
Server Virtualization Architectures l Host-Based Server Virtualization • • Commonly known as “Server Virtualization” VMware, Microsoft, Xen l OS Virtualization • Swsoft Virtuozzo, Solaris Containers
Host-Based Server Virtualization l Virtual Machine Monitor • Coordinates physical hardware access between VMs l Host OS/Hypervisor • • Communicates with VMM Runs server virtualization application
VM Components • Virtual Hardware • Includes RAM, CPU, motherboard and network cards • Virtual Storage • Mapped to physical resource or exist as virtual disk file §. vmx = configuration §. vmdk = virtual hard disk
Host-Based Architectures • Full Virtualization • • • Everything emulated Fully portable VMs Large hit on network, disk I/O, added CPU overhead • Paravirtualization • • OS kernel modified to make it hypervisor-aware Solves problem of CPU overhead • Hardware-assisted Virtualization • • Fueled by AMD and Intel System hardware is aware of virtualization hypervisor
OS Virtualization • Isolation provided at the process level • OS caps placed on individual processes and system resources • Each instance is a “Virtual Environment” (AKA Virtual Private Server or Container) • No added OS overhead (Memory, Disk per VM) • No emulation = No I/O overhead • Excellent track record in web serving • Limited OS support, all VEs on 1 box must use the same OS
The Players -- Server Virtualization • VMware • • ESX Server, Virtual Infrastructure 3 VMware Server • Microsoft • Windows Server Virtualization Service (coming in Windows Server 2008) • Virtual Server 2005 • Xen • Xen. Source, Virtual Iron, Novell, Red Hat
The Players – OS Virtualization • SWsoft • Virtuozzo • Linux, Windows • Sun • Solaris Containers • HP • Virtual Server Environment (VSE) • IBM • Virtual Partition Manager
Benefits • Power and Hardware Savings • Logical Resource Consolidation • • Fewer physical boxes, same or more logical resources Potential for more single points of failure • Server Portability • • Host hardware may not matter Limitations on pass-through device access needed to ensure portability • Application Failover • Apps that do not natively support clustering can failover as part of a VM
Challenges • Server Selection • Management • Performance • Network & Storage Integration • Backup Complexity
Eliminating Servers l “I want to consolidate 15 to 1!” l “Let’s put the servers that start with A-G on this box, H-S on this box…”

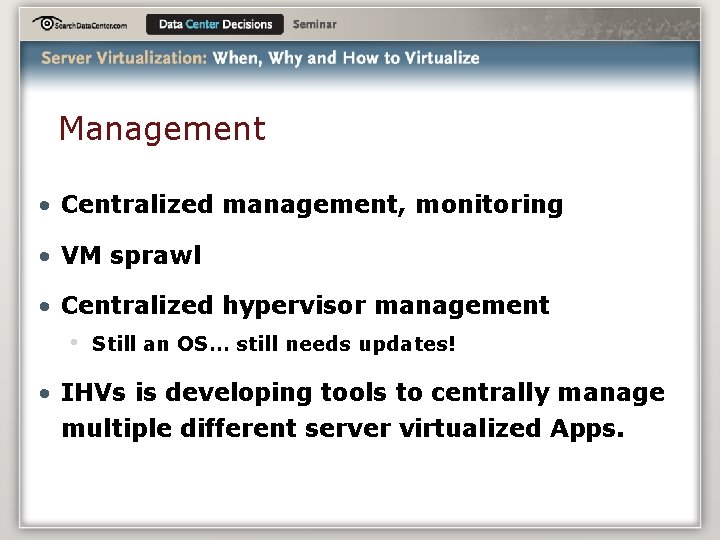

Management • Centralized management, monitoring • VM sprawl • Centralized hypervisor management • Still an OS… still needs updates! • IHVs is developing tools to centrally manage multiple different server virtualized Apps.
Performance • Vastly improved with Hardware-assisted or paravirtualization • Consolidation introduces potential for more bottlenecks • Host disk • Host network • Vendors improving this • Improvements from Intel and AMD • Paravirtualized or synthetic device drivers

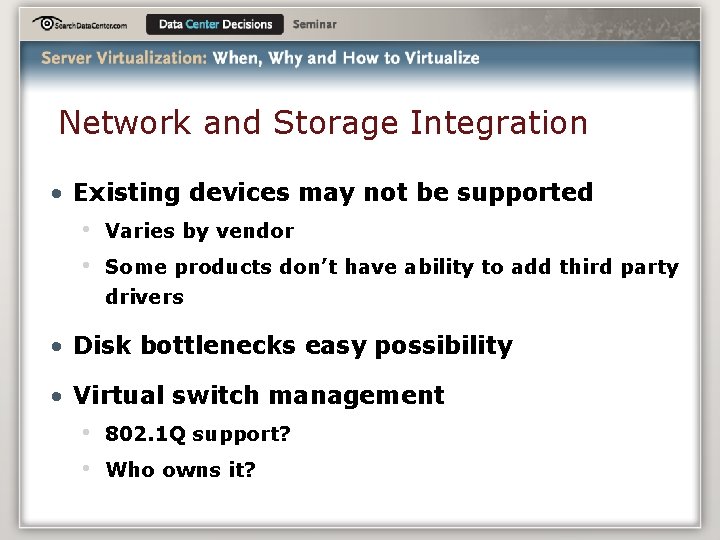

Network and Storage Integration • Existing devices may not be supported • • Varies by vendor Some products don’t have ability to add third party drivers • Disk bottlenecks easy possibility • Virtual switch management • • 802. 1 Q support? Who owns it?
Backup Complexity • Host backup required for VM configuration files • VM Backup • Agent based is still the safest • Centralized backup on the rise § VMware VCB § Microsoft Shadow Copies § Limitations on both OS/application • May not be enough host I/O (disk, network) to support previous backup window

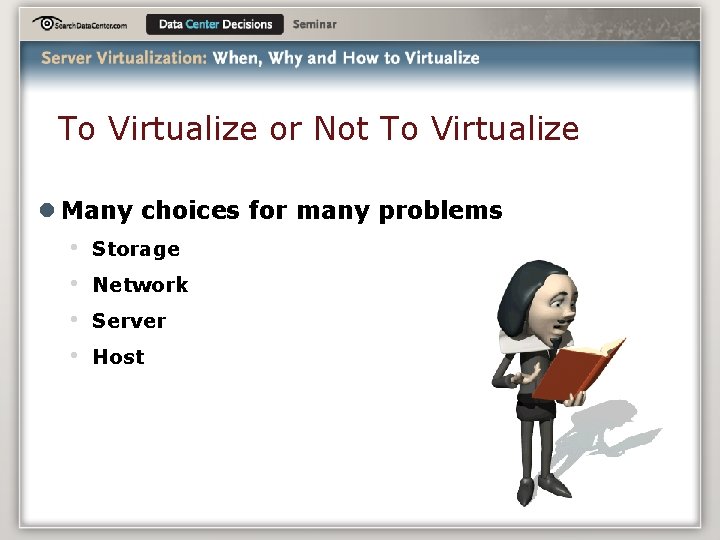

To Virtualize or Not To Virtualize l Many choices for many problems • • Storage Network Server Host
Virtualizing Storage l More efficient utilization of storage resources l Simplifies administration l Provides additional methods for data protection l Better Server virtualization flexibility l Considerations: • Integration with existing hardware platforms and operating systems • Integration with existing data protection/backup products
Virtualizing Servers l Average server 10 -15% CPU utilization l Consolidating to VMs on few servers = Better efficiency & less space l Client workstation provisioning • • VMware ACE Secure VPN-connected workstations
Summary • Over Plan • Ensure Infrastructure Compatibility • • Storage/SAN Network OS/application Backup • Start Slow • For mission critical applications, VM failover support is key
