Making a Laminated Rolling Pin Mike Rude Laminated

Making a Laminated Rolling Pin Mike Rude

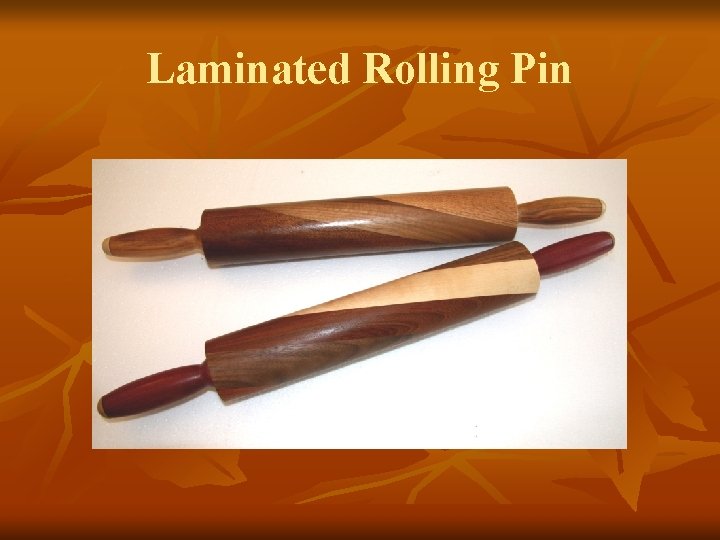

Laminated Rolling Pin

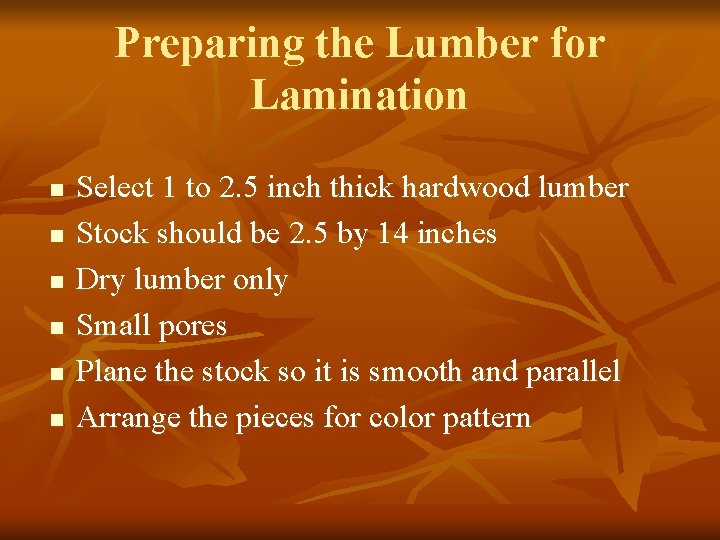

Preparing the Lumber for Lamination n n n Select 1 to 2. 5 inch thick hardwood lumber Stock should be 2. 5 by 14 inches Dry lumber only Small pores Plane the stock so it is smooth and parallel Arrange the pieces for color pattern

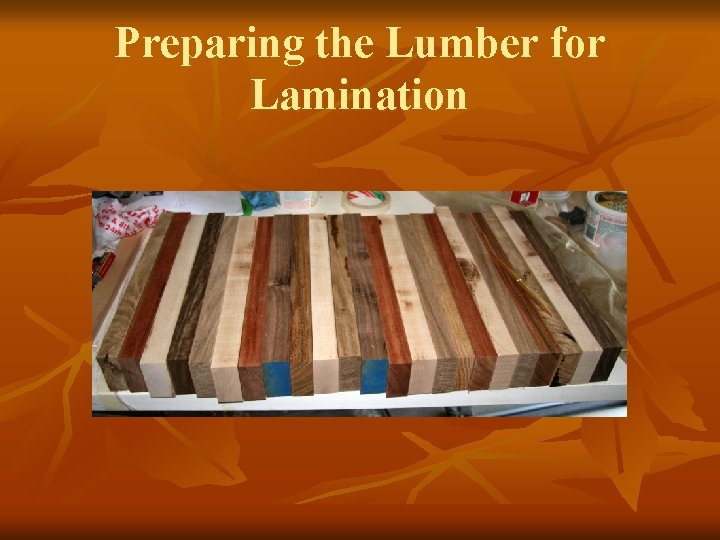

Preparing the Lumber for Lamination

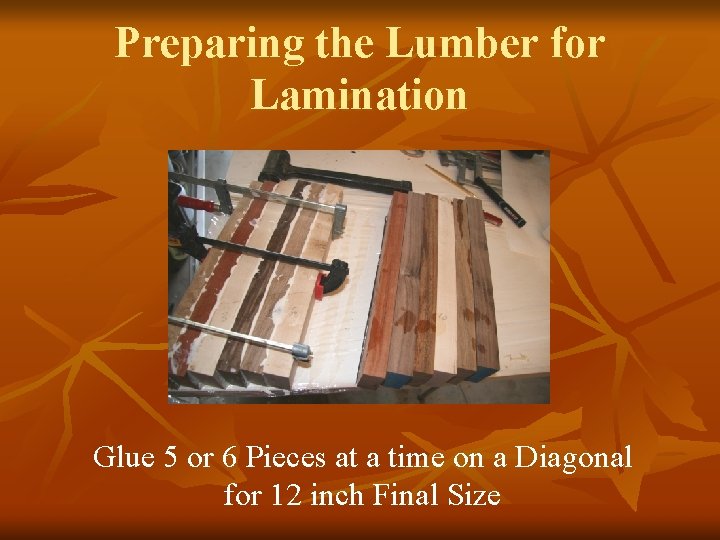

Preparing the Lumber for Lamination Glue 5 or 6 Pieces at a time on a Diagonal for 12 inch Final Size

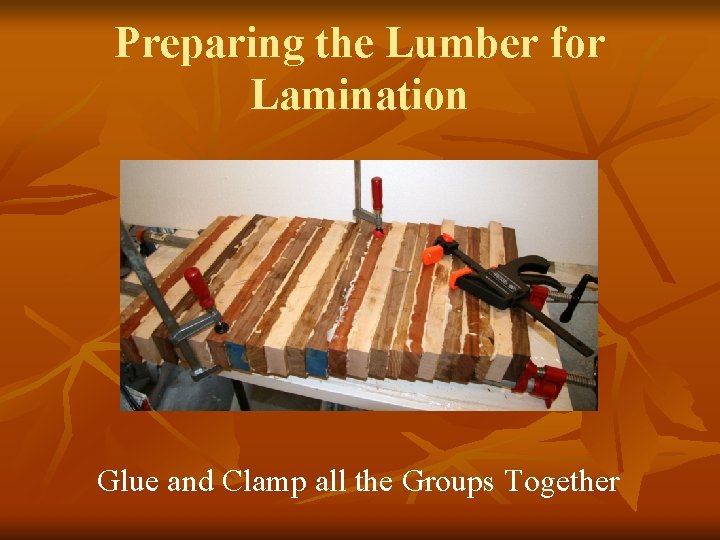

Preparing the Lumber for Lamination Glue and Clamp all the Groups Together

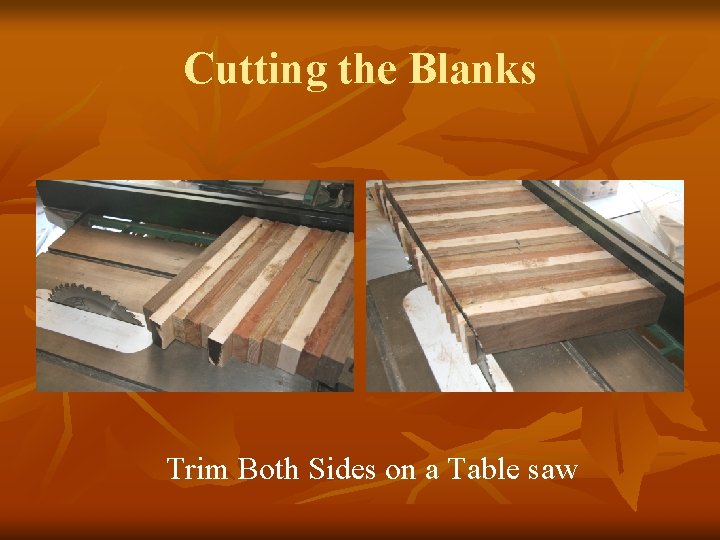

Cutting the Blanks Trim Both Sides on a Table saw

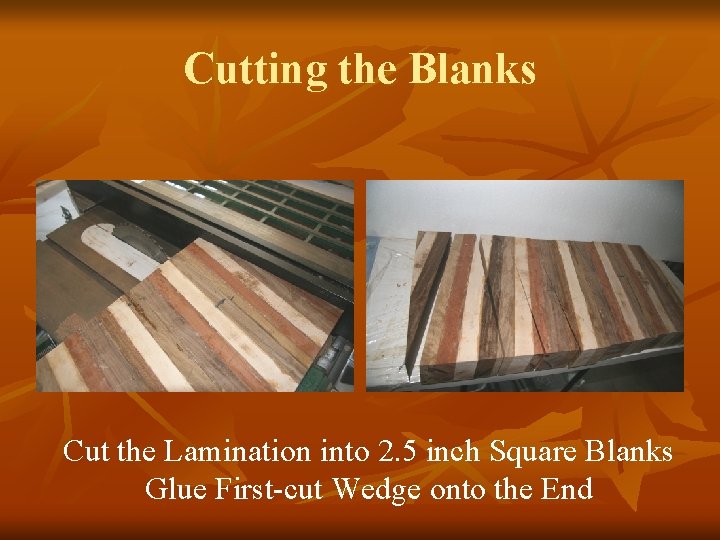

Cutting the Blanks Cut the Lamination into 2. 5 inch Square Blanks Glue First-cut Wedge onto the End

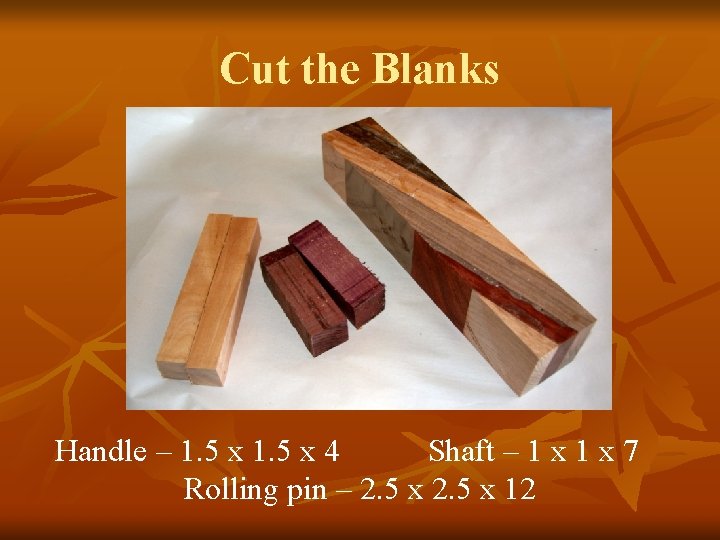

Cut the Blanks Handle – 1. 5 x 4 Shaft – 1 x 7 Rolling pin – 2. 5 x 12

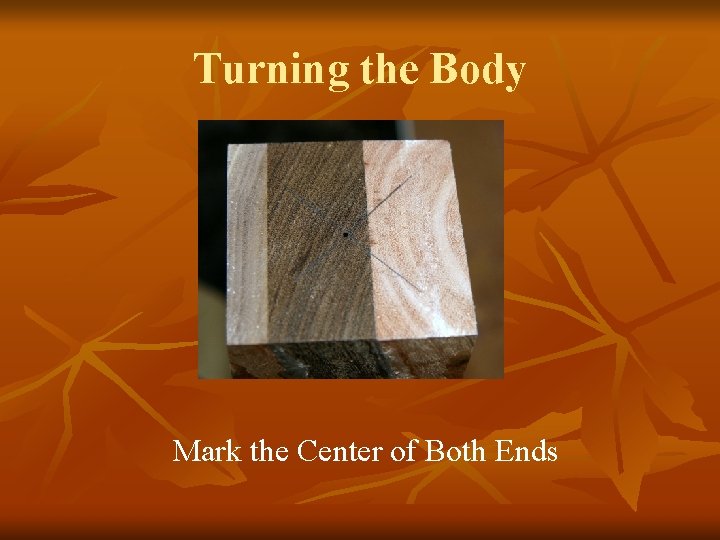

Turning the Body Mark the Center of Both Ends

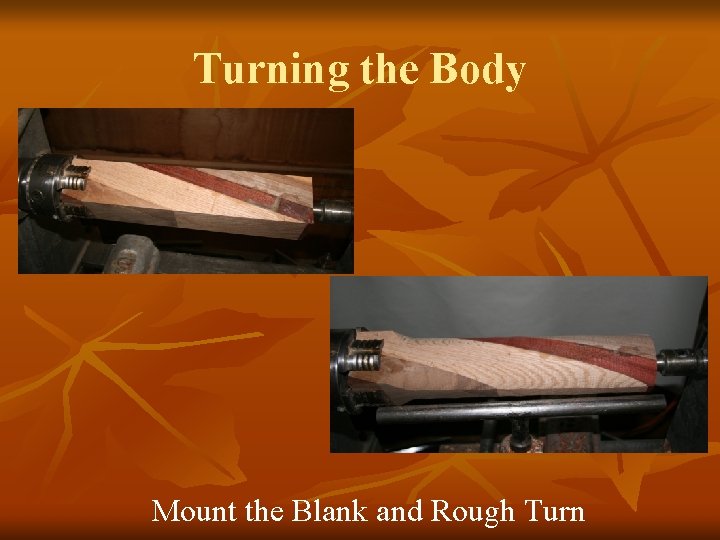

Turning the Body Mount the Blank and Rough Turn

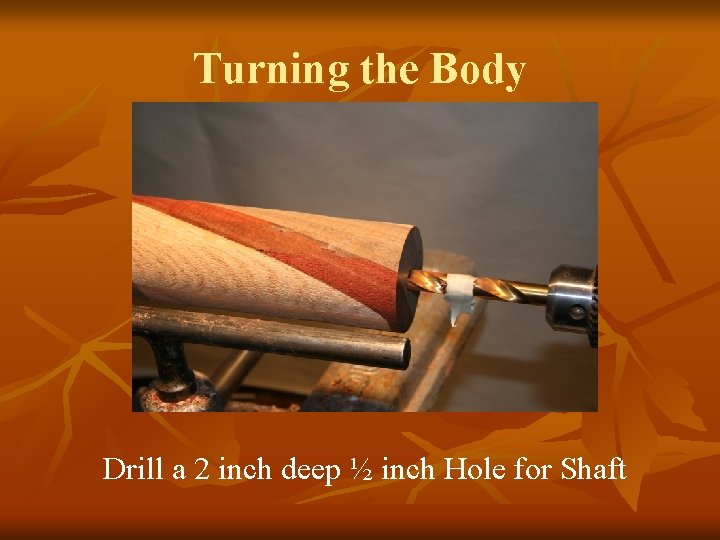

Turning the Body Drill a 2 inch deep ½ inch Hole for Shaft

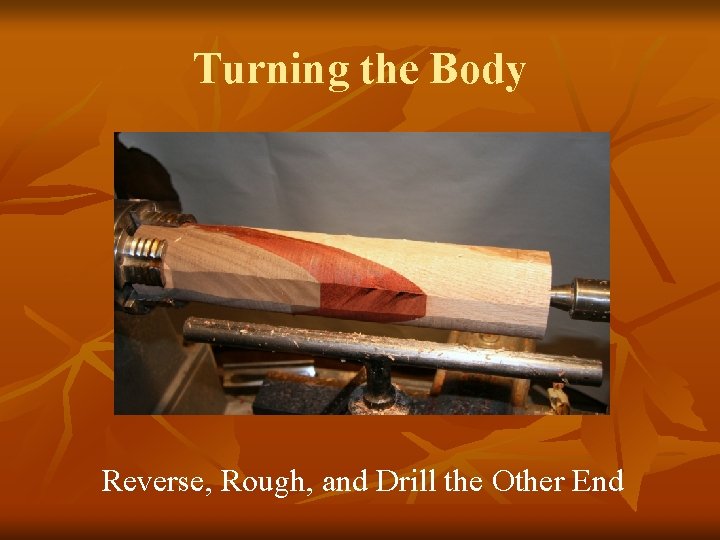

Turning the Body Reverse, Rough, and Drill the Other End

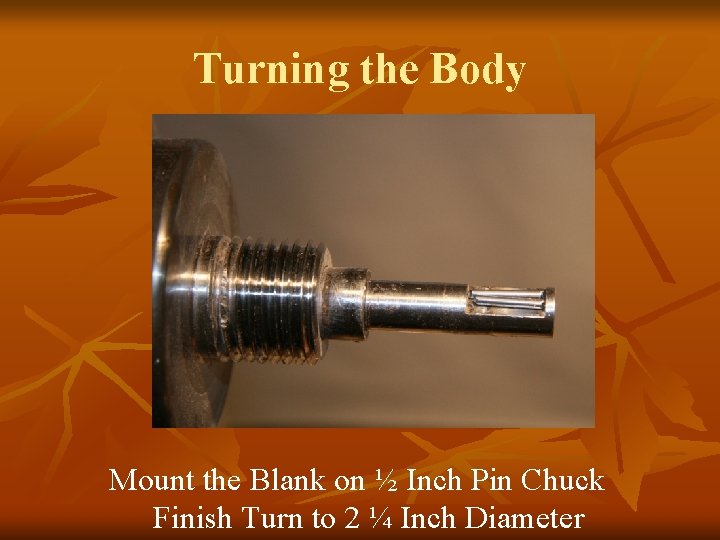

Turning the Body Mount the Blank on ½ Inch Pin Chuck Finish Turn to 2 ¼ Inch Diameter

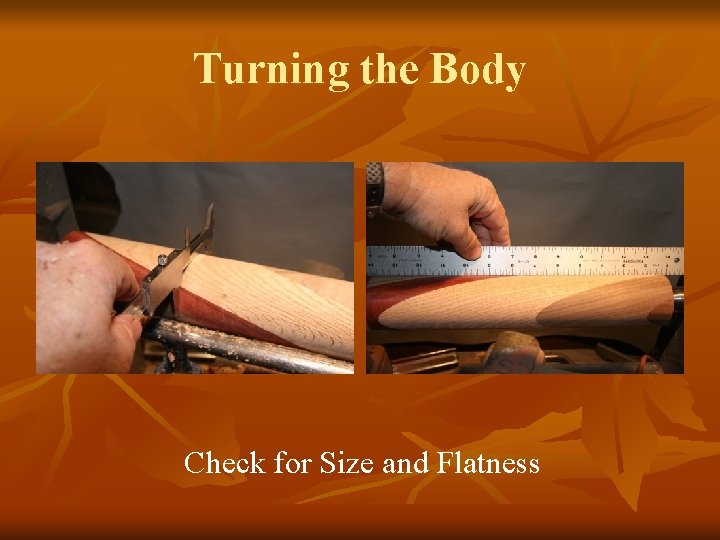

Turning the Body Check for Size and Flatness

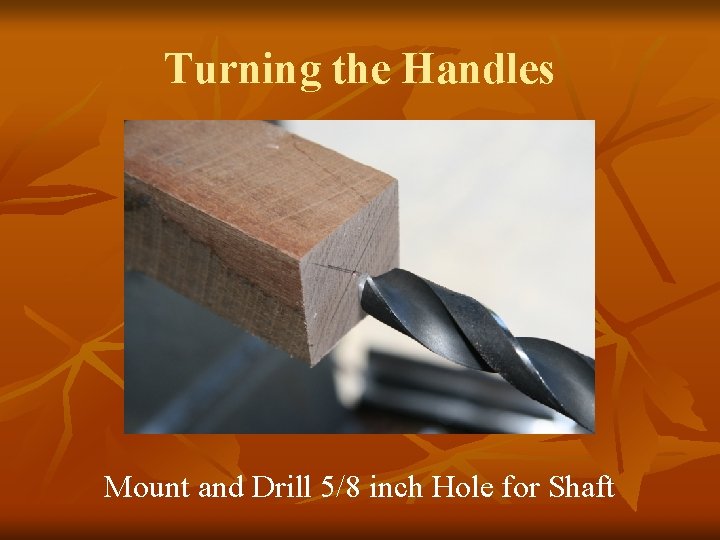

Turning the Handles Mount and Drill 5/8 inch Hole for Shaft

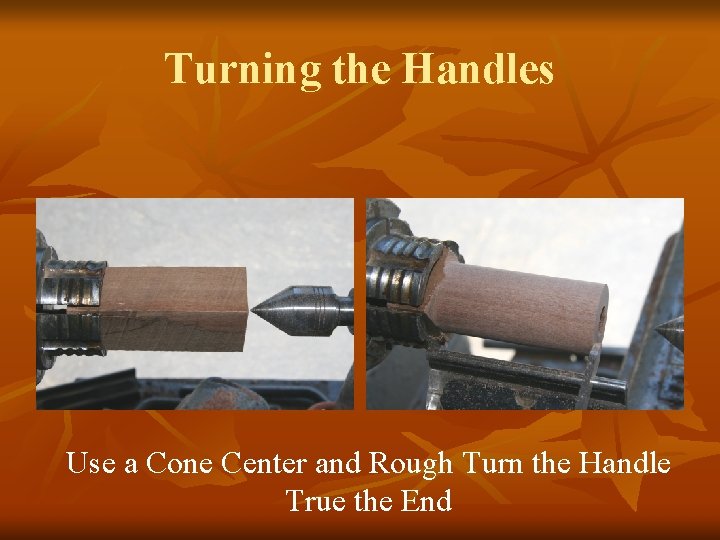

Turning the Handles Use a Cone Center and Rough Turn the Handle True the End

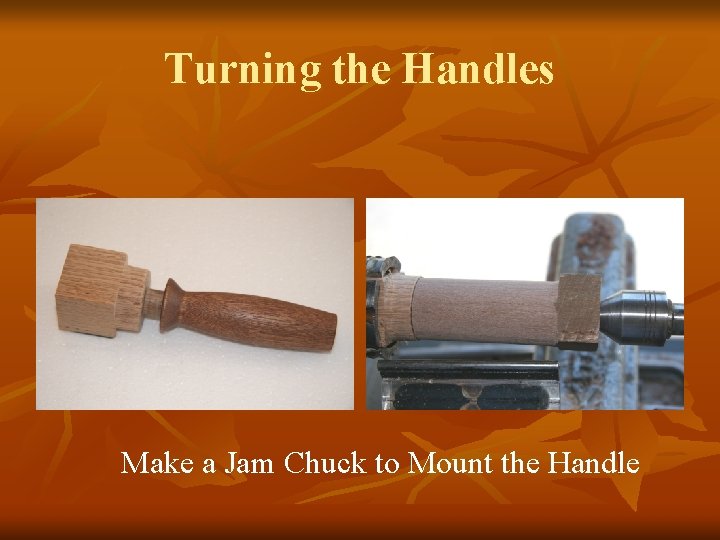

Turning the Handles Make a Jam Chuck to Mount the Handle

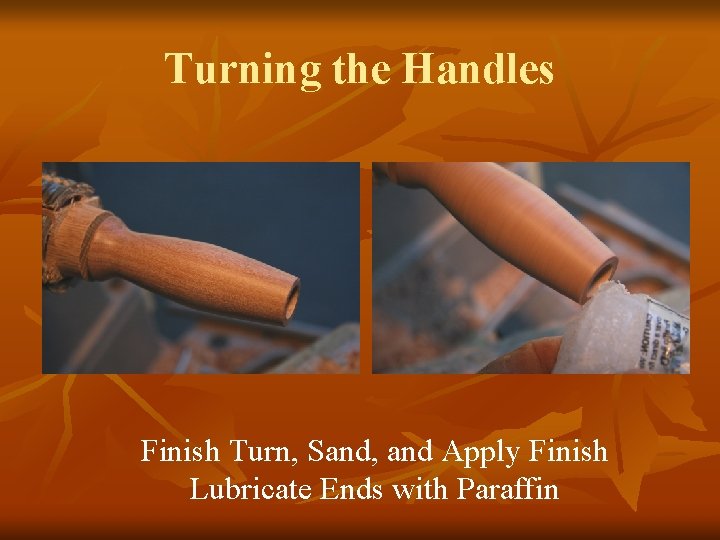

Turning the Handles Finish Turn, Sand, and Apply Finish Lubricate Ends with Paraffin

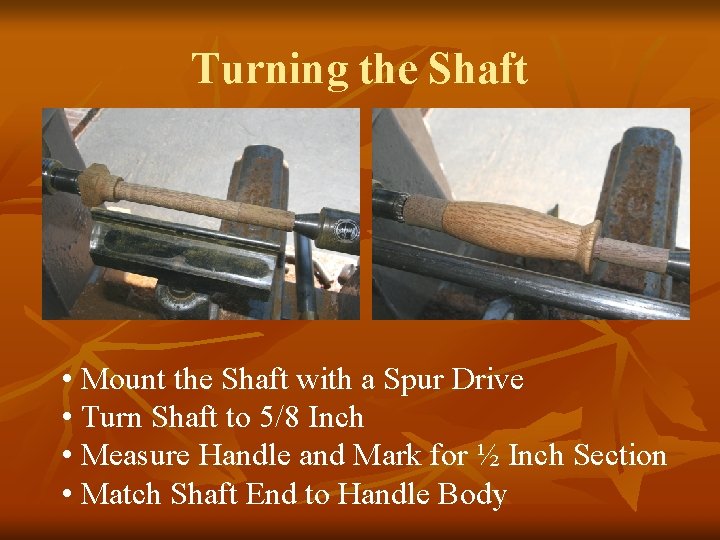

Turning the Shaft • Mount the Shaft with a Spur Drive • Turn Shaft to 5/8 Inch • Measure Handle and Mark for ½ Inch Section • Match Shaft End to Handle Body

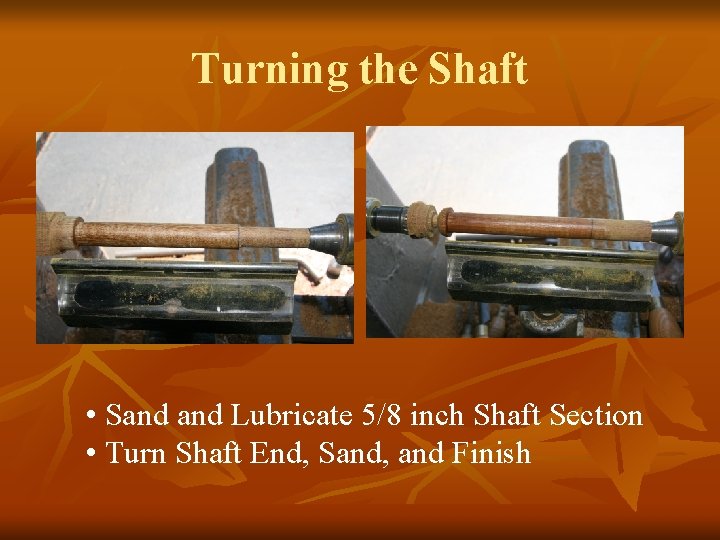

Turning the Shaft • Sand Lubricate 5/8 inch Shaft Section • Turn Shaft End, Sand, and Finish

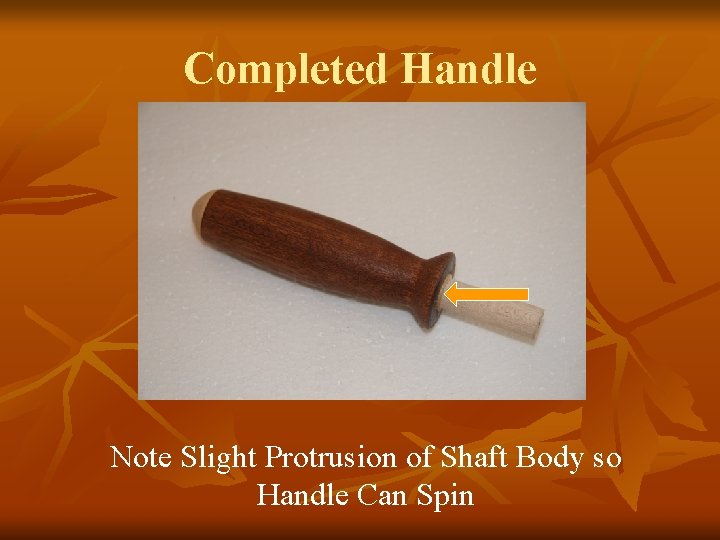

Completed Handle Note Slight Protrusion of Shaft Body so Handle Can Spin

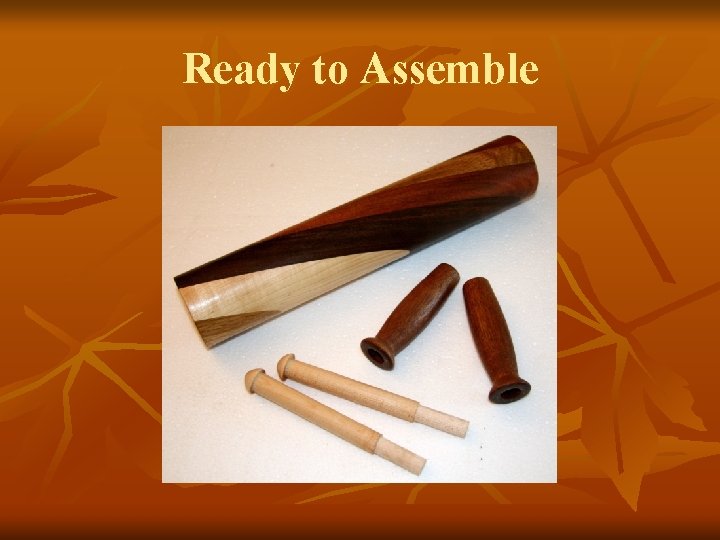

Ready to Assemble
