Make an HTML table using Visual Studio Approach

Make an HTML table using Visual Studio

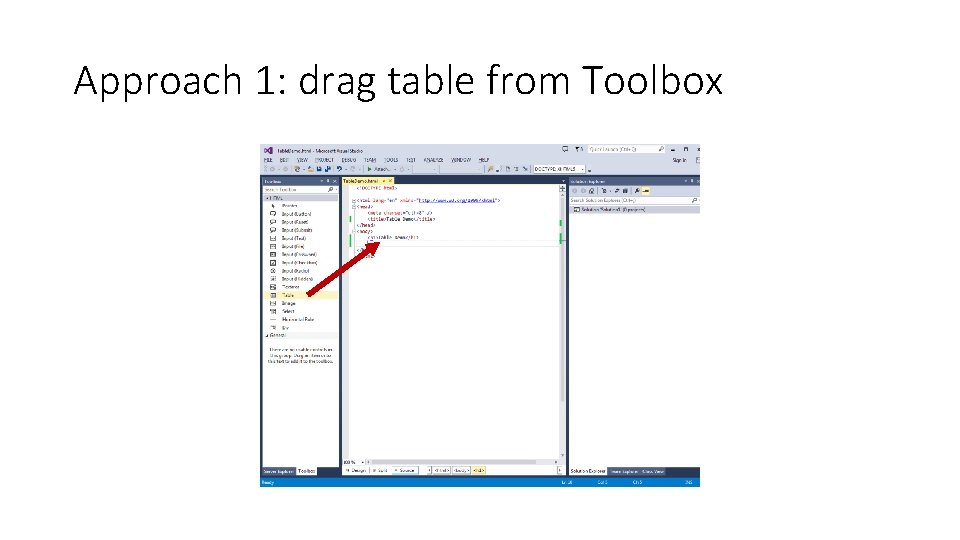

Approach 1: drag table from Toolbox

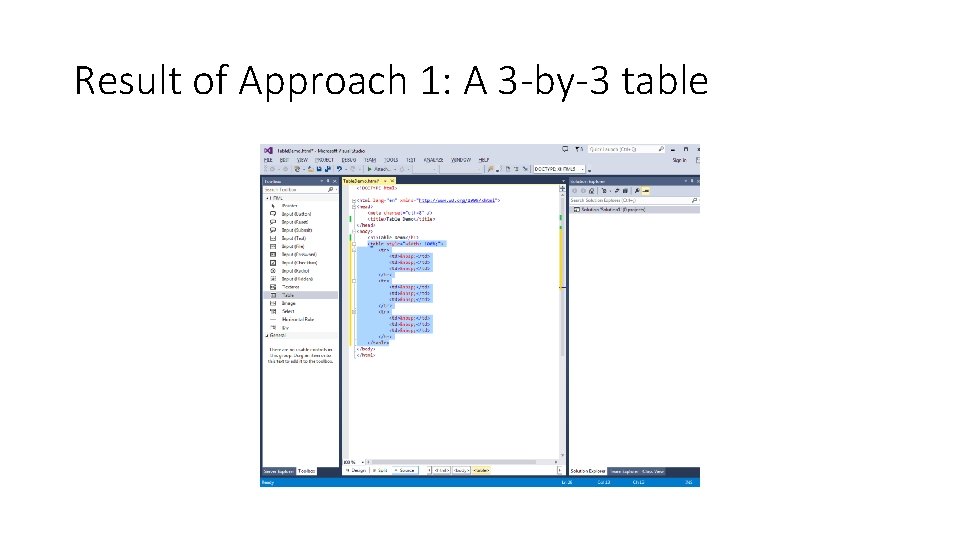

Result of Approach 1: A 3 -by-3 table

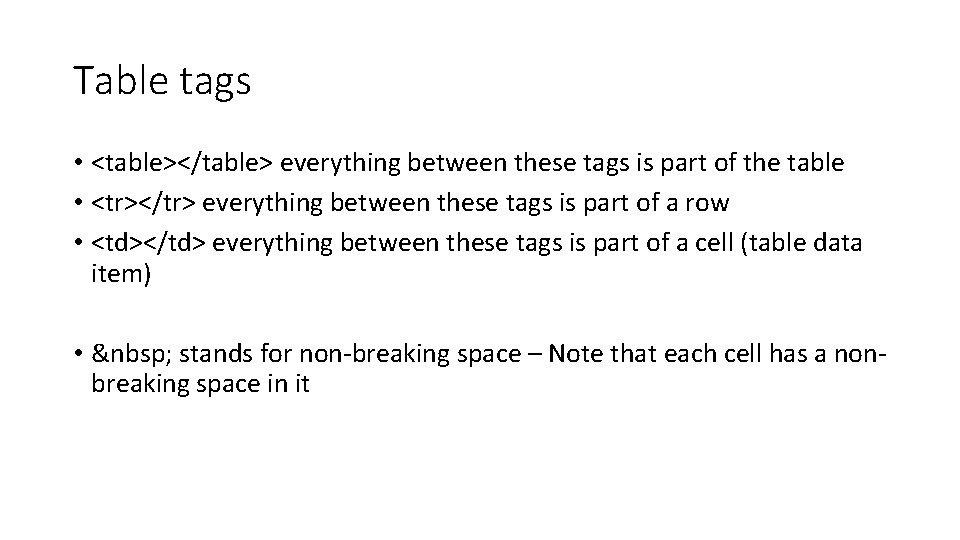

Table tags • <table></table> everything between these tags is part of the table • <tr></tr> everything between these tags is part of a row • <td></td> everything between these tags is part of a cell (table data item) • stands for non-breaking space – Note that each cell has a nonbreaking space in it

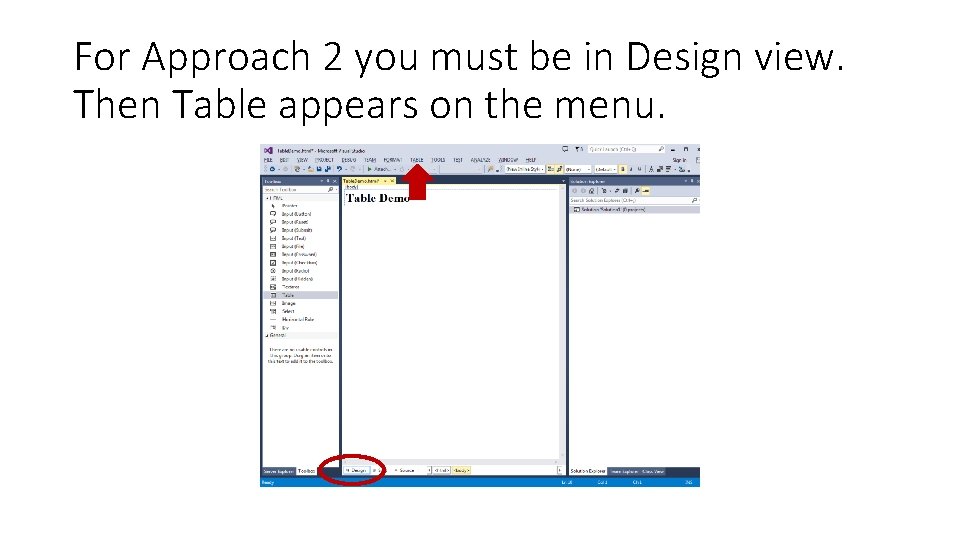

For Approach 2 you must be in Design view. Then Table appears on the menu.

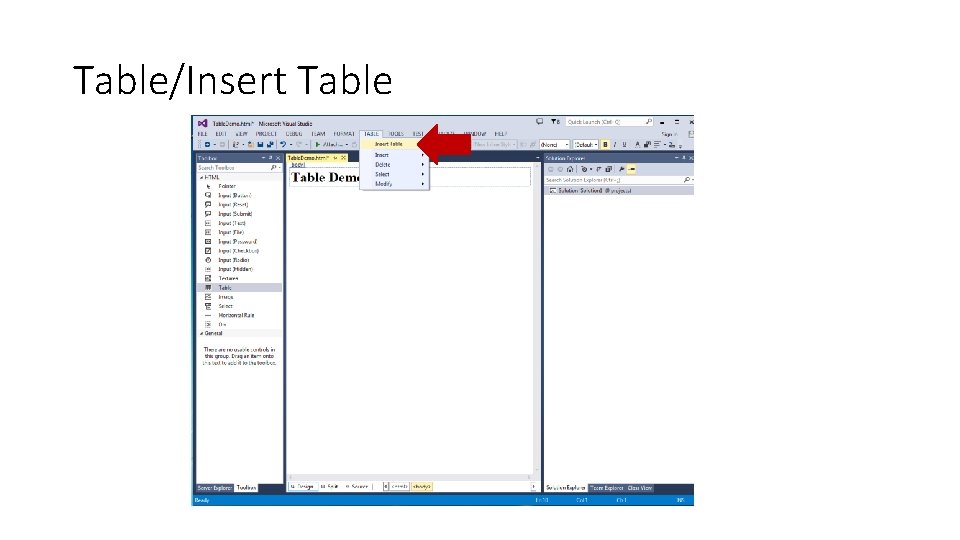

Table/Insert Table

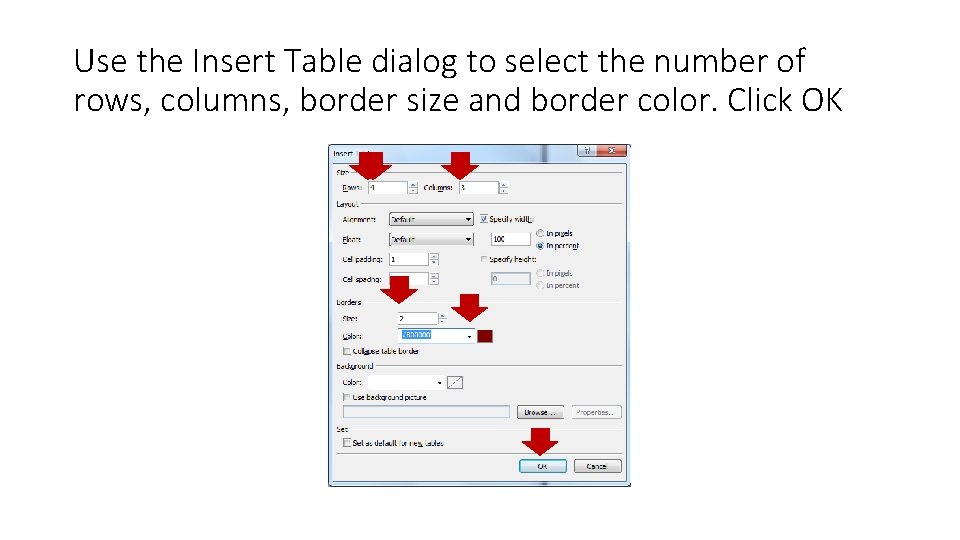

Use the Insert Table dialog to select the number of rows, columns, border size and border color. Click OK

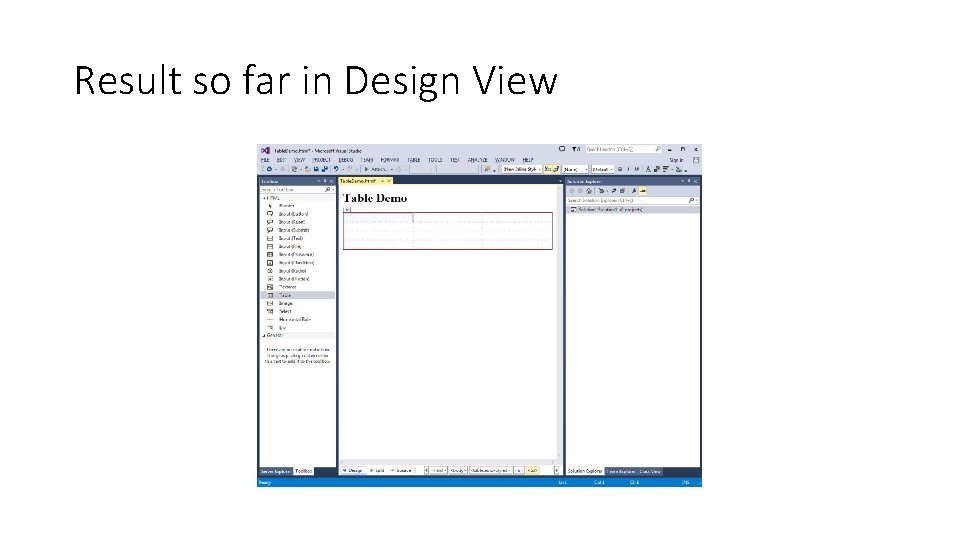

Result so far in Design View

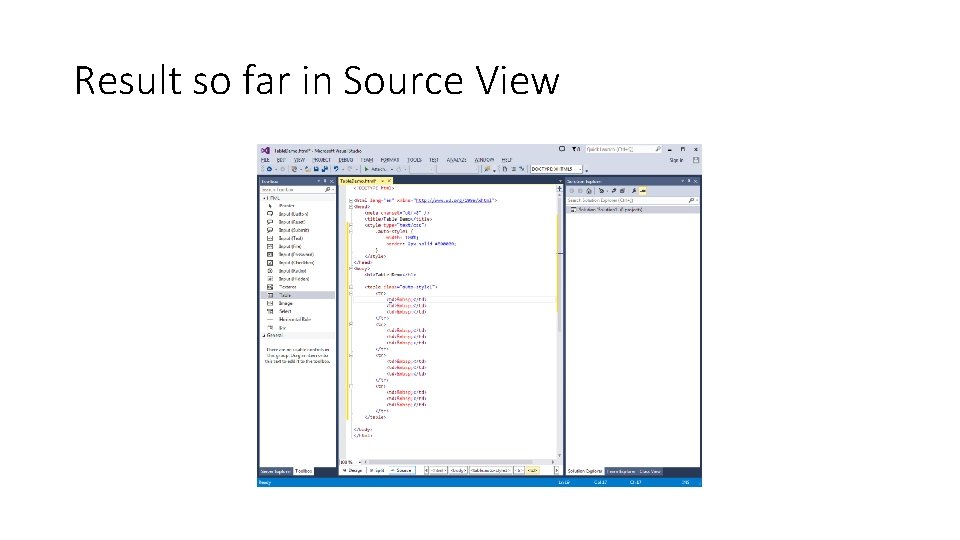

Result so far in Source View

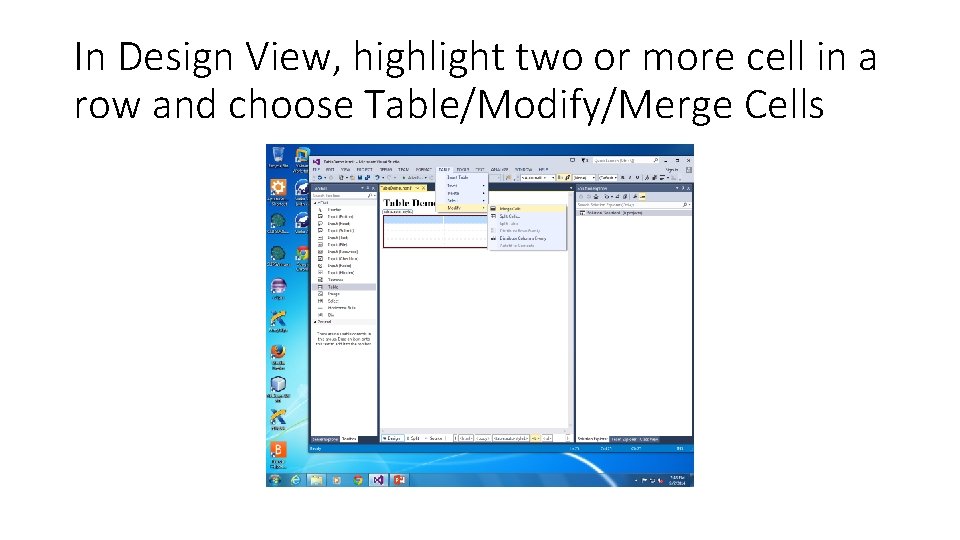

In Design View, highlight two or more cell in a row and choose Table/Modify/Merge Cells

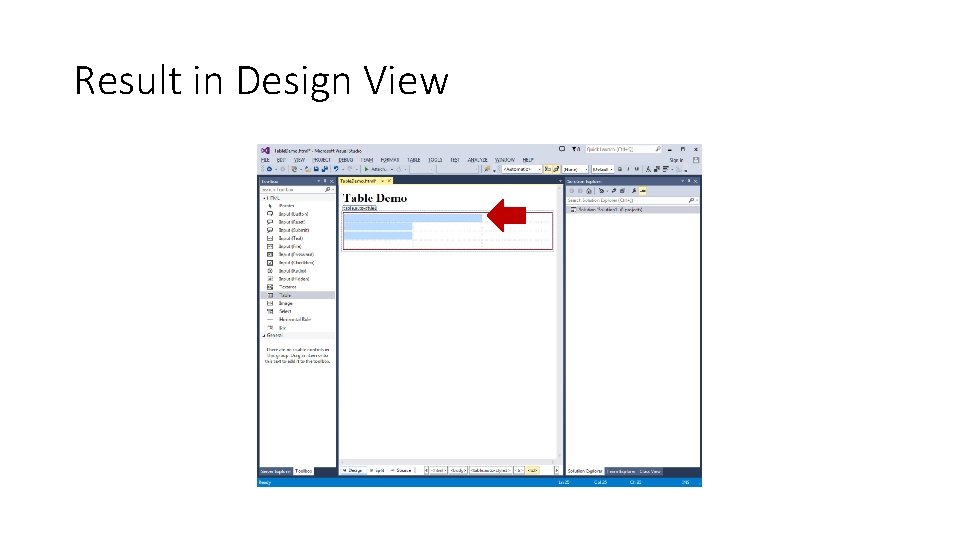

Result in Design View

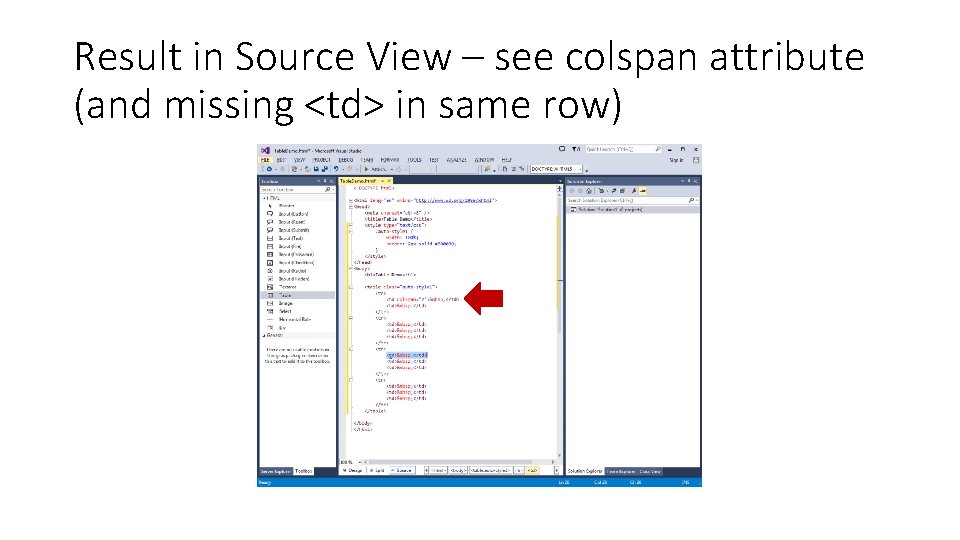

Result in Source View – see colspan attribute (and missing <td> in same row)

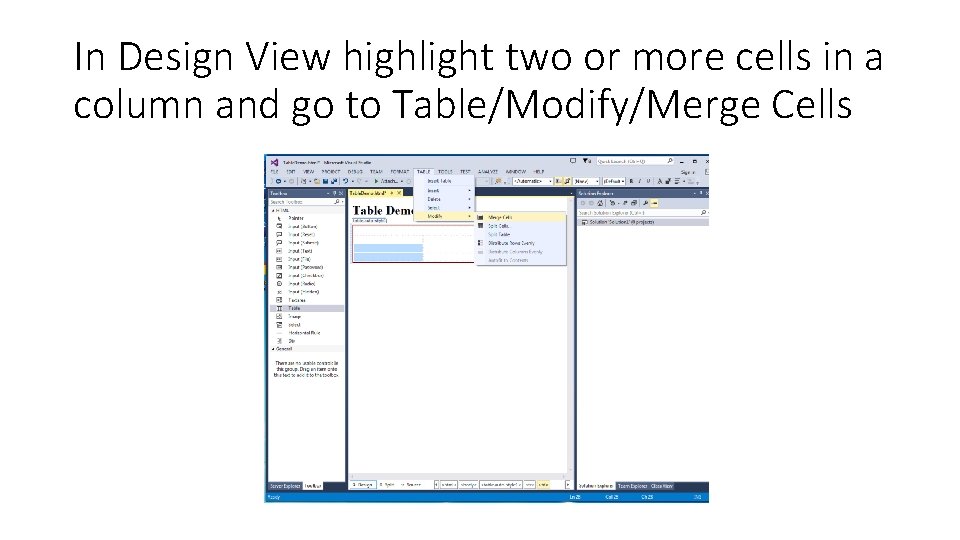

In Design View highlight two or more cells in a column and go to Table/Modify/Merge Cells

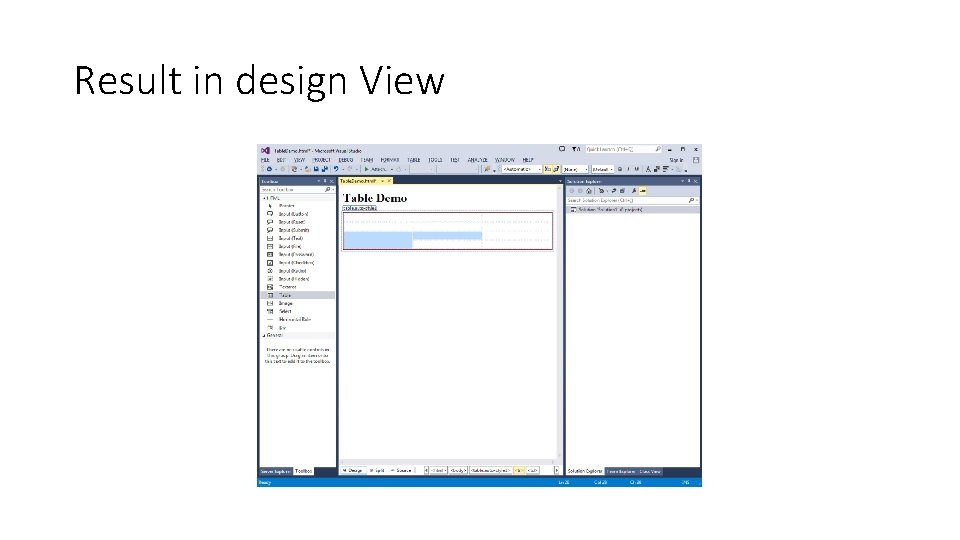

Result in design View

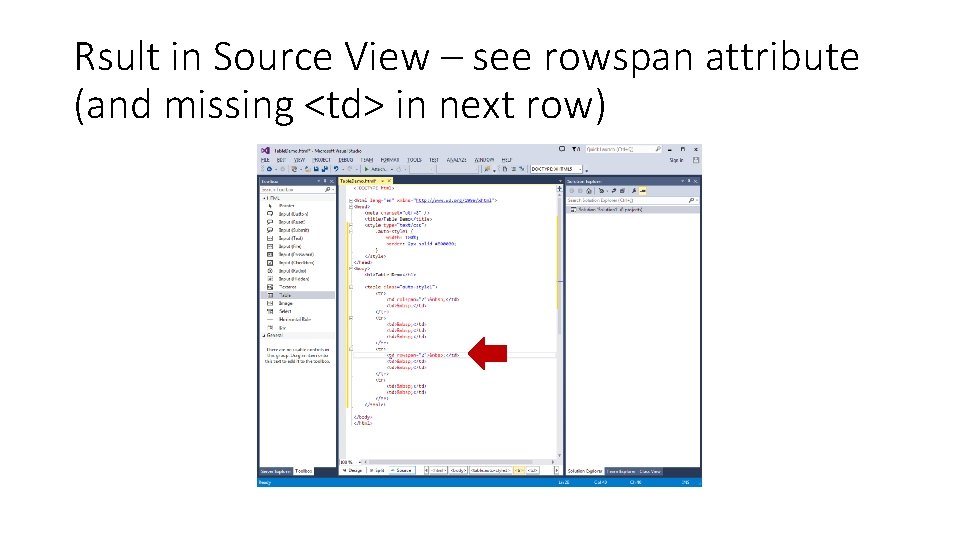

Rsult in Source View – see rowspan attribute (and missing <td> in next row)

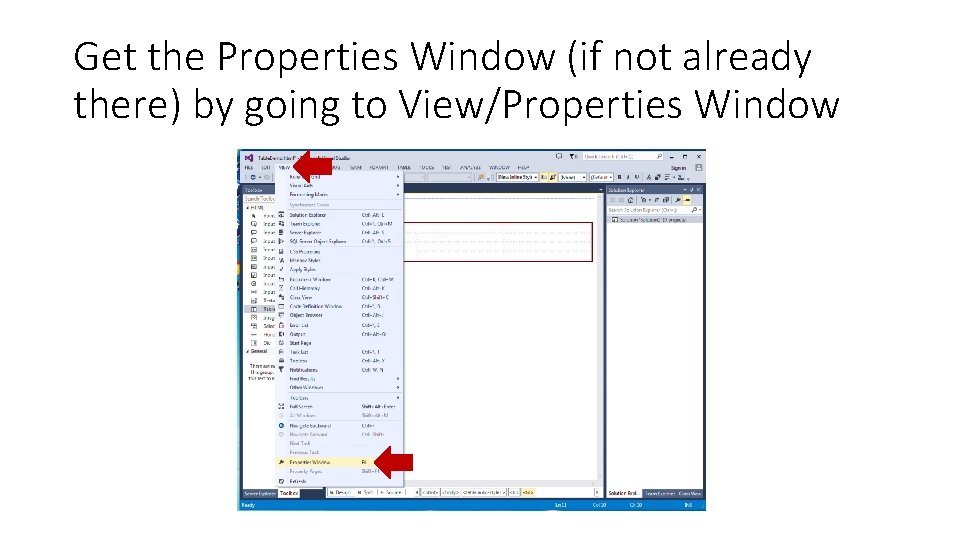

Get the Properties Window (if not already there) by going to View/Properties Window

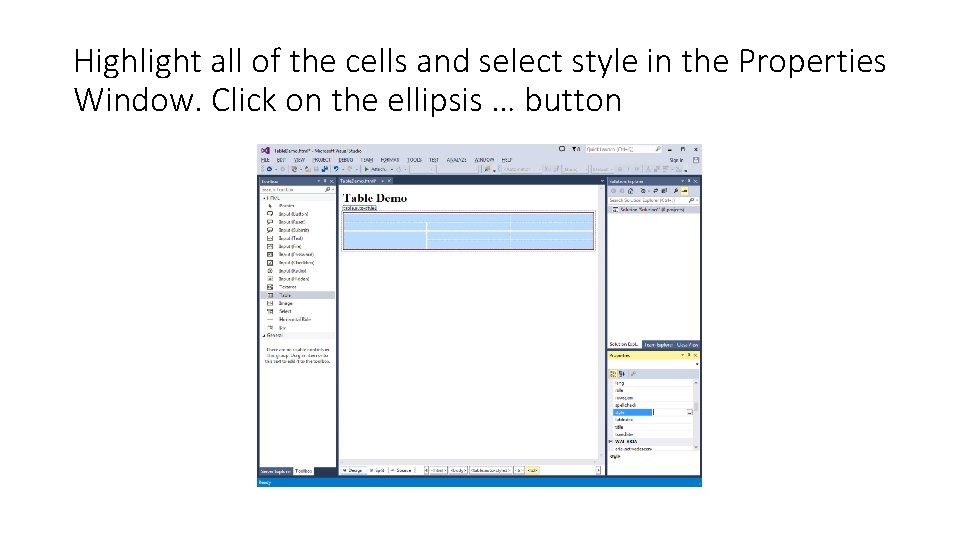

Highlight all of the cells and select style in the Properties Window. Click on the ellipsis … button

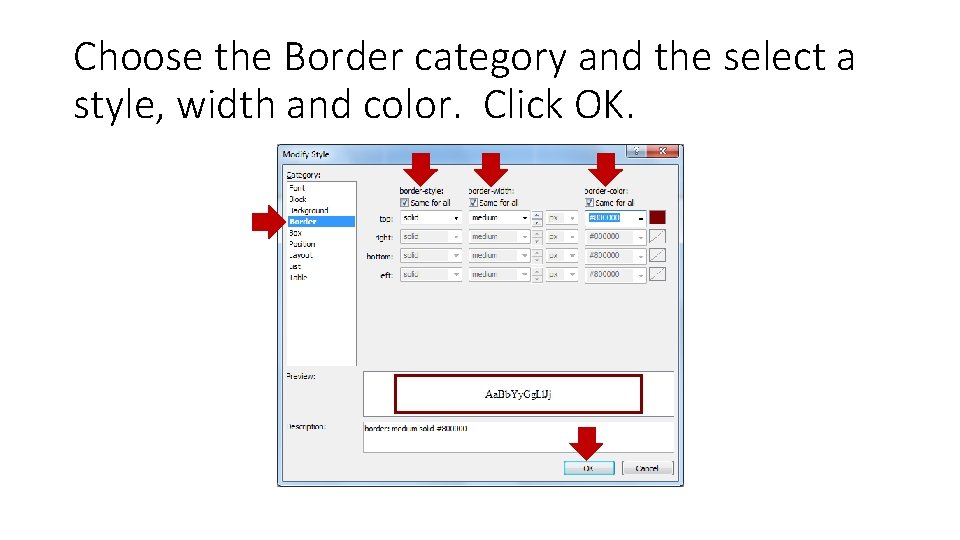

Choose the Border category and the select a style, width and color. Click OK.

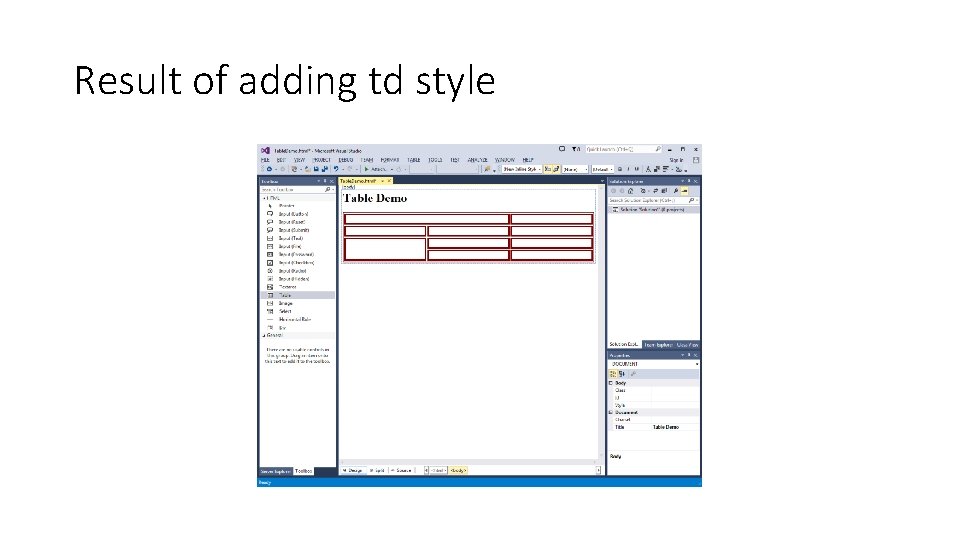

Result of adding td style

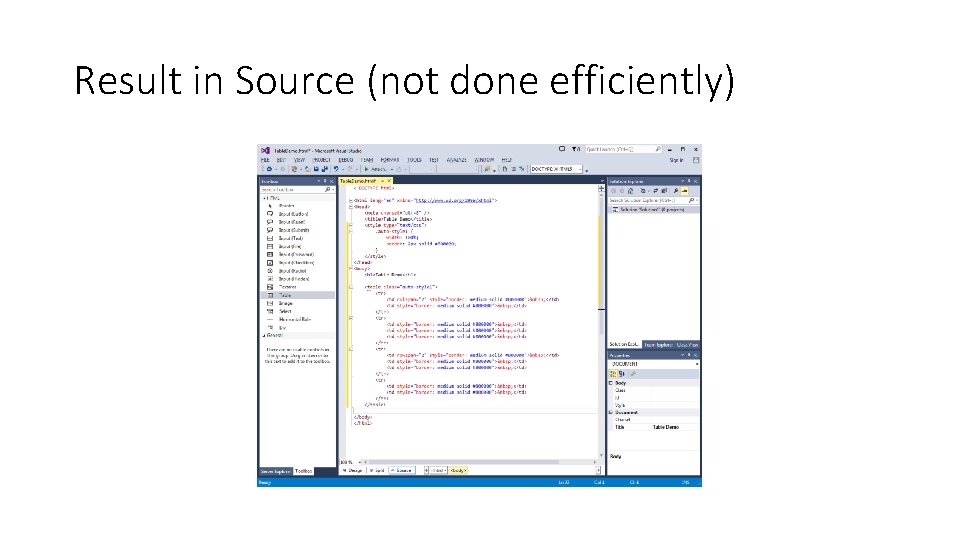

Result in Source (not done efficiently)

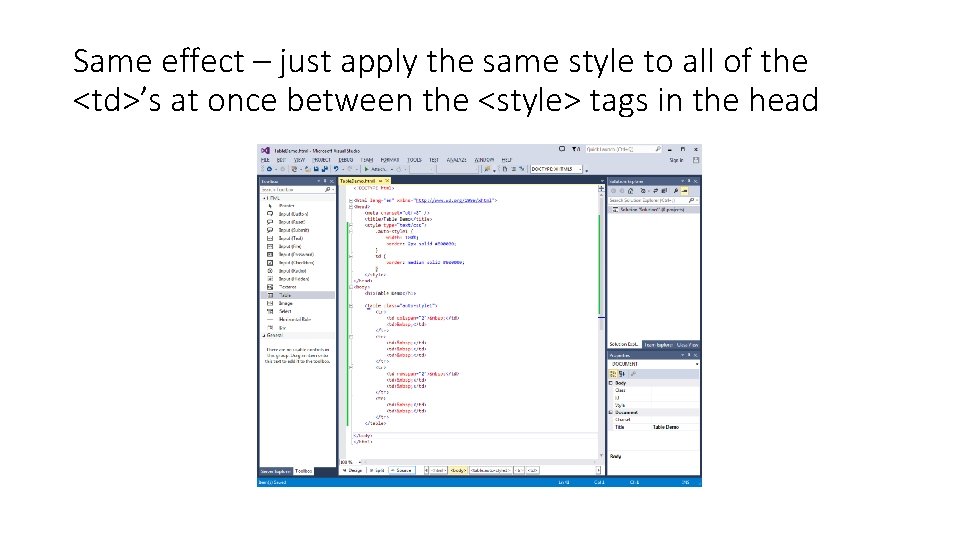

Same effect – just apply the same style to all of the <td>’s at once between the <style> tags in the head
