Major Numeric Data Types • Unsigned Integers • Signed Integers • Alphanumeric Data –

Major Numeric Data Types • Unsigned Integers • Signed Integers • Alphanumeric Data – ASCII & UNICODE • Floating Point Numbers

Signed Binary Integers:

Signed Binary Integers:

2’s Complement Arithmetic • Addition • Subtraction • Multiplication, Division

2’s Complement Arithmetic • Addition • Subtraction • Multiplication, Division

Overflow Adding two numbers which results In a sum that is too large to

Overflow Adding two numbers which results In a sum that is too large to store: A+B A-B

Alphanumeric Data Representation: ASCII Code Table (7 bit) Packed? Unpacked? UNICODE (16 bit) -

Alphanumeric Data Representation: ASCII Code Table (7 bit) Packed? Unpacked? UNICODE (16 bit) - UTF-8 provides a 16 bit superset of ASCII

Floating Point Numbers Example: -56. 67534 x 10 -5 • Sign • Fraction •

Floating Point Numbers Example: -56. 67534 x 10 -5 • Sign • Fraction • Exponent

Single Precision Floating Point Numbers IEEE Standard 32 bit Single Precision Floating Point Numbers

Single Precision Floating Point Numbers IEEE Standard 32 bit Single Precision Floating Point Numbers are stored as: S EEEE FFFFFFFFFFFF S: Sign – 1 bit E: Exponent – 8 bits F: Fraction – 23 bits The value V: • If E=255 and F is nonzero, then V= Na. N ("Not a Number") • If E=255 and F is zero and S is 1, then V= - Infinity • If E=255 and F is zero and S is 0, then V= Infinity • If 0<E<255 then V= (-1)**S * 2 ** (E-127) * (1. F) (exponent range = -127 to +128) • If E=0 and F is nonzero, then V= (-1)**S * 2 ** (-126) * (0. F) ("unnormalized" values”) • If E=0 and F is zero and S is 1, then V= - 0 • If E=0 and F is zero and S is 0, then V = 0 Note: 255 decimal = 1111 in binary (8 bits)

Double Precision Floating Point Numbers IEEE Standard 64 bit Double Precision Floating Point Numbers

Double Precision Floating Point Numbers IEEE Standard 64 bit Double Precision Floating Point Numbers are stored as: S EEEEEE FFFFFFFFFFFFFFFFFFFFFFFFFF S: Sign – 1 bit E: Exponent – 11 bits F: Fraction – 52 bits The value V: • If E=2047 and F is nonzero, then V= Na. N ("Not a Number") • If E=2047 and F is zero and S is 1, then V= - Infinity • If E=2047 and F is zero and S is 0, then V= Infinity • If 0<E<2047 then V= (-1)**S * 2 ** (E-1023) * (1. F) (exponent range = -1023 to +1024) • If E=0 and F is nonzero, then V= (-1)**S * 2 ** (-1022) * (0. F) ("unnormalized" values) • If E=0 and F is zero and S is 1, then V= - 0 • If E=0 and F is zero and S is 0, then V= 0 Note: 2047 decimal = 111111 in binary (11 bits)

Underflow A calculation in floating point that results in a result that is “essentially”

Underflow A calculation in floating point that results in a result that is “essentially” zero, i. e. too small to represent in floating point notation.

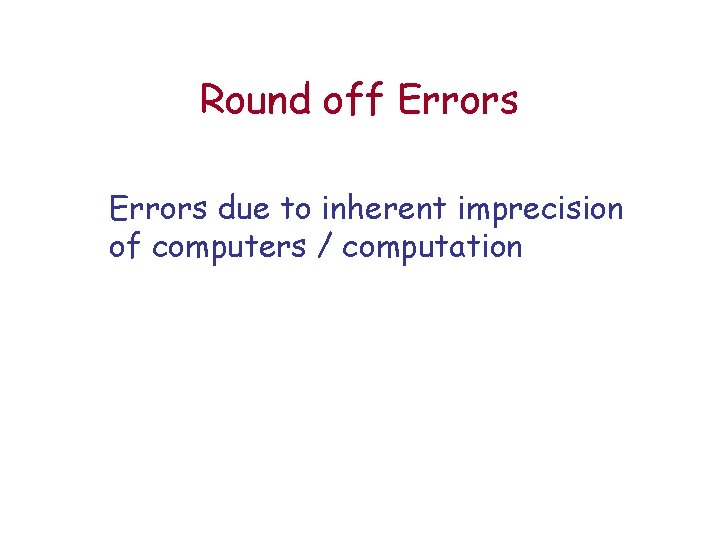

Round off Errors due to inherent imprecision of computers / computation

Round off Errors due to inherent imprecision of computers / computation

Chapter 3 Digital Logic Structures • The Transistor • CMOS Devices • Implementing Logic

Chapter 3 Digital Logic Structures • The Transistor • CMOS Devices • Implementing Logic with CMOS Devices • Combinational Logic Circuits • Decoders • Mux’s • Full Adder • PLA’s

Introduction to MOS = Metal Oxide Semiconductor technology NMOS =N-Type MOS device (N Channel

Introduction to MOS = Metal Oxide Semiconductor technology NMOS =N-Type MOS device (N Channel transistor) PMOS = P-Type MOS device (P Channel transistor) CMOS = Complementary MOS device 2. 5 to 5 volt supply (battery) N-type MOS: ground A logic 1 (battery voltage) on the “Gate” turns on the light

Basic Logic Gate Symbols

Basic Logic Gate Symbols

N-Type MOS Devices

N-Type MOS Devices

P-Type MOS Devices

P-Type MOS Devices

CMOS Device - Inverter 3 -5 volts p channel device CMOS Inverter n channel

CMOS Device - Inverter 3 -5 volts p channel device CMOS Inverter n channel device

CMOS NOR Gate

CMOS NOR Gate

CMOS OR Gate

CMOS OR Gate

CMOS AND Gate

CMOS AND Gate

Basic Logic Gate Symbols Note: NAND and NOR gates are “universal” gates. AND, OR,

Basic Logic Gate Symbols Note: NAND and NOR gates are “universal” gates. AND, OR, NOT gates can all be created by either NAND or NOR gates.

De. Morgan’s Theorem/Law • (NOT A) and (NOT B) = NOT (A or B)

De. Morgan’s Theorem/Law • (NOT A) and (NOT B) = NOT (A or B) • (NOT A) or (NOT B) = NOT (A and B) Prove De. Morgan’s with truth tables A or B = NOT( (NOT A) and (NOT B) ) NOT (A or B) = (NOT A) and (NOT B)
