Maintenance Training Course

Course Overview • Itemiser 3 Overview • Log On and Calibration • Menu Options • Maintenance • Conclusion

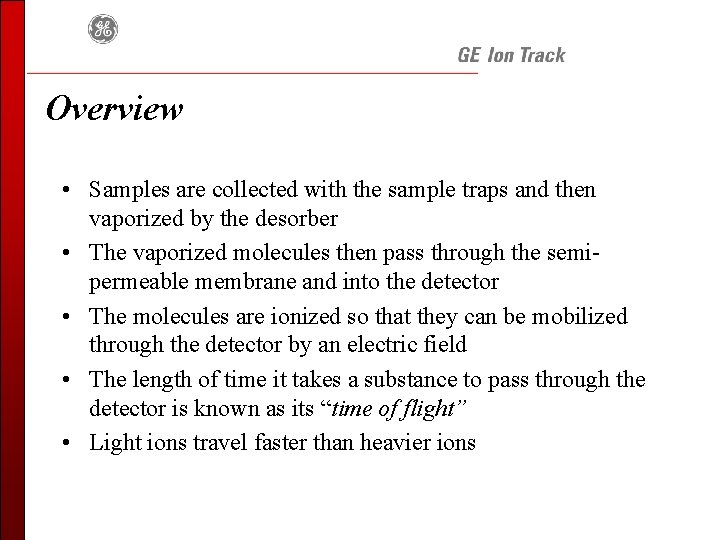

Overview • Samples are collected with the sample traps and then vaporized by the desorber • The vaporized molecules then pass through the semipermeable membrane and into the detector • The molecules are ionized so that they can be mobilized through the detector by an electric field • The length of time it takes a substance to pass through the detector is known as its “time of flight” • Light ions travel faster than heavier ions

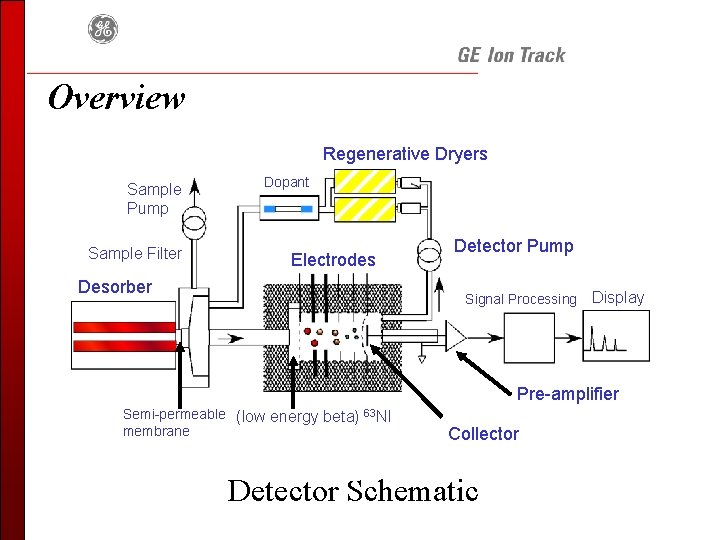

Overview Regenerative Dryers Sample Pump Sample Filter Dopant Electrodes Desorber Detector Pump Signal Processing Display Pre-amplifier Semi-permeable (low energy beta) membrane 63 NI Collector Detector Schematic

Overview Why Maintenance is Necessary • Optimize system performance • Keeps the sample and detector tubing clear of contamination • Prevents nuisance alarms • Minimize down time • Reduce maintenance and repair costs

Log On and Calibration Supervisor default pin number is 5 5. Maintenance pin number is 9 9.

Log On and Calibration Methods

Log On and Calibration

Log On and Calibration Select TNT and insert the calibration trap.

Log On and Calibration

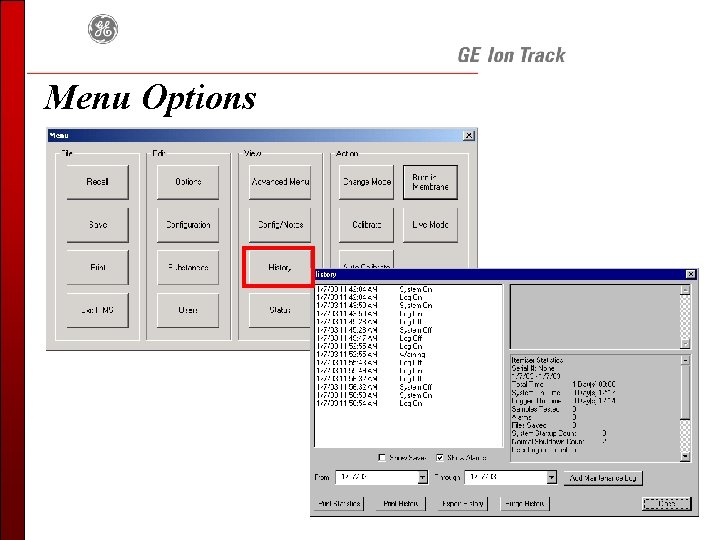

Menu Options • • • Options Substances Config/Notes History Status Advanced Menu • Burn in Membrane

Menu Options A timed calibration warning may be set in this box.

Menu Options Substances levels are set at the factory.

Menu Options

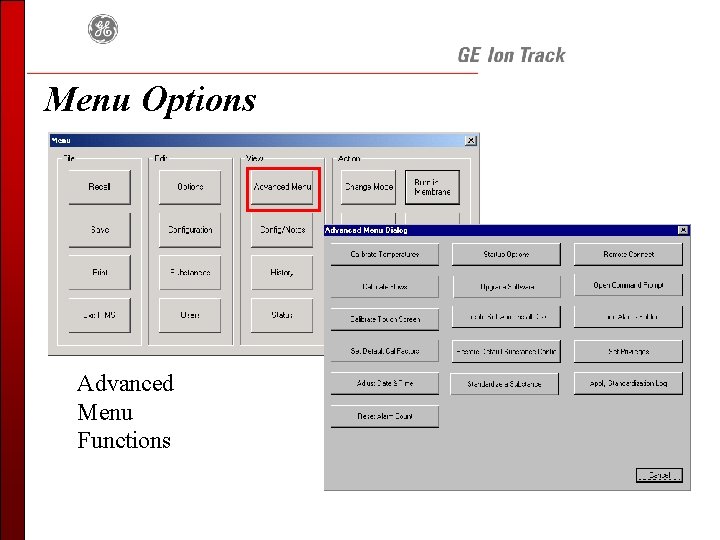

Menu Options Advanced Menu Functions

Maintenance Saying yes to “Burn in Membrane” results in a four hour period of raised temperature that burns off any contaminants that may have been introduced with the installation of a new membrane.

Shift Maintenance Calibrate Check printer paper Clean the unit and work area with alcohol

Weekly Maintenance (With unit powered-on) Check Sample and Detector flow @ 200 cc/min Verify nozzle flow Is approximately 0. 2 SCFH

Weekly Maintenance (With unit powered-off and wearing gloves) Clean desorber unit Inspect sample filter Clean sample air lines Clean the membrane Inspect dopant Inspect fan filter

Monthly Maintenance (With unit powered-off and wearing gloves) Change the membrane

Conclusion • Itemiser 3 Overview • Log On and Calibration • Menu Options • Maintenance • Questions?
