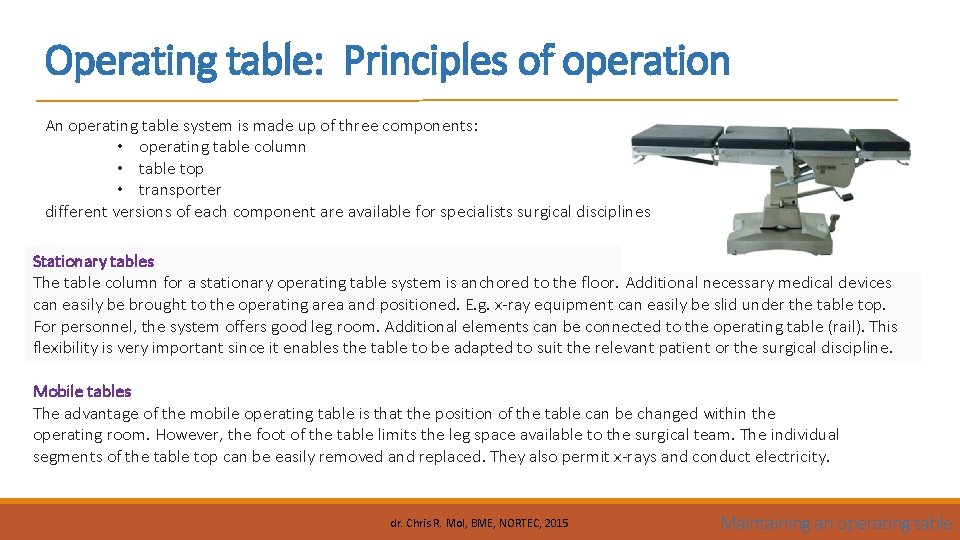

Operating table: Principles of operation An operating table system is made up of three components: • operating table column • table top • transporter different versions of each component are available for specialists surgical disciplines Stationary tables The table column for a stationary operating table system is anchored to the floor. Additional necessary medical devices can easily be brought to the operating area and positioned. E. g. x-ray equipment can easily be slid under the table top. For personnel, the system offers good leg room. Additional elements can be connected to the operating table (rail). This flexibility is very important since it enables the table to be adapted to suit the relevant patient or the surgical discipline. Mobile tables The advantage of the mobile operating table is that the position of the table can be changed within the operating room. However, the foot of the table limits the leg space available to the surgical team. The individual segments of the table top can be easily removed and replaced. They also permit x-rays and conduct electricity. dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table

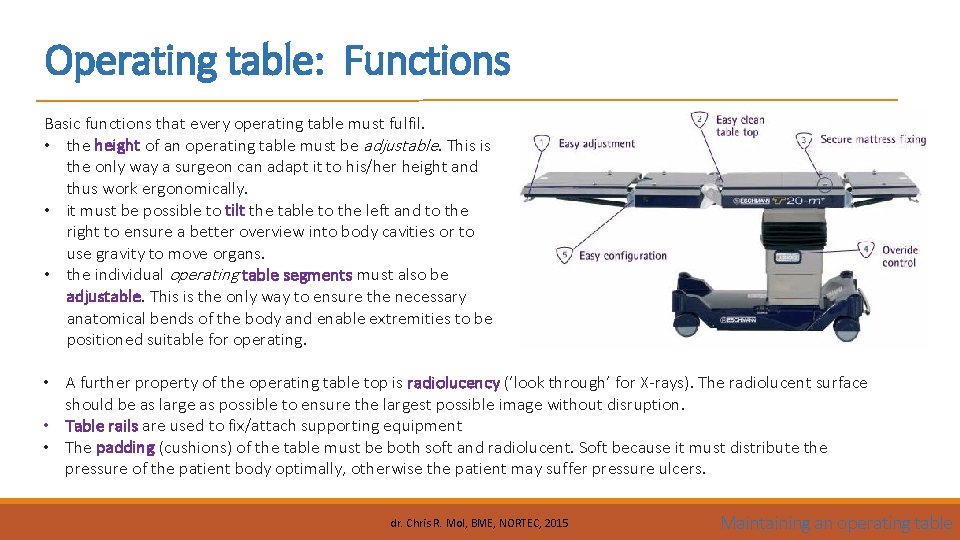

Operating table: Functions Basic functions that every operating table must fulfil. • the height of an operating table must be adjustable. This is the only way a surgeon can adapt it to his/her height and thus work ergonomically. • it must be possible to tilt the table to the left and to the right to ensure a better overview into body cavities or to use gravity to move organs. • the individual operating table segments must also be adjustable. This is the only way to ensure the necessary anatomical bends of the body and enable extremities to be positioned suitable for operating. • A further property of the operating table top is radiolucency (‘look through’ for X-rays). The radiolucent surface should be as large as possible to ensure the largest possible image without disruption. • Table rails are used to fix/attach supporting equipment • The padding (cushions) of the table must be both soft and radiolucent. Soft because it must distribute the pressure of the patient body optimally, otherwise the patient may suffer pressure ulcers. dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table

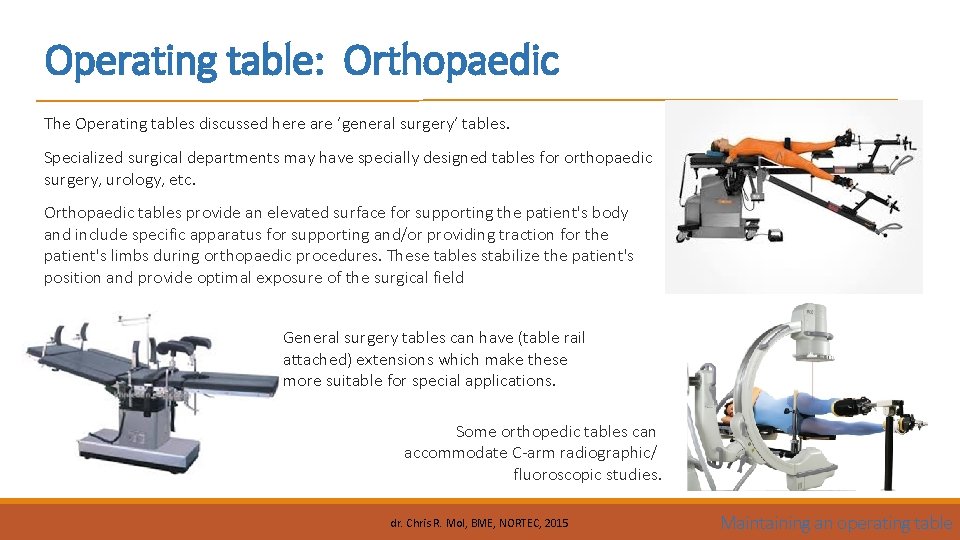

Operating table: Orthopaedic The Operating tables discussed here are ‘general surgery’ tables. Specialized surgical departments may have specially designed tables for orthopaedic surgery, urology, etc. Orthopaedic tables provide an elevated surface for supporting the patient's body and include specific apparatus for supporting and/or providing traction for the patient's limbs during orthopaedic procedures. These tables stabilize the patient's position and provide optimal exposure of the surgical field General surgery tables can have (table rail attached) extensions which make these more suitable for special applications. Some orthopedic tables can accommodate C-arm radiographic/ fluoroscopic studies. dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table

Operating table: Construction dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table

Operating table: Components dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table

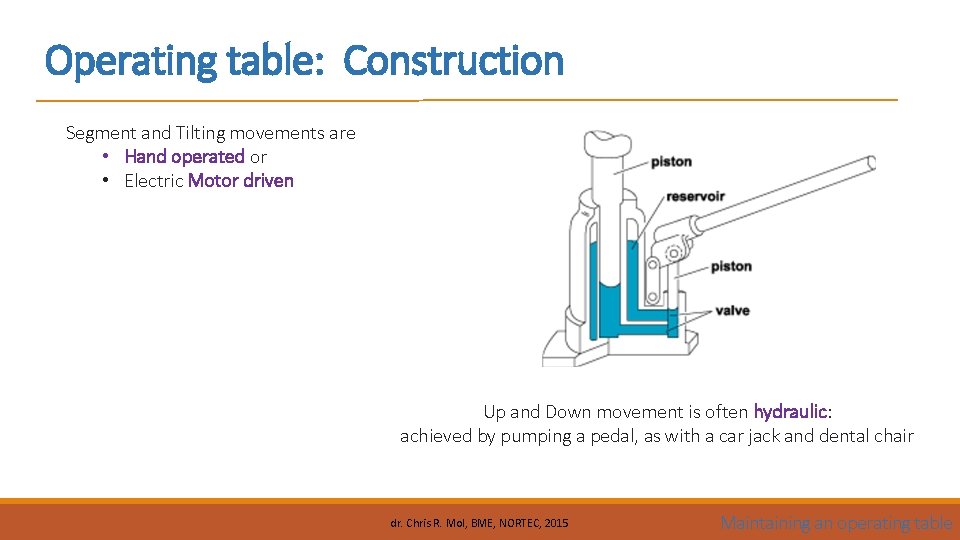

Operating table: Construction Segment and Tilting movements are • Hand operated or • Electric Motor driven Up and Down movement is often hydraulic: achieved by pumping a pedal, as with a car jack and dental chair dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table

Operating table: Preventive maintenance As usual, there is maintenance to be done according to user and service manual • after each operation: disinfection, drying (user) • daily: cleaning, inspection, function checks (user), • weekly: (oil) fluid levels, greasing (user) • monthly: see below (Bio. Med tech) • annual (Bio. Med tech) maintenance. And training to be given by Bio. Med techs to Users…. e. g. Monthly maintenance • Clean and lubricate pins and latches, spring loaded pins and pivoting ports with light machine oil or Vaseline • Check castors that roll smoothly and floor lock is functioning correctly • Test table functions by adjusting them to extreme position and back • Check hand control unit and foot switch cables, connector and receptacle dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table

Operating table: Common Faults Table movement failure Check the main panel buttons for damage, the circuit board and wiring connections Unplug the hand controller plug, use a multi-meter to measure if connection is turned on. Contact the manufacturer to purchase PCB’s and do the replacement. Sometimes the up-down control fails due to a jack problem. In this case, oil should be added. If there is no problem with the oil level, then the oil seal or piston may have the problem. dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table

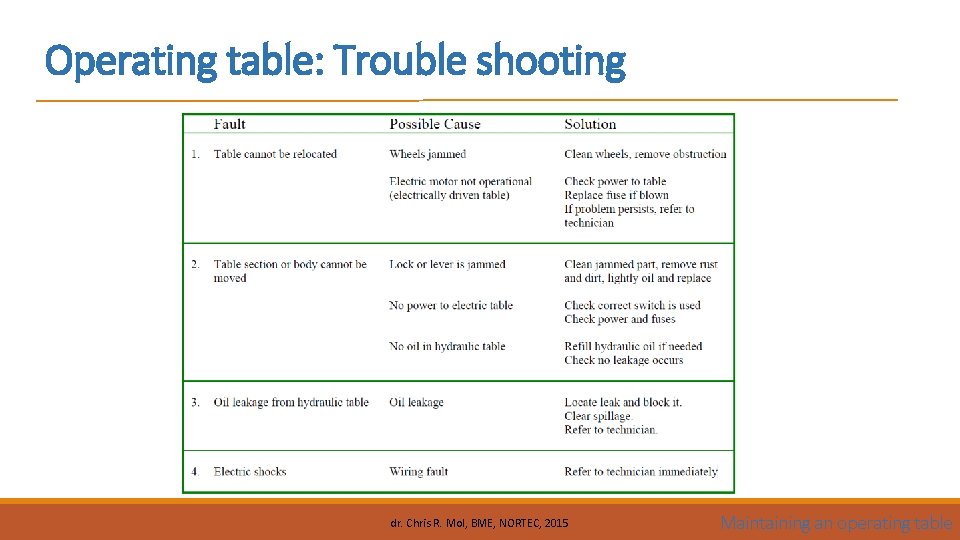

Operating table: Trouble shooting dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table

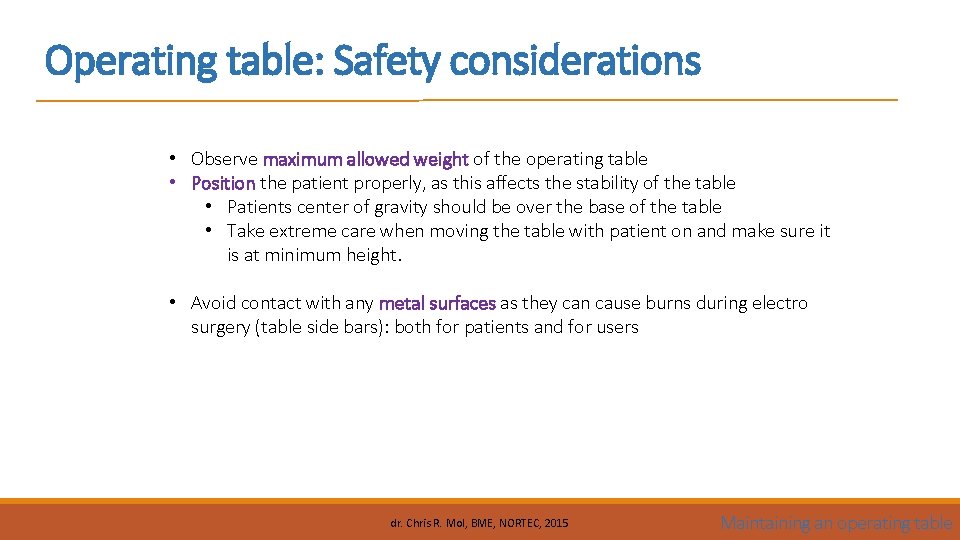

Operating table: Safety considerations • Observe maximum allowed weight of the operating table • Position the patient properly, as this affects the stability of the table • Patients center of gravity should be over the base of the table • Take extreme care when moving the table with patient on and make sure it is at minimum height. • Avoid contact with any metal surfaces as they can cause burns during electro surgery (table side bars): both for patients and for users dr. Chris R. Mol, BME, NORTEC, 2015 Maintaining an operating table
