Maintainability Predictions Last revised 8112005 ASENTMTTR PPT Introduction

Maintainability Predictions Last revised 8/11/2005 ASENT_MTTR. PPT

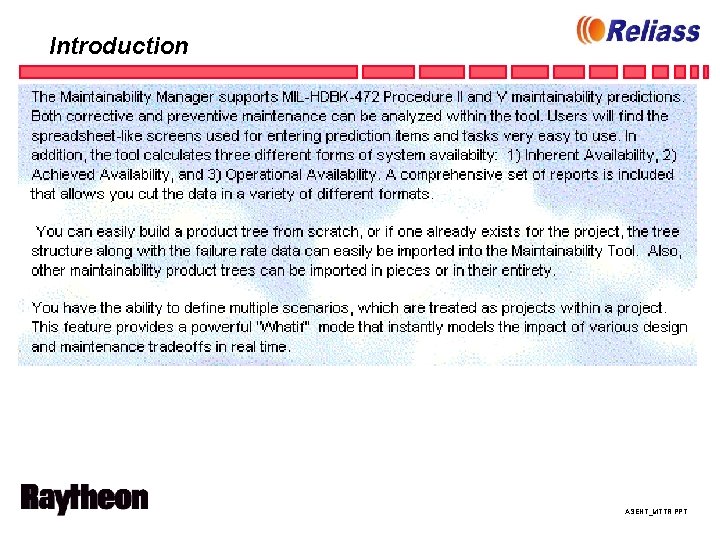

Introduction ASENT_MTTR. PPT

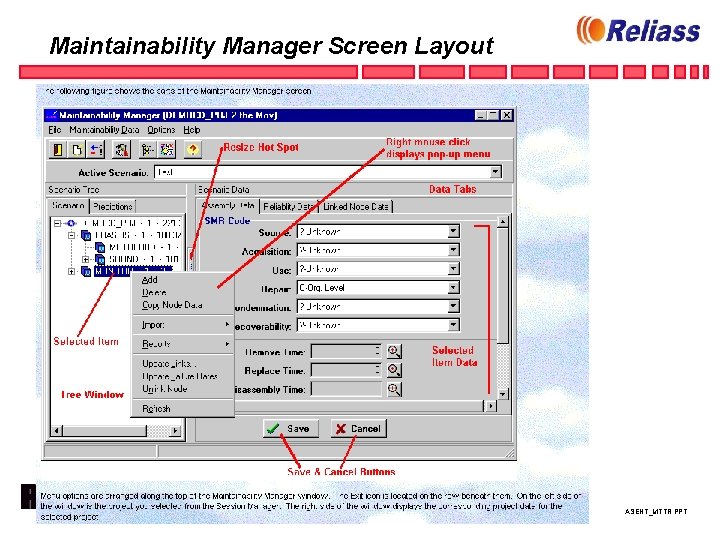

Maintainability Manager Screen Layout ASENT_MTTR. PPT

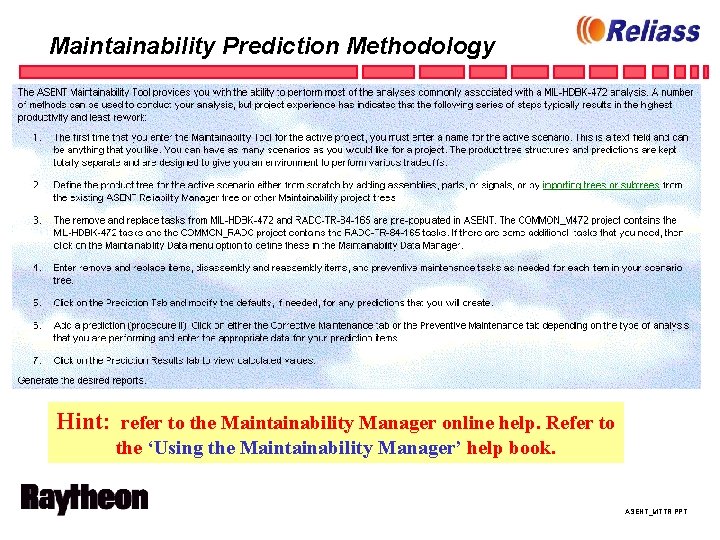

Maintainability Prediction Methodology Hint: refer to the Maintainability Manager online help. Refer to the ‘Using the Maintainability Manager’ help book. ASENT_MTTR. PPT

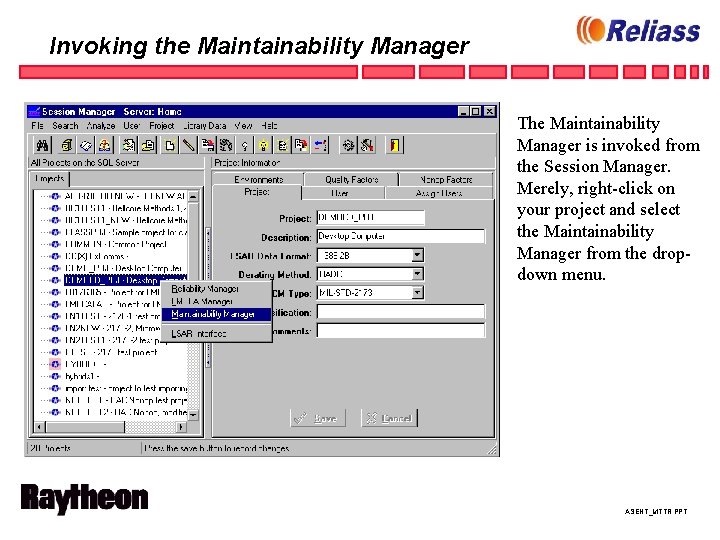

Invoking the Maintainability Manager The Maintainability Manager is invoked from the Session Manager. Merely, right-click on your project and select the Maintainability Manager from the dropdown menu. ASENT_MTTR. PPT

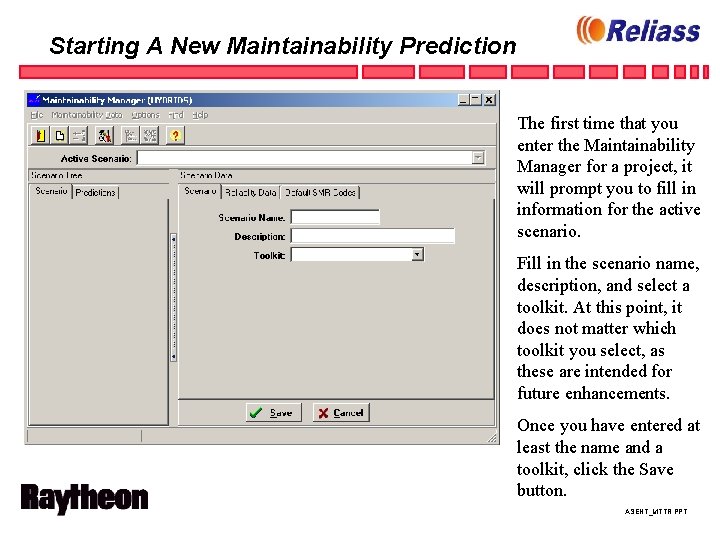

Starting A New Maintainability Prediction The first time that you enter the Maintainability Manager for a project, it will prompt you to fill in information for the active scenario. Fill in the scenario name, description, and select a toolkit. At this point, it does not matter which toolkit you select, as these are intended for future enhancements. Once you have entered at least the name and a toolkit, click the Save button. ASENT_MTTR. PPT

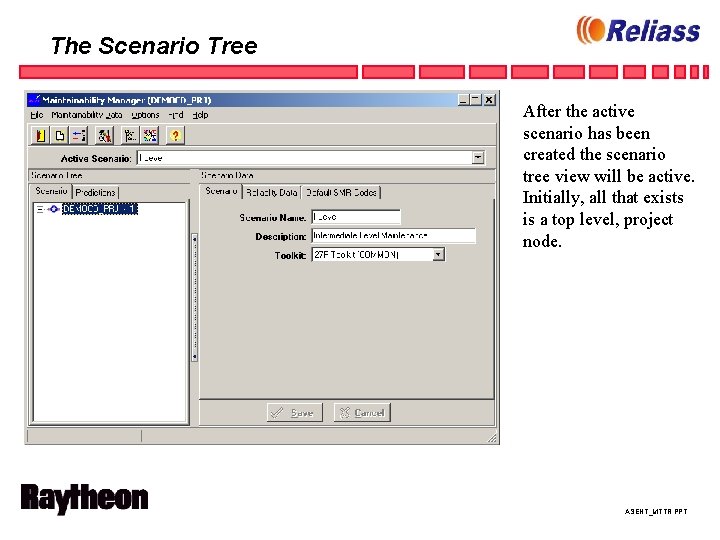

The Scenario Tree After the active scenario has been created the scenario tree view will be active. Initially, all that exists is a top level, project node. ASENT_MTTR. PPT

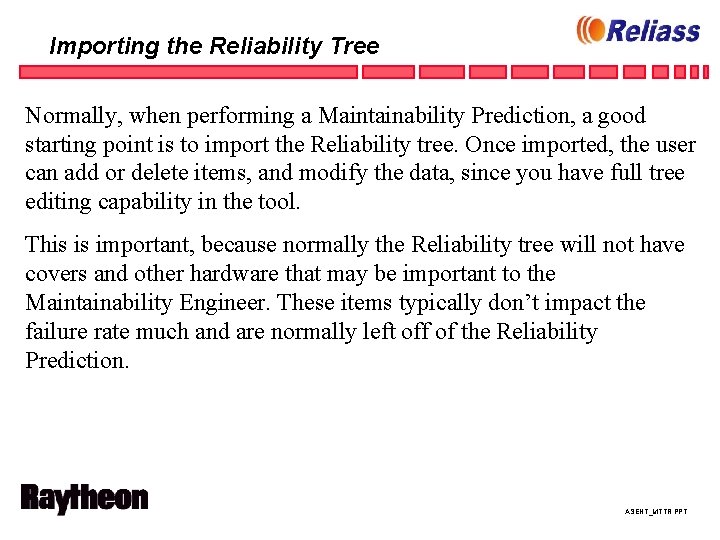

Importing the Reliability Tree Normally, when performing a Maintainability Prediction, a good starting point is to import the Reliability tree. Once imported, the user can add or delete items, and modify the data, since you have full tree editing capability in the tool. This is important, because normally the Reliability tree will not have covers and other hardware that may be important to the Maintainability Engineer. These items typically don’t impact the failure rate much and are normally left off of the Reliability Prediction. ASENT_MTTR. PPT

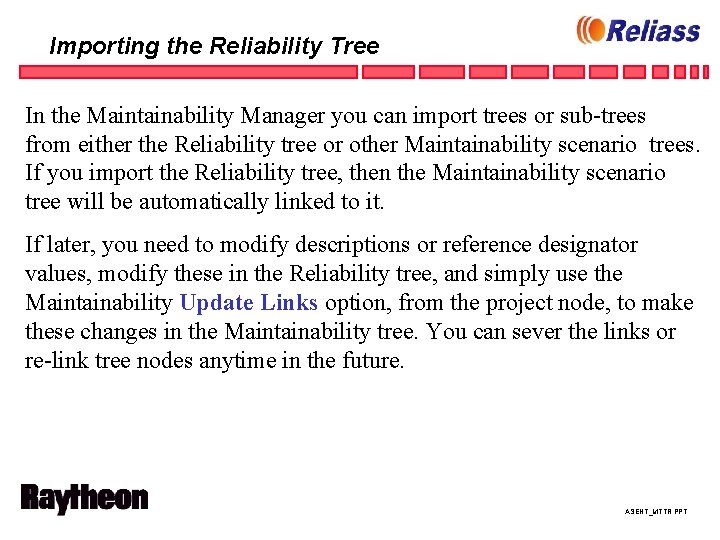

Importing the Reliability Tree In the Maintainability Manager you can import trees or sub-trees from either the Reliability tree or other Maintainability scenario trees. If you import the Reliability tree, then the Maintainability scenario tree will be automatically linked to it. If later, you need to modify descriptions or reference designator values, modify these in the Reliability tree, and simply use the Maintainability Update Links option, from the project node, to make these changes in the Maintainability tree. You can sever the links or re-link tree nodes anytime in the future. ASENT_MTTR. PPT

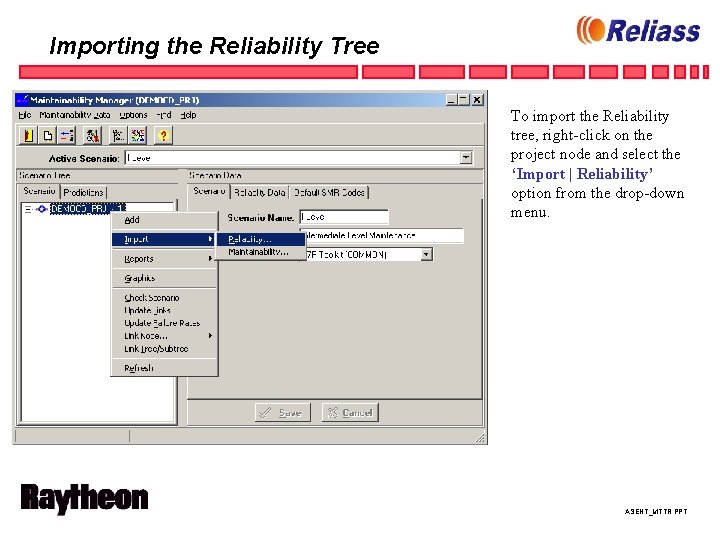

Importing the Reliability Tree To import the Reliability tree, right-click on the project node and select the ‘Import | Reliability’ option from the drop-down menu. ASENT_MTTR. PPT

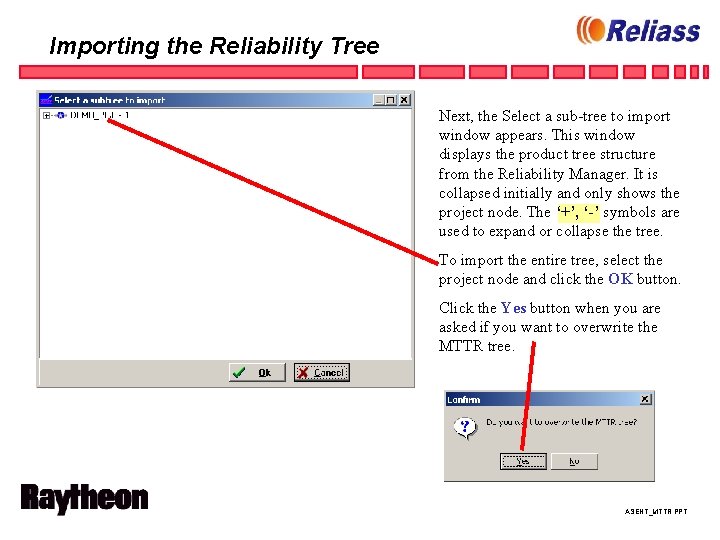

Importing the Reliability Tree Next, the Select a sub-tree to import window appears. This window displays the product tree structure from the Reliability Manager. It is collapsed initially and only shows the project node. The ‘+’, ‘-’ symbols are used to expand or collapse the tree. To import the entire tree, select the project node and click the OK button. Click the Yes button when you are asked if you want to overwrite the MTTR tree. ASENT_MTTR. PPT

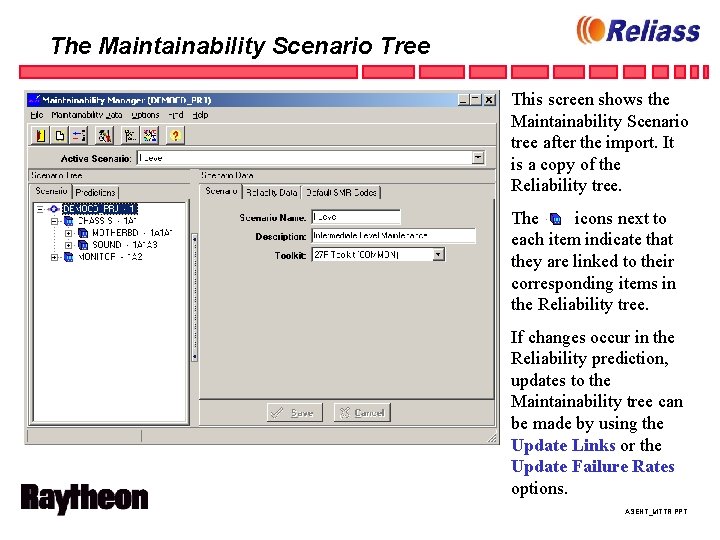

The Maintainability Scenario Tree This screen shows the Maintainability Scenario tree after the import. It is a copy of the Reliability tree. The icons next to each item indicate that they are linked to their corresponding items in the Reliability tree. If changes occur in the Reliability prediction, updates to the Maintainability tree can be made by using the Update Links or the Update Failure Rates options. ASENT_MTTR. PPT

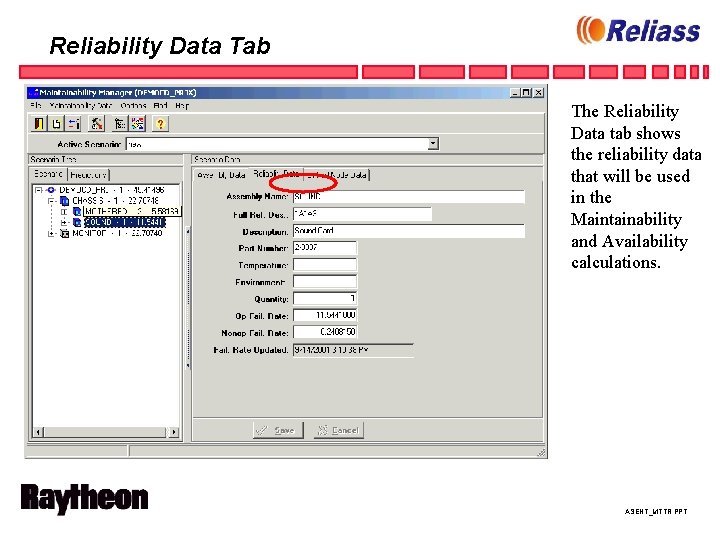

Reliability Data Tab The Reliability Data tab shows the reliability data that will be used in the Maintainability and Availability calculations. ASENT_MTTR. PPT

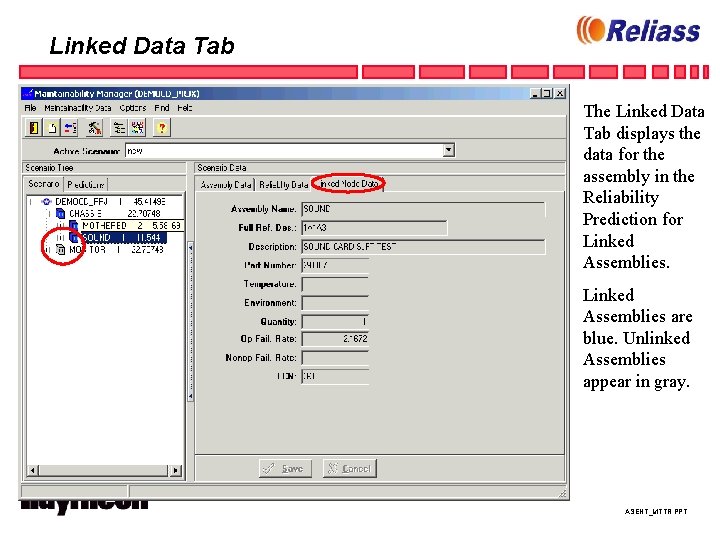

Linked Data Tab The Linked Data Tab displays the data for the assembly in the Reliability Prediction for Linked Assemblies are blue. Unlinked Assemblies appear in gray. ASENT_MTTR. PPT

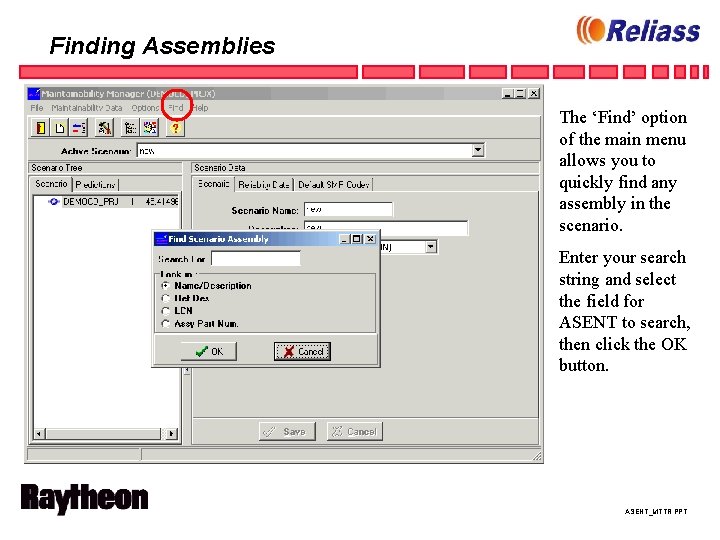

Finding Assemblies The ‘Find’ option of the main menu allows you to quickly find any assembly in the scenario. Enter your search string and select the field for ASENT to search, then click the OK button. ASENT_MTTR. PPT

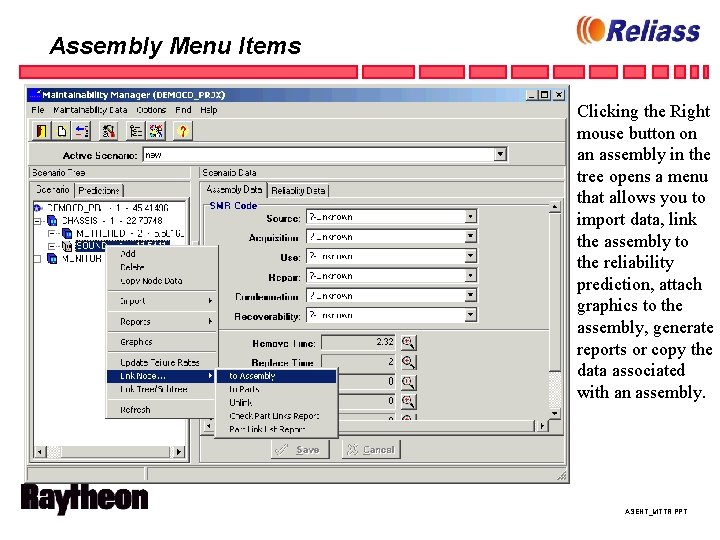

Assembly Menu Items Clicking the Right mouse button on an assembly in the tree opens a menu that allows you to import data, link the assembly to the reliability prediction, attach graphics to the assembly, generate reports or copy the data associated with an assembly. ASENT_MTTR. PPT

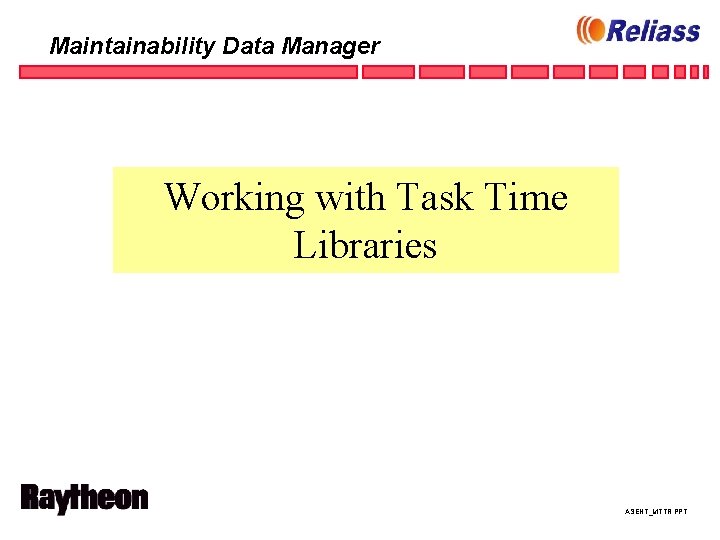

Maintainability Data Manager Working with Task Time Libraries ASENT_MTTR. PPT

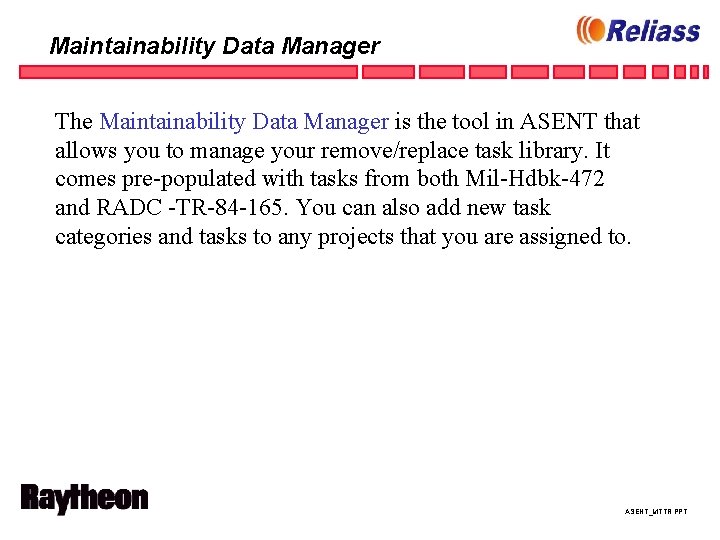

Maintainability Data Manager The Maintainability Data Manager is the tool in ASENT that allows you to manage your remove/replace task library. It comes pre-populated with tasks from both Mil-Hdbk-472 and RADC -TR-84 -165. You can also add new task categories and tasks to any projects that you are assigned to. ASENT_MTTR. PPT

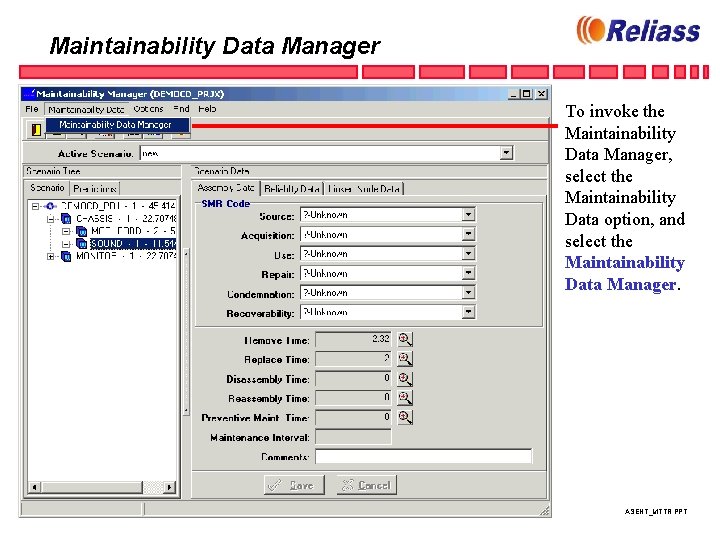

Maintainability Data Manager To invoke the Maintainability Data Manager, select the Maintainability Data option, and select the Maintainability Data Manager. ASENT_MTTR. PPT

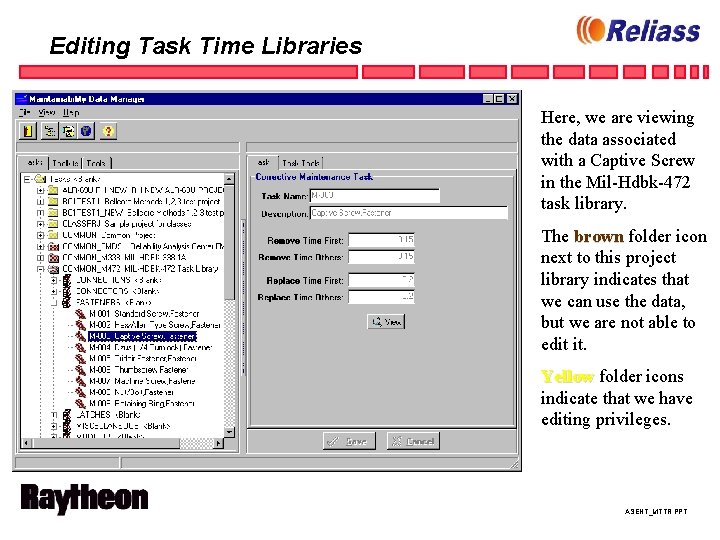

Editing Task Time Libraries Here, we are viewing the data associated with a Captive Screw in the Mil-Hdbk-472 task library. The brown folder icon next to this project library indicates that we can use the data, but we are not able to edit it. Yellow folder icons indicate that we have editing privileges. ASENT_MTTR. PPT

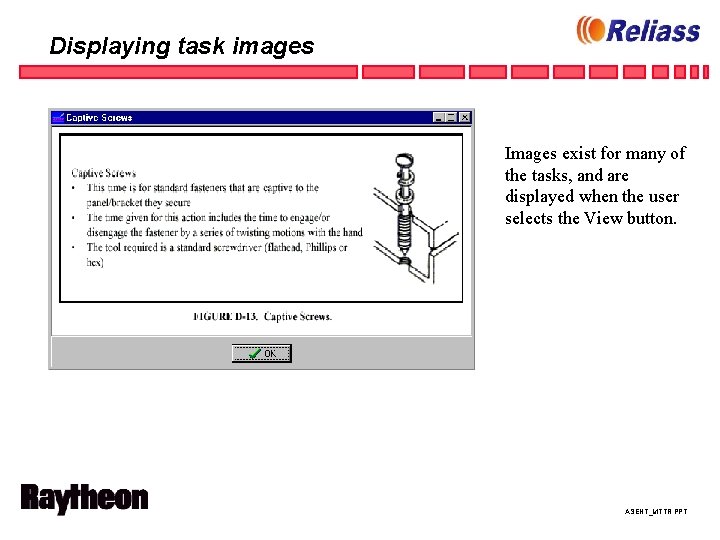

Displaying task images Images exist for many of the tasks, and are displayed when the user selects the View button. ASENT_MTTR. PPT

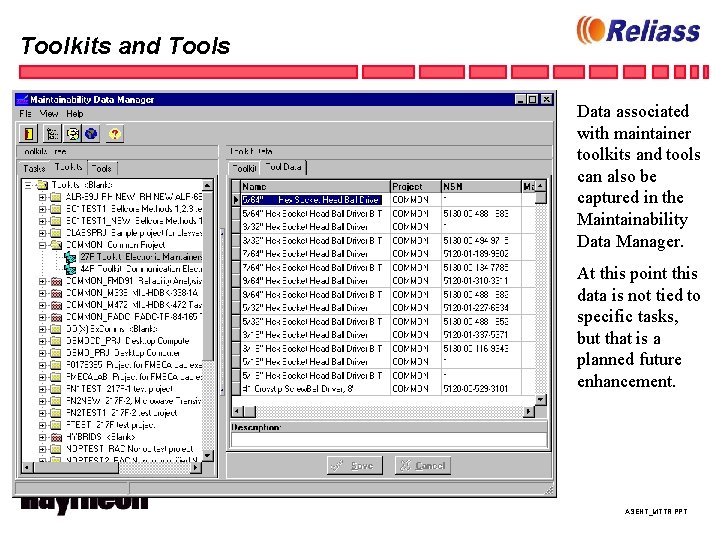

Toolkits and Tools Data associated with maintainer toolkits and tools can also be captured in the Maintainability Data Manager. At this point this data is not tied to specific tasks, but that is a planned future enhancement. ASENT_MTTR. PPT

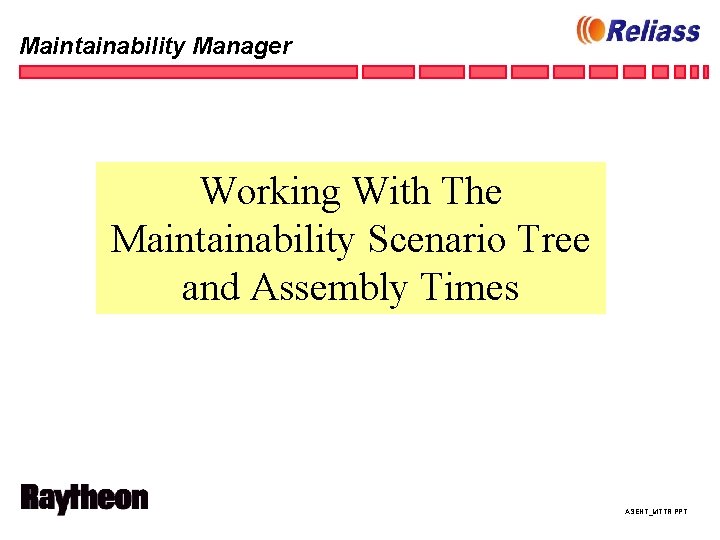

Maintainability Manager Working With The Maintainability Scenario Tree and Assembly Times ASENT_MTTR. PPT

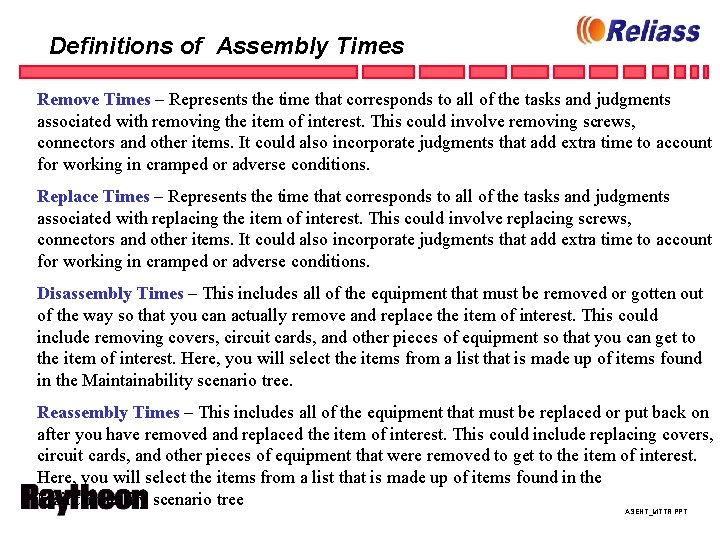

Definitions of Assembly Times Remove Times – Represents the time that corresponds to all of the tasks and judgments associated with removing the item of interest. This could involve removing screws, connectors and other items. It could also incorporate judgments that add extra time to account for working in cramped or adverse conditions. Replace Times – Represents the time that corresponds to all of the tasks and judgments associated with replacing the item of interest. This could involve replacing screws, connectors and other items. It could also incorporate judgments that add extra time to account for working in cramped or adverse conditions. Disassembly Times – This includes all of the equipment that must be removed or gotten out of the way so that you can actually remove and replace the item of interest. This could include removing covers, circuit cards, and other pieces of equipment so that you can get to the item of interest. Here, you will select the items from a list that is made up of items found in the Maintainability scenario tree. Reassembly Times – This includes all of the equipment that must be replaced or put back on after you have removed and replaced the item of interest. This could include replacing covers, circuit cards, and other pieces of equipment that were removed to get to the item of interest. Here, you will select the items from a list that is made up of items found in the Maintainability scenario tree ASENT_MTTR. PPT

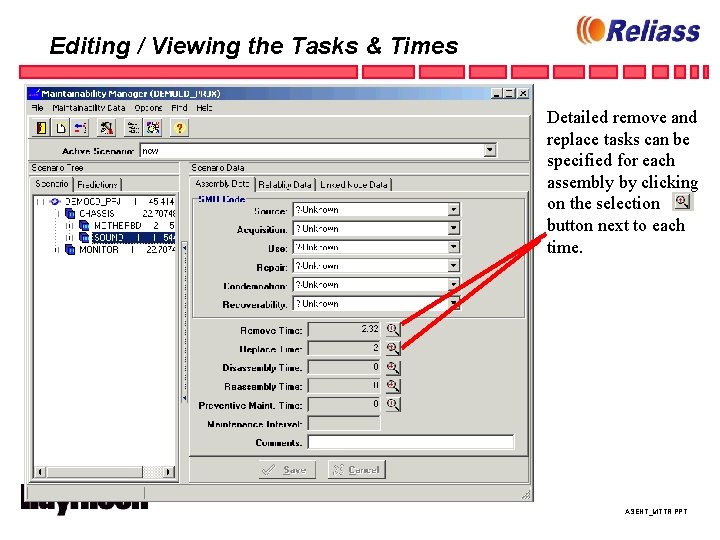

Editing / Viewing the Tasks & Times Detailed remove and replace tasks can be specified for each assembly by clicking on the selection button next to each time. ASENT_MTTR. PPT

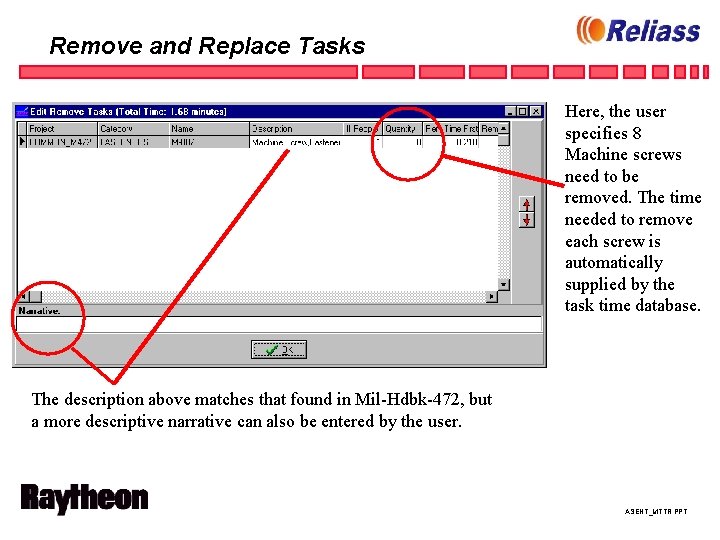

Remove and Replace Tasks Here, the user specifies 8 Machine screws need to be removed. The time needed to remove each screw is automatically supplied by the task time database. The description above matches that found in Mil-Hdbk-472, but a more descriptive narrative can also be entered by the user. ASENT_MTTR. PPT

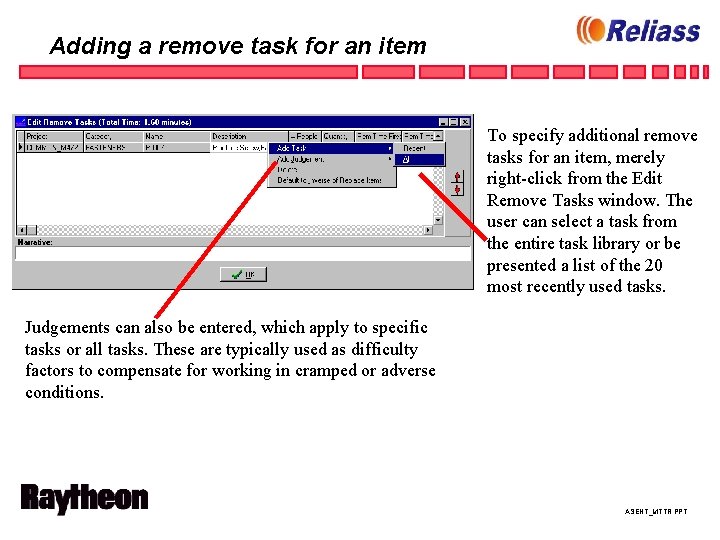

Adding a remove task for an item To specify additional remove tasks for an item, merely right-click from the Edit Remove Tasks window. The user can select a task from the entire task library or be presented a list of the 20 most recently used tasks. Judgements can also be entered, which apply to specific tasks or all tasks. These are typically used as difficulty factors to compensate for working in cramped or adverse conditions. ASENT_MTTR. PPT

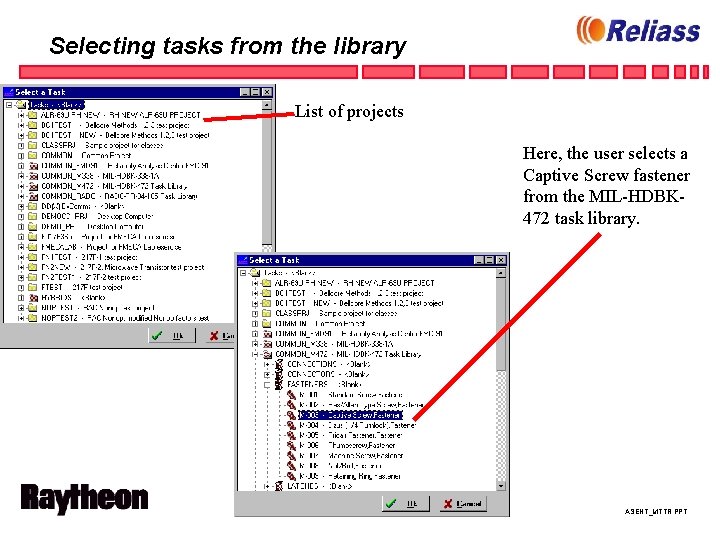

Selecting tasks from the library List of projects Here, the user selects a Captive Screw fastener from the MIL-HDBK 472 task library. ASENT_MTTR. PPT

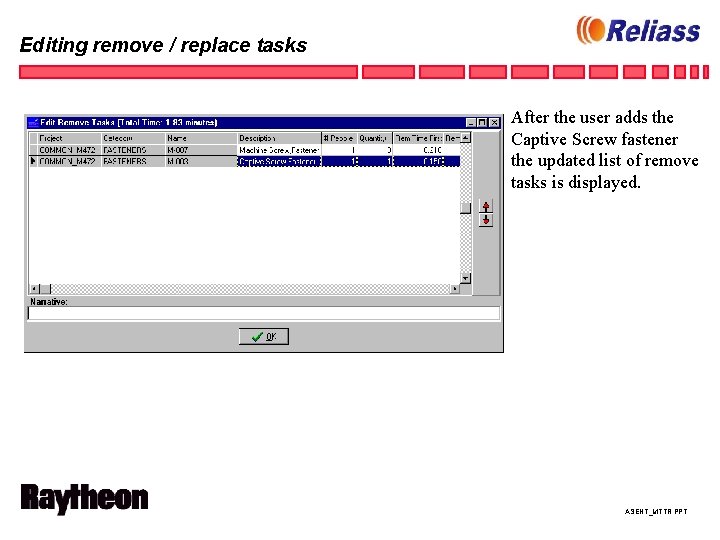

Editing remove / replace tasks After the user adds the Captive Screw fastener the updated list of remove tasks is displayed. ASENT_MTTR. PPT

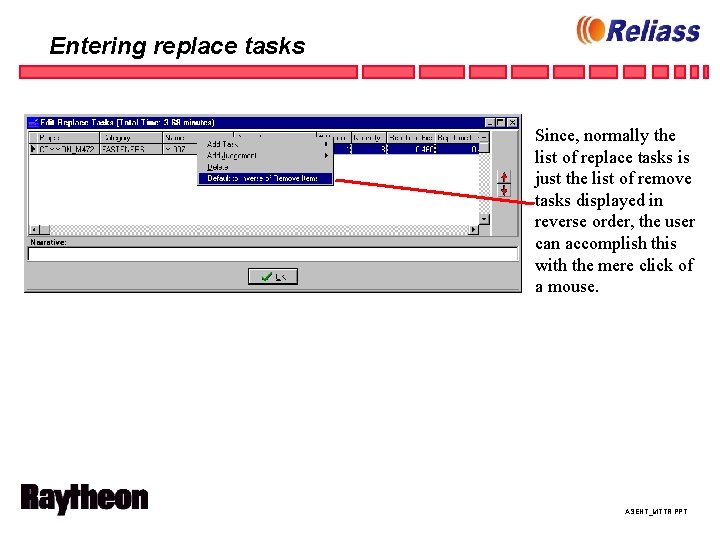

Entering replace tasks Since, normally the list of replace tasks is just the list of remove tasks displayed in reverse order, the user can accomplish this with the mere click of a mouse. ASENT_MTTR. PPT

Maintainability Predictions Performing a Maintainability Prediction ASENT_MTTR. PPT

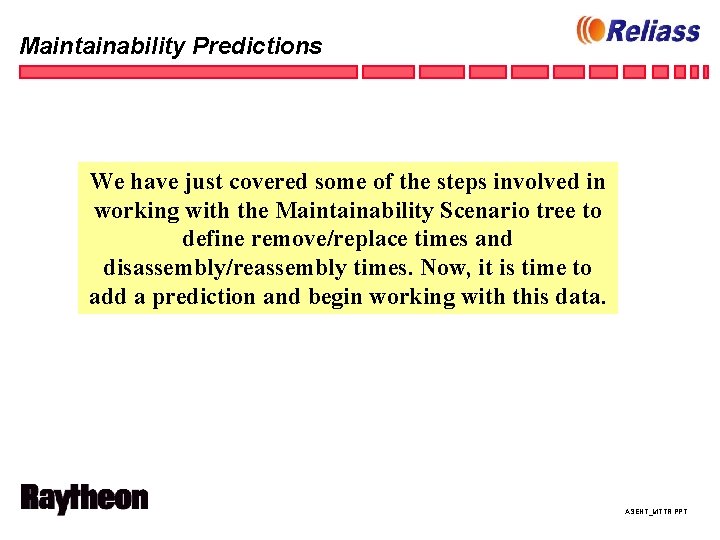

Maintainability Predictions We have just covered some of the steps involved in working with the Maintainability Scenario tree to define remove/replace times and disassembly/reassembly times. Now, it is time to add a prediction and begin working with this data. ASENT_MTTR. PPT

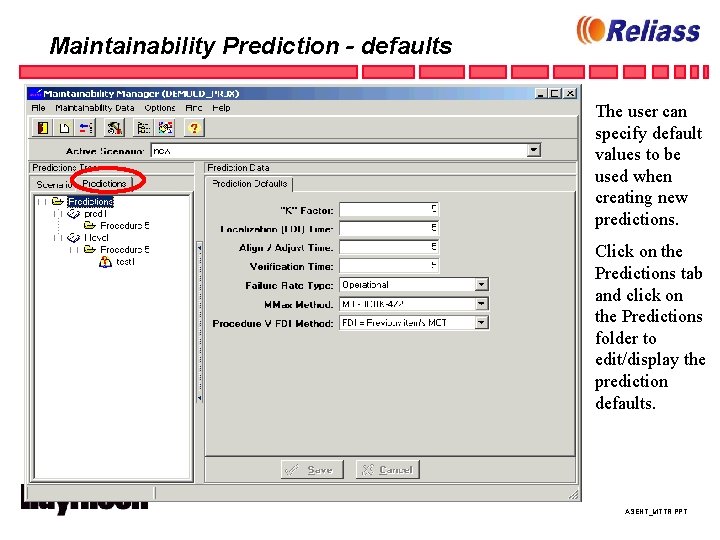

Maintainability Prediction - defaults The user can specify default values to be used when creating new predictions. Click on the Predictions tab and click on the Predictions folder to edit/display the prediction defaults. ASENT_MTTR. PPT

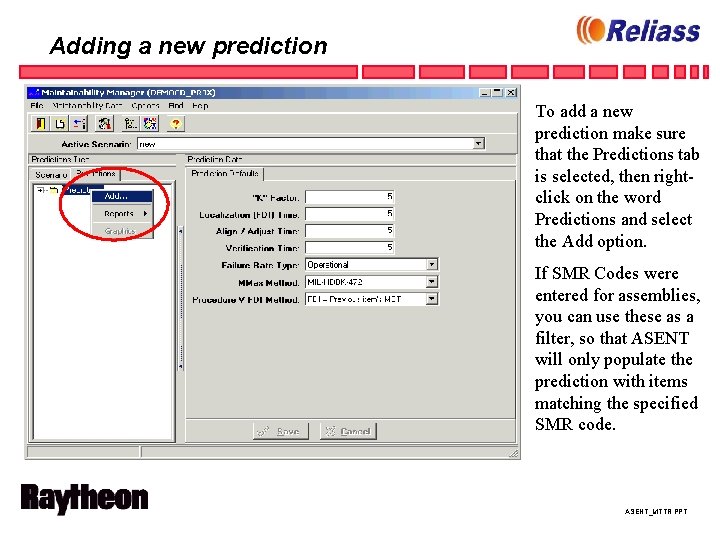

Adding a new prediction To add a new prediction make sure that the Predictions tab is selected, then rightclick on the word Predictions and select the Add option. If SMR Codes were entered for assemblies, you can use these as a filter, so that ASENT will only populate the prediction with items matching the specified SMR code. ASENT_MTTR. PPT

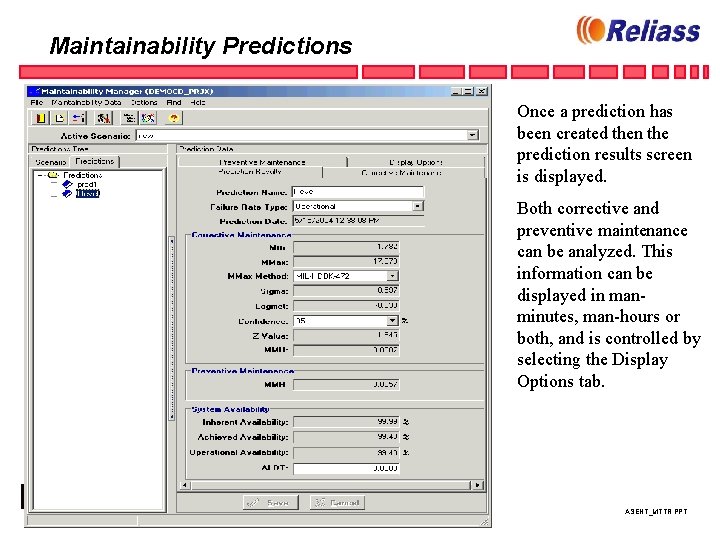

Maintainability Predictions Once a prediction has been created then the prediction results screen is displayed. Both corrective and preventive maintenance can be analyzed. This information can be displayed in manminutes, man-hours or both, and is controlled by selecting the Display Options tab. ASENT_MTTR. PPT

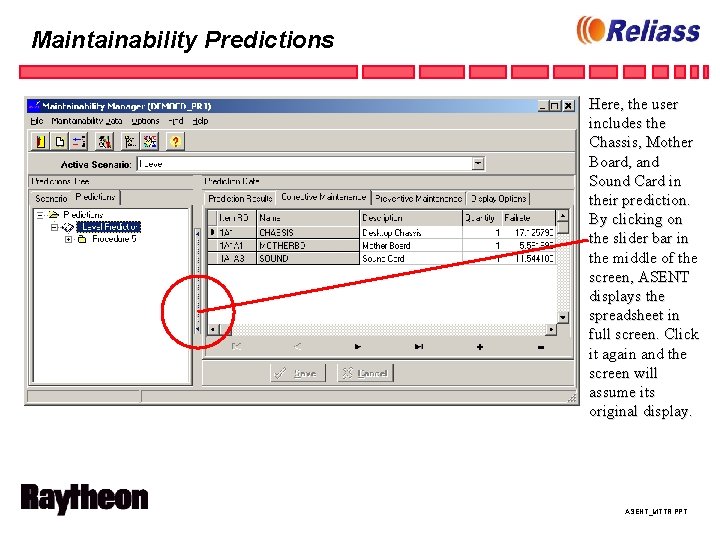

Maintainability Predictions Here, the user includes the Chassis, Mother Board, and Sound Card in their prediction. By clicking on the slider bar in the middle of the screen, ASENT displays the spreadsheet in full screen. Click it again and the screen will assume its original display. ASENT_MTTR. PPT

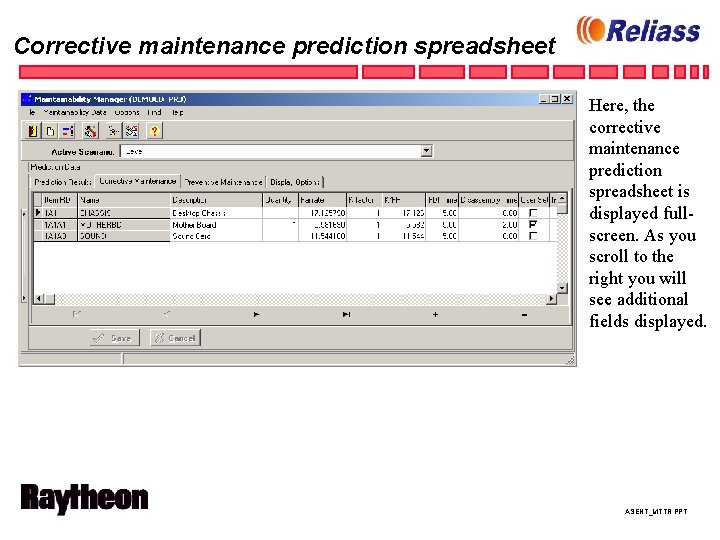

Corrective maintenance prediction spreadsheet Here, the corrective maintenance prediction spreadsheet is displayed fullscreen. As you scroll to the right you will see additional fields displayed. ASENT_MTTR. PPT

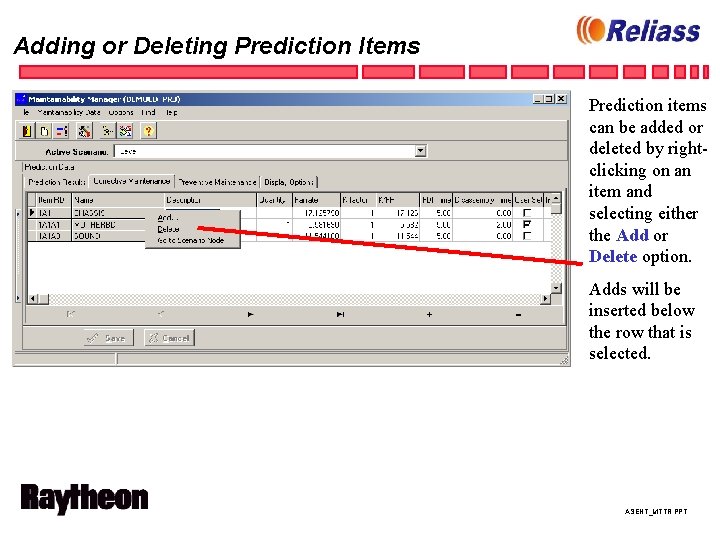

Adding or Deleting Prediction Items Prediction items can be added or deleted by rightclicking on an item and selecting either the Add or Delete option. Adds will be inserted below the row that is selected. ASENT_MTTR. PPT

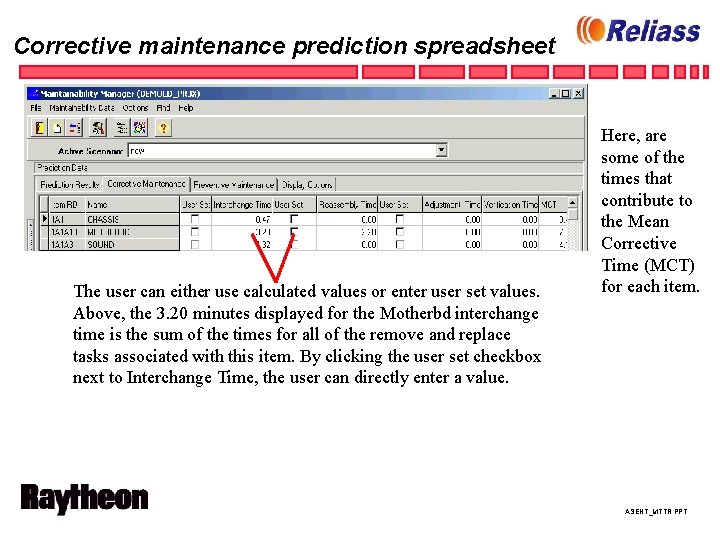

Corrective maintenance prediction spreadsheet The user can either use calculated values or enter user set values. Above, the 3. 20 minutes displayed for the Motherbd interchange time is the sum of the times for all of the remove and replace tasks associated with this item. By clicking the user set checkbox next to Interchange Time, the user can directly enter a value. Here, are some of the times that contribute to the Mean Corrective Time (MCT) for each item. ASENT_MTTR. PPT

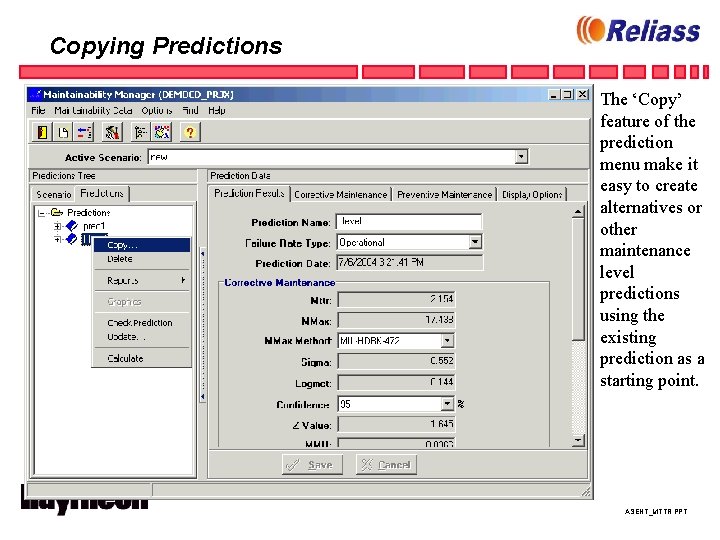

Copying Predictions The ‘Copy’ feature of the prediction menu make it easy to create alternatives or other maintenance level predictions using the existing prediction as a starting point. ASENT_MTTR. PPT

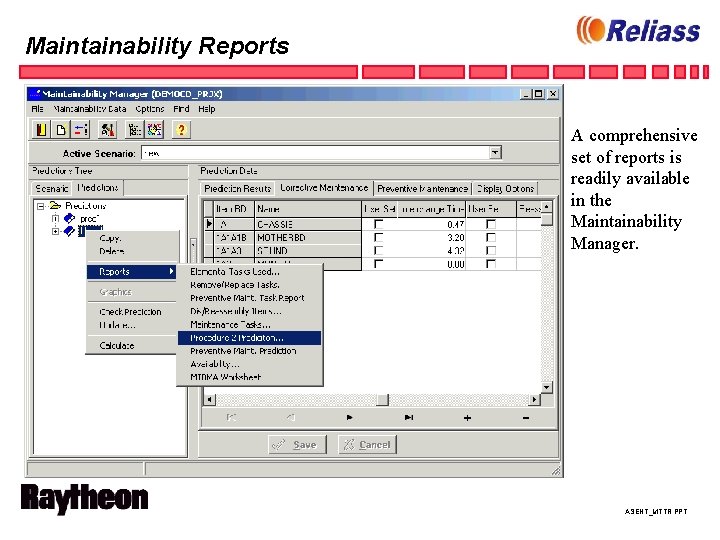

Maintainability Reports A comprehensive set of reports is readily available in the Maintainability Manager. ASENT_MTTR. PPT
