Mainframe Virtual Tape with Data Deduplication Jim Diefenbach

Discussion Topics • • 2 Customer Proven Worldwide Solutions For All Mainframe Tape Use Channel Gateways Are Robust Maximize Mainframe Deduplication Differentiated Features and Capability Worldwide Services and Support Customer Examples & Case Study dedupfoRoadshowPresentationDedup. FO RS 06. ppt

Customer Proven Worldwide In mission & business critical environments Installed in all major industries, including: Financial, Insurance, Government, Telecom & Retail Distribution, Manufacturing, Education & Healthcare Multi-mainframe/LPAR & Sysplex users Mainframe data centers with 100’s of TB’s Customer installations in 6 continents 3 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

Customer Proven Worldwide (Continued) The only proven mainframe VT solution w/dedupe 20+ years – Mainframe virtual tape Mainframe VT with Data Domain dedupe since 2006 Currently used w/these & other applications: DFDSS, SMS, HSM, FDR, TSM, DDR, VSAM & CA Disk CA-1, RMM, CA-MIM, OAM, TLMS, DB 2 & Mobius BIM-EPIC, Dynam/T & Hi. DRO FDR UPSTREAM - Backup open systems to mainframes 4 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

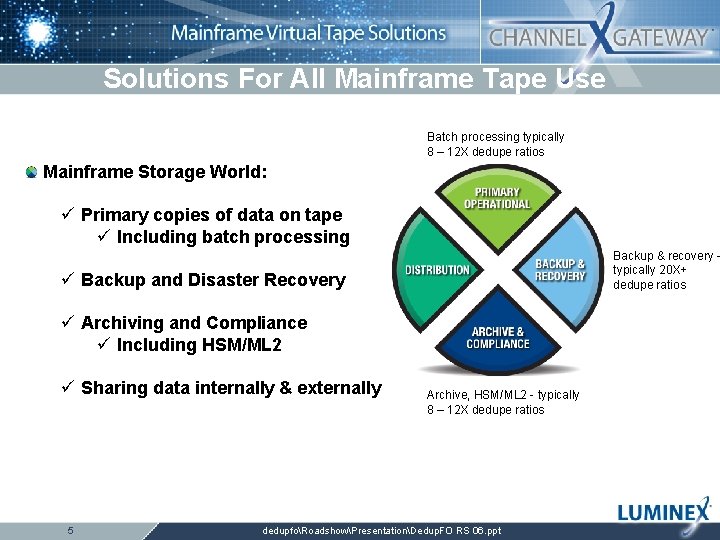

Solutions For All Mainframe Tape Use Batch processing typically 8 – 12 X dedupe ratios Mainframe Storage World: ü Primary copies of data on tape ü Including batch processing Backup & recovery typically 20 X+ dedupe ratios ü Backup and Disaster Recovery ü Archiving and Compliance ü Including HSM/ML 2 ü Sharing data internally & externally 5 Archive, HSM/ML 2 - typically 8 – 12 X dedupe ratios dedupfoRoadshowPresentationDedup. FO RS 06. ppt

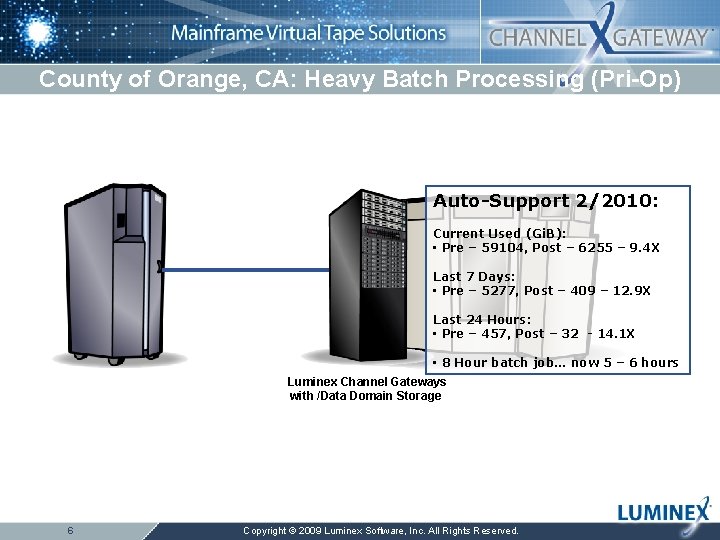

County of Orange, CA: Heavy Batch Processing (Pri-Op) Auto-Support 2/2010: Current Used (Gi. B): • Pre – 59104, Post – 6255 – 9. 4 X Last 7 Days: • Pre – 5277, Post – 409 – 12. 9 X Last 24 Hours: • Pre – 457, Post – 32 - 14. 1 X • 8 Hour batch job… now 5 – 6 hours Luminex Channel Gateways with /Data Domain Storage 6 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

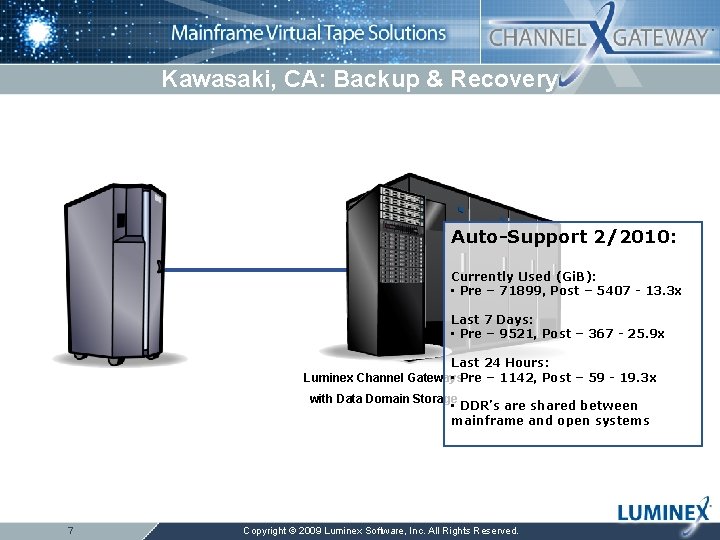

Kawasaki, CA: Backup & Recovery Auto-Support 2/2010: Currently Used (Gi. B): • Pre – 71899, Post – 5407 - 13. 3 x Last 7 Days: • Pre – 9521, Post – 367 - 25. 9 x Last 24 Hours: • Pre – 1142, Post – 59 - 19. 3 x Luminex Channel Gateways with Data Domain Storage • DDR’s are shared between mainframe and open systems 7 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

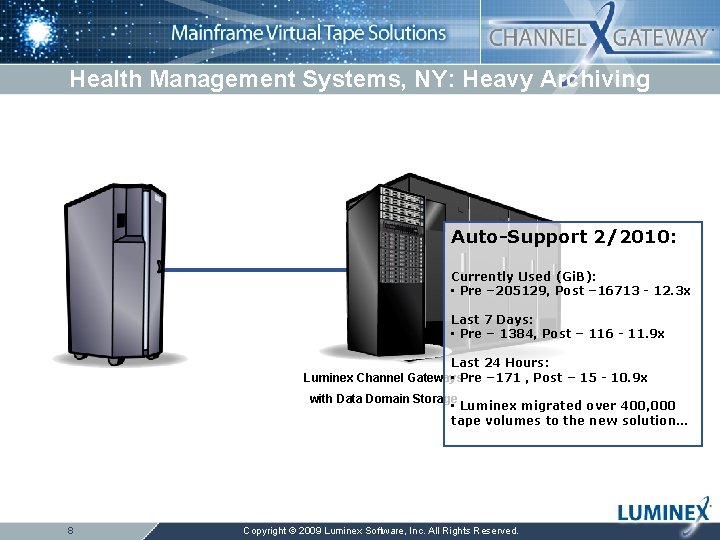

Health Management Systems, NY: Heavy Archiving Auto-Support 2/2010: Currently Used (Gi. B): • Pre – 205129, Post – 16713 - 12. 3 x Last 7 Days: • Pre – 1384, Post – 116 - 11. 9 x Last 24 Hours: • Pre – 171 , Post – 15 - 10. 9 x Luminex Channel Gateways with Data Domain Storage • Luminex migrated over 400, 000 tape volumes to the new solution… 8 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

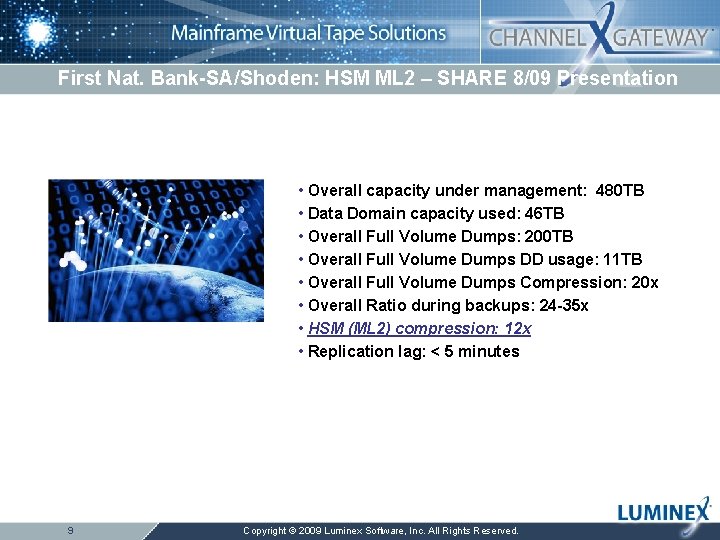

First Nat. Bank-SA/Shoden: HSM ML 2 – SHARE 8/09 Presentation • Overall capacity under management: 480 TB • Data Domain capacity used: 46 TB • Overall Full Volume Dumps: 200 TB • Overall Full Volume Dumps DD usage: 11 TB • Overall Full Volume Dumps Compression: 20 x • Overall Ratio during backups: 24 -35 x • HSM (ML 2) compression: 12 x • Replication lag: < 5 minutes 9 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

Luminex - Data Domain Customers – Partial List Alabama California Michigan California Tennessee Florida California Michigan Florida Mexico Mississippi Mass. S. Africa Italy S. Carolina S. Africa China Mass. Colorado Alabama Florida Pennsylvania 10 Mexico New York Georgia California Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

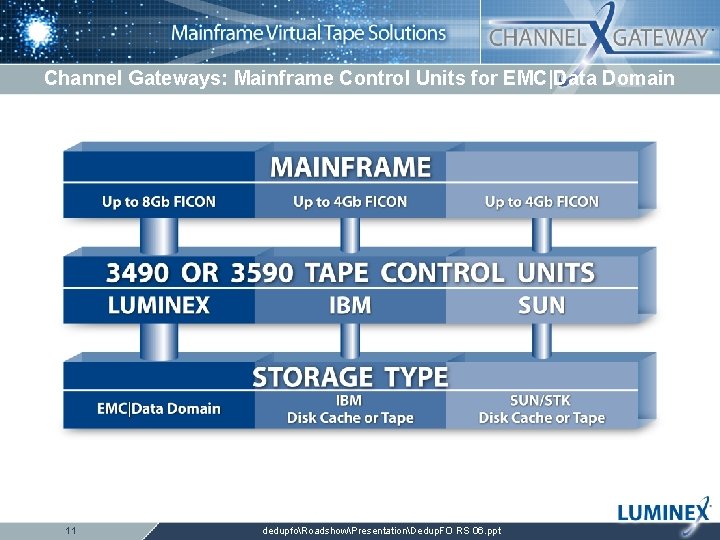

Channel Gateways: Mainframe Control Units for EMC|Data Domain 11 dedupfoRoadshowPresentationDedup. FO RS 06. ppt

Channel Gateways Are Robust § Mainframe VT Performance/Throughput: • 250 MB/s+ per gateway – (2)FICON channels § Speeds & Feeds: • Supports 4096 virtual tape devices per channel • Supports 8 Gb/s FICON using industry-supported PCIe HBA’s • Modern 1 or 2 -port PCIe ESCON HBA’s based on patent license • No limits on volsers or ranges • Add storage capacity and bandwidth non-disruptively § Channel Gateways Have No Single Point of Failure • Multiple Channel Gateways attach via NFS & Gig. E or 10 Gig. E • Active – Active Configuration • If a gateway is lost, the remaining gateways will access all data 12 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

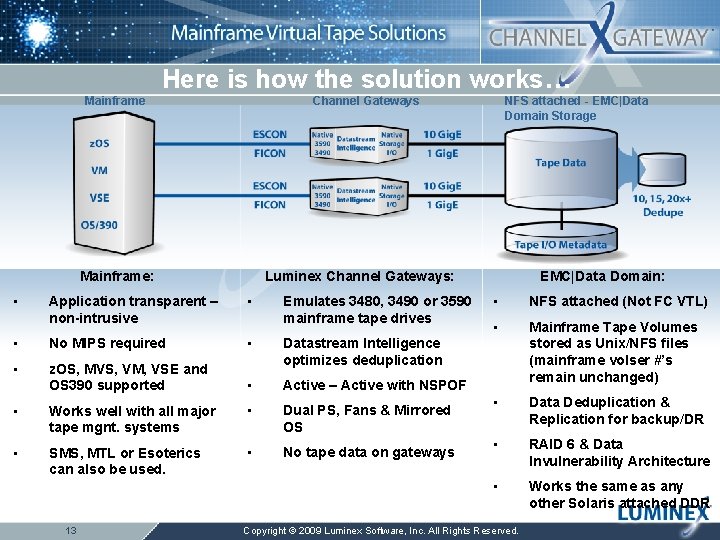

Here is how the solution works… Mainframe Channel Gateways Luminex Channel Gateways: Mainframe: Application transparent – non-intrusive • • No MIPS required • • z. OS, MVS, VM, VSE and OS 390 supported Datastream Intelligence optimizes deduplication • Active – Active with NSPOF • Emulates 3480, 3490 or 3590 mainframe tape drives • Works well with all major tape mgnt. systems • Dual PS, Fans & Mirrored OS • SMS, MTL or Esoterics can also be used. • No tape data on gateways 13 NFS attached - EMC|Data Domain Storage EMC|Data Domain: • NFS attached (Not FC VTL) • Mainframe Tape Volumes stored as Unix/NFS files (mainframe volser #’s remain unchanged) • Data Deduplication & Replication for backup/DR • RAID 6 & Data Invulnerability Architecture • Works the same as any other Solaris attached DDR Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

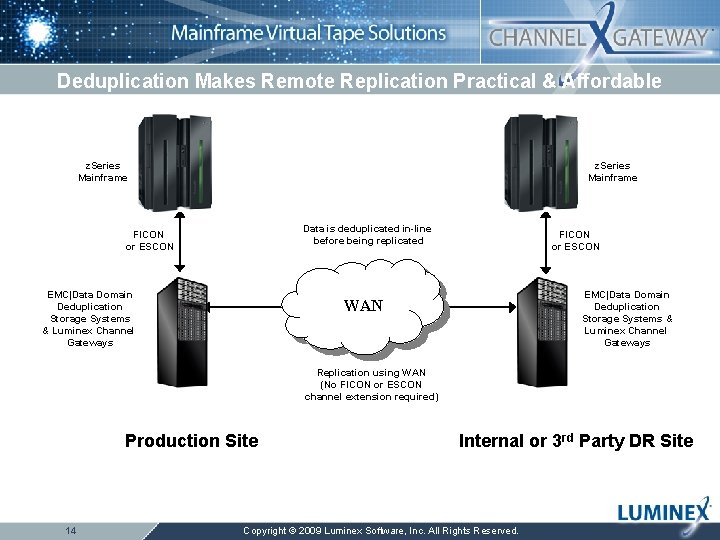

Deduplication Makes Remote Replication Practical & Affordable z. Series Mainframe Data is deduplicated in-line before being replicated FICON or ESCON EMC|Data Domain Deduplication Storage Systems & Luminex Channel Gateways WAN Replication using WAN (No FICON or ESCON channel extension required) Production Site 14 Internal or 3 rd Party DR Site Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

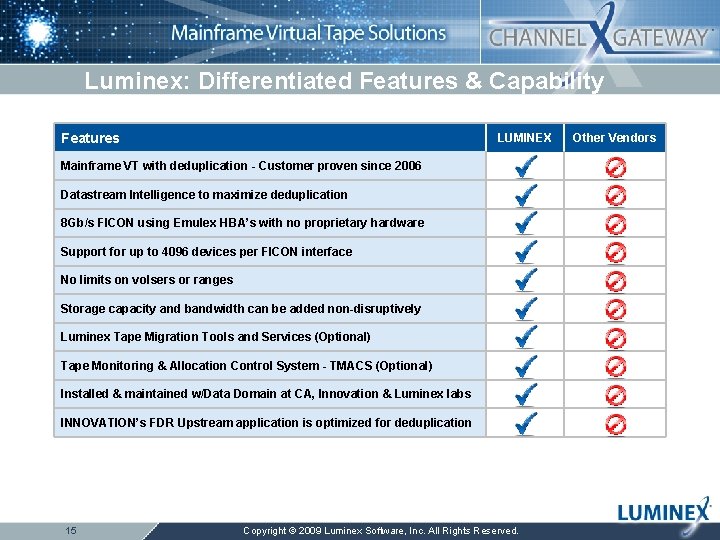

Luminex: Differentiated Features & Capability Features LUMINEX Mainframe VT with deduplication - Customer proven since 2006 Datastream Intelligence to maximize deduplication 8 Gb/s FICON using Emulex HBA’s with no proprietary hardware Support for up to 4096 devices per FICON interface No limits on volsers or ranges Storage capacity and bandwidth can be added non-disruptively Luminex Tape Migration Tools and Services (Optional) Tape Monitoring & Allocation Control System - TMACS (Optional) Installed & maintained w/Data Domain at CA, Innovation & Luminex labs INNOVATION’s FDR Upstream application is optimized for deduplication 15 Copyright © 2009 Luminex Software, Inc. All Rights Reserved. Other Vendors

Channel Gateway Support Options § Worldwide Support & Installation Services • High level expertise applied early, operations restored sooner • Remote or on-site installation services worldwide • Immediate HW/SW assistance – 7 X 24 • Channel Gateways include remote access capability • On-site hardware assistance within 4 hours 16 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

Customer Example – Replaced Oracle|Sun|STK THOMAS & BETTS: • • Reduced Physical Tape Use Reduced Storage Footprint Reclaimed Floor Space Reduced A/C & Electrical Cost Improved Tape Security Improved Backup & DR (RPO/RTO) Improved all tape operations Luminex Channel Gateways with /Data Domain Storage 17 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.

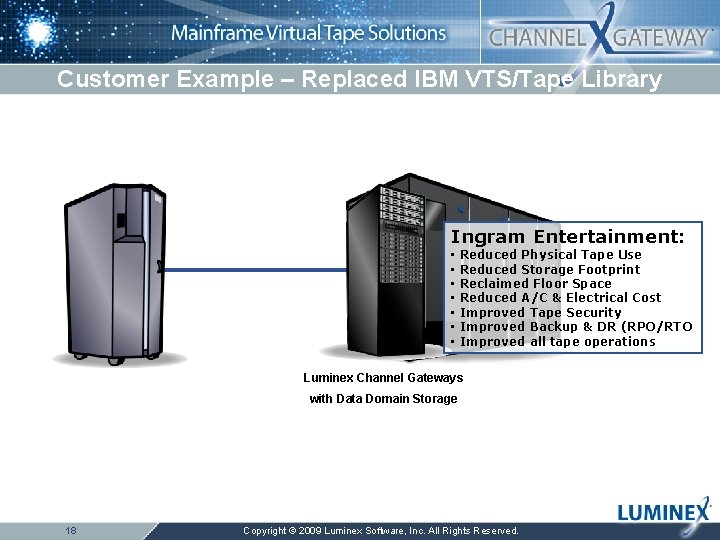

Customer Example – Replaced IBM VTS/Tape Library Ingram Entertainment: • • Reduced Physical Tape Use Reduced Storage Footprint Reclaimed Floor Space Reduced A/C & Electrical Cost Improved Tape Security Improved Backup & DR (RPO/RTO Improved all tape operations Luminex Channel Gateways with Data Domain Storage 18 Copyright © 2009 Luminex Software, Inc. All Rights Reserved.
