Maine Water Utilities Association Conference No. 490 -April 12, 2007 Technical Program: Tanks, Tanks and More Tanks “STEEL WATER STORAGE TANK MAINTENANCE” Marcel Payeur Marcel A. Payeur, Inc.

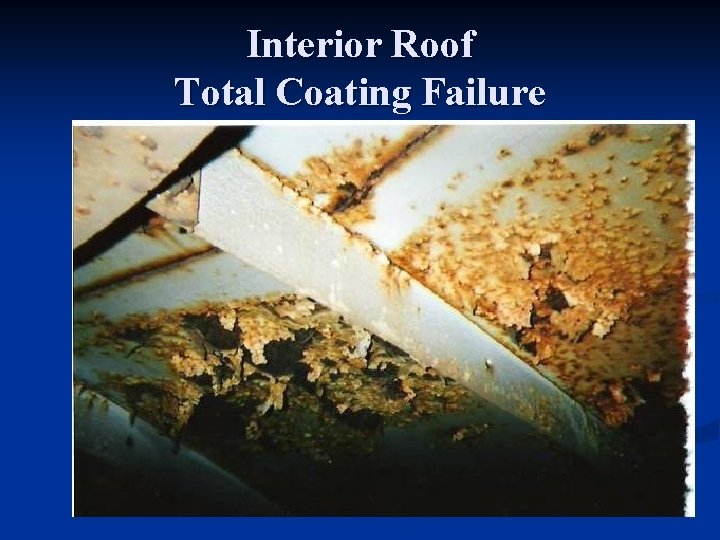

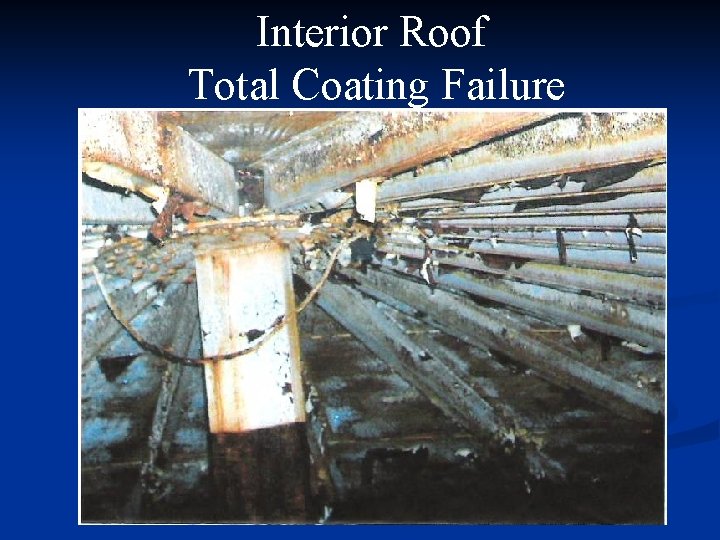

Interior Roof Total Coating Failure

Interior Roof Total Coating Failure

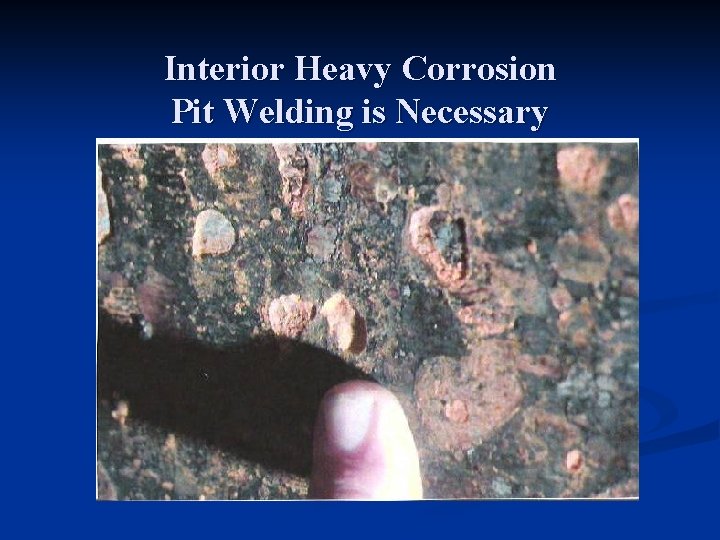

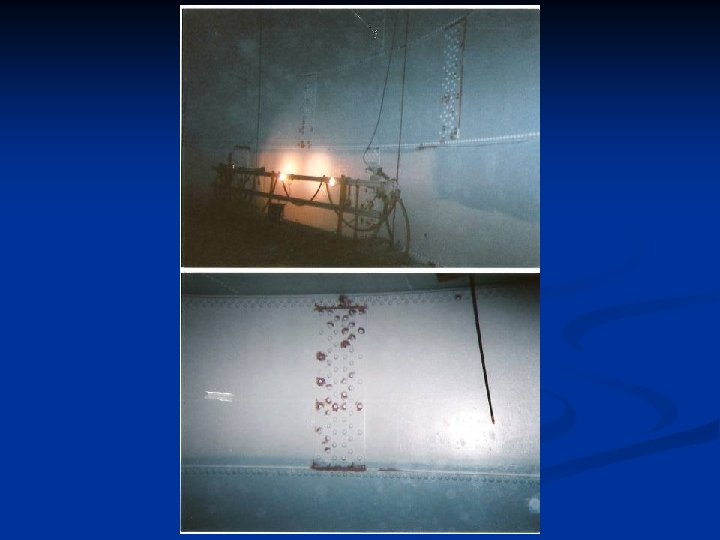

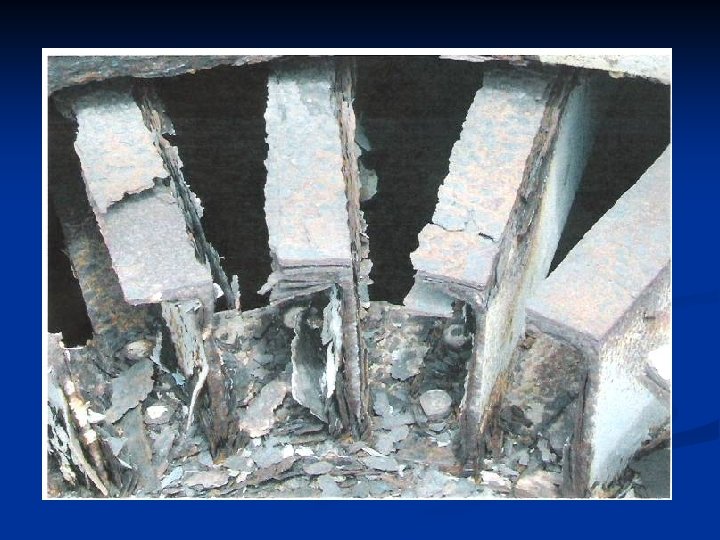

Interior Heavy Corrosion Pit Welding is Necessary

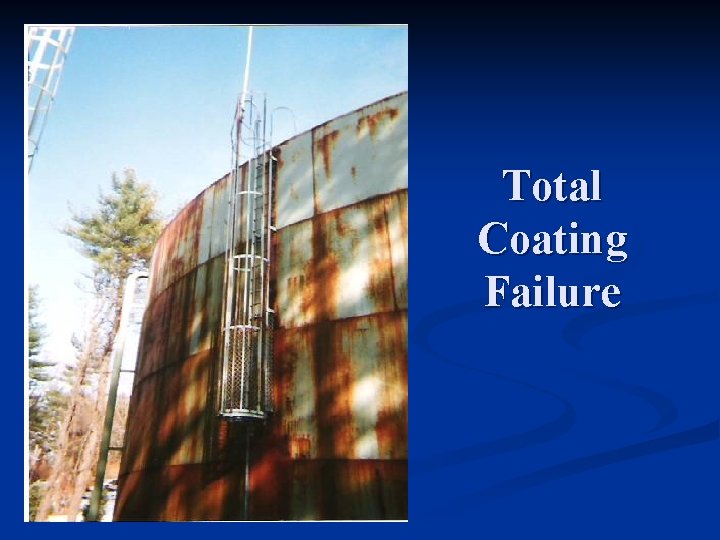

Total Coating Failure

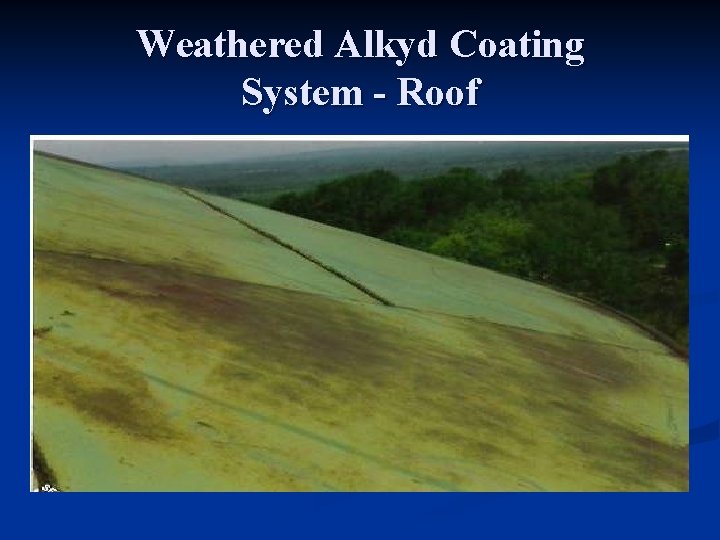

Weathered Alkyd Coating System - Roof

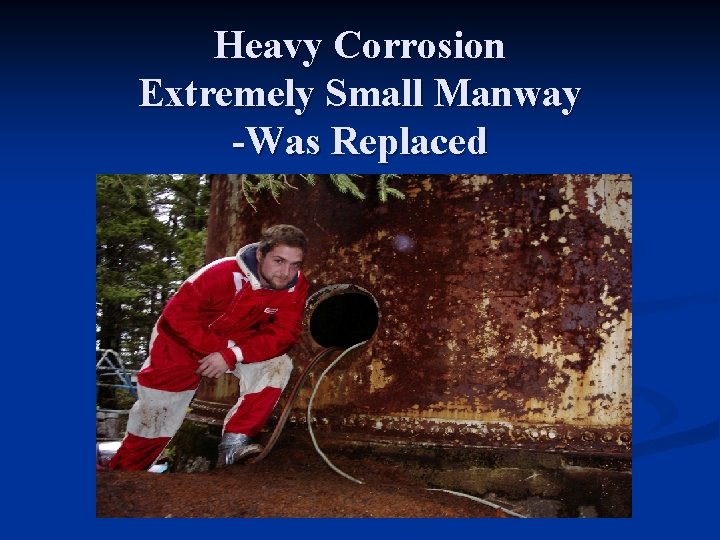

Heavy Corrosion Extremely Small Manway -Was Replaced

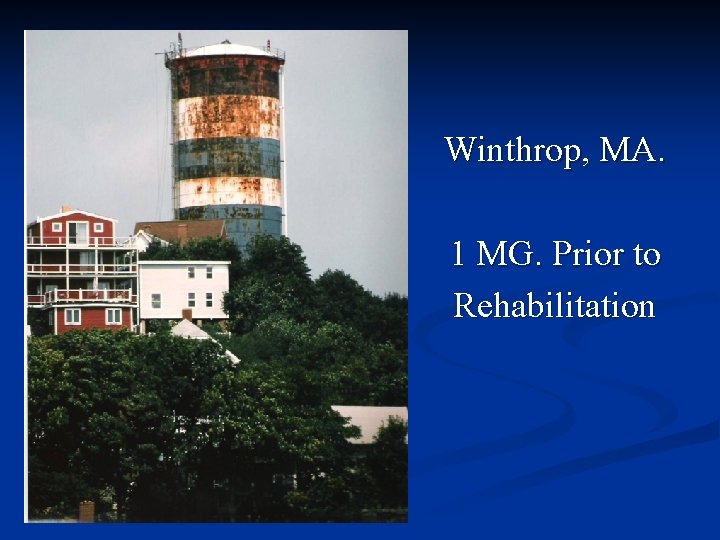

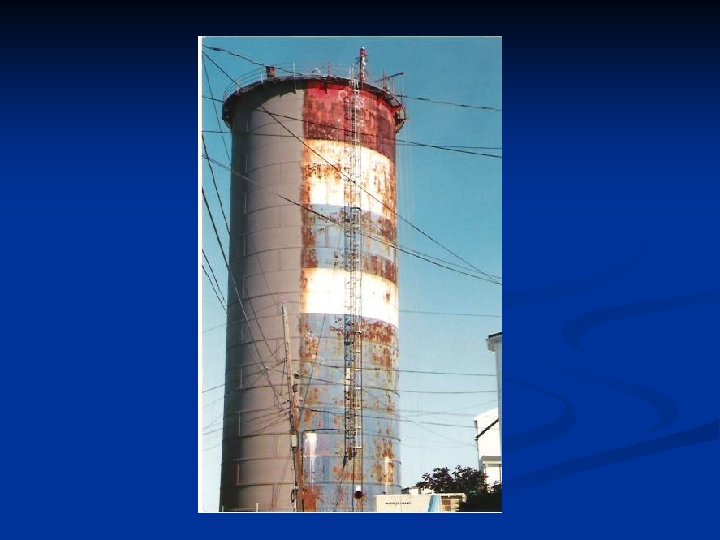

Winthrop, MA. 1 MG. Prior to Rehabilitation

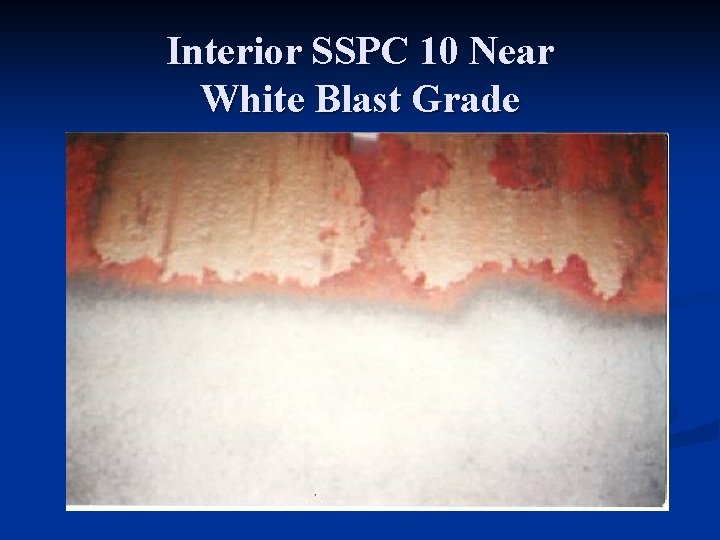

Interior SSPC 10 Near White Blast Grade

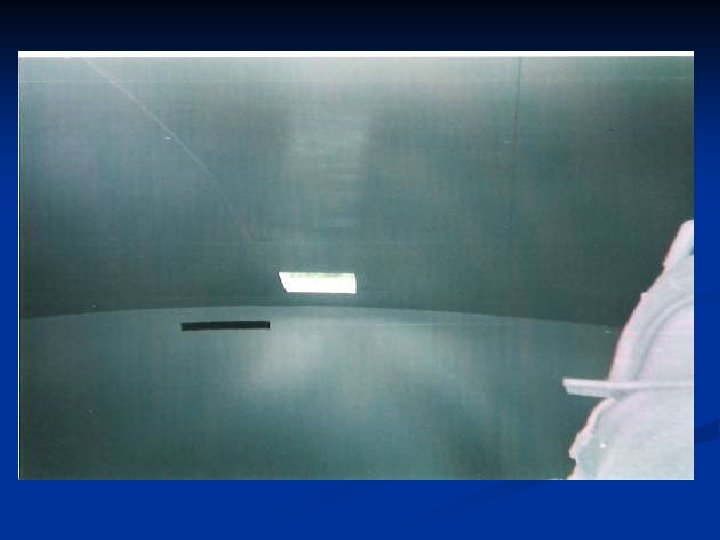

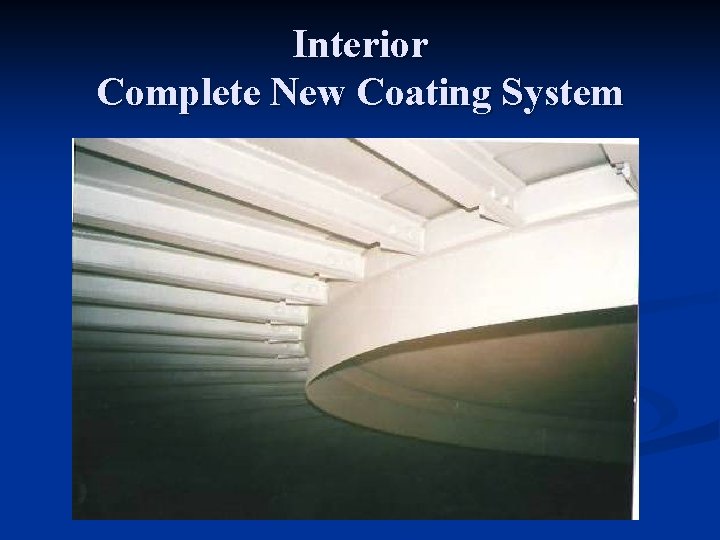

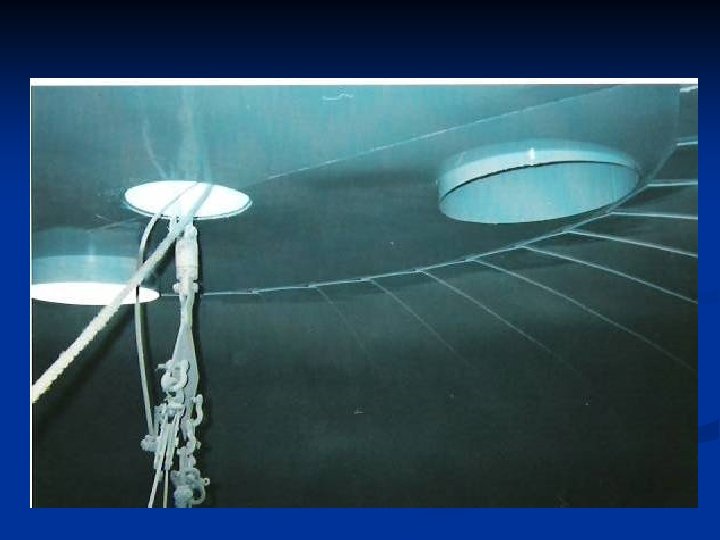

Interior Complete New Coating System

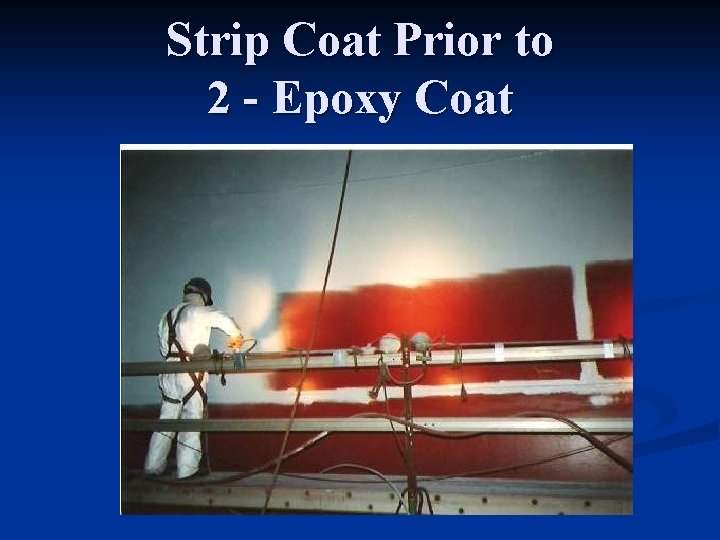

Strip Coat Prior to 2 - Epoxy Coat

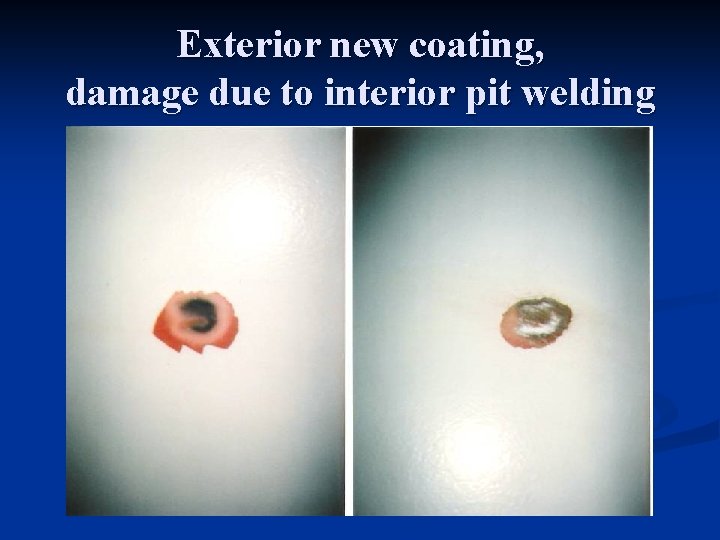

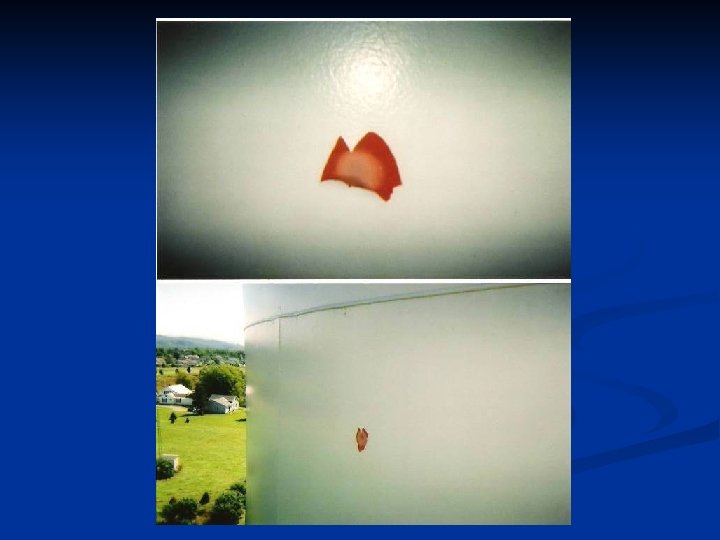

Exterior new coating, damage due to interior pit welding

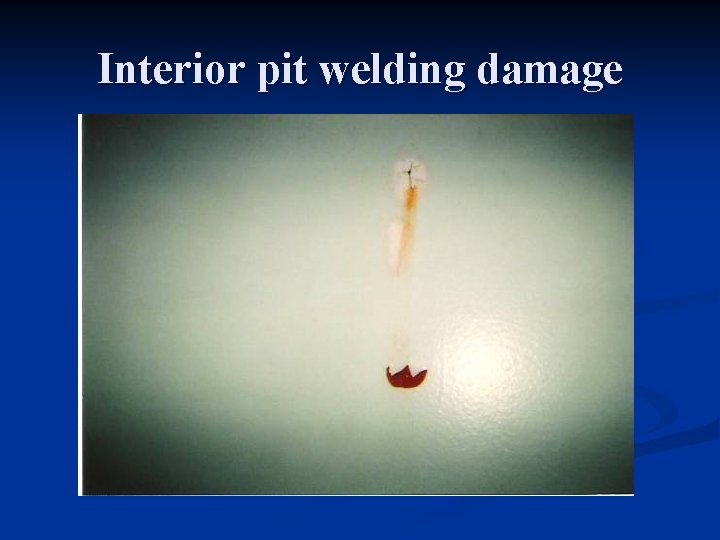

Interior pit welding damage

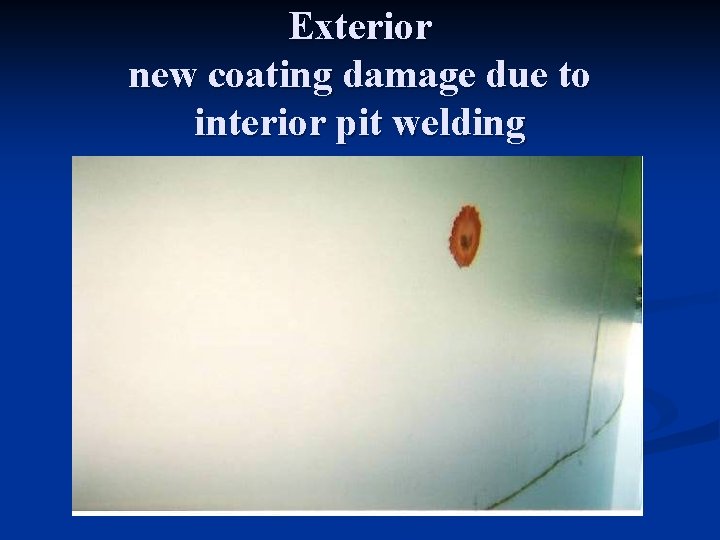

Exterior new coating damage due to interior pit welding

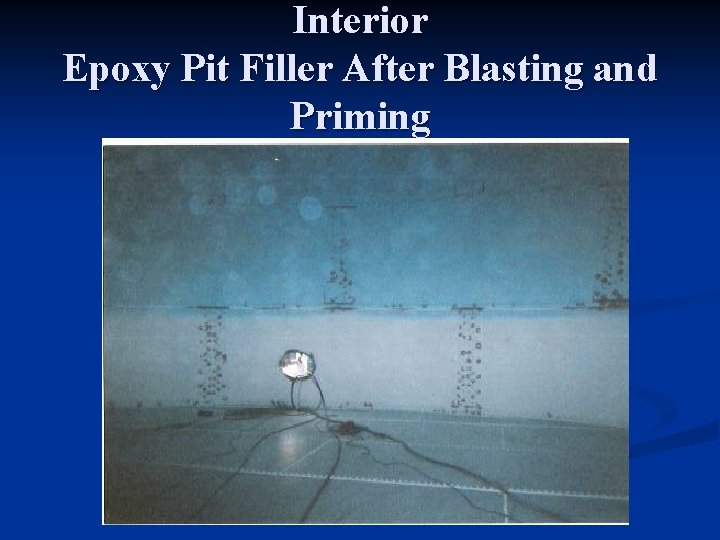

Interior Epoxy Pit Filler After Blasting and Priming

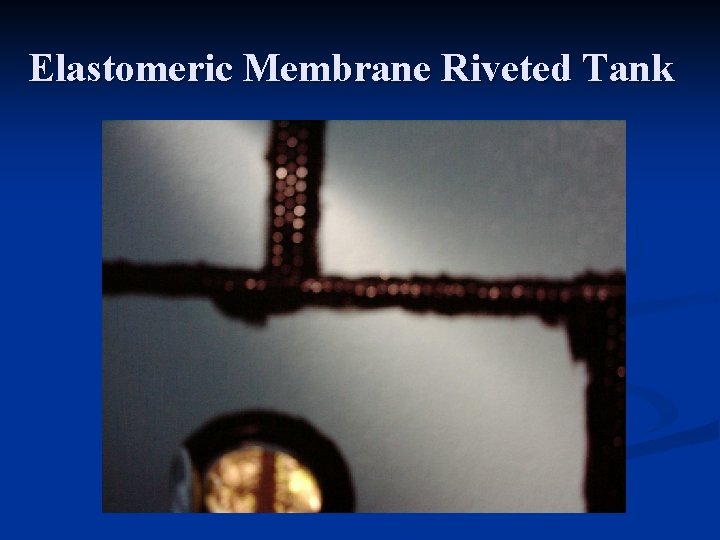

Elastomeric Membrane Riveted Tank

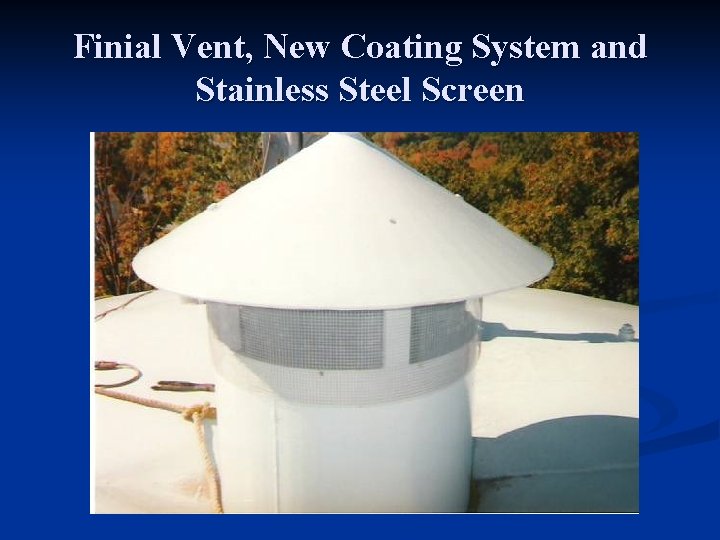

Finial Vent, New Coating System and Stainless Steel Screen

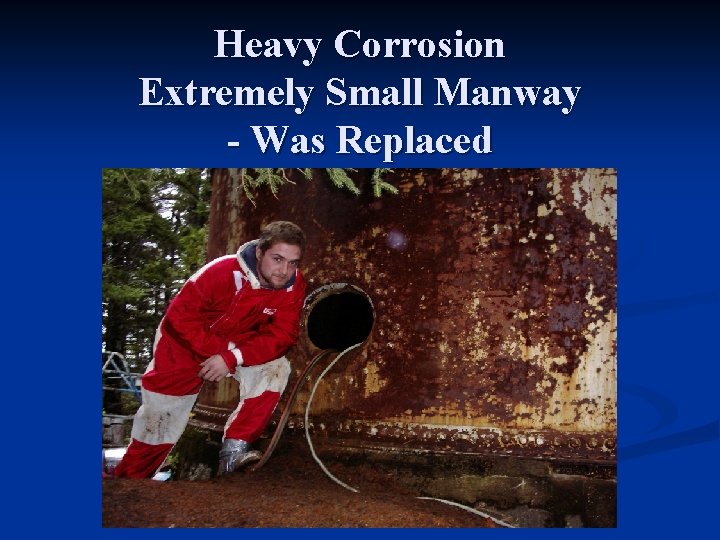

Heavy Corrosion Extremely Small Manway - Was Replaced

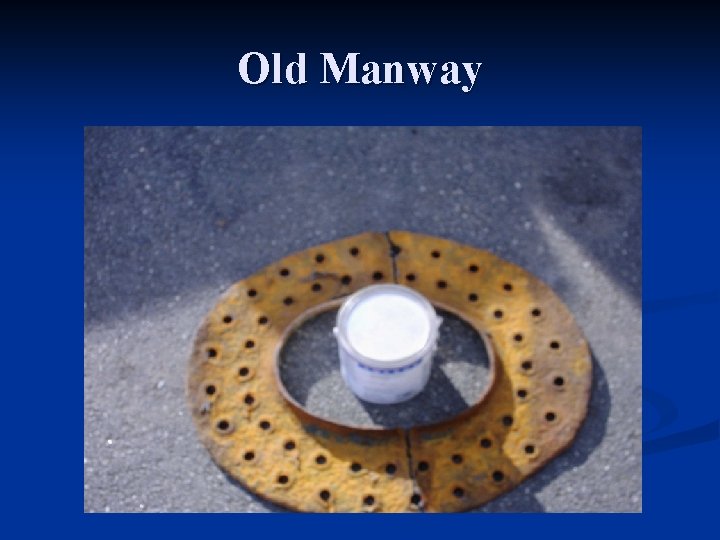

Old Manway

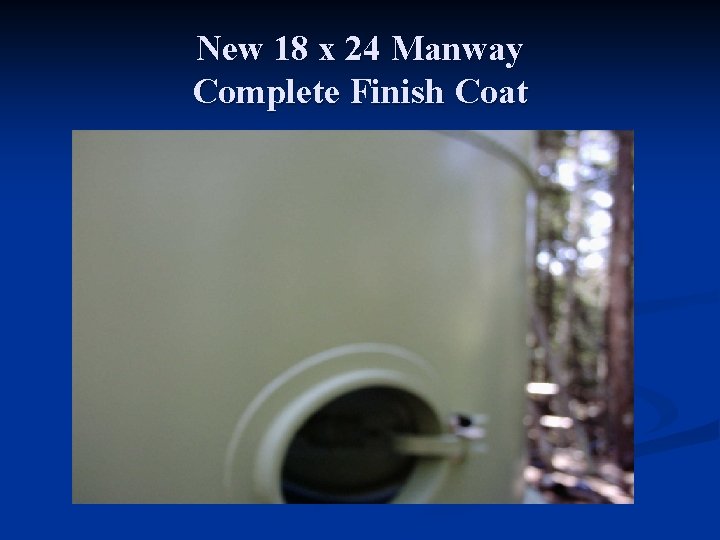

New 18 x 24 Manway Complete Finish Coat

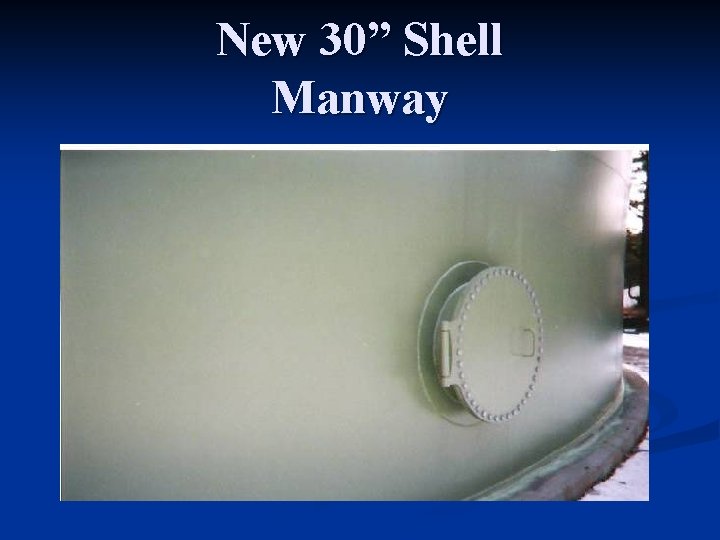

New 30” Shell Manway

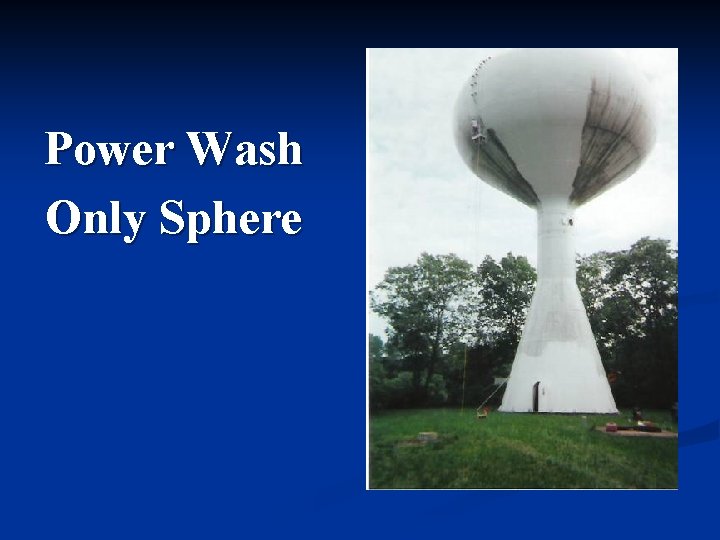

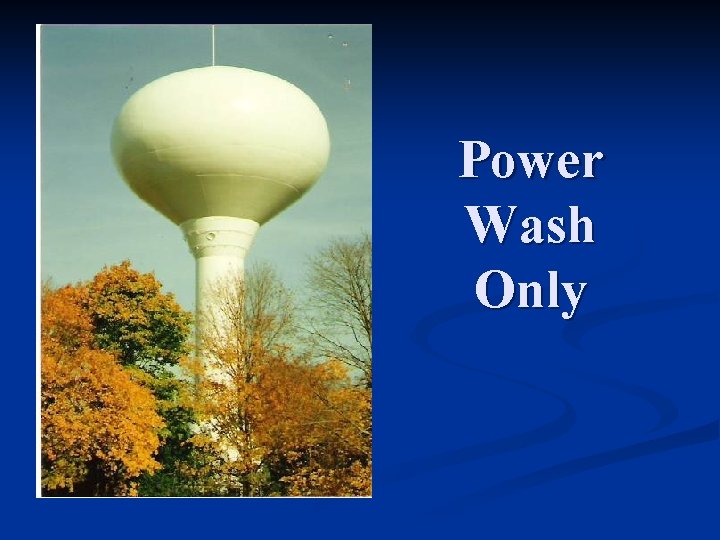

Power Wash Only Sphere

Power Wash Only

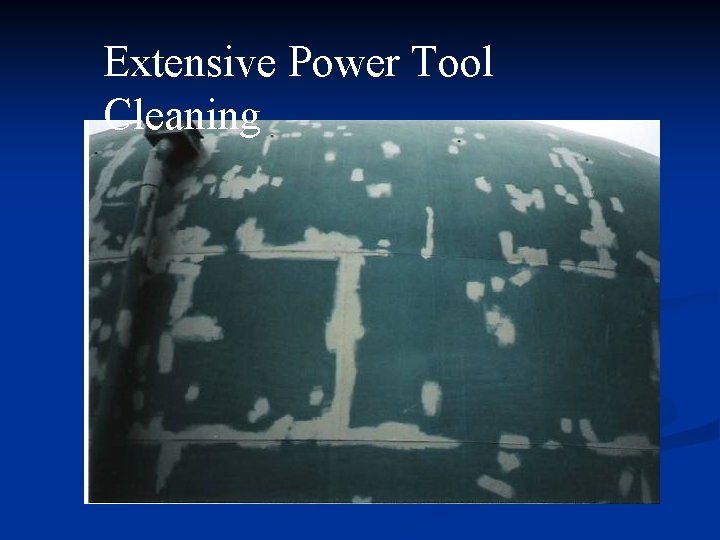

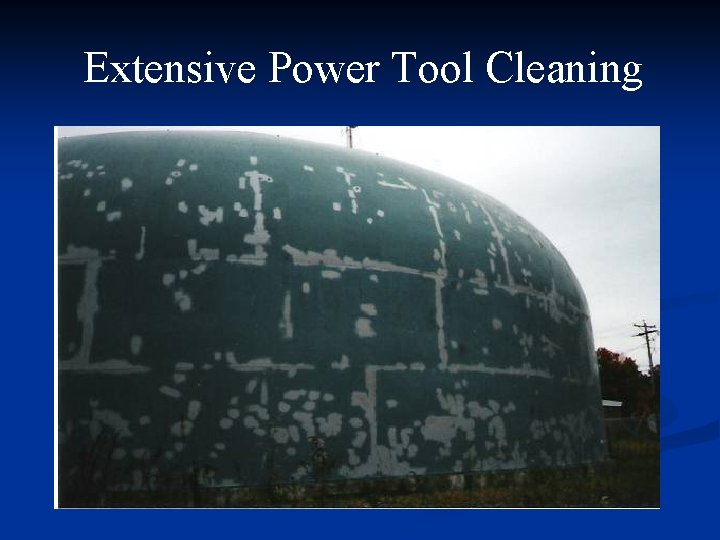

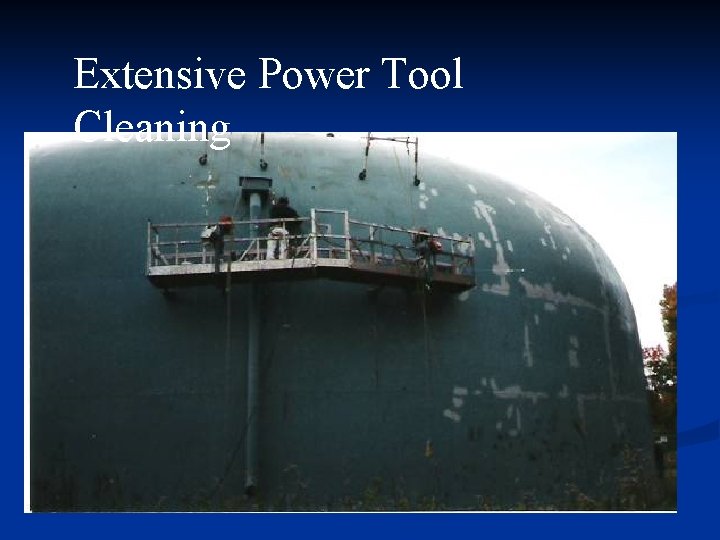

Extensive Power Tool Cleaning

Extensive Power Tool Cleaning

Extensive Power Tool Cleaning

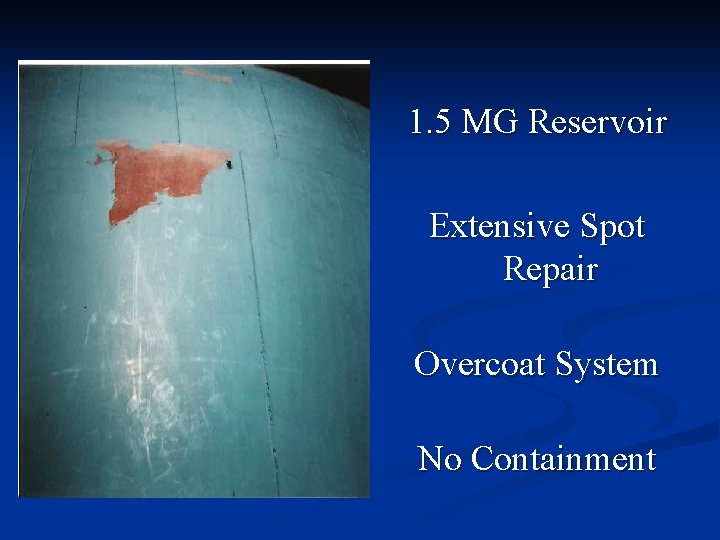

1. 5 MG Reservoir Extensive Spot Repair Overcoat System No Containment

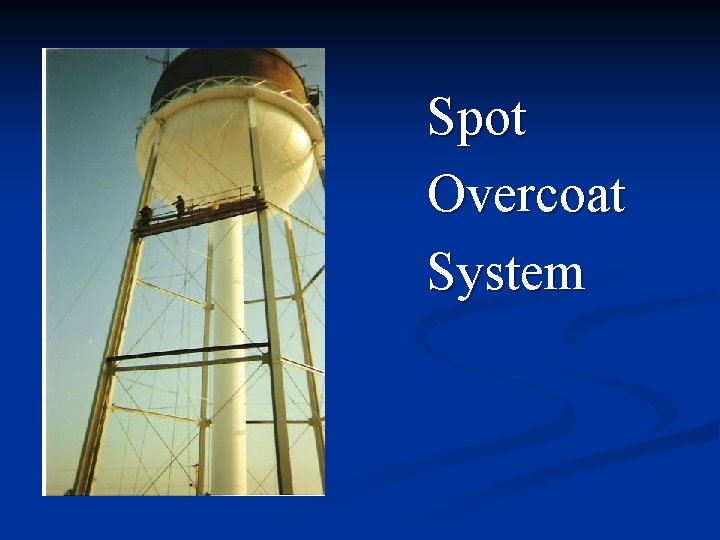

Spot Overcoat System

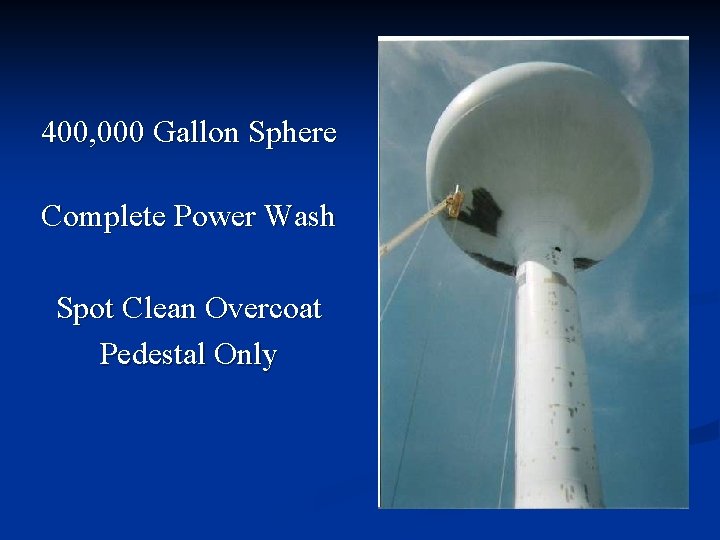

400, 000 Gallon Sphere Complete Power Wash Spot Clean Overcoat Pedestal Only

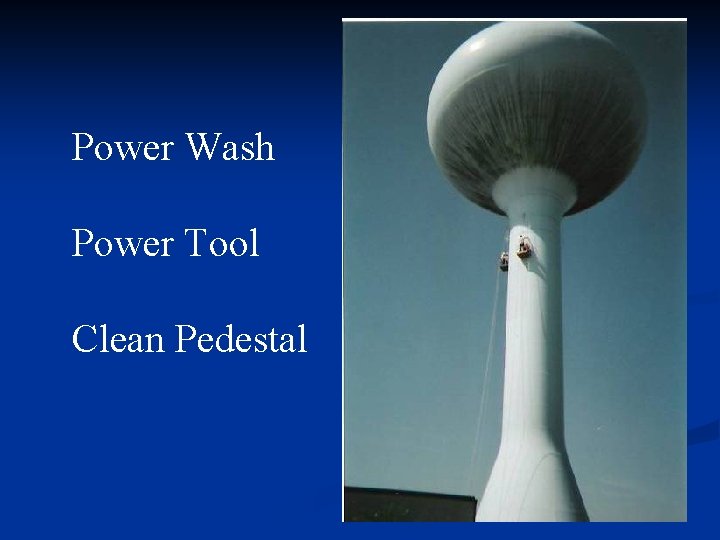

Power Wash Power Tool Clean Pedestal

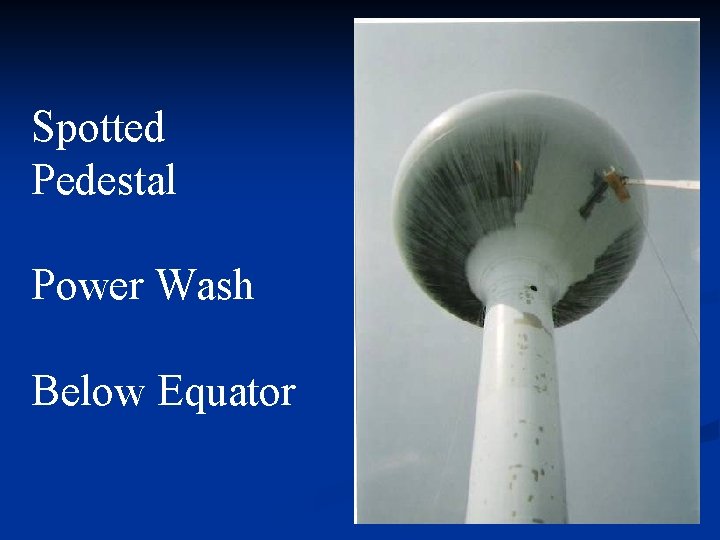

Spotted Pedestal Power Wash Below Equator

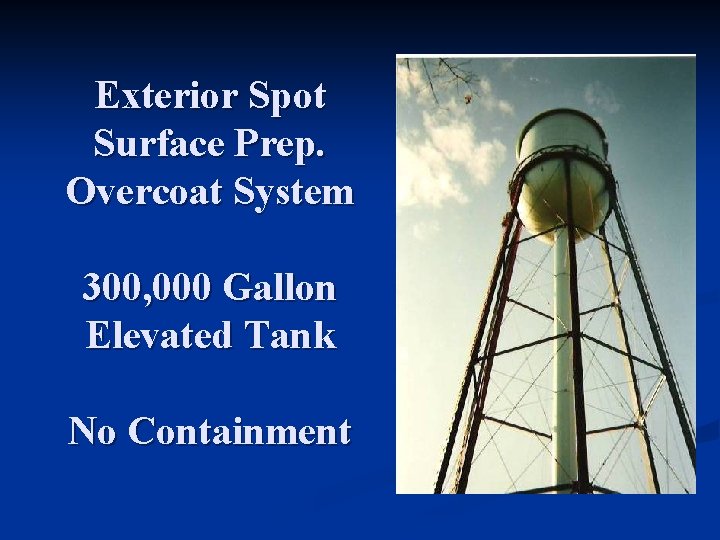

Exterior Spot Surface Prep. Overcoat System 300, 000 Gallon Elevated Tank No Containment

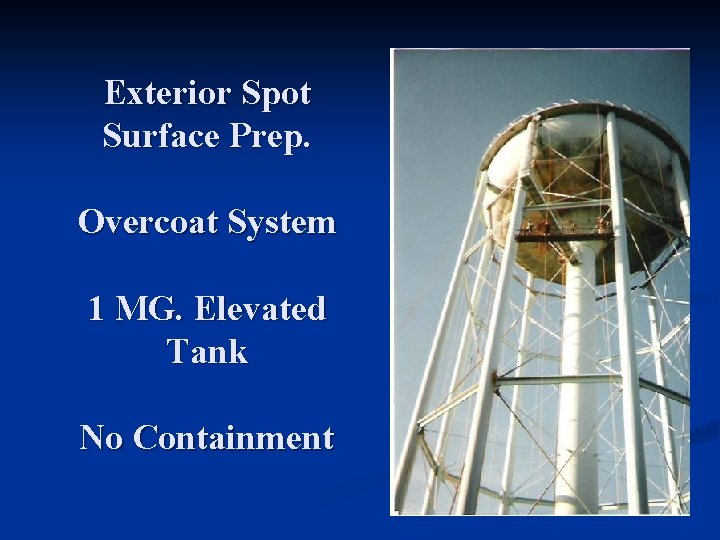

Exterior Spot Surface Prep. Overcoat System 1 MG. Elevated Tank No Containment

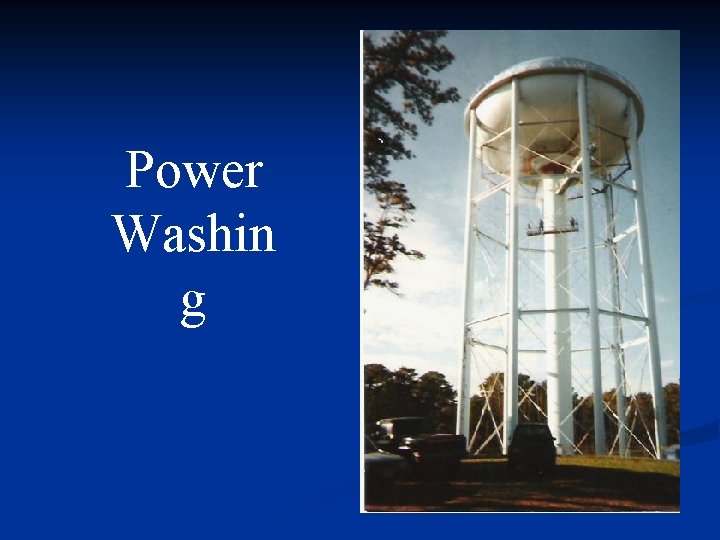

Power Washin g

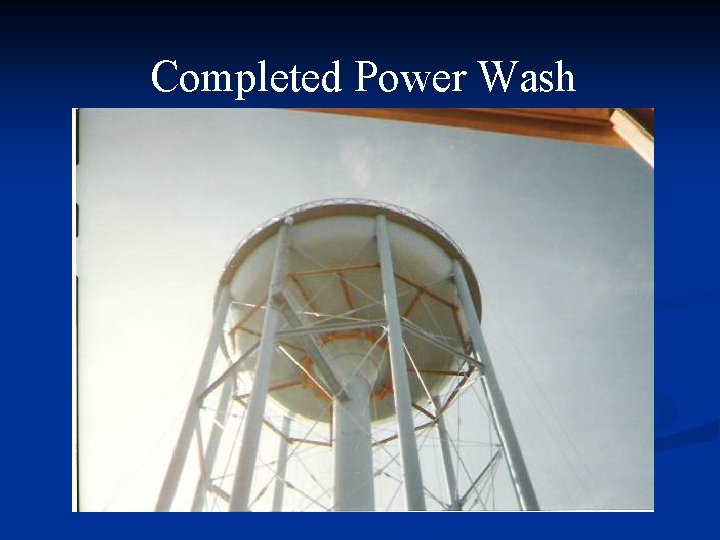

Completed Power Wash

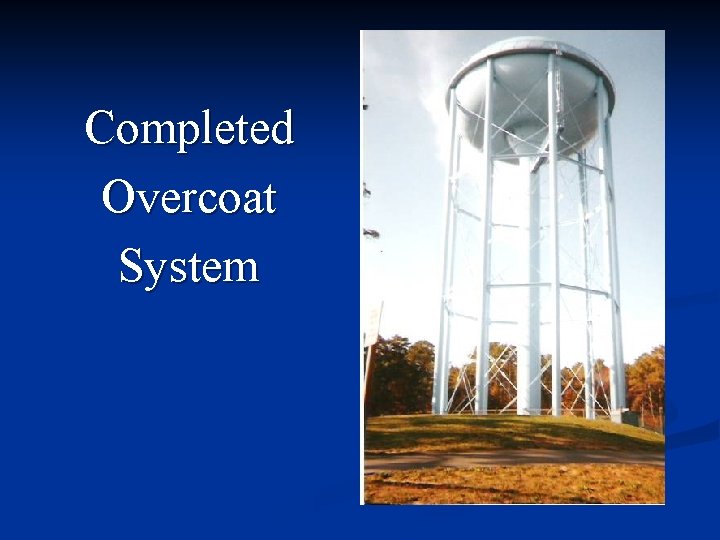

Completed Overcoat System

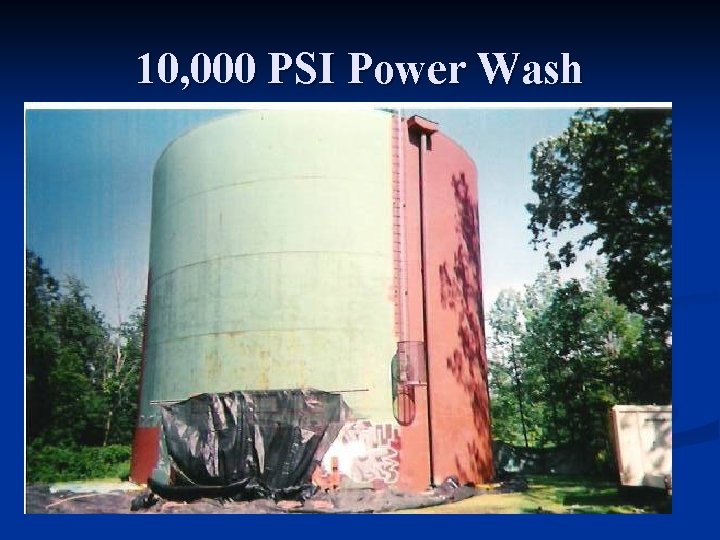

10, 000 PSI Power Wash

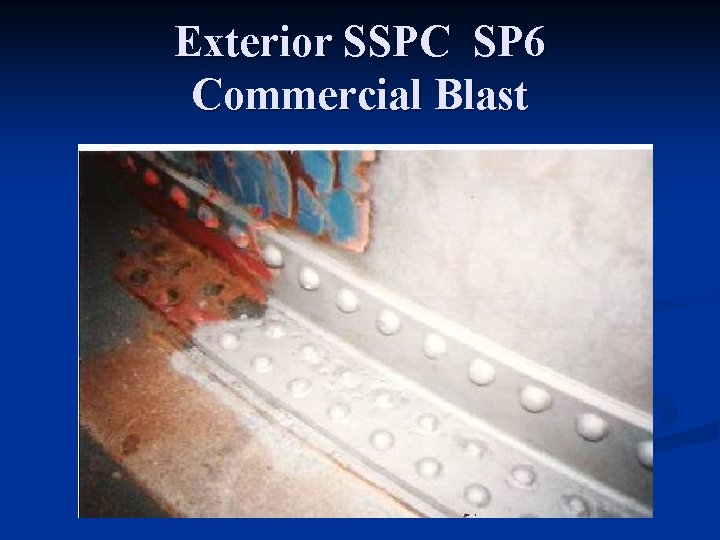

Exterior SSPC SP 6 Commercial Blast

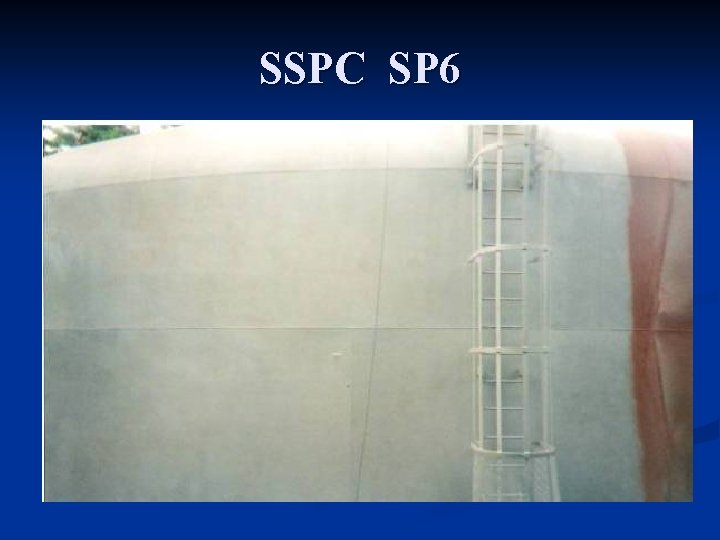

SSPC SP 6

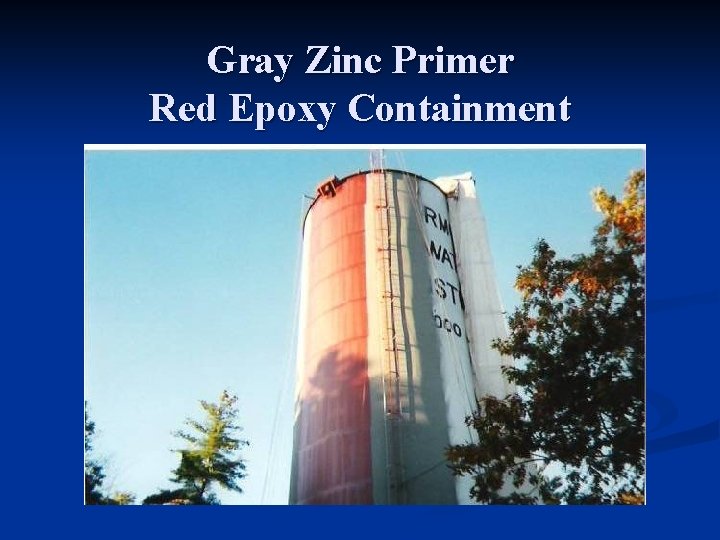

Gray Zinc Primer Red Epoxy Containment

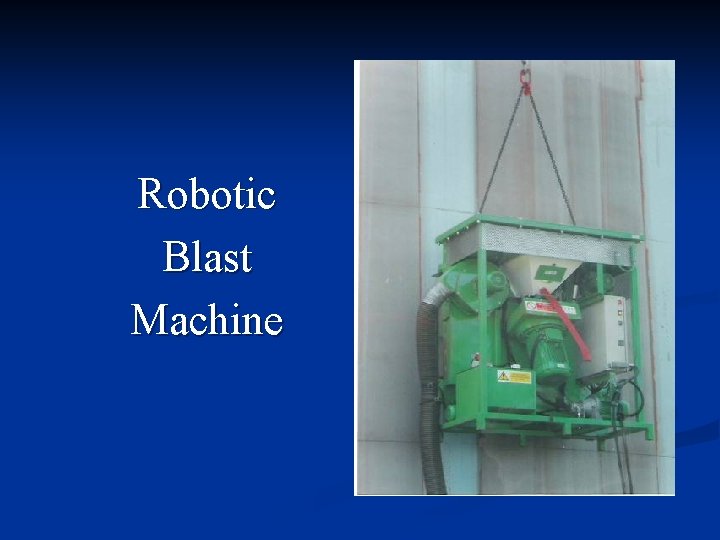

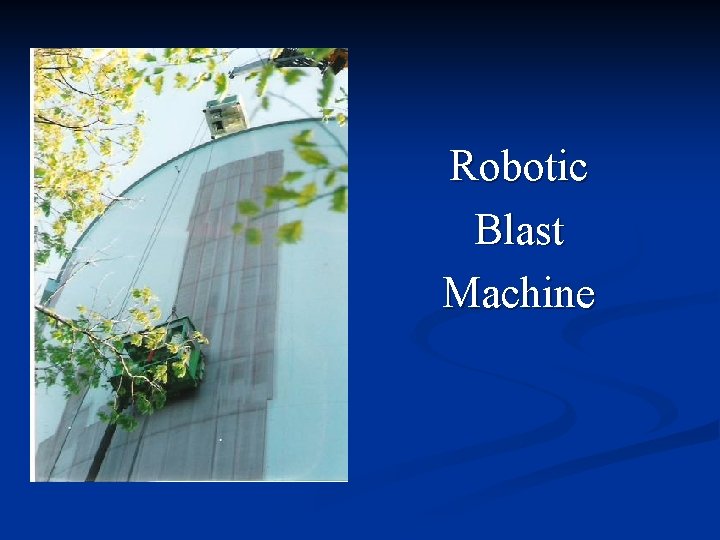

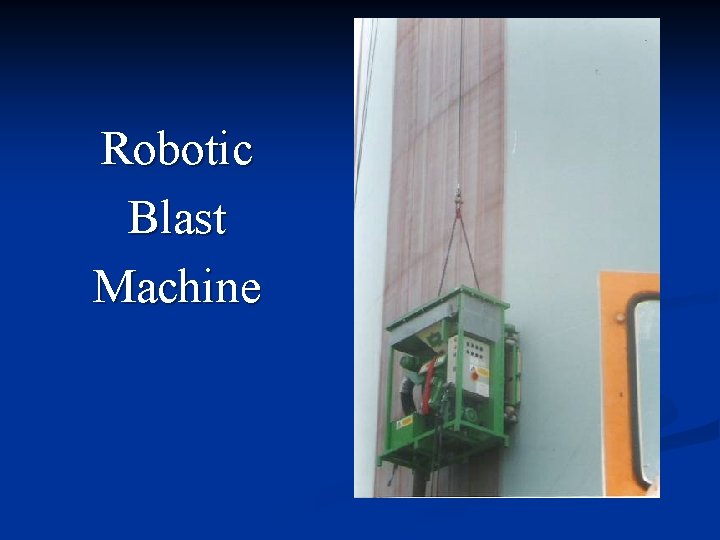

Robotic Blast Machine

Robotic Blast Machine

Robotic Blast Machine

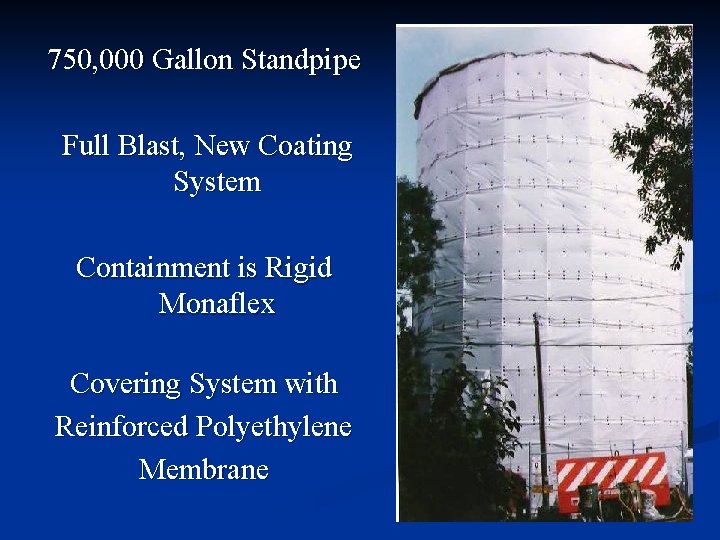

750, 000 Gallon Standpipe Full Blast, New Coating System Containment is Rigid Monaflex Covering System with Reinforced Polyethylene Membrane

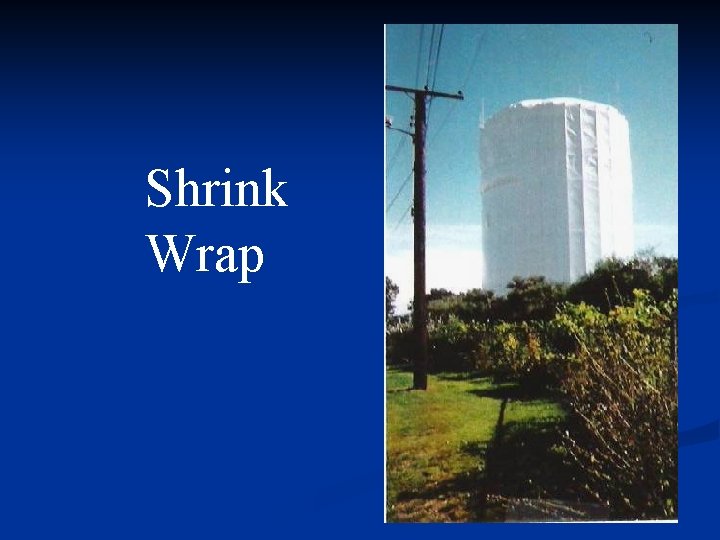

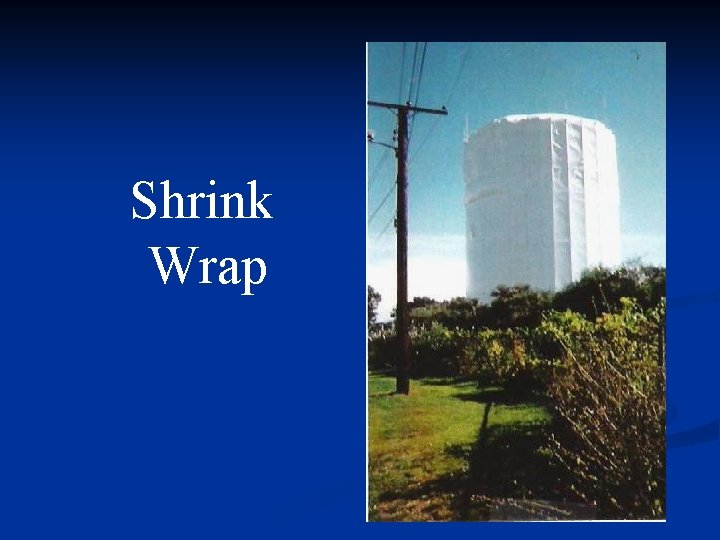

Shrink Wrap

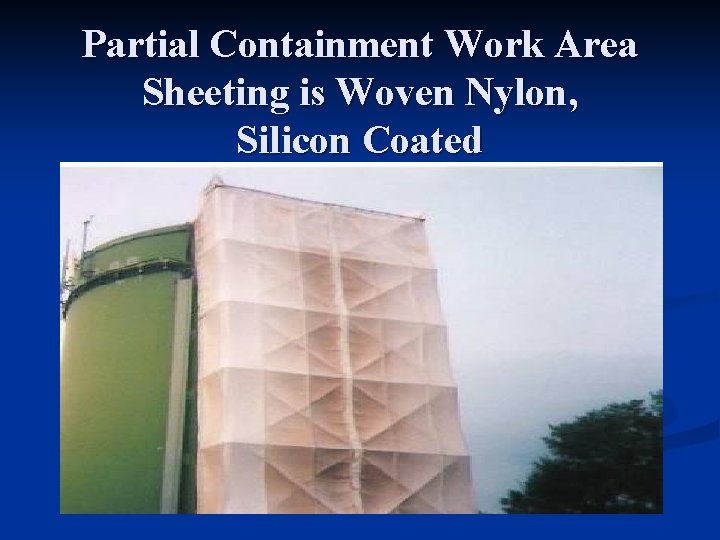

Partial Containment Work Area Sheeting is Woven Nylon, Silicon Coated

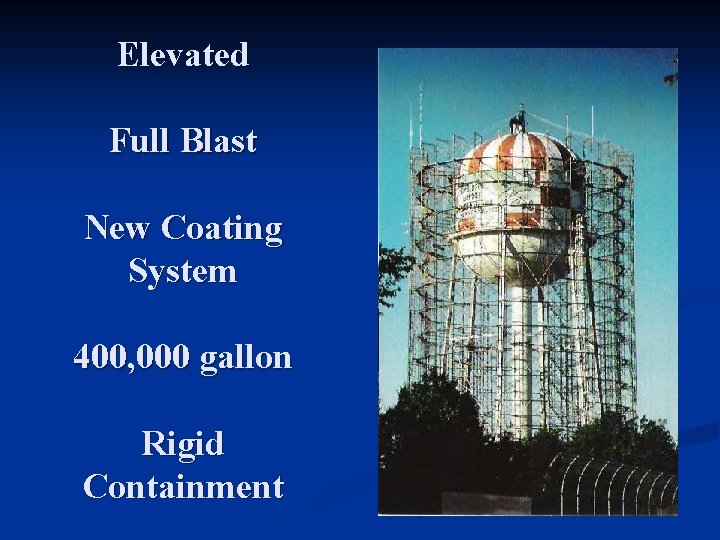

Elevated Full Blast New Coating System 400, 000 gallon Rigid Containment

Shrink Wrap

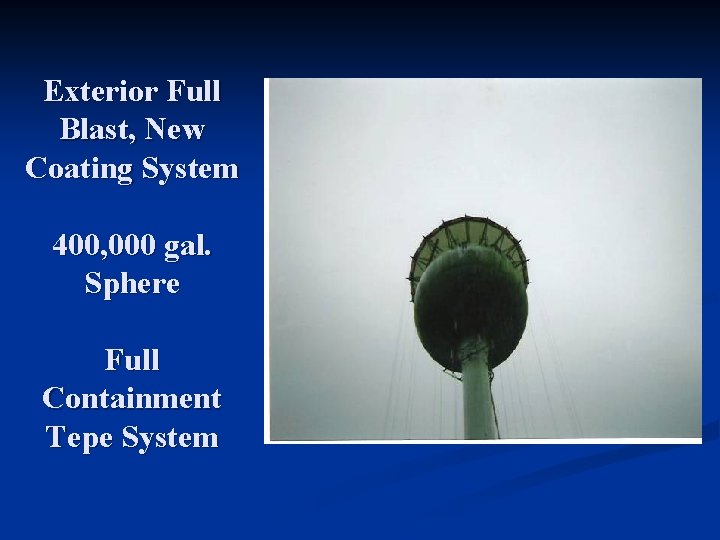

Exterior Full Blast, New Coating System 400, 000 gal. Sphere Full Containment Tepe System

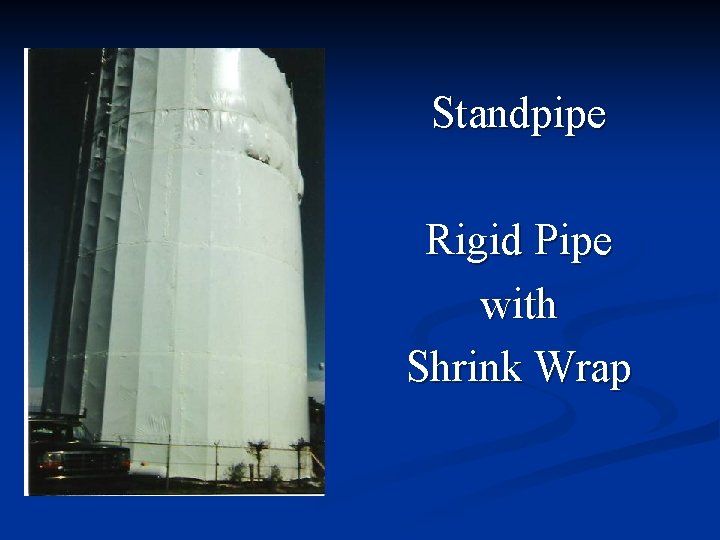

Standpipe Rigid Pipe with Shrink Wrap

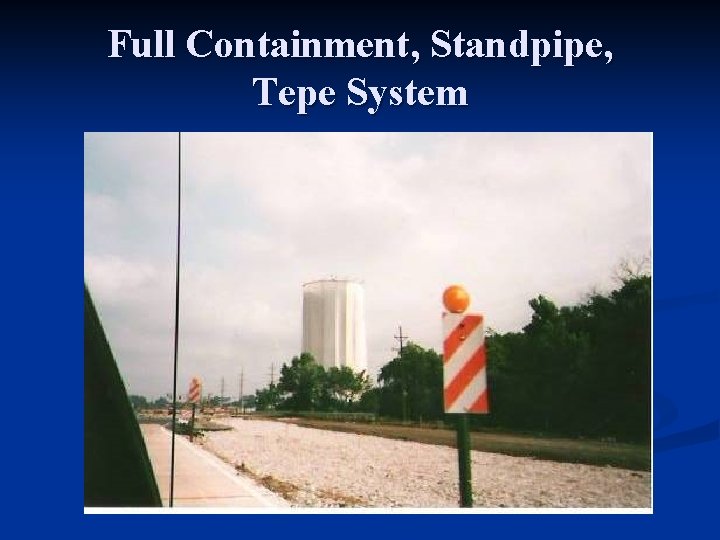

Full Containment, Standpipe, Tepe System

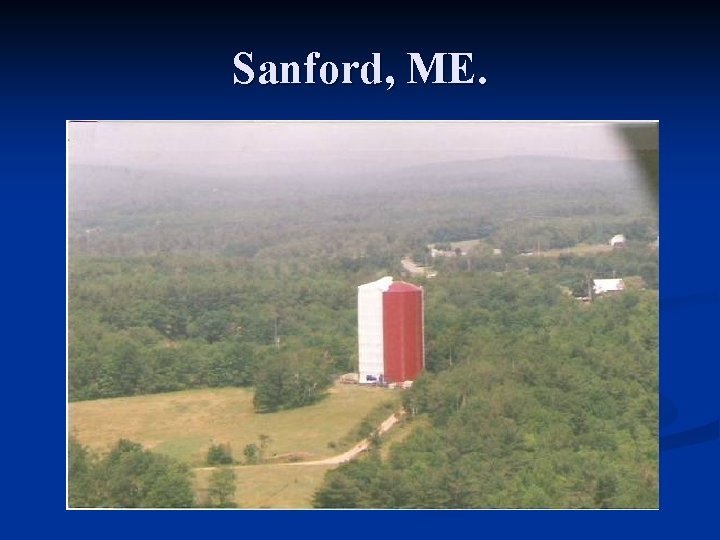

Sanford, ME.

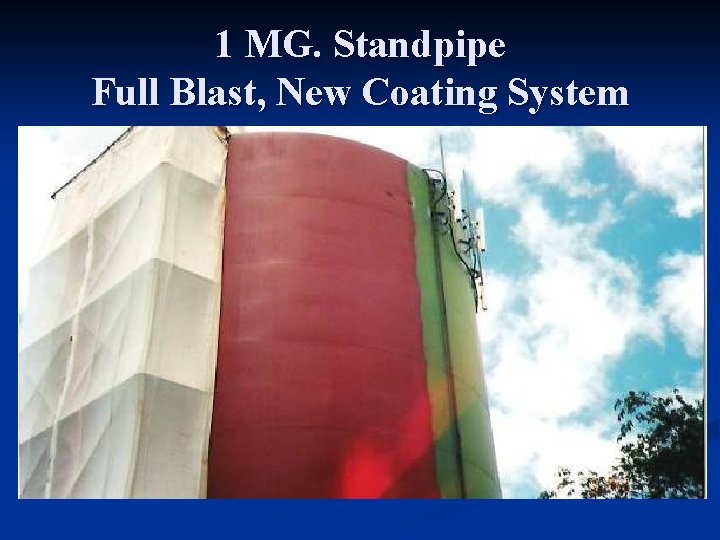

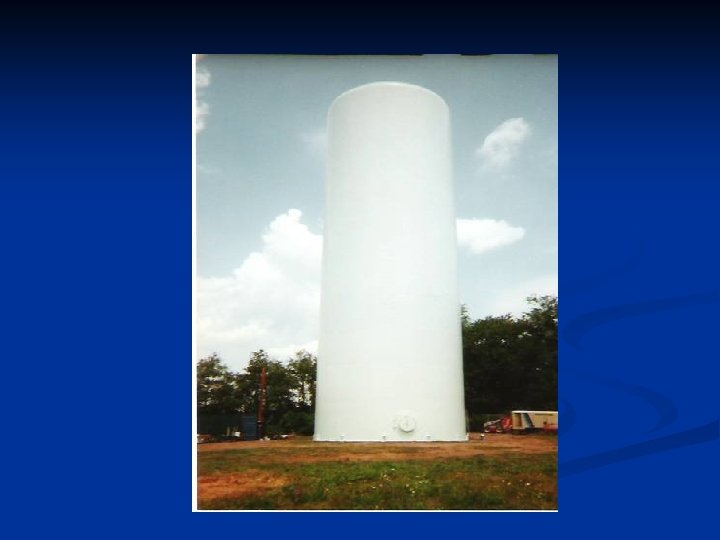

1 MG. Standpipe Full Blast, New Coating System

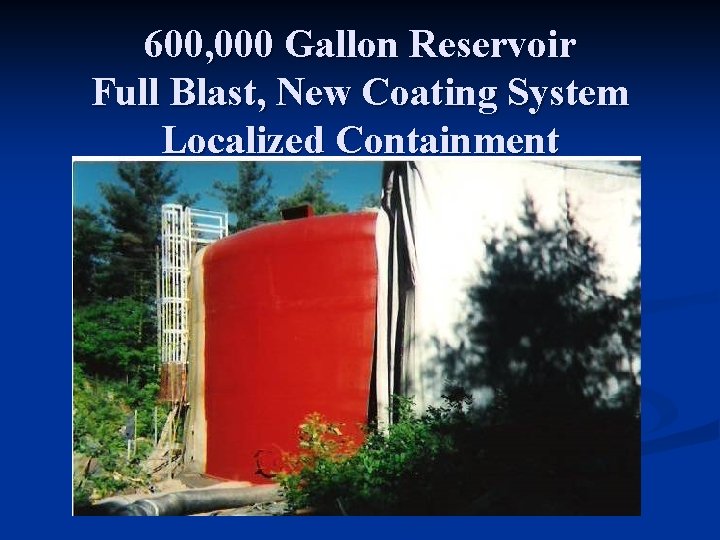

600, 000 Gallon Reservoir Full Blast, New Coating System Localized Containment

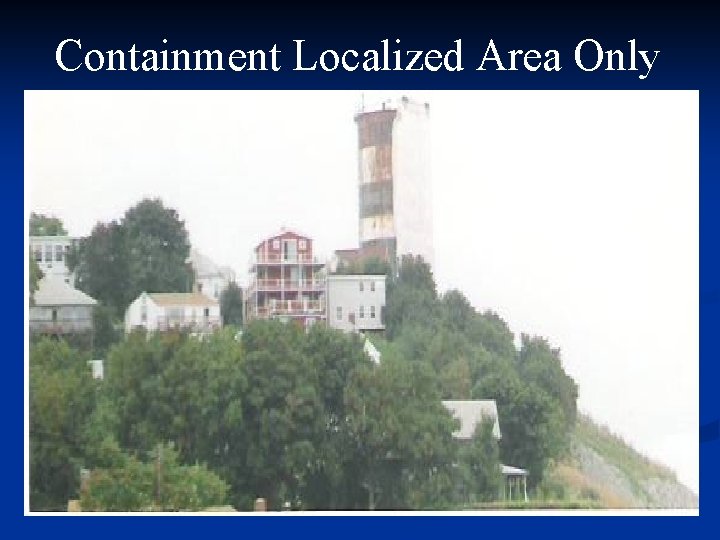

Containment Localized Area Only

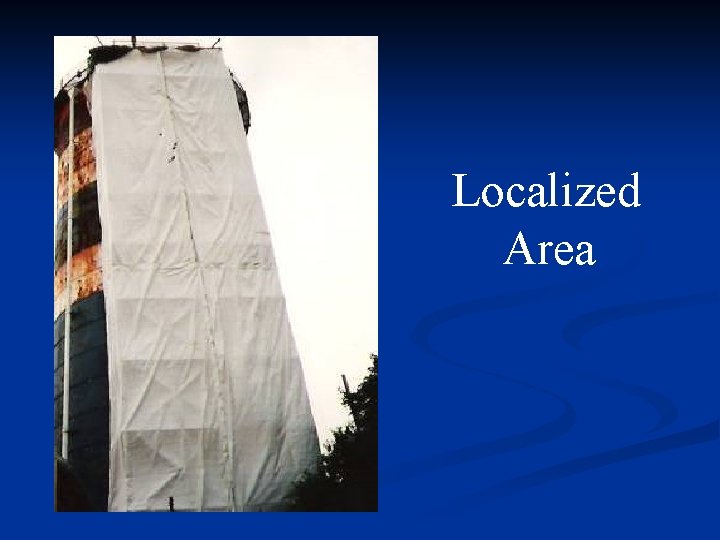

Localized Area

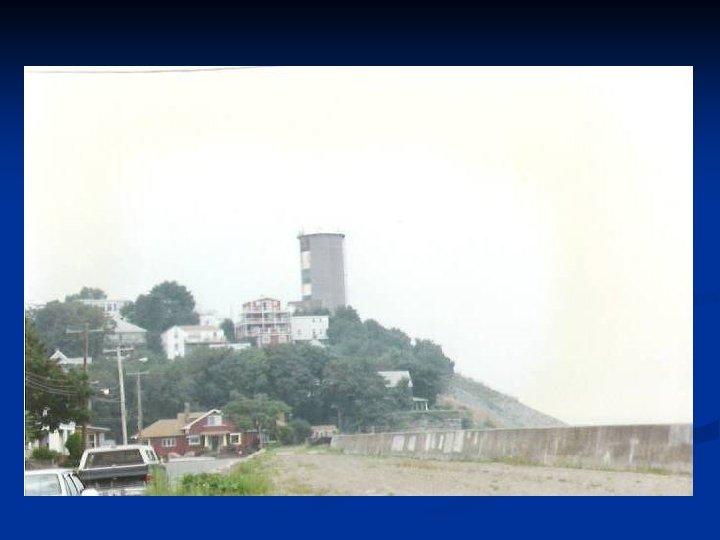

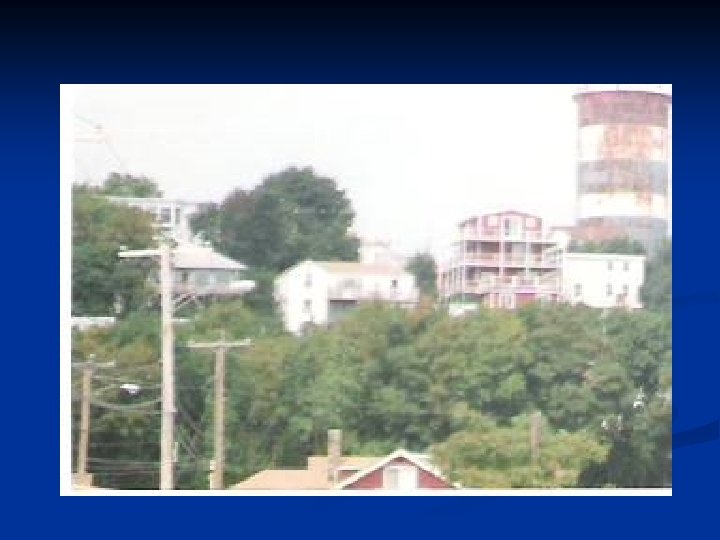

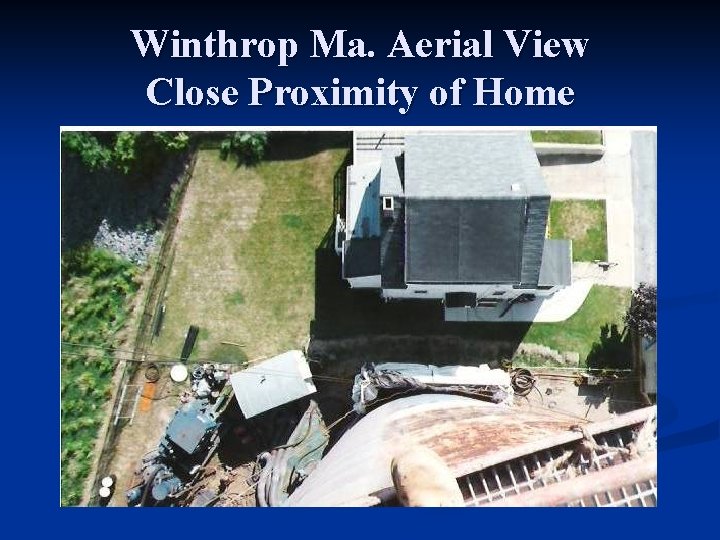

Winthrop Ma. Aerial View Close Proximity of Home

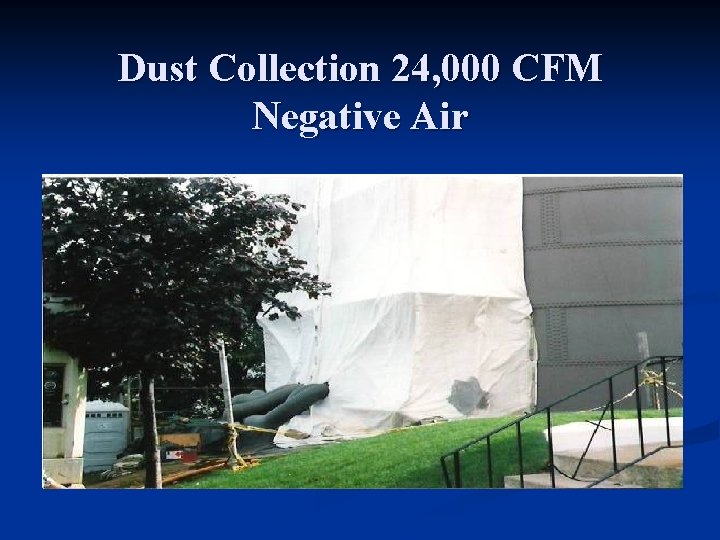

Dust Collection 24, 000 CFM Negative Air

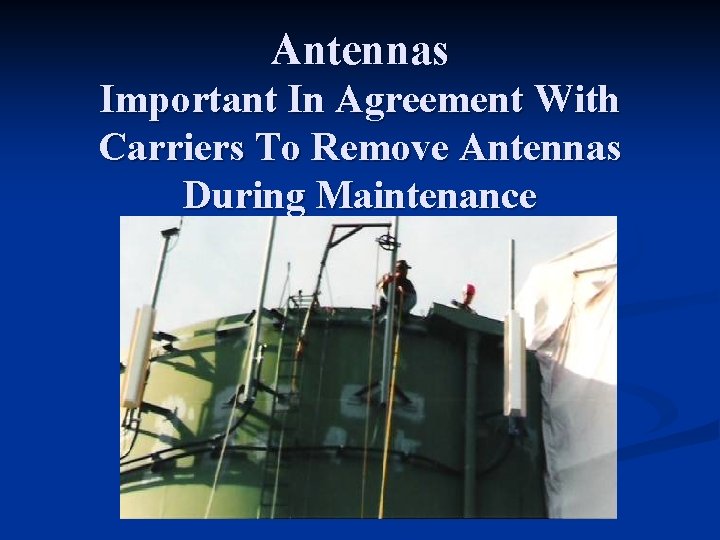

Antennas Important In Agreement With Carriers To Remove Antennas During Maintenance

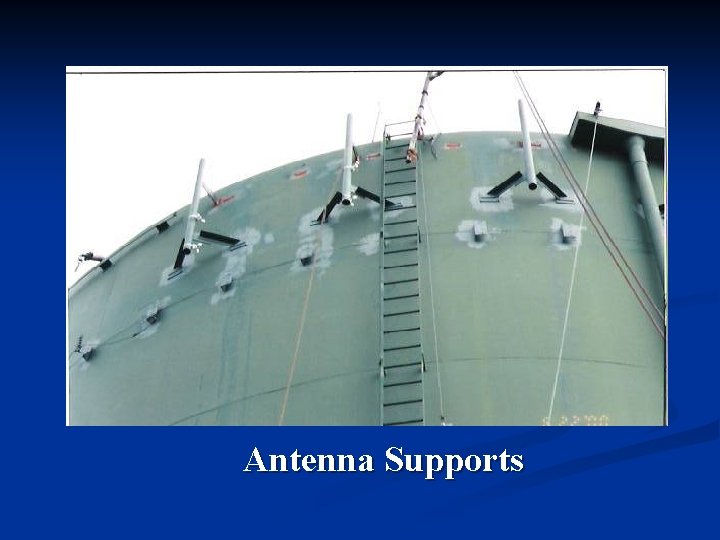

Antenna Supports

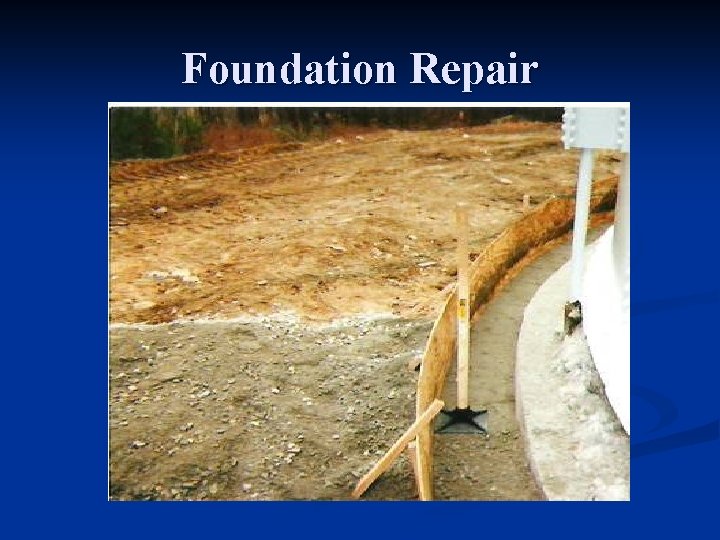

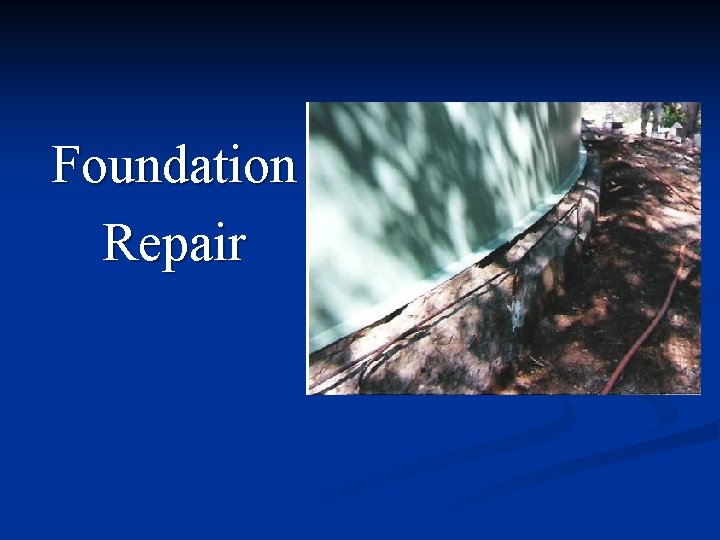

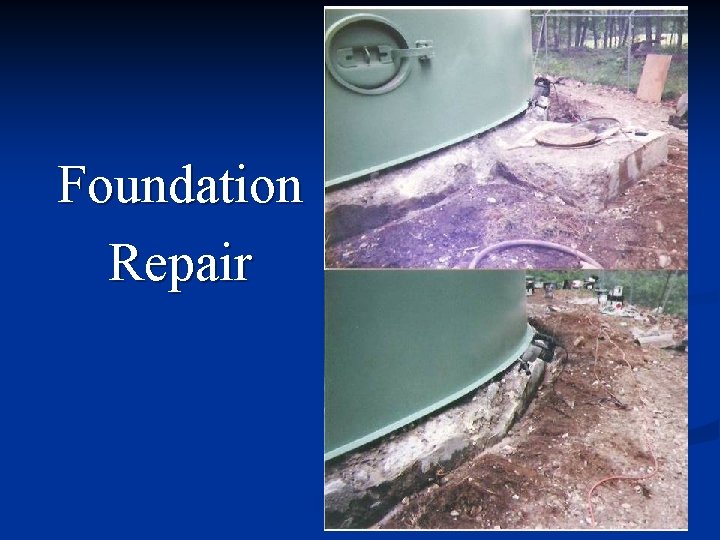

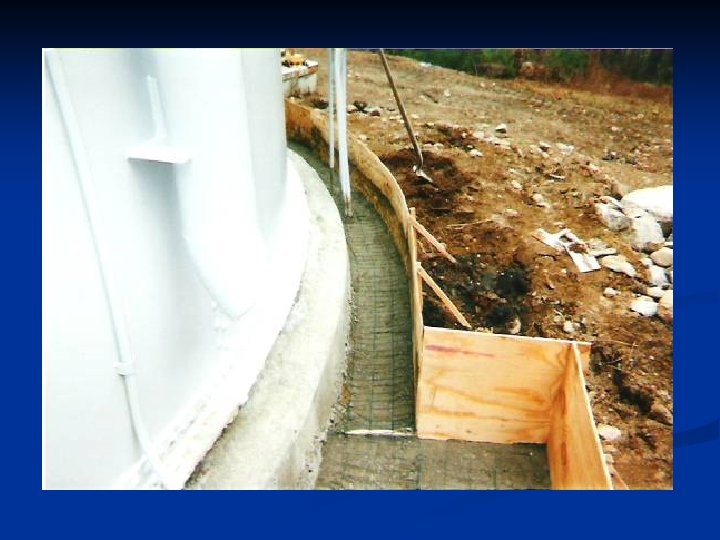

Foundation Repair

Foundation Repair

Foundation Repair

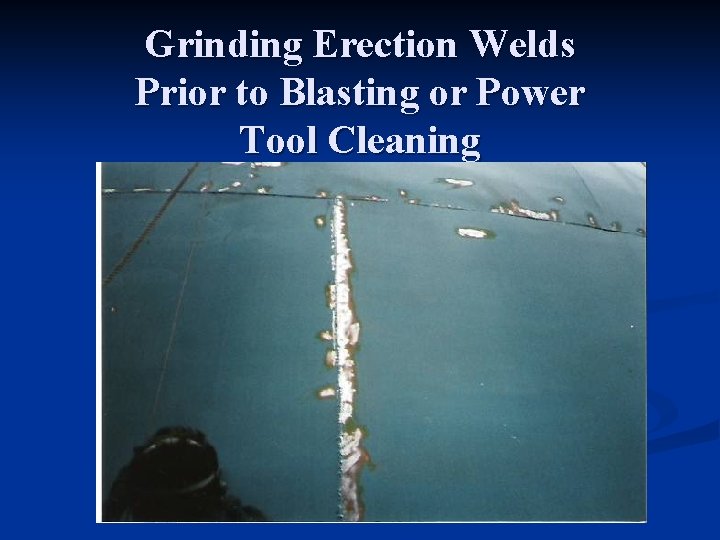

Grinding Erection Welds Prior to Blasting or Power Tool Cleaning

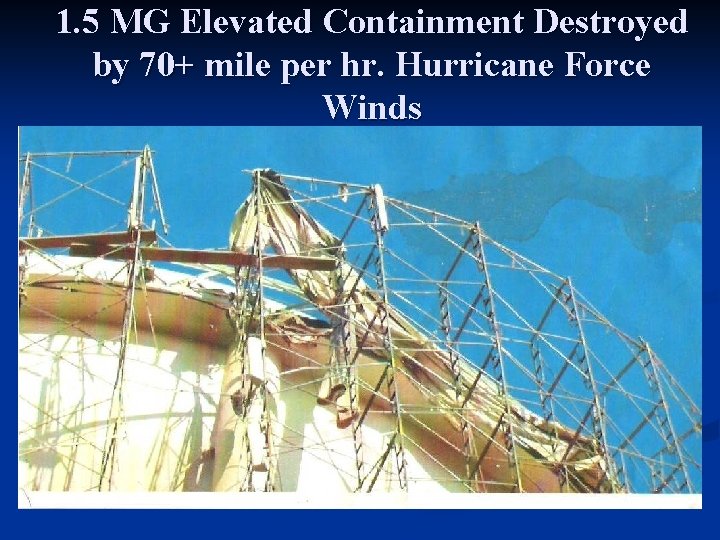

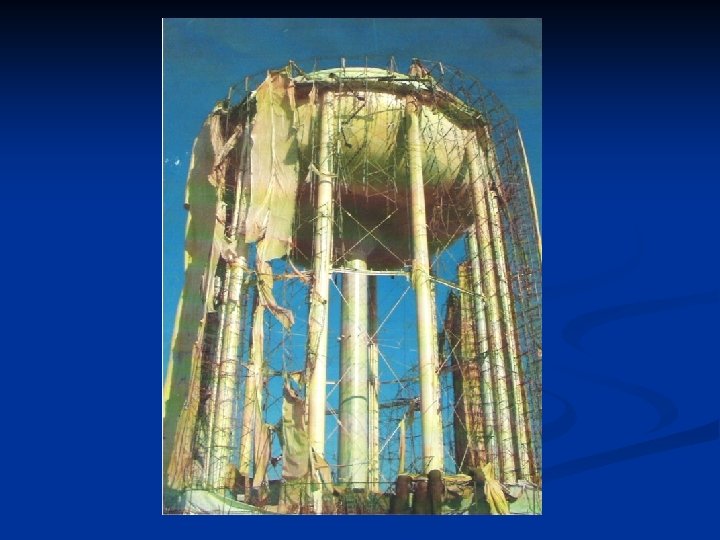

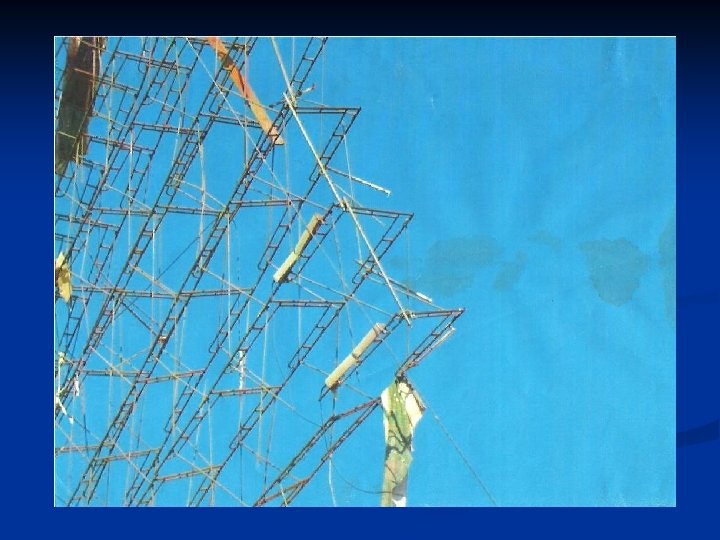

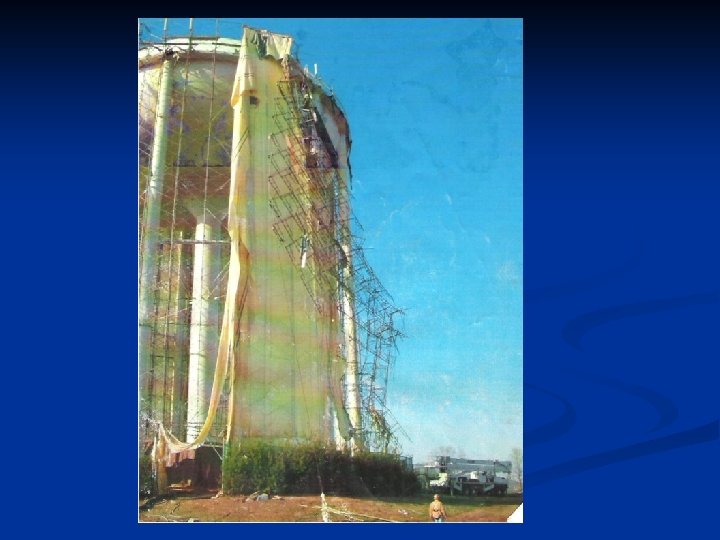

1. 5 MG Elevated Containment Destroyed by 70+ mile per hr. Hurricane Force Winds

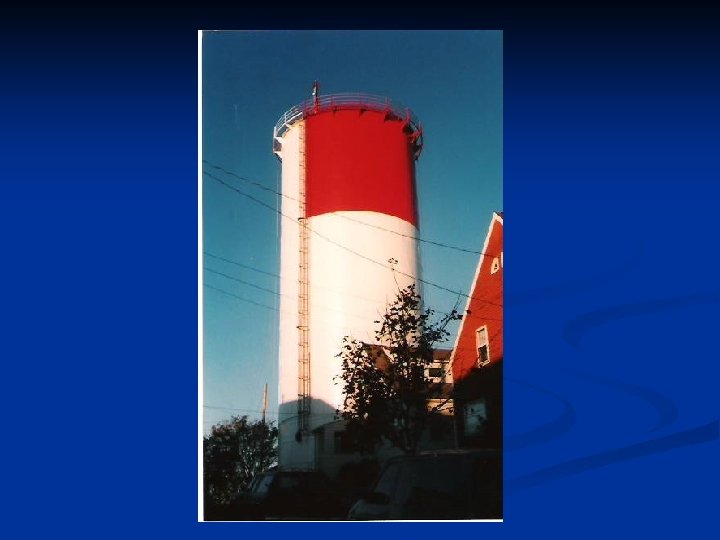

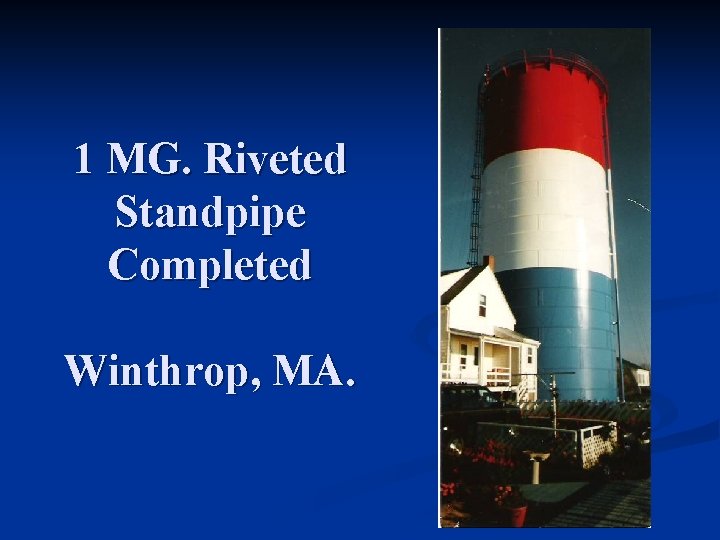

1 MG. Riveted Standpipe Completed Winthrop, MA.

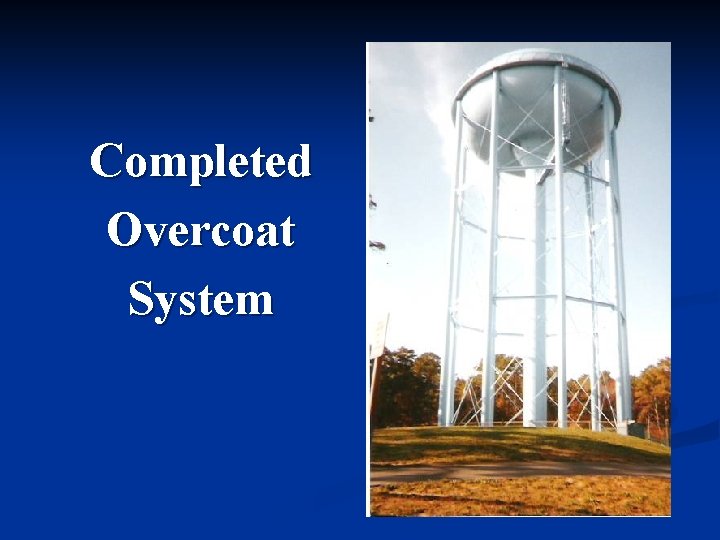

Completed Overcoat System

QUESTIONS?
