Magnetorheological (MR) Brake System Dr. Khisbullah Hudha

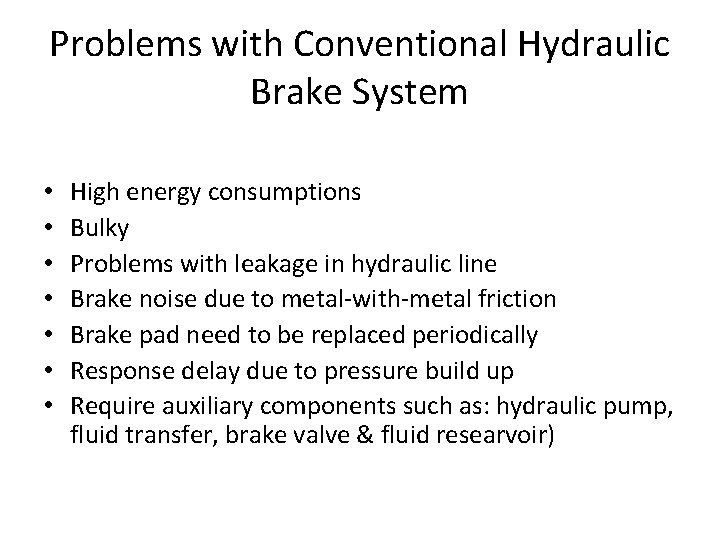

Problems with Conventional Hydraulic Brake System • • High energy consumptions Bulky Problems with leakage in hydraulic line Brake noise due to metal-with-metal friction Brake pad need to be replaced periodically Response delay due to pressure build up Require auxiliary components such as: hydraulic pump, fluid transfer, brake valve & fluid researvoir)

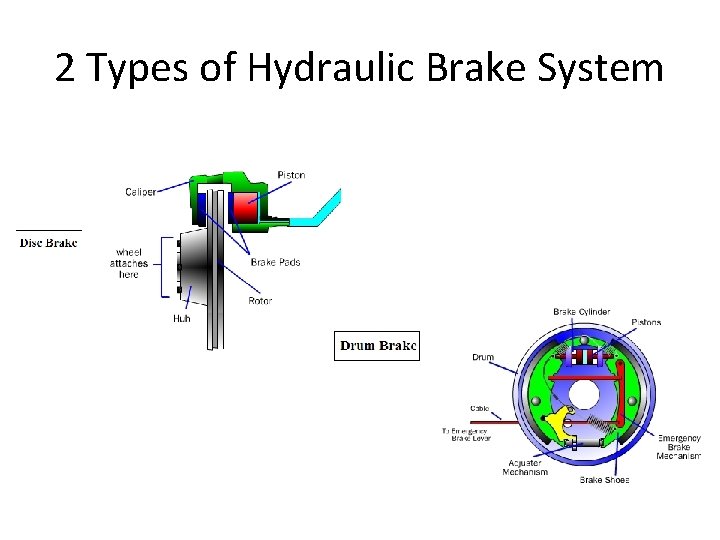

2 Types of Hydraulic Brake System

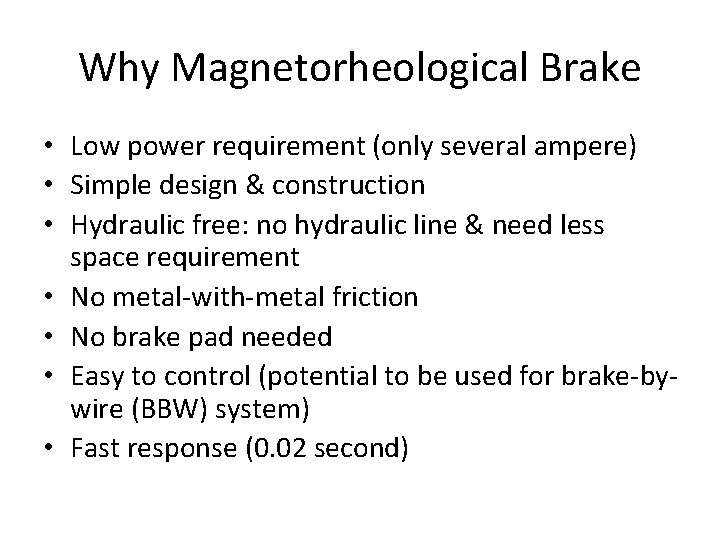

Why Magnetorheological Brake • Low power requirement (only several ampere) • Simple design & construction • Hydraulic free: no hydraulic line & need less space requirement • No metal-with-metal friction • No brake pad needed • Easy to control (potential to be used for brake-bywire (BBW) system) • Fast response (0. 02 second)

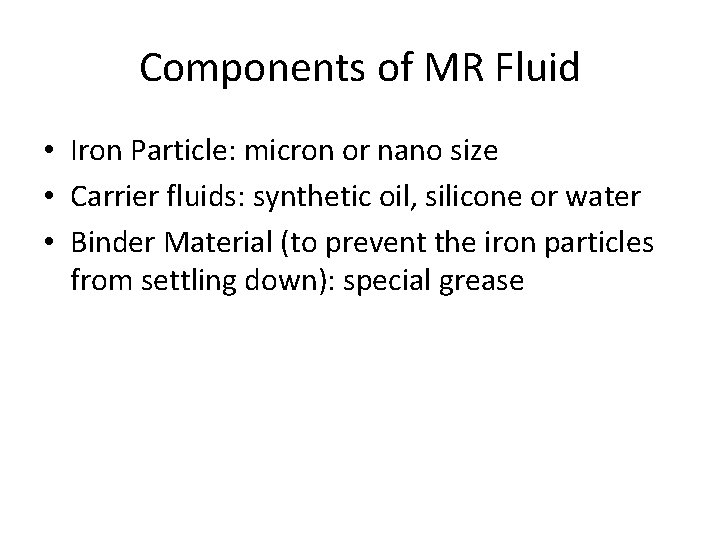

Components of MR Fluid • Iron Particle: micron or nano size • Carrier fluids: synthetic oil, silicone or water • Binder Material (to prevent the iron particles from settling down): special grease

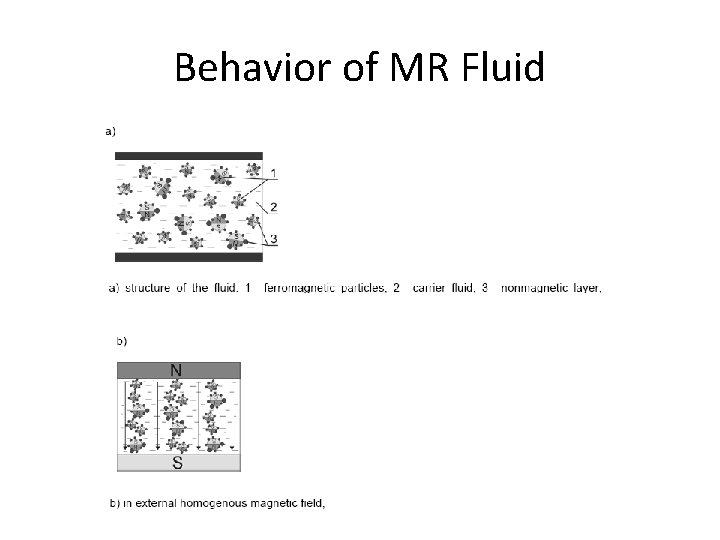

Behavior of MR Fluid

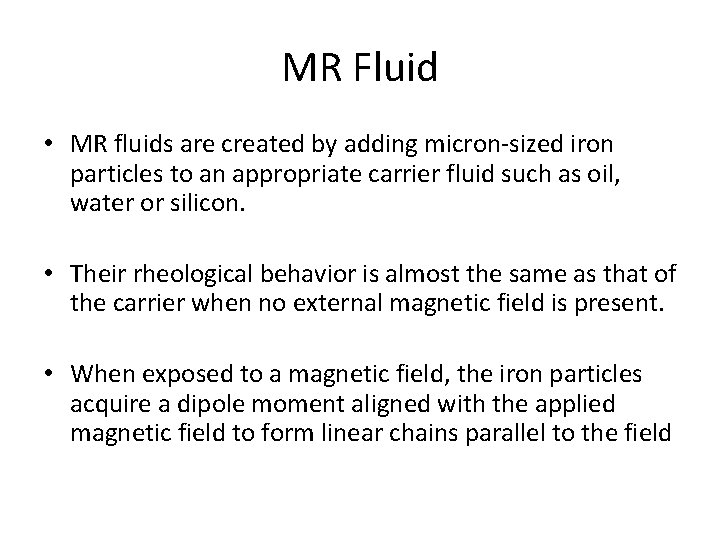

MR Fluid • MR fluids are created by adding micron-sized iron particles to an appropriate carrier fluid such as oil, water or silicon. • Their rheological behavior is almost the same as that of the carrier when no external magnetic field is present. • When exposed to a magnetic field, the iron particles acquire a dipole moment aligned with the applied magnetic field to form linear chains parallel to the field

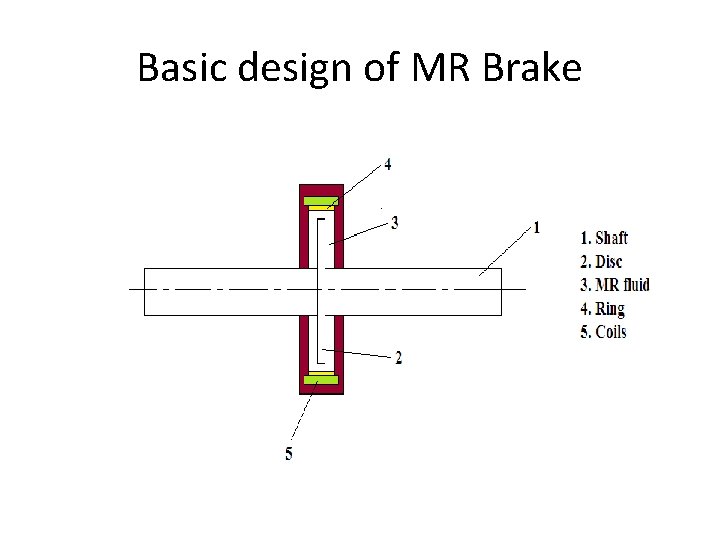

Basic design of MR Brake

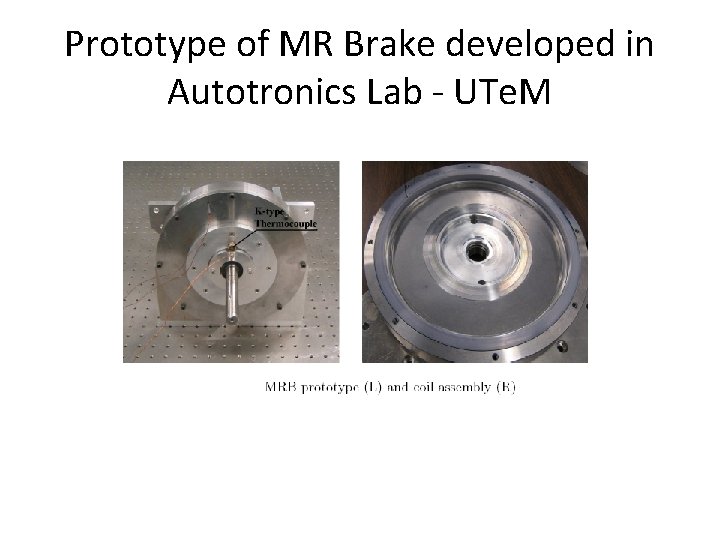

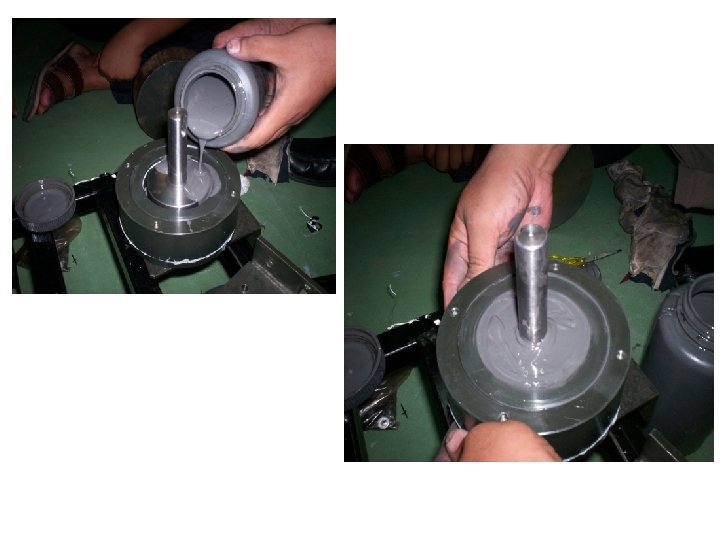

Prototype of MR Brake developed in Autotronics Lab - UTe. M

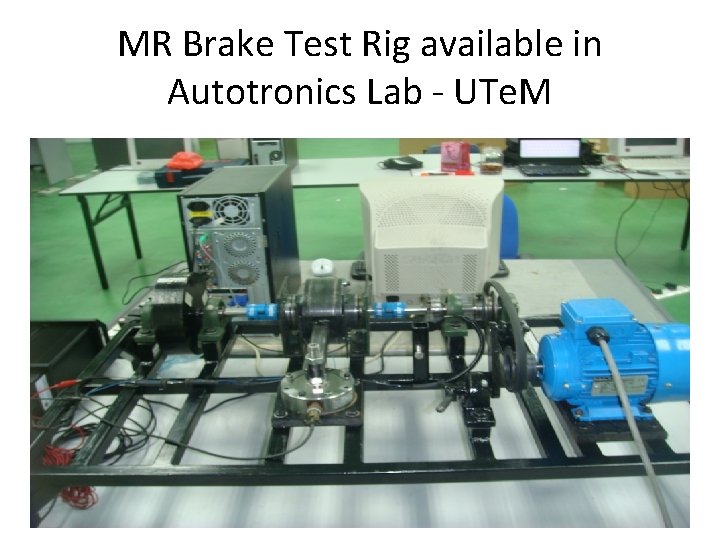

MR Brake Test Rig available in Autotronics Lab - UTe. M

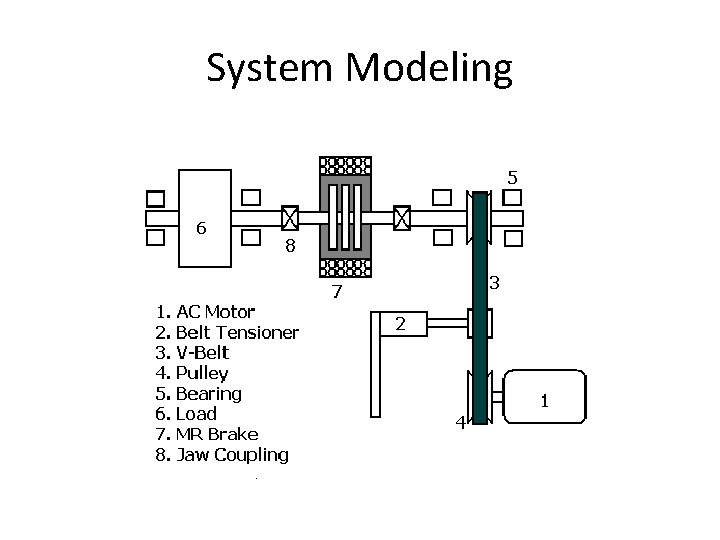

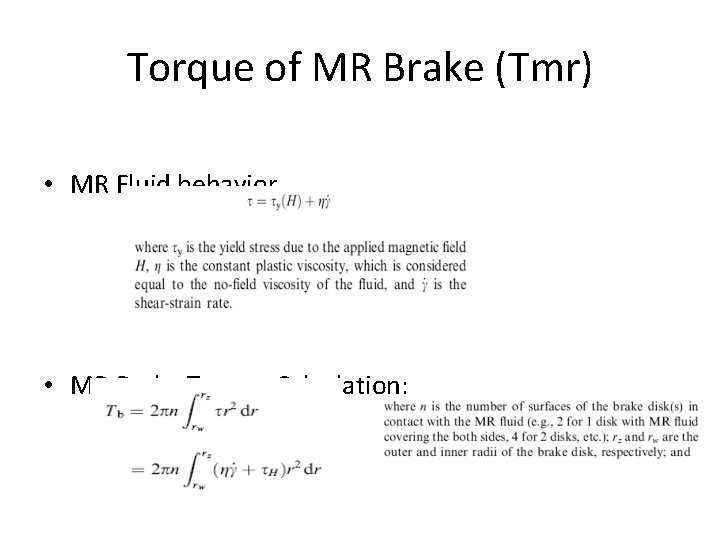

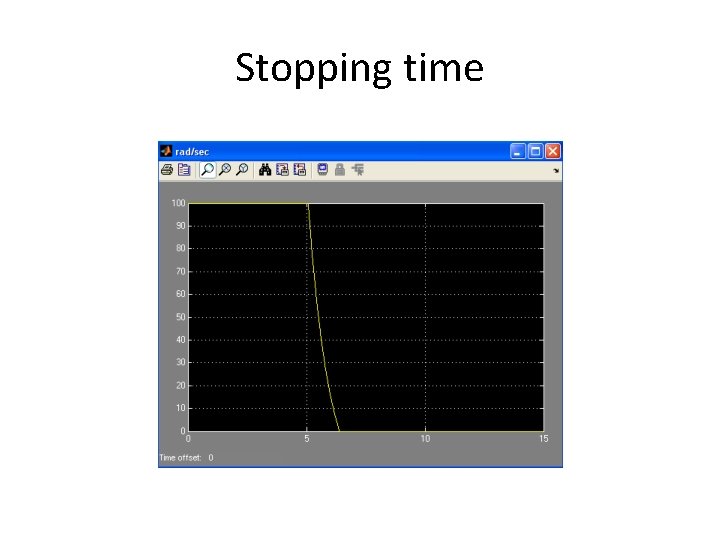

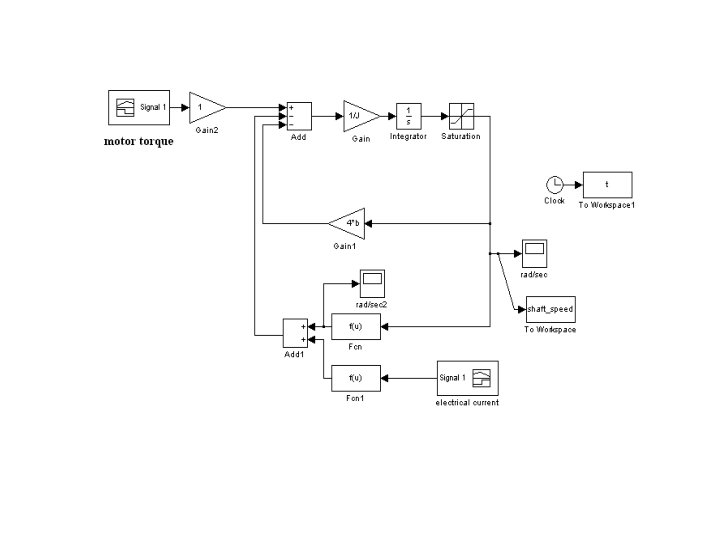

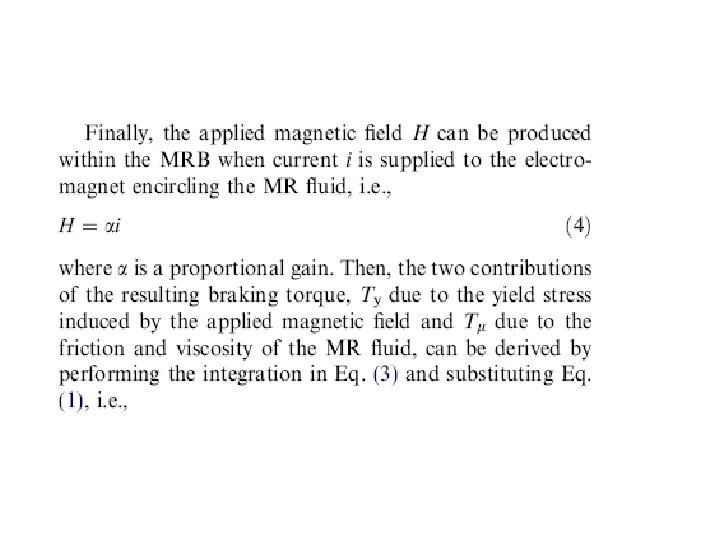

System Modeling

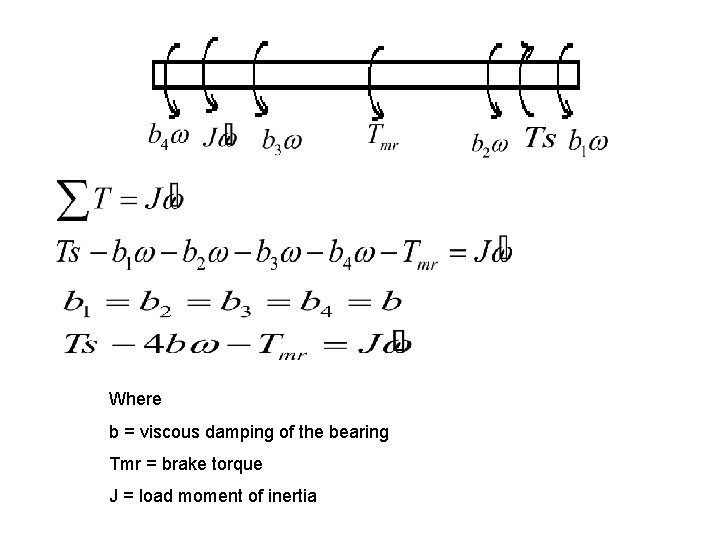

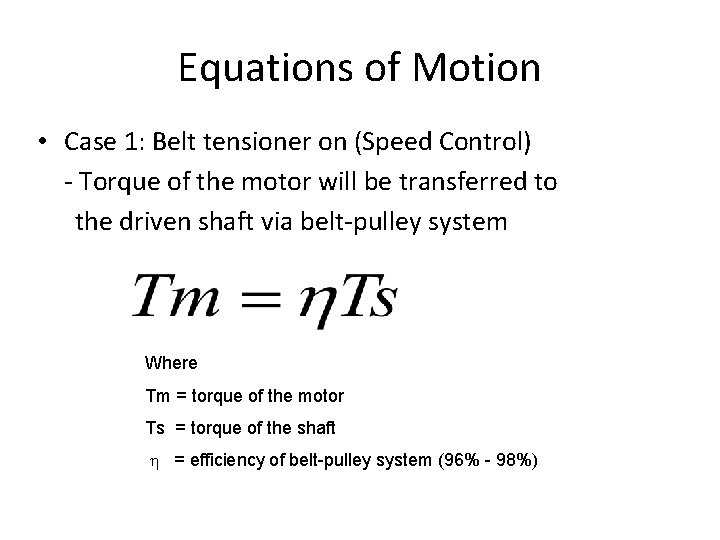

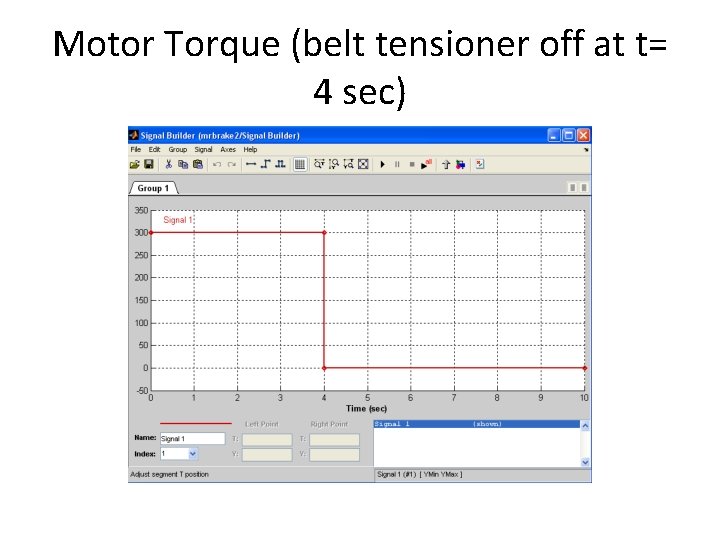

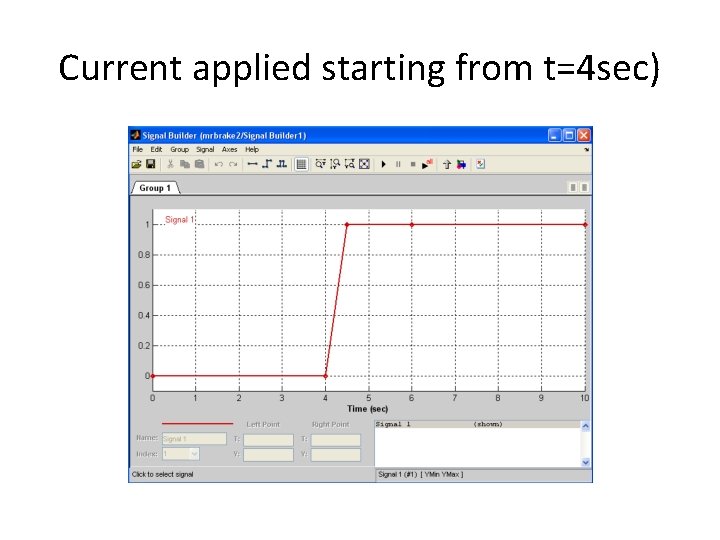

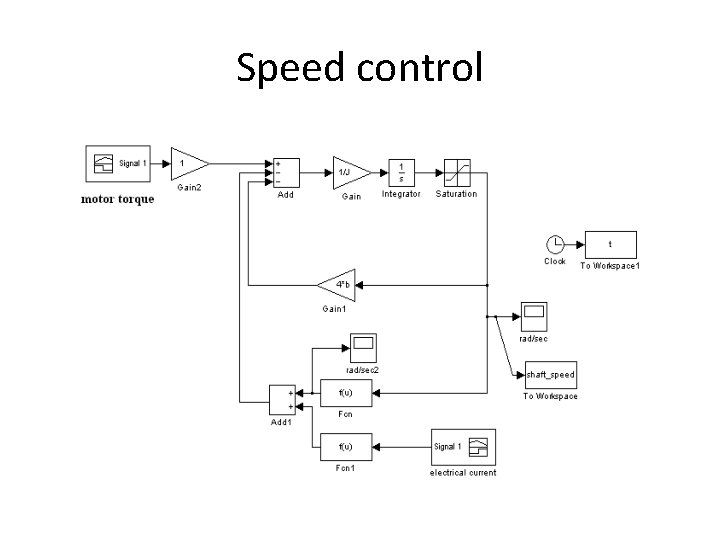

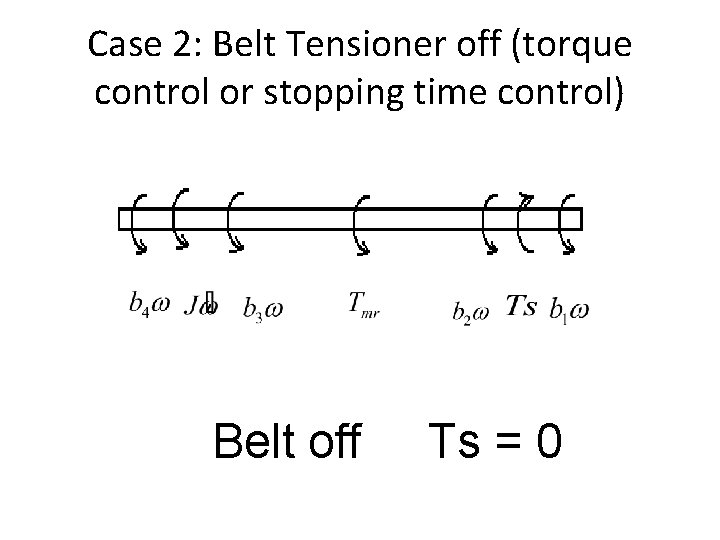

Equations of Motion • Case 1: Belt tensioner on (Speed Control) - Torque of the motor will be transferred to the driven shaft via belt-pulley system Where Tm = torque of the motor Ts = torque of the shaft h = efficiency of belt-pulley system (96% - 98%)
