Turbocor Centrifugal Compressor Technology Magnetic • Permanent magnetic bearing Centrifugal • 2 Stage Compression VFD control • DC Synchronous motor Copyright 2014 All rights reserved.
Turbocor Centrifugal Compressor Technology Copyright 2014 All rights reserved.
Magnetic Bearing No contact, No friction • Little friction power loss • Longer life time • Low maintenance fee • Low noise • Without speed increasing gear, no transmission loss No lubrication 100% oil free • Eliminate the heat loss • Save cost • No quality problem of oil system Copyright 2014 All rights reserved. Allow high rotor speed • Simple design • Small size
Centrifugal Variable Capacity control Diffusers to optimize its performance Two stage Centrifugal Copyright 2014 All rights reserved. Does not require oil for compression sealing
VFD Compressor Speed 0 -48000 rpm Output frequency 0 -800 Hz Low starting 2 A DC Synchronous motor - its frequency is directly related to motor’s speed - its frequency is “managed” by the inverter - Automatically adjust the speed to match the load and operating conditions for maximum efficiency (Speed range: 20, 000 -48, 000 rpm) Copyright 2014 All rights reserved.
VFD Soft Start Device Electronic device to regulate the voltage to the capacitors once the compressor is energized Prevent high inrush current when main power is initially applied to compressor Copyright 2014 All rights reserved.
Why need to Change ? ? ? Energy saving Innovation Technology Cost Chiller System Copyright 2014 All rights reserved. Practical
No Oil––Higher Efficiency, No Maintenance Efficiency lose % The test based on 10 sets water cooled chillers with High Oil Content 10 sets chillers are tested by ASHRAE Conclusion: The average oil content is 12. 88%; The corresponding efficiency lost is 21%; Copyright 2014 All rights reserved.
Shaft & Gear No Oil––Higher Efficiency, No Maintenance Oil Filter Shaft Calibration Replace Shaft Seal Gear Inspection Regular Maintenance Oil Filter Replace Oil Refrigerant Filter Cost (Each Time) Total Cost (Twice a year) 2000~3000 h/time (USD) 492 1640 492 2624 5248 Replace Oil Filter Copyright 2014 All rights reserved.
No Oil––Higher Efficiency, No Maintenance Low Maintenance Charge Copyright 2014 All rights reserved.
Optimized Flooded Heat Exchanger • Specific application with Magnetic Oil Free compressor • liquid-phase refrigerant covers completely the tubes, within which the water flows • Low pressure resistance, save water pump power Copyright 2014 All rights reserved.
Compact & Low noise Benefit and Reliable Small Size Low noise Copyright 2014 All rights reserved.
Test report Magenetic oil free IPLV=10. 7; PFS IPLV=8. 4; RTHD IPLV=7. 4 Copyright 2014 All rights reserved.
Test report LOAD [%] Magnetic Oil Free Conventional % DIFF. IN PERFORMANCE COP k. W/RT 100 6. 07 0. 579 5. 66 0. 621 6. 8% 90 6. 80 0. 517 6. 17 0. 570 9. 3% 80 7. 79 0. 451 6. 74 0. 522 13. 5% 70 9. 00 0. 391 7. 21 0. 488 19. 9% 60 10. 33 0. 340 7. 74 0. 454 25. 1% 50 12. 13 0. 290 8. 34 0. 422 31. 2% 40 12. 58 0. 279 8. 36 0. 421 33. 5% 30 13. 22 0. 266 8. 13 0. 432 38. 5% 20 13. 91 0. 253 7. 88 0. 446 43. 4% 10 14. 94 0. 235 6. 84 0. 514 54. 2% Copyright 2014 All rights reserved.
Test report Average Saving ~25% Copyright 2014 All rights reserved.
Benefit and Reliable Copyright 2014 All rights reserved.

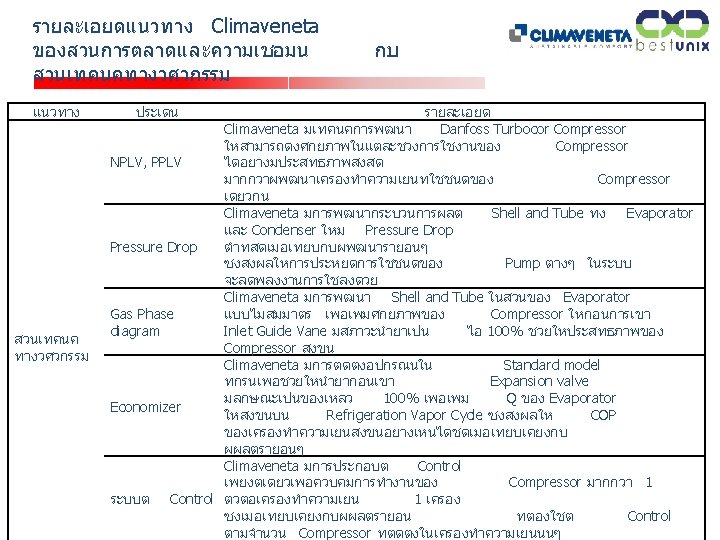

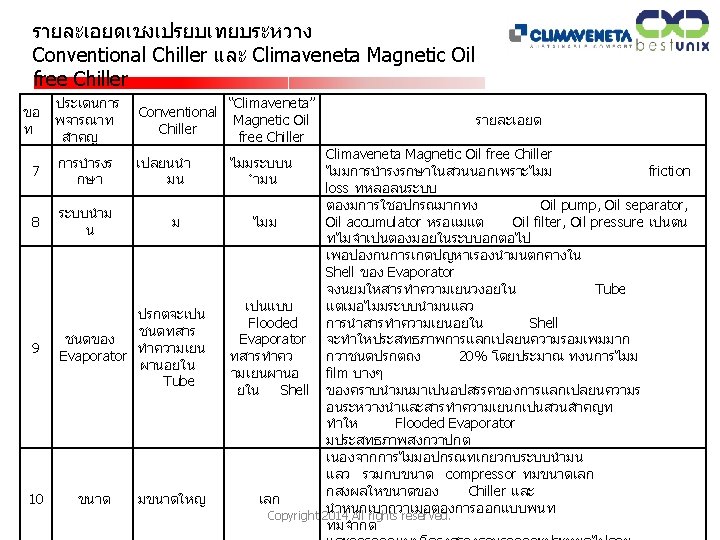

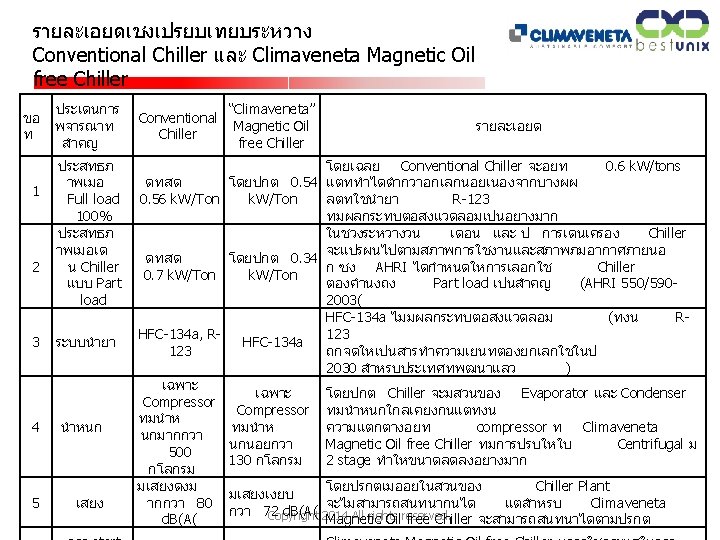

Why need to Change? Summary…Change for better. Water-cooled Magnetic Levitation Variable Frequency Centrifugal Chiller Copyright 2014 All rights reserved.
