Magnetic Injection Scheme for The Atom Laser Karl Lundquist REU Summer 2010 Raithel Lab

Magnetic Injection Scheme for The Atom Laser Karl Lundquist REU Summer 2010 Raithel Lab August 17 2010

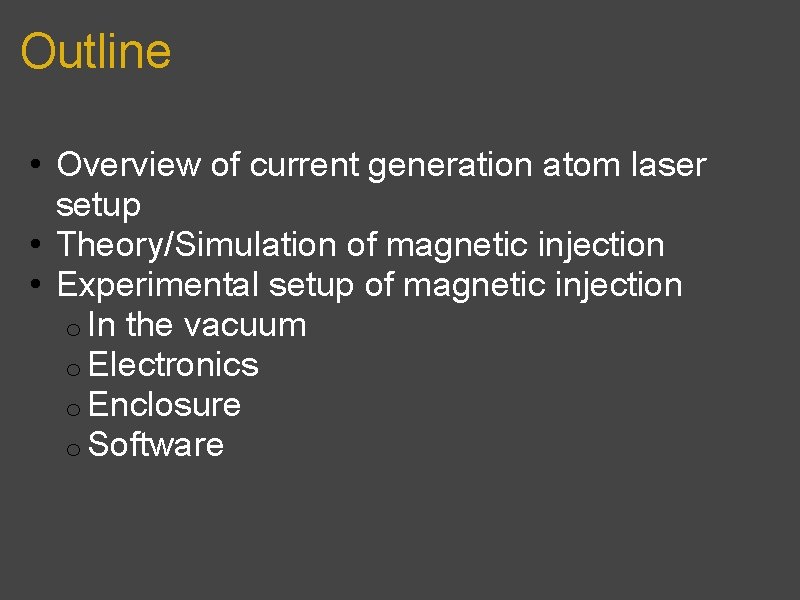

Outline • Overview of current generation atom laser setup • Theory/Simulation of magnetic injection

Outline • Overview of current generation atom laser setup • Theory/Simulation of magnetic injection • Experimental setup of magnetic injection o In the vacuum o Electronics o Enclosure o Software

Overview of current setup • • Zeeman slower Primary MOT Pusher Beam Secondary MOT

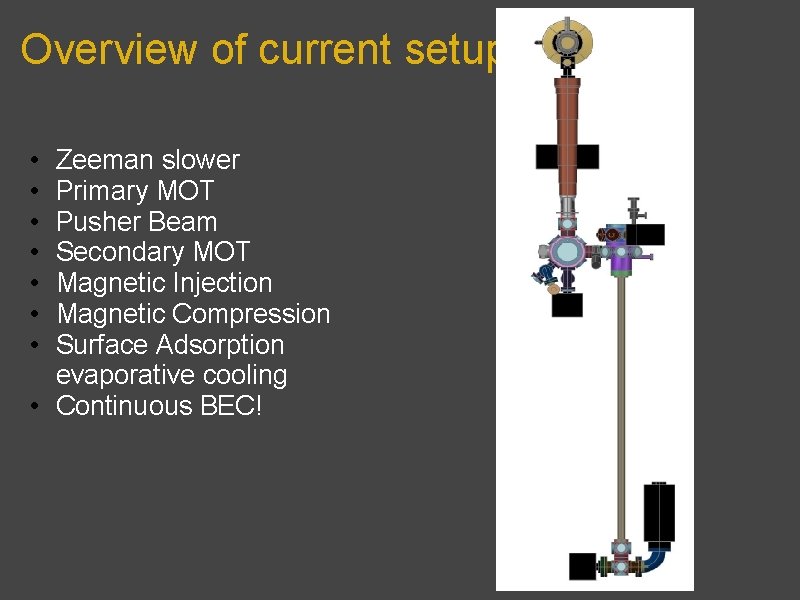

Overview of current setup • • Zeeman slower Primary MOT Pusher Beam Secondary MOT Magnetic Injection Magnetic Compression Surface Adsorption evaporative cooling • Continuous BEC!

Basic idea behind magnetic injection • Transferring atom into evaporative cooling region with light

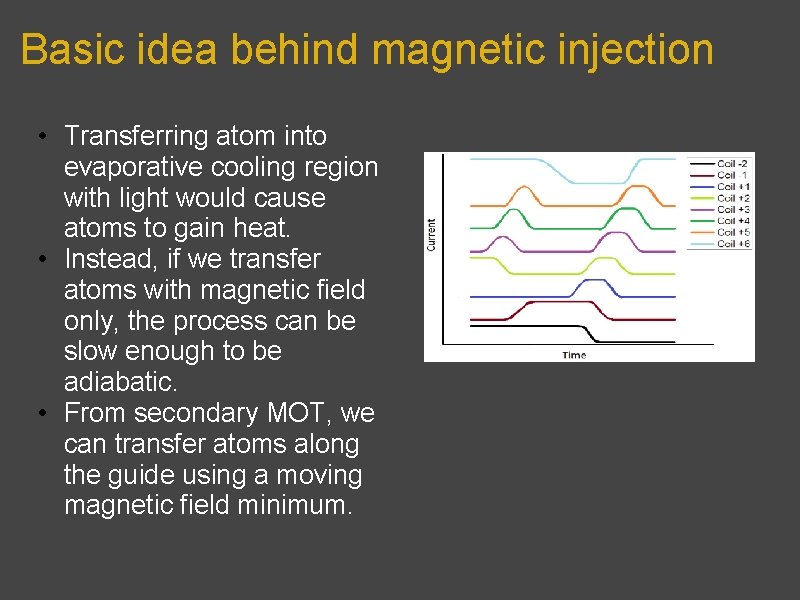

Basic idea behind magnetic injection • Transferring atom into evaporative cooling region with light would cause atoms to gain heat. • Instead, if we transfer atoms with magnetic field only, the process can be slow enough to be adiabatic. • From secondary MOT, we can transfer atoms along the guide using a moving magnetic field minimum.

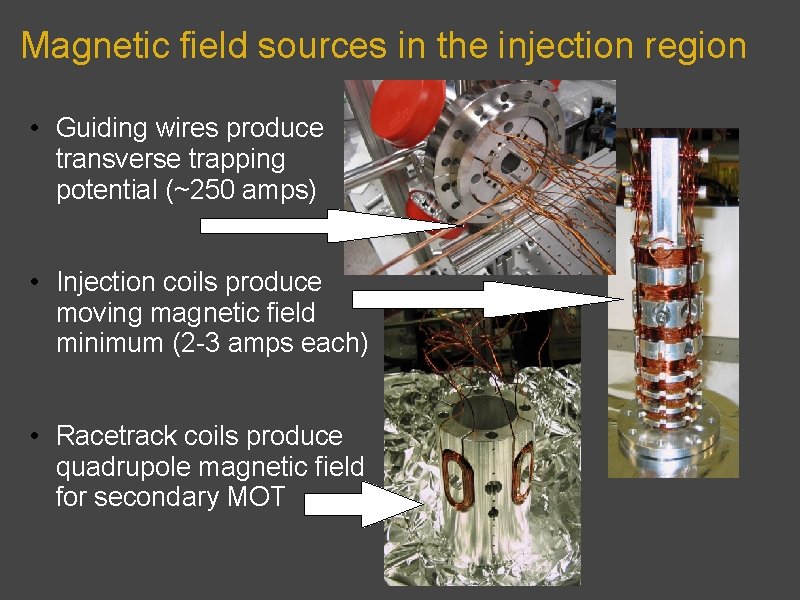

Magnetic field sources in the injection region • Guiding wires produce transverse trapping potential

Magnetic field sources in the injection region • Guiding wires produce transverse trapping potential (~250 amps) • Injection coils produce moving magnetic field minimum (2 -3 amps each) • Racetrack coils produce quadrupole magnetic field for secondary MOT

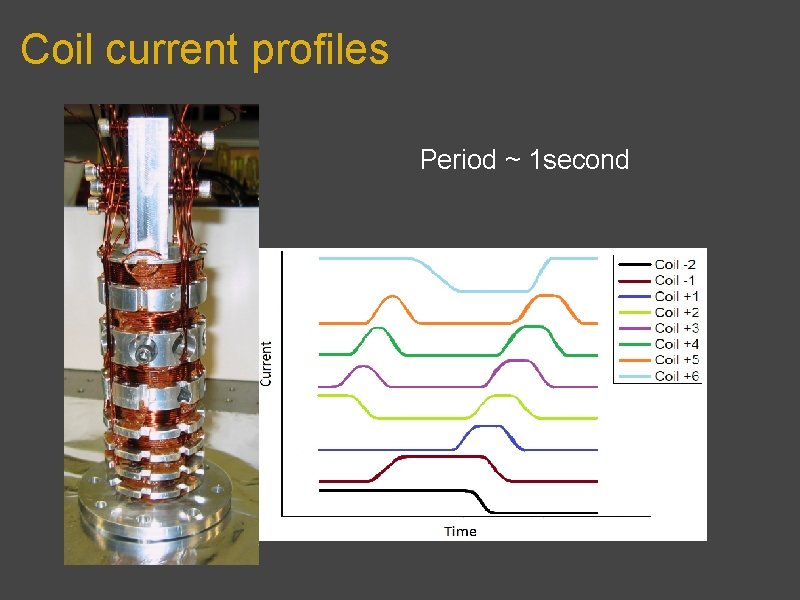

Coil current profiles Period ~ 1 second

Coil current profiles Period ~ 1 second

Injection Simulation

Injection Simulation

High Current Power Supply • • HP 6651 A 0 -8 Volts 0 -50

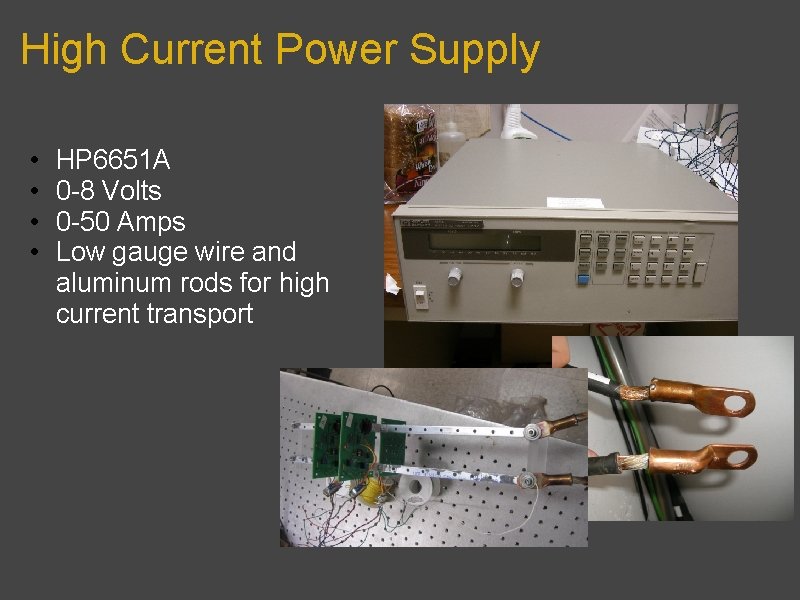

High Current Power Supply • • HP 6651 A 0 -8 Volts 0 -50 Amps Low gauge wire and aluminum rods for high current transport

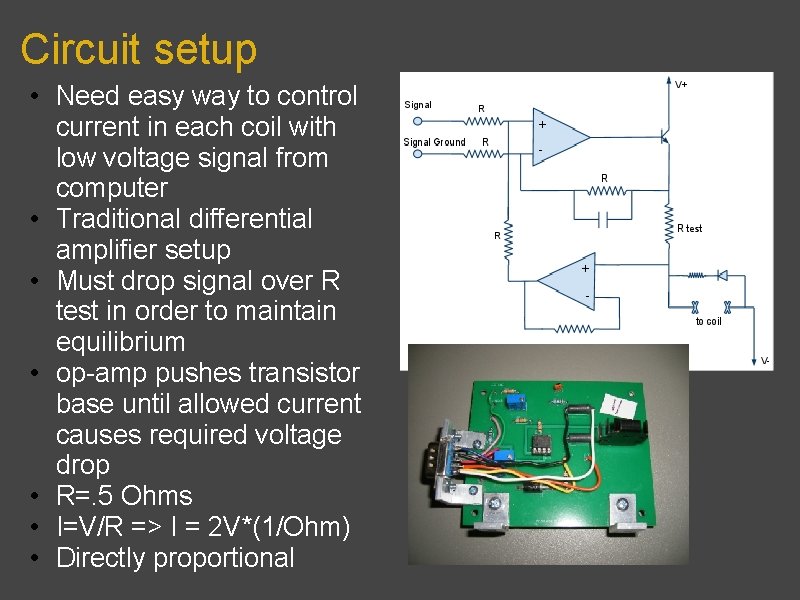

Circuit setup • Need easy way to control current in each coil with low

Circuit setup • Need easy way to control current in each coil with low voltage signal from computer • Traditional differential amplifier setup • Must drop signal over R test in order to maintain equilibrium • op-amp pushes transistor base until allowed current causes required voltage drop • R=. 5 Ohms • I=V/R => I = 2 V*(1/Ohm) • Directly proportional

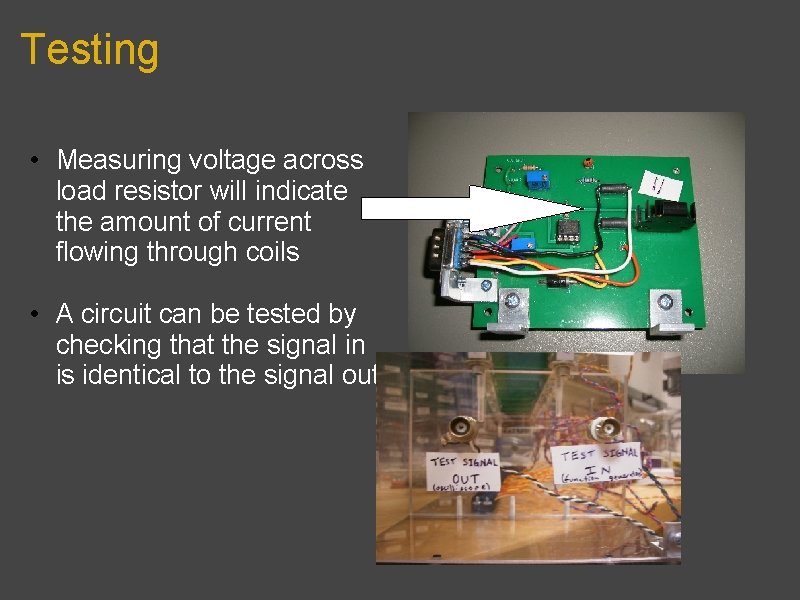

Testing • Measuring voltage across load resistor will indicate the amount of current flowing

Testing • Measuring voltage across load resistor will indicate the amount of current flowing through coils • A circuit can be tested by checking that the signal in is identical to the signal out

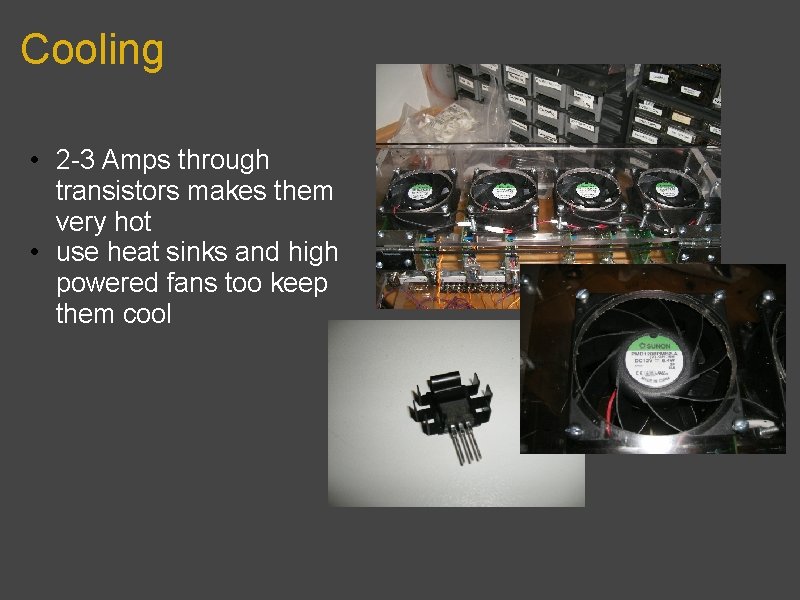

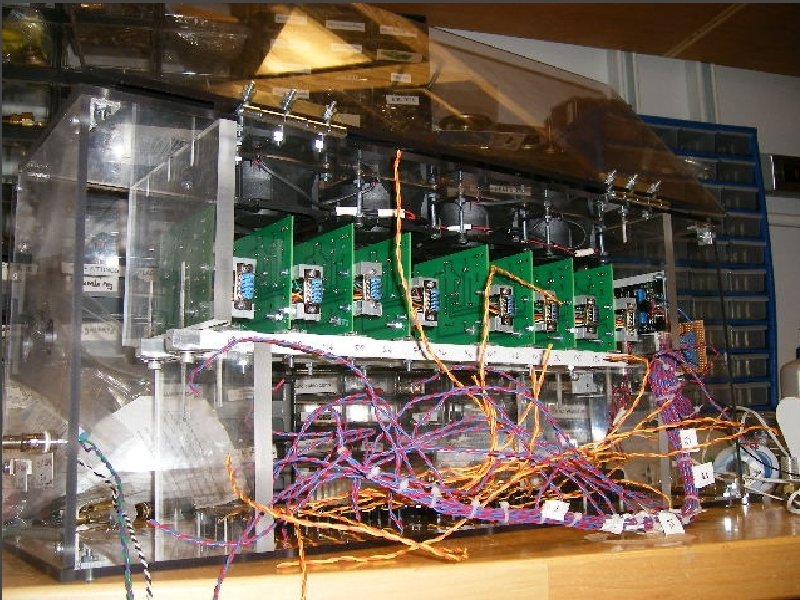

Cooling • 2 -3 Amps through transistors makes them very hot • use heat

Cooling • 2 -3 Amps through transistors makes them very hot • use heat sinks and high powered fans too keep them cool

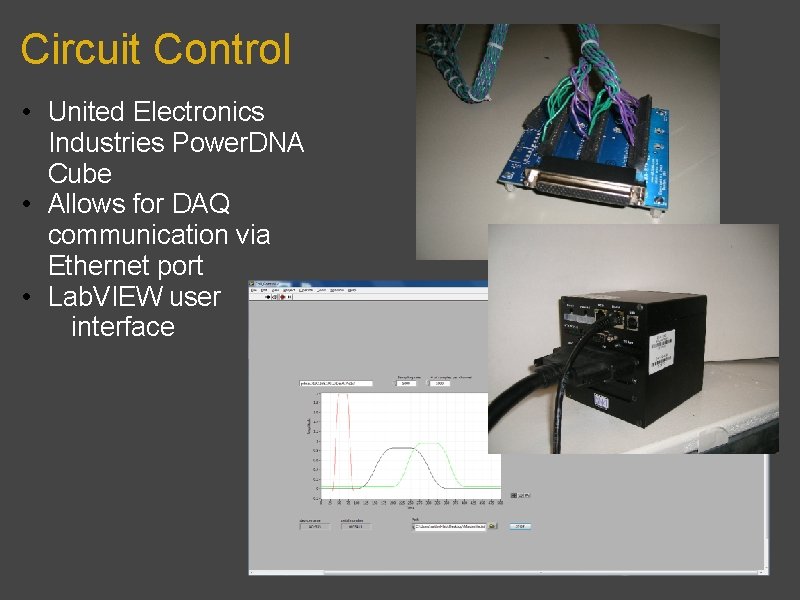

Circuit Control • United Electronics Industries Power. DNA Cube • Allows for DAQ communication

Circuit Control • United Electronics Industries Power. DNA Cube • Allows for DAQ communication via Ethernet port • Lab. VIEW user interface

Acknowledgments Much thanks to everyone in Raithel Lab for a great summer! • •

Acknowledgments Much thanks to everyone in Raithel Lab for a great summer! • • • Georg Raithel Andrew Schwarzkopf Andrew Cadotte David Anderson Eric Paradis Mallory Traxler • • • Sarah Anderson Erik Power Betty Slama Stefan Zigo Kareem Hegazy Kevin Smith
