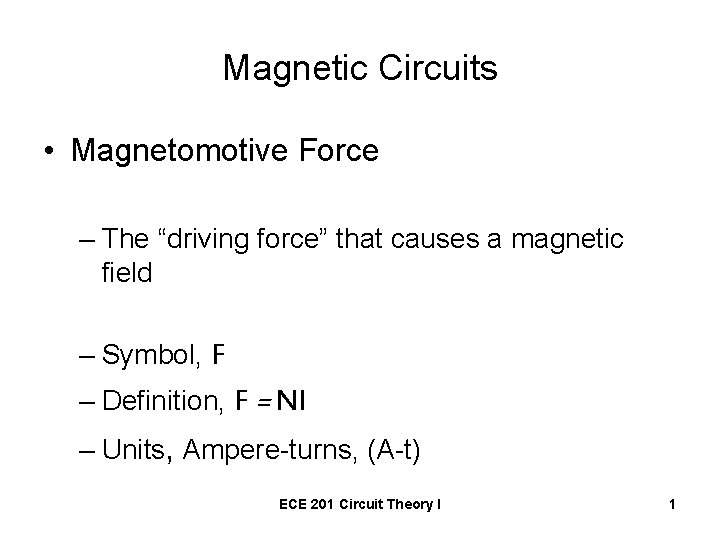

Magnetic Circuits • Magnetomotive Force – The “driving force” that causes a magnetic field – Symbol, F – Definition, F = NI – Units, Ampere-turns, (A-t) ECE 201 Circuit Theory I 1

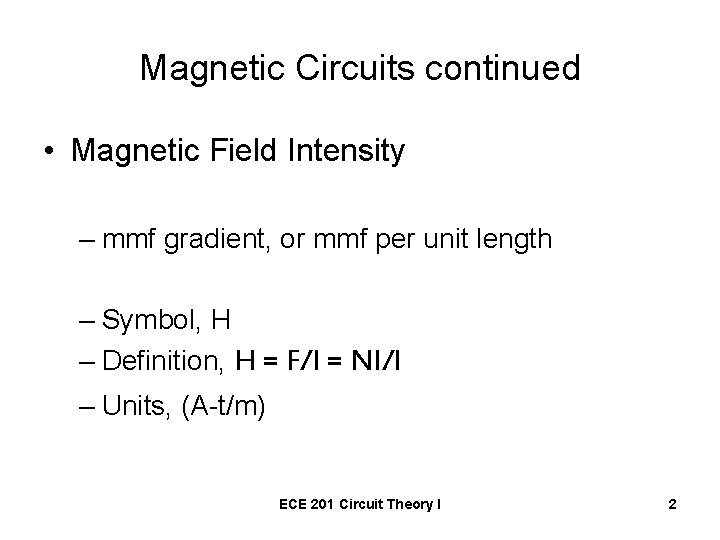

Magnetic Circuits continued • Magnetic Field Intensity – mmf gradient, or mmf per unit length – Symbol, H – Definition, H = F/l = NI/l – Units, (A-t/m) ECE 201 Circuit Theory I 2

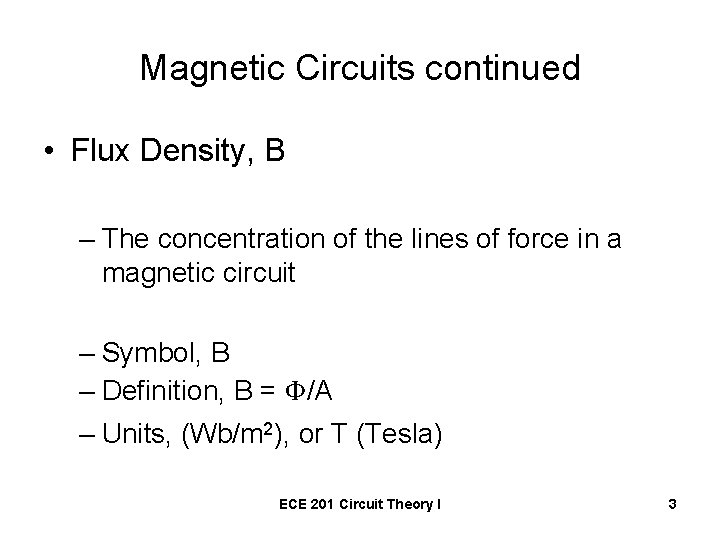

Magnetic Circuits continued • Flux Density, B – The concentration of the lines of force in a magnetic circuit – Symbol, B – Definition, B = Φ/A – Units, (Wb/m 2), or T (Tesla) ECE 201 Circuit Theory I 3

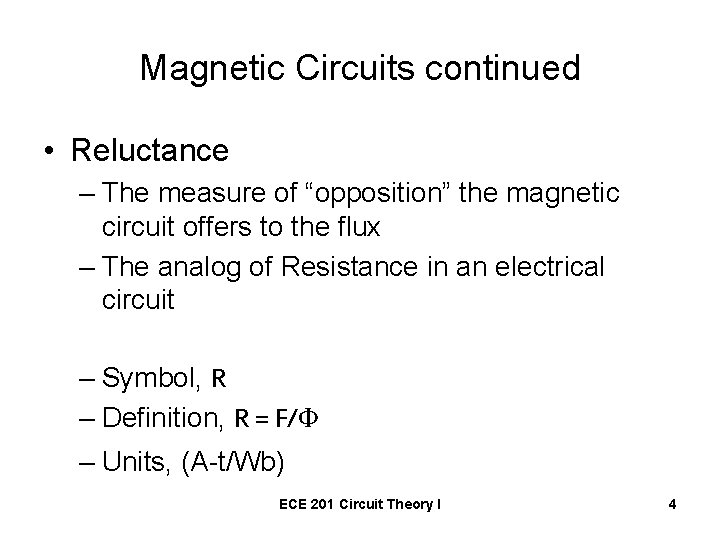

Magnetic Circuits continued • Reluctance – The measure of “opposition” the magnetic circuit offers to the flux – The analog of Resistance in an electrical circuit – Symbol, R – Definition, R = F/Φ – Units, (A-t/Wb) ECE 201 Circuit Theory I 4

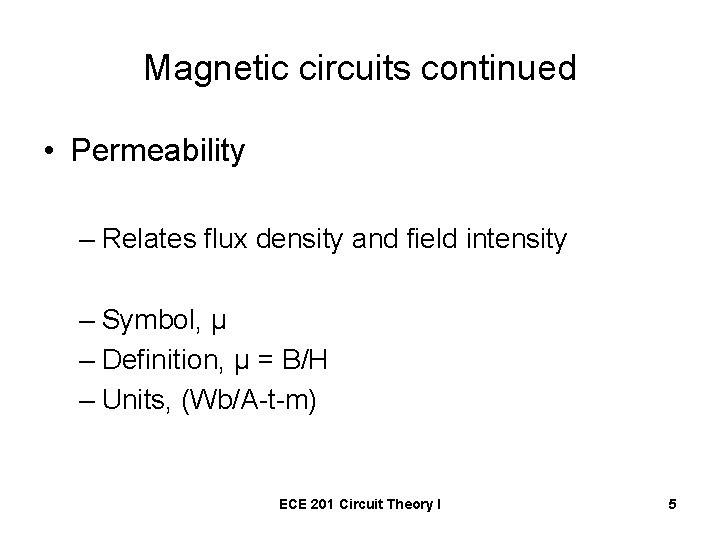

Magnetic circuits continued • Permeability – Relates flux density and field intensity – Symbol, μ – Definition, μ = B/H – Units, (Wb/A-t-m) ECE 201 Circuit Theory I 5

Magnetic circuits continued • Permeability of free space (air) – Symbol, μ 0 – μ 0 = 4πx 10 -7 Wb/A-t-m ECE 201 Circuit Theory I 6

Magnetic circuits continued • Relative Permeability – Compares permeability of material with the permeability of free space (air) – Symbol, μr – μr = μ/μ 0 Dimensionless ECE 201 Circuit Theory I 7
