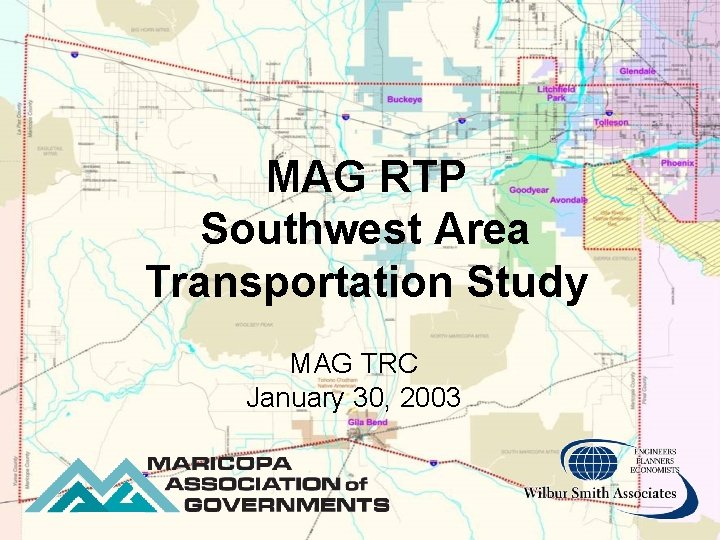

MAG RTP Southwest Area Transportation Study MAG TRC January 30, 2003

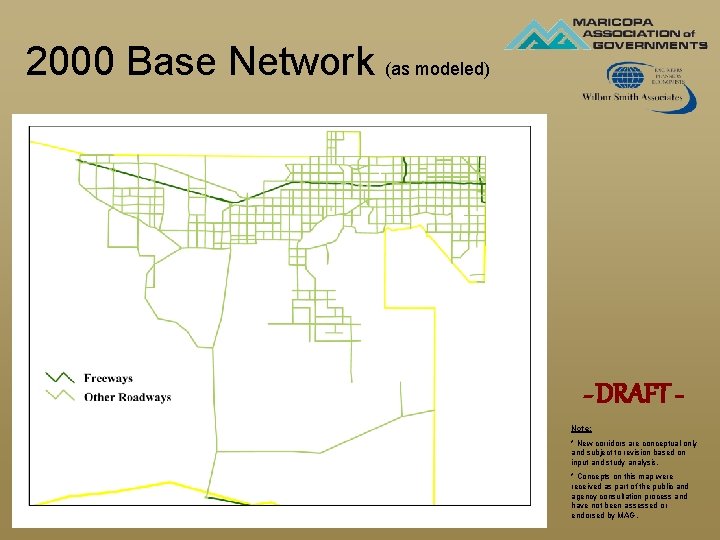

2000 Base Network (as modeled) - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

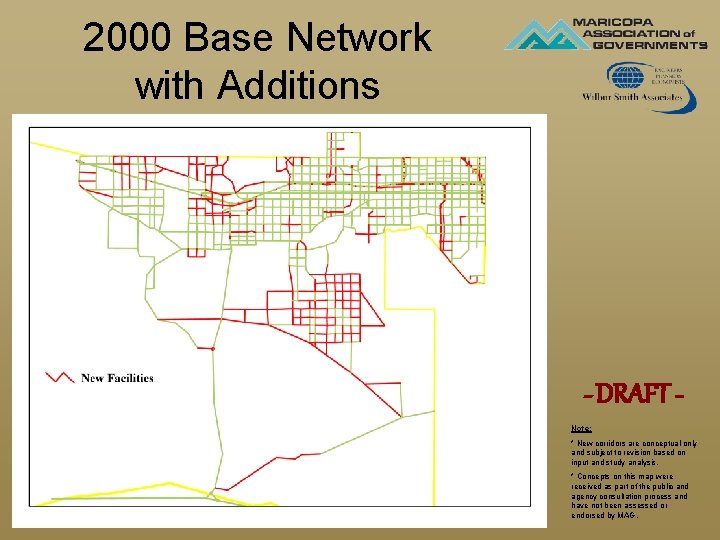

2000 Base Network with Additions - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

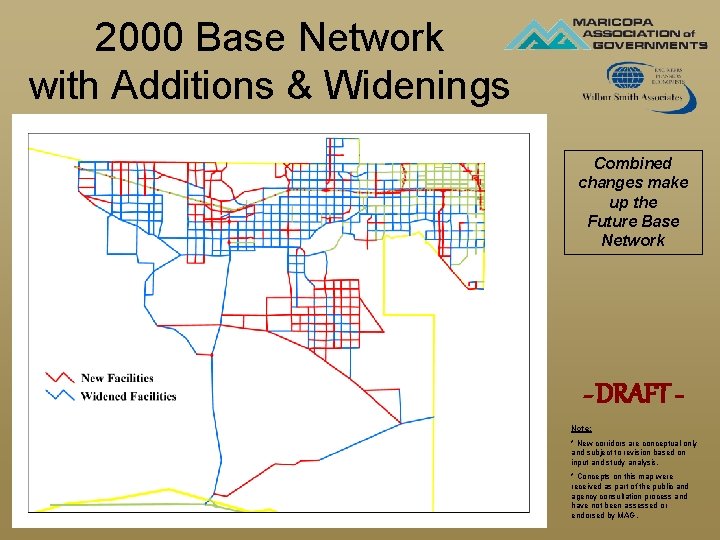

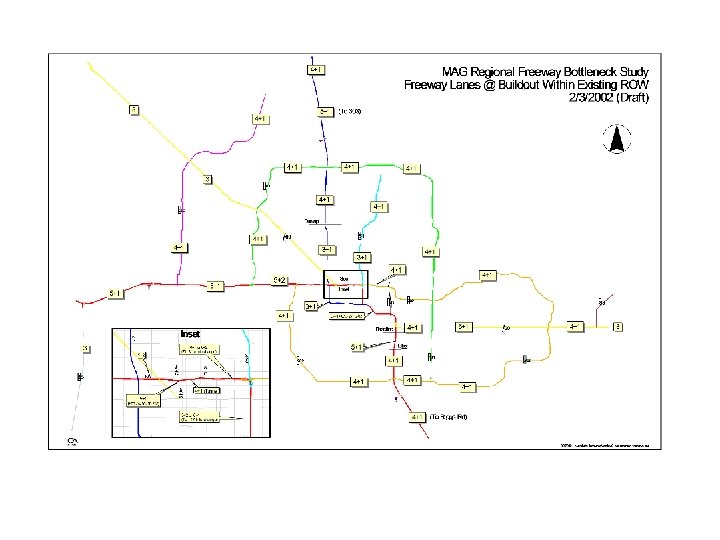

2000 Base Network with Additions & Widenings Combined changes make up the Future Base Network - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

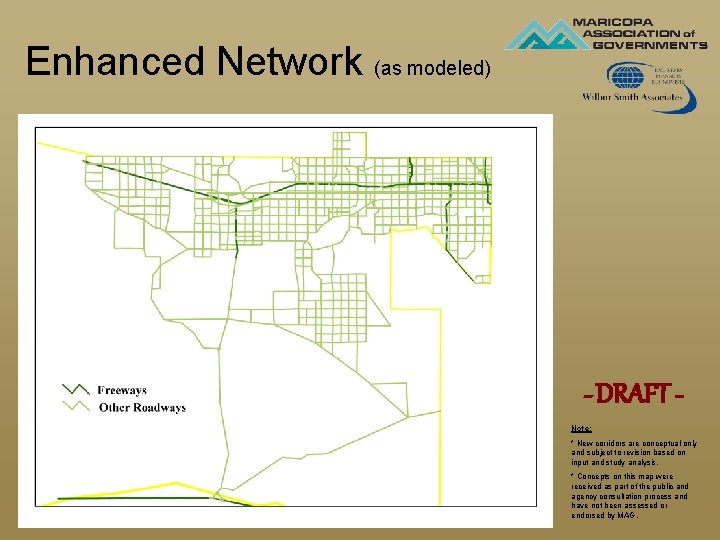

Enhanced Network (as modeled) - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

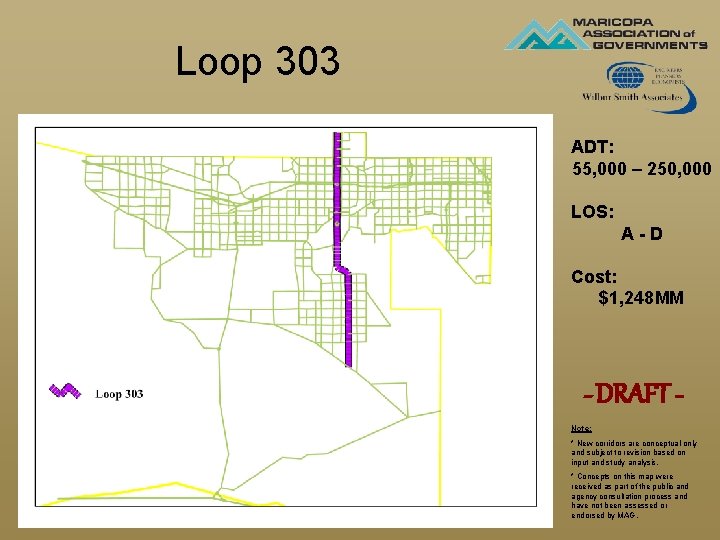

Loop 303 ADT: 55, 000 – 250, 000 LOS: A-D Cost: $1, 248 MM - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

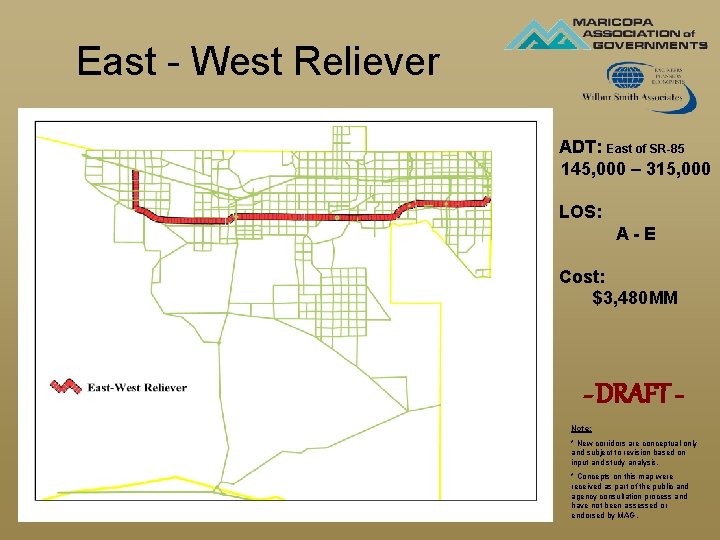

East - West Reliever ADT: East of SR-85 145, 000 – 315, 000 LOS: A-E Cost: $3, 480 MM - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

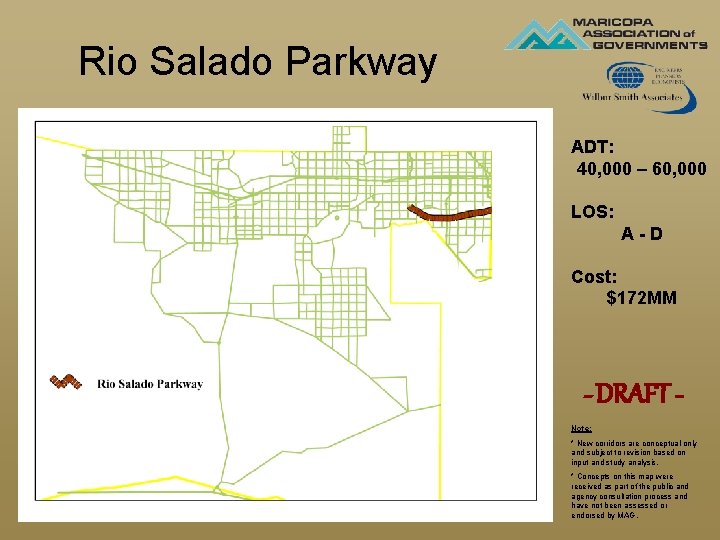

Rio Salado Parkway ADT: 40, 000 – 60, 000 LOS: A-D Cost: $172 MM - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

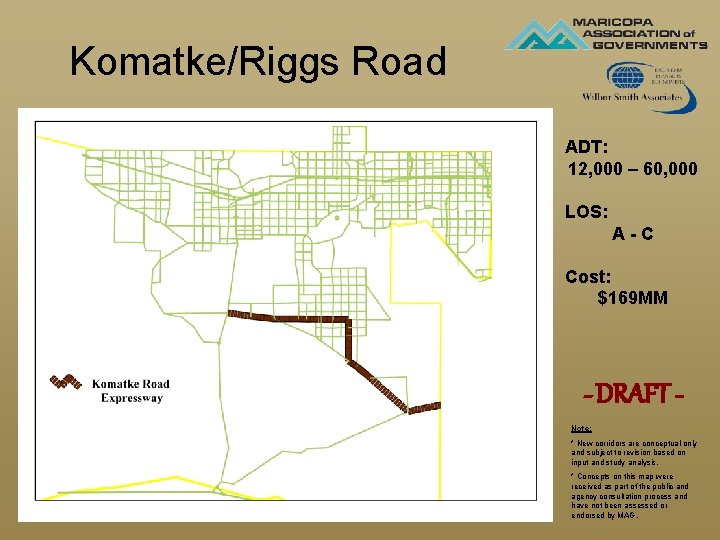

Komatke/Riggs Road ADT: 12, 000 – 60, 000 LOS: A-C Cost: $169 MM - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

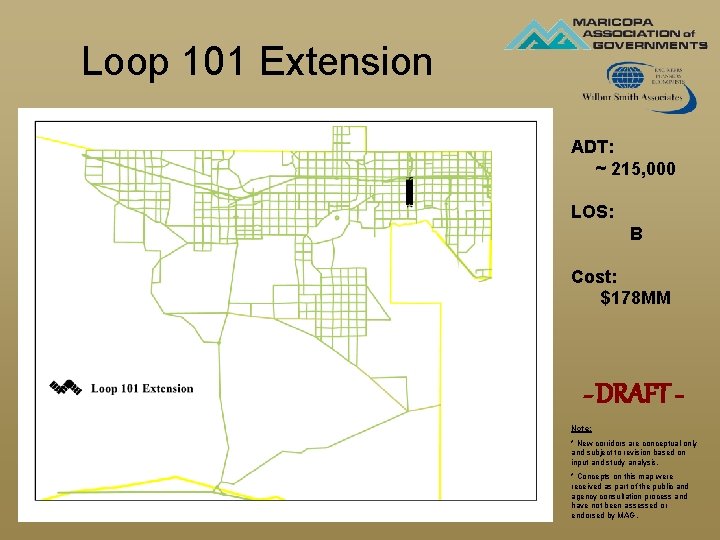

Loop 101 Extension ADT: ~ 215, 000 LOS: B Cost: $178 MM - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

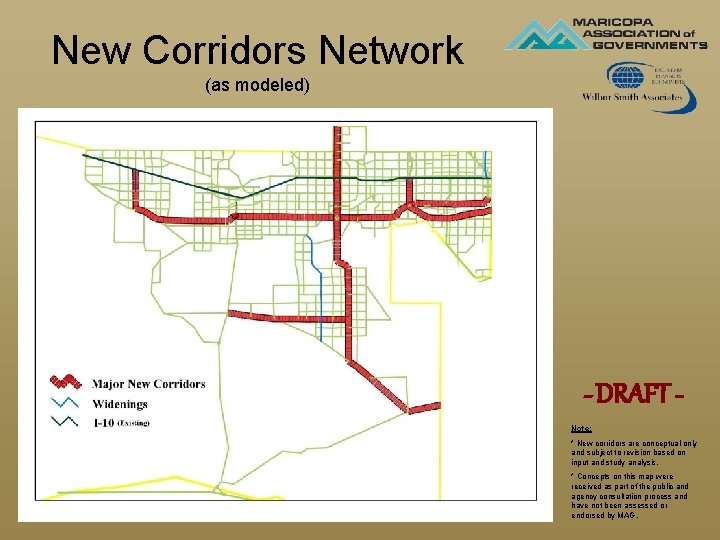

New Corridors Network (as modeled) - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

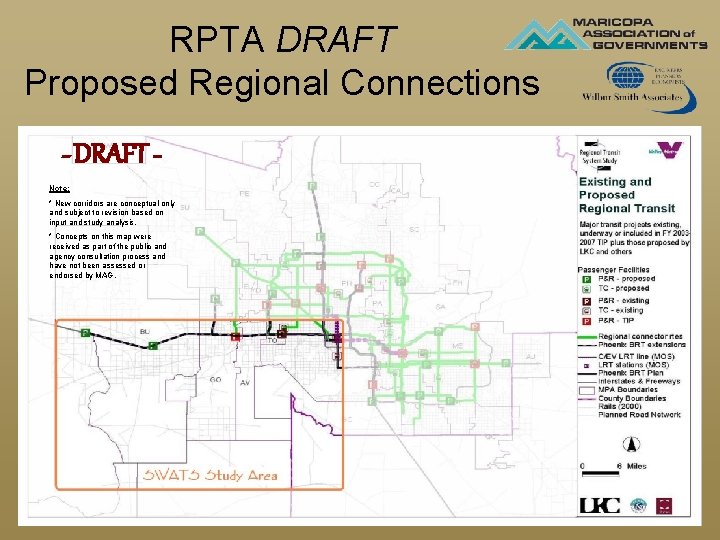

RPTA DRAFT Proposed Regional Connections - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

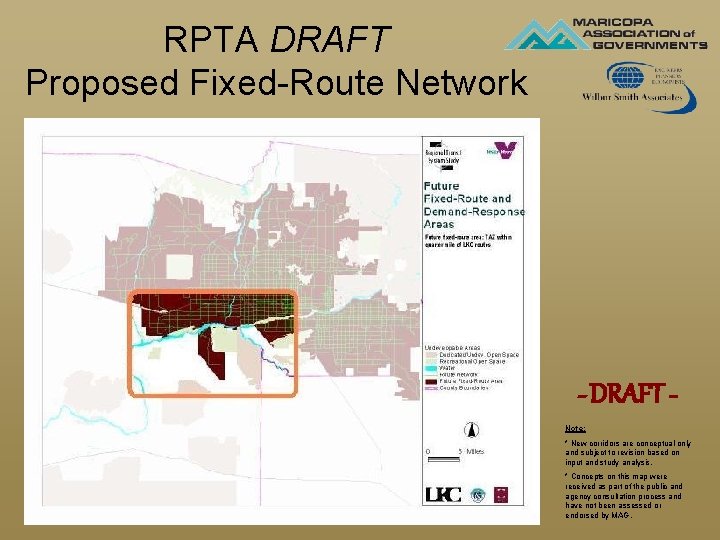

RPTA DRAFT Proposed Fixed-Route Network - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

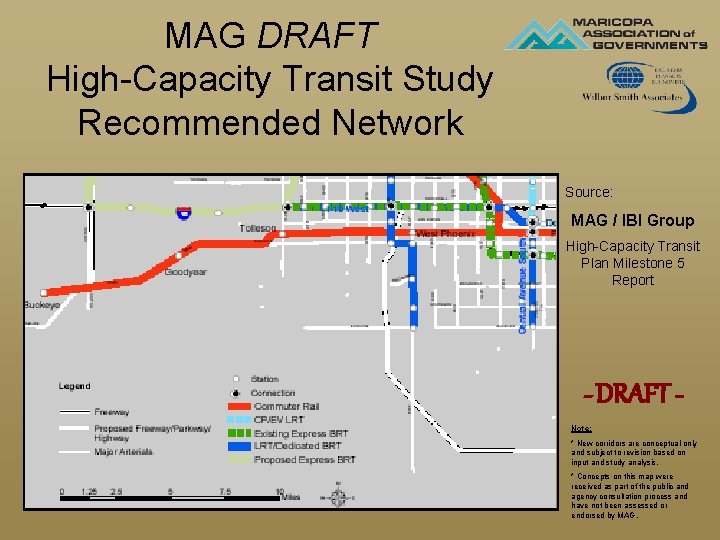

MAG DRAFT High-Capacity Transit Study Recommended Network Source: MAG / IBI Group High-Capacity Transit Plan Milestone 5 Report - DRAFT Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

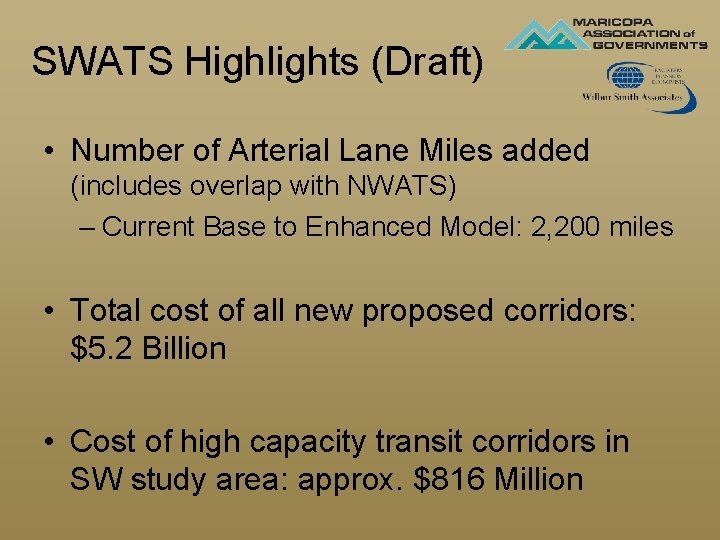

SWATS Highlights (Draft) • Number of Arterial Lane Miles added (includes overlap with NWATS) – Current Base to Enhanced Model: 2, 200 miles • Total cost of all new proposed corridors: $5. 2 Billion • Cost of high capacity transit corridors in SW study area: approx. $816 Million

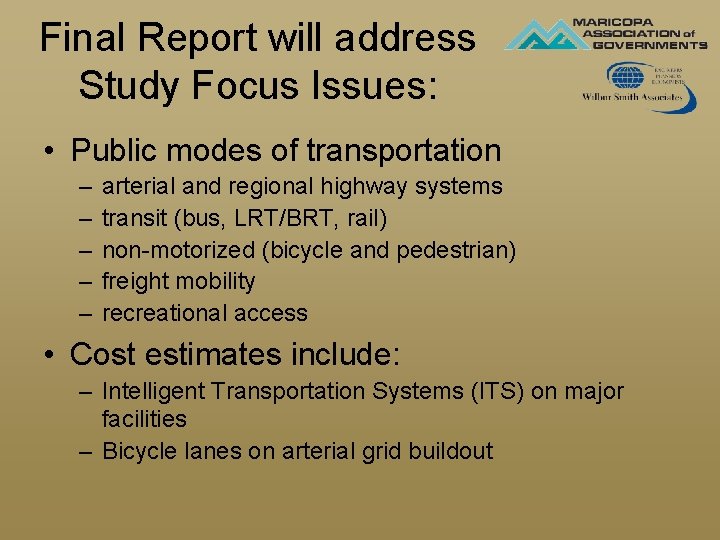

Final Report will address Study Focus Issues: • Public modes of transportation – – – arterial and regional highway systems transit (bus, LRT/BRT, rail) non-motorized (bicycle and pedestrian) freight mobility recreational access • Cost estimates include: – Intelligent Transportation Systems (ITS) on major facilities – Bicycle lanes on arterial grid buildout

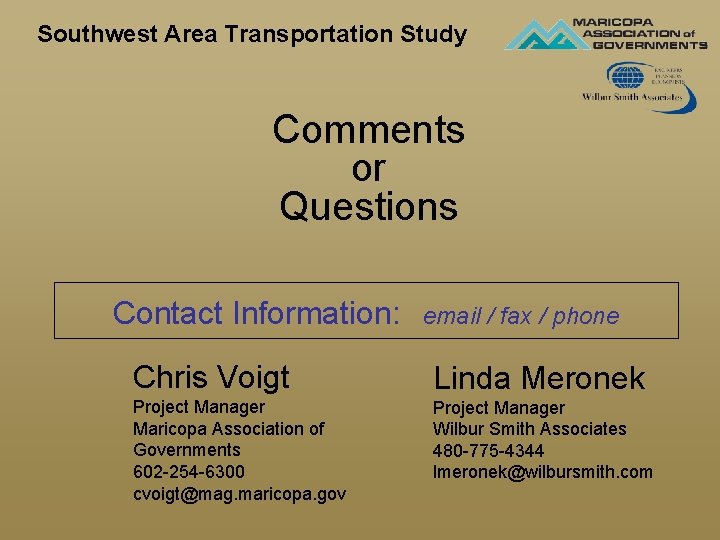

Southwest Area Transportation Study Comments or Questions Contact Information: email / fax / phone Chris Voigt Linda Meronek Project Manager Maricopa Association of Governments 602 -254 -6300 cvoigt@mag. maricopa. gov Project Manager Wilbur Smith Associates 480 -775 -4344 lmeronek@wilbursmith. com
