MADX tutorial: injection and extraction systems Dr Rob Apsimon Dr Öznur Mete

What you will learn • You will learn to use the follow new MADX commands: – Seqedit: edit and existing sequence • Don’t need to rewrite the entire sequence from scratch! – savebeta and beta 0: • Obtain and use beam parameters from an arbitrary point in an existing sequence • Need this to match injection/extraction cells – Match constraints with macros • Vastly more flexible than the normal matching routine

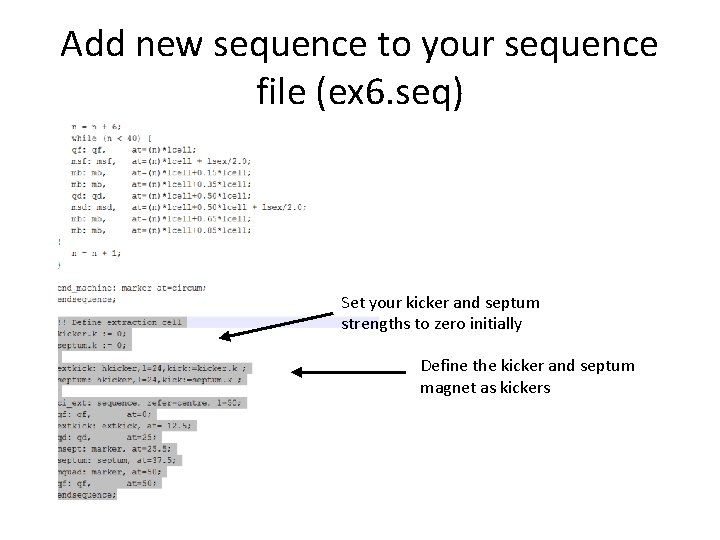

Add new sequence to your sequence file (ex 6. seq) Set your kicker and septum strengths to zero initially Define the kicker and septum magnet as kickers

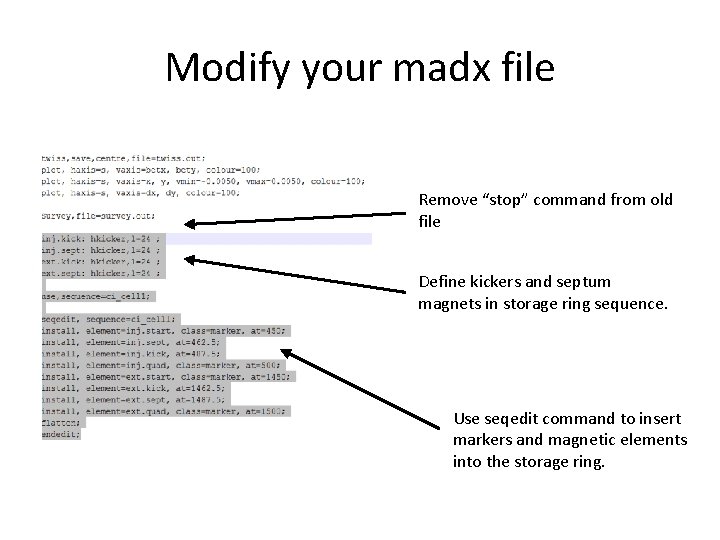

Modify your madx file Remove “stop” command from old file Define kickers and septum magnets in storage ring sequence. Use seqedit command to insert markers and magnetic elements into the storage ring.

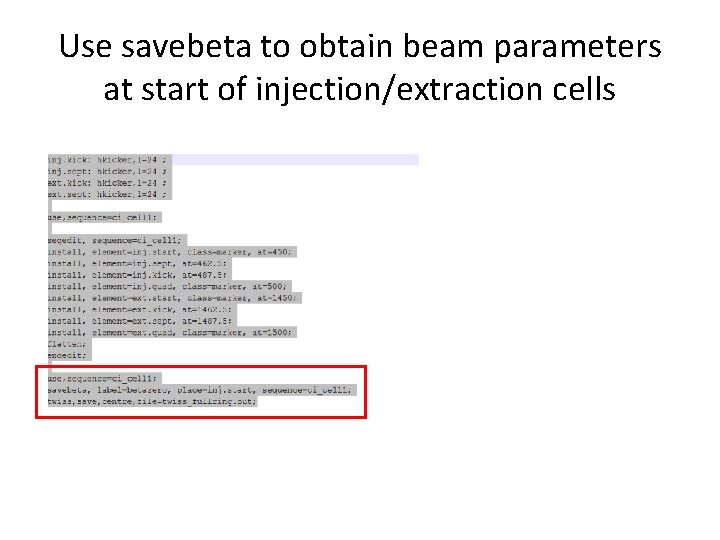

Use savebeta to obtain beam parameters at start of injection/extraction cells

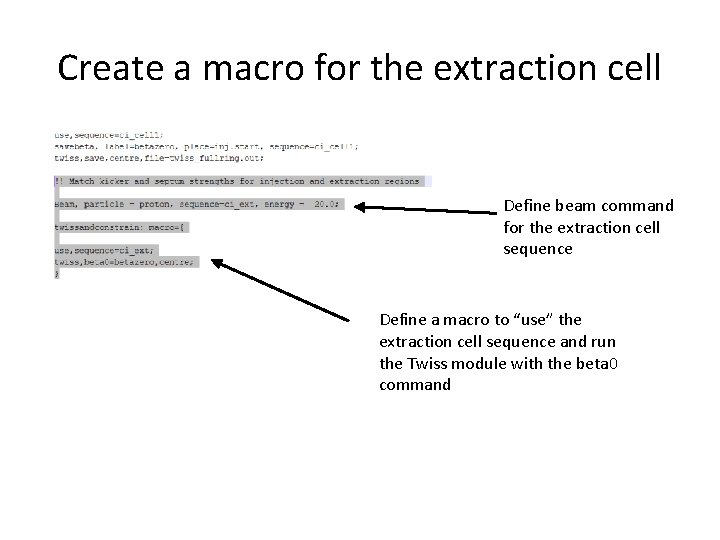

Create a macro for the extraction cell Define beam command for the extraction cell sequence Define a macro to “use” the extraction cell sequence and run the Twiss module with the beta 0 command

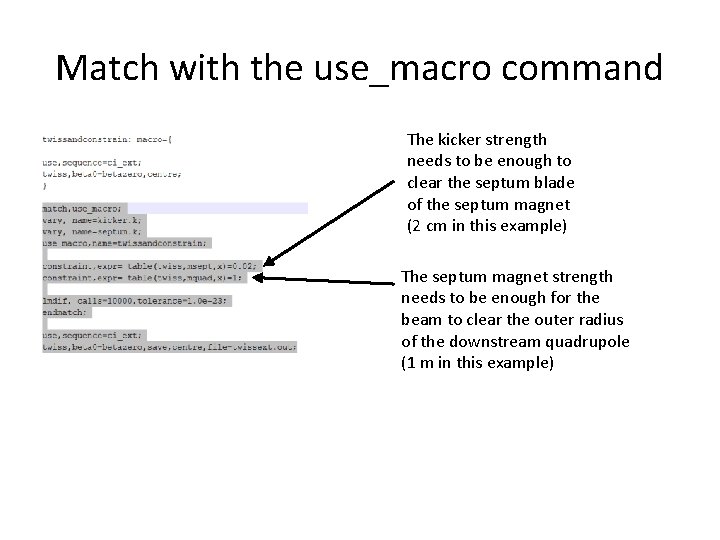

Match with the use_macro command The kicker strength needs to be enough to clear the septum blade of the septum magnet (2 cm in this example) The septum magnet strength needs to be enough for the beam to clear the outer radius of the downstream quadrupole (1 m in this example)

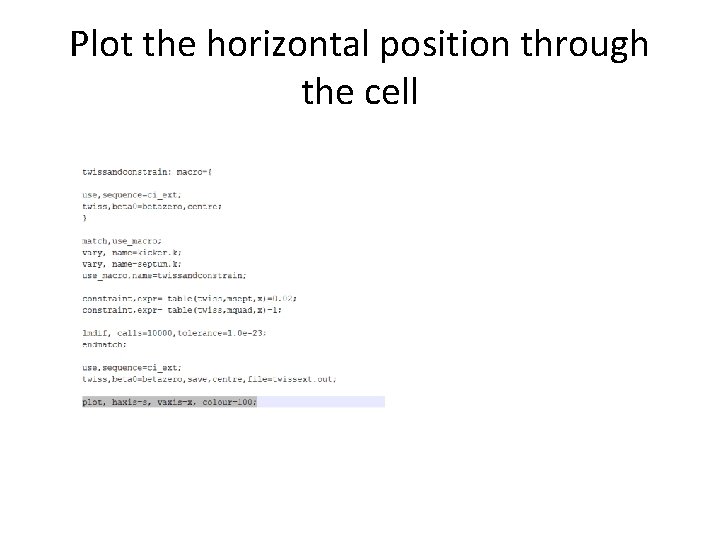

Plot the horizontal position through the cell

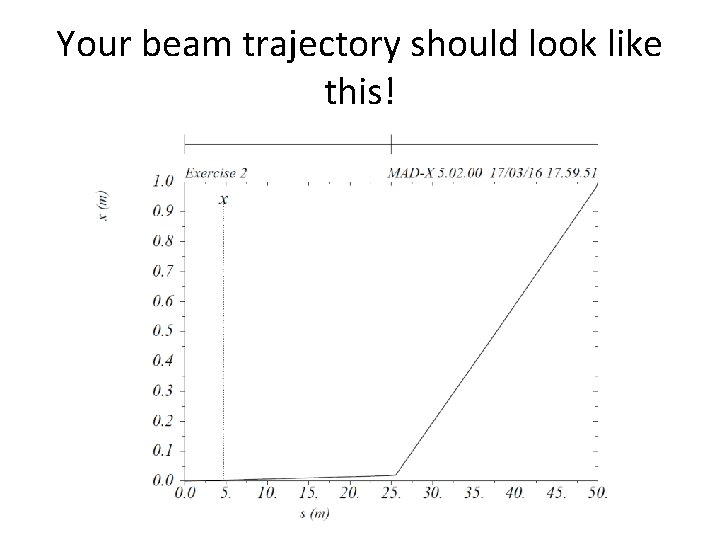

Your beam trajectory should look like this!

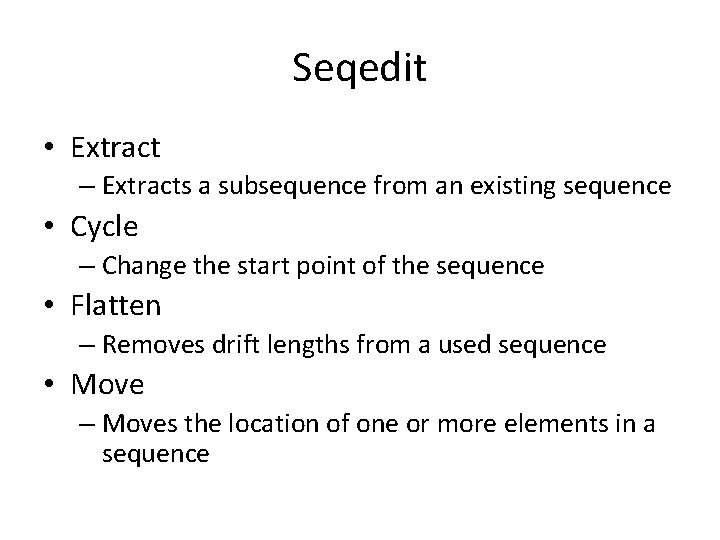

Seqedit • Extract – Extracts a subsequence from an existing sequence • Cycle – Change the start point of the sequence • Flatten – Removes drift lengths from a used sequence • Move – Moves the location of one or more elements in a sequence

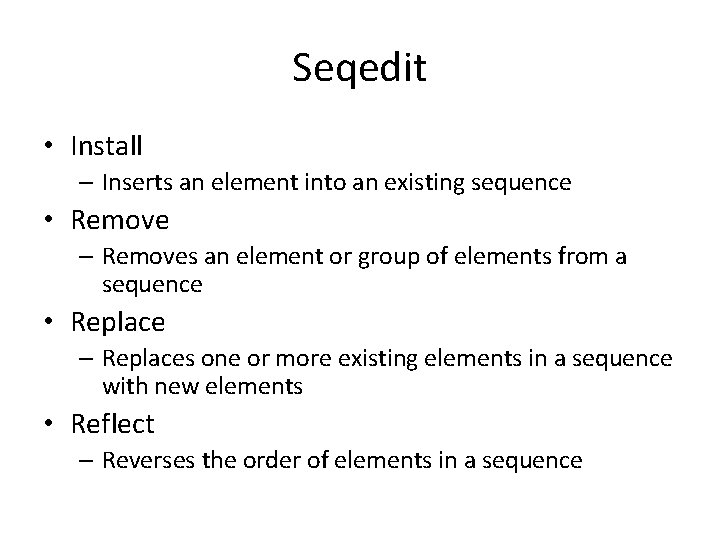

Seqedit • Install – Inserts an element into an existing sequence • Remove – Removes an element or group of elements from a sequence • Replace – Replaces one or more existing elements in a sequence with new elements • Reflect – Reverses the order of elements in a sequence

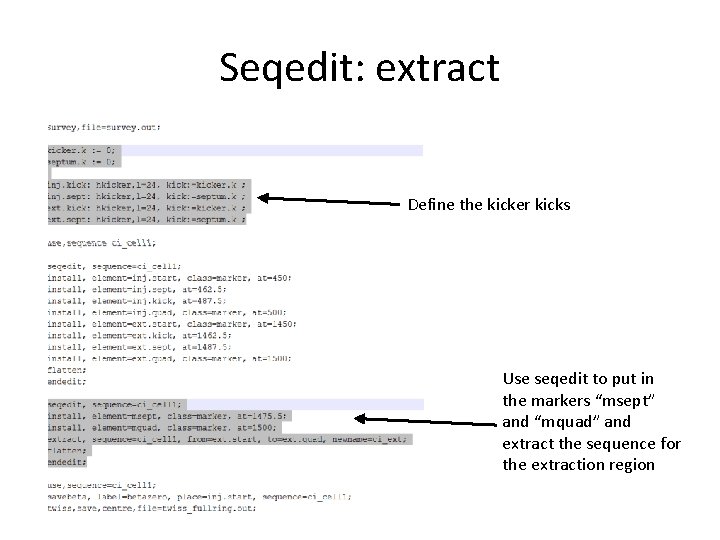

Seqedit: extract Define the kicker kicks Use seqedit to put in the markers “msept” and “mquad” and extract the sequence for the extraction region
