Macros Macros There are three basic phases for
Macros

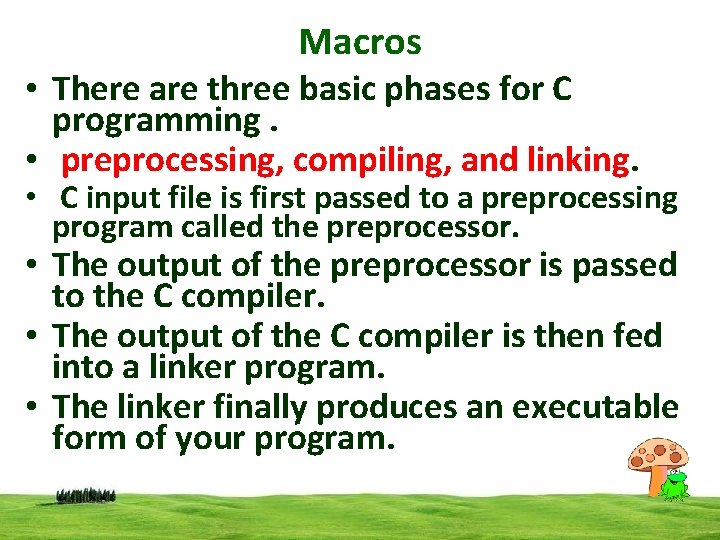

Macros • There are three basic phases for C programming. • preprocessing, compiling, and linking. • C input file is first passed to a preprocessing program called the preprocessor. • The output of the preprocessor is passed to the C compiler. • The output of the C compiler is then fed into a linker program. • The linker finally produces an executable form of your program.

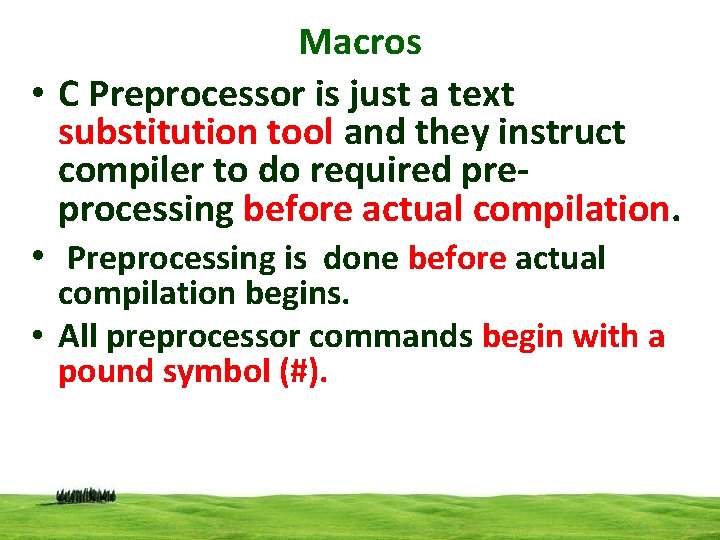

Macros • C Preprocessor is just a text substitution tool and they instruct compiler to do required preprocessing before actual compilation. • Preprocessing is done before actual compilation begins. • All preprocessor commands begin with a pound symbol (#).

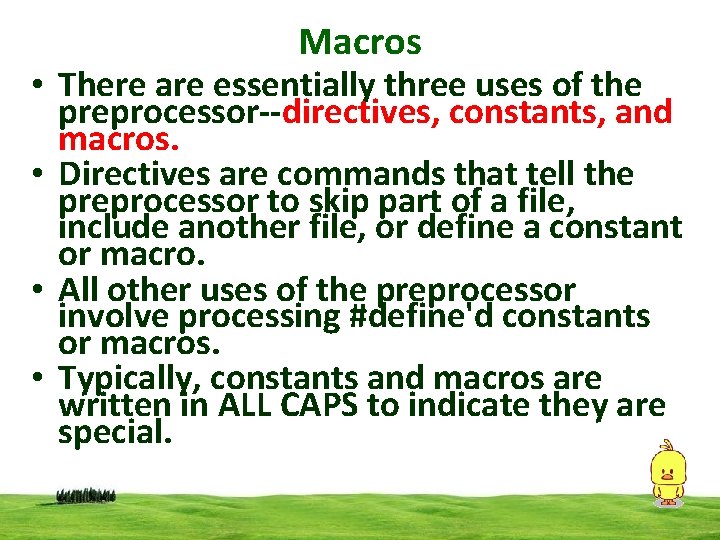

Macros • There are essentially three uses of the preprocessor--directives, constants, and macros. • Directives are commands that tell the preprocessor to skip part of a file, include another file, or define a constant or macro. • All other uses of the preprocessor involve processing #define'd constants or macros. • Typically, constants and macros are written in ALL CAPS to indicate they are special.
Macros Line that begin with # are called preprocessing directives. Major kinds of preprocessor directives: • File inclusion • Macro definition • Conditional compilation
Macros • File inclusion • Used to include a file • Syntax # include<filename> • # include “filename” The difference between <> and “” ¨ looks firstly in the header path for the header file ¨ whereas "" looks in the current directory of the file for the header.

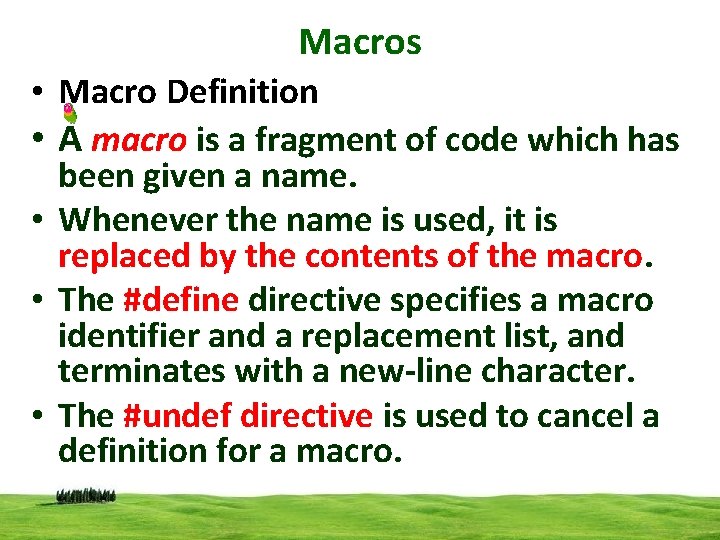

Macros • Macro Definition • A macro is a fragment of code which has been given a name. • Whenever the name is used, it is replaced by the contents of the macro. • The #define directive specifies a macro identifier and a replacement list, and terminates with a new-line character. • The #undef directive is used to cancel a definition for a macro.
Macros • Macro Definition • syntax • #define identifier replacement-list • Eg • • • #include <stdio. h> #define MACRO 25 Void main() { printf("n. MACRO Defined with value %d", MACRO); } Output MACRO Defined with value 25 (MACRO will be replaced to 25)
Macros • Macro Definition • Examples of simple macros: • • • #define N 100 #define PI 3. 14159 #define WARNING "Warning: nonstandard feature" #define BEGIN { #define END } -------void main() BEGIN // replace { int a[N]; // replace int a[100] printf(“nvalue of Pie %f”, PI); // print 3. 14159 printf(“%s”, WARNING); END // replace }
Macros • Parameterized Macro • Function-like macros can take arguments, just like functions. • Insert parameters between the pair of parentheses in the macro definition. • To invoke a macro that takes arguments, • ie the name of the macro followed by a list of actual arguments in parentheses, separated by commas. • The number of arguments give must match the number of parameters in the macro definition. • When the macro is expanded, each use of a parameter in its body is replaced by the corresponding argument.
Macros • Eg • #define MIN(X, Y) ((X) < (Y) ? (X) : (Y)) • printf(“minimum %d”, MIN(a, b)); • # define EVEN(N) (N%2==0) • if(EVEN(2)==1) • { • printf(“even”); • } ==> x = ((a) < (b) ? (a) : (b));

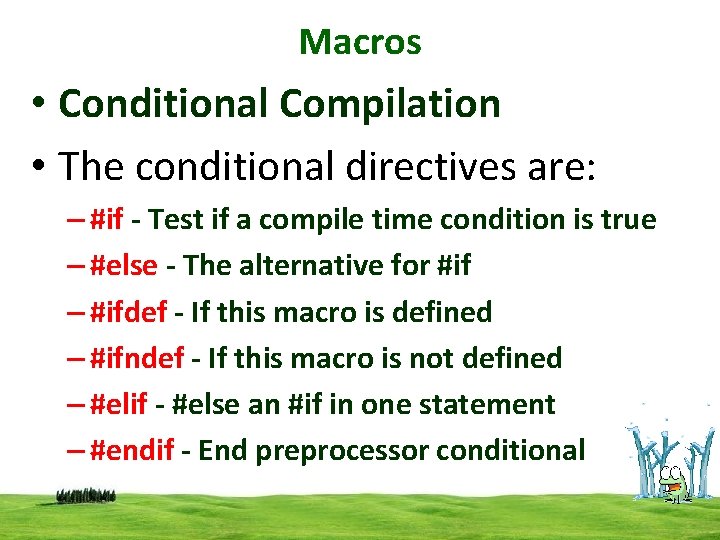

Macros • Conditional Compilation • The conditional directives are: – #if - Test if a compile time condition is true – #else - The alternative for #if – #ifdef - If this macro is defined – #ifndef - If this macro is not defined – #elif - #else an #if in one statement – #endif - End preprocessor conditional

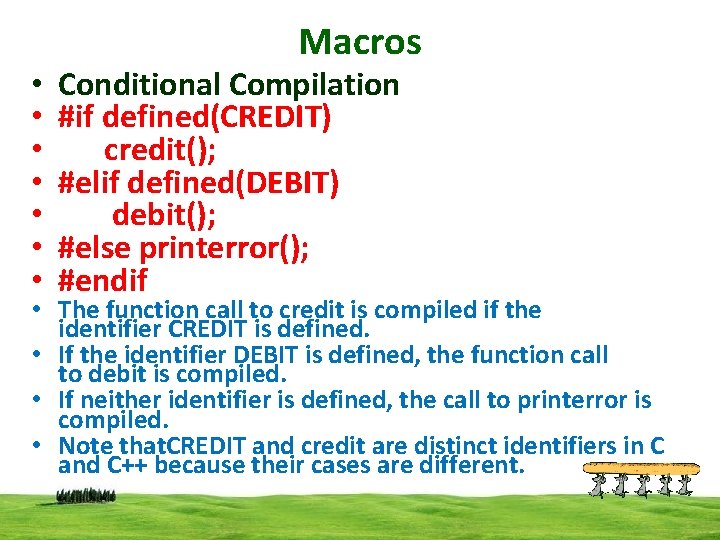

• • Macros Conditional Compilation #if defined(CREDIT) credit(); #elif defined(DEBIT) debit(); #else printerror(); #endif • The function call to credit is compiled if the identifier CREDIT is defined. • If the identifier DEBIT is defined, the function call to debit is compiled. • If neither identifier is defined, the call to printerror is compiled. • Note that. CREDIT and credit are distinct identifiers in C and C++ because their cases are different.
