Macro Processors Chapter 4 System Software An introduction to systems programming Leland L. Beck

Macro Processors Chapter 4 System Software An introduction to systems programming Leland L. Beck 1

Introduction l Concept » A macro instruction is a notational convenience for the programmer

Introduction l Concept » A macro instruction is a notational convenience for the programmer » It allows the programmer to write shorthand version of a program (module programming) » The macro processor replaces each macro invocation with the corresponding sequence of statements (expanding) 2

Macro Processor l l Recognize macro definitions Save the macro definition Recognize macro calls

Macro Processor l l Recognize macro definitions Save the macro definition Recognize macro calls Expand macro calls Source Code (with macro) Macro Processor Expanded Code Compiler or Assembler obj 3

Macro Definition l l copy code parameter substitution conditional macro expansion macro instruction defining

Macro Definition l l copy code parameter substitution conditional macro expansion macro instruction defining macros 4

Copy code -- Example Source STRG MACRO STA DATA 1 STB DATA 2 STX

Copy code -- Example Source STRG MACRO STA DATA 1 STB DATA 2 STX DATA 3 MEND. STRG. . Expanded source. . . STA DATA 1 STB DATA 2 STX DATA 3. { { 5

Macro vs. Subroutine l Macro » the statement of expansion are generated each time

Macro vs. Subroutine l Macro » the statement of expansion are generated each time the macro are invoked l Subroutine » the statement in a subroutine appears only once 6

Parameter Substitution -- Example Source STRG MACRO &a 1, &a 2, &a 3 STA

Parameter Substitution -- Example Source STRG MACRO &a 1, &a 2, &a 3 STA &a 1 STB &a 2 STX &a 3 MEND. STRG DATA 1, DATA 2, DATA 3. STRG DATA 4, DATA 5, DATA 6. . Expanded souce. . . STA STB STX. { { DATA 1 DATA 2 DATA 3 DATA 4 DATA 5 DATA 6 7

Parameter Substitution l Dummy arguments » Positional argument STRG DATA 1, DATA 2, DATA

Parameter Substitution l Dummy arguments » Positional argument STRG DATA 1, DATA 2, DATA 3 GENER , , DIRECT, , , 3 » Keyword argument STRG &a 3=DATA 1, &a 2=DATA 2, &a 1=DATA 3 GENER TYPE=DIRECT, CHANNEL=3 l Example: Fig. 4. 1, Fig. 4. 2 » Labels are avoided in macro definition 8

Macro processor algorithm and data structures l Macro definition within macros » process macro

Macro processor algorithm and data structures l Macro definition within macros » process macro definition during expansion time l Example 4. 3(nested macro definition) 9

One-Pass Macro Processor Data Structures -- Global Variables l l l DEFTAB NAMTAB ARGTAB

One-Pass Macro Processor Data Structures -- Global Variables l l l DEFTAB NAMTAB ARGTAB EXPANDING 10

One-Pass Macro Processor l Prerequisite » every macro must be defined before it is

One-Pass Macro Processor l Prerequisite » every macro must be defined before it is called l Sub-procedures » macro definition: DEFINE » macro invocation: EXPAND NAMTAB MACRO DEFINE DEFTAB CALL EXPAND ARGTAB PROCESSLINE 11

13

13

14

14

One-Pass Macro Processor That Allows Nested Macro Definition l Sub-procedures » macro definition: DEFINE

One-Pass Macro Processor That Allows Nested Macro Definition l Sub-procedures » macro definition: DEFINE » macro invocation: EXPAND l EXPAND may invoke DEFINE when encounter macro definition NAMTAB DEFTAB ARGTAB Expanding MACRO DEFINE CALL EXPAND PROCESSLINE MACRO Definition 15

1 -Pass Macro Processor 16

1 -Pass Macro Processor 16

Comparison of Macro Processors Design l Single pass » every macro must be defined

Comparison of Macro Processors Design l Single pass » every macro must be defined before it is called » one-pass processor can alternate between macro definition and macro expansion » nested macro definitions may be allowed but nested calls are not l Two pass algorithm » Pass 1: Recognize macro definitions » Pass 2: Recognize macro calls » nested macro definitions are not allowed 17

Machine Independent Macro Processor Features l l Concatenation of Macro Parameters Generation of Unique

Machine Independent Macro Processor Features l l Concatenation of Macro Parameters Generation of Unique Labels Conditional Macro Expansion Keyword Macro parameters 18

Concatenation of Macro Parameters l Pre-concatenation » LDA l Post-concatenation » LDA l X&ID

Concatenation of Macro Parameters l Pre-concatenation » LDA l Post-concatenation » LDA l X&ID 1 Example: Figure 4. 6 19

Generation of Unique Labels l Example » JEQ *-3 » inconvenient, error-prone, difficult to

Generation of Unique Labels l Example » JEQ *-3 » inconvenient, error-prone, difficult to read l Example Figure 4. 7 – $LOOP TD =X’&INDEV’ TD =X’F 1’ » 1 st call: – $AALOOP » 2 nd call: – $ABLOOP 20

21

21

RDBUFF F 1, BUFFER, LENGTH 22

RDBUFF F 1, BUFFER, LENGTH 22

Conditional Macro Expansion l Macro-time conditional statements » Example: Figure 4. 8 » IF-ELSE-ENDIF

Conditional Macro Expansion l Macro-time conditional statements » Example: Figure 4. 8 » IF-ELSE-ENDIF l Macro-time variables » any symbol that begins with the character & and that is not a macro parameter » macro-time variables are initialized to 0 » macro-time variables can be changed with their values using SET – &EORCK SET 1 23

RDBUFF F 3, BUF, RECL, 04, 2048 RDBUFF 0 E, BUFFER, LENGTH, , 80

RDBUFF F 3, BUF, RECL, 04, 2048 RDBUFF 0 E, BUFFER, LENGTH, , 80

RDBUFF F 1, BUFF, RLENG, 04

RDBUFF F 1, BUFF, RLENG, 04

Conditional Macro Expansion (Cont. ) l Macro-time looping statement » Example: Figure 4. 9

Conditional Macro Expansion (Cont. ) l Macro-time looping statement » Example: Figure 4. 9 » WHILE-ENDW l Macro processor function » %NITEMS: THE NUMBER OF MEMBERS IN AN ARGUMENT LIST 27

Parameter Substitution l Dummy arguments » Positional argument STRG DATA 1, DATA 2, DATA

Parameter Substitution l Dummy arguments » Positional argument STRG DATA 1, DATA 2, DATA 3 GENER , , DIRECT, , , 3 » Keyword argument fig 4. 10 STRG &a 3=DATA 1, &a 2=DATA 2, &a 1=DATA 3 GENER TYPE=DIRECT, CHANNEL=3 l Example: Fig. 4. 1, Fig. 4. 2 » Labels are avoided in macro definition 28

Macro Processor Design Options l l l Recursive Macro Expansion General Purpose Macro Processors

Macro Processor Design Options l l l Recursive Macro Expansion General Purpose Macro Processors Macro Processing within Language Translators 29

Recursive Macro Expansion Nested Macro Invocations l Macro invocations within macros » process macro

Recursive Macro Expansion Nested Macro Invocations l Macro invocations within macros » process macro invocation during expansion time l Recursive macro expansion » Example: Figure 4. 11 » Problems: – ARGTAB – EXPANDING » Solution – Recursive call – While loop with stack 30

ARGTAB DEFTAB MACRO Definition NAMTAB DEFINE GETLINE PROCESSLINE Macro Invocation EXPAND ARGTAB 31

ARGTAB DEFTAB MACRO Definition NAMTAB DEFINE GETLINE PROCESSLINE Macro Invocation EXPAND ARGTAB 31

1 -Pass Macro Processor 32

1 -Pass Macro Processor 32

Allowing Nested Macro Invocation 33

Allowing Nested Macro Invocation 33

Implementation Examples l l l Fig 4. 12 Fig 4. 13 MASM Macro Processor

Implementation Examples l l l Fig 4. 12 Fig 4. 13 MASM Macro Processor ANSI C Language 34

General Purpose Macro Processor l ELENA » Software: Practice and Experience, Vol. 14, pp.

General Purpose Macro Processor l ELENA » Software: Practice and Experience, Vol. 14, pp. 519 -531, Jun. 1984 l Macro definition » header: – a sequence of keywords and parameter markers (%) – at least one of the first two tokens in a macro header must be a keyword, not a parameter marker » body: – the character & identifies a local label – macro time instruction (. SET, . IF. JUMP, . E) – macro time variables or labels (. ) 35

ANSI C Macro Language 36

ANSI C Macro Language 36

ANSI C Macro Language l l Definitions and invocations of macros are handled by

ANSI C Macro Language l l Definitions and invocations of macros are handled by a preprocessor, which is generally not integrated with the rest of the compiler. Examples: #define NULL 0 #define EOF (-1) #define EQ == #define ABSDIFF (X, Y) syntactic modification ( (X)>(Y) ? (X)-(Y) : (Y)-(X) ) 37

ANSI C Macro Language l Parameter substitutions are not performed within quoted strings: #define

ANSI C Macro Language l Parameter substitutions are not performed within quoted strings: #define DISPLAY(EXPR) printf(“EXPR= %dn”, EXPR) » Macro expansion example DISPLAY(I*J+1) printf(“EXPR= %dn”, I*J+1) l A special “stringizing” operator, #, can be used to perform argument substitution in quoted strings: #define DISPLAY(EXPR) printf(#EXPR “= %dn”, EXPR) » Macro expansion example DISPLAY(I*J+1) printf(“I*J+1” “= %dn”, I*J+1) 38

ANSI C Macro Language l Recursive macro definitions or invocations » After a macro

ANSI C Macro Language l Recursive macro definitions or invocations » After a macro is expanded, the macro processor rescans the text that has been generated, looking for more macro definitions or invocations. » Macro cannot invoke or define itself recursively. DISPLAY(ABSDIFF(3, 8)) printf(“ABSDIFF(3, 8)”scan “= %dn”, ABSDIFF(3, 8)) printf(“ABSDIFF(3, 8)” “= %dn”, ( (3)>(8) ? (3)-(8) : (8)-(3) )) rescan 39

ANSI C Macro Language l l Conditional compilation statements Example 1: #ifndef BUFFER_SIZE #define

ANSI C Macro Language l l Conditional compilation statements Example 1: #ifndef BUFFER_SIZE #define BUFFER_SIZE 1024 #endif l Example 2: #define DEBUG 1 : #if DEBUG == 1 printf(…) /* debugging outout */ #endif 40

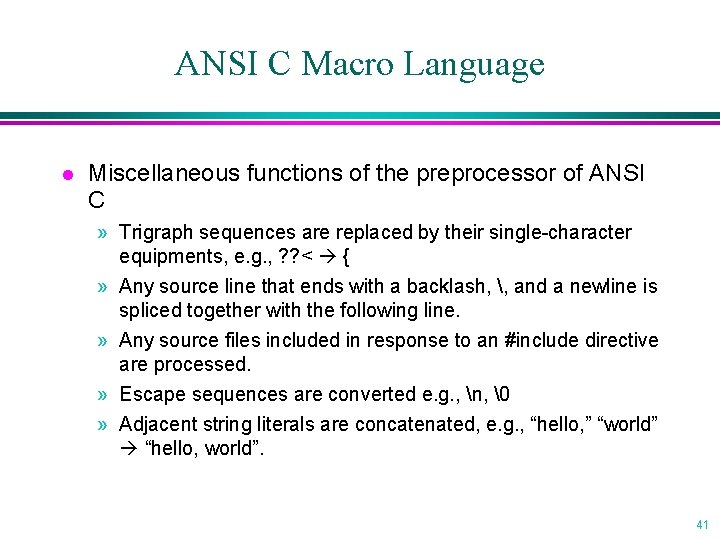

ANSI C Macro Language l Miscellaneous functions of the preprocessor of ANSI C »

ANSI C Macro Language l Miscellaneous functions of the preprocessor of ANSI C » Trigraph sequences are replaced by their single-character equipments, e. g. , ? ? < { » Any source line that ends with a backlash, , and a newline is spliced together with the following line. » Any source files included in response to an #include directive are processed. » Escape sequences are converted e. g. , n, » Adjacent string literals are concatenated, e. g. , “hello, ” “world” “hello, world”. 41

ELENA (cont. ) l Macro invocation » There is no single token that constitutes

ELENA (cont. ) l Macro invocation » There is no single token that constitutes the macro “name” » Constructing an index of all macro headers according to the keywords in the first two tokens of the header » Example – DEFINITION: l l ADD %1 TO %2 ADD %1 TO THE FIRST ELEMENT OF %2 – INVOCATION: l DISPLAY TABLE DISPLAY %1 %1 TABLE 42
