Machines Used in Computer Integrated Manufacturing Applications Computer Integrated Manufacturing © 2013 Project Lead The Way, Inc.

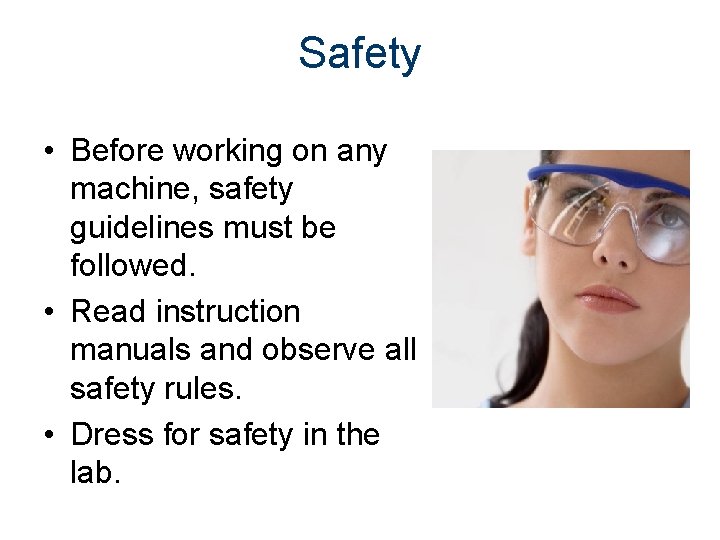

Safety • Before working on any machine, safety guidelines must be followed. • Read instruction manuals and observe all safety rules. • Dress for safety in the lab.

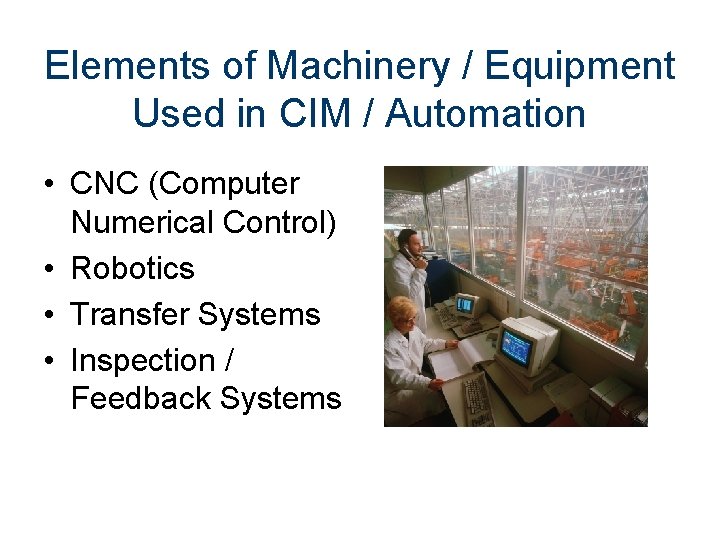

Elements of Machinery / Equipment Used in CIM / Automation • CNC (Computer Numerical Control) • Robotics • Transfer Systems • Inspection / Feedback Systems

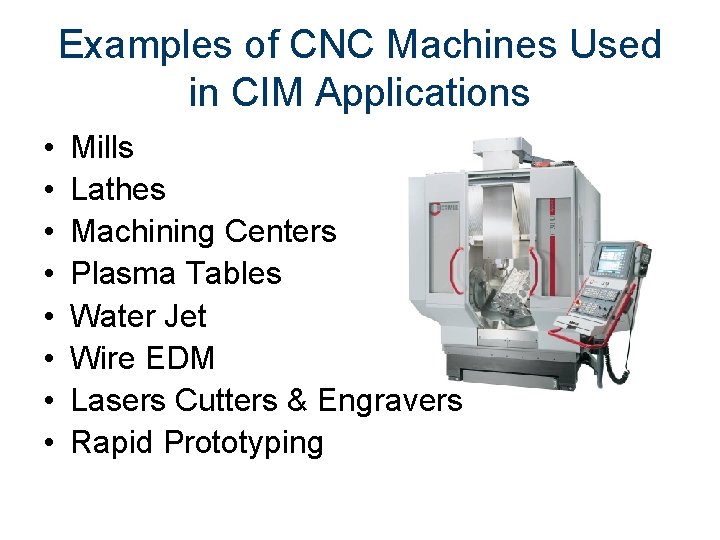

Examples of CNC Machines Used in CIM Applications • • Mills Lathes Machining Centers Plasma Tables Water Jet Wire EDM Lasers Cutters & Engravers Rapid Prototyping
CNC Machining and Processing • Computer Numerical Control • Perform same functions as conventional machines – Joining – Separating – Casting / Molding / Forming – Finishing • Highly productive and cost-effective
CNC Tools Center Cutting End Mill Ball End Mill Non-Center Cutting End Mill Indexable Shell Mill
Examples of Robotics Used in CIM Applications • Welding / Joining – Bonding / Sealing – Arc / TIG / MIG / Spot / Flux Core – Resistance Welding – Laser Welding • Plasma Cutting
Examples of Robotics Used in CIM Applications • Material Handling – Assembly – Loading – Dispensing – Picking / Palletizing – Transfer – Tending • Painting • Finishing • Inspecting
Examples of Transfer Systems Used in CIM Applications • • AGV ASRS Conveyor Systems Part Feeders
Examples of Inspection / Feedback Systems Used in CIM Applications • • • Networked Computers Monitoring Software Sensors Vision Systems Laser Scan and Measurement Systems • RFID Systems
References • Society of Manufacturing Engineers (Producer). (2010). Cutting Tool Geometry. Available from the Society of Manufacturing Engineers, One SME Drive: Dearborn, Michigan 48121.
