Machines Machines Work When a force moves an
- Slides: 20
Machines, Machines
Work When a force moves an object in the direction you are pushing or pulling that object
Joule Since work involves transferring energy this is the unit for work
power Work divided by time
watt The unit describing power
machine Something that changes the direction the force goes or overcomes force
Work input The work you do on a machine – like pushing a lawnmower
Work output The work the machine does – like cutting the grass
Mechanical advantage How many times the machine multiplies force Output force/Input force
Mechanical Efficiency How much work you get out of a machine compared to what you put in it. Work output/ Work Input
Fulcrum Fixed point on a lever – can be in different positions depending on the class of lever

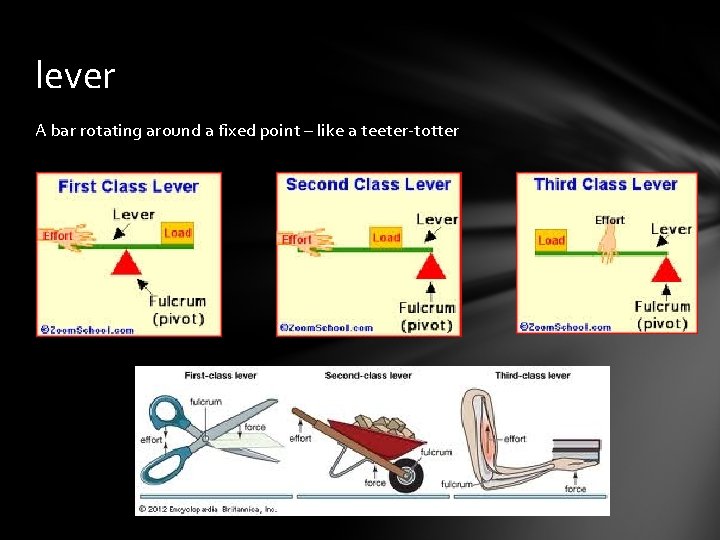

lever A bar rotating around a fixed point – like a teeter-totter
pulley A wheel that a rope goes over
Block and Tackle Using a fixed pulley and a moveable pulley together
Wheel and Axle Two circular objects of different sizes
Inclined Plane A straight, slanted surface like a ramp
Wedge Two inclined planes that move – like a scissors
Screw An inclined plane (flat slanted surface) wrapped around a cylinder

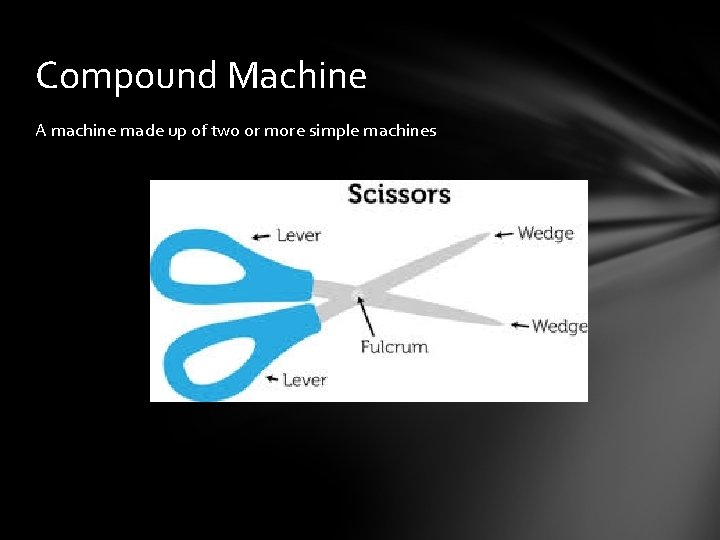

Compound Machine A machine made up of two or more simple machines
Simple Machine A ll machines are made from these – lever, screw, pulley, wedge, inclined plane, and wheel and axle.
