Beam loss induced quench levels Overview u When does the magnet quench? u u u Experience from other colliders Transient vs. Continuous quench origins Quench levels of various families of the main ring superconducting magnets Outlook on further simulations and envisaged experiments Conclusions 2
When does the magnet quench? u For LHC dipole inner cables typical maximum current at 6 T, 1. 9 K: I=20 k. A 7 T, 1. 9 K: I=15 k. A u For LHC dipoles at top energy T= 1. 9 K : Bmax= 8. 58 T, I=11850 A 3
When does the magnet quench? u Quench = Transition from SC to normal state Bc conductor limit SC Field [T] Current density normal DJ SC T T=temperature margin DB Field [T] normal Bc Temperature [K] Q T If T > Tc(B, I) - Tb Quench 4 Tc
Do the magnets quench during operations? 5

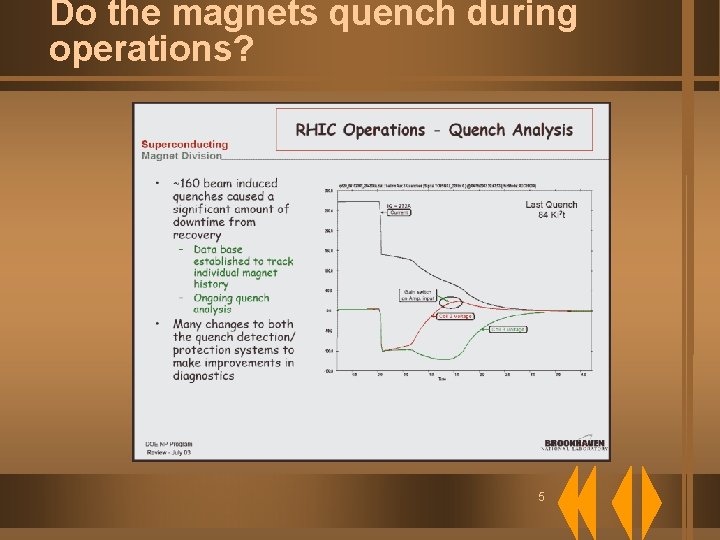

Do the magnets quench during operations? u u u All three: Tevatron, HERA and RHIC machines demonstrated that the beam induced quenching happens Integrated luminosity is by definition compromised by any type of quenches (downtime from recovery) High luminosity operation can even be limited by beam induced quenching: Tevatron is not far from such limitation. Luminosity increase requires continues amelioration of the u Quench = Physical Transition from Luminosity collimation system and its efficiency in order to limit the beam loss to. State the magnets Unproductivity (with frustration). u 6 to

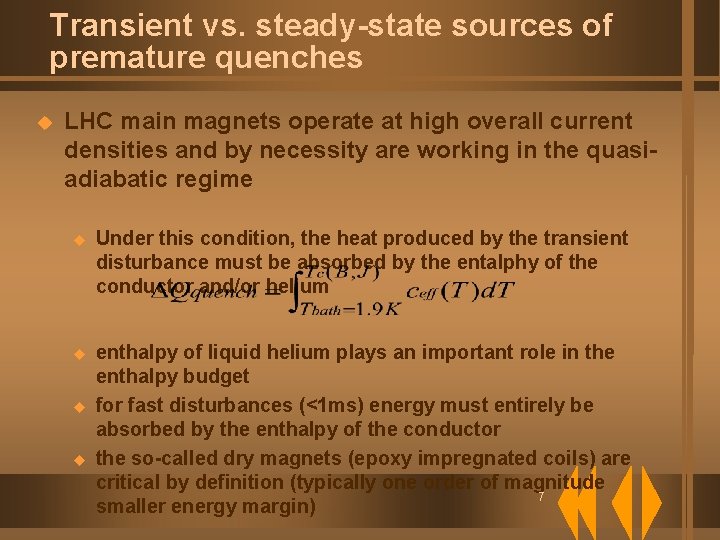

Transient vs. steady-state sources of premature quenches u LHC main magnets operate at high overall current densities and by necessity are working in the quasiadiabatic regime u Under this condition, the heat produced by the transient disturbance must be absorbed by the entalphy of the conductor and/or helium u enthalpy of liquid helium plays an important role in the enthalpy budget for fast disturbances (<1 ms) energy must entirely be absorbed by the enthalpy of the conductor the so-called dry magnets (epoxy impregnated coils) are critical by definition (typically one order of magnitude 7 smaller energy margin) u u
Transient vs. steady-state sources of premature quenches u The temperature margin for the LHC main dipoles in case of the transient heat deposition: u At top energy an impact of lost ~106 -107 protons per meter is sufficient to dissipate 2· 10 -3 J and to drive the conductor volume normal The temperature margin for the continuous heat deposition is reduced: u u For steady-state losses an allowed power deposition depends on thermal budget at superfluid/normal helium bath (cooling capacity) 8
Transient origins of heat deposition u Energy release in the magnet due to the beam u u Electrical disturbances u u u Beam losses from non-perfect setting up of cleaning Fast beam losses Beam gas scattering Non uniform current redistribution in Rutherford cables Strain dependence of critical current, flux jumps Mechanical disturbances u Conductor motions u Structural disturbances: micro-fractures, cracks, etc. 9
Steady-state sources of heat deposition u Energy release in the magnet due to the beam u u u Slow beam losses from non-perfect cleaning Synchrotron radiation, Electron-cloud losses, Image current losses Beam gas scattering Heat generated by electrical sources u For main dipole during ramp (R. Wolf) u Hysteresis loss u Inter-strand coupling (Rc = 7. 5 m. W) u Inter-filament coupling (t = 25 ms) u Other eddy currents (spacers, collars. . ) u Resistive joints (splices) [J/m] 240 45 6. 6 4 30 u Total (per meter) ~325 Insufficient cooling u by definition reduces temperature margin 10
What is needed to calculate the temperature margins? u Superconducting cable parameters u Magnet specific parameters at operational conditions: u Temperature, current, field map 11
Temperature margins of various families 12
MB Magnet - Temperature Margin Profile 13
MQY Magnet - Temperature Margin Profile u u u Matching of the temperature margin (minimum quench energy) profile with the beam loss profile is necessary to avoid large errors (usually overestimates) At high energies 2 D calculations are relevant At low energies problem starts to be 3 dimensional: possible quench recovery, minimum propagation zone 14
Not Only Magnets Can Quench ! Cold Mass of Connection Cryostats 15
Towards Predictive Tool for Beam Induced Quench Levels Other Transient and Steady State Sources of Energy Loss S. C. Cable and Magnet as build Parameters Temperature Margin Profiles of Magnets Minimum Quench Energy Profiles for Magnets Beam Loss Profiles for Magnets Quench Levels Conclusions and Report are expected by Chamonix 15 Predictive Tool for Preventive Dump of the Beam Due to Beam Induced Quenches 16 Beam Optics Halo Tracking and Loss Maps
Workshop on beam generated heat deposition and quench levels for LHC magnets (3 -4 March 2005) u The workshop is organized in the frame of the CARE-HHH-AMT network scope of assessing the stability margin of the ultimate LHC and validation of design for the LHC upgrade. u The workshop will address the implication of the LHC luminosity upgrade in terms of evaluation of thermal transfer and superconductor stability, through modeling and experiments. u This workshop will address quench margins, for nominal and ultimate parameters, taking into account the as-built parameters for different type of magnets, different operating temperatures, spatial and temporal distribution of beam losses, and other beam related heat loads. u The experience on quench levels from magnet operation at CERN, and from beam and magnet operation at other labs will be presented. u Models and simulation tools (tools to calculate nuclear cascades, tools to predict quench levels) will be discussed and R & D actions will be identified. u The exchanges of information should provide a useful common starting point and make possible a profitable contribution by the various labs collaborating through CARE, LARP, etc. 17
General Remarks u It is sure that magnets will suffer from beam induced quenching u A quench is bad for luminosity, but NO worry for magnet survival u Top energy and luminosity will depend on the performance of the weakest magnet and beam loss topology u Magnets will see all real quench sources only in the tunnel u u Magnet specific quench sources are of importance near and at top energy Beam induced quench sources will be an issue 18 both at injection and top
Conclusions u u An accurate prediction of the quench levels of the main ring superconducting magnets will allow only necessary, preventive dump of the beam, based on beam loss measurements with beam loss monitors before the magnet quench, thus limiting the downtime of the machine. The particle energy deposition in the coils is calculated by using simulation programs like GEANT or FLUKA. The magnet quench levels as a function of proton loss distribution and magnet specific parameters can be estimated using codes like SPQR and ROXIE. Until now only simplified analytical calculations have been done for the main magnet families. An outlook on further simulations for the quench levels and envisaged experiments to validate the simulations was sketched. 19
