Machine Programming IA 32 memory layout and buffer

Machine Programming – IA 32 memory layout and buffer overflow CENG 331: Introduction to Computer Systems 7 th Lecture Instructor: Erol Sahin Acknowledgement: Most of the slides are adapted from the ones prepared by R. E. Bryant, D. R. O’Hallaron of Carnegie-Mellon Univ.

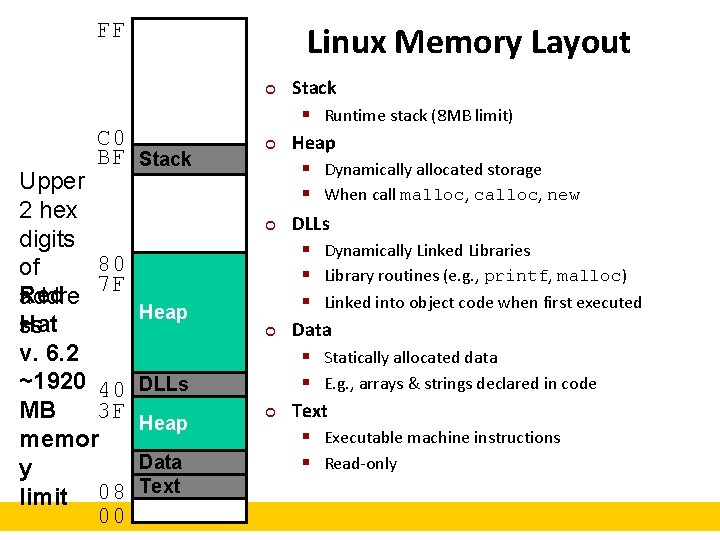

FF Linux Memory Layout ¢ C 0 BF Stack Upper 2 hex digits 80 of 7 F Red addre Hat ss v. 6. 2 ~1920 40 MB 3 F memor y limit 08 00 ¢ ¢ Heap ¢ DLLs Heap Data Text ¢ Stack § Runtime stack (8 MB limit) Heap § Dynamically allocated storage § When call malloc, calloc, new DLLs § Dynamically Linked Libraries § Library routines (e. g. , printf, malloc) § Linked into object code when first executed Data § Statically allocated data § E. g. , arrays & strings declared in code Text § Executable machine instructions § Read-only

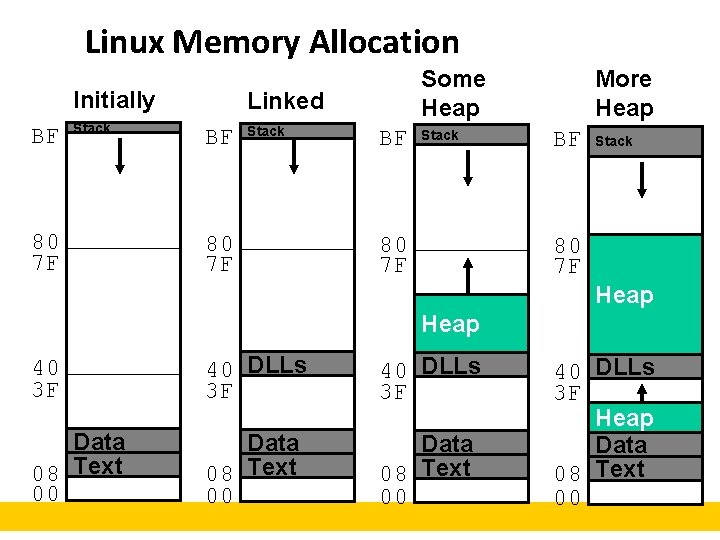

Linux Memory Allocation Initially BF Stack 80 7 F Some Heap Linked BF Stack 80 7 F More Heap BF Stack 80 7 F Heap 40 3 F 40 DLLs 3 F Data 08 Text 00 40 DLLs 3 F Heap Data 08 Text 00

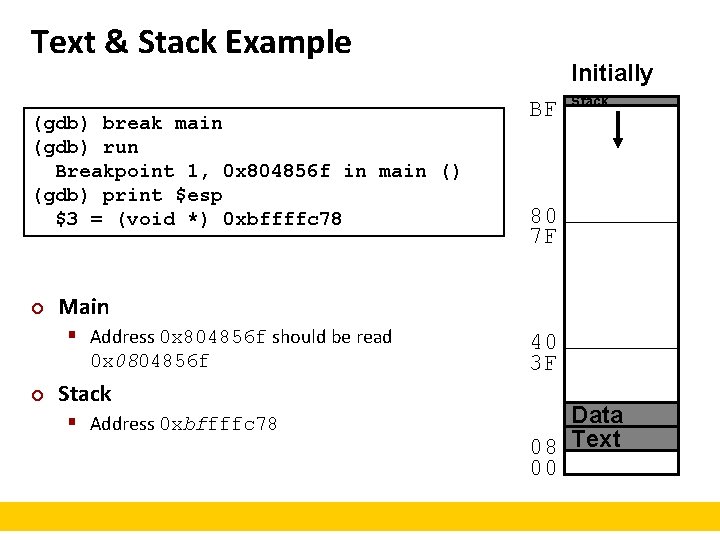

Text & Stack Example (gdb) break main (gdb) run Breakpoint 1, 0 x 804856 f in main () (gdb) print $esp $3 = (void *) 0 xbffffc 78 ¢ BF Stack 80 7 F Main § Address 0 x 804856 f should be read 0 x 0804856 f ¢ Initially Stack § Address 0 xbffffc 78 40 3 F Data 08 Text 00

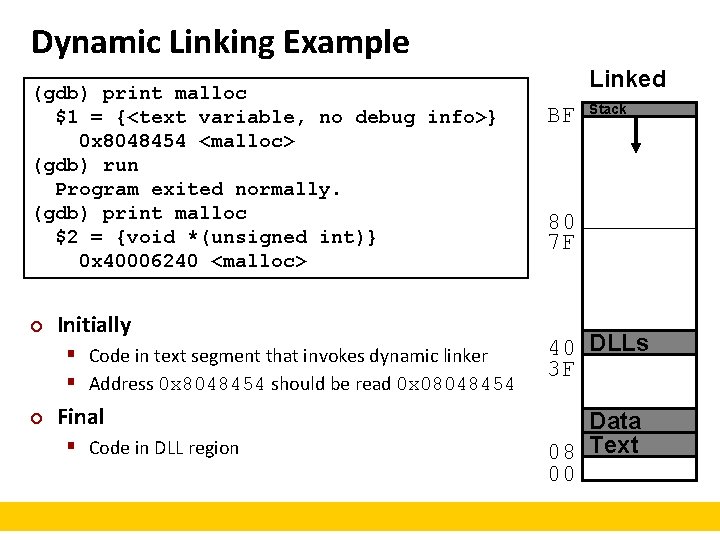

Dynamic Linking Example (gdb) print malloc $1 = {<text variable, no debug info>} 0 x 8048454 <malloc> (gdb) run Program exited normally. (gdb) print malloc $2 = {void *(unsigned int)} 0 x 40006240 <malloc> ¢ Initially § Code in text segment that invokes dynamic linker § Address 0 x 8048454 should be read 0 x 08048454 ¢ Final § Code in DLL region Linked BF Stack 80 7 F 40 DLLs 3 F Data 08 Text 00

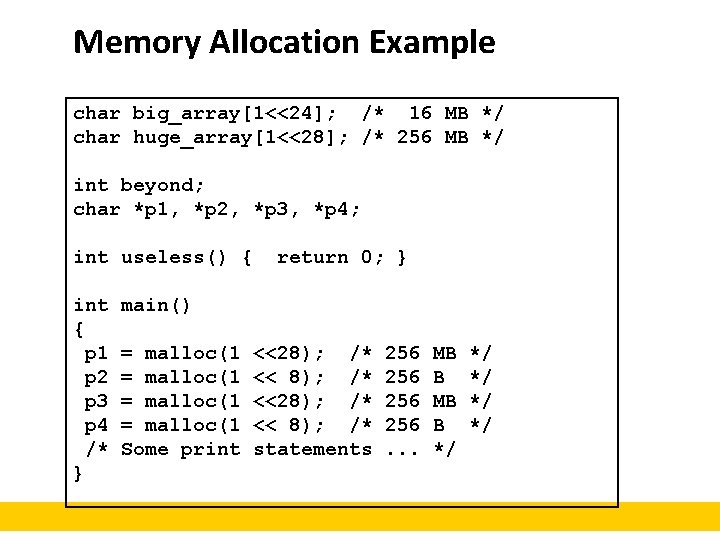

Memory Allocation Example char big_array[1<<24]; /* 16 MB */ char huge_array[1<<28]; /* 256 MB */ int beyond; char *p 1, *p 2, *p 3, *p 4; int useless() { int { p 1 p 2 p 3 p 4 /* } return 0; } main() = malloc(1 Some print <<28); /* << 8); /* statements 256 256. . . MB B */ */ */

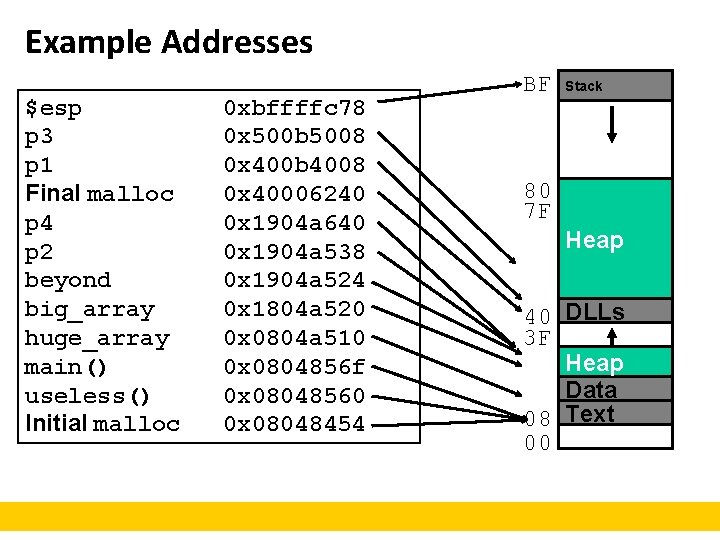

Example Addresses $esp p 3 p 1 Final malloc p 4 p 2 beyond big_array huge_array main() useless() Initial malloc 0 xbffffc 78 0 x 500 b 5008 0 x 400 b 4008 0 x 40006240 0 x 1904 a 640 0 x 1904 a 538 0 x 1904 a 524 0 x 1804 a 520 0 x 0804 a 510 0 x 0804856 f 0 x 08048560 0 x 08048454 BF Stack 80 7 F Heap 40 DLLs 3 F Heap Data 08 Text 00

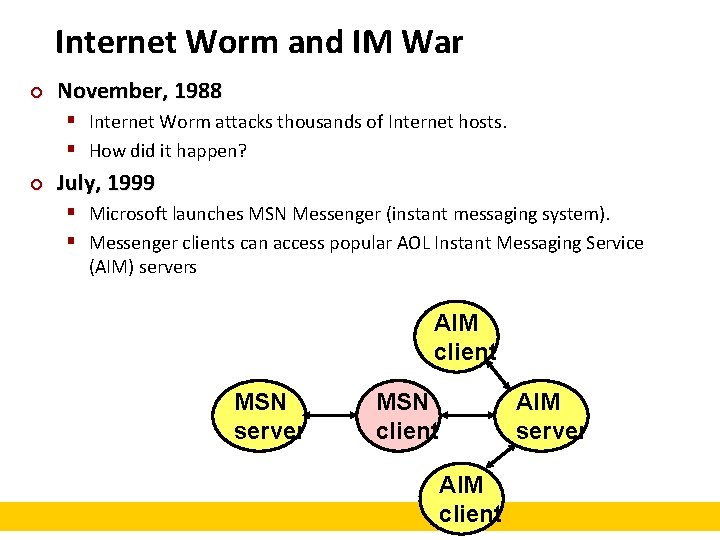

Internet Worm and IM War ¢ November, 1988 § Internet Worm attacks thousands of Internet hosts. § How did it happen? ¢ July, 1999 § Microsoft launches MSN Messenger (instant messaging system). § Messenger clients can access popular AOL Instant Messaging Service (AIM) servers AIM client MSN server MSN client AIM server AIM client

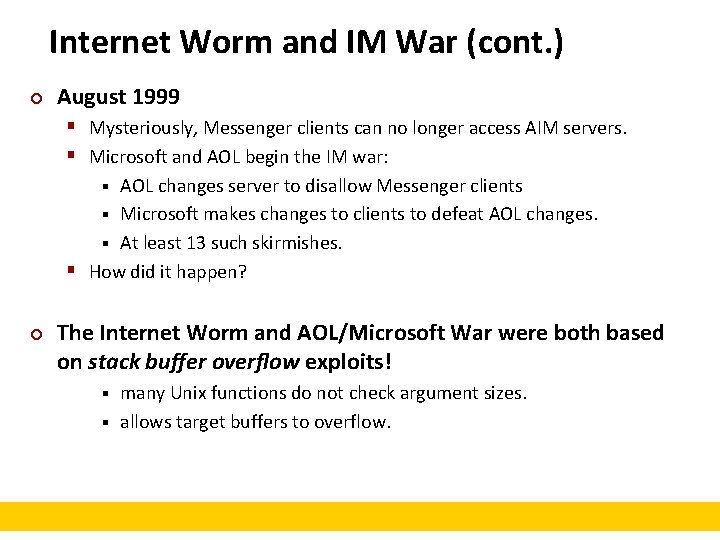

Internet Worm and IM War (cont. ) ¢ August 1999 § Mysteriously, Messenger clients can no longer access AIM servers. § Microsoft and AOL begin the IM war: AOL changes server to disallow Messenger clients § Microsoft makes changes to clients to defeat AOL changes. § At least 13 such skirmishes. § How did it happen? § ¢ The Internet Worm and AOL/Microsoft War were both based on stack buffer overflow exploits! many Unix functions do not check argument sizes. § allows target buffers to overflow. §

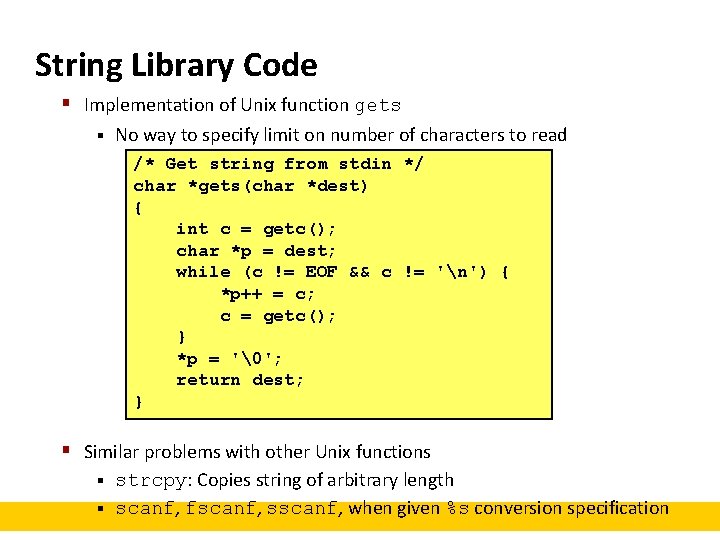

String Library Code § Implementation of Unix function gets § No way to specify limit on number of characters to read /* Get string from stdin */ char *gets(char *dest) { int c = getc(); char *p = dest; while (c != EOF && c != 'n') { *p++ = c; c = getc(); } *p = ''; return dest; } § Similar problems with other Unix functions strcpy: Copies string of arbitrary length § scanf, fscanf, sscanf, when given %s conversion specification §

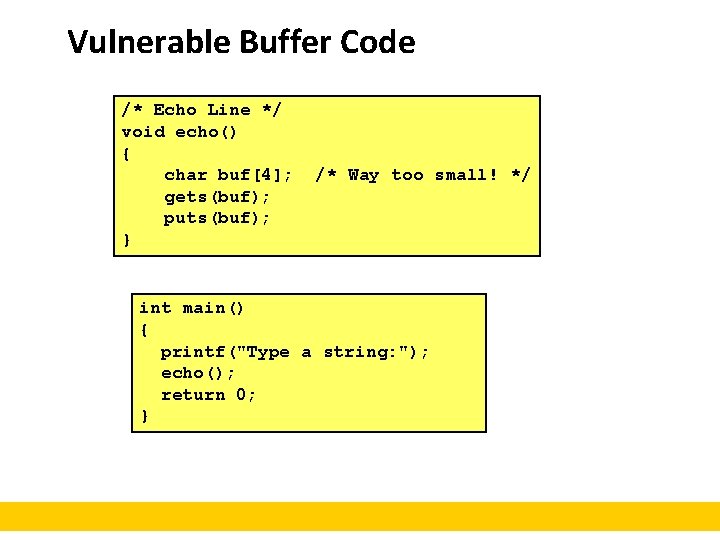

Vulnerable Buffer Code /* Echo Line */ void echo() { char buf[4]; gets(buf); puts(buf); } /* Way too small! */ int main() { printf("Type a string: "); echo(); return 0; }

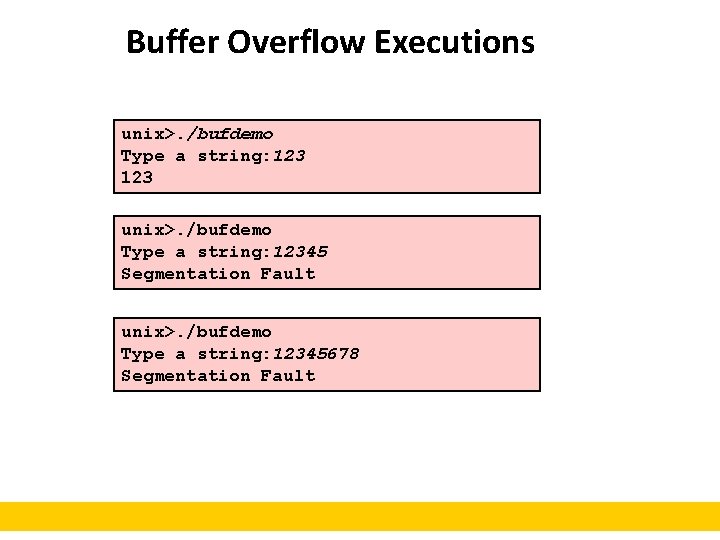

Buffer Overflow Executions unix>. /bufdemo Type a string: 12345 Segmentation Fault unix>. /bufdemo Type a string: 12345678 Segmentation Fault

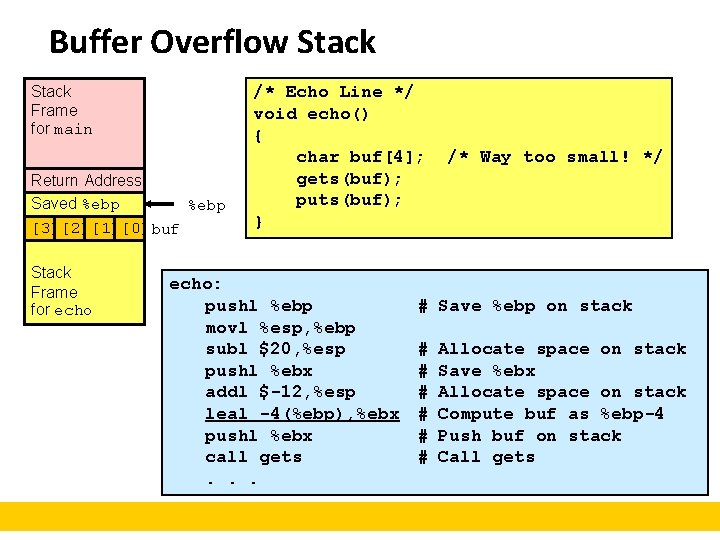

Buffer Overflow Stack Frame for main Return Address Saved %ebp [3][2][1][0] buf Stack Frame for echo /* Echo Line */ void echo() { char buf[4]; gets(buf); puts(buf); } echo: pushl %ebp movl %esp, %ebp subl $20, %esp pushl %ebx addl $-12, %esp leal -4(%ebp), %ebx pushl %ebx call gets. . . /* Way too small! */ # Save %ebp on stack # # # Allocate space on stack Save %ebx Allocate space on stack Compute buf as %ebp-4 Push buf on stack Call gets

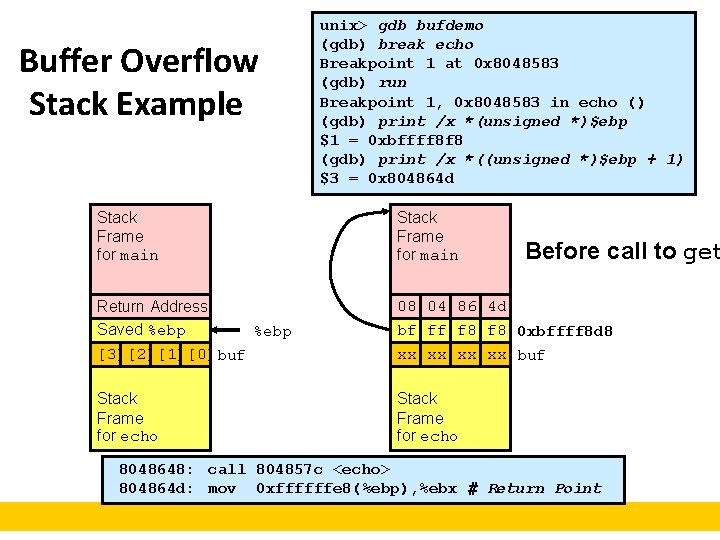

Buffer Overflow Stack Example unix> gdb bufdemo (gdb) break echo Breakpoint 1 at 0 x 8048583 (gdb) run Breakpoint 1, 0 x 8048583 in echo () (gdb) print /x *(unsigned *)$ebp $1 = 0 xbffff 8 f 8 (gdb) print /x *((unsigned *)$ebp + 1) $3 = 0 x 804864 d Stack Frame for main Return Address Saved %ebp [3][2][1][0] buf 08 04 Address 86 4 d Return Saved bf ff %ebp f 8 0 xbffff 8 d 8 xx xx buf [3][2][1][0] Stack Frame for echo Before call to get 8048648: call 804857 c <echo> 804864 d: mov 0 xffffffe 8(%ebp), %ebx # Return Point

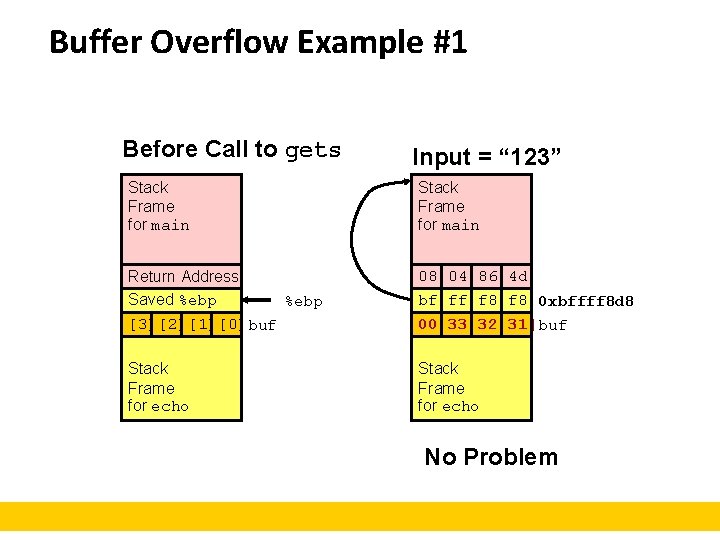

Buffer Overflow Example #1 Before Call to gets Input = “ 123” Stack Frame for main Return Address Saved %ebp [3][2][1][0] buf 08 04 Address 86 4 d Return Saved bf ff %ebp f 8 0 xbffff 8 d 8 00 33 32 31 buf [3][2][1][0] Stack Frame for echo No Problem

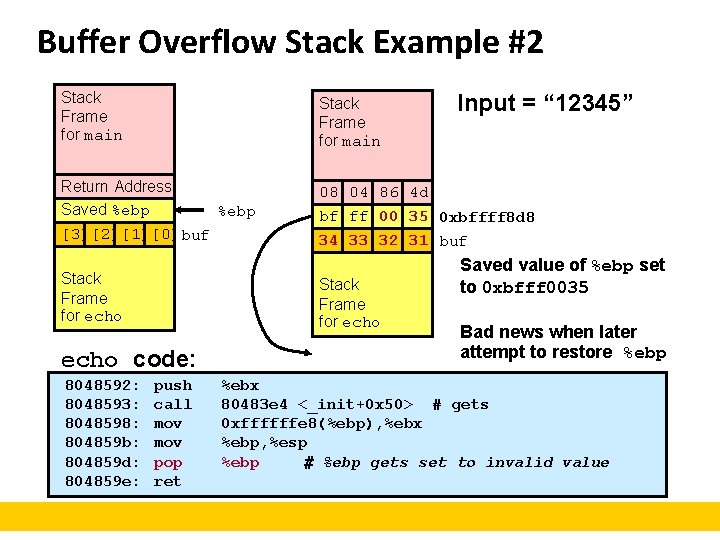

Buffer Overflow Stack Example #2 Stack Frame for main Return Address Saved %ebp [3][2][1][0] buf 08 04 Address 86 4 d Return Saved bf ff %ebp 00 35 0 xbffff 8 d 8 [3][2][1][0] 34 33 32 31 buf Stack Frame for echo code: 8048592: 8048593: 8048598: 804859 b: 804859 d: 804859 e: push call mov pop ret Input = “ 12345” Saved value of %ebp set to 0 xbfff 0035 Bad news when later attempt to restore %ebp %ebx 80483 e 4 <_init+0 x 50> # gets 0 xffffffe 8(%ebp), %ebx %ebp, %esp %ebp # %ebp gets set to invalid value

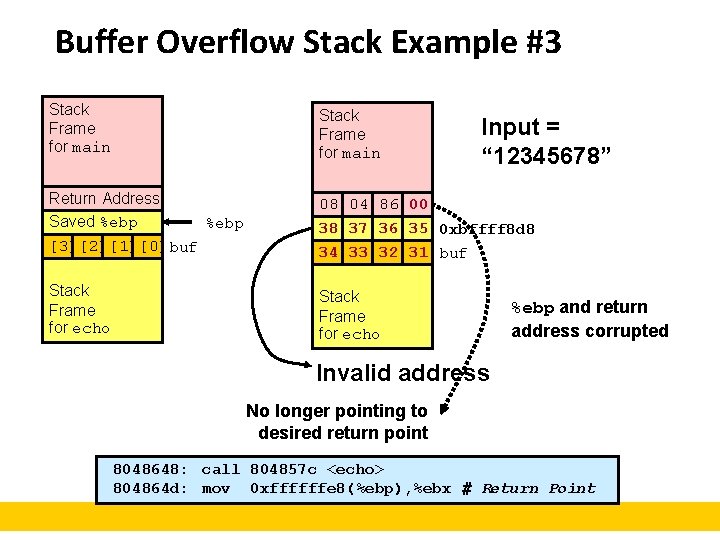

Buffer Overflow Stack Example #3 Stack Frame for main Return Address Saved %ebp [3][2][1][0] buf 08 04 Address 86 00 Return 38 37 %ebp 36 35 0 xbffff 8 d 8 Saved 34 33 32 31 buf [3][2][1][0] Stack Frame for echo Input = “ 12345678” %ebp and return address corrupted Invalid address No longer pointing to desired return point 8048648: call 804857 c <echo> 804864 d: mov 0 xffffffe 8(%ebp), %ebx # Return Point

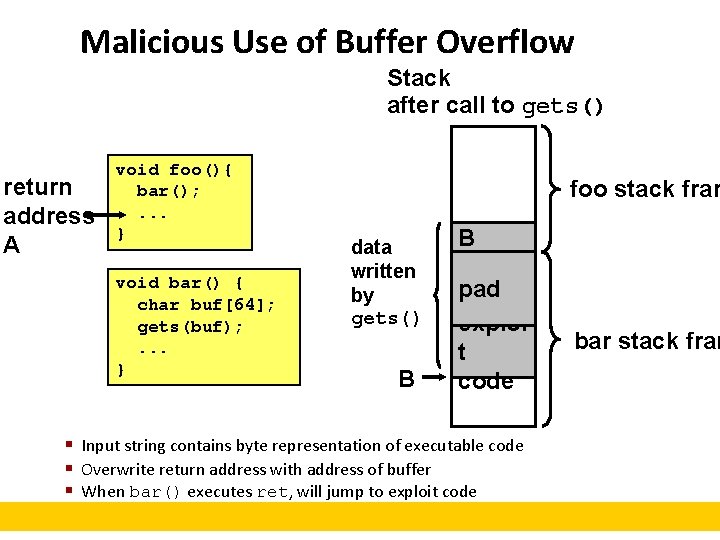

Malicious Use of Buffer Overflow Stack after call to gets() return address A void foo(){ bar(); . . . } void bar() { char buf[64]; gets(buf); . . . } foo stack fram data written by gets() B B pad exploi t code § Input string contains byte representation of executable code § Overwrite return address with address of buffer § When bar() executes ret, will jump to exploit code bar stack fram

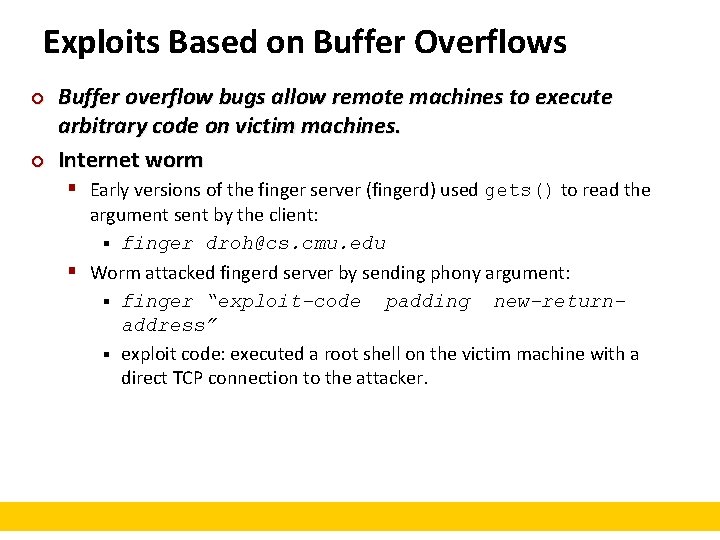

Exploits Based on Buffer Overflows ¢ ¢ Buffer overflow bugs allow remote machines to execute arbitrary code on victim machines. Internet worm § Early versions of the finger server (fingerd) used gets() to read the argument sent by the client: § finger droh@cs. cmu. edu § Worm attacked fingerd server by sending phony argument: § finger “exploit-code padding new-returnaddress” § exploit code: executed a root shell on the victim machine with a direct TCP connection to the attacker.

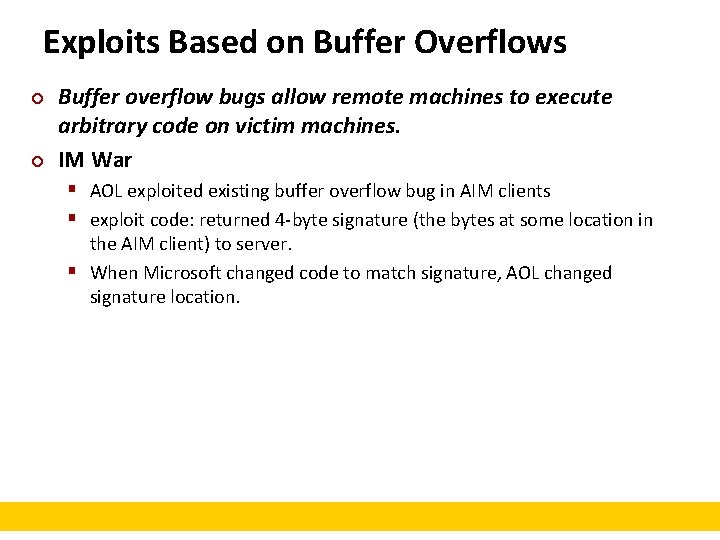

Exploits Based on Buffer Overflows ¢ ¢ Buffer overflow bugs allow remote machines to execute arbitrary code on victim machines. IM War § AOL exploited existing buffer overflow bug in AIM clients § exploit code: returned 4 -byte signature (the bytes at some location in the AIM client) to server. § When Microsoft changed code to match signature, AOL changed signature location.

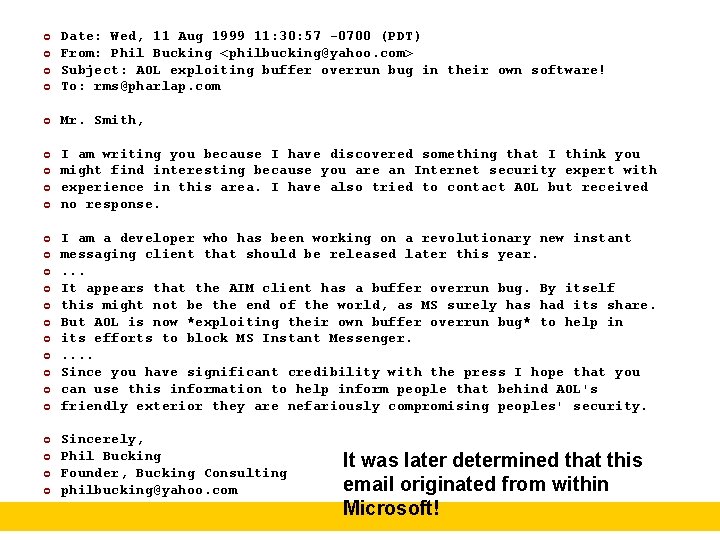

¢ Date: Wed, 11 Aug 1999 11: 30: 57 -0700 (PDT) From: Phil Bucking <philbucking@yahoo. com> Subject: AOL exploiting buffer overrun bug in their own software! To: rms@pharlap. com ¢ Mr. Smith, ¢ I am writing you because I have discovered something that I think you might find interesting because you are an Internet security expert with experience in this area. I have also tried to contact AOL but received no response. ¢ ¢ ¢ ¢ ¢ ¢ I am a developer who has been working on a revolutionary new instant messaging client that should be released later this year. . It appears that the AIM client has a buffer overrun bug. By itself this might not be the end of the world, as MS surely has had its share. But AOL is now *exploiting their own buffer overrun bug* to help in its efforts to block MS Instant Messenger. . . Since you have significant credibility with the press I hope that you can use this information to help inform people that behind AOL's friendly exterior they are nefariously compromising peoples' security. Sincerely, Phil Bucking Founder, Bucking Consulting philbucking@yahoo. com It was later determined that this email originated from within Microsoft!

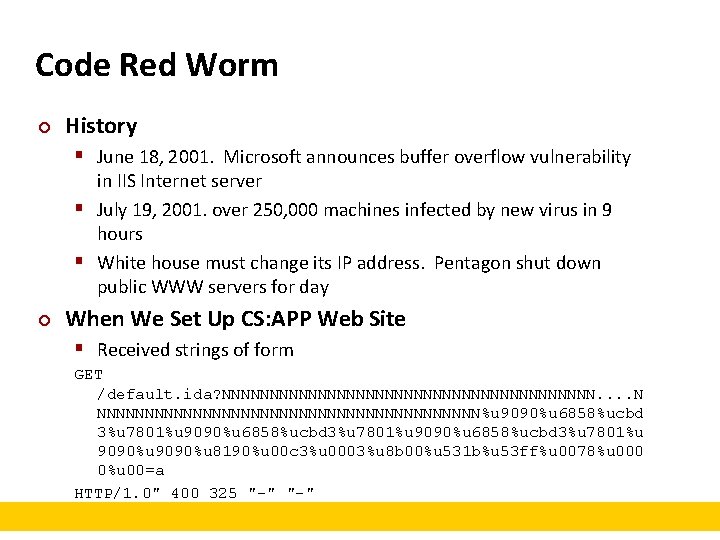

Code Red Worm ¢ History § June 18, 2001. Microsoft announces buffer overflow vulnerability in IIS Internet server § July 19, 2001. over 250, 000 machines infected by new virus in 9 hours § White house must change its IP address. Pentagon shut down public WWW servers for day ¢ When We Set Up CS: APP Web Site § Received strings of form GET /default. ida? NNNNNNNNNNNNNNNNNNNN. . N NNNNNNNNNNNNNNNNNNNN%u 9090%u 6858%ucbd 3%u 7801%u 9090%u 8190%u 00 c 3%u 0003%u 8 b 00%u 531 b%u 53 ff%u 0078%u 000 0%u 00=a HTTP/1. 0" 400 325 "-"

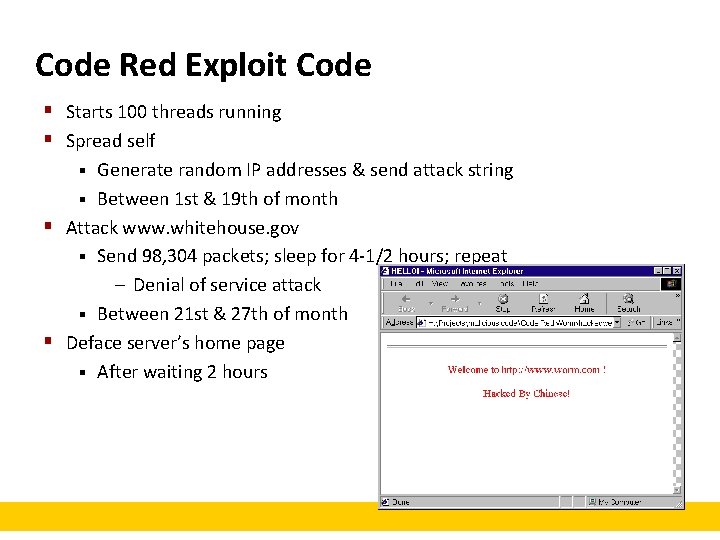

Code Red Exploit Code § Starts 100 threads running § Spread self Generate random IP addresses & send attack string § Between 1 st & 19 th of month § Attack www. whitehouse. gov § Send 98, 304 packets; sleep for 4 -1/2 hours; repeat – Denial of service attack § Between 21 st & 27 th of month § Deface server’s home page § After waiting 2 hours §

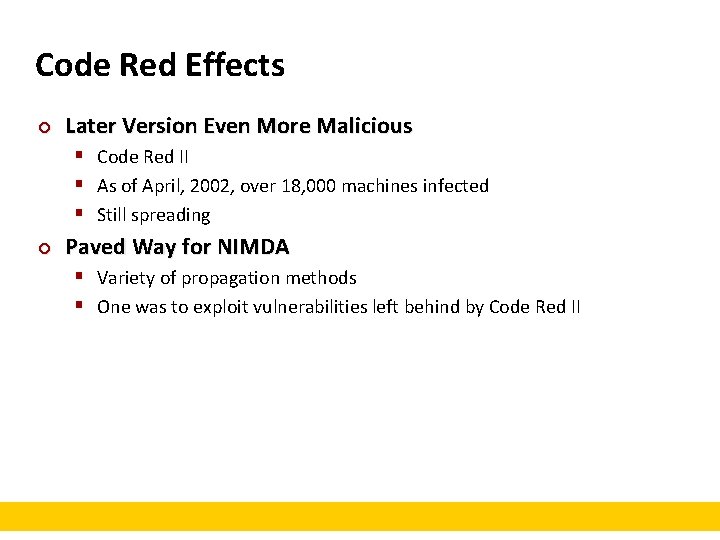

Code Red Effects ¢ Later Version Even More Malicious § Code Red II § As of April, 2002, over 18, 000 machines infected § Still spreading ¢ Paved Way for NIMDA § Variety of propagation methods § One was to exploit vulnerabilities left behind by Code Red II

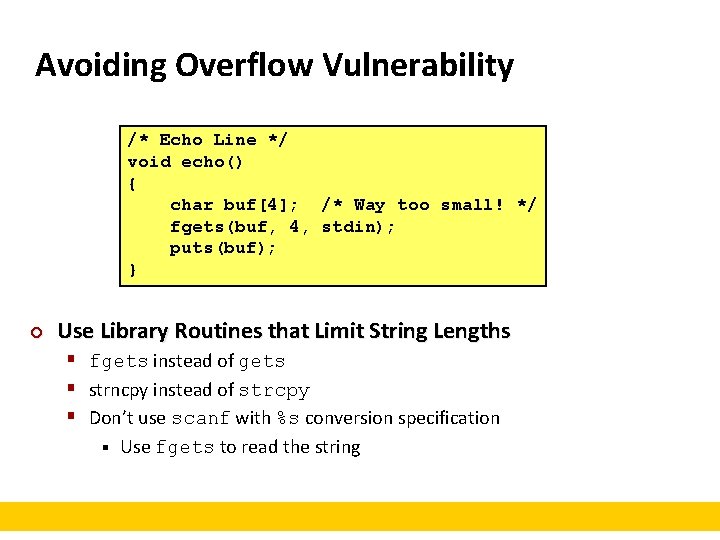

Avoiding Overflow Vulnerability /* Echo Line */ void echo() { char buf[4]; /* Way too small! */ fgets(buf, 4, stdin); puts(buf); } ¢ Use Library Routines that Limit String Lengths § fgets instead of gets § strncpy instead of strcpy § Don’t use scanf with %s conversion specification § Use fgets to read the string

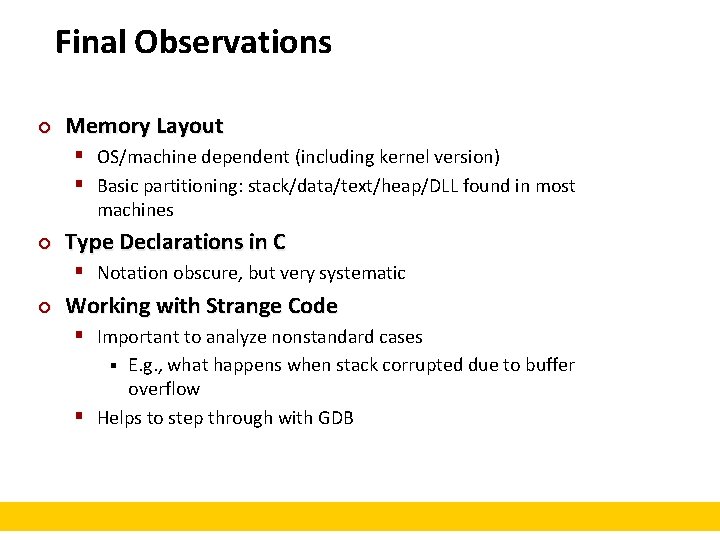

Final Observations ¢ Memory Layout § OS/machine dependent (including kernel version) § Basic partitioning: stack/data/text/heap/DLL found in most machines ¢ Type Declarations in C § Notation obscure, but very systematic ¢ Working with Strange Code § Important to analyze nonstandard cases E. g. , what happens when stack corrupted due to buffer overflow § Helps to step through with GDB §

Machine Programming – x 86 -64 CENG 331: Introduction to Computer Systems 7 th Lecture Instructor: Erol Sahin Acknowledgement: Most of the slides are adapted from the ones prepared by R. E. Bryant, D. R. O’Hallaron of Carnegie-Mellon Univ.

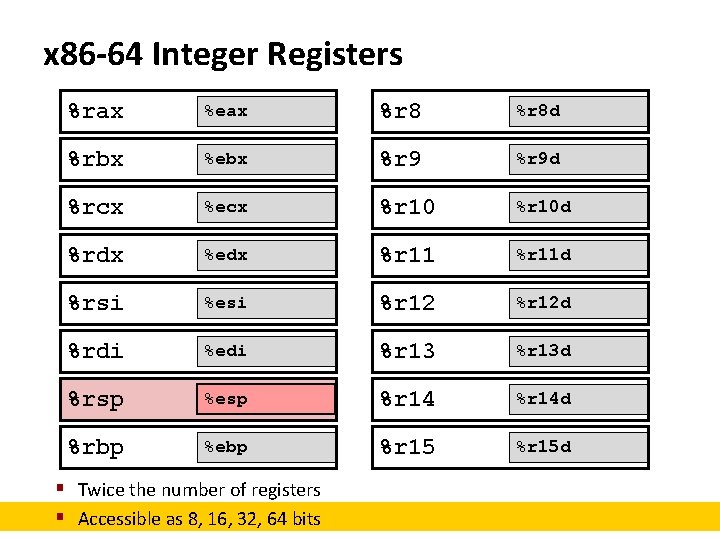

x 86 -64 Integer Registers %rax %eax %r 8 d %rbx %ebx %r 9 d %rcx %ecx %r 10 d %rdx %edx %r 11 d %rsi %esi %r 12 d %rdi %edi %r 13 d %rsp %esp %r 14 d %rbp %ebp %r 15 d § Twice the number of registers § Accessible as 8, 16, 32, 64 bits

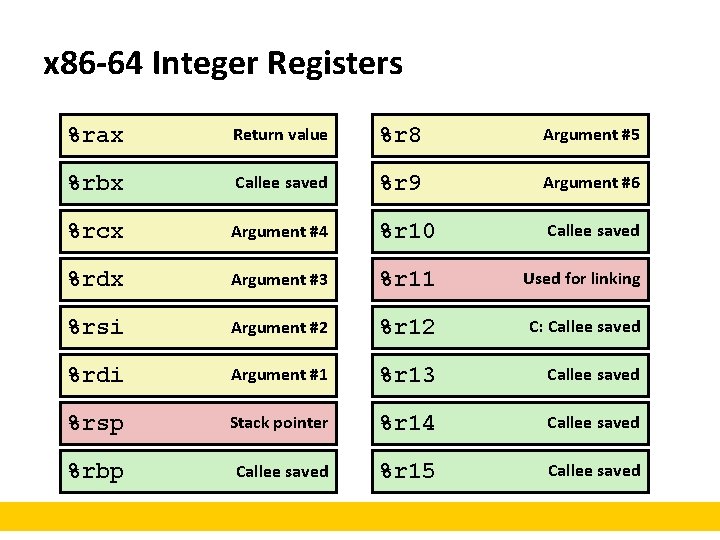

x 86 -64 Integer Registers %rax Return value %r 8 Argument #5 %rbx Callee saved %r 9 Argument #6 %rcx Argument #4 %r 10 Callee saved %rdx Argument #3 %r 11 Used for linking %rsi Argument #2 %r 12 C: Callee saved %rdi Argument #1 %r 13 Callee saved %rsp Stack pointer %r 14 Callee saved %rbp Callee saved %r 15 Callee saved

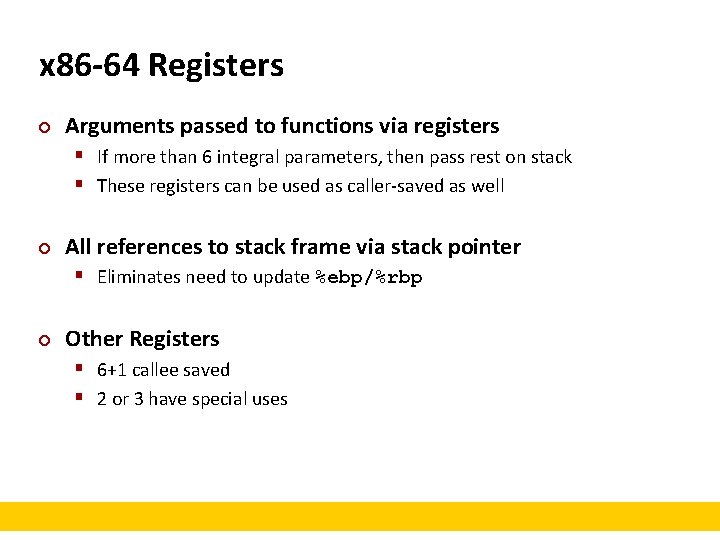

x 86 -64 Registers ¢ Arguments passed to functions via registers § If more than 6 integral parameters, then pass rest on stack § These registers can be used as caller-saved as well ¢ All references to stack frame via stack pointer § Eliminates need to update %ebp/%rbp ¢ Other Registers § 6+1 callee saved § 2 or 3 have special uses

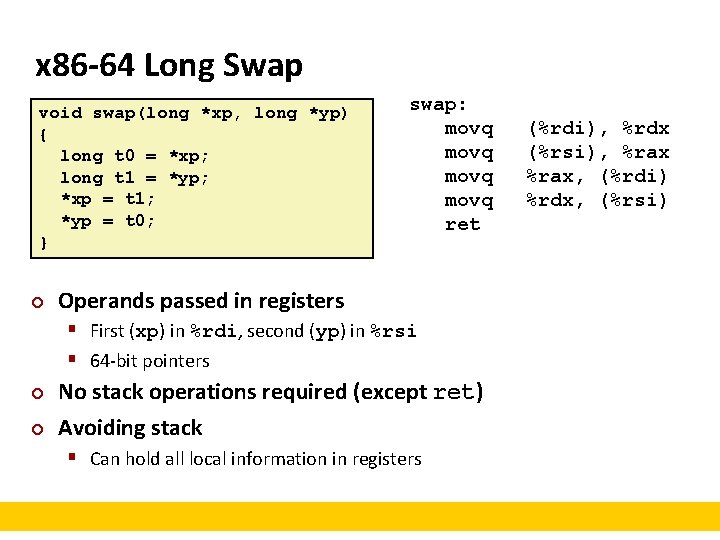

x 86 -64 Long Swap void swap(long *xp, long *yp) { long t 0 = *xp; long t 1 = *yp; *xp = t 1; *yp = t 0; } ¢ swap: movq ret Operands passed in registers § First (xp) in %rdi, second (yp) in %rsi § 64 -bit pointers ¢ ¢ No stack operations required (except ret) Avoiding stack § Can hold all local information in registers (%rdi), %rdx (%rsi), %rax, (%rdi) %rdx, (%rsi)

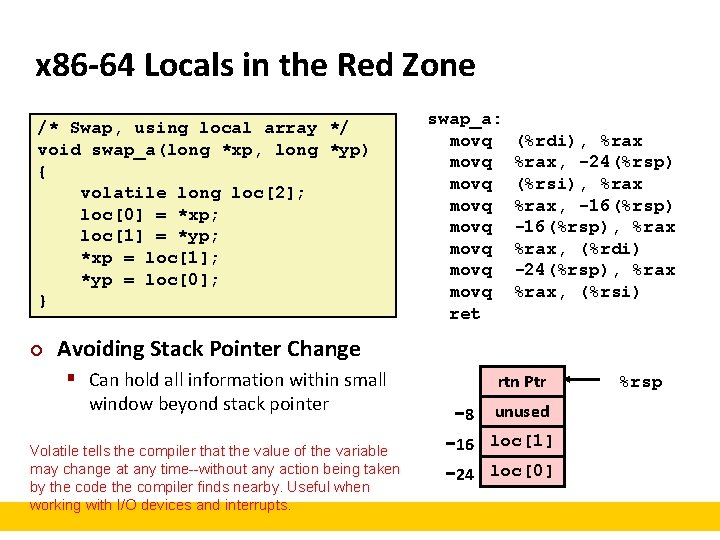

x 86 -64 Locals in the Red Zone /* Swap, using local array */ void swap_a(long *xp, long *yp) { volatile long loc[2]; loc[0] = *xp; loc[1] = *yp; *xp = loc[1]; *yp = loc[0]; } ¢ swap_a: movq movq ret (%rdi), %rax, -24(%rsp) (%rsi), %rax, -16(%rsp), %rax, (%rdi) -24(%rsp), %rax, (%rsi) Avoiding Stack Pointer Change § Can hold all information within small window beyond stack pointer Volatile tells the compiler that the value of the variable may change at any time--without any action being taken by the code the compiler finds nearby. Useful when working with I/O devices and interrupts. rtn Ptr − 8 unused − 16 loc[1] − 24 loc[0] %rsp

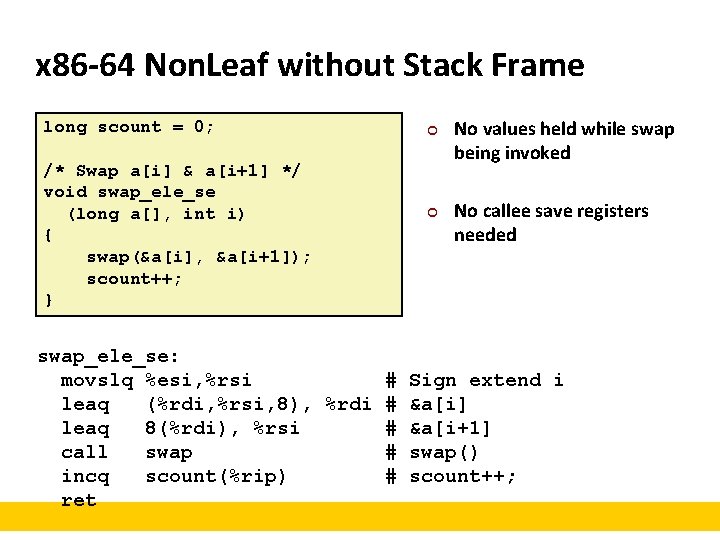

x 86 -64 Non. Leaf without Stack Frame long scount = 0; /* Swap a[i] & a[i+1] */ void swap_ele_se (long a[], int i) { swap(&a[i], &a[i+1]); scount++; } ¢ ¢ No values held while swap being invoked No callee save registers needed swap_ele_se: movslq %esi, %rsi # Sign extend i leaq (%rdi, %rsi, 8), %rdi # &a[i] leaq 8(%rdi), %rsi # &a[i+1] call swap # swap() incq scount(%rip) # scount++; ret

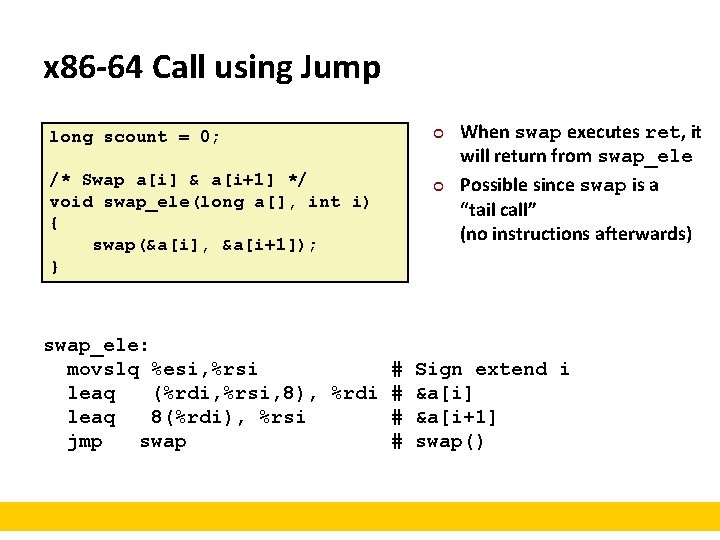

x 86 -64 Call using Jump long scount = 0; /* Swap a[i] & a[i+1] */ void swap_ele(long a[], int i) { swap(&a[i], &a[i+1]); } swap_ele: movslq %esi, %rsi # Sign extend i leaq (%rdi, %rsi, 8), %rdi # Will &a[i] disappear leaq 8(%rdi), %rsi # &a[i+1] Blackboard? jmp swap # swap()

x 86 -64 Call using Jump long scount = 0; /* Swap a[i] & a[i+1] */ void swap_ele(long a[], int i) { swap(&a[i], &a[i+1]); } ¢ ¢ When swap executes ret, it will return from swap_ele Possible since swap is a “tail call” (no instructions afterwards) swap_ele: movslq %esi, %rsi # Sign extend i leaq (%rdi, %rsi, 8), %rdi # &a[i] leaq 8(%rdi), %rsi # &a[i+1] jmp swap # swap()

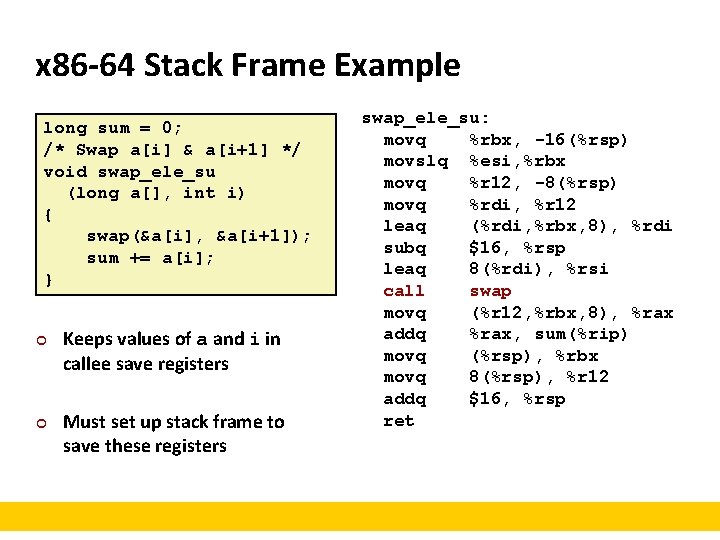

x 86 -64 Stack Frame Example long sum = 0; /* Swap a[i] & a[i+1] */ void swap_ele_su (long a[], int i) { swap(&a[i], &a[i+1]); sum += a[i]; } ¢ ¢ Keeps values of a and i in callee save registers Must set up stack frame to save these registers swap_ele_su: movq %rbx, -16(%rsp) movslq %esi, %rbx movq %r 12, -8(%rsp) movq %rdi, %r 12 leaq (%rdi, %rbx, 8), %rdi subq $16, %rsp leaq 8(%rdi), %rsi call swap movq (%r 12, %rbx, 8), %rax addq %rax, sum(%rip) movq (%rsp), %rbx movq 8(%rsp), %r 12 addq $16, %rsp ret

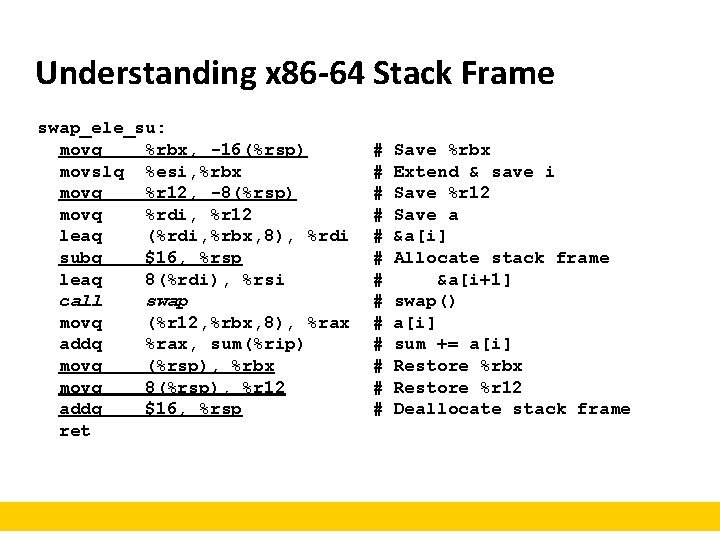

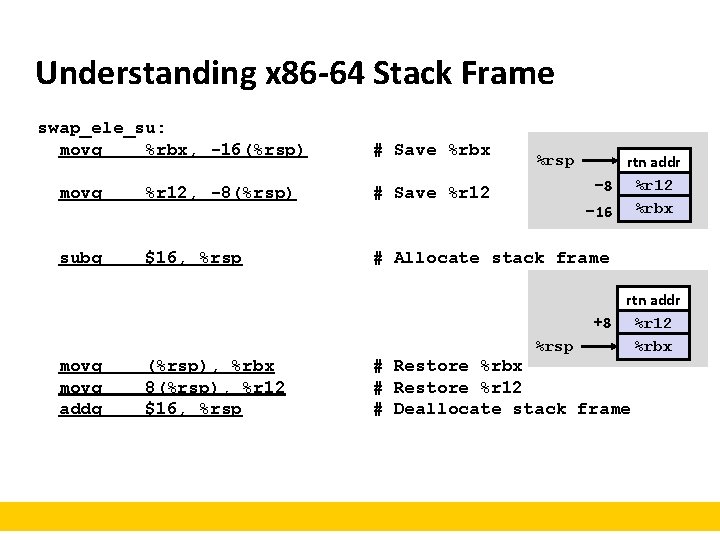

Understanding x 86 -64 Stack Frame swap_ele_su: movq %rbx, -16(%rsp) movslq %esi, %rbx movq %r 12, -8(%rsp) movq %rdi, %r 12 leaq (%rdi, %rbx, 8), %rdi subq $16, %rsp leaq 8(%rdi), %rsi call swap movq (%r 12, %rbx, 8), %rax addq %rax, sum(%rip) movq (%rsp), %rbx movq 8(%rsp), %r 12 addq $16, %rsp ret # # # # Save %rbx Extend & save i Save %r 12 Save a &a[i] Allocate stack frame &a[i+1] swap() a[i] sum += a[i] Restore %rbx Restore %r 12 Deallocate stack frame

Understanding x 86 -64 Stack Frame swap_ele_su: movq %rbx, -16(%rsp) movslq %esi, %rbx movq %r 12, -8(%rsp) movq %rdi, %r 12 leaq (%rdi, %rbx, 8), %rdi subq $16, %rsp leaq 8(%rdi), %rsi call swap movq (%r 12, %rbx, 8), %rax addq %rax, sum(%rip) movq (%rsp), %rbx movq 8(%rsp), %r 12 addq $16, %rsp ret # # # # Save %rbx %rsp rtn addr Extend & save i − 8 %r 12 Save %r 12 − 16 %rbx Save a &a[i] Allocate stack frame &a[i+1] rtn addr swap() a[i] +8 %r 12 sum += a[i] %rsp %rbx Restore %r 12 Deallocate stack frame

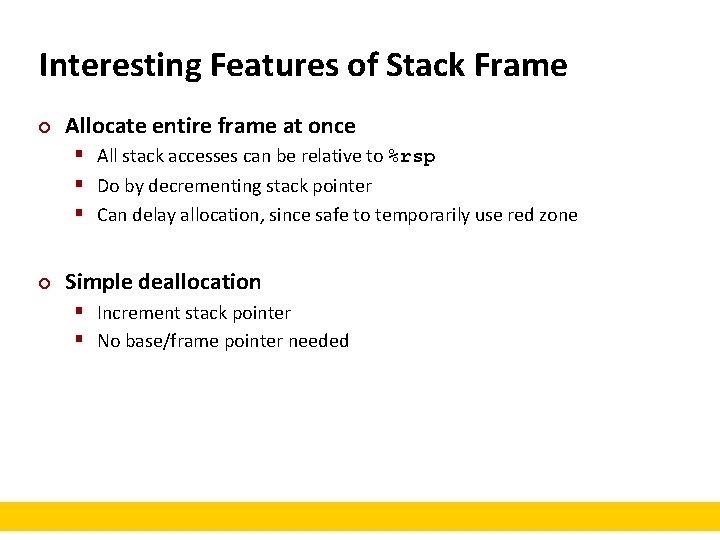

Interesting Features of Stack Frame ¢ Allocate entire frame at once § All stack accesses can be relative to %rsp § Do by decrementing stack pointer § Can delay allocation, since safe to temporarily use red zone ¢ Simple deallocation § Increment stack pointer § No base/frame pointer needed

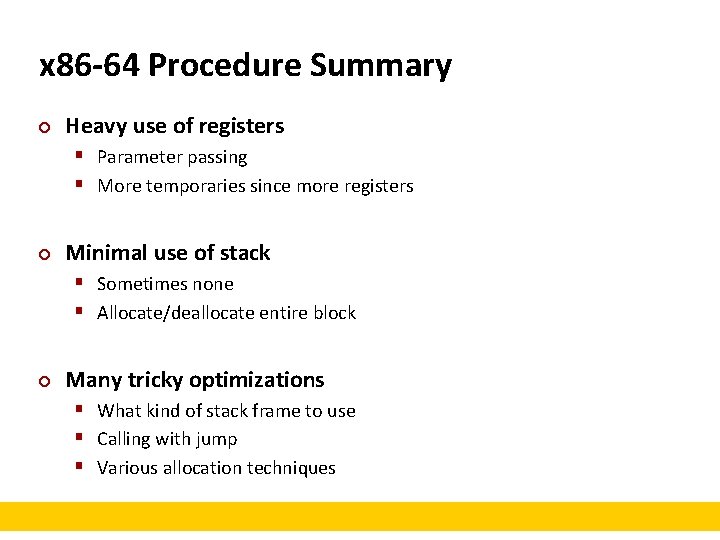

x 86 -64 Procedure Summary ¢ Heavy use of registers § Parameter passing § More temporaries since more registers ¢ Minimal use of stack § Sometimes none § Allocate/deallocate entire block ¢ Many tricky optimizations § What kind of stack frame to use § Calling with jump § Various allocation techniques

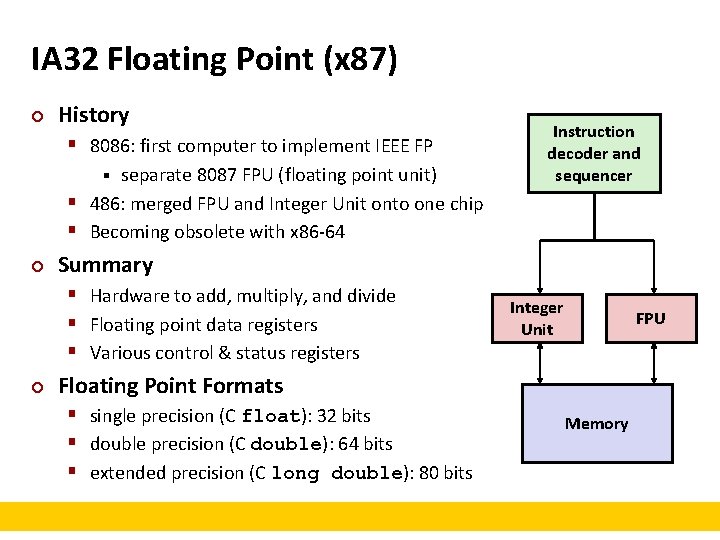

IA 32 Floating Point (x 87) ¢ History § 8086: first computer to implement IEEE FP separate 8087 FPU (floating point unit) § 486: merged FPU and Integer Unit onto one chip § Becoming obsolete with x 86 -64 § ¢ Summary § Hardware to add, multiply, and divide § Floating point data registers § Various control & status registers ¢ Instruction decoder and sequencer Integer Unit FPU Floating Point Formats § single precision (C float): 32 bits § double precision (C double): 64 bits § extended precision (C long double): 80 bits Memory

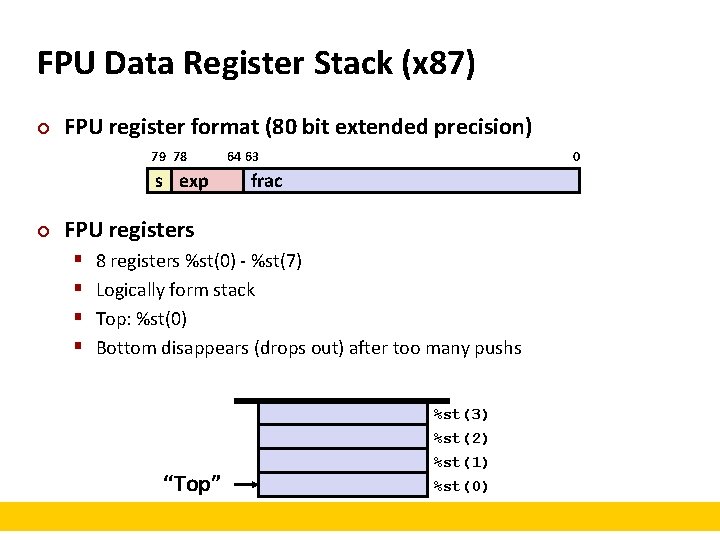

FPU Data Register Stack (x 87) ¢ FPU register format (80 bit extended precision) 79 78 s exp ¢ 0 64 63 frac FPU registers § § 8 registers %st(0) - %st(7) Logically form stack Top: %st(0) Bottom disappears (drops out) after too many pushs “Top” %st(3) %st(2) %st(1) %st(0)

FPU instructions (x 87) ¢ Large number of floating point instructions and formats § ~50 basic instruction types § load, store, add, multiply § sin, cos, tan, arctan, and log § ¢ Often slower than math lib Sample instructions: Instruction Effect Description fldz flds Addr fmuls Addr faddp push 0. 0 Load zero push Mem[Addr] Load single precision real %st(0)*M[Addr]Multiply %st(1) %st(0)+%st(1); pop Add and pop

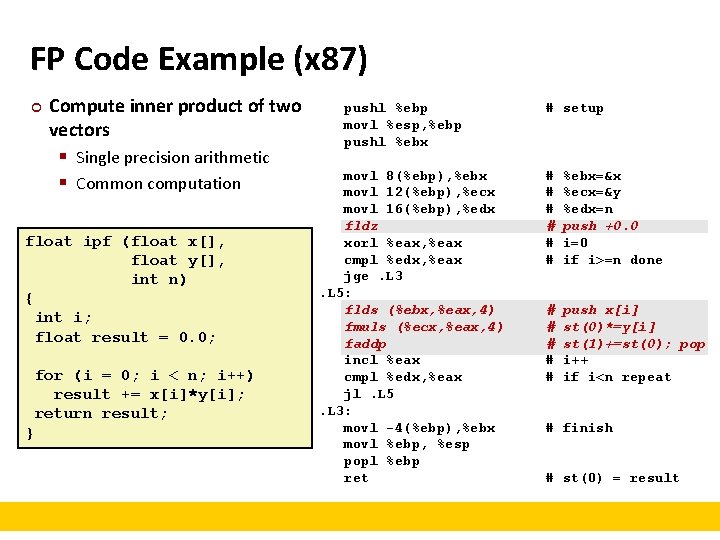

FP Code Example (x 87) ¢ Compute inner product of two vectors § Single precision arithmetic § Common computation float ipf (float x[], float y[], int n) { int i; float result = 0. 0; for (i = 0; i < n; i++) result += x[i]*y[i]; return result; } pushl %ebp movl %esp, %ebp pushl %ebx movl 8(%ebp), %ebx movl 12(%ebp), %ecx movl 16(%ebp), %edx fldz xorl %eax, %eax cmpl %edx, %eax jge. L 3. L 5: flds (%ebx, %eax, 4) fmuls (%ecx, %eax, 4) faddp incl %eax cmpl %edx, %eax jl. L 5. L 3: movl -4(%ebp), %ebx movl %ebp, %esp popl %ebp ret # setup # # # %ebx=&x %ecx=&y %edx=n push +0. 0 i=0 if i>=n done # # # push x[i] st(0)*=y[i] st(1)+=st(0); pop i++ if i<n repeat # finish # st(0) = result

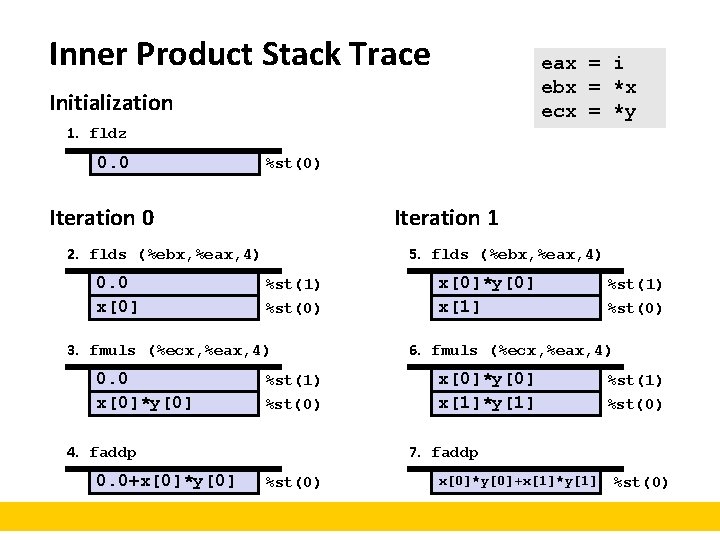

Inner Product Stack Trace eax = i ebx = *x ecx = *y Initialization 1. fldz 0. 0 %st(0) Iteration 0 Iteration 1 2. flds (%ebx, %eax, 4) 0. 0 x[0] 5. flds (%ebx, %eax, 4) %st(1) %st(0) 3. fmuls (%ecx, %eax, 4) 0. 0 x[0]*y[0] %st(1) %st(0) 4. faddp 0. 0+x[0]*y[0] x[1] %st(1) %st(0) 6. fmuls (%ecx, %eax, 4) x[0]*y[0] x[1]*y[1] %st(1) %st(0) 7. faddp %st(0) x[0]*y[0]+x[1]*y[1] %st(0)

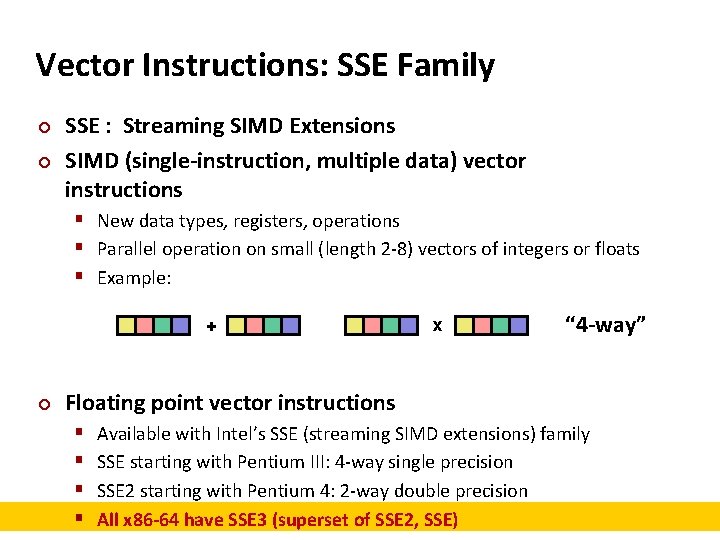

Vector Instructions: SSE Family ¢ ¢ SSE : Streaming SIMD Extensions SIMD (single-instruction, multiple data) vector instructions § New data types, registers, operations § Parallel operation on small (length 2 -8) vectors of integers or floats § Example: + ¢ x “ 4 -way” Floating point vector instructions § § Available with Intel’s SSE (streaming SIMD extensions) family SSE starting with Pentium III: 4 -way single precision SSE 2 starting with Pentium 4: 2 -way double precision All x 86 -64 have SSE 3 (superset of SSE 2, SSE)

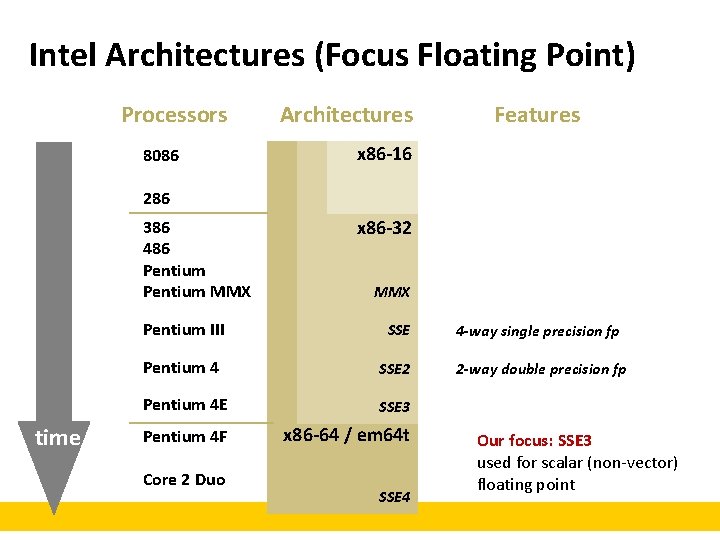

Intel Architectures (Focus Floating Point) Processors 8086 Architectures Features x 86 -16 286 386 486 Pentium MMX time x 86 -32 MMX Pentium III SSE 4 -way single precision fp Pentium 4 SSE 2 2 -way double precision fp Pentium 4 E SSE 3 Pentium 4 F x 86 -64 / em 64 t Core 2 Duo SSE 4 Our focus: SSE 3 used for scalar (non-vector) floating point

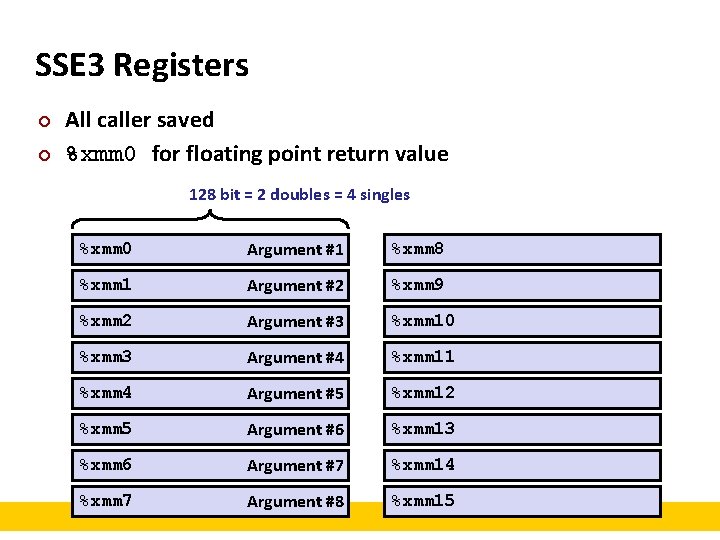

SSE 3 Registers ¢ ¢ All caller saved %xmm 0 for floating point return value 128 bit = 2 doubles = 4 singles %xmm 0 Argument #1 %xmm 8 %xmm 1 Argument #2 %xmm 9 %xmm 2 Argument #3 %xmm 10 %xmm 3 Argument #4 %xmm 11 %xmm 4 Argument #5 %xmm 12 %xmm 5 Argument #6 %xmm 13 %xmm 6 Argument #7 %xmm 14 %xmm 7 Argument #8 %xmm 15

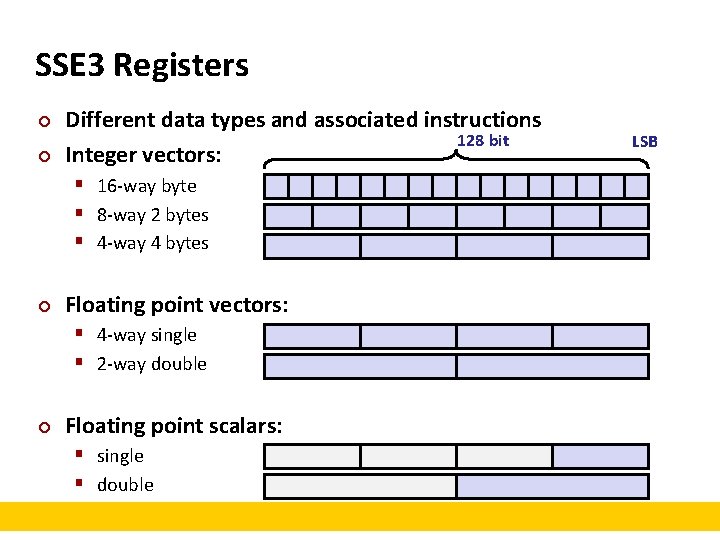

SSE 3 Registers ¢ ¢ Different data types and associated instructions 128 bit Integer vectors: § 16 -way byte § 8 -way 2 bytes § 4 -way 4 bytes ¢ Floating point vectors: § 4 -way single § 2 -way double ¢ Floating point scalars: § single § double LSB

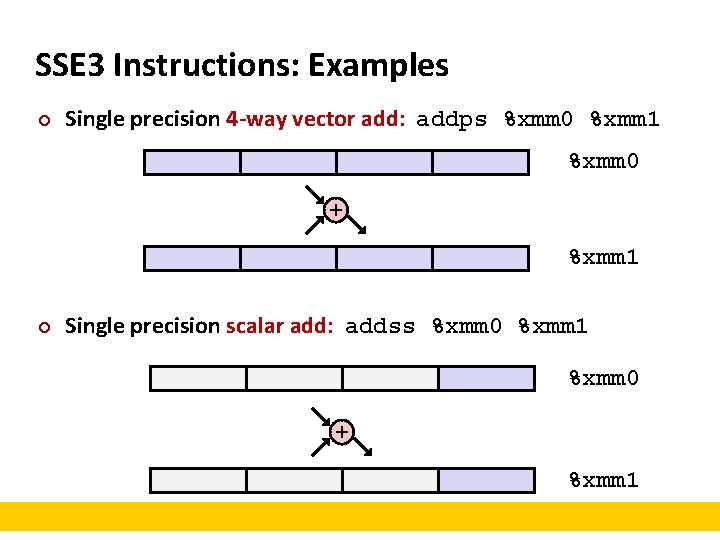

SSE 3 Instructions: Examples ¢ Single precision 4 -way vector add: addps %xmm 0 %xmm 1 %xmm 0 + %xmm 1 ¢ Single precision scalar add: addss %xmm 0 %xmm 1 %xmm 0 + %xmm 1

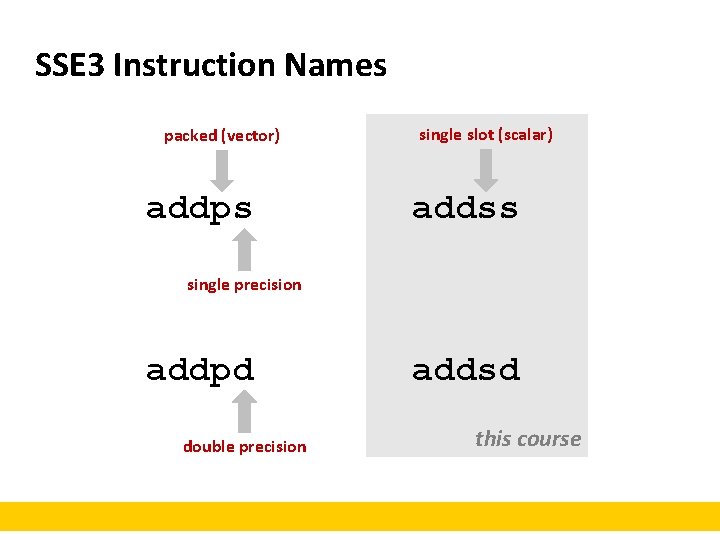

SSE 3 Instruction Names packed (vector) addps single slot (scalar) addss single precision addpd double precision addsd this course

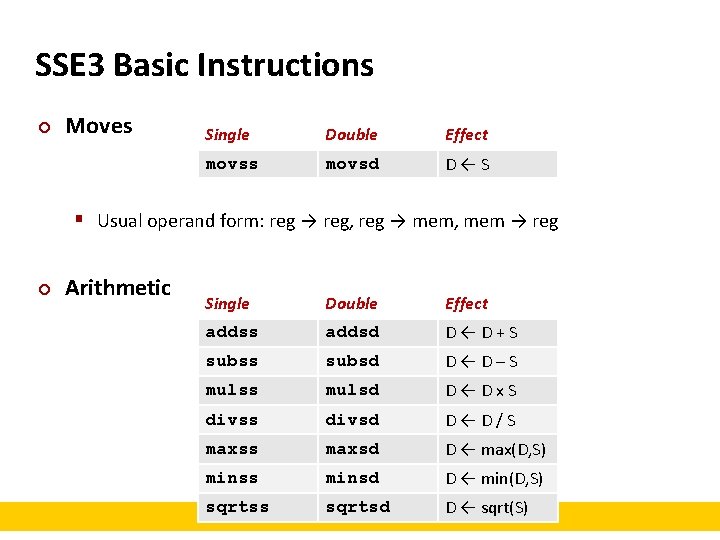

SSE 3 Basic Instructions ¢ Moves Single Double Effect movss movsd D←S § Usual operand form: reg → reg, reg → mem, mem → reg ¢ Arithmetic Single Double Effect addss addsd D←D+S subss subsd D←D–S mulss mulsd D←Dx. S divss divsd D←D/S maxss maxsd D ← max(D, S) minss minsd D ← min(D, S) sqrtss sqrtsd D ← sqrt(S)

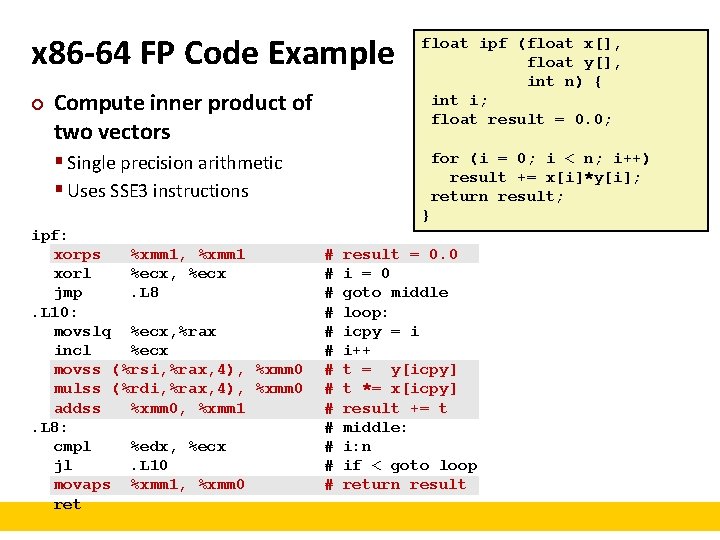

x 86 -64 FP Code Example ¢ Compute inner product of two vectors float ipf (float x[], float y[], int n) { int i; float result = 0. 0; § Single precision arithmetic § Uses SSE 3 instructions for (i = 0; i < n; i++) result += x[i]*y[i]; return result; } ipf: xorps %xmm 1, %xmm 1 xorl %ecx, %ecx jmp. L 8. L 10: movslq %ecx, %rax incl %ecx movss (%rsi, %rax, 4), %xmm 0 mulss (%rdi, %rax, 4), %xmm 0 addss %xmm 0, %xmm 1. L 8: cmpl %edx, %ecx jl. L 10 movaps %xmm 1, %xmm 0 ret # # # # result = 0. 0 i = 0 goto middle loop: icpy = i i++ t = y[icpy] t *= x[icpy] result += t middle: i: n if < goto loop return result

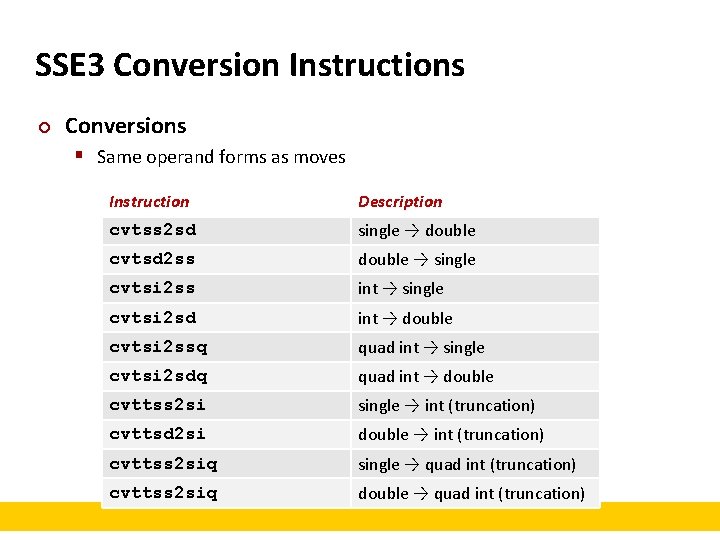

SSE 3 Conversion Instructions ¢ Conversions § Same operand forms as moves Instruction Description cvtss 2 sd single → double cvtsd 2 ss double → single cvtsi 2 ss int → single cvtsi 2 sd int → double cvtsi 2 ssq quad int → single cvtsi 2 sdq quad int → double cvttss 2 si single → int (truncation) cvttsd 2 si double → int (truncation) cvttss 2 siq single → quad int (truncation) cvttss 2 siq double → quad int (truncation)

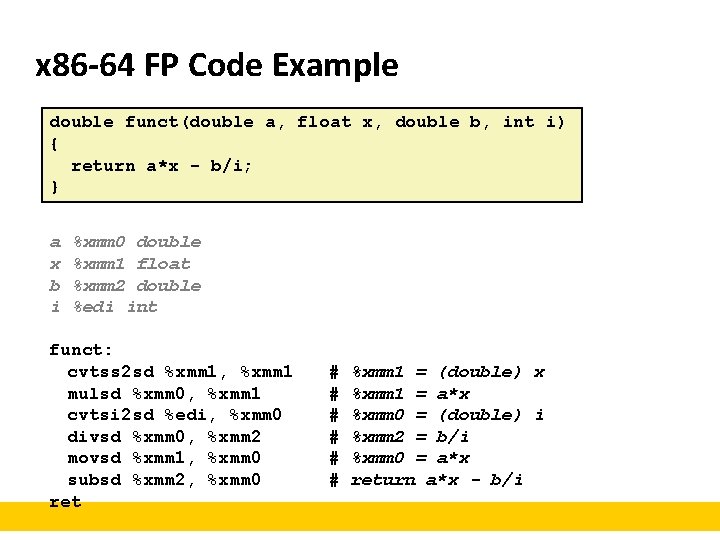

x 86 -64 FP Code Example double funct(double a, float x, double b, int i) { return a*x - b/i; } a x b i %xmm 0 double %xmm 1 float %xmm 2 double %edi int funct: cvtss 2 sd %xmm 1, %xmm 1 mulsd %xmm 0, %xmm 1 cvtsi 2 sd %edi, %xmm 0 divsd %xmm 0, %xmm 2 movsd %xmm 1, %xmm 0 subsd %xmm 2, %xmm 0 ret # # # %xmm 1 = (double) x %xmm 1 = a*x %xmm 0 = (double) i %xmm 2 = b/i %xmm 0 = a*x return a*x - b/i

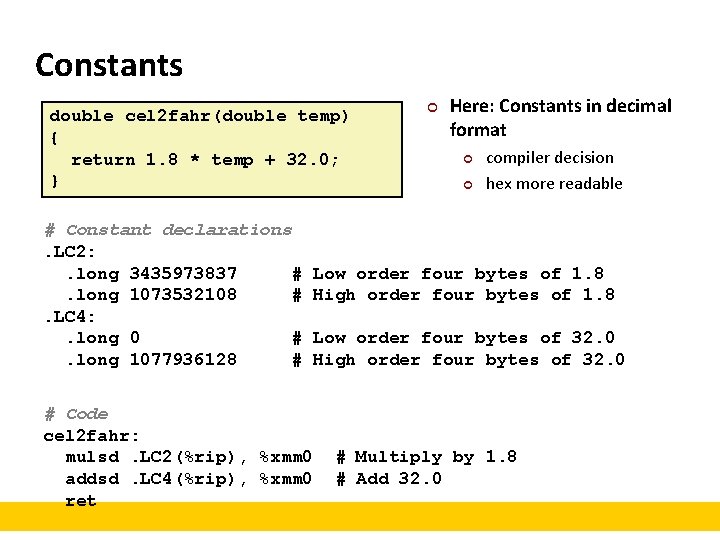

Constants double cel 2 fahr(double temp) { return 1. 8 * temp + 32. 0; } # Constant declarations. LC 2: . long 3435973837 #. long 1073532108 #. LC 4: . long 0 #. long 1077936128 # ¢ Here: Constants in decimal format ¢ ¢ compiler decision hex more readable Low order four bytes of 1. 8 High order four bytes of 1. 8 Low order four bytes of 32. 0 High order four bytes of 32. 0 # Code cel 2 fahr: mulsd. LC 2(%rip), %xmm 0 addsd. LC 4(%rip), %xmm 0 ret # Multiply by 1. 8 # Add 32. 0

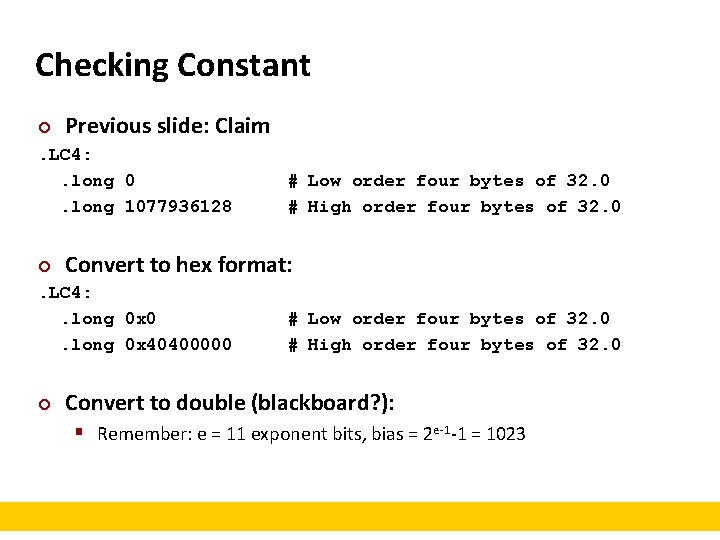

Checking Constant ¢ Previous slide: Claim . LC 4: . long 0. long 1077936128 ¢ Convert to hex format: . LC 4: . long 0 x 0. long 0 x 40400000 ¢ # Low order four bytes of 32. 0 # High order four bytes of 32. 0 Convert to double (blackboard? ): § Remember: e = 11 exponent bits, bias = 2 e-1 -1 = 1023

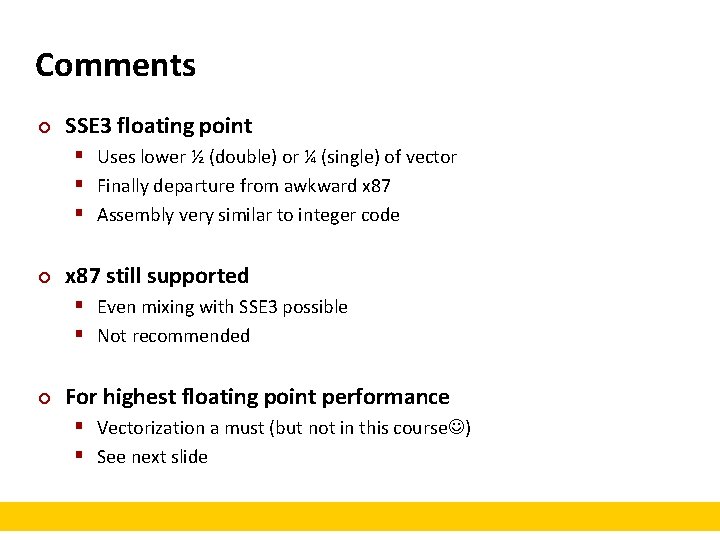

Comments ¢ SSE 3 floating point § Uses lower ½ (double) or ¼ (single) of vector § Finally departure from awkward x 87 § Assembly very similar to integer code ¢ x 87 still supported § Even mixing with SSE 3 possible § Not recommended ¢ For highest floating point performance § Vectorization a must (but not in this course ) § See next slide

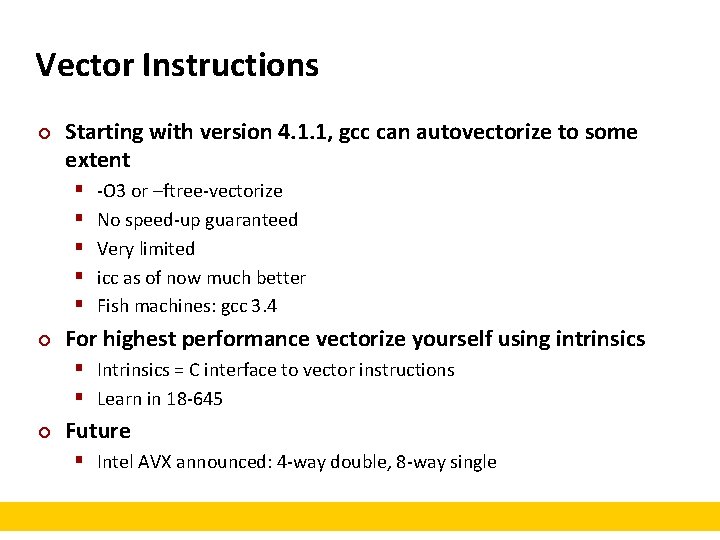

Vector Instructions ¢ Starting with version 4. 1. 1, gcc can autovectorize to some extent § § § ¢ -O 3 or –ftree-vectorize No speed-up guaranteed Very limited icc as of now much better Fish machines: gcc 3. 4 For highest performance vectorize yourself using intrinsics § Intrinsics = C interface to vector instructions § Learn in 18 -645 ¢ Future § Intel AVX announced: 4 -way double, 8 -way single
