Machine Instruction Characteristics �Machine Instructions- are instructions executed by the processor. �Instruction set- a collection of instructions that the processor can execute

Elements of a machine instruction �Opcode- uses a binary code which specifies the operation to be preformed. �Source operand reference- the input for the operation �Result operand reference- the result produced by the operation �Next instruction reference- tells the processor where to get the next instruction

Source and result operands can be found in �Main or virtual memory �Processor register- contains registers that can be used by machine instructions �Immediate- the operand value is being contained when the instruction is being executed �I/O devices- instruction specifies I/O module and device but if memory mapped then just another main or virtual memory address

Representation of instruction OPCODE (4 Bits) • An Ref to Operand 1 (6 Bits) Ref to Operand 2 (6 Bits) instruction format is used to define the layout of the bits allocated to these elements of instructions. • The instruction format explicitly or implicitly indicates the addressing Modes used for each operand in that instruction.

Instruction format �Instruction length: The longer instruction length gives: More Opcodes More operands More addressing modes Greater address range.

Factors considered for instruction length �Memory Size. �Memory organization. �Bus structure �Processor speed �Processor complexity.

Allocation of Bits for different fields in an instruction �Number of addressing modes. �Number of operands. �Register versus memory. �Number of register sets. �Address range. �Address granularity.

Variable length instructions �Advantages: �Provides flexibility in addressing modes. �Provides complex addressing modes. �Reduces number of instruction fetch cycles. �Reduces amount of space taken by a program. �Disadvantages: �Requires more complex CPU. �Decoding of instruction becomes difficult.

Instruction Sets �Instruction Characteristics �Types of Operands �Types of Operations

Instruction Representation �Are represented by a sequence of bits �It is common to use “symbolic representation” of machine instructions �Op codes and operands are represented by abbreviations called “mnemonics”

Mnemonics �ADD add �SUB subtract �MUL multiply �DIV divide �LOAD load data from memory �STOR store data to memory

Instruction types �Data processing- arithmetic and logic instructions �Data storage- moving data into or out of register or memory locations �Data movement- I/O instructions �Control- test and branch instructions

Number of Addresses • A traditional way of describing processor architecture • What is the maximum number of addresses one might need in an instruction? • An instruction could be required to contain four addresses

Number of Addresses • 3 addresses instructions • Operand 1, Operand 2, Result • a = b + c; • May be a forth - next instruction (usually implicit) • Not common • Needs very long words to hold everything

Number of Addresses • 2 addresses instructions • One address doubles as operand result • a = a + b; • Reduces length of instruction • Requires some extra work • Temporary storage to hold some results

Number of Addresses • 1 address instructions • Implicit second address • Usually a register (accumulator) • Common on early machines • E. g. ADD B

Number of Addresses • Zero address instruction: • Special memory organization • Last in first out (Stack) • Stack is a known location • E. g. CMA

Number of Addresses Utilization of Instruction Addresses (Nonbranching Instructions)

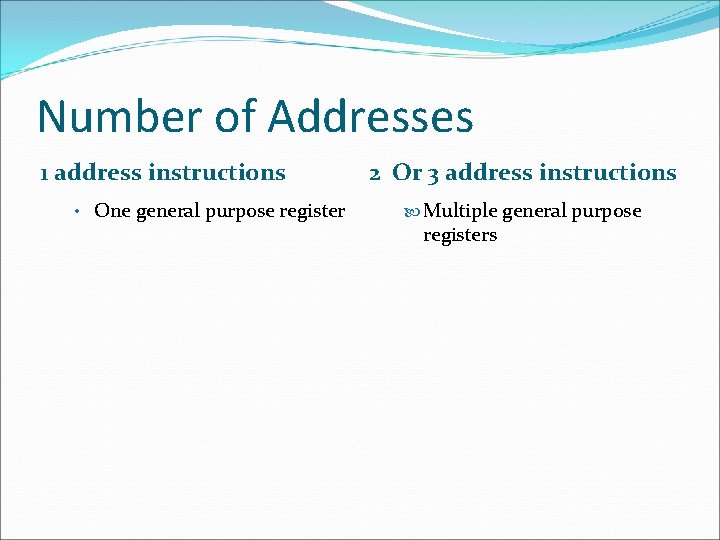

Number of Addresses 1 address instructions • One general purpose register 2 Or 3 address instructions Multiple general purpose registers

Instruction Set Design �Operation Repertoire- How many and which operations to provide, and how complex the operations should be. �Data Types- The various types of data upon which operations are performed. �Instruction Format- Instruction length (in bits), number of addresses and size of fields.

Instruction Set Design �Registers- Number of processor registers that can be referenced by instructions, and their use �Addressing- The mode or modes by which the address of an operand is specified.

Types of operands

TYPES OF OPERANDS Addresses Numbers Characters Logical Data Specialized Data Types Data Structures

Addresses Main or Virtual memory address Unsigned Integers

Numbers �All machine languages include numeric types �Non-numeric processing: counters, field widths, etc �Numbers in a machine are limited by magnitude and precision �Consequences: rounding, overflow, underflow

Numerical Data �Binary integer or Binary fixed point �Binary floating point �Decimal

Decimal �Majority of users deal with decimals �Necessity to convert from decimal to binary on input and binary to decimal on output �Packed decimal

Packed Decimal �Used when there is a great deal of I/O and simple computation �Each decimal digit is represented by a 4 -bit code. Ex: 0 = 0000, 1 = 0001 �Numbers are formed by a string of 4 -bit codes usually in multiples of 8 -bit � 246 = 0000 0010 0100 0110 �Positive: 1100 �Negative: 1101

Characters �Text or character strings �Represented by a sequence of bits �Morse Code �International Reference Alphabet (IRA) �American Standard Code for Information Interchange (ASCII) �Extended Binary Coded Decimal Interchange Code (EBCDIC)

Logical Data �Consider n-bit unit as consisting of n 1 -bit items of data, each having a value of 0 or 1 �Advantages: �Store array of Boolean or Binary data items �Manipulating bits of data items

Types of Operations �Data Transfer �Arithmetic �Logical �Conversion �Input/output �System Control �Transfer of Control

Data Transfer Operation Name Move(Transfer) Store Load (Fetch) Exchange Clear ( Reset) Set Push Pop Description Transfer word from source to destination From processor to memory From memory to processor Swap contents of source and destination Transfer 0 s to destination Transfer 1 s to destination Word from source to top of stack From top of stack to destination

Arithmetic Operation Name Add Subtract Multiply Divide Absolute Negate Increment Description Compute sum of two operands Difference of two operands Product of two operands Quotient of two operands Replace by its absolute value Change sign Add 1 to operand Subtract 1 to operand

Logical Operation Name AND; OR; NOT; OR Test Compare Set Control Variables Shift Variables Description Perform the specified logical operation bitwise Test specified condition; set flags based on outcome Make logical and arithmetic comparison of two operands Class of instructions to set controls for protection purposes, interrupt handling, timer control. Left/right operand introducing constants at end. Left/right with wraparound end

Conversion Operation Name Description Translate Convert Translate values in a section of memory based on a table of correspondences Convert the contents of a word from one form to another. E. g(packed decimal to binary

I/O Operation Name Input (Read) Output ( Write) Start I/O End I/O Description Transfer data from specified I/O port or device to destination From specified source to I/O port or device Transfer instructions to I/O processor to initiate I/O operation Transfer status info from I/O system to specified destination

System Of Control Can be executed only while the processor is in a certain privileged state or is executing a program in a special privileged area of memory. These instructions, are reserved for the use of the operating system. Examples: A system control instruction may read or alter a control register An instruction to read or modify a storage protection key Access to process control blocks in multiprogramming system

Transfer Of Control Description Operation Name Jump (Branch) Jump Conditional Jump to Subroutine Return Execute Skip conditional Halt Wait (Hold) No Operation Unconditional Transfer: load PC with specified address Test condition: either load PC with specified address or do nothing. Place current program control info in known location; jump to specified address Replace contents of PC and other register from known location Fetch operand from location and execute as instructed Increment PC to skip next instruction Either skip or do nothing based on condition Stop program execution Test specified repeatedly and resume condition No operation is performed; but program execution is continued.

QUESTIONS �How many different address designs are there? �Name two types of operations. �What are the most general categories of data? �What type of endian mode does x 86 use? �What are the most used Character Codes nowadays? �What are the elements of machine instruction? �What are the advantages of Logical Data?
