Machine Elements in Mechanical Design FIFTH EDITION CHAPTER 11 Keys, Couplings, and Seals Machine

Machine Elements in Mechanical Design FIFTH EDITION CHAPTER 11 Keys, Couplings, and Seals Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Keys • Key § Machinery component placed at interface between a shaft and hub

Keys • Key § Machinery component placed at interface between a shaft and hub of power-transmitting element for purpose of transmitting torque. § Demountable to facilitate assembly and disassembly of shaft system. § Installed into shaft keyseat first; then hub keyseat aligned with key; hub slid into position. Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Keys • Types of Keys § § Square and rectangular parallel Taper and gib

Keys • Types of Keys § § Square and rectangular parallel Taper and gib head Pin Woodruff Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Table 11 -1 Key Size vs. Shaft Diameter Machine Elements in Mechanical Design ,

Table 11 -1 Key Size vs. Shaft Diameter Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Table 11 -2 Suggested Fillet Radii and Key Chamfers Machine Elements in Mechanical Design

Table 11 -2 Suggested Fillet Radii and Key Chamfers Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Table 11 -3 Woodruff Key Dimensions Machine Elements in Mechanical Design , Fifth Edition

Table 11 -3 Woodruff Key Dimensions Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Materials for Keys • Selection and Installation of Keys and Keyseats § Length of

Materials for Keys • Selection and Installation of Keys and Keyseats § Length of key specified to be substantial portion of hub length of the element in which it is installed to provide good alignment and stable operation. • Materials: plain carbon steel, alloy steels, stainless steels, non-ferrous metals, plastics. Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Table 11 -4 Selection of Materials Used for Keys Machine Elements in Mechanical Design

Table 11 -4 Selection of Materials Used for Keys Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Stress Analysis to Determine Key Length • Modes of failure for keys transmitting power:

Stress Analysis to Determine Key Length • Modes of failure for keys transmitting power: § Shear across shaft/hub interface § Compression failure due to bearing action between sides of key and shaft or hub material § Analysis for either failure mode requires an understanding of the forces that act on the key Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Splines • Spline § Series of axial keys machined into a shaft, with corresponding

Splines • Spline § Series of axial keys machined into a shaft, with corresponding grooves machined into bore of mating part § Perform same function as a key in transmitting torque from shaft to mating element § Can be either straight-sided or involute. Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Splines • Straight-Sided Splines § Made according to specifications of Society of Automotive Engineers

Splines • Straight-Sided Splines § Made according to specifications of Society of Automotive Engineers (SAE) § Torque capacity for SAE splines based on limit of 1000 -psi bearing stress on sides of the splines Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Table 11 -5 Formulas for SAE Straight Splines Machine Elements in Mechanical Design ,

Table 11 -5 Formulas for SAE Straight Splines Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Splines • Involute Splines § Made with pressure angles of 30°, 37. 5°, 45°.

Splines • Involute Splines § Made with pressure angles of 30°, 37. 5°, 45°. § Standard diametral pitches § Length of splines § Metric module splines § Standard modules Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

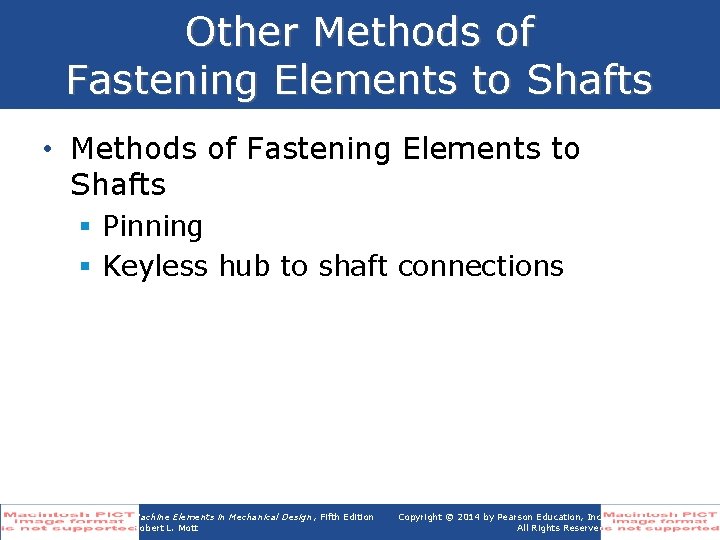

Other Methods of Fastening Elements to Shafts • Methods of Fastening Elements to Shafts

Other Methods of Fastening Elements to Shafts • Methods of Fastening Elements to Shafts § Pinning § Keyless hub to shaft connections Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Table 11 -7 Capacities of Selected Sizes of Ringfeder Locking Assemblies Machine Elements in

Table 11 -7 Capacities of Selected Sizes of Ringfeder Locking Assemblies Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Other Methods of Fastening Elements to Shafts • Methods of Fastening Elements to Shafts

Other Methods of Fastening Elements to Shafts • Methods of Fastening Elements to Shafts § Polygon hub to shaft connection § Split taper bushing Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Other Methods of Fastening Elements to Shafts • Methods of Fastening Elements to Shafts

Other Methods of Fastening Elements to Shafts • Methods of Fastening Elements to Shafts § § Set screws Taper and screw Press fit Molding Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Couplings • Device to connect two shafts together at their ends for purpose of

Couplings • Device to connect two shafts together at their ends for purpose of transmitting power § Rigid couplings: draw two shafts together tightly so no relative motion can occur between them § Flexible couplings: transmit torque smoothly while permitting some axial, radial, angular misalignment Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Universal Joints • When application calls for accommodating misalignment between mating shafts greater than

Universal Joints • When application calls for accommodating misalignment between mating shafts greater than the three degrees provided by flexible couplings, a universal joint often employed. § Single § Double § Vehicular Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Universal Joints • When application calls for accommodating misalignment between mating shafts greater than

Universal Joints • When application calls for accommodating misalignment between mating shafts greater than the three degrees provided by flexible couplings, a universal joint often employed. § Constant velocity (CV) § Heavy-duty industrial double § Cornay™ Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Retaining Rings and Other Means of Axial Location • • • Retaining rings Collar

Retaining Rings and Other Means of Axial Location • • • Retaining rings Collar Shoulders Spacers Locknuts Caution against overconstraint Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Types of Seals • Contaminants must be excluded from critical areas of a machine.

Types of Seals • Contaminants must be excluded from critical areas of a machine. • Lubricants must be contained within a space. Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Types of Seals • Pressurized fluids must be contained within a component (valve or

Types of Seals • Pressurized fluids must be contained within a component (valve or a hydraulic cylinder). • Choice of type of sealing system depends on function that it must perform. Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved

Seal Materials • • • Elastomers Rigid materials Packings Gaskets Shafts Machine Elements in

Seal Materials • • • Elastomers Rigid materials Packings Gaskets Shafts Machine Elements in Mechanical Design , Fifth Edition Robert L. Mott Copyright © 2014 by Pearson Education, Inc. All Rights Reserved
