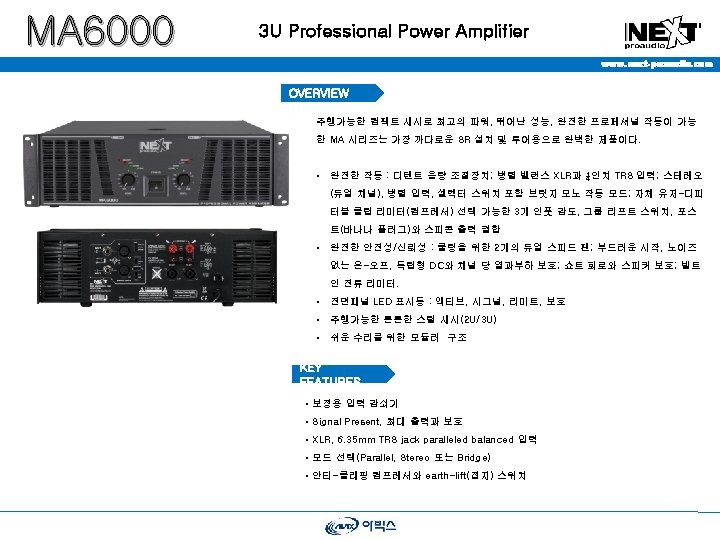

MA 6000 3 U Professional Power Amplifier www

MA 6000 3 U Professional Power Amplifier www. next-proaudio. com Specifications MODEL POWER (STEREO) POWER (BRIDGE) MA 6000 8Ω 2 x 1400 W 4Ω 2 x 2100 W 2Ω 2 x 3000 W 8Ω 4200 W 4Ω 6000 W FREQ. RESPONSE(Half Power) 15 Hz - 25 k. Hz (+0 / -1 d. B) THD+NOISE AT 1 k. Hz(Half Power) <0. 025% IMD(60 Hz and 7 k. Hz, 4: 1) <0. 04% SIGNAL TO NOISE RATIO(SNR) >105 d. B SLEW RATE(Input Filter Limit. ) 40 V/μs DAMPING FACTOR(1 k. Hz at 8Ω) >400: 1 INPUT SENSITIVITY Selectable (0. 77 V / 1. 0 V / 1. 44 V) INPUT IMPEDANCE 10 k Ω balanced to ground INPUT CONNECTORS Female & Male XLR-3 OUTPUT CIRCUITRY Class H OUTPUT CONNECTORS 4 pole Speakon and binding posts PROTECTIONS Full short circuit, open circuit, thermal, soft start, DC, Sub/Ultrasonic and RF LED INDICATORS(Per Channel) Active, signal, limit, protect PANEL CONTROLS Front: 2 input attenuators | Rear: Ground lift, mode selection, compressor COOLING Front to back via 2 variable speed fans POWER REQUIREMENETS 230 VAC, 50 Hz-60 Hz (others by request) DIMENSIONS (Wx. Hx. D) 483 x 132 x 471 mm WEIGHT 35 kg
