m Plane an Intelligent Measurement Plane for Future
- Slides: 13
m. Plane – an Intelligent Measurement Plane for Future Network and Application Management Grant Agreement n. 318627 DEMO @Co. NEXT Heidelberg m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015
Demonstration Outline n What demo is about q m. Plane software libraries n n n q Integration n q Capabilities, Specifications, Results Capability push, Specification pull HTTPs transport nodejs and python indipendent implementations HTTPs API, authentication GUI, CLI Reasoning m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 2
Architecture Overview m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 3
Demo components - Supervisor Active Capability Repository • • Specification Result Repository If a valid receipt is provided, give the result (if available) If no receipt is provided, return all available results • • Accept any valid certificate, signed by my root-ca • • m. Plane HTTP API GUI API (web server) m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 4 Cap push Spec pull
Demo components - Reasoner reasoner Samples analysis Network Topology graph Trigger/Retrive m. Plane Measures supervisor over Analyse Reasoning Samples Dump Status HTTPs http agent WEB GUI HTTP n Init phase q net. json net_status. json q q q n Build network topology graph Calculate SPTs (any to any) Discover available measures from supervisor Map measures on network graph Run phase q q q Iteratively run measures from usefull vantage points to any other points Keep Samples (circular array) per LAN (graph nodes) Periodically do stats and decide the status of a LAN m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 5
Clients n CLI client q q n Python Nodejs WEB based GUI q HTTP API extension m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 6
Demo architecture LAB WEB server Internet Video server Interconnection to host net Supervisor DHCP DATI Reasoner DNS WEB server Ping Empaired port NOT empaired port Tstat m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 … m. Plane service … NET service 7
Demo – integration Register Spec. Reg iste Pinger ult r re sult Supervisor Push. Pull cap. Spec. DATI Sh lt esu ter r s i g Re es wr o Show cap. Sho w resu lt Register Spec. m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 8
Demo – integration m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 9

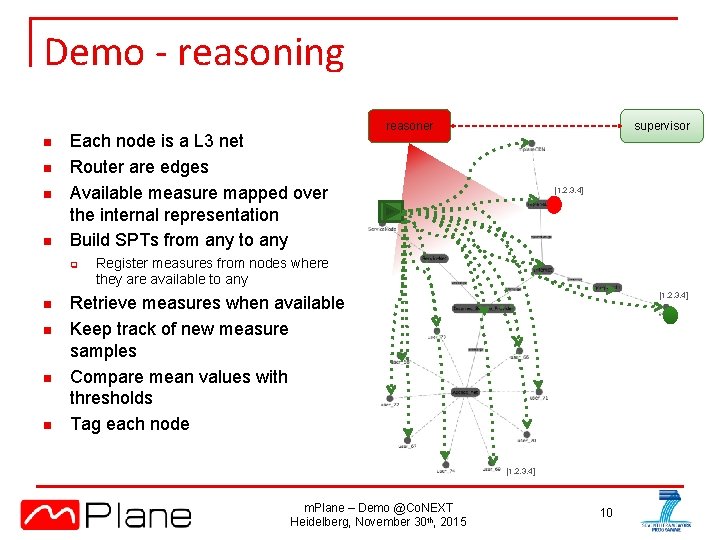

Demo - reasoning n n Each node is a L 3 net Router are edges Available measure mapped over the internal representation Build SPTs from any to any q n n reasoner supervisor [1, 2, 3, 4] Register measures from nodes where they are available to any [1, 2, 3, 4] Retrieve measures when available Keep track of new measure samples Compare mean values with thresholds Tag each node [1, 2, 3, 4] m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 10
Demo architecture LAB WEB server Internet Video server Interconnection to host net Error, degradation Supervisor DHCP DATI • User 1 and 2 experiencing problems • Error located on Internet Reasoner DNS WEB server Ping Empaired port NOT empaired port Tstat m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 … m. Plane service … NET service 11
Demo – reasoning m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 12
Q&A m. Plane – Demo @Co. NEXT Heidelberg, November 30 th, 2015 13
