LYNX CAD for FPGAbased NetworksonChip Mohamed Abdelfattah Vaughn
![LYNX: CAD for FPGA-based Networks-on-Chip Mohamed Abdelfattah Vaughn Betz LYNX: CAD for FPGA-based Networks-on-Chip Mohamed Abdelfattah Vaughn Betz](https://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-1.jpg)
LYNX: CAD for FPGA-based Networks-on-Chip Mohamed Abdelfattah Vaughn Betz
![System-level Interconnect Example Design FPGA DDRx Controller B A C D Memory To PCIe System-level Interconnect Example Design FPGA DDRx Controller B A C D Memory To PCIe](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-2.jpg)

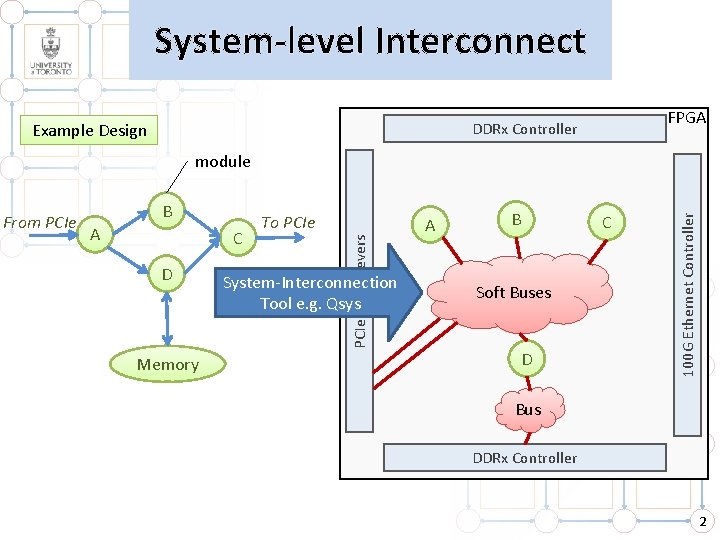

System-level Interconnect Example Design FPGA DDRx Controller B A C D Memory To PCIe Transcievers From PCIe System-Interconnection Tool e. g. Qsys A B C Soft Buses D 100 G Ethernet Controller module Bus DDRx Controller 2
![Embedded No. Cs DDRx Controller Embedded No. C on FPGA Ease Timing Closure (to Embedded No. Cs DDRx Controller Embedded No. C on FPGA Ease Timing Closure (to](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-3.jpg)

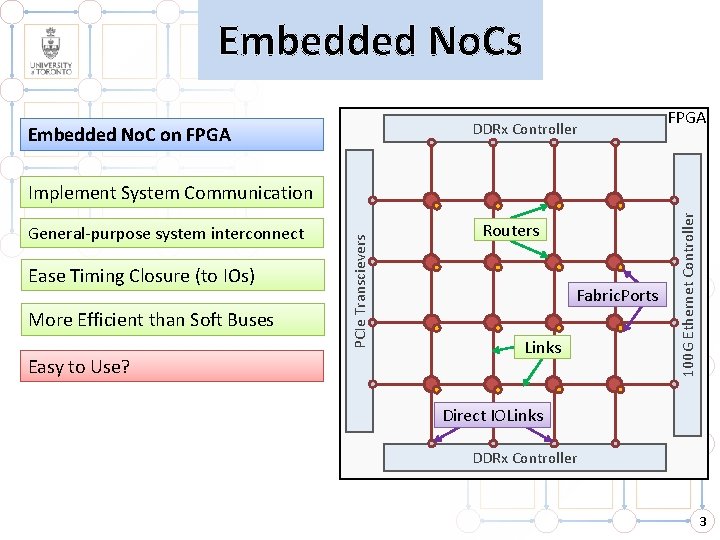

Embedded No. Cs DDRx Controller Embedded No. C on FPGA Ease Timing Closure (to IOs) More Efficient than Soft Buses Easy to Use? Routers Fabric. Ports Links 100 G Ethernet Controller General-purpose system interconnect PCIe Transcievers Implement System Communication Direct IOLinks DDRx Controller 3
![Embedded No. Cs DDRx Controller Embedded No. C on FPGA Ease Timing Closure (to Embedded No. Cs DDRx Controller Embedded No. C on FPGA Ease Timing Closure (to](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-4.jpg)
Embedded No. Cs DDRx Controller Embedded No. C on FPGA Ease Timing Closure (to IOs) More Efficient than Soft Buses Easy to Use? Routers Fabric. Ports Links 100 G Ethernet Controller General-purpose system interconnect PCIe Transcievers Implement System Communication Direct IOLinks DDRx Controller 4
![No. C Communication DDRx Controller Example Design A B A C D Memory To No. C Communication DDRx Controller Example Design A B A C D Memory To](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-5.jpg)

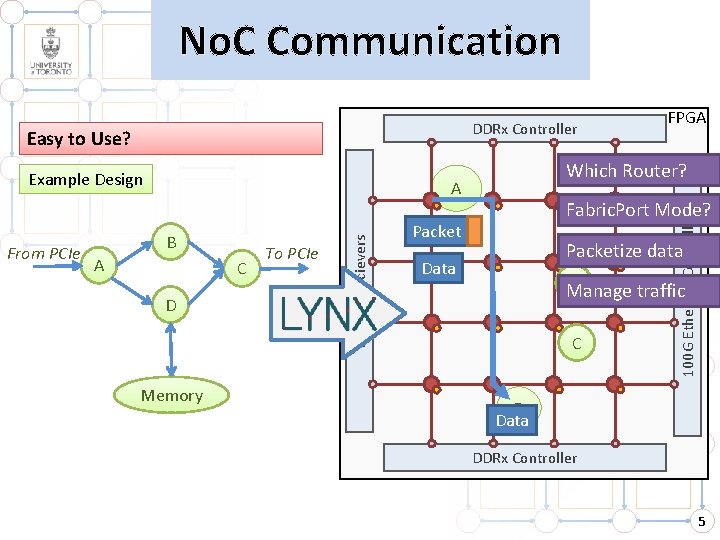

No. C Communication DDRx Controller Example Design A B A C D Memory To PCIe Transcievers From PCIe Which Router? Fabric. Port Mode? Packet 100 G Ethernet Controller Easy to Use? FPGA Packetize data Data B Manage traffic C D Data DDRx Controller 5
![LYNX CAD Flow Design A B C D No. C-based System No. C Architecture LYNX CAD Flow Design A B C D No. C-based System No. C Architecture](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-6.jpg)

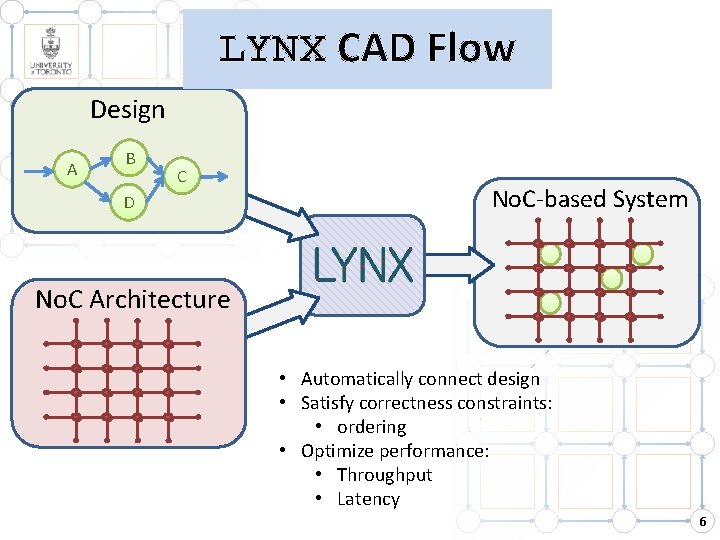

LYNX CAD Flow Design A B C D No. C-based System No. C Architecture • Automatically connect design • Satisfy correctness constraints: • ordering • Optimize performance: • Throughput • Latency 6
![Outline 1. LYNX CAD Flow How can we automate the use of No. Cs? Outline 1. LYNX CAD Flow How can we automate the use of No. Cs?](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-7.jpg)

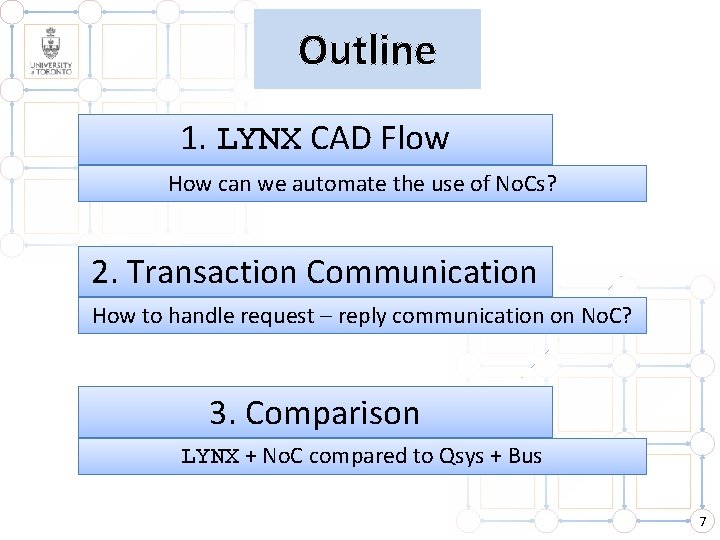

Outline 1. LYNX CAD Flow How can we automate the use of No. Cs? 2. Transaction Communication How to handle request – reply communication on No. C? 3. Comparison LYNX + No. C compared to Qsys + Bus 7
![Outline 1. LYNX CAD Flow How can we automate the use of No. Cs? Outline 1. LYNX CAD Flow How can we automate the use of No. Cs?](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-8.jpg)
Outline 1. LYNX CAD Flow How can we automate the use of No. Cs? 2. Transaction Communication How to handle request – reply communication on No. C? 3. Comparison LYNX + No. C compared to Qsys + Bus 8
![CAD Automatically connect application using No. C • Application’s communication description 9 CAD Automatically connect application using No. C • Application’s communication description 9](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-9.jpg)

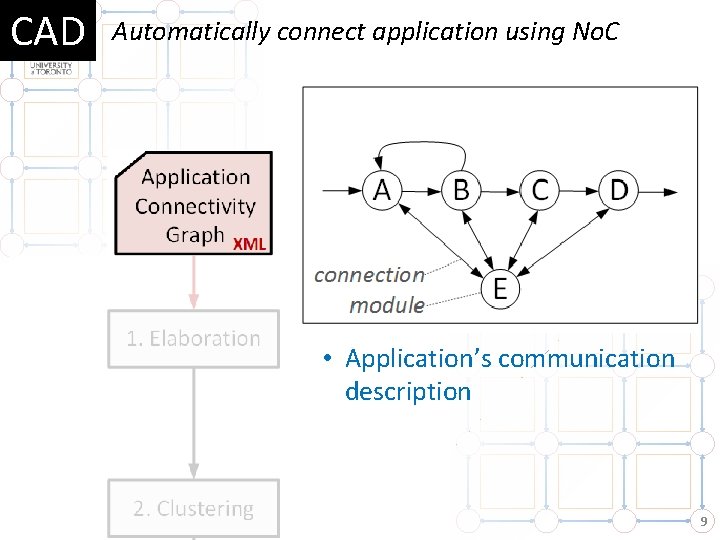

CAD Automatically connect application using No. C • Application’s communication description 9
![CAD • Classify connection into streaming or transaction 10 CAD • Classify connection into streaming or transaction 10](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-10.jpg)

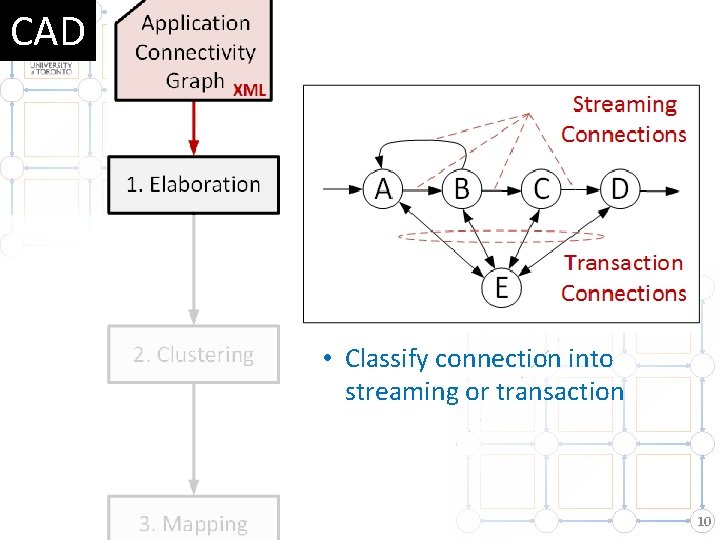

CAD • Classify connection into streaming or transaction 10
![CAD • Tarjan’s clustering algorithm • Cluster feedback loops to avoid stalls • Intra-cluster CAD • Tarjan’s clustering algorithm • Cluster feedback loops to avoid stalls • Intra-cluster](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-11.jpg)

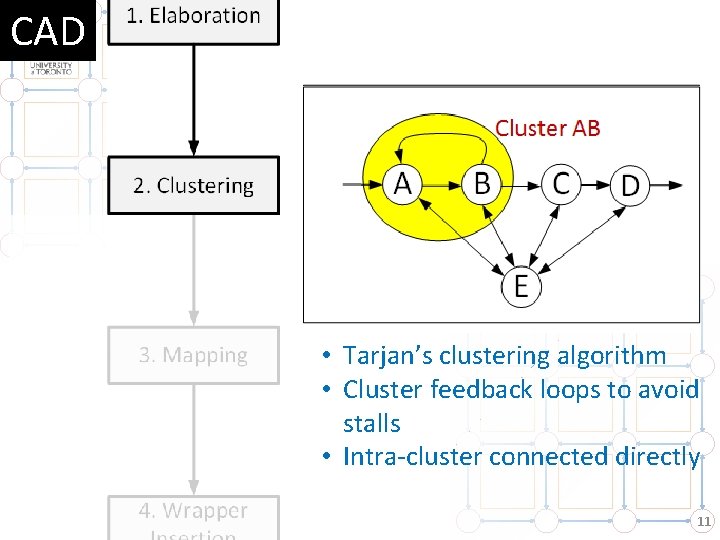

CAD • Tarjan’s clustering algorithm • Cluster feedback loops to avoid stalls • Intra-cluster connected directly 11
![CAD • Map modules and clusters to suitable locations on the No. C • CAD • Map modules and clusters to suitable locations on the No. C •](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-12.jpg)

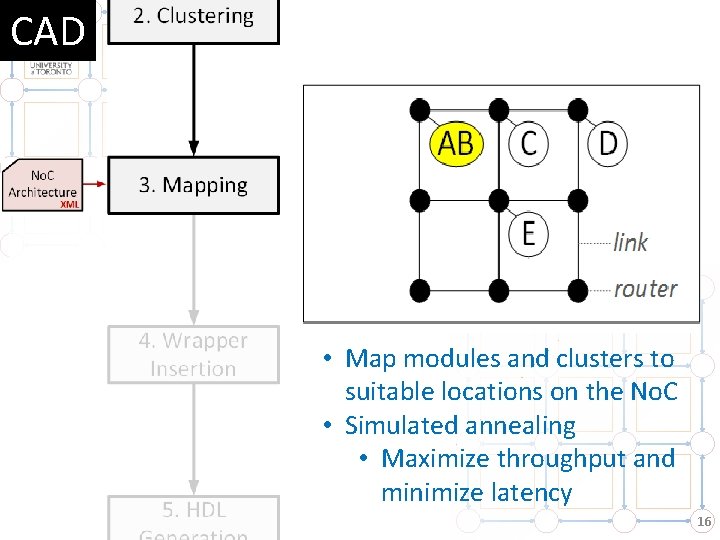

CAD • Map modules and clusters to suitable locations on the No. C • Simulated annealing • Maximize throughput and minimize latency 12
![No. C Mapping Routers = 16 DDRx Controller Width = 150 FPGA VCs = No. C Mapping Routers = 16 DDRx Controller Width = 150 FPGA VCs =](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-13.jpg)

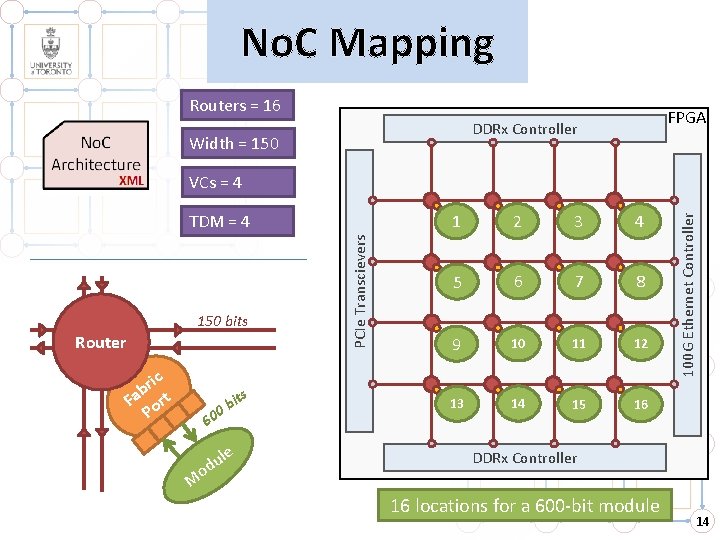

No. C Mapping Routers = 16 DDRx Controller Width = 150 FPGA VCs = 4 Router 1. 2 GHz ric b Fa ort P s it b 0 60 ~3 M 00 hz PCIe Transcievers 150 bits 100 G Ethernet Controller TDM = 4 DDRx Controller 13
![No. C Mapping Routers = 16 FPGA DDRx Controller Width = 150 bits Router No. C Mapping Routers = 16 FPGA DDRx Controller Width = 150 bits Router](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-14.jpg)
No. C Mapping Routers = 16 FPGA DDRx Controller Width = 150 bits Router ric b Fa ort P it b 0 60 le u od M s PCIe Transcievers TDM = 4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 100 G Ethernet Controller VCs = 4 DDRx Controller 16 locations for a 600 -bit module 14

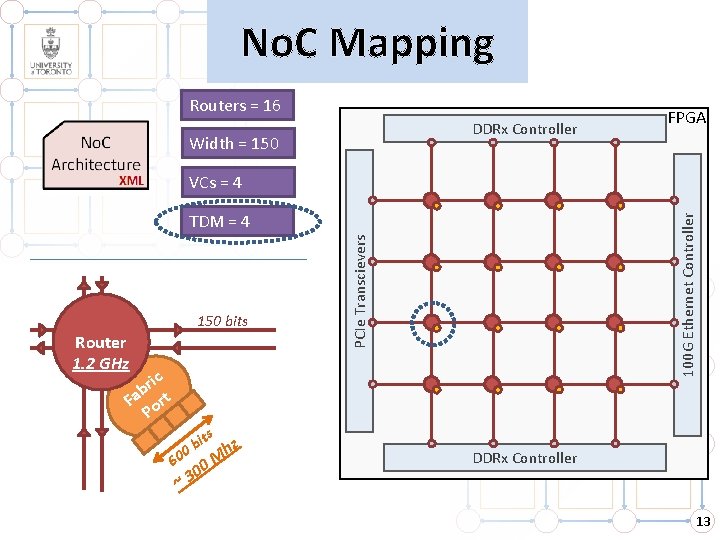

![No. C Mapping Routers = 16 DDRx Controller Width = 150 FPGA PCIe Transcievers No. C Mapping Routers = 16 DDRx Controller Width = 150 FPGA PCIe Transcievers](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-15.jpg)

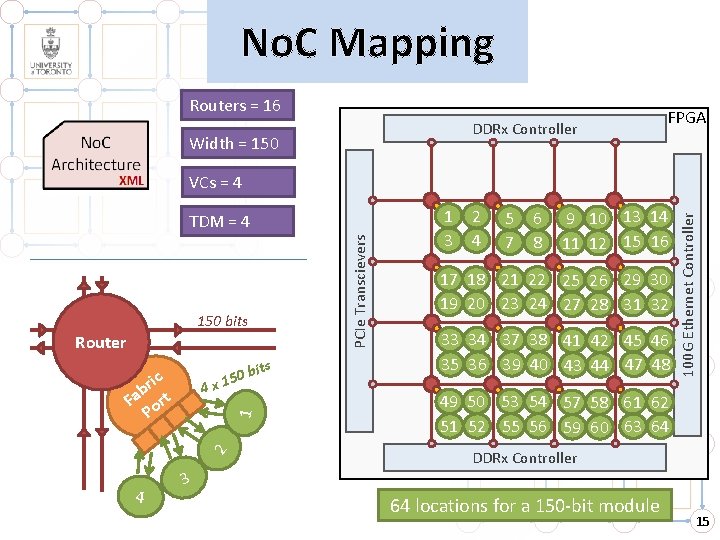

No. C Mapping Routers = 16 DDRx Controller Width = 150 FPGA PCIe Transcievers TDM = 4 150 bits Router 0 bi 5 1 4 x 2 1 ric b Fa ort P 4 ts 1 3 2 4 5 7 6 8 9 10 13 14 11 12 15 16 17 18 21 22 25 26 29 30 19 20 23 24 27 28 31 32 33 34 37 38 41 42 45 46 35 36 39 40 43 44 47 48 100 G Ethernet Controller VCs = 4 49 50 53 54 57 58 61 62 51 52 55 56 59 60 63 64 DDRx Controller 3 64 locations for a 150 -bit module 15
![CAD • Map modules and clusters to suitable locations on the No. C • CAD • Map modules and clusters to suitable locations on the No. C •](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-16.jpg)
CAD • Map modules and clusters to suitable locations on the No. C • Simulated annealing • Maximize throughput and minimize latency 16
![CAD • Soft logic wrappers between module and router • Packetize data (simple) • CAD • Soft logic wrappers between module and router • Packetize data (simple) •](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-17.jpg)

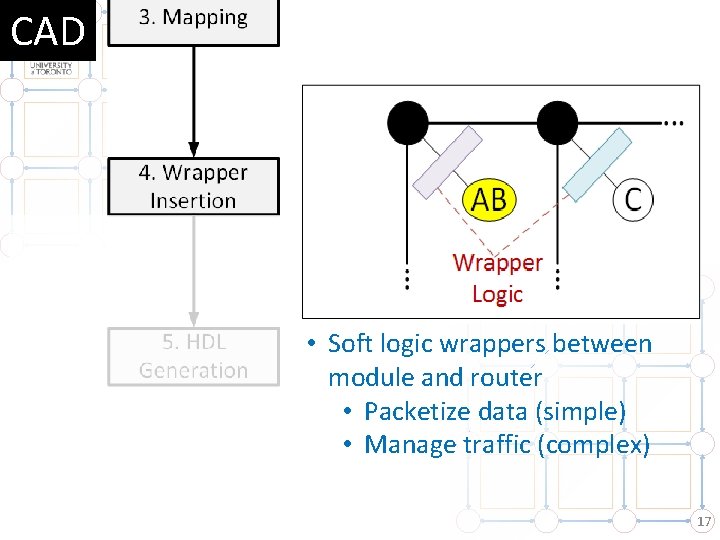

CAD • Soft logic wrappers between module and router • Packetize data (simple) • Manage traffic (complex) 17
![CAD • Analyze throughput and latency in No. C • Estimate frequency 18 CAD • Analyze throughput and latency in No. C • Estimate frequency 18](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-18.jpg)

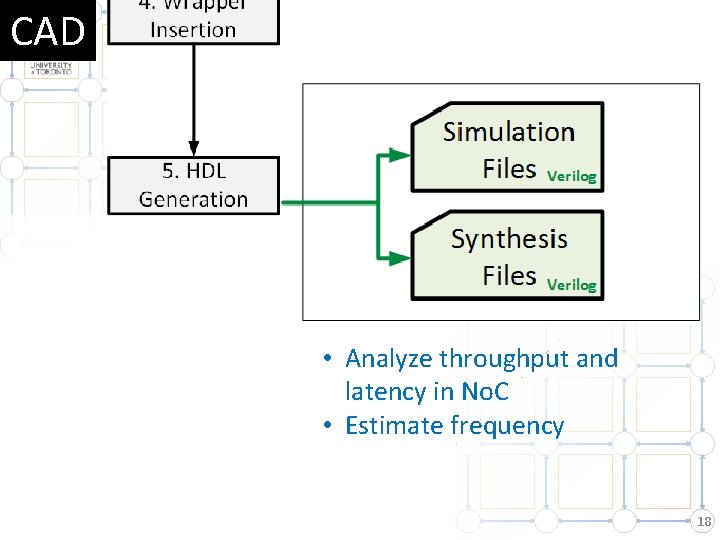

CAD • Analyze throughput and latency in No. C • Estimate frequency 18
![CAD • Java • Open-source • Available at: eecg. utoronto. ca/~mohamed/lynx Supports all features CAD • Java • Open-source • Available at: eecg. utoronto. ca/~mohamed/lynx Supports all features](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-19.jpg)

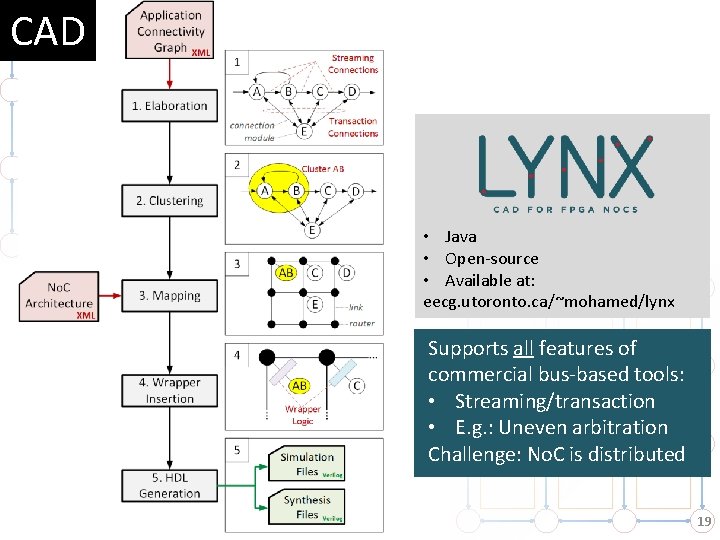

CAD • Java • Open-source • Available at: eecg. utoronto. ca/~mohamed/lynx Supports all features of commercial bus-based tools: • Streaming/transaction • E. g. : Uneven arbitration Challenge: No. C is distributed 19
![Outline 1. LYNX CAD Flow How can we automate the use of No. Cs? Outline 1. LYNX CAD Flow How can we automate the use of No. Cs?](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-20.jpg)

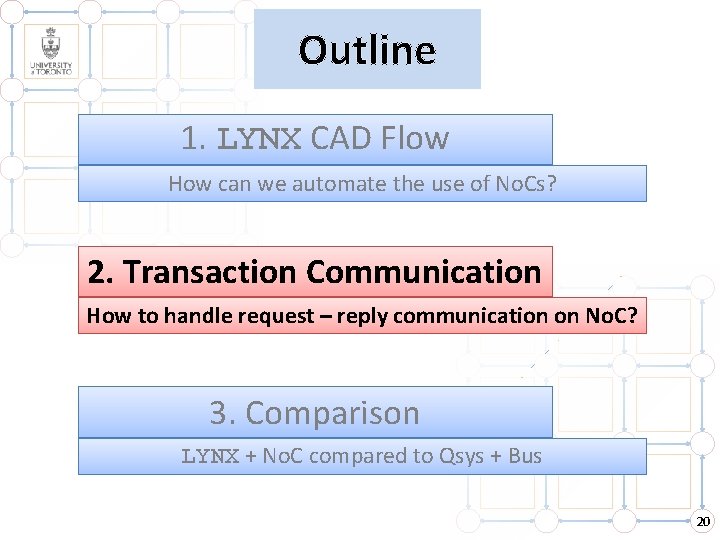

Outline 1. LYNX CAD Flow How can we automate the use of No. Cs? 2. Transaction Communication How to handle request – reply communication on No. C? 3. Comparison LYNX + No. C compared to Qsys + Bus 20
![Streaming Communication Streaming communication Point-to-point LYNX automatically generates translators data valid packet 5 ready Streaming Communication Streaming communication Point-to-point LYNX automatically generates translators data valid packet 5 ready](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-21.jpg)

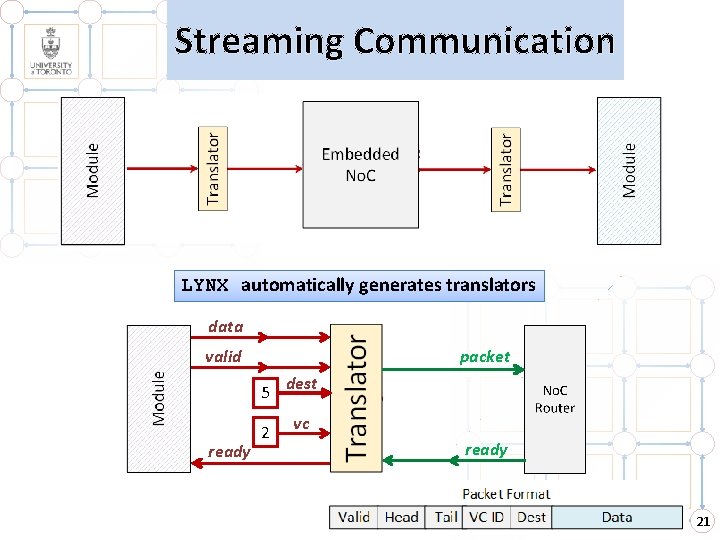

Streaming Communication Streaming communication Point-to-point LYNX automatically generates translators data valid packet 5 ready 2 dest vc ready 21
![Transaction Communication 22 Transaction Communication 22](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-22.jpg)

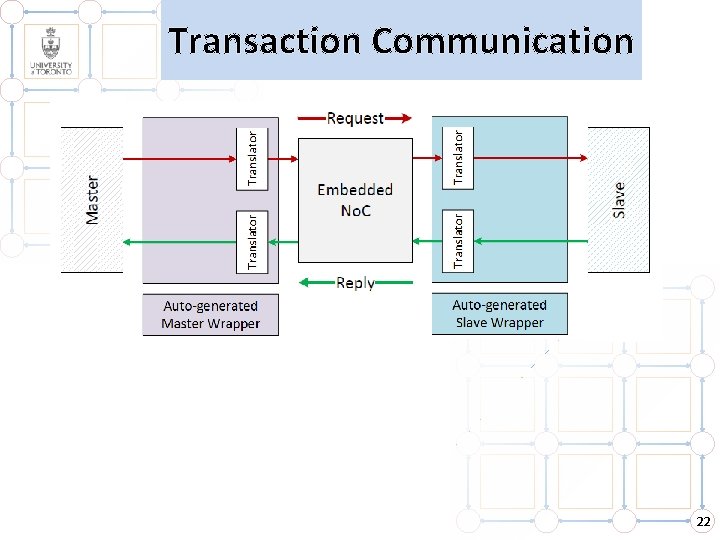

Transaction Communication 22
![Transaction Communication Request Return Address Reply Response Unit • Simple FIFO • Buffers return Transaction Communication Request Return Address Reply Response Unit • Simple FIFO • Buffers return](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-23.jpg)

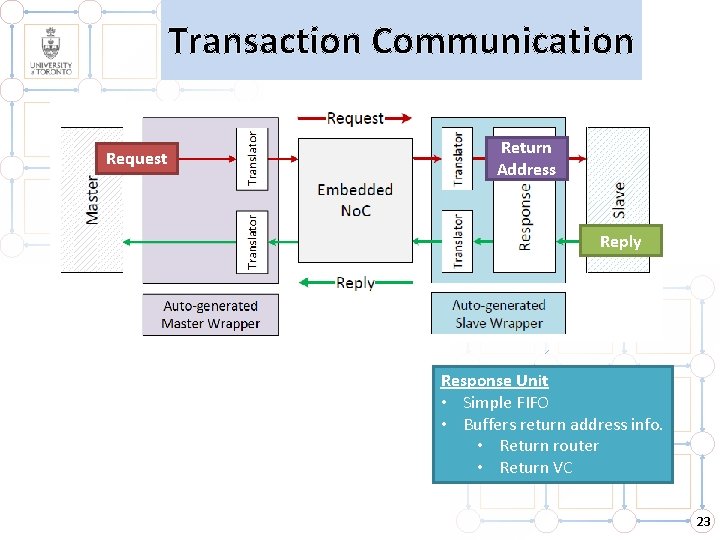

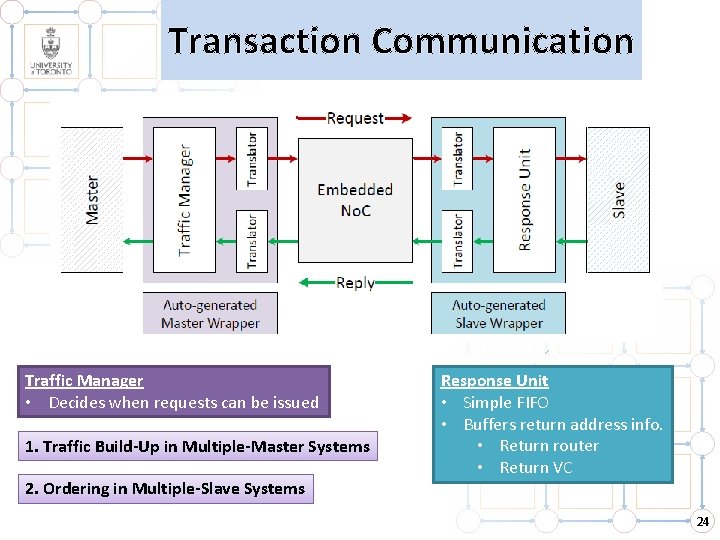

Transaction Communication Request Return Address Reply Response Unit • Simple FIFO • Buffers return address info. • Return router • Return VC 23
![Transaction Communication Traffic Manager • Decides when requests can be issued 1. Traffic Build-Up Transaction Communication Traffic Manager • Decides when requests can be issued 1. Traffic Build-Up](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-24.jpg)
Transaction Communication Traffic Manager • Decides when requests can be issued 1. Traffic Build-Up in Multiple-Master Systems 2. Ordering in Multiple-Slave Systems Response Unit • Simple FIFO • Buffers return address info. • Return router • Return VC 24
![Multiple-Master Systems Master 1 Master 2 Master 3 Slave E. g. : Memory 25 Multiple-Master Systems Master 1 Master 2 Master 3 Slave E. g. : Memory 25](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-25.jpg)

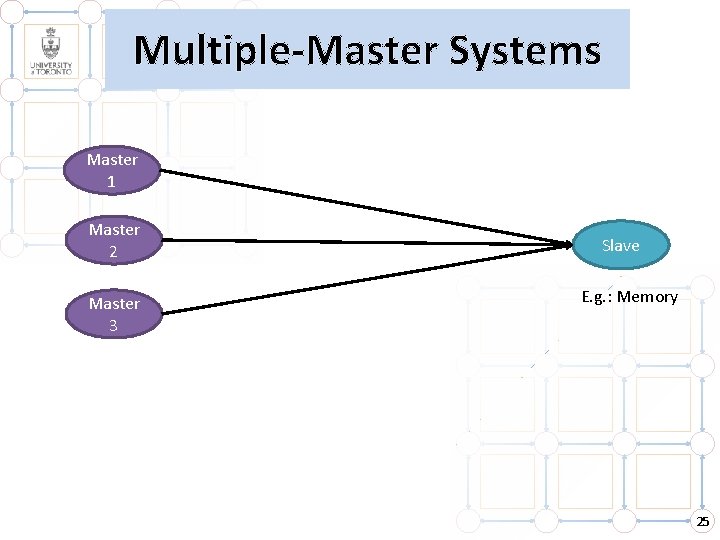

Multiple-Master Systems Master 1 Master 2 Master 3 Slave E. g. : Memory 25
![Multiple-Master Systems Master 1 Master 2 Slave Master 3 Buffering Switching 26 Multiple-Master Systems Master 1 Master 2 Slave Master 3 Buffering Switching 26](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-26.jpg)

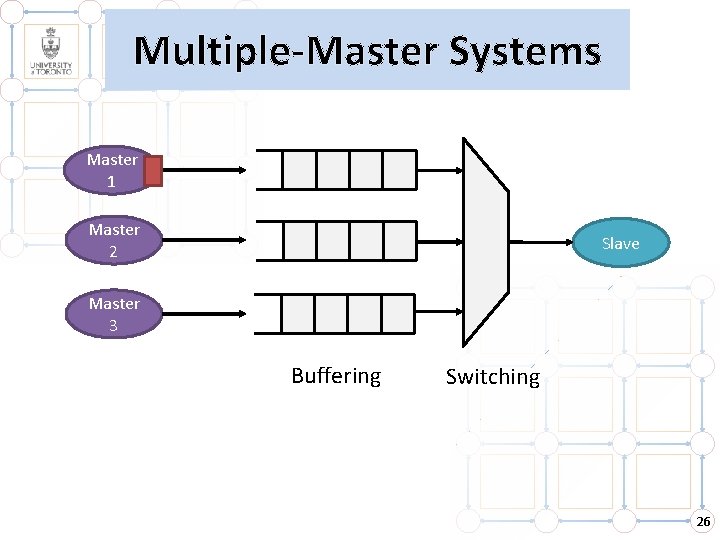

Multiple-Master Systems Master 1 Master 2 Slave Master 3 Buffering Switching 26
![Multiple-Master Systems Master 1 Master 2 Slave Master 3 Buffering Switching 27 Multiple-Master Systems Master 1 Master 2 Slave Master 3 Buffering Switching 27](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-27.jpg)

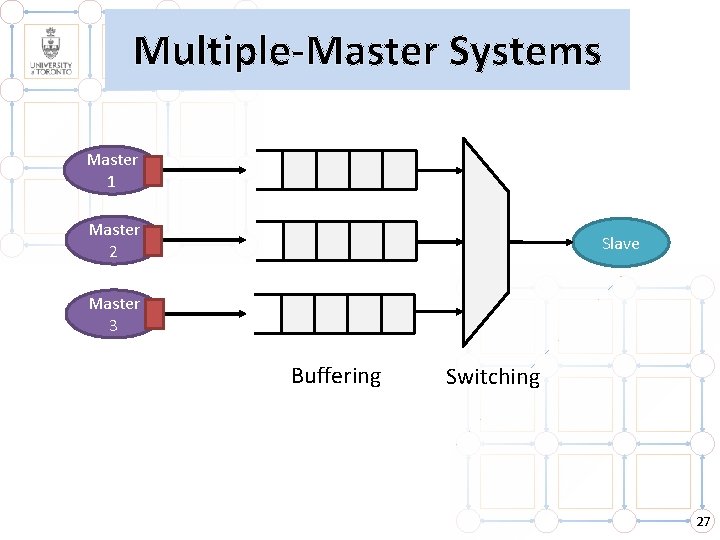

Multiple-Master Systems Master 1 Master 2 Slave Master 3 Buffering Switching 27
![Multiple-Master Systems Traffic Build-Up Master 1 Master 2 Slave Master 3 • Requests accumulate Multiple-Master Systems Traffic Build-Up Master 1 Master 2 Slave Master 3 • Requests accumulate](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-28.jpg)

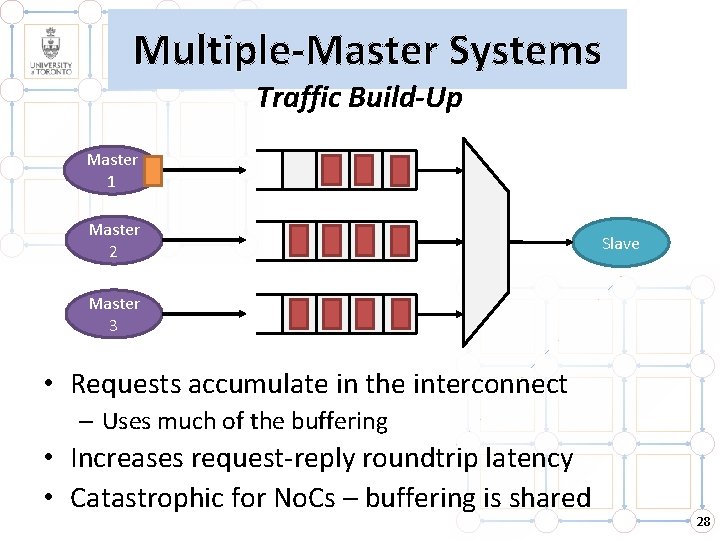

Multiple-Master Systems Traffic Build-Up Master 1 Master 2 Slave Master 3 • Requests accumulate in the interconnect – Uses much of the buffering • Increases request-reply roundtrip latency • Catastrophic for No. Cs – buffering is shared 28
![Multiple-Master Systems Traffic Build-Up Master 1 A Master 2 Master 3 Slave B • Multiple-Master Systems Traffic Build-Up Master 1 A Master 2 Master 3 Slave B •](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-29.jpg)

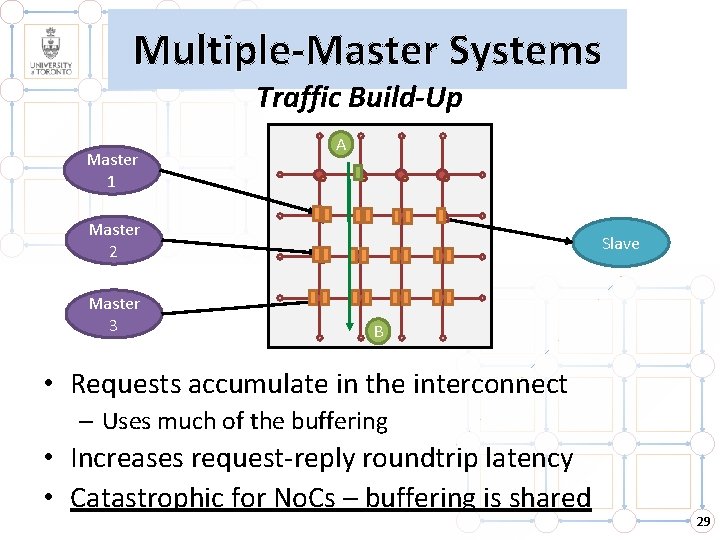

Multiple-Master Systems Traffic Build-Up Master 1 A Master 2 Master 3 Slave B • Requests accumulate in the interconnect – Uses much of the buffering • Increases request-reply roundtrip latency • Catastrophic for No. Cs – buffering is shared 29
![Multiple-Master Systems Credits Traffic Manager Master 1 Credits Master 2 Credits Master 3 Credits Multiple-Master Systems Credits Traffic Manager Master 1 Credits Master 2 Credits Master 3 Credits](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-30.jpg)

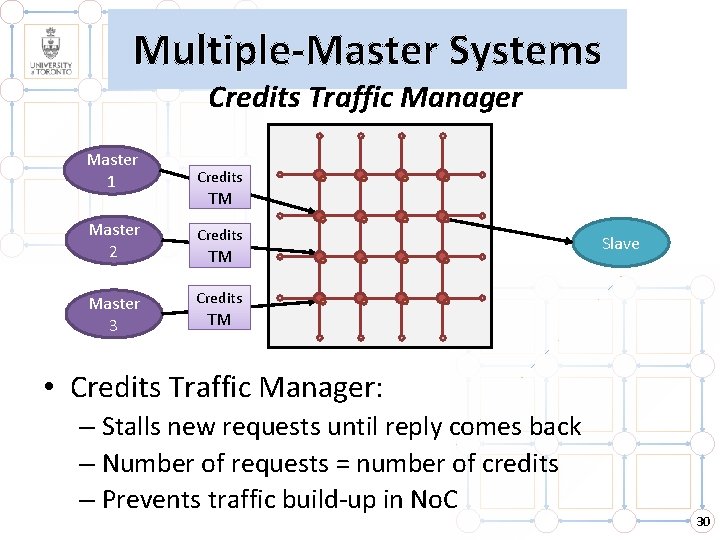

Multiple-Master Systems Credits Traffic Manager Master 1 Credits Master 2 Credits Master 3 Credits TM TM Slave TM • Credits Traffic Manager: – Stalls new requests until reply comes back – Number of requests = number of credits – Prevents traffic build-up in No. C 30
![Credits Traffic Manager stall 3 21 0 • Stalls new requests until reply comes Credits Traffic Manager stall 3 21 0 • Stalls new requests until reply comes](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-31.jpg)

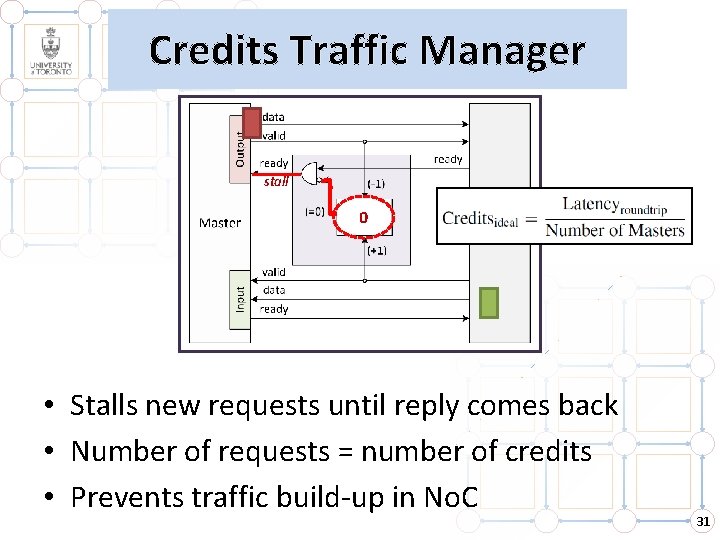

Credits Traffic Manager stall 3 21 0 • Stalls new requests until reply comes back • Number of requests = number of credits • Prevents traffic build-up in No. C 31
![Latency 70 Latency [Clock Cycles] 60 50 Without credits traffic manager 40 With credits Latency 70 Latency [Clock Cycles] 60 50 Without credits traffic manager 40 With credits](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-32.jpg)

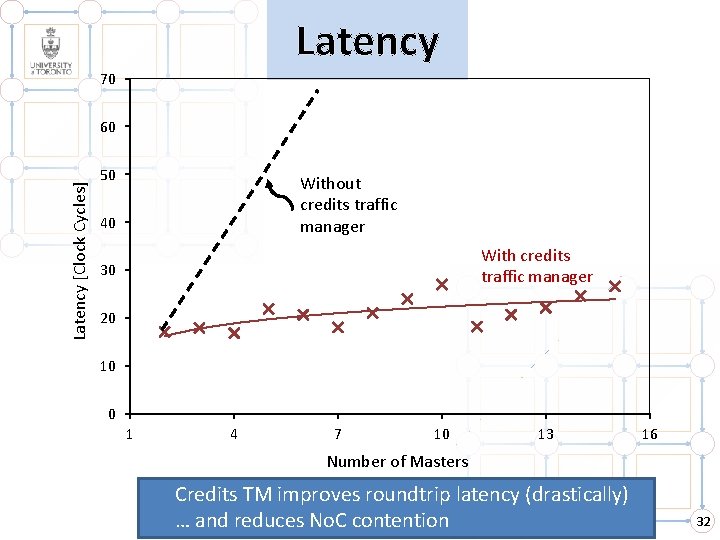

Latency 70 Latency [Clock Cycles] 60 50 Without credits traffic manager 40 With credits traffic manager 30 20 10 0 1 4 7 10 13 16 Number of Masters Credits TM improves roundtrip latency (drastically) … and reduces No. C contention 32
![Ordering in Multiple-Slave Systems Slave 1 Reply 1 Master Request 21 Slave 2 Reply Ordering in Multiple-Slave Systems Slave 1 Reply 1 Master Request 21 Slave 2 Reply](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-33.jpg)

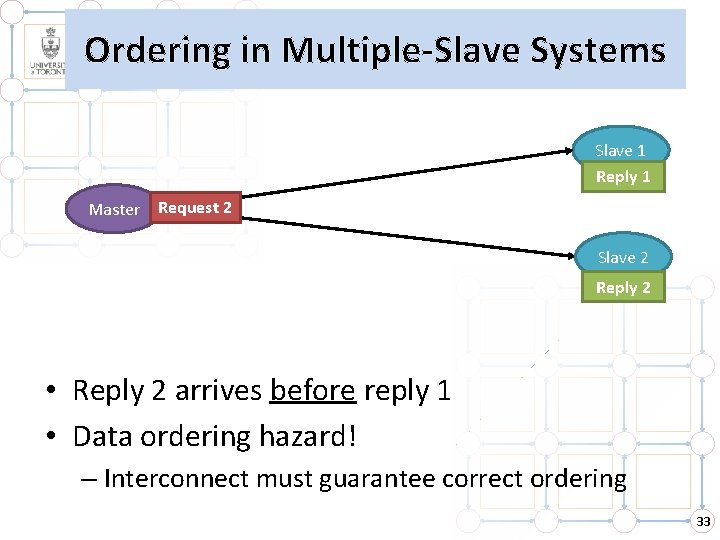

Ordering in Multiple-Slave Systems Slave 1 Reply 1 Master Request 21 Slave 2 Reply 2 • Reply 2 arrives before reply 1 • Data ordering hazard! – Interconnect must guarantee correct ordering 33
![1. Stall Traffic Manager Stop request Allow request 2! 2 Master Request 21 Stall 1. Stall Traffic Manager Stop request Allow request 2! 2 Master Request 21 Stall](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-34.jpg)

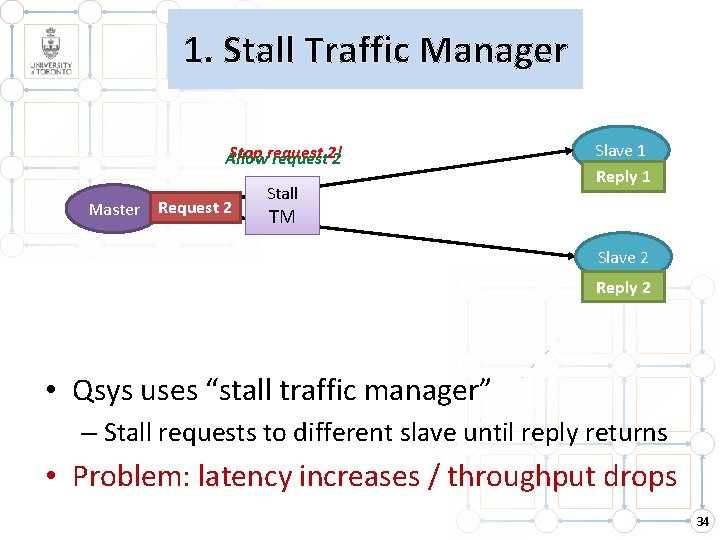

1. Stall Traffic Manager Stop request Allow request 2! 2 Master Request 21 Stall Slave 1 Reply 1 TM Slave 2 Reply 2 • Qsys uses “stall traffic manager” – Stall requests to different slave until reply returns • Problem: latency increases / throughput drops 34
![2. VC Traffic Manager Buffer replies in No. C Allow reply 1 2 Master 2. VC Traffic Manager Buffer replies in No. C Allow reply 1 2 Master](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-35.jpg)

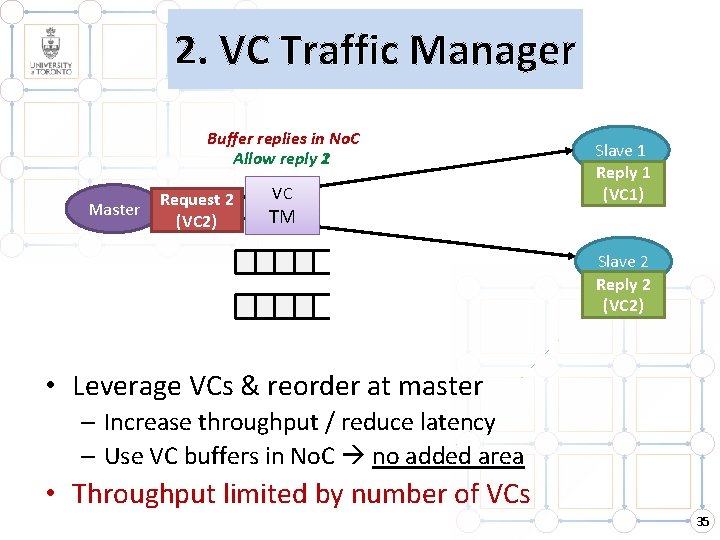

2. VC Traffic Manager Buffer replies in No. C Allow reply 1 2 Master Request 21 (VC 2) (VC 1) VC TM Slave 1 Reply 1 (VC 1) Slave 2 Reply 2 (VC 2) • Leverage VCs & reorder at master – Increase throughput / reduce latency – Use VC buffers in No. C no added area • Throughput limited by number of VCs 35
![3. ROB Traffic Manager Buffer replies in RAM Master Slave 1 ROB TM BRAM 3. ROB Traffic Manager Buffer replies in RAM Master Slave 1 ROB TM BRAM](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-36.jpg)

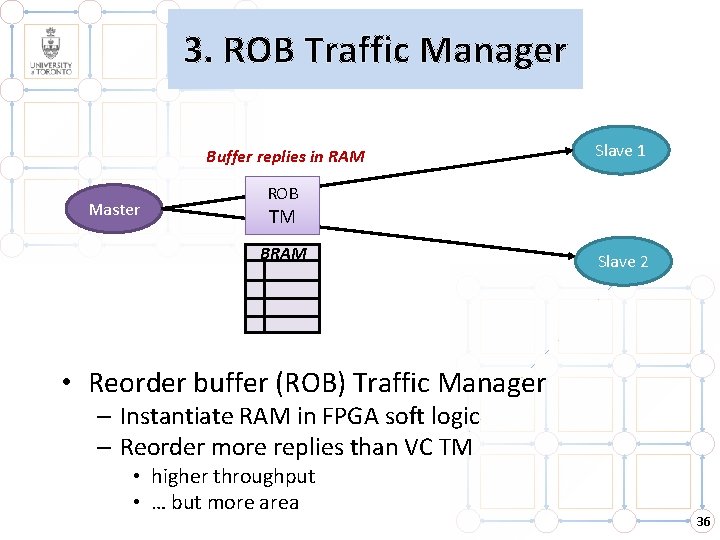

3. ROB Traffic Manager Buffer replies in RAM Master Slave 1 ROB TM BRAM Slave 2 • Reorder buffer (ROB) Traffic Manager – Instantiate RAM in FPGA soft logic – Reorder more replies than VC TM • higher throughput • … but more area 36
![Three Traffic Managers for Ordering Performance Throughput [Requests/Cycle] 1, 2 1 0, 8 0, Three Traffic Managers for Ordering Performance Throughput [Requests/Cycle] 1, 2 1 0, 8 0,](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-37.jpg)
Three Traffic Managers for Ordering Performance Throughput [Requests/Cycle] 1, 2 1 0, 8 0, 6 0, 4 LYNX No. C (ROB) 0, 2 LYNX No. C (Stall) 0 0 5 10 15 Number of Consecutive Requests to Each Slave 20 Depending on traffic VC or ROB TM 37
![Three Traffic Managers for Ordering Performance Throughput [Requests/Cycle] 1, 2 1 0, 8 Qsys Three Traffic Managers for Ordering Performance Throughput [Requests/Cycle] 1, 2 1 0, 8 Qsys](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-38.jpg)

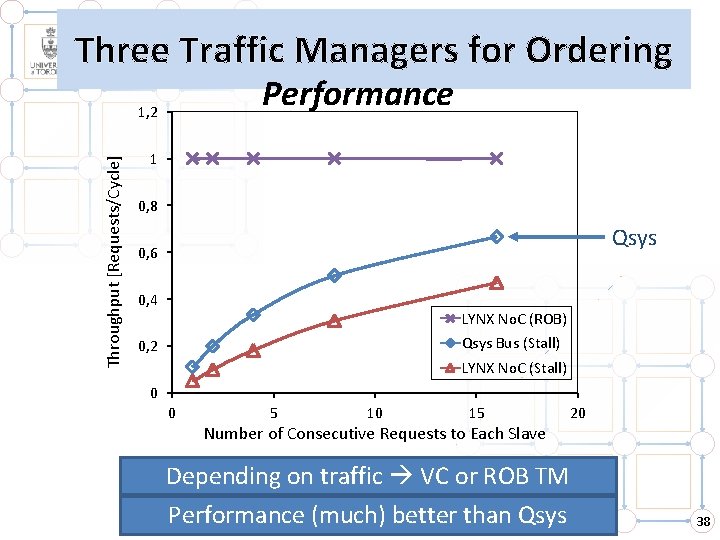

Three Traffic Managers for Ordering Performance Throughput [Requests/Cycle] 1, 2 1 0, 8 Qsys 0, 6 0, 4 LYNX No. C (ROB) Qsys Bus (Stall) 0, 2 LYNX No. C (Stall) 0 0 5 10 15 Number of Consecutive Requests to Each Slave 20 Depending on traffic VC or ROB TM Performance (much) better than Qsys 38
![Outline 1. LYNX CAD Flow How can we automate the use of No. Cs? Outline 1. LYNX CAD Flow How can we automate the use of No. Cs?](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-39.jpg)

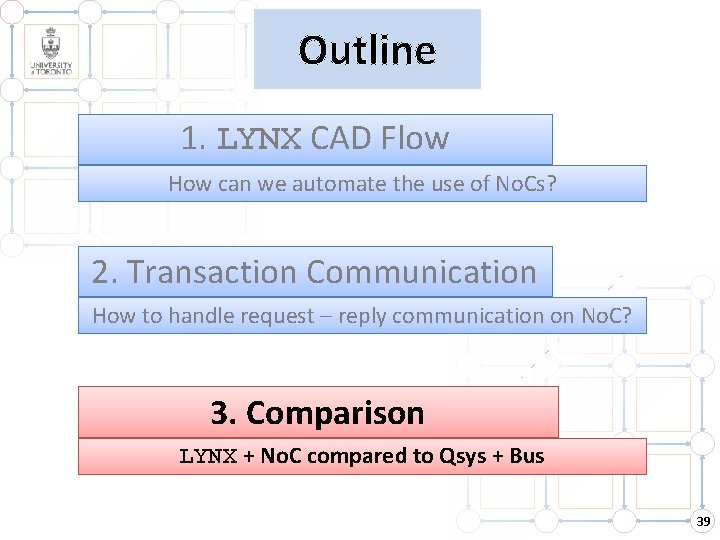

Outline 1. LYNX CAD Flow How can we automate the use of No. Cs? 2. Transaction Communication How to handle request – reply communication on No. C? 3. Comparison LYNX + No. C compared to Qsys + Bus 39
![Frequency LYNX No. C System Frequency ~1. 5 X higher with Embedded No. C Frequency LYNX No. C System Frequency ~1. 5 X higher with Embedded No. C](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-40.jpg)

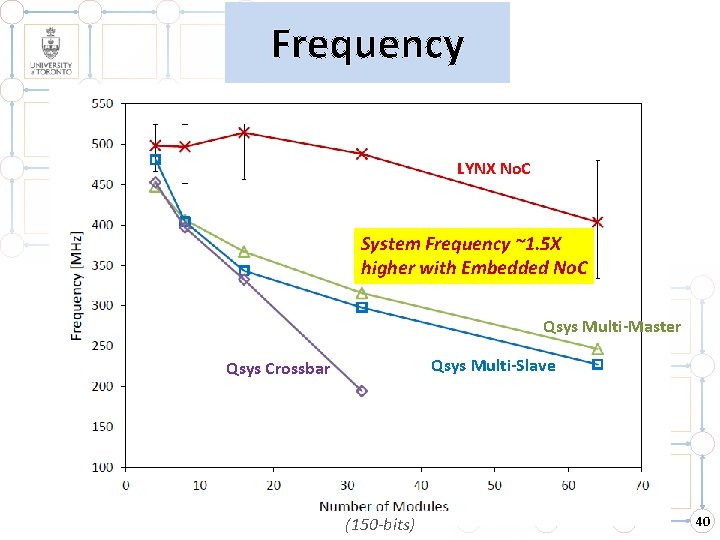

Frequency LYNX No. C System Frequency ~1. 5 X higher with Embedded No. C Qsys Multi-Master Qsys Multi-Slave Qsys Crossbar (150 -bits) 40
![Area Largest Stratix-V ar b s s o s Cr 100 i-Slave Qsys Mult Area Largest Stratix-V ar b s s o s Cr 100 i-Slave Qsys Mult](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-41.jpg)

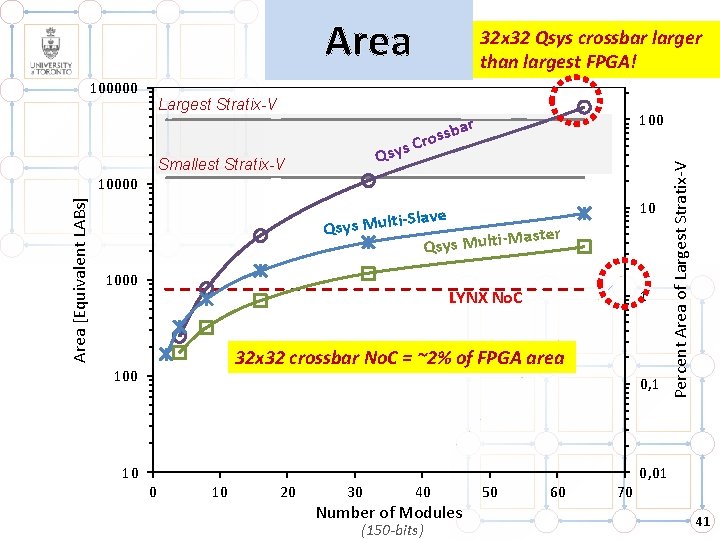

Area Largest Stratix-V ar b s s o s Cr 100 i-Slave Qsys Mult Master ilt u M s y s Q 10 Qsy Smallest Stratix-V Area [Equivalent LABs] 10000 1 LYNX No. C 32 x 32 crossbar No. C = ~2% of FPGA area 100 0, 1 10 Percent Area of Largest Stratix-V 100000 32 x 32 Qsys crossbar larger than largest FPGA! 0, 01 0 10 20 30 40 Number of Modules (150 -bits) 50 60 70 41
![Summary 1. LYNX CAD Flow CAD flow steps to automatically connect Design to No. Summary 1. LYNX CAD Flow CAD flow steps to automatically connect Design to No.](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-42.jpg)
Summary 1. LYNX CAD Flow CAD flow steps to automatically connect Design to No. C 2. Transaction Communication Traffic-build up in Multiple-master Ordering in Multiple-slave 3. Area/Frequency Comparison ~1. 5 X higher system frequency Up to 78 X less area 42
![Future Work • “Mimic” Benchmarking – Standard way to compare interconnects – Use graphs Future Work • “Mimic” Benchmarking – Standard way to compare interconnects – Use graphs](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-43.jpg)

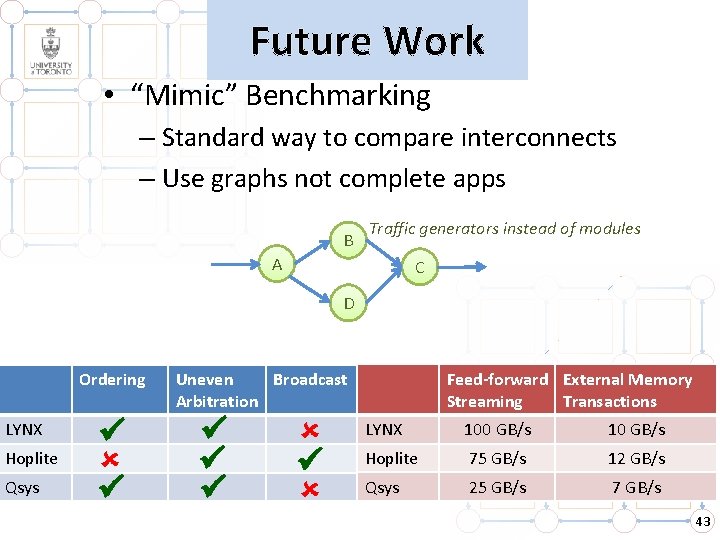

Future Work • “Mimic” Benchmarking – Standard way to compare interconnects – Use graphs not complete apps B Traffic generators instead of modules A C D Ordering LYNX Hoplite Qsys Feed-forward External Memory Streaming Transactions Uneven Broadcast Arbitration LYNX 100 GB/s 10 GB/s Hoplite 75 GB/s 12 GB/s Qsys 25 GB/s 7 GB/s 43
![Thank You! 44 Thank You! 44](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-44.jpg)
Thank You! 44
![Three Traffic Managers for Ordering Area [Equivalent LABs] 45 40 ROB TM VC TM Three Traffic Managers for Ordering Area [Equivalent LABs] 45 40 ROB TM VC TM](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-45.jpg)

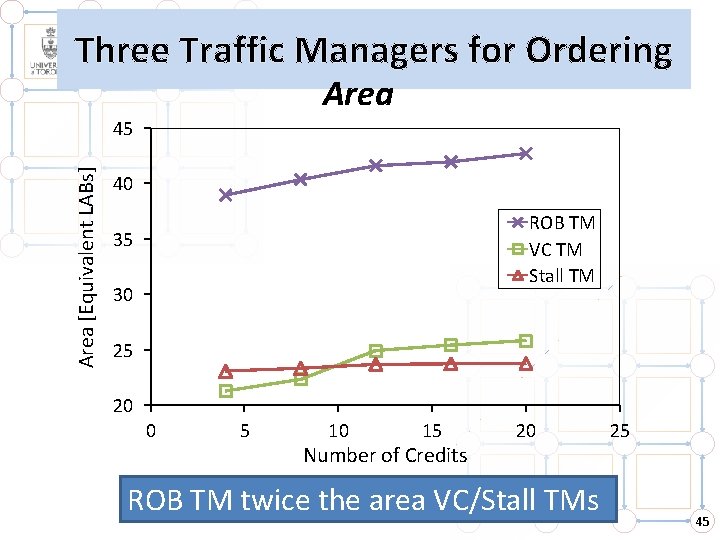

Three Traffic Managers for Ordering Area [Equivalent LABs] 45 40 ROB TM VC TM Stall TM 35 30 25 20 0 5 10 15 Number of Credits 20 ROB TM twice the area VC/Stall TMs 25 45
![Future Work • “Mimic” Benchmarking – Application graphs to evaluate and compare different interconnects Future Work • “Mimic” Benchmarking – Application graphs to evaluate and compare different interconnects](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-46.jpg)

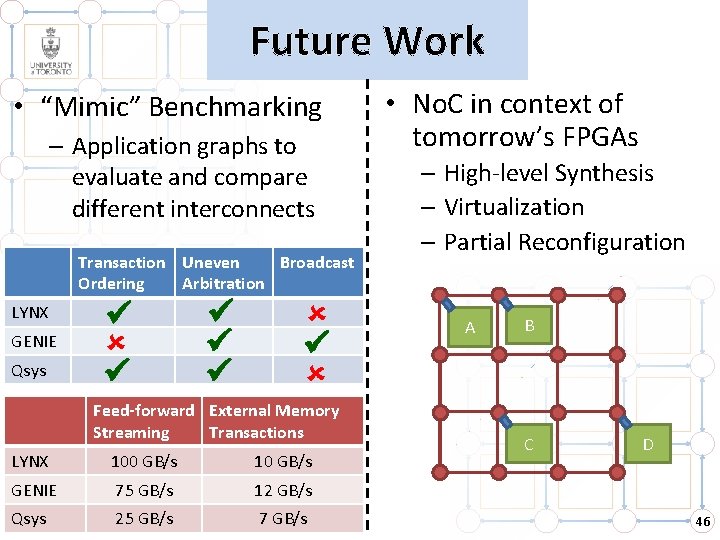

Future Work • “Mimic” Benchmarking – Application graphs to evaluate and compare different interconnects Transaction Uneven Broadcast Ordering Arbitration LYNX GENIE Qsys • No. C in context of tomorrow’s FPGAs – High-level Synthesis – Virtualization – Partial Reconfiguration A B Feed-forward External Memory Streaming Transactions LYNX 100 GB/s 10 GB/s GENIE 75 GB/s 12 GB/s Qsys 25 GB/s 7 GB/s C D 46
![Latency 70 Qsys Bus (with clock crossing) Qsys Bus (no clock crossing) LYNX No. Latency 70 Qsys Bus (with clock crossing) Qsys Bus (no clock crossing) LYNX No.](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-47.jpg)

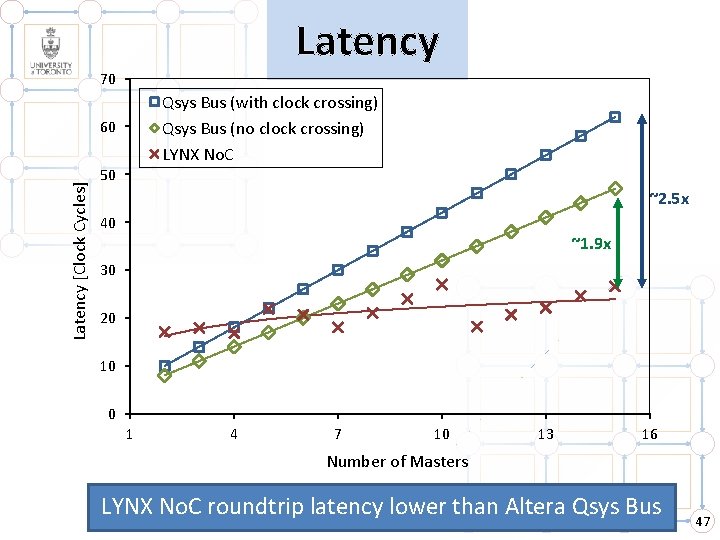

Latency 70 Qsys Bus (with clock crossing) Qsys Bus (no clock crossing) LYNX No. C Latency [Clock Cycles] 60 50 ~2. 5 x 40 ~1. 9 x 30 20 10 0 1 4 7 10 13 16 Number of Masters LYNX No. C roundtrip latency lower than Altera Qsys Bus 47
![48 48](http://slidetodoc.com/presentation_image_h2/a7cbc0177f0dcde000e31a5592a02d18/image-48.jpg)

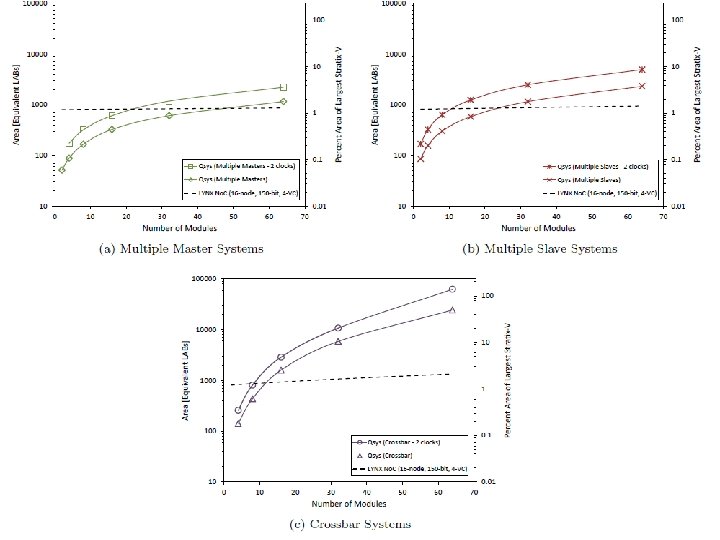

48
