Lymph node fine needle aspirates reveal germinal centers as predictors of HIV trimer-induced neutralizing

Lymph node fine needle aspirates reveal germinal centers as predictors of HIV trimer-induced neutralizing antibodies Colin Havenar-Daughton Laboratory of Shane Crotty La Jolla Institute for Allergy and Immunology IAS 2017 July 24, 2017

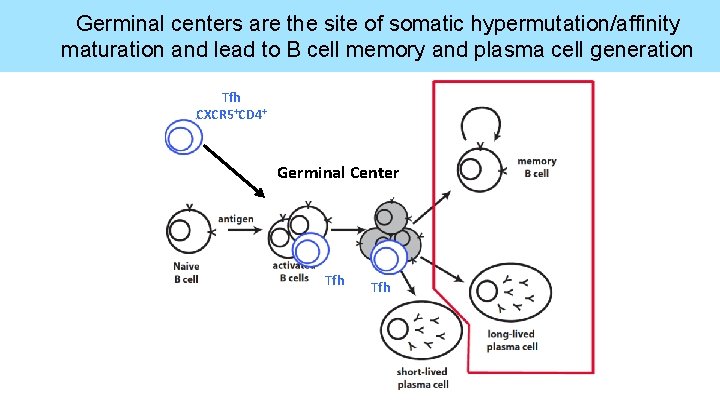

Germinal centers are the site of somatic hypermutation/affinity maturation and lead to B cell

Germinal centers are the site of somatic hypermutation/affinity maturation and lead to B cell memory and plasma cell generation Tfh CXCR 5+CD 4+ Germinal Center Tfh CXCR 5

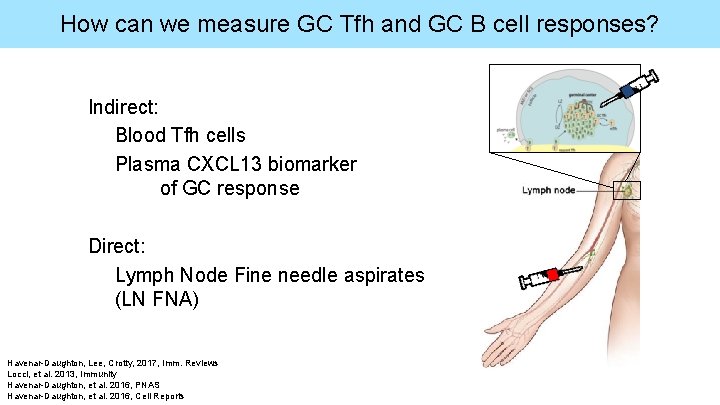

How can we measure GC Tfh and GC B cell responses? Indirect: Blood Tfh

How can we measure GC Tfh and GC B cell responses? Indirect: Blood Tfh cells Plasma CXCL 13 biomarker of GC response Direct: Lymph Node Fine needle aspirates (LN FNA) Havenar-Daughton, Lee, Crotty, 2017, Imm. Reviews Locci, et al. 2013, Immunity Havenar-Daughton, et al. 2016, PNAS Havenar-Daughton, et al. 2016, Cell Reports

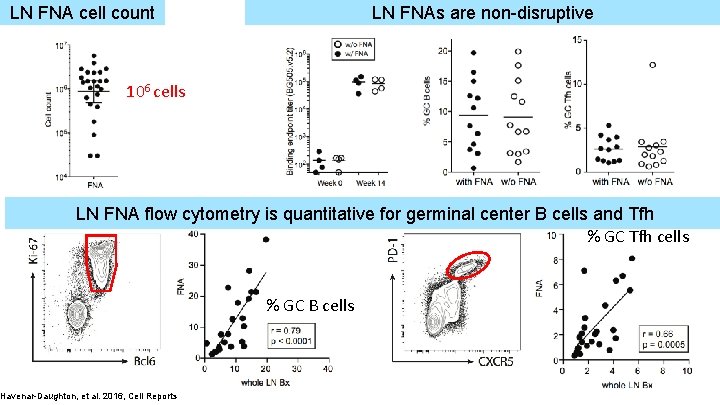

LN FNA cell count LN FNAs are non-disruptive 106 cells FNA flow cytometry is

LN FNA cell count LN FNAs are non-disruptive 106 cells FNA flow cytometry is quantitative for germinal center B cells and Tfh GCLN B cells GC Tfh cells % GC Tfh cells Havenar-Daughton, et al. 2016, Cell Reports % GC B cells

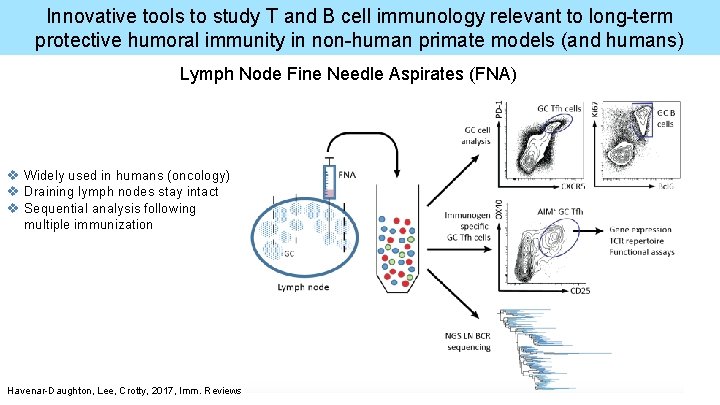

Innovative tools to study T and B cell immunology relevant to long-term protective humoral

Innovative tools to study T and B cell immunology relevant to long-term protective humoral immunity in non-human primate models (and humans) Lymph Node Fine Needle Aspirates (FNA) v Widely used in humans (oncology) v Draining lymph nodes stay intact v Sequential analysis following multiple immunization Havenar-Daughton, Lee, Crotty, 2017, Imm. Reviews

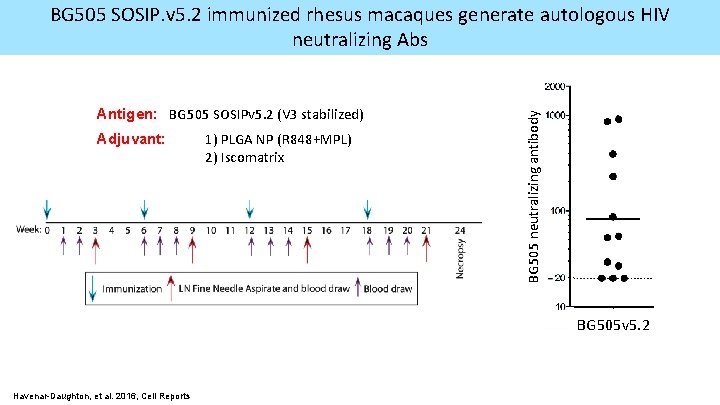

Antigen: BG 505 SOSIPv 5. 2 (V 3 stabilized) Adjuvant: 1) PLGA NP (R

Antigen: BG 505 SOSIPv 5. 2 (V 3 stabilized) Adjuvant: 1) PLGA NP (R 848+MPL) 2) Iscomatrix BG 505 neutralizing antibody BG 505 SOSIP. v 5. 2 immunized rhesus macaques generate autologous HIV neutralizing Abs BG 505 v 5. 2 Havenar-Daughton, et al. 2016, Cell Reports

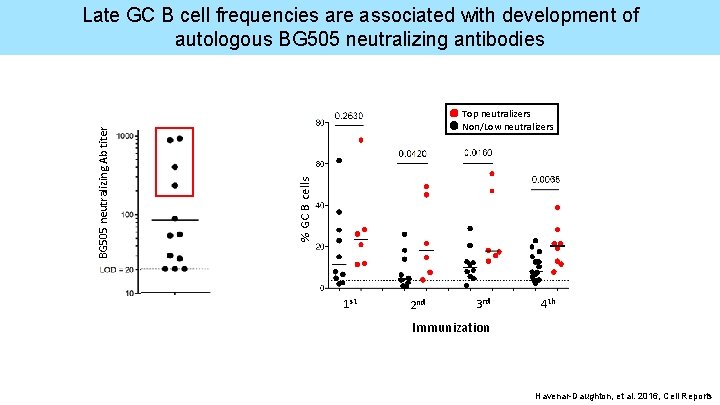

Top neutralizers Non/Low neutralizers % GC B cells BG 505 neutralizing Ab titer Late

Top neutralizers Non/Low neutralizers % GC B cells BG 505 neutralizing Ab titer Late GC B cell frequencies are associated with development of autologous BG 505 neutralizing antibodies 1 st 2 nd 3 rd 4 th Immunization Havenar-Daughton, et al. 2016, Cell Reports

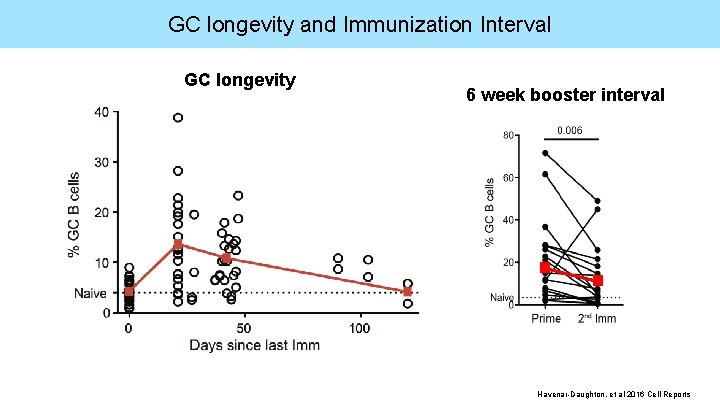

GC longevity and Immunization Interval GC longevity 6 week booster interval Havenar-Daughton, et al

GC longevity and Immunization Interval GC longevity 6 week booster interval Havenar-Daughton, et al 2016 Cell Reports

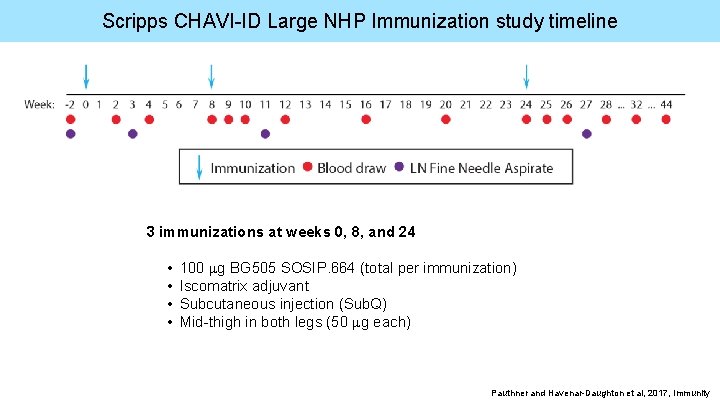

Scripps CHAVI-ID Large NHP Immunization study timeline 3 immunizations at weeks 0, 8, and

Scripps CHAVI-ID Large NHP Immunization study timeline 3 immunizations at weeks 0, 8, and 24 • • 100 mg BG 505 SOSIP. 664 (total per immunization) Iscomatrix adjuvant Subcutaneous injection (Sub. Q) Mid-thigh in both legs (50 mg each) Pauthner and Havenar-Daughton et al, 2017, Immunity

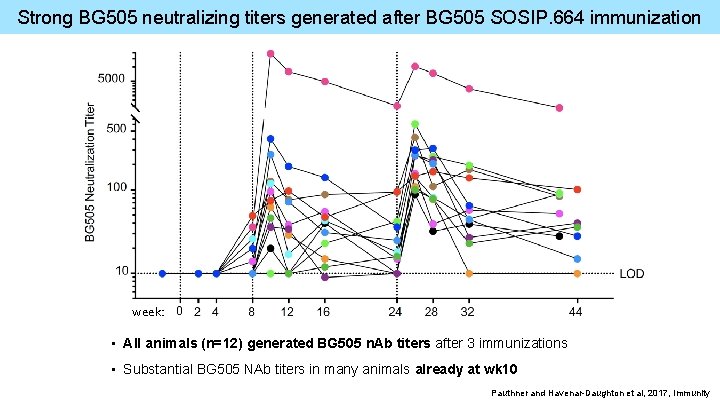

Strong BG 505 neutralizing titers generated after BG 505 SOSIP. 664 immunization week: •

Strong BG 505 neutralizing titers generated after BG 505 SOSIP. 664 immunization week: • All animals (n=12) generated BG 505 n. Ab titers after 3 immunizations • Substantial BG 505 NAb titers in many animals already at wk 10 Pauthner and Havenar-Daughton et al, 2017, Immunity

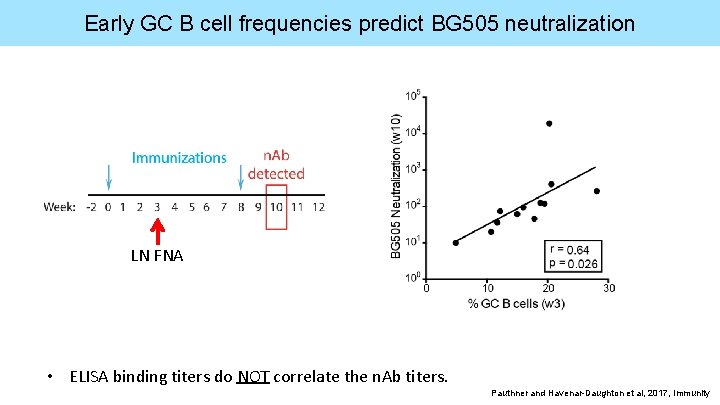

Early GC B cell frequencies predict BG 505 neutralization LN FNA • ELISA binding

Early GC B cell frequencies predict BG 505 neutralization LN FNA • ELISA binding titers do NOT correlate the n. Ab titers. Pauthner and Havenar-Daughton et al, 2017, Immunity

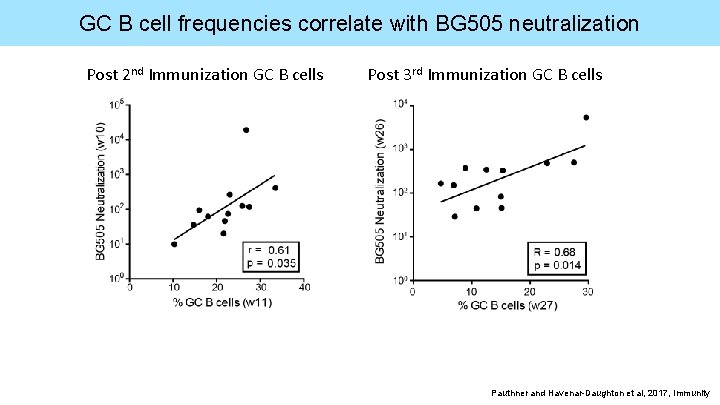

GC B cell frequencies correlate with BG 505 neutralization Post 2 nd Immunization GC

GC B cell frequencies correlate with BG 505 neutralization Post 2 nd Immunization GC B cells Post 3 rd Immunization GC B cells Pauthner and Havenar-Daughton et al, 2017, Immunity

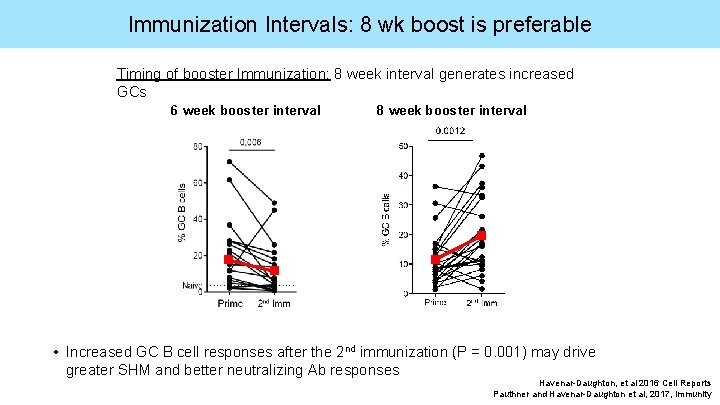

Immunization Intervals: 8 wk boost is preferable Timing of booster Immunization: 8 week interval

Immunization Intervals: 8 wk boost is preferable Timing of booster Immunization: 8 week interval generates increased GCs 6 week booster interval 8 week booster interval • Increased GC B cell responses after the 2 nd immunization (P = 0. 001) may drive greater SHM and better neutralizing Ab responses Havenar-Daughton, et al 2016 Cell Reports Pauthner and Havenar-Daughton et al, 2017, Immunity

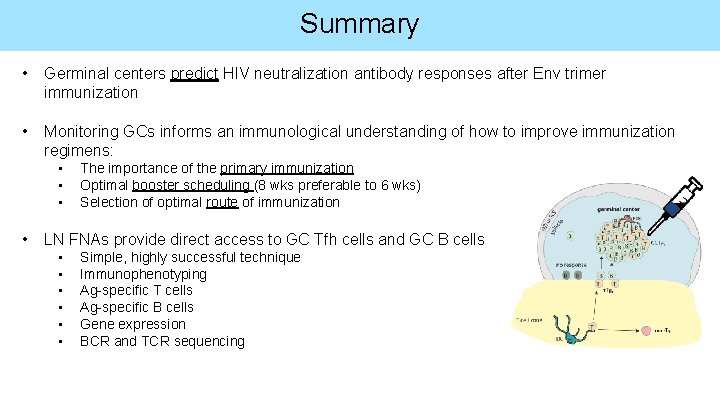

Summary • Germinal centers predict HIV neutralization antibody responses after Env trimer immunization •

Summary • Germinal centers predict HIV neutralization antibody responses after Env trimer immunization • Monitoring GCs informs an immunological understanding of how to improve immunization regimens: • • The importance of the primary immunization Optimal booster scheduling (8 wks preferable to 6 wks) Selection of optimal route of immunization LN FNAs provide direct access to GC Tfh cells and GC B cells • • • Simple, highly successful technique Immunophenotyping Ag-specific T cells Ag-specific B cells Gene expression BCR and TCR sequencing
