Lumps & Bumps on the Newborn Head. When should I worry? Joseph A. Garcia-Prats, M. D. Medical Director, Arnold J. Rudolph NICU Professor, Pediatrics & Ethics Baylor College of Medicine

Objectives v Briefly review the process of labor v Review anatomy of newborn head v Identify abnormal extra cranial findings v Discuss the most common extra cranial lumps and bumps: Caput succedaneum, cephalohematoma, subgaleal hemorrhage

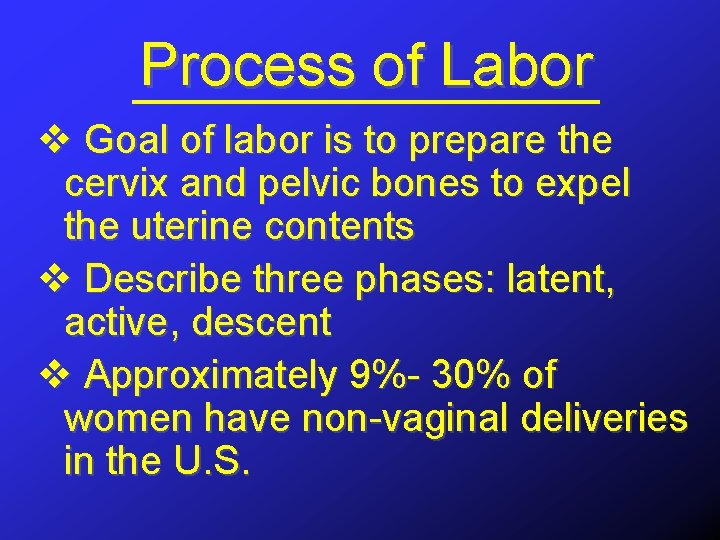

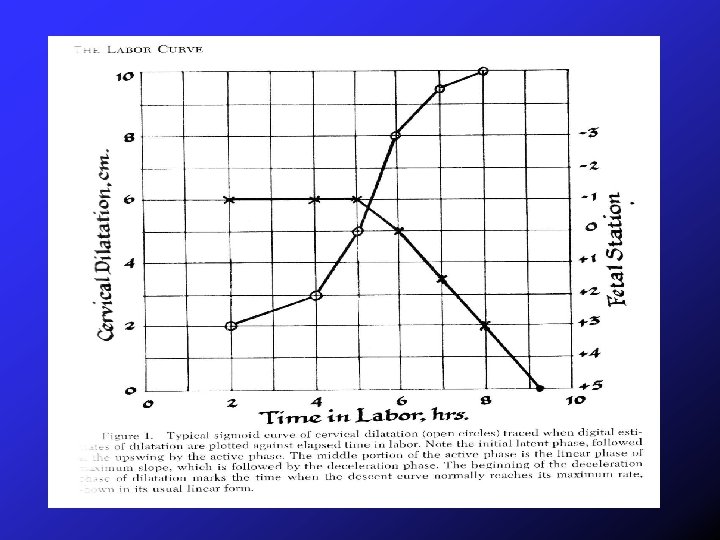

Process of Labor v Goal of labor is to prepare the cervix and pelvic bones to expel the uterine contents v Describe three phases: latent, active, descent v Approximately 9%- 30% of women have non-vaginal deliveries in the U. S.

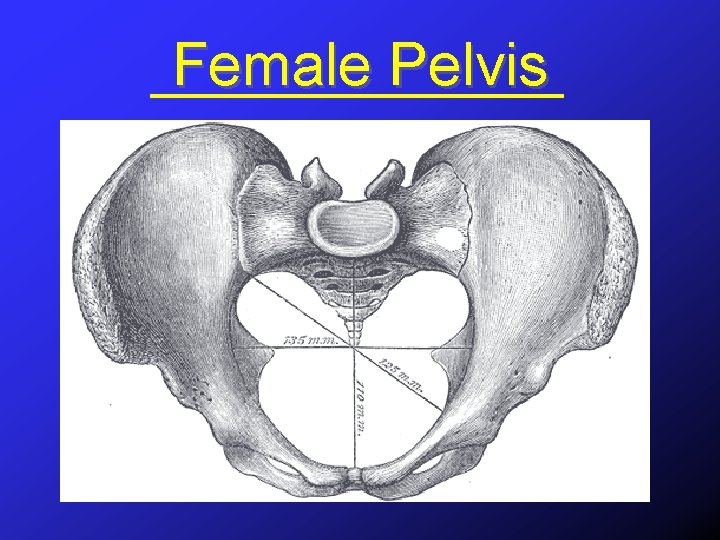

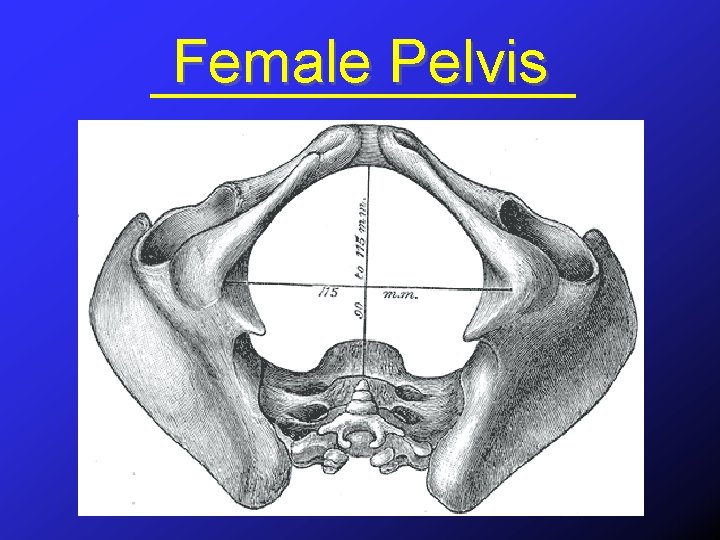

Female Pelvis

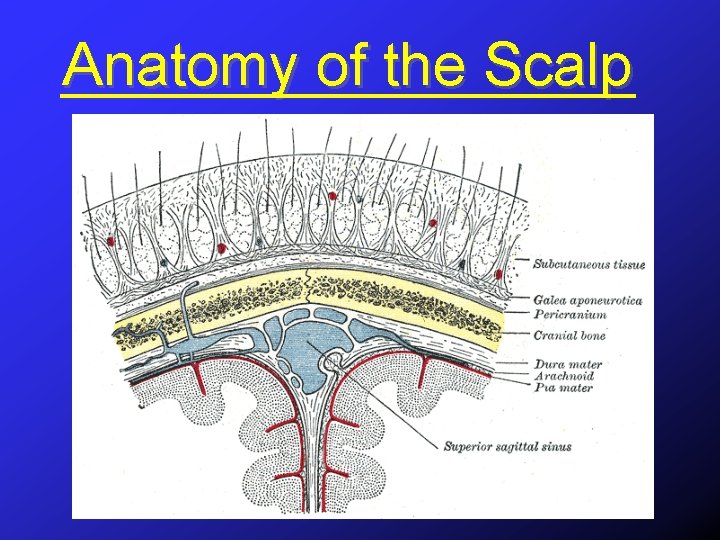

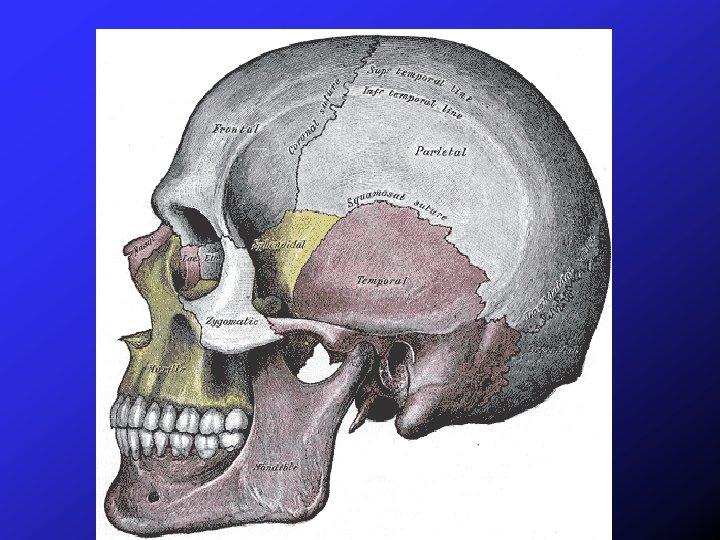

Anatomy of the Scalp

Scalp Galea aponeurotica Periosteum Skull bone Dura/pia/arachnoid Brain

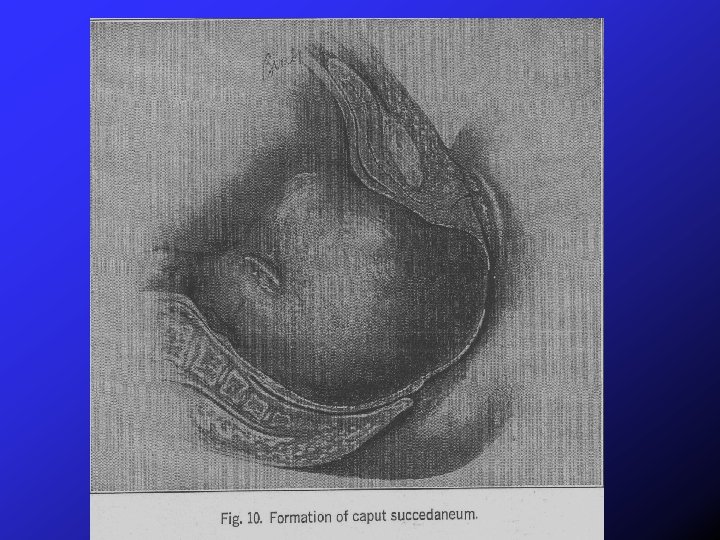

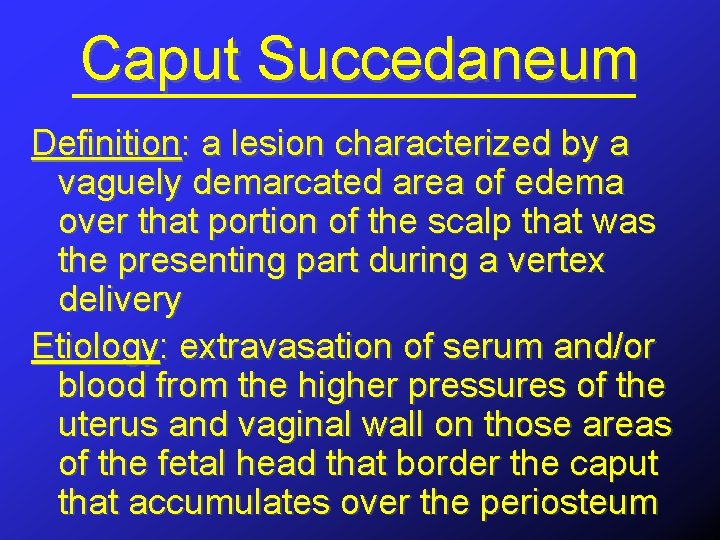

Caput Succedaneum Definition: a lesion characterized by a vaguely demarcated area of edema over that portion of the scalp that was the presenting part during a vertex delivery Etiology: extravasation of serum and/or blood from the higher pressures of the uterus and vaginal wall on those areas of the fetal head that border the caput that accumulates over the periosteum

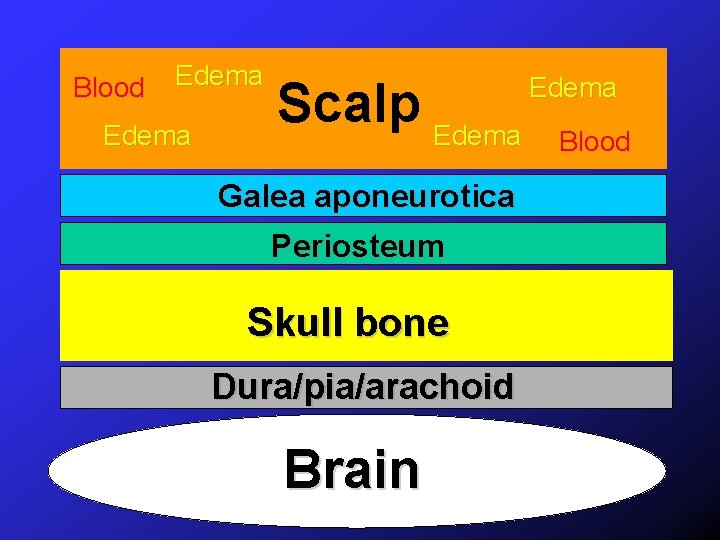

Anatomy of the Scalp Caput succedaneum

Blood Edema Scalp Edema Galea aponeurotica Periosteum Skull bone Dura/pia/arachoid Brain Edema Blood

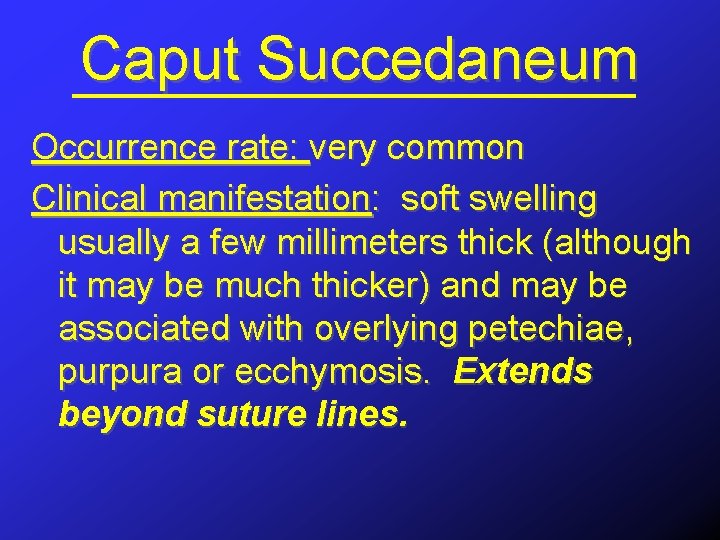

Caput Succedaneum Occurrence rate: very common Clinical manifestation: soft swelling usually a few millimeters thick (although it may be much thicker) and may be associated with overlying petechiae, purpura or ecchymosis. Extends beyond suture lines.

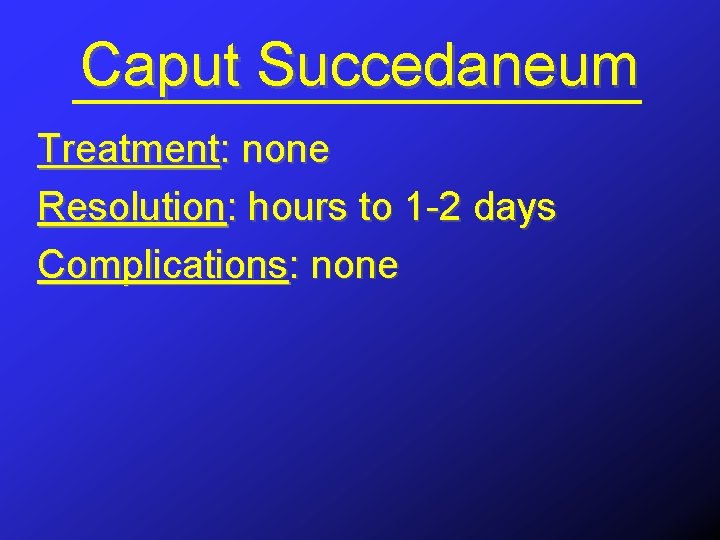

Caput Succedaneum Treatment: none Resolution: hours to 1 -2 days Complications: none

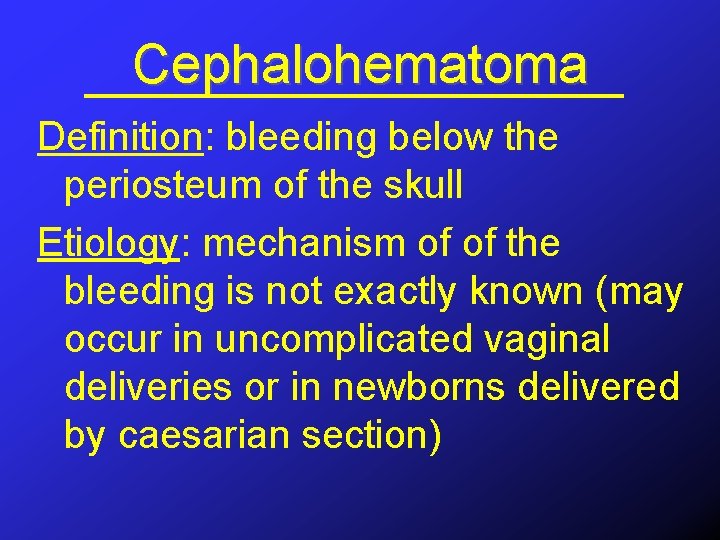

Cephalohematoma Definition: bleeding below the periosteum of the skull Etiology: mechanism of of the bleeding is not exactly known (may occur in uncomplicated vaginal deliveries or in newborns delivered by caesarian section)

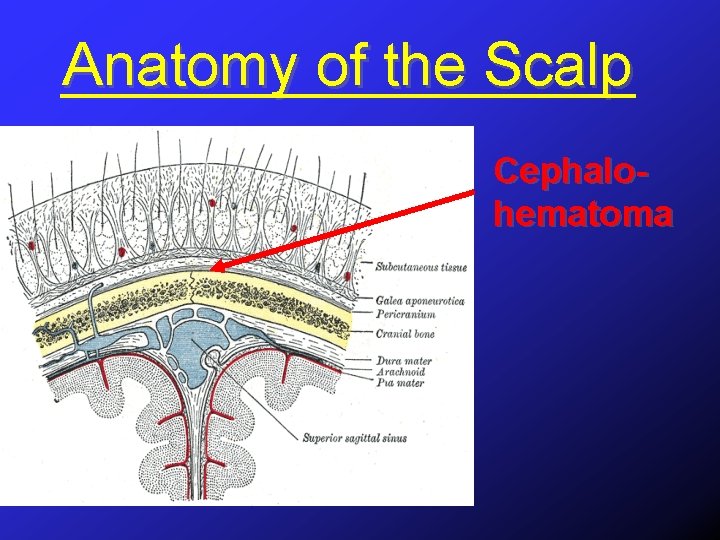

Anatomy of the Scalp Cephalohematoma

Scalp Galea aponeurotica Periosteum Suture cephalohematoma Skull bone Dura/pia/arachnoid Brain Suture

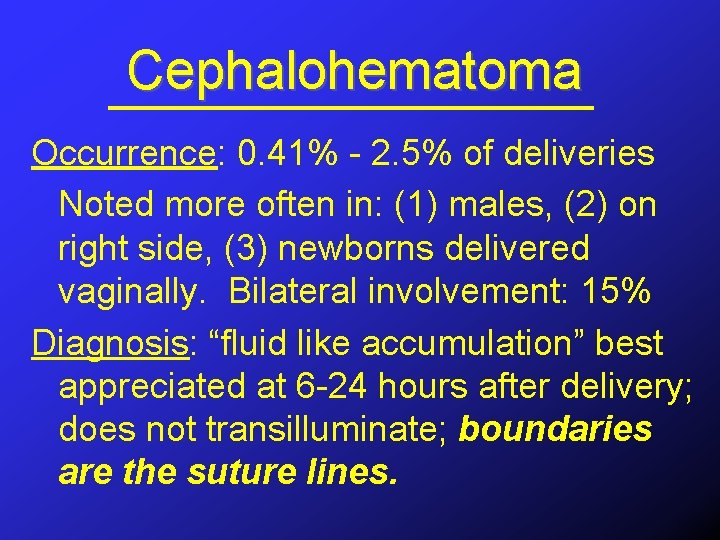

Cephalohematoma Occurrence: 0. 41% - 2. 5% of deliveries Noted more often in: (1) males, (2) on right side, (3) newborns delivered vaginally. Bilateral involvement: 15% Diagnosis: “fluid like accumulation” best appreciated at 6 -24 hours after delivery; does not transilluminate; boundaries are the suture lines.

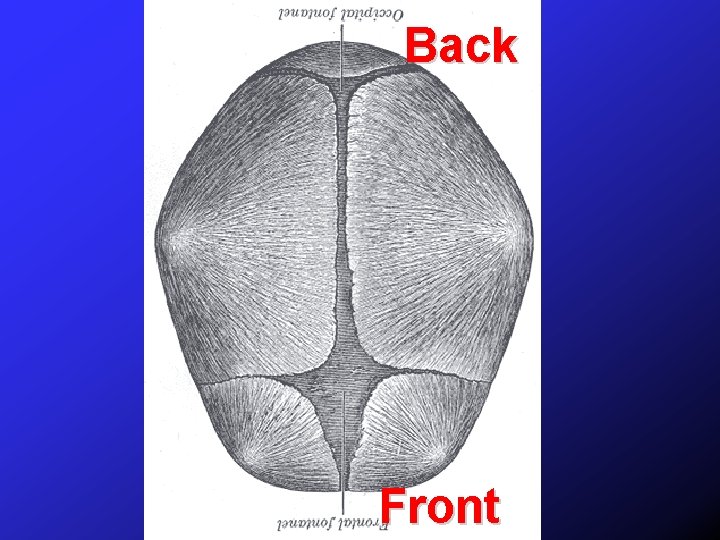

Back Front

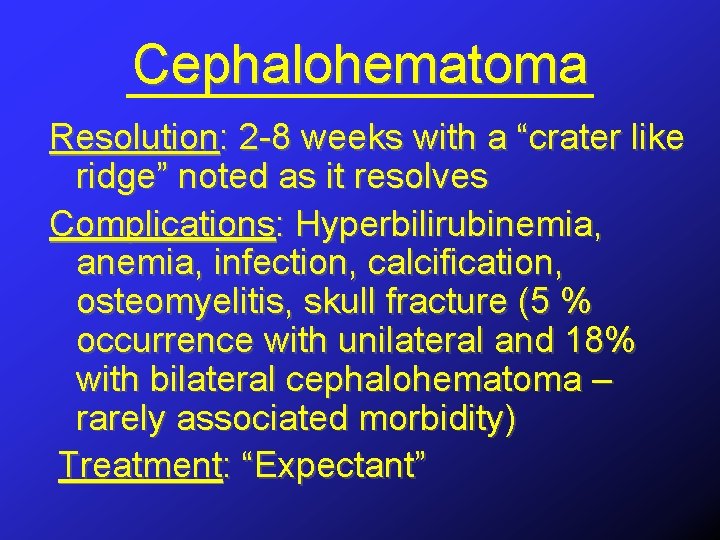

Cephalohematoma Resolution: 2 -8 weeks with a “crater like ridge” noted as it resolves Complications: Hyperbilirubinemia, anemia, infection, calcification, osteomyelitis, skull fracture (5 % occurrence with unilateral and 18% with bilateral cephalohematoma – rarely associated morbidity) Treatment: “Expectant”

Subgaleal Hemorrhage Definition: extracranial bleeding from under the scalp which may become massive and life threatening Etiology: rupture of emissary veins with blood accumulating between the epicranial aponeurosis of the scalp and the periosteum.

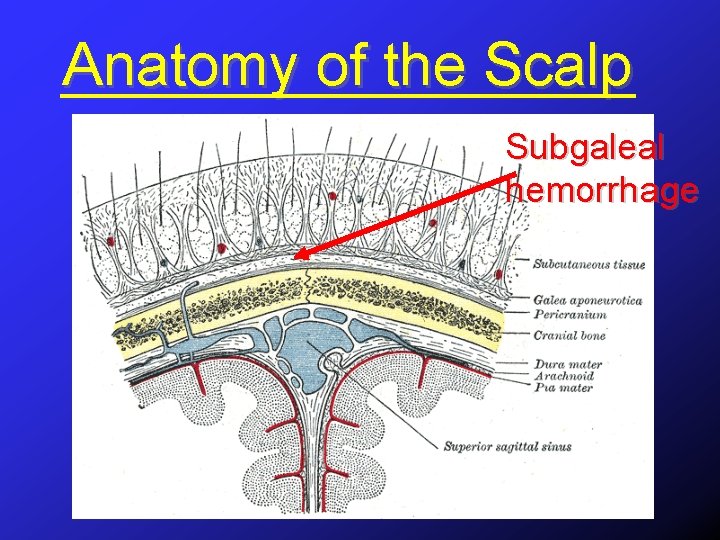

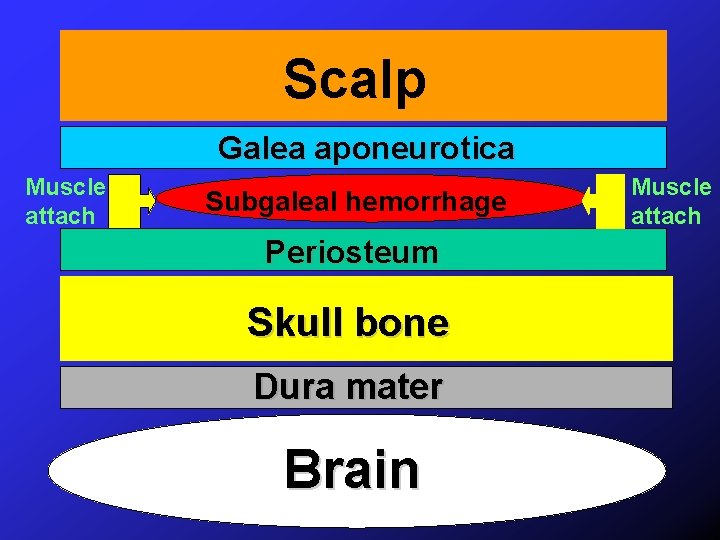

Anatomy of the Scalp Subgaleal hemorrhage

Scalp Galea aponeurotica Muscle attach Subgaleal hemorrhage Periosteum Skull bone Dura mater Brain Muscle attach

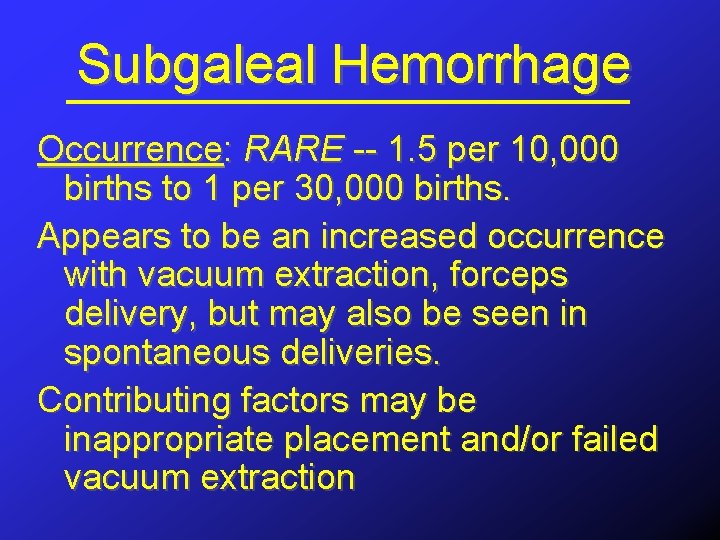

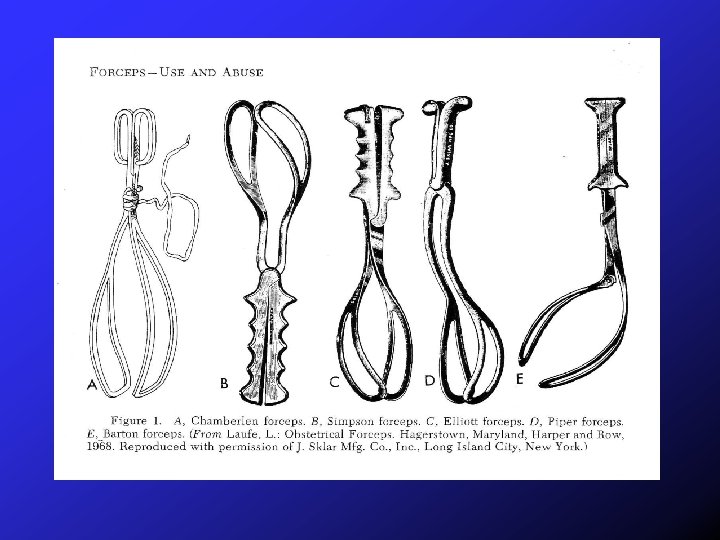

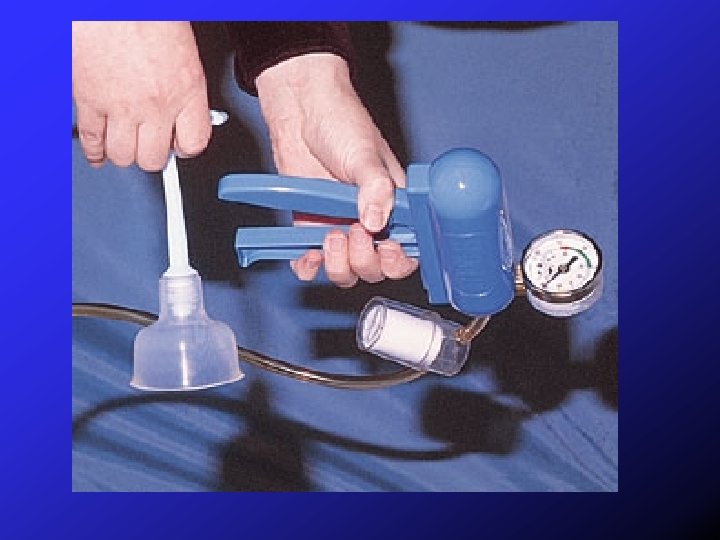

Subgaleal Hemorrhage Occurrence: RARE -- 1. 5 per 10, 000 births to 1 per 30, 000 births. Appears to be an increased occurrence with vacuum extraction, forceps delivery, but may also be seen in spontaneous deliveries. Contributing factors may be inappropriate placement and/or failed vacuum extraction

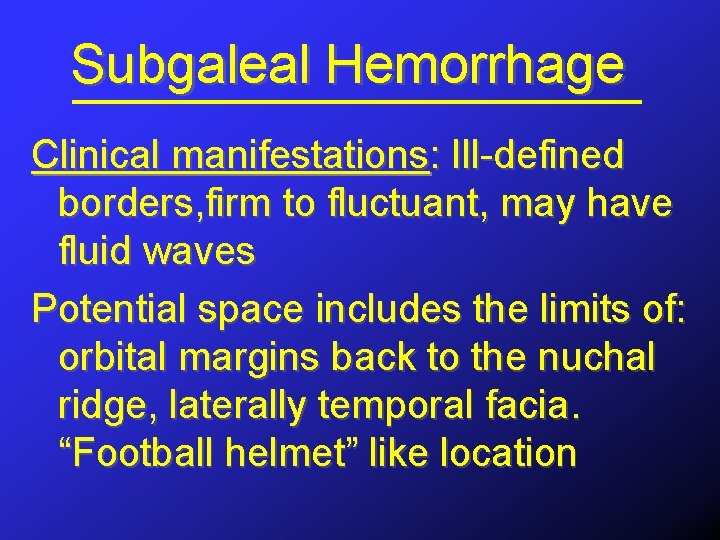

Subgaleal Hemorrhage Clinical manifestations: Ill-defined borders, firm to fluctuant, may have fluid waves Potential space includes the limits of: orbital margins back to the nuchal ridge, laterally temporal facia. “Football helmet” like location

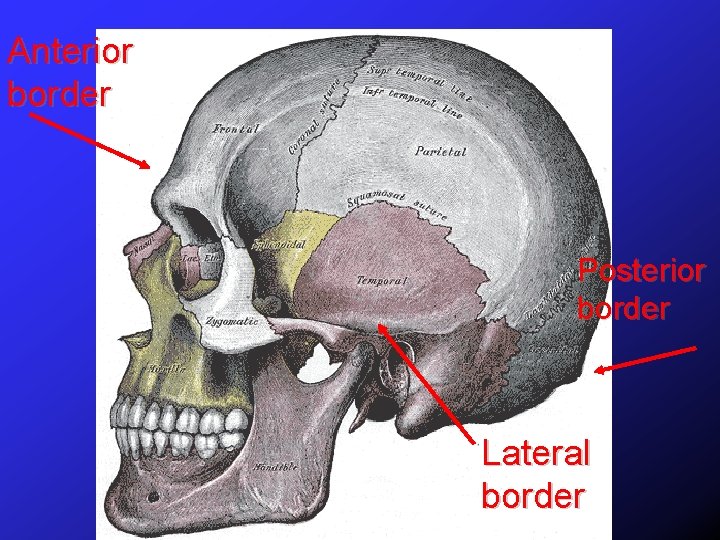

Anterior border Posterior border Lateral border

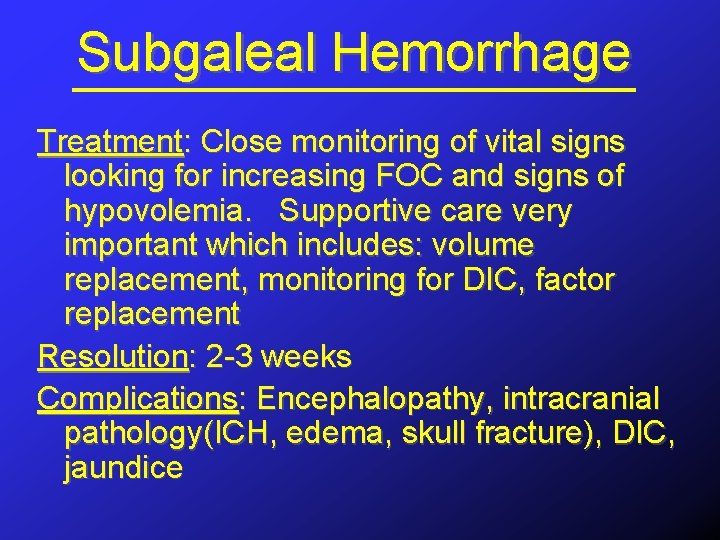

Subgaleal Hemorrhage Treatment: Close monitoring of vital signs looking for increasing FOC and signs of hypovolemia. Supportive care very important which includes: volume replacement, monitoring for DIC, factor replacement Resolution: 2 -3 weeks Complications: Encephalopathy, intracranial pathology(ICH, edema, skull fracture), DIC, jaundice

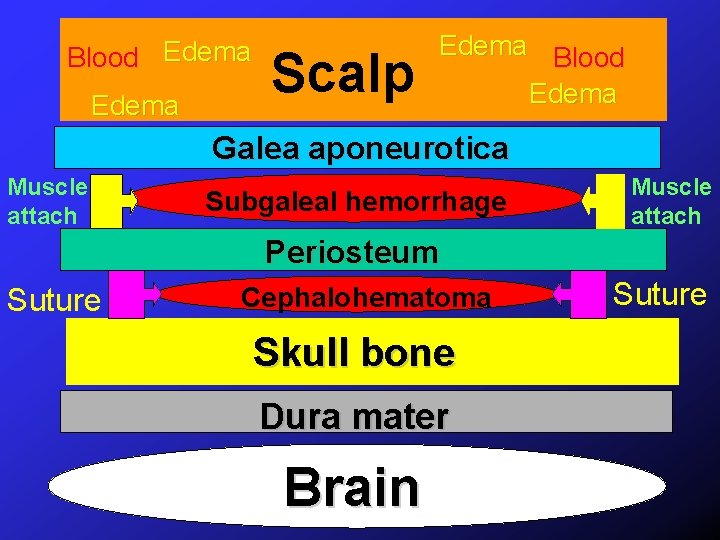

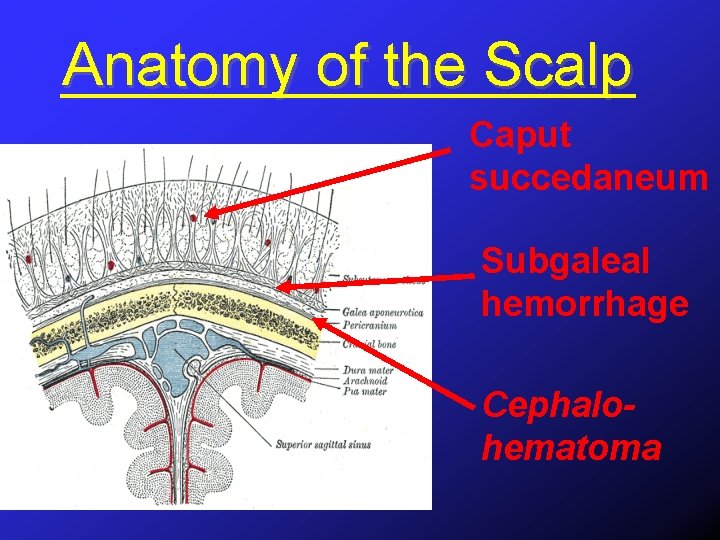

Anatomy of the Scalp Caput succedaneum Subgaleal hemorrhage Cephalohematoma

Blood Edema Scalp Edema Blood Edema Galea aponeurotica Muscle attach Subgaleal hemorrhage Muscle attach Periosteum Suture Cephalohematoma Skull bone Dura mater Brain Suture

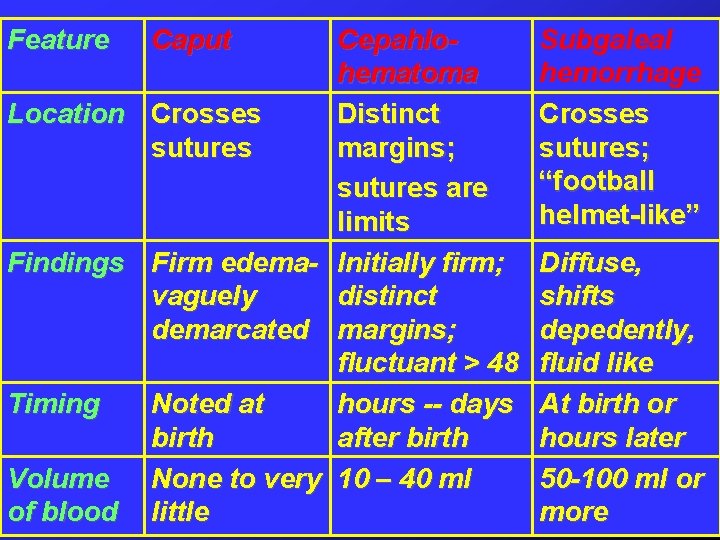

Feature Caput Location Crosses sutures Findings Firm edemavaguely demarcated Timing Volume of blood Noted at birth None to very little Cepahlohematoma Distinct margins; sutures are limits Initially firm; distinct margins; fluctuant > 48 hours -- days after birth 10 – 40 ml Subgaleal hemorrhage Crosses sutures; “football helmet-like” Diffuse, shifts depedently, fluid like At birth or hours later 50 -100 ml or more

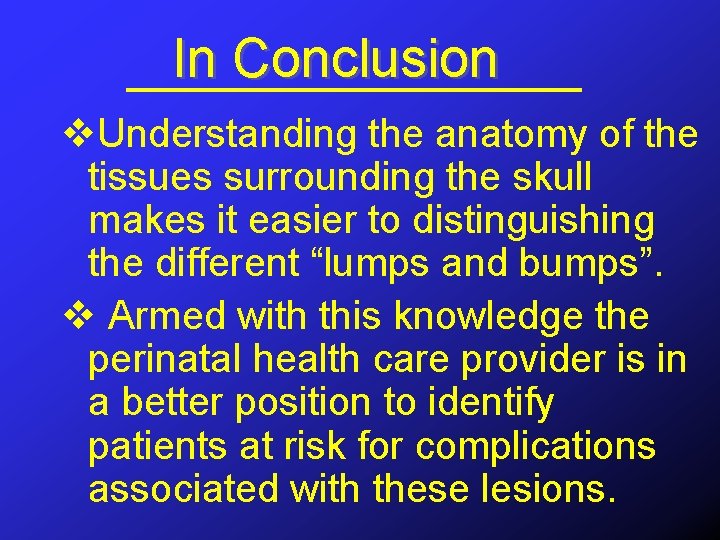

In Conclusion v. Understanding the anatomy of the tissues surrounding the skull makes it easier to distinguishing the different “lumps and bumps”. v Armed with this knowledge the perinatal health care provider is in a better position to identify patients at risk for complications associated with these lesions.
