Lumen SDWAN with Cisco Meraki Services not available
![Lumen® SD-WAN with Cisco Meraki Services not available everywhere. Business customers only. Lumen may Lumen® SD-WAN with Cisco Meraki Services not available everywhere. Business customers only. Lumen may](https://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-1.jpg)
Lumen® SD-WAN with Cisco Meraki Services not available everywhere. Business customers only. Lumen may change, cancel or substitute products and services, or vary them by service area at its sole discretion without notice. © 2020 Lumen Technologies. All Rights Reserved.
![Lumen SD-WAN Technology Network Transformation with SD-WAN delivered when, where and how organizations require Lumen SD-WAN Technology Network Transformation with SD-WAN delivered when, where and how organizations require](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-2.jpg)
Lumen SD-WAN Technology Network Transformation with SD-WAN delivered when, where and how organizations require Versa Networks, Cisco Meraki, Cisco Viptela • Managed 100% by Lumen and the ability to support with shared customer responsibilities (read/write access) • SD-WAN transformation team of Technical Design/Engineering, Implementation, Project Management and Service Management resources • Network and SD-WAN Consulting services – inventory assets, identify risks/hot spots, build a business case, advanced design and technical detail gathering etc. © 2020 Lumen Technologies. All Rights Reserved. Deployment CPE, Virtual Machine (VM) in the cloud or u. CPE Commercial Options Bundled with Lumen Transport, Over-the-Top (OTT), or Tailored Transport Flexibility Lumen or customer provided – IP VPN, DIA, Broadband, Ethernet, LTE Security Integrated with SD-WAN and augmented by our portfolio of advanced managed security services
![What if you could… • Have enhanced WAN options and security features that will What if you could… • Have enhanced WAN options and security features that will](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-3.jpg)
What if you could… • Have enhanced WAN options and security features that will help ensure network efficiency and security? • Enhance security and minimize compliance risks for your network? • Implement a secure Wi-Fi solution that is fully deployed, managed, and requires limited onsite IT resources – all for one monthly service rate? • Optimize employee and customer experience while promoting your products and services to your customers? © 2020 Lumen Technologies. All Rights Reserved.
![Lumen SD-WAN with Cisco Meraki bundles Pricing Option Hub Device-MX 100 Bundle Branch Device-MX Lumen SD-WAN with Cisco Meraki bundles Pricing Option Hub Device-MX 100 Bundle Branch Device-MX](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-4.jpg)

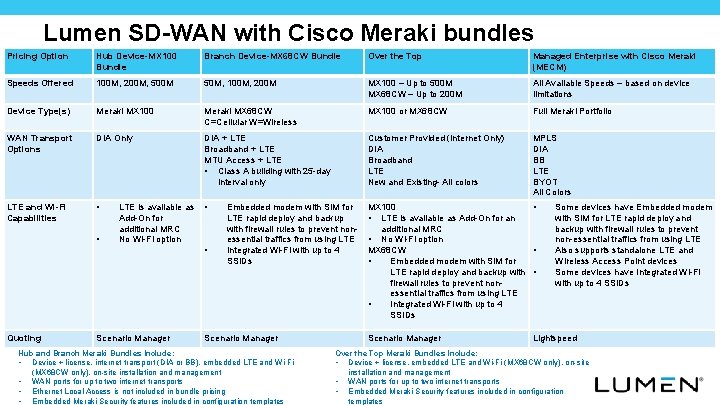

Lumen SD-WAN with Cisco Meraki bundles Pricing Option Hub Device-MX 100 Bundle Branch Device-MX 68 CW Bundle Over the Top Managed Enterprise with Cisco Meraki (MECM) Speeds Offered 100 M, 200 M, 500 M 50 M, 100 M, 200 M MX 100 – Up to 500 M MX 68 CW – Up to 200 M All Available Speeds – based on device limitations Device Type(s) Meraki MX 100 Meraki MX 68 CW C=Cellular W=Wireless MX 100 or MX 68 CW Full Meraki Portfolio WAN Transport Options DIA Only DIA + LTE Broadband + LTE MTU Access + LTE • Class A building with 25 -day interval only Customer Provided (Internet Only) DIA Broadband LTE New and Existing- All colors MPLS DIA BB LTE BYOT All Colors LTE and Wi-Fi Capabilities • • MX 100 • • LTE is available as Add-On for an additional MRC • No Wi-Fi option MX 68 CW • • Embedded modem with SIM for LTE rapid deploy and backup with • firewall rules to prevent nonessential traffics from using LTE • Integrated Wi-Fi with up to 4 SSIDs • LTE is available as Add-On for additional MRC No Wi-Fi option • Quoting Scenario Manager Embedded modem with SIM for LTE rapid deploy and backup with firewall rules to prevent nonessential traffics from using LTE Integrated Wi-Fi with up to 4 SSIDs Scenario Manager Hub and Branch Meraki Bundles Include: • Device + license, internet transport (DIA or BB), embedded LTE and Wi-Fi (MX 68 CW only), on-site installation and management • WAN ports for up to two internet transports © 2020 Lumen Technologies. All Rights Reserved. • Ethernet Local Access is not included in bundle pricing • Embedded Meraki Security features included in configuration templates Scenario Manager Some devices have Embedded modem with SIM for LTE rapid deploy and backup with firewall rules to prevent non-essential traffics from using LTE Also supports standalone LTE and Wireless Access Point devices Some devices have Integrated Wi-Fi with up to 4 SSIDs Lightspeed Over the Top Meraki Bundles Include: • Device + license, embedded LTE and Wi-Fi (MX 68 CW only), on-site installation and management • WAN ports for up to two internet transports • Embedded Meraki Security features included in configuration templates
![Simple, all-inclusive licensing • 1: 1 ratio of licensing and hardware • Includes 3 Simple, all-inclusive licensing • 1: 1 ratio of licensing and hardware • Includes 3](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-5.jpg)
Simple, all-inclusive licensing • 1: 1 ratio of licensing and hardware • Includes 3 -year Advanced Security License • Centralized management with network-wide visibility and remote troubleshooting tools • Over-the-web firmware and security updates License © 2020 Lumen Technologies. All Rights Reserved. Hardware • On-site installation and 24/7 support and management
![MX appliance licensing Meraki Advanced Security License Features Include • • • Site-to-site Auto MX appliance licensing Meraki Advanced Security License Features Include • • • Site-to-site Auto](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-6.jpg)
MX appliance licensing Meraki Advanced Security License Features Include • • • Site-to-site Auto VPN Branch routing Failover Application control Stateful firewall © 2020 Lumen Technologies. All Rights Reserved. • Bright. Cloud content filtering (with Google Safe. Search) • Snort IPS / IDS • Geo-IP based firewall rules • Dynamic Path Selection
![More than just SD-WAN IPS Content Filtering Snort IDS / IPS, updated every day More than just SD-WAN IPS Content Filtering Snort IDS / IPS, updated every day](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-7.jpg)
More than just SD-WAN IPS Content Filtering Snort IDS / IPS, updated every day Bright. Cloud - 4+ billion URLs, updated in real-time Geo-based security Block traffic sourced from selected countries Automatic Updates Software and security updates delivered from the cloud PCI compliance PCI 3. 2 certified cloud-based management © 2020 Lumen Technologies. All Rights Reserved. Advanced security built in with no additional hardware required
![Securely built on site-to-site auto VPN MX HQ / DC Auto VPN WAN link Securely built on site-to-site auto VPN MX HQ / DC Auto VPN WAN link](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-8.jpg)

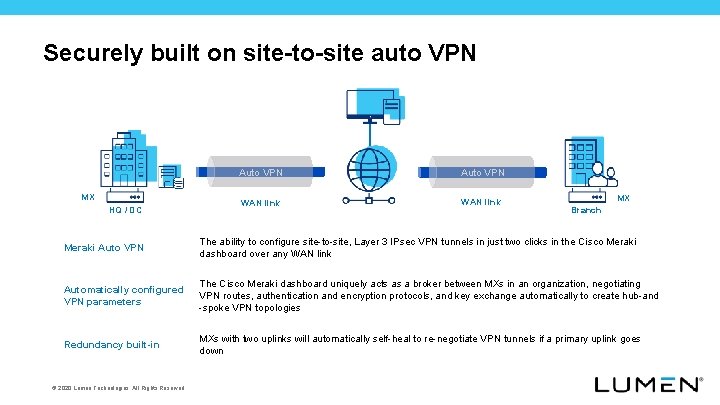

Securely built on site-to-site auto VPN MX HQ / DC Auto VPN WAN link MX Branch Meraki Auto VPN The ability to configure site-to-site, Layer 3 IPsec VPN tunnels in just two clicks in the Cisco Meraki dashboard over any WAN link Automatically configured VPN parameters The Cisco Meraki dashboard uniquely acts as a broker between MXs in an organization, negotiating VPN routes, authentication and encryption protocols, and key exchange automatically to create hub-and -spoke VPN topologies Redundancy built-in MXs with two uplinks will automatically self-heal to re-negotiate VPN tunnels if a primary uplink goes down © 2020 Lumen Technologies. All Rights Reserved.
![Meraki dashboards – ultimate visibility The entire network under a single pane of glass Meraki dashboards – ultimate visibility The entire network under a single pane of glass](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-9.jpg)
Meraki dashboards – ultimate visibility The entire network under a single pane of glass © 2020 Lumen Technologies. All Rights Reserved.
![Visibility and analytics • View historical latency, jitter, loss, and MOS for VPN links Visibility and analytics • View historical latency, jitter, loss, and MOS for VPN links](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-10.jpg)

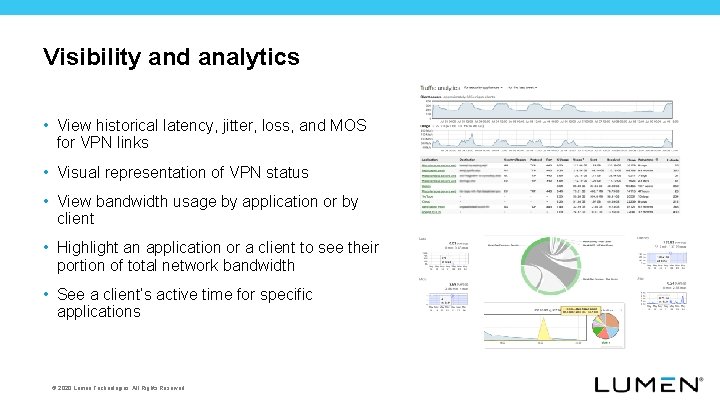

Visibility and analytics • View historical latency, jitter, loss, and MOS for VPN links • Visual representation of VPN status • View bandwidth usage by application or by client • Highlight an application or a client to see their portion of total network bandwidth • See a client’s active time for specific applications © 2020 Lumen Technologies. All Rights Reserved.
![Why choose Lumen SD-WAN with Cisco Meraki? SIMPLE • Intuitive centralized management without a Why choose Lumen SD-WAN with Cisco Meraki? SIMPLE • Intuitive centralized management without a](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-11.jpg)
Why choose Lumen SD-WAN with Cisco Meraki? SIMPLE • Intuitive centralized management without a complex command line • Single-touch provisioning and cloud management for seamless updates • Complete solution with ability to layer APs, switches, security, EMM, and cameras • Visualize and monitor all equipment with centralized web-based portal SECURE • • Comprehensive visibility (monitoring and alerting) Integrates advanced security including firewall, content filtering, IDS/IPS etc. PCI 3. 2 certified cloud-based management Site-to-site auto VPN RESPONSIVE • Support for flexible WAN designs including up to two WAN ports and various connectivity options • Rapid deployment options with built-in LTE capabilities • Intelligent routing and control including dynamic path selection etc. © 2020 Lumen Technologies. All Rights Reserved.
![Why Lumen SD-WAN? Award-winning end-to-end expertise to manage your network transformation Our people - Why Lumen SD-WAN? Award-winning end-to-end expertise to manage your network transformation Our people -](http://slidetodoc.com/presentation_image_h2/51fd7203e65a850c19dff2ff39956a74/image-12.jpg)
Why Lumen SD-WAN? Award-winning end-to-end expertise to manage your network transformation Our people - networking and SD-WAN expertise Technology and solutions – not a one-size-fits-all SD-WAN provider Customer experience – simplified network management and administrative complexity © 2020 Lumen Technologies. All Rights Reserved. 2020 Light Reading Lights Award Finalist, “Most Innovative SD-WAN Service” 2019 NA Managed SD -WAN Service Innovation Excellence Frost Radar Award Lumen, First company worldwide to secure all 3 Cloud Powered Managed DNA Services with Cisco
