Lumbar spine fracture and dislocation ANDALIB ALI MD

Lumbar spine fracture and dislocation ANDALIB, ALI. MD FELLOWSHIP OF SPINE SURGERY MEDICAL UNIVERSITY OF ISFAHAN KASHANI HOSPITAL 1

Age : male under 30 yrs old 1. MCA 2. Fall from height 3. Sport Geriatric population Falling from standing position 2

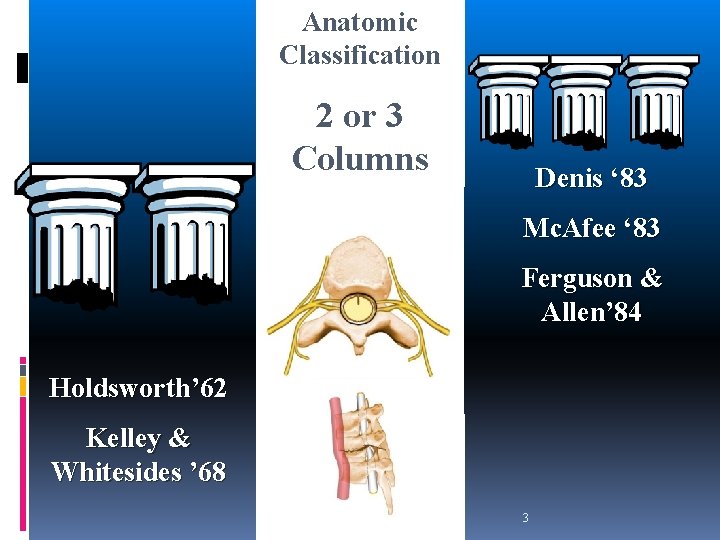

Anatomic Classification 2 or 3 Columns Denis ‘ 83 Mc. Afee ‘ 83 Ferguson & Allen’ 84 Holdsworth’ 62 Kelley & Whitesides ’ 68 3

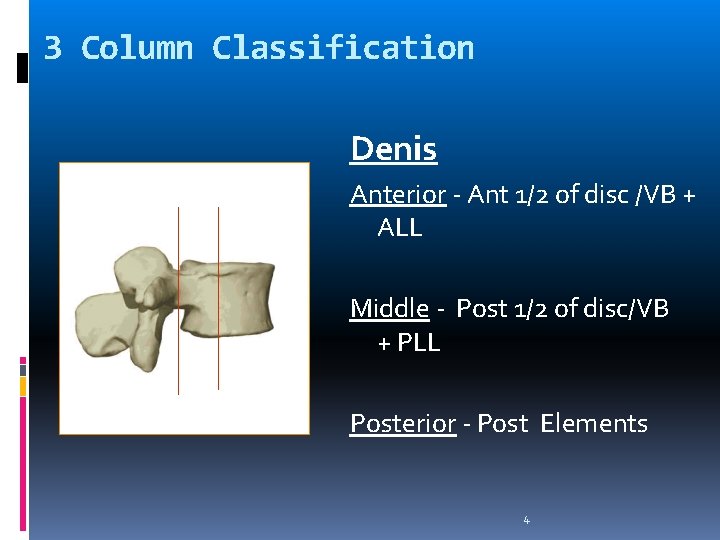

3 Column Classification Denis Anterior - Ant 1/2 of disc /VB + ALL Middle - Post 1/2 of disc/VB + PLL Posterior - Post Elements 4

Mc Afee classification 1. Compression FX 2. Burst Fx 3. Flex-Distraction 4. FX-Dx 5

Mechanism of injury and classification Wedge compression fx 1. Isolated failure of ant column 2. Forward flex 3. Neurologic injury rare except multiple adjucent vertebra 6

Wedge compression fx 7

Wedge compression fx 8

BURST FX key features : posterior vertebral body cortex fracture with retropulsion of bone into the canal widening of the interpedicular distance relative to the adjacent levels 9

Stable burst fx Ant and mid column fail in compression Unstable burst fx Ant and mid column fail in compression and post column fail in compression, lat flex or rotation and not fail in distraction 10

Burst fx 11

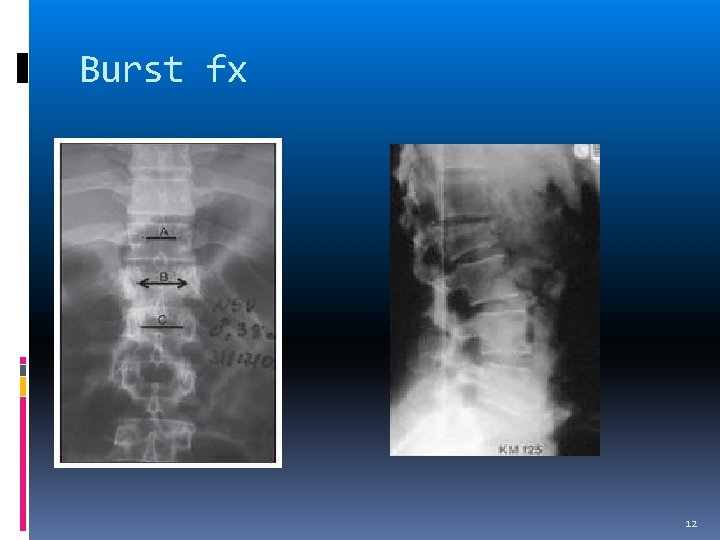

Burst fx 12

Burst fx 13

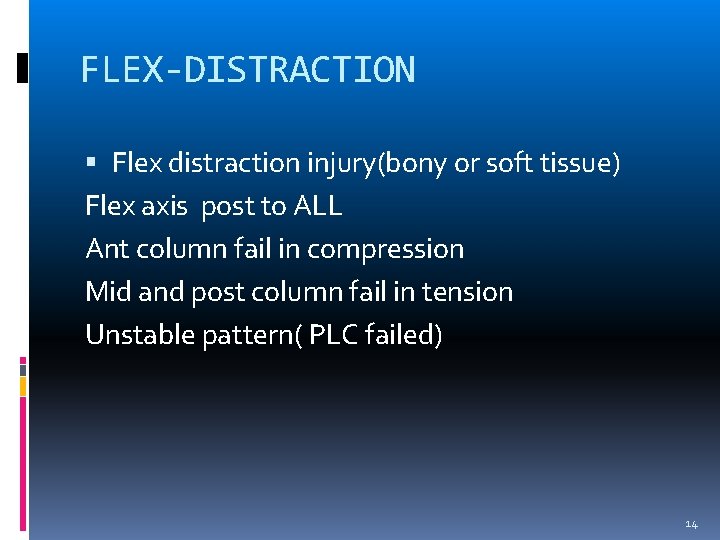

FLEX-DISTRACTION Flex distraction injury(bony or soft tissue) Flex axis post to ALL Ant column fail in compression Mid and post column fail in tension Unstable pattern( PLC failed) 14

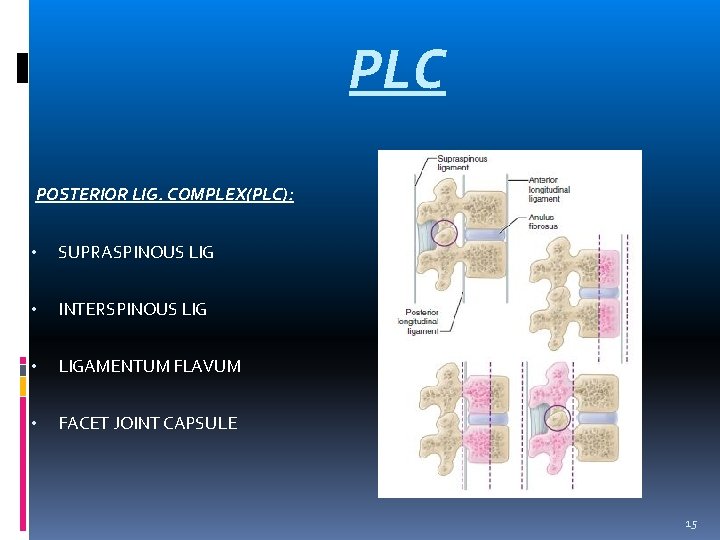

PLC POSTERIOR LIG. COMPLEX(PLC): • SUPRASPINOUS LIG • INTERSPINOUS LIG • LIGAMENTUM FLAVUM • FACET JOINT CAPSULE 15

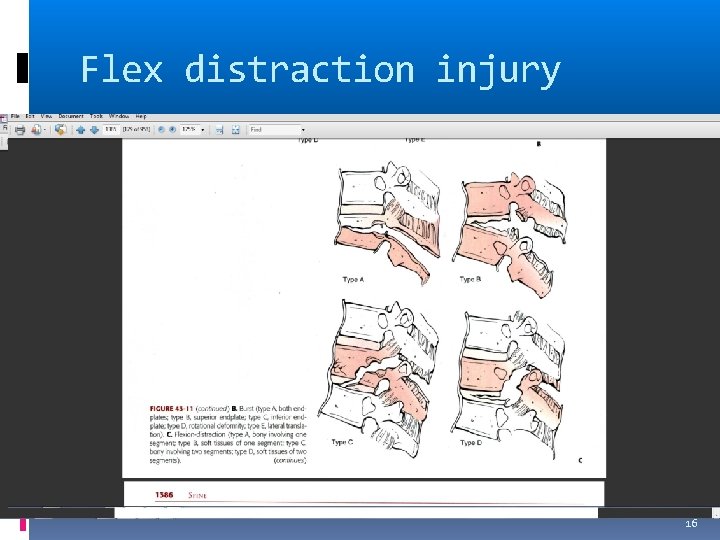

Flex distraction injury 16

CT SCAN 17

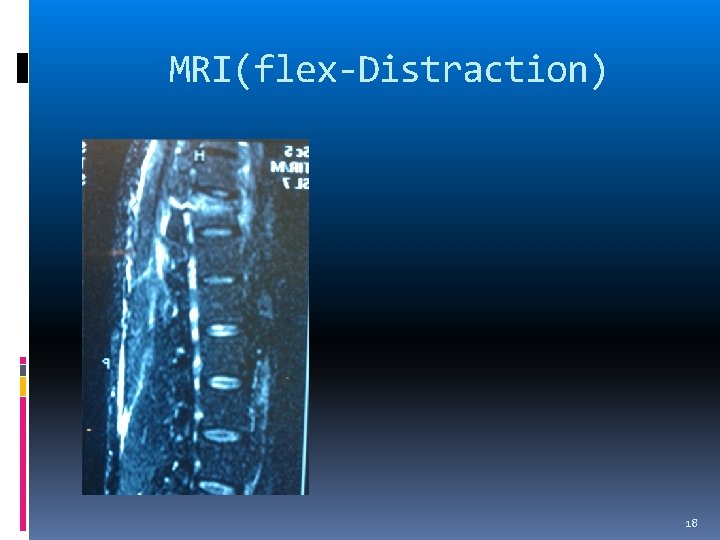

MRI(flex-Distraction) 18

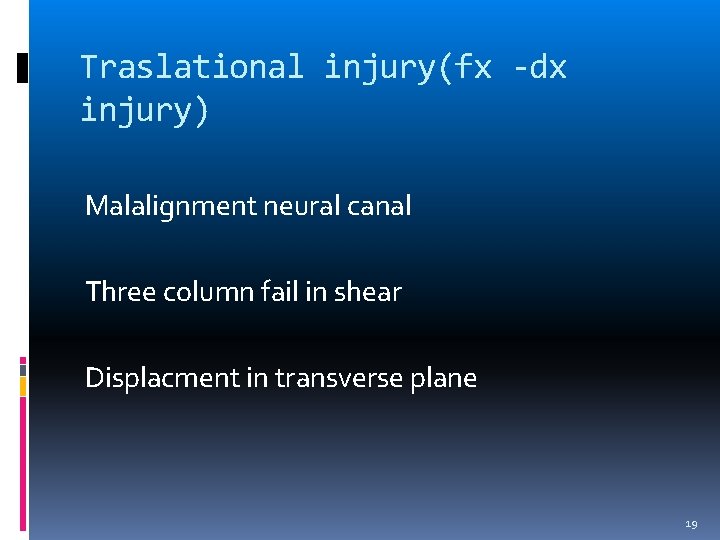

Traslational injury(fx -dx injury) Malalignment neural canal Three column fail in shear Displacment in transverse plane 19

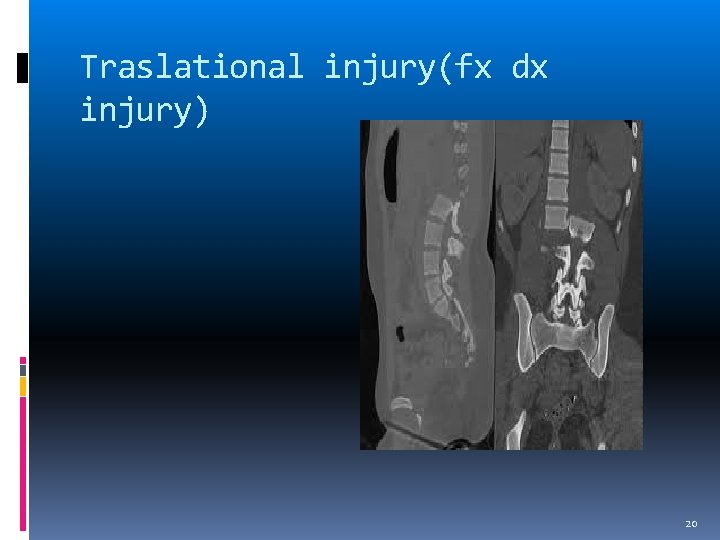

Traslational injury(fx dx injury) 20

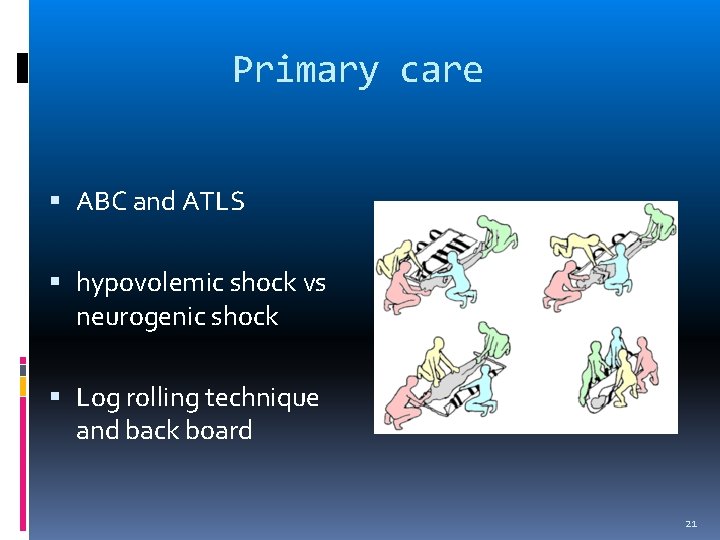

Primary care ABC and ATLS hypovolemic shock vs neurogenic shock Log rolling technique and back board 21

Logrolling technique 22

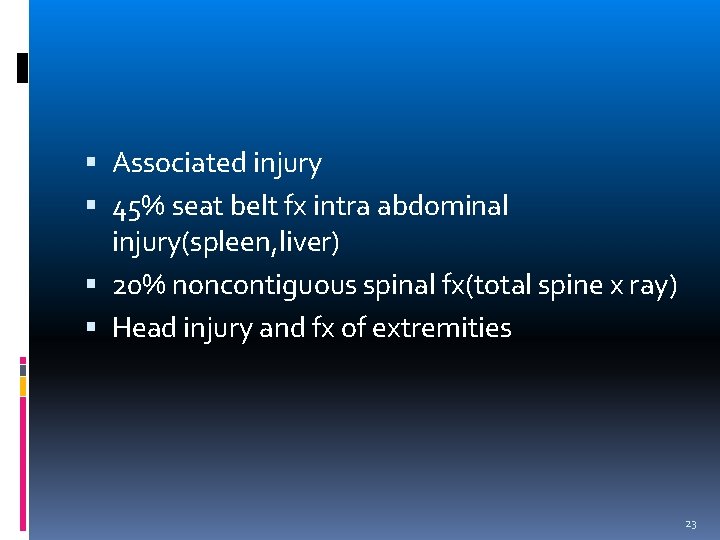

Associated injury 45% seat belt fx intra abdominal injury(spleen, liver) 20% noncontiguous spinal fx(total spine x ray) Head injury and fx of extremities 23

24

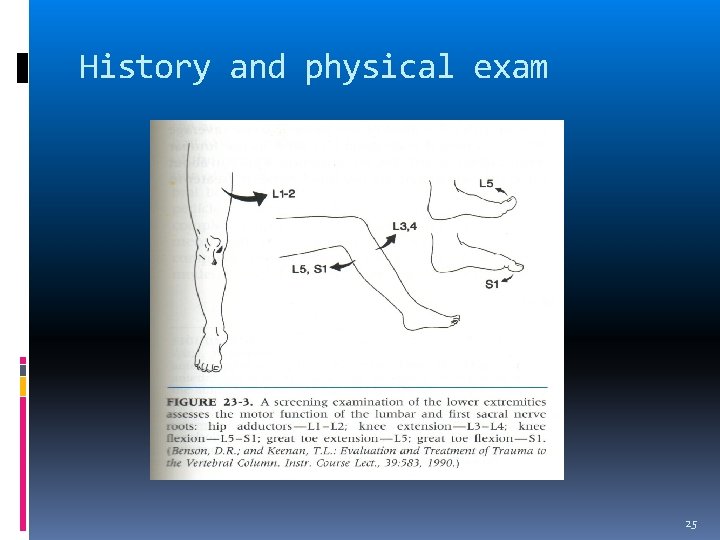

History and physical exam 25

26

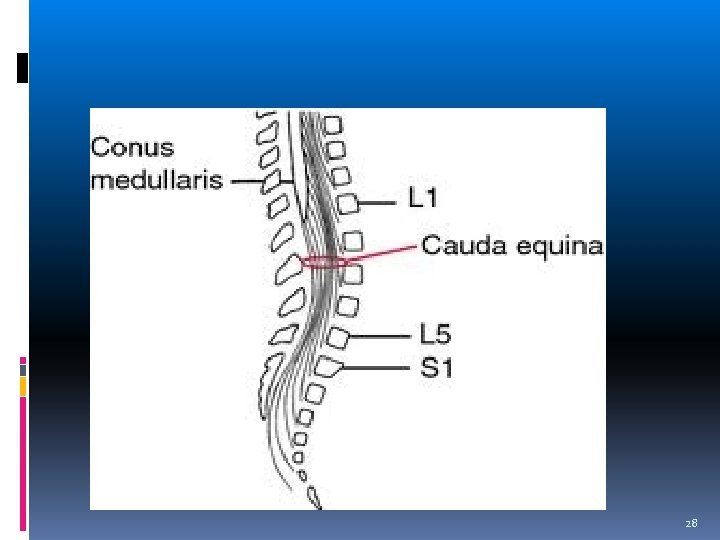

Cauda Equina Syndrome Cord ends L 1/2 disc space Lower motor neuron axons(nerve roots from L 1 -5 and S 1 -5) Perianal anesthesia(saddle anesthesia), sphincter and bladder dysfunction, severe LBP, motror defecit 27

28

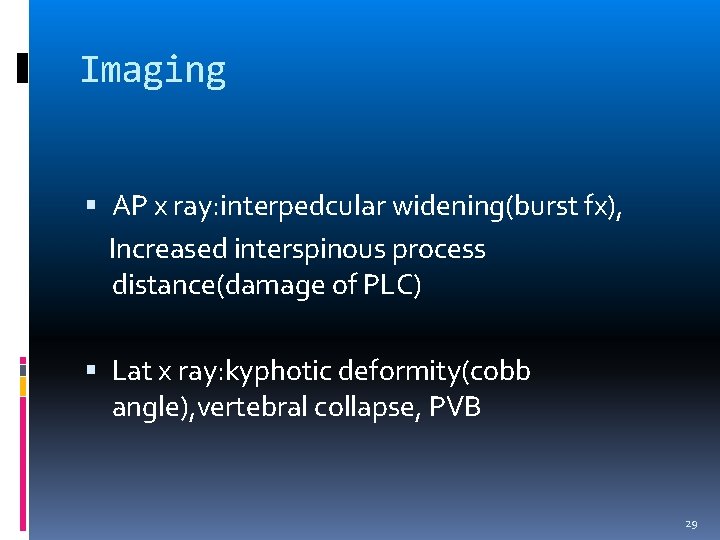

Imaging AP x ray: interpedcular widening(burst fx), Increased interspinous process distance(damage of PLC) Lat x ray: kyphotic deformity(cobb angle), vertebral collapse, PVB 29

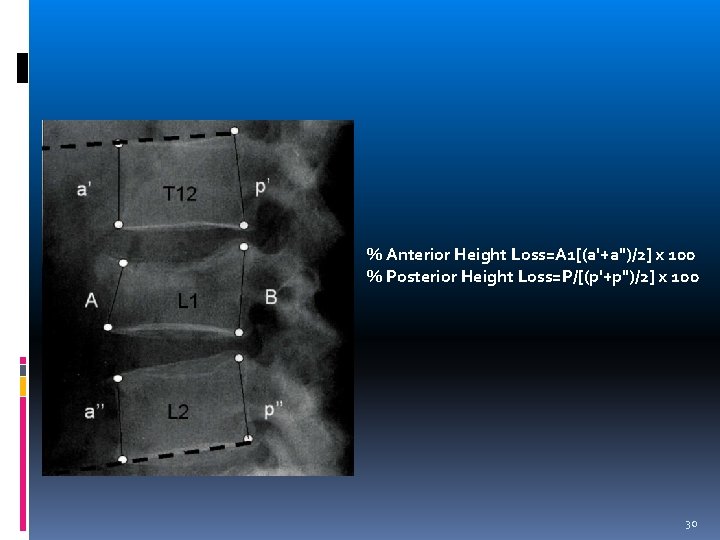

% Anterior Height Loss=A 1[(a'+a")/2] x 100 % Posterior Height Loss=P/[(p'+p")/2] x 100 30

PVB 31

32

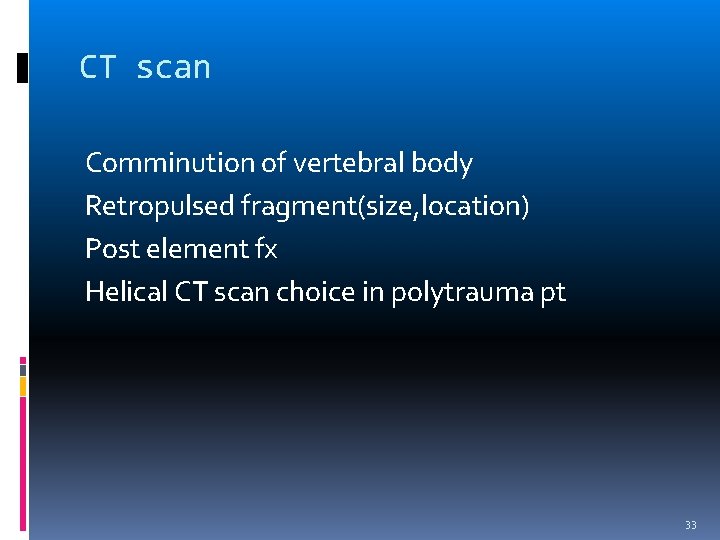

CT scan Comminution of vertebral body Retropulsed fragment(size, location) Post element fx Helical CT scan choice in polytrauma pt 33

Burst fx 34

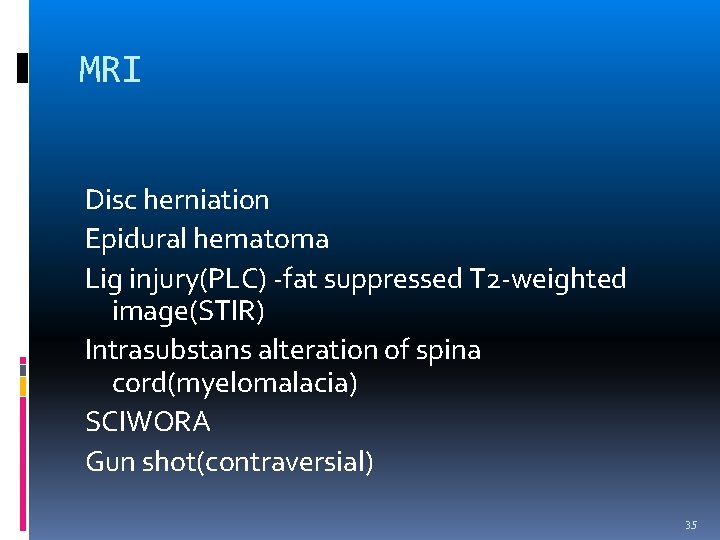

MRI Disc herniation Epidural hematoma Lig injury(PLC) -fat suppressed T 2 -weighted image(STIR) Intrasubstans alteration of spina cord(myelomalacia) SCIWORA Gun shot(contraversial) 35

Treatment goals: Maintain or restore spinal stability Correct deformity(coronal, sagital) Maximum neurologic recovery Improve pain Prompt rehabilitation 36

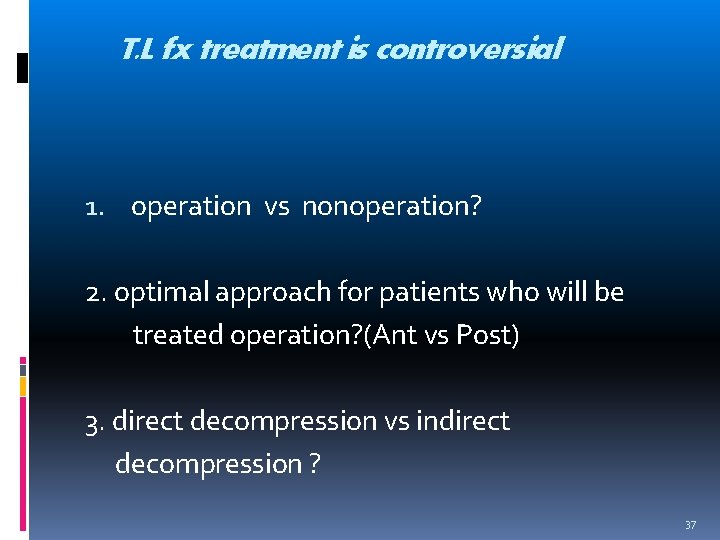

T. L fx treatment is controversial 1. operation vs nonoperation? 2. optimal approach for patients who will be treated operation? (Ant vs Post) 3. direct decompression vs indirect decompression ? 37

no definitive literature most spine surgeons would not recommend allowing persistent neural compression in the presence of a neurological deficit. 38

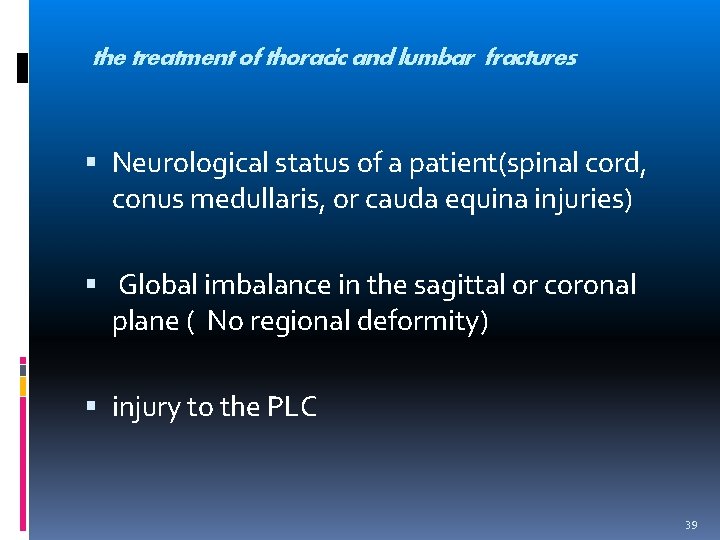

the treatment of thoracic and lumbar fractures Neurological status of a patient(spinal cord, conus medullaris, or cauda equina injuries) Global imbalance in the sagittal or coronal plane ( No regional deformity) injury to the PLC 39

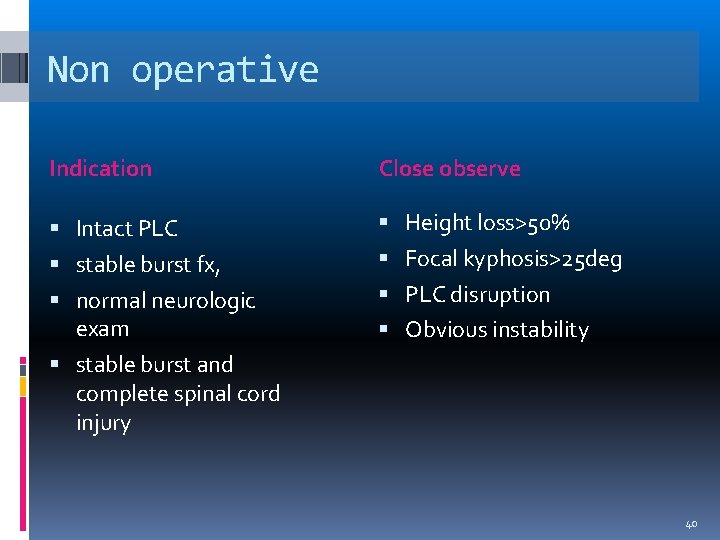

Non operative Indication Close observe Intact PLC Height loss>50% stable burst fx, Focal kyphosis>25 deg normal neurologic exam PLC disruption Obvious instability stable burst and complete spinal cord injury 40

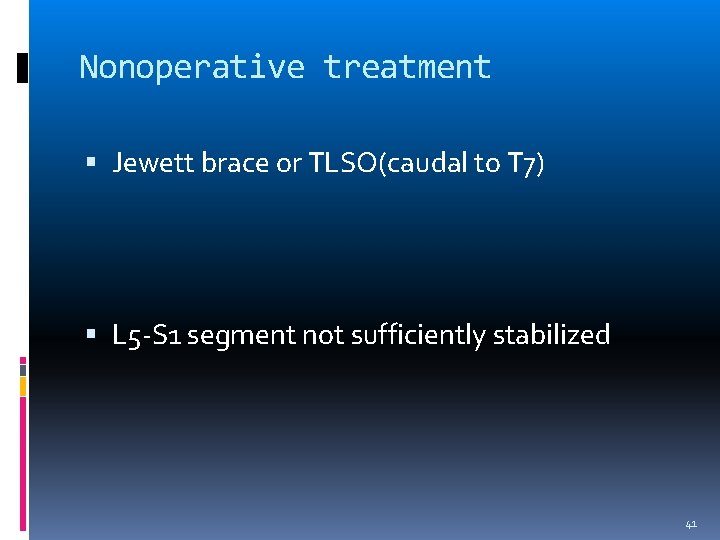

Nonoperative treatment Jewett brace or TLSO(caudal to T 7) L 5 -S 1 segment not sufficiently stabilized 41

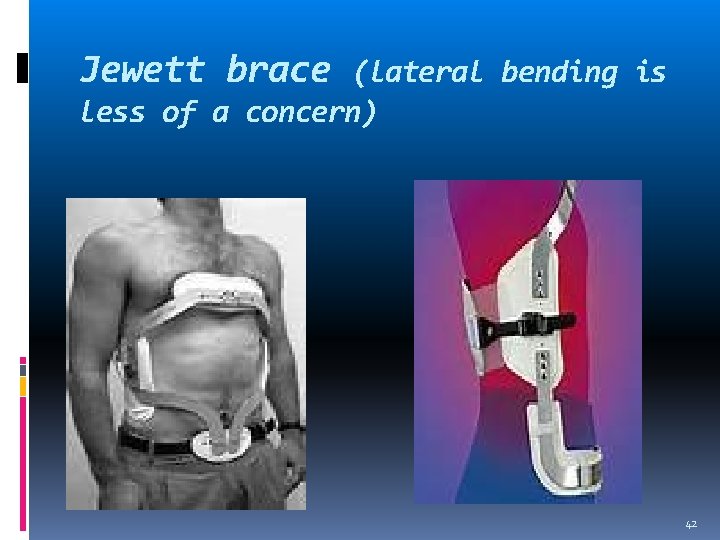

Jewett brace (lateral bending is less of a concern) 42

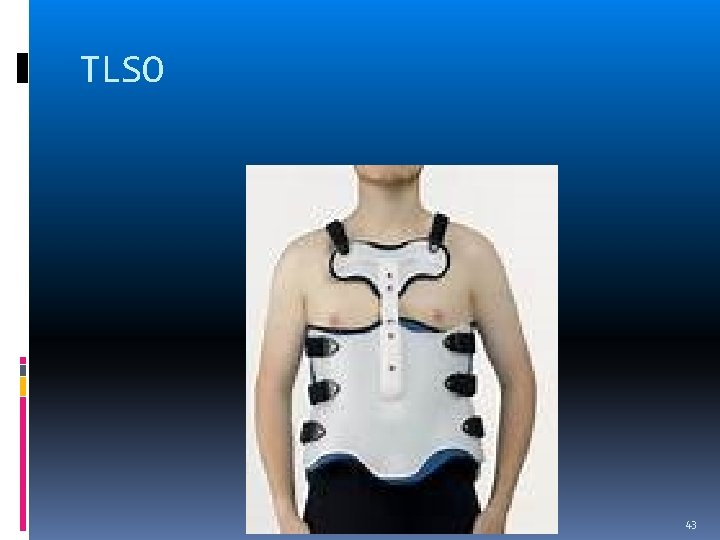

TLSO 43

Compression fx treatment TLSO 12 weeks Pain improve 3 to 6 week Upright radiograph after brace 44

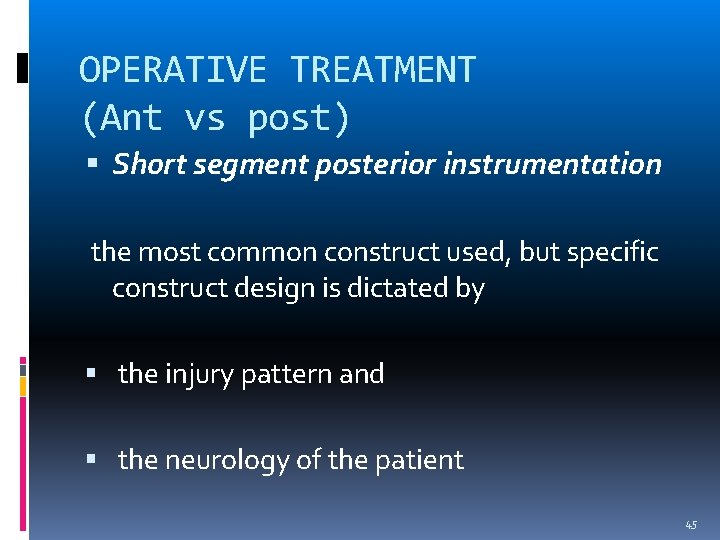

OPERATIVE TREATMENT (Ant vs post) Short segment posterior instrumentation the most common construct used, but specific construct design is dictated by the injury pattern and the neurology of the patient 45

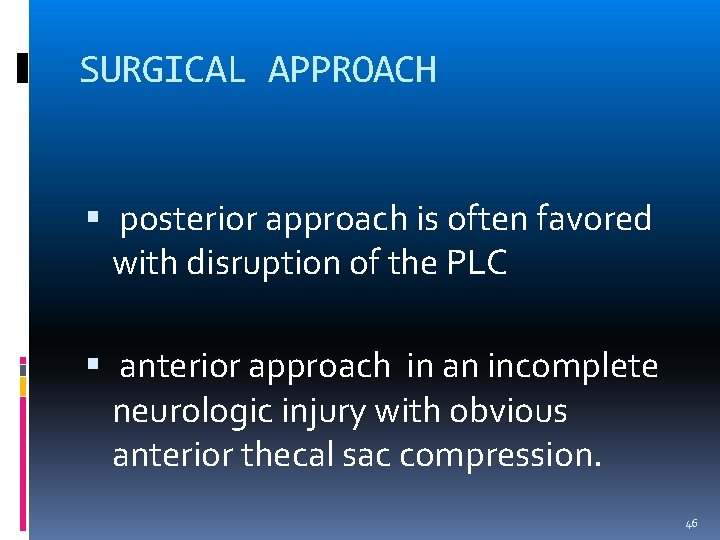

SURGICAL APPROACH posterior approach is often favored with disruption of the PLC anterior approach in an incomplete neurologic injury with obvious anterior thecal sac compression. 46

POST APPROACH ONLY With PLC disruption Rotational and shear injury Canal compromise <50% with neurologic deficit 47

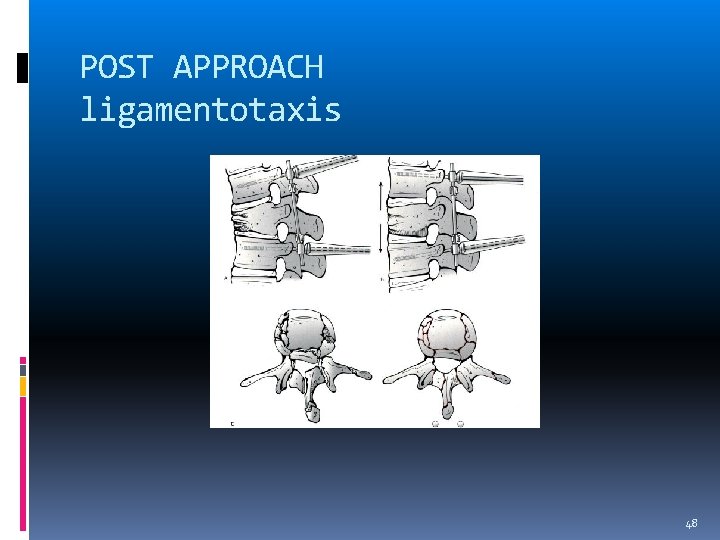

POST APPROACH ligamentotaxis 48

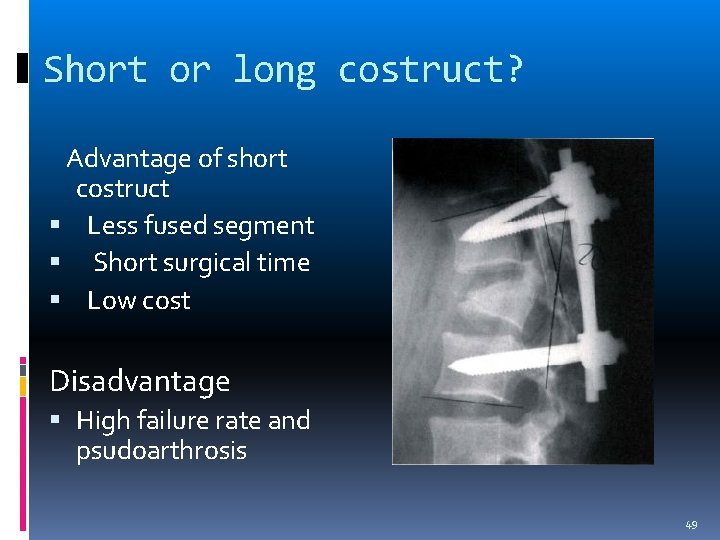

Short or long costruct? Advantage of short costruct Less fused segment Short surgical time Low cost Disadvantage High failure rate and psudoarthrosis 49

Always long Osteoprosis Sever kyphosis Thoracolumbar junction Sever comminution 50

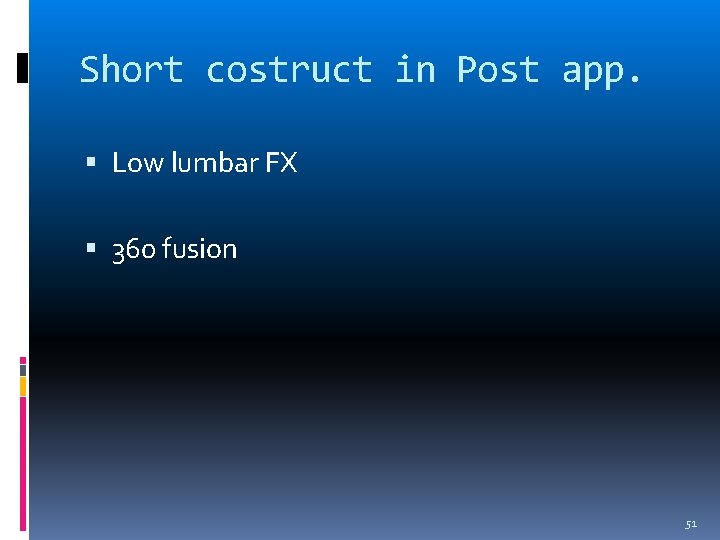

Short costruct in Post app. Low lumbar FX 360 fusion 51

ANT APPROACH Canal compromise>67% and neurologic deficit Sever comminutted fx More than 5 days and neurologic deficit Kyphosis>30 and neurologic deficit Reverse cortical sign 52

REVERSE CORTICAL SIGN 53

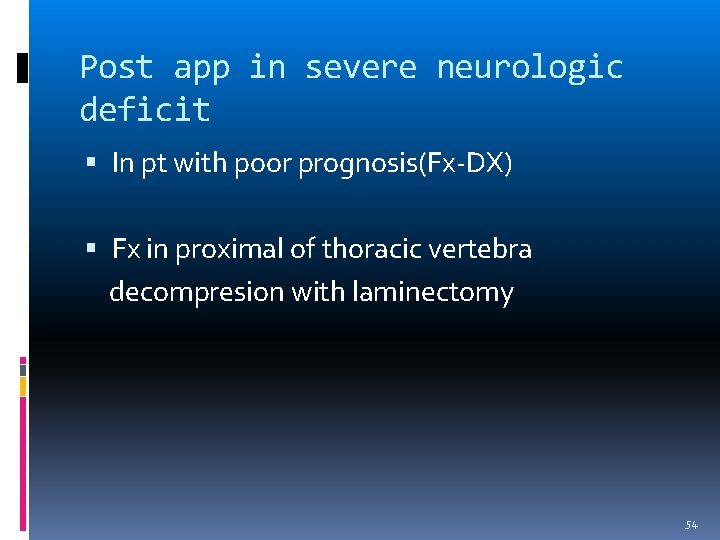

Post app in severe neurologic deficit In pt with poor prognosis(Fx-DX) Fx in proximal of thoracic vertebra decompresion with laminectomy 54

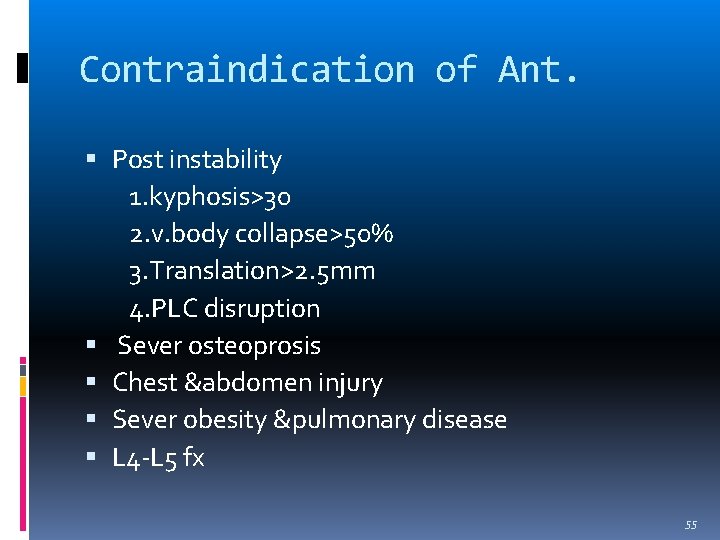

Contraindication of Ant. Post instability 1. kyphosis>30 2. v. body collapse>50% 3. Translation>2. 5 mm 4. PLC disruption Sever osteoprosis Chest &abdomen injury Sever obesity &pulmonary disease L 4 -L 5 fx 55

56

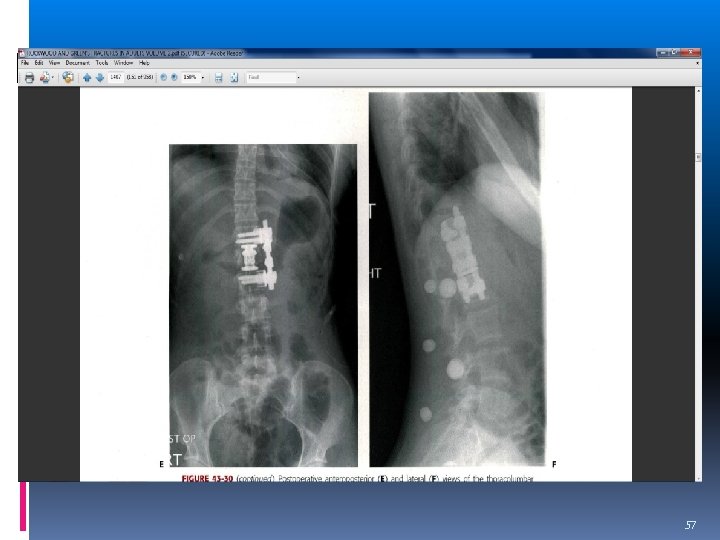

57

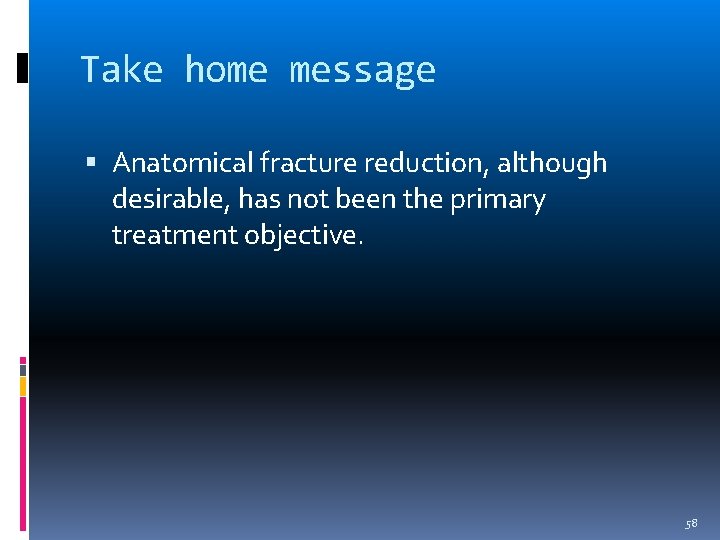

Take home message Anatomical fracture reduction, although desirable, has not been the primary treatment objective. 58

Thank you for attention 59
