Ludovic HORREIN SY - EPC - FPC

Ludovic HORREIN SY - EPC - FPC

Control structure design of SIRIUS FP 2 P 2 S using EMR approach

Control structure design of SIRIUS FP 2 P 2 S using EMR approach

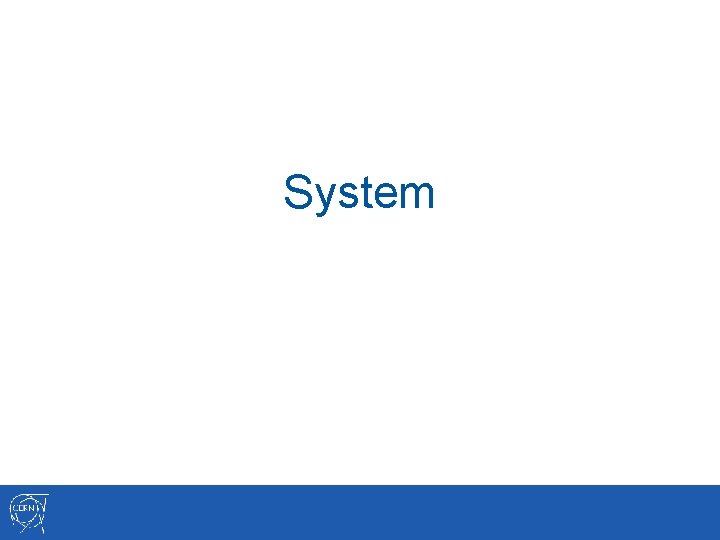

System

System

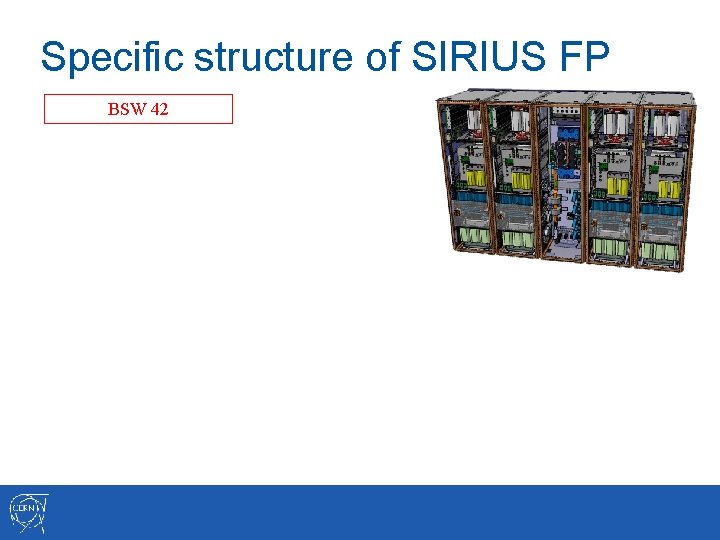

Specific structure of SIRIUS FP BSW 42

Specific structure of SIRIUS FP BSW 42

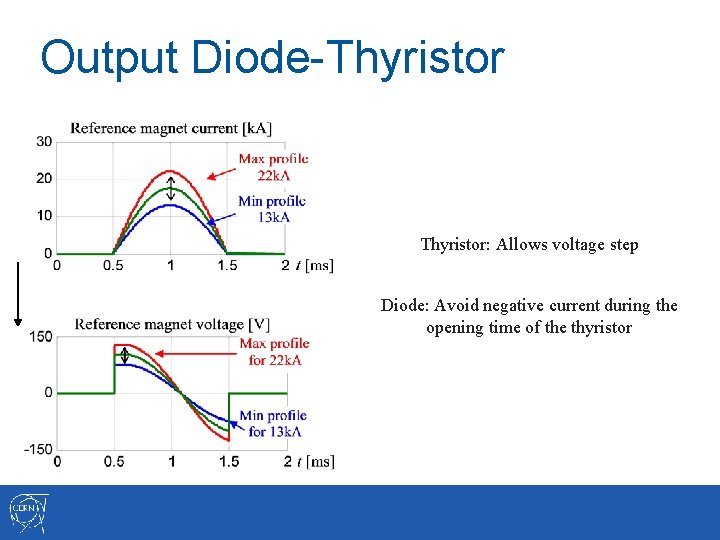

Output Diode-Thyristor: Allows voltage step Diode: Avoid negative current during the opening time of

Output Diode-Thyristor: Allows voltage step Diode: Avoid negative current during the opening time of the thyristor

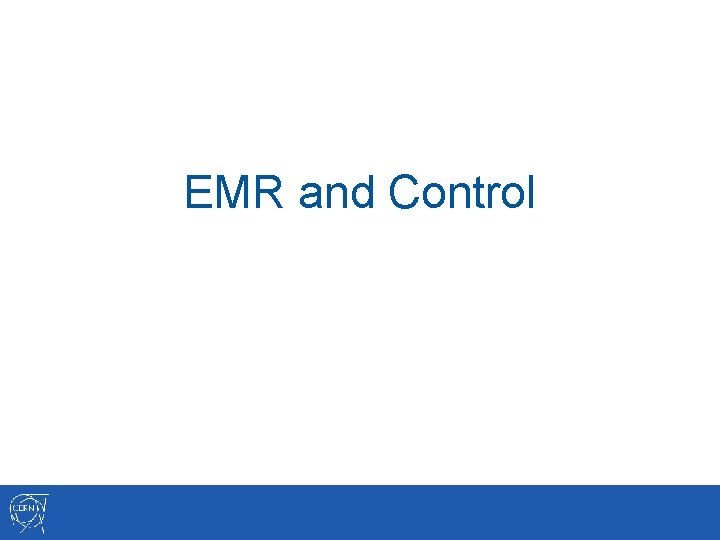

EMR and Control

EMR and Control

Description tool and EMR System Math. model Description Control EMR Simulation Control Description tool

Description tool and EMR System Math. model Description Control EMR Simulation Control Description tool => - Simplify the interconnection between sub-models - Analyse state variables / energetic flows… EMR Description tool => - Allow interconnection following causality principle - Highlight action/reaction principle (energetic flows) - Systematic control structure design

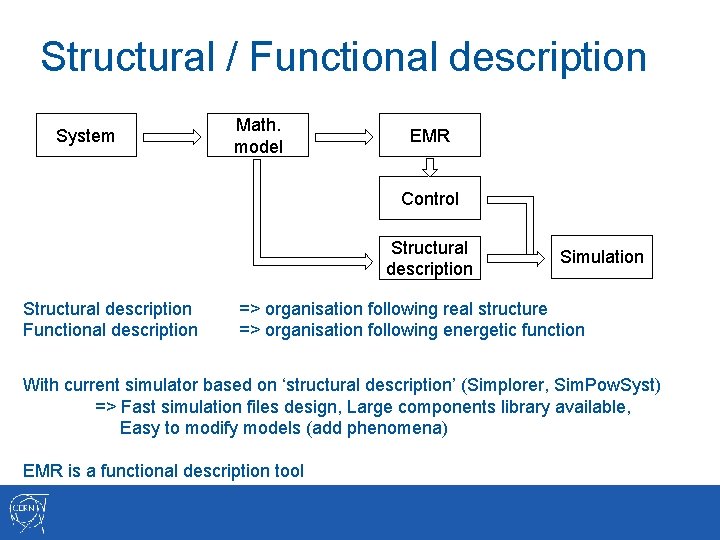

Structural / Functional description System Math. model EMR Simulation Control Structural description Functional description

Structural / Functional description System Math. model EMR Simulation Control Structural description Functional description Simulation => organisation following real structure => organisation following energetic function With current simulator based on ‘structural description’ (Simplorer, Sim. Pow. Syst) => Fast simulation files design, Large components library available, Easy to modify models (add phenomena) EMR is a functional description tool

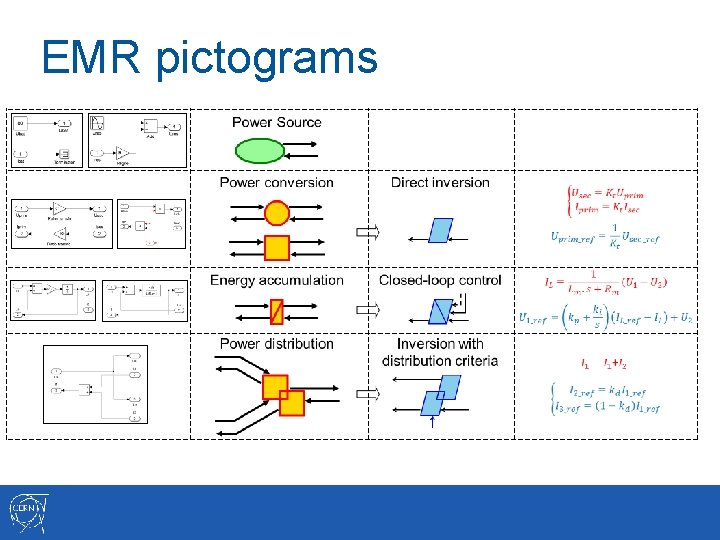

EMR pictograms

EMR pictograms

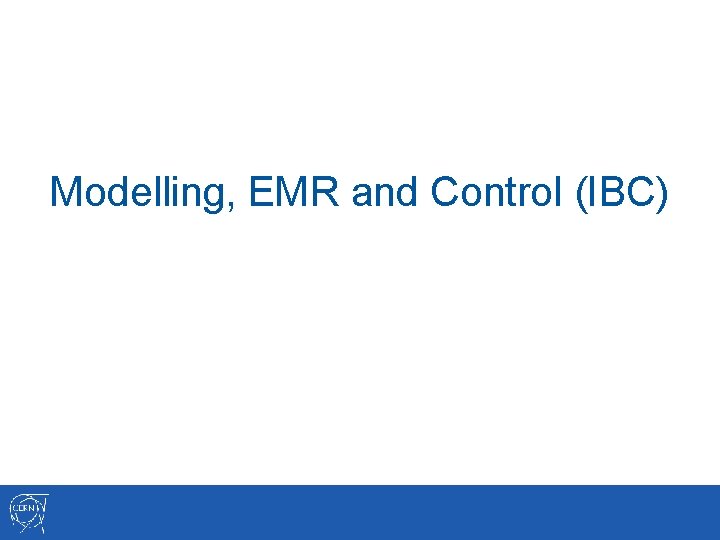

Modelling, EMR and Control (IBC)

Modelling, EMR and Control (IBC)

EMR Tuning path

EMR Tuning path

IBC

IBC

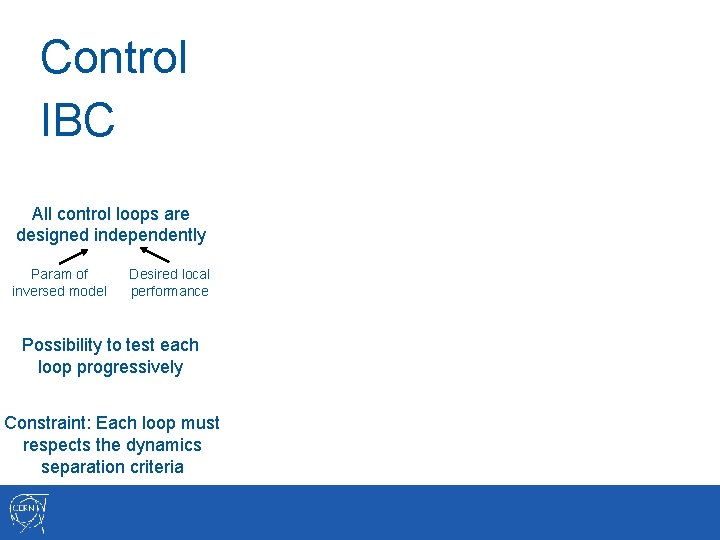

Control IBC All control loops are designed independently Param of inversed model Desired local

Control IBC All control loops are designed independently Param of inversed model Desired local performance Possibility to test each loop progressively Constraint: Each loop must respects the dynamics separation criteria

Regulation Uinv_ref

Regulation Uinv_ref

Simulation (Simpower - IBC) Sensors DSP 10 MHz PWM 20 k. Hz 40 k.

Simulation (Simpower - IBC) Sensors DSP 10 MHz PWM 20 k. Hz 40 k. Hz / 80 k. Hz ADC

Simulation results (Simpower-IBC)

Simulation results (Simpower-IBC)

Implementation

Implementation

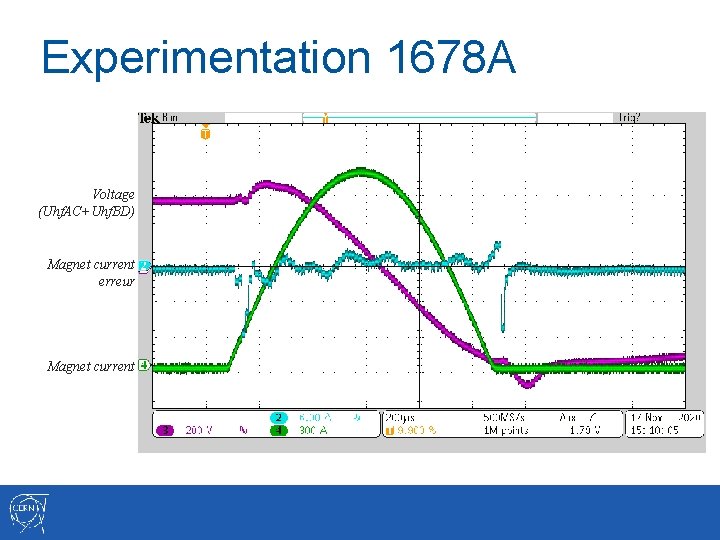

Experimentation 1678 A Voltage (Uhf. AC+Uhf. BD) Magnet current erreur Magnet current

Experimentation 1678 A Voltage (Uhf. AC+Uhf. BD) Magnet current erreur Magnet current

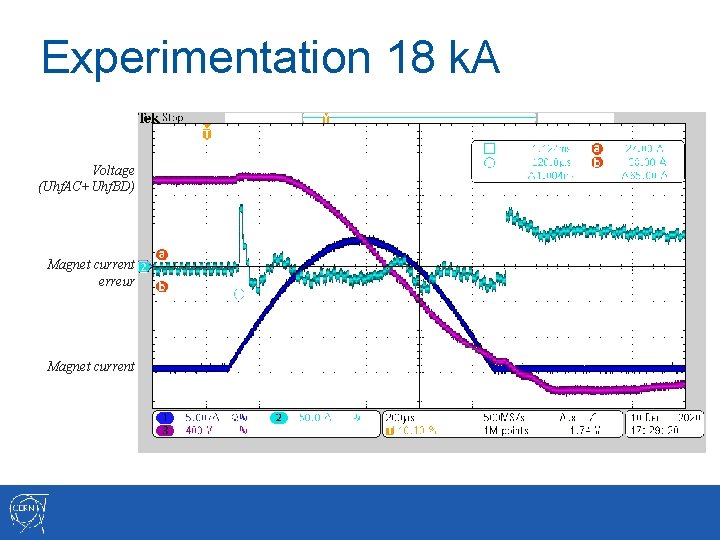

Experimentation 18 k. A Voltage (Uhf. AC+Uhf. BD) Magnet current erreur Magnet current

Experimentation 18 k. A Voltage (Uhf. AC+Uhf. BD) Magnet current erreur Magnet current

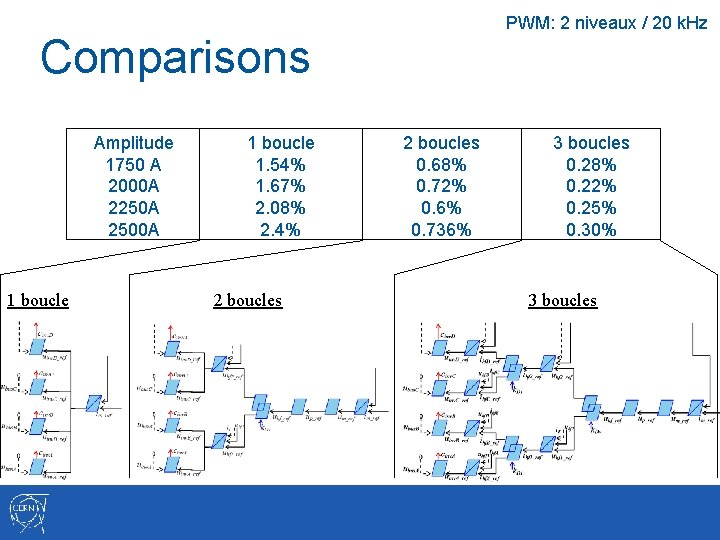

PWM: 2 niveaux / 20 k. Hz Comparisons Amplitude 1750 A 2000 A 2250

PWM: 2 niveaux / 20 k. Hz Comparisons Amplitude 1750 A 2000 A 2250 A 2500 A 1 boucle 1. 54% 1. 67% 2. 08% 2. 4% 2 boucles 0. 68% 0. 72% 0. 6% 0. 736% 3 boucles 0. 28% 0. 22% 0. 25% 0. 30% 3 boucles
