LSST Commissioning Kevin Reil LSST Commissioning Camera Rep
- Slides: 44
LSST Commissioning Kevin Reil LSST Commissioning Camera Rep. August 15, 2016
LSST Commissioning: Camera − − − Commissioning Planning Time Frame Camera Team Input Initial Plans Logistics Discussion LSST 2016 • Aug 15 -19, 2016 2
LSST Commissioning: Camera Time Frame
Commissioning Planning Time Frame: Camera − − − − Camera commissioning scope estimate - non-MIE (2*) Camera shipping plan (1) Camera on summit re-verification plan (2) Camera summit facility build-out plan (2) Detail tests with Com. Cam for Early System AI&T (same 2) Detail Science Camera tests for Full System AI&T (3) Non-MIE Camera supplied hardware design, costing and BOEs (10 in parallel with above) LSST 2016 • Aug 15 -19, 2016 4
Commissioning Planning Time Frame: Camera − − − − Camera commissioning scope estimate - non-MIE (2*) Camera shipping plan (1) Camera on summit re-verification plan (2) Camera summit facility build-out plan (2) Detail tests with Com. Cam for Early System AI&T (same 2) Detail Science Camera tests for Full System AI&T (3) Non-MIE Camera supplied hardware design, costing and BOEs (10 in parallel with above) LSST 2016 • Aug 15 -19, 2016 5
LSST Commissioning: Camera Team

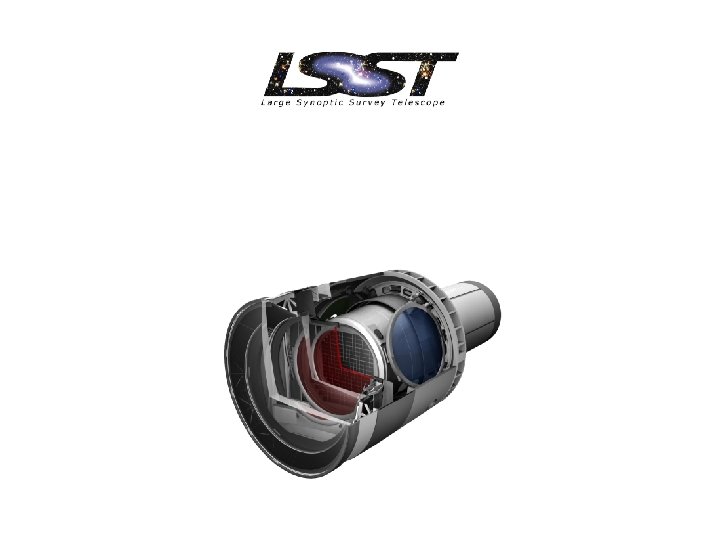

LSST Camera 3. 04. 01 Science Raft Tower 3. 04. 02 Corner Raft Tower 3. 06. 05 Utility Trunk 3. 03 Sensors 3. 01 3. 02 3. 08 3. 07. 02 Aux Electronics 3. 06. 04 Cryostat 3. 06. 01 Camera Body 3. 05. 04 L 3 Lens Assembly 3. 05. 02 Filters (6) 3. 06. 03 Filter Exchange System 3. 06. 02 Shutter Camera Control System 15 -19, 2016 3. 05. 03 L 1 -L 2 Lens Assembly LSST 2016 • Aug 3. 07. 01 3. 07. 02 DAQ 7
I&T -> Commissioning − I&T planning summarized: • • • LCA-40 Integration and Test Plan LCA-283 Camera Verification Test Plan LCA-10148 Survey and Alignment Plan − Documentation • e. Traveler summaries, NCRs, as built docs, etc − Characteristics Data Delivered with the Camera • Information delivered to Data Management • Iterated several times and under change control, LSE-130 • Details of vendor test data will be added as they are determined • Includes: • As-built position information from I&T • FEA distortion models • Sensor and optics characteristics (from test plans) • Filter and lens vendor test results • Optical model as-built inputs/updates to support integrated observatory modeling • Shutter motion profiles and shadowing model as a function of position measurements • Thermal model to interpolate temperature measurements • Configuration LSST 2016 • Aug 15 -19, 2016 8
Summary of inputs from camera team − Camera Management • Need to clearly understand colors of money ($$$) and properly manage boundaries. Create BOEs and resource loaded schedule. − Camera Systems Engineering • While camera fully verified at camera preship review questions will (almost certainly) come up during commissioning • What role is needed from camera SE during commissioning? • e. Traveler transfer of knowledge? NCR handling? − Sensors/Science RAFTs • Transfer of fixtures from BNL to LSST? • Transfer/maintenance of knowledge? • On sky sensor data/performance evaluation. LSST 2016 • Aug 15 -19, 2016 9
Summary of inputs from camera team − Corner RAFT* • Like SR only digital access at commissioning • Wavefront data and guide data! − Optics • All the filters will be fully characterized by the vendor by direct measurements on the actual optics across the entire aperture. r-filter, at least, also well tested at SLAC. • Float indicates all filters tested at SLAC but possible summit work needed (CCOB thin beam at summit is currently planned) • Optics handling expertise at LLNL needs transfer to camera I&T and commissioning (not just a piece of paper with procedure) • L 3 integrated at delivery • L 1/L 2 assembly (likely) reintegrated and aligned in Chile LSST 2016 • Aug 15 -19, 2016 10
Summary of inputs from camera team − Shutter • • Well tested at I&T prior to delivery Shutter swaps at summit during commissioning? On sky performance input/feedback First shutter refurbish as part of commissioning? − Filter exchange* • • Well tested at I&T prior to delivery Autochanger swaps at summit during commissioning? On sky/telescope input/feedback First autochanger refurbish as part of commissioning? − Cryostat/refrigeration* • Pathfinders during Com. Cam • Commissioning systems (2) at summit LSST 2016 • Aug 15 -19, 2016 11
Summary of inputs from camera team − CCS • Pathfinders • Need CCS prior to Com. Cam • More than any subsystem (I think) CCS will be asked to add many things not in their original list of requirements. Significant manpower needs during commissioning. • Calibration telescope ? − DAQ • • Pathfinders Need DAQ prior to Com. Cam Calibration telescope? Network issues/boundaries (summit, summit to base, etc) LSST 2016 • Aug 15 -19, 2016 12
Summary of verbal inputs from camera team − I&T • I&T ends with camera ready to ship • I&T has scope (3. 08. 05) to design, build or design/build shipping container for camera • But not all the other things that need to ship. • Nominal plan has been to reuse the L 1/L 2 shipping container from Optics/Ball Aerospace and ship rest of camera as one piece • Filters back in their shipping containers • Commissioning must cover shipping costs • All of camera I&T goes to Chile • Fixtures and a-frame crane for clean room in I&T budget • Alumalift, RAFT level test stands, computers • Everything else? (tools, clean room gear, etc) are not. LSST 2016 • Aug 15 -19, 2016 13
LSST COMMISSIONING: CAMERA TIME FRAMES LSST 2016 • Aug 15 -19, 2016 14
Time Frames: Camera Perspective − Pathfinders for CCS and DAQ • ~2018 − Com. Cam era • Early 2019, merge T&S/Cam hardware • Mid 2019 to early 2020 – On telescope • Refrigeration pathfinders − Camera Ready at SLAC • Feb. 14, 2020 − Camera on summit (camera maintenance area) • Spring/Summer 2020 − Camera on telescope! • Fall/Winter 2020 − (Dates approx. from gantt charts) LSST 2016 • Aug 15 -19, 2016 15
Time Frames: Camera Perspective − Pathfinders for CCS and DAQ • Needed before Com. Cam arrives • Discussion LSST 2016 • Aug 15 -19, 2016 16
Time Frames: Camera Perspective − Com. Cam era • Add missing scope in LSE-199 • Or at least clarification of scope and responsibilities • @SLAC • I&T scope @ SLAC • Union of I&T scope and T&S scope @ SLAC • Unified testing @ SLAC • Shipping • On Summit • Testing on floor before going on telescope • In mass simulator on telescope • Parallel refrigeration pathfinder in mass simulator LSST 2016 • Aug 15 -19, 2016 17
Time Frames: Camera Perspective − Camera Ready at SLAC Camera I&T done Pre-ship/Acceptance review (3. 08. 04) Camera into/next to shipping container (3. 08. 05) Camera project (DOE MIE) done! Ship camera • Ship fixtures • Ship test stands, tools, etc • Transfer verification data, procedures, etc − “Commissioning activities involving the Camera begins with shipping from SLAC to Chile and re-verification on the Cerro Pachon summit. Reverification activities of the Camera will be lead (led) by DOE personnel, but coordinated through the Commissioning team and plan. These activities are currently scheduled to start February 14, 2020 with a Camera Pre-Ship Acceptance review at SLAC. ” • • • LSST 2016 • Aug 15 -19, 2016 18
LSST Commissioning: Logistics and Existing Plans
9 LSST 2016 • Aug 15 -19, 2016 3? 20
Receiving the Camera from SLAC Camera Shroud installed as protection for auto changer L 1 -L 2 removed These slides from Joint Technical Meeting: Santa Cruz 2016. Thanks: Travis Lange LSST 2016 • Aug 15 -19, 2016 21
Telescope 3 rd Floor Clean Room Camera Staging and Test Area White Room Utility Area Walkway Mirror Coating Facility LSST 2016 • Aug 15 -19, 2016 22
Equipment Flow Diagram—Receiving the Camera “Camera I&T needs to be repeatable at summit” requirement has required real work already. LSST 2016 • Aug 15 -19, 2016 23
Receiving the Camera and Prepping for Install Raft Integration Camera Integration Stand BOT Camera Staging and Test Area Clean Room (class 10, 000) White Room (class 100, 000) LSST 2016 • Aug 15 -19, 2016 24
Time Frames: Camera Perspective − Camera on summit (camera staging/test area) • Camera on camera integration stand (install that first) • Is nominal shipping plan of L 1/L 2 + rest of camera the right plan? • Re-align L 1/L 2 assembly with camera • CCOB thin beam tests • Refrigeration at Camera Maintenance area • How much throughput testing? • Under CCS control here • Camera in front end assembly • Move to OCS control • Pump down/cool down • Flat field, darks, etc LSST 2016 • Aug 15 -19, 2016 25
Camera Staging and Test Area Camera Integration Stand LSST 2016 • Aug 15 -19, 2016 26
Receive Camera from SLAC on Saddle Stand Camera Saddle Stand LSST 2016 • Aug 15 -19, 2016 27
Move Camera Into White Room LSST 2016 • Aug 15 -19, 2016 28
Camera in White Room (Rotated 180°) Camera in Saddle Stand L 1 -L 2 Support Stand LSST 2016 • Aug 15 -19, 2016 29
Bring L 1 -L 2 Container into White Room L 1 -L 2 Shipping Container L 1 -L 2 Support Stand LSST 2016 • Aug 15 -19, 2016 30
Prep L 1 -L 2 Shipping Container L 1 -L 2 on Support Stand LSST 2016 • Aug 15 -19, 2016 31
Remove L 1 -L 2 Shipping Container LSST 2016 • Aug 15 -19, 2016 32
Integrate L 1 -L 2 and Shroud to Camera LSST 2016 • Aug 15 -19, 2016 33
Move Camera into Staging Area LSST 2016 • Aug 15 -19, 2016 34
Prep Camera for Move to Integration Stand LSST 2016 • Aug 15 -19, 2016 35
Camera Testing & Alignment Utilities Needed: • Camera Power 380 V, 3 phase 44 A • Integration Stand Power 230 V, 3 phase 30 A • Refrigeration • DAQ Fibers • Glycol • Nitrogen gas • Compressed dry air LSST 2016 • Aug 15 -19, 2016 36
Prep Hexapod/Rotator Assembly Camera Support Assembly Stand Camera Support Assembly LSST 2016 • Aug 15 -19, 2016 37
Integrate Camera on Hexapod/Rotator Assembly Complete Camera Support Assembly ready for integration on telescope LSST 2016 • Aug 15 -19, 2016 38
CAD Image of Facility The CAD model of Camera Equipment in the Camera Maintenance Facility is a WIP Camera Saddle Stand Camera Integration Stand LSST 2016 • Aug 15 -19, 2016 39
More plans in place − See JTM talk by Travis Lange • Cryostat level work on summit support • RAFT replacement, for example LSST 2016 • Aug 15 -19, 2016 40
Time Frames: Camera Perspective − Camera on telescope! • Full verification of all systems • Mini surveys • Data flowing LSST 2016 • Aug 15 -19, 2016 41
Camera: Conclusions
Camera Commissioning: Conclusions − I have no conclusions, we are just getting started − We need your help! Let’s talk! LSST 2016 • Aug 15 -19, 2016 43
