成功大學地層下陷防治服務團 循環水系統試驗成果說明會 報告人:宋長虹執行秘書 成功大學地層下陷防治服務團 中華民國九十三年二月十三日 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 簡報綱要 台灣養殖漁業面臨挑戰 目前循環水系統推廣概述 彰化縣大城鄉示範成果 結論 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA

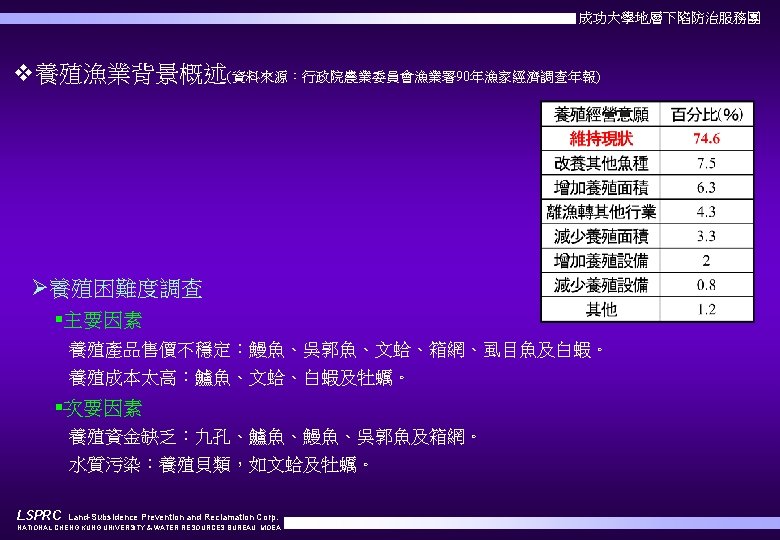

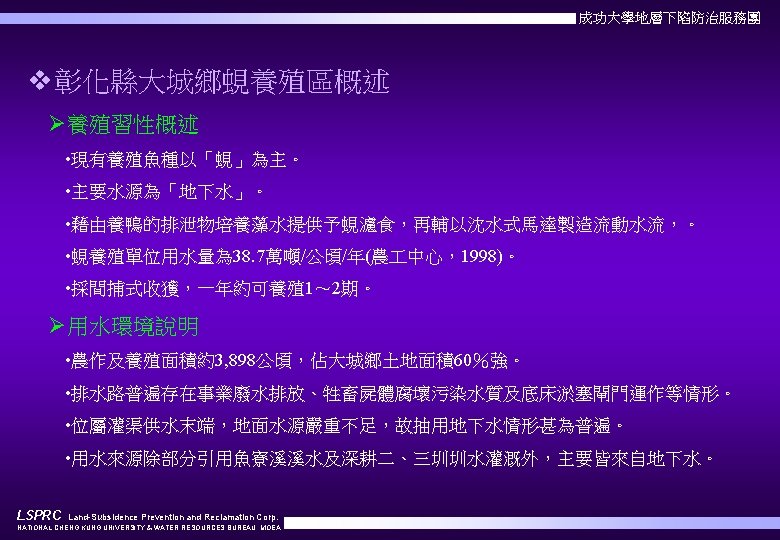

成功大學地層下陷防治服務團 v LSPRC --- 彰 化 縣 大 城 鄉 蜆 養 殖 區 區 內 土 地 利 用 型 態 Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA

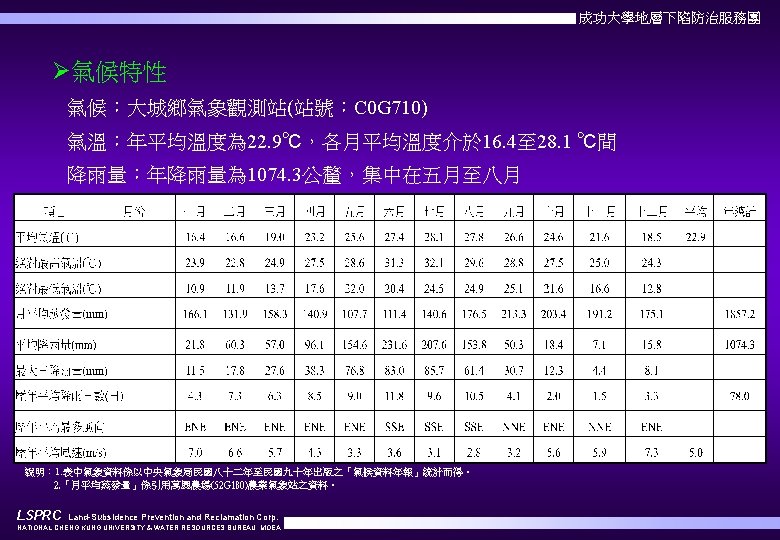

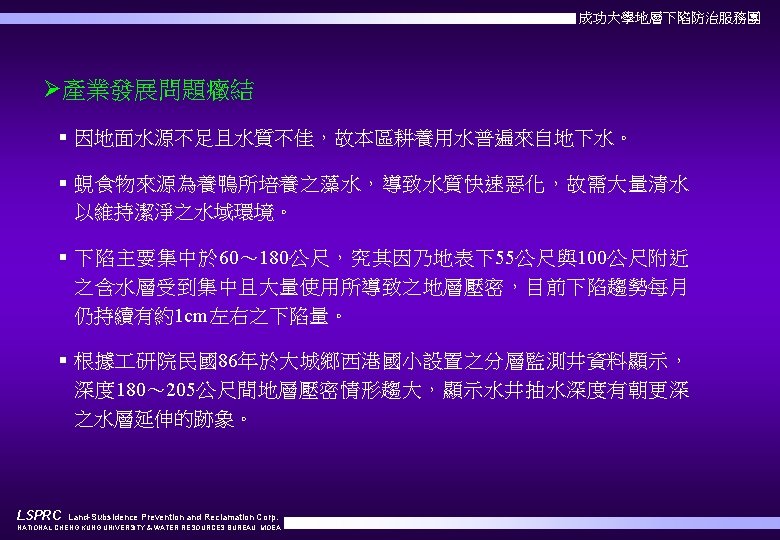

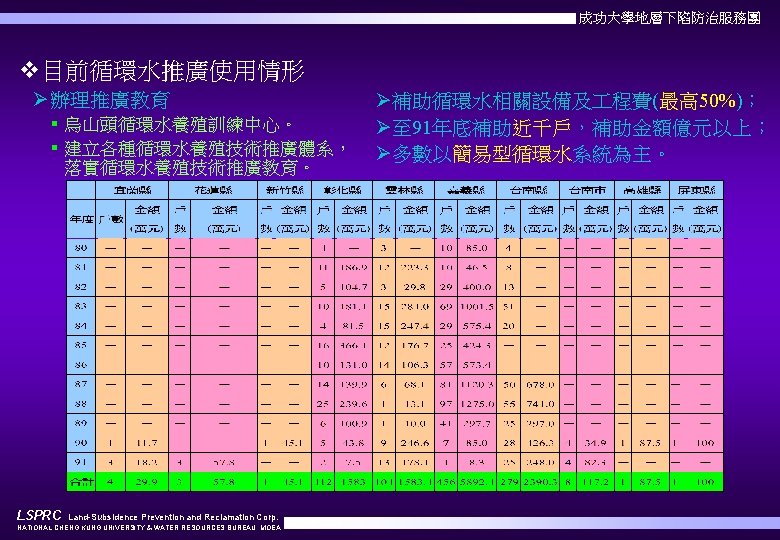

成功大學地層下陷防治服務團 Ø養蜆產業發展概況 資料來源:行政院農業委員會漁業署民國84年至民國91年統計要覽資料。 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 Ø養蜆產業發展概況 資料來源:行政院農業委員會漁業署民國84年至民國91年統計要覽資料。 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 Ø養蜆產業發展概況 資料來源:行政院農業委員會漁業署民國84年至民國91年統計要覽資料。 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 87年分層壓縮量(公釐) LSPRC 88年分層壓縮量(公釐) Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA 89年分層壓縮量(公釐) 90年分層壓縮量(公釐) ) 91年分層壓縮量(公釐)

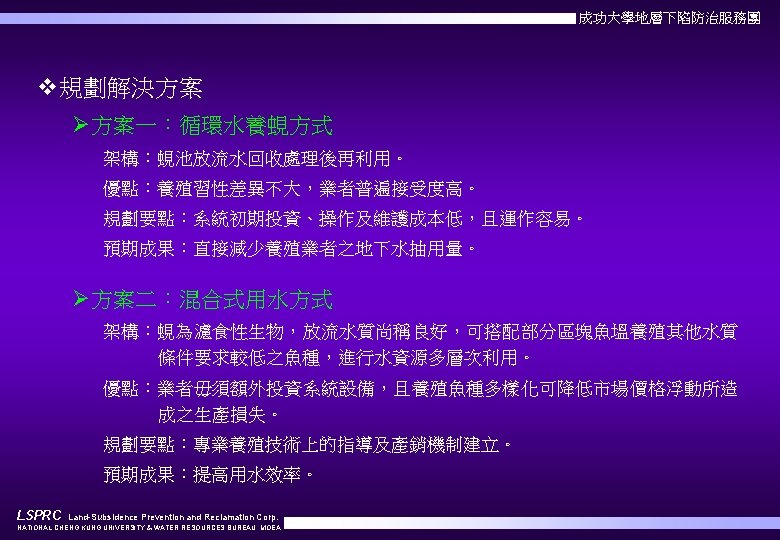

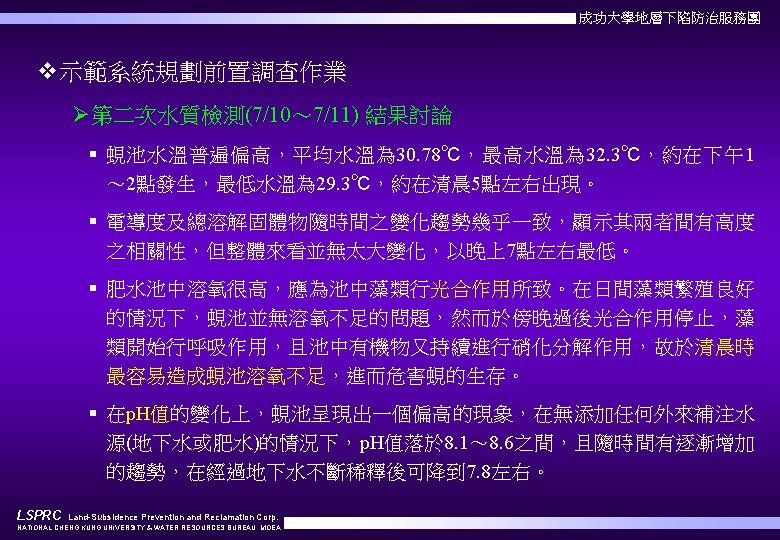

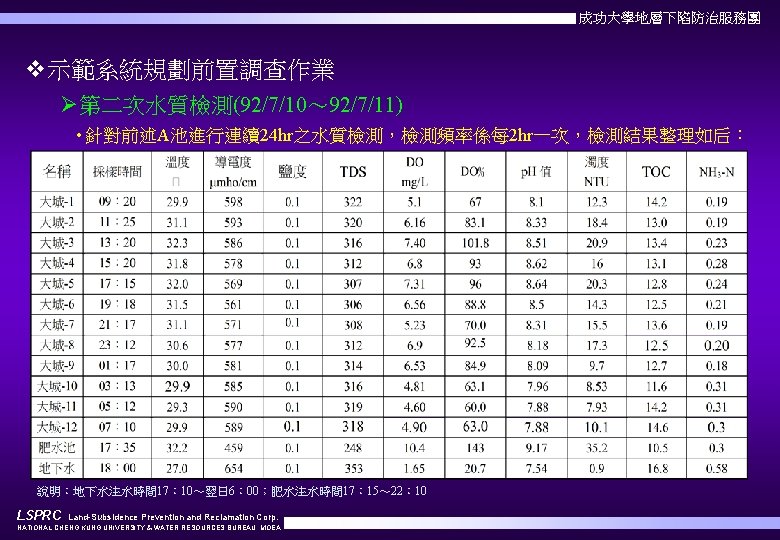

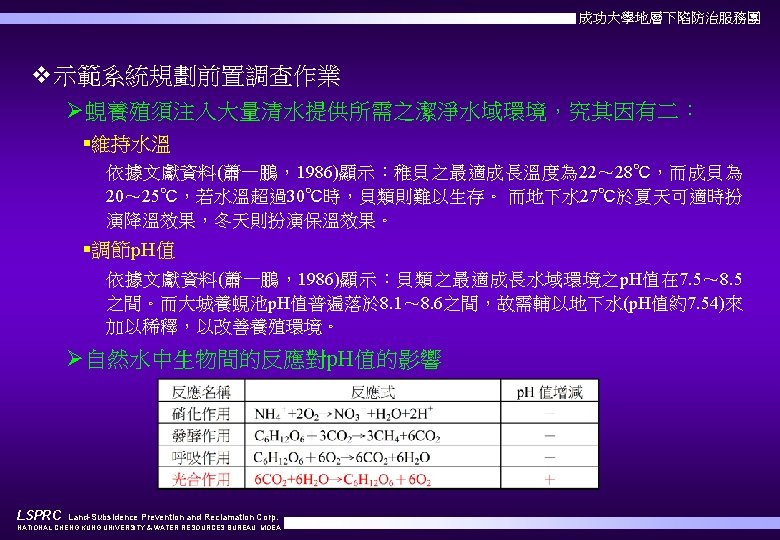

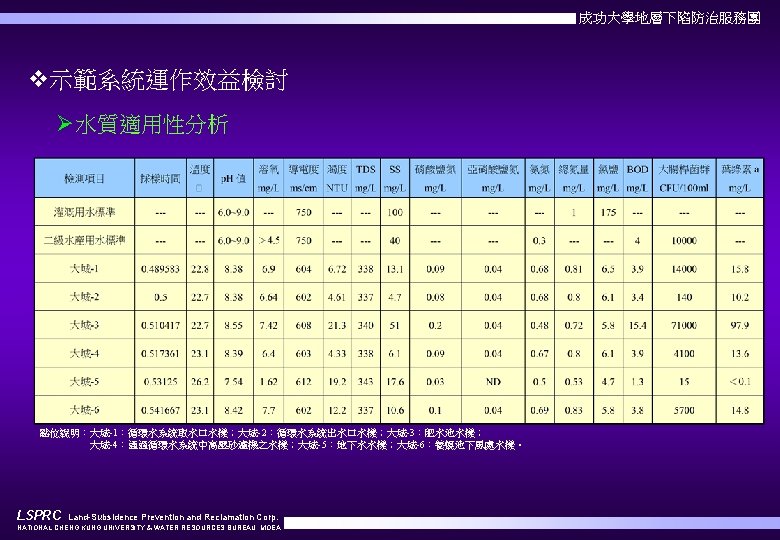

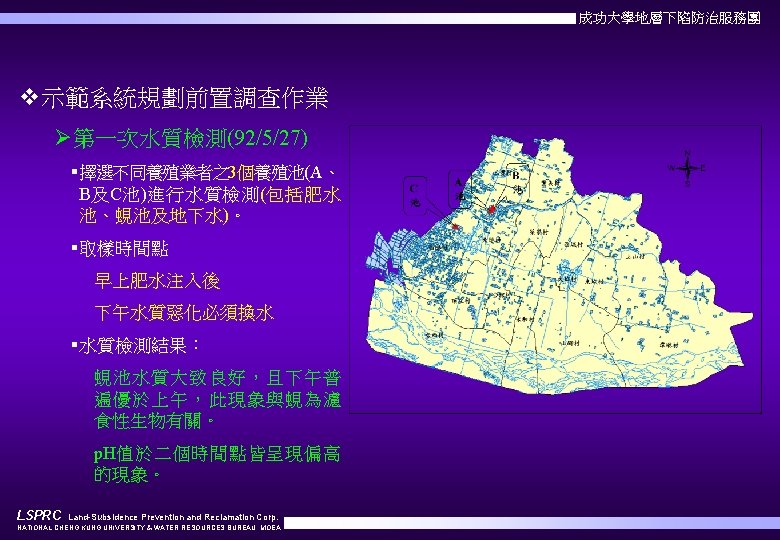

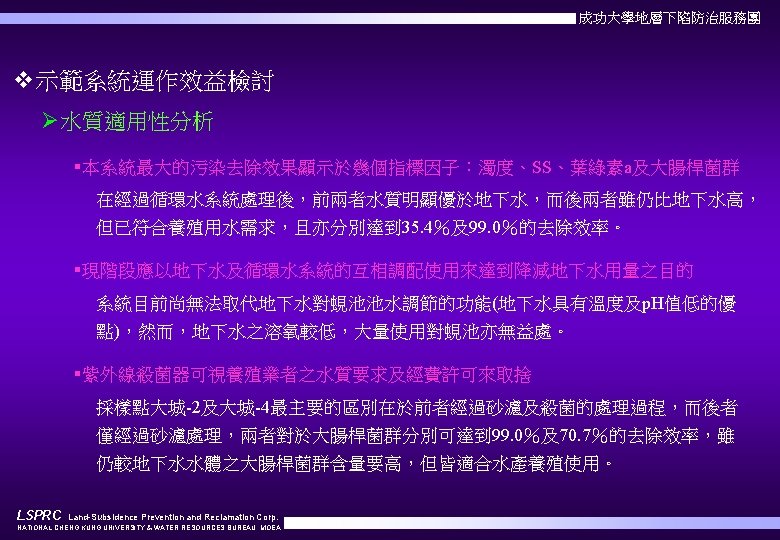

成功大學地層下陷防治服務團 v示範系統規劃前置調查作業 Ø第二次水質檢測(92/7/10~ 92/7/11)各項目隨時間變化歷線圖 說明:地下水注水時間 17: 10~翌日 6: 00;肥水注水時間 17: 15~ 22: 10 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 v現地調查 肥水抽引 養殖環境現況(1) 養殖環境現況(2) LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA 計畫執行說明會

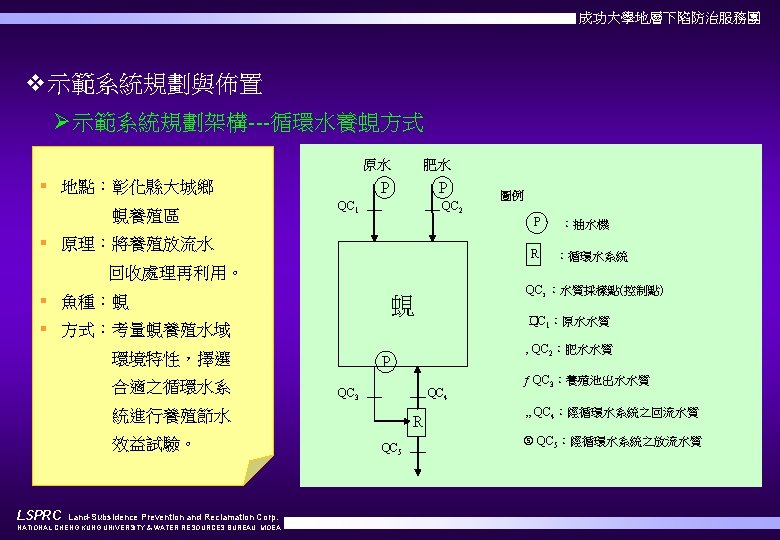

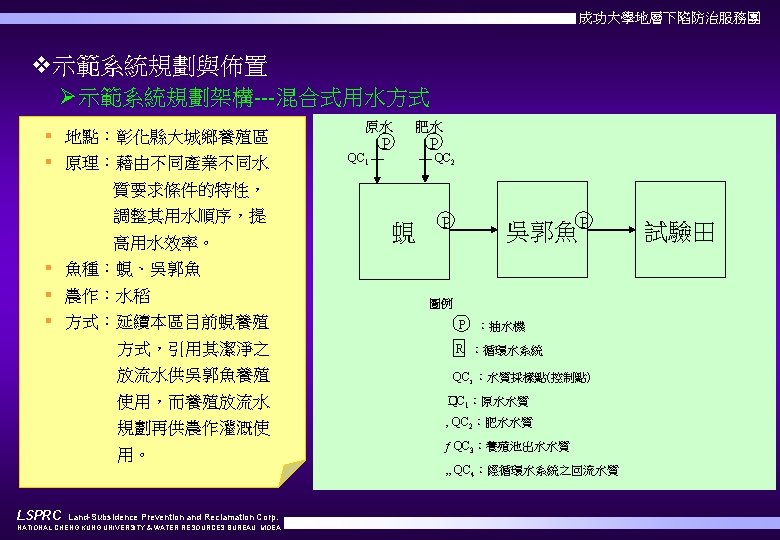

成功大學地層下陷防治服務團 v示範系統規劃與佈置 Ø示範系統現地佈置---循環水養蜆方式 q 循環水系統處理流程規劃: LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 v示範系統規劃與佈置 Ø示範系統現地佈置---循環水養蜆方式 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA

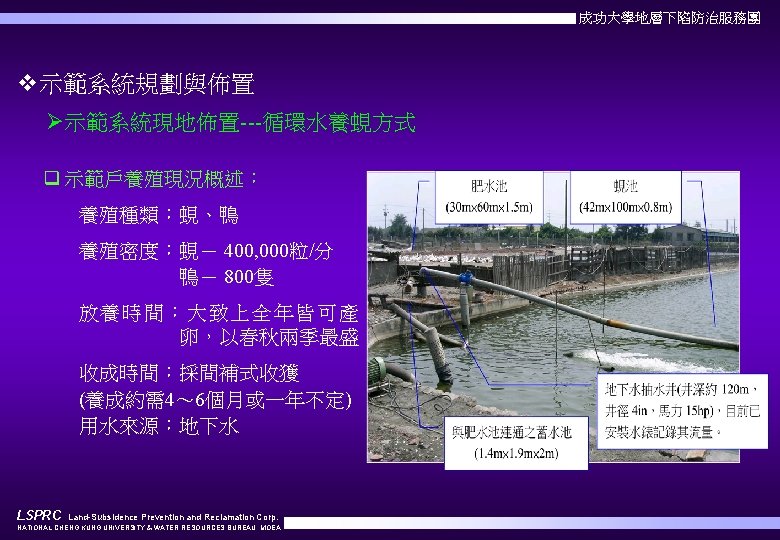

成功大學地層下陷防治服務團 v示範系統現地佈置---循環水養蜆方式 Ø系統佈置現況 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA

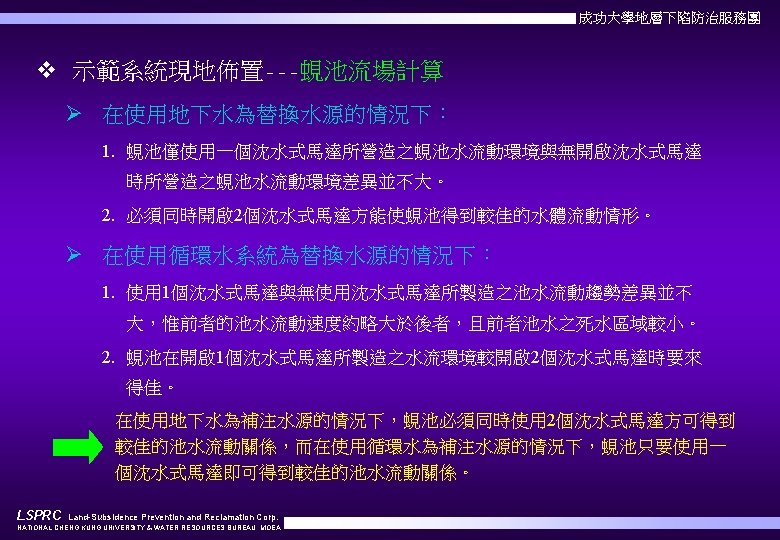

成功大學地層下陷防治服務團 v示範系統現地佈置---蜆池流場計算 地下水 排放口位置 沉水馬達抽水口位置 肥水排放口位置 循環水排放口位置 沉水式馬逹位置 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA nodes = 1122 cf = 0. 01 dt = 0. 25 Eddy = 0. 1 elements = 2100 length=100 m width=42 m depth=70 cm
成功大學地層下陷防治服務團 v示範系統現地佈置---蜆池流場計算 使用地下水 (0. 016 cms) =(5. 5, 34) 沉水式馬達 (無) LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 v示範系統現地佈置---蜆池流場計算 使用地下水 (0. 016 cms) =(5. 5, 34) 沉水式馬達 (#1, #2); #1=(95, 41) ;#2=(4, 37. 5) LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 v示範系統現地佈置---蜆池流場計算 使用循 環 水 循環水 (0. 012 cms) =(5. 5, 34) 沉水式馬達 (無) LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 v示範系統現地佈置---蜆池流場計算 使用循 環 水 循環水 (0. 012 cms) =(5. 5, 34) 沉水式馬達 (#1, #2) ; #1=(95, 41) ;#2=(4, 37. 5) LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 v示範系統現地佈置---蜆池流場計算 使用循 環 水 循環水 (0. 012 cms) =(5. 5, 34) 沉水式馬達 (#1) ; #1=(95, 41) LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 v示範系統現地佈置---蜆池流場計算 使用循 環 水 循環水 (0. 012 cms) =(5. 5, 34) 沉水式馬達 (#2) ; #2=(4, 37. 5) LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA
成功大學地層下陷防治服務團 v示範系統現地佈置---蜆池流場計算 無任何注 入 水 沉水式馬達 (#1, #2) ; #1=(95, 41) ;#2=(4, 37. 5) LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA

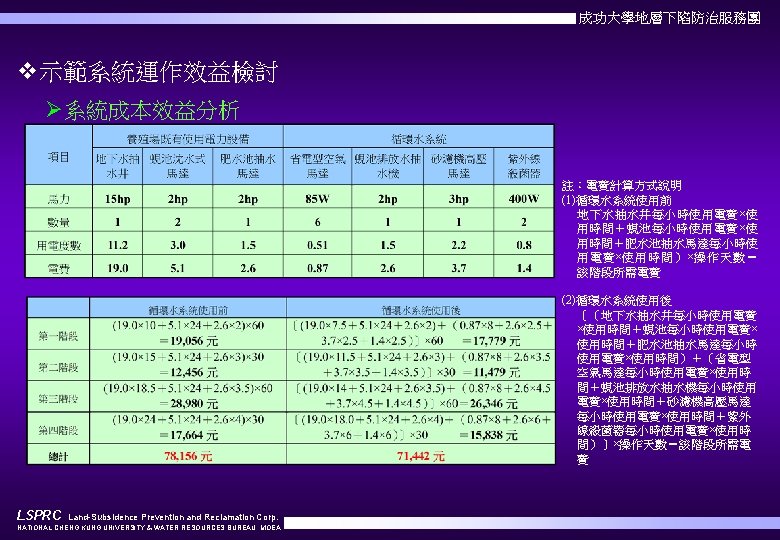

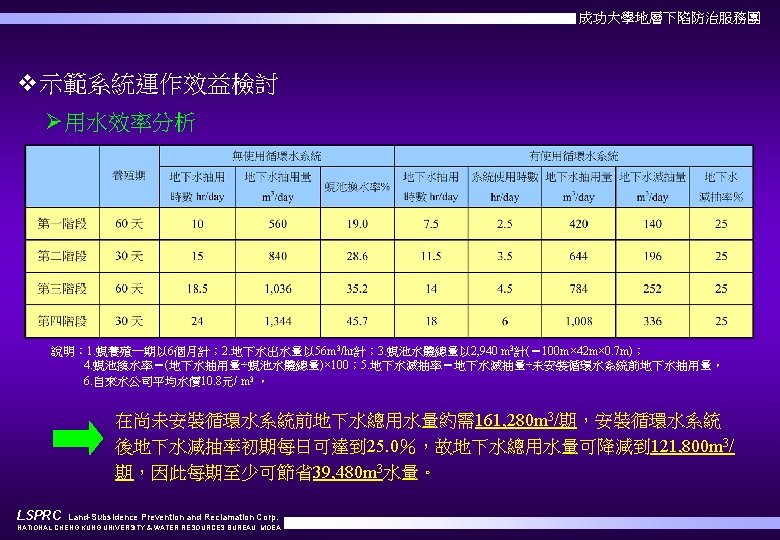

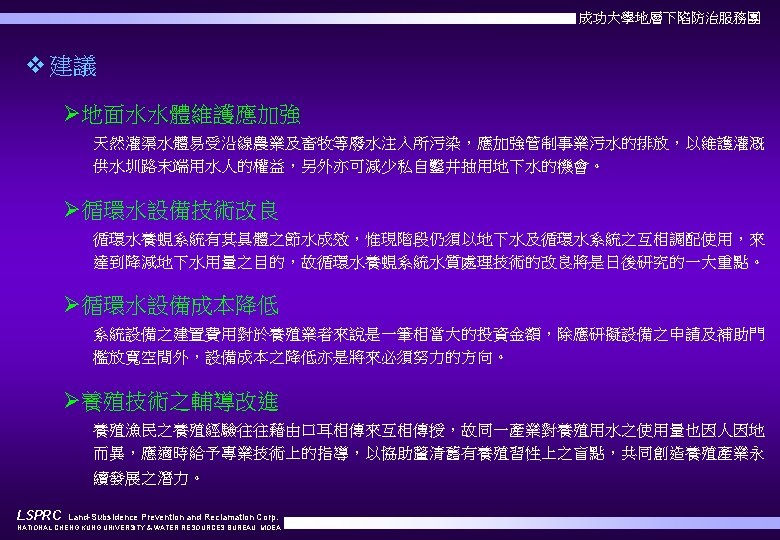

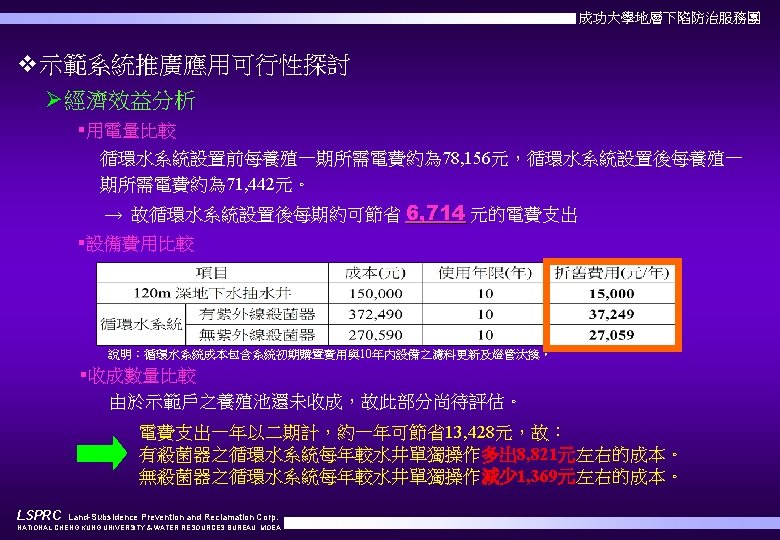

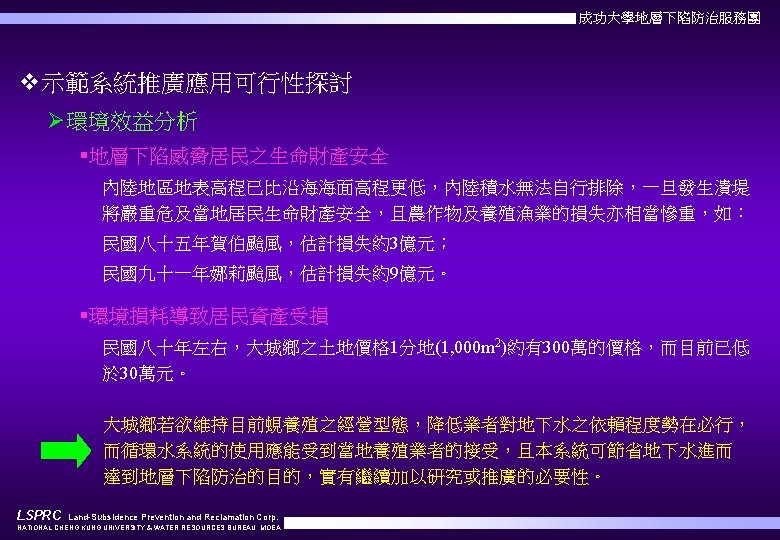

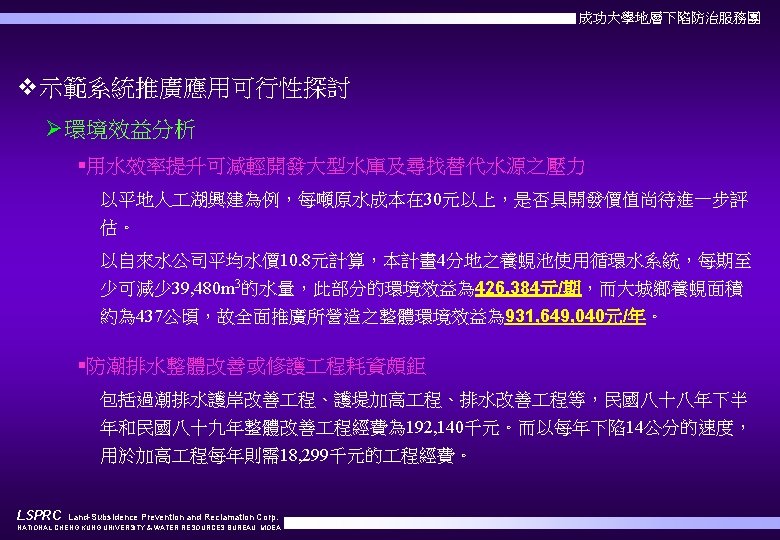

成功大學地層下陷防治服務團 簡報完畢 LSPRC Land-Subsidence Prevention and Reclamation Corp. NATIONAL CHENG KUNG UNIVERSITY & WATER RESOURCES BUREAU, MOEA 敬請指教 46
