LSM 2104CZ 2251 Essential Bioinformatics and Biocomputing Protein

LSM 2104/CZ 2251 Essential Bioinformatics and Biocomputing Protein Structure and Visualization Chen Yu Zong csccyz@nus. edu. sg 6874 -6877

LSM 2104/CZ 2251 Essential Bioinformatics and Biocomputing Three Lectures Lecture 9: Bio. Macromolecular Visualization I Principles of protein chemistry and structure Lecture 10: Bio. Macromolecular Visualization II Protein structure databases; visualization; and classifications Lecture 11: Receptor Ligand Binding, Energy Minimization and docking concepts. Structural Modeling

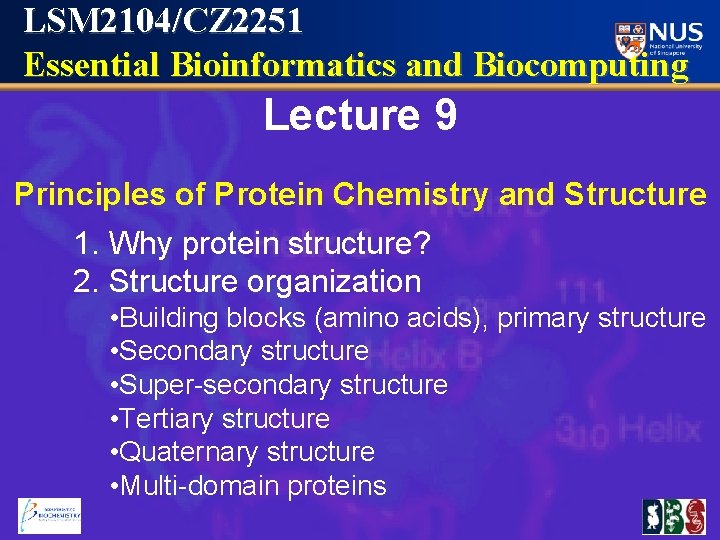

LSM 2104/CZ 2251 Essential Bioinformatics and Biocomputing Lecture 9 Principles of Protein Chemistry and Structure 1. Why protein structure? 2. Structure organization • Building blocks (amino acids), primary structure • Secondary structure • Super-secondary structure • Tertiary structure • Quaternary structure • Multi-domain proteins

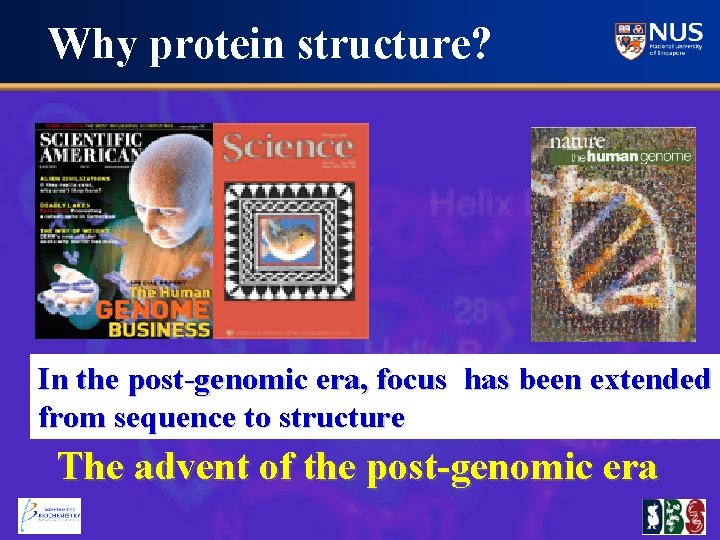

Why protein structure? In the post-genomic era, focus has been extended from sequence to structure The advent of the post-genomic era

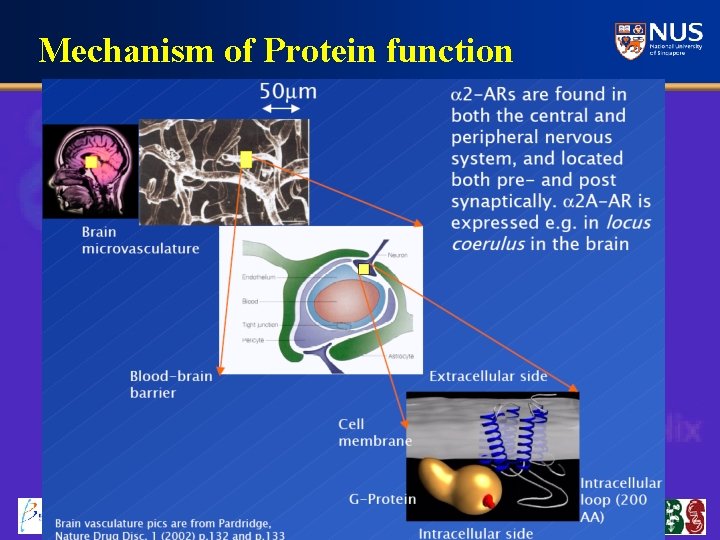

Mechanism of Protein function

Drug Receptors

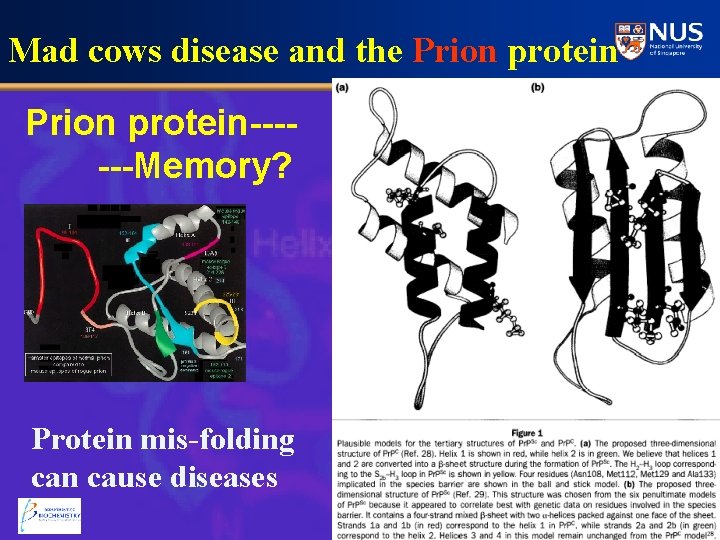

Mad cows disease and the Prion protein------Memory? Protein mis-folding can cause diseases

Drug Design: Success Story of Anti-HIV HIV-1 protease Specific disease proteins are targets for drug discovery Knowledge of their structure useful for drug design

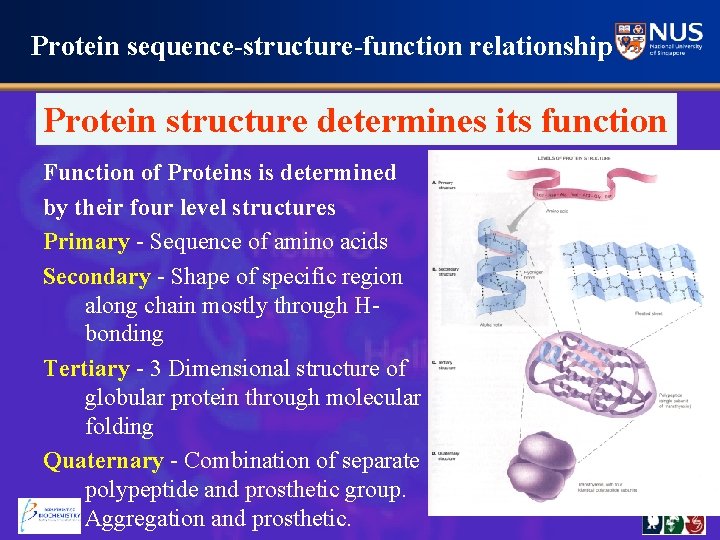

Protein sequence-structure-function relationship Protein structure determines its function Function of Proteins is determined by their four level structures Primary - Sequence of amino acids Secondary - Shape of specific region along chain mostly through Hbonding Tertiary - 3 Dimensional structure of globular protein through molecular folding Quaternary - Combination of separate polypeptide and prosthetic group. Aggregation and prosthetic.

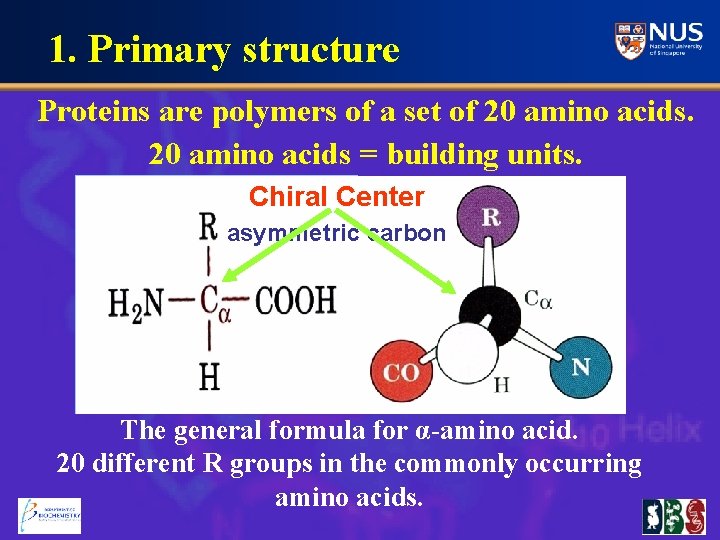

1. Primary structure Proteins are polymers of a set of 20 amino acids = building units. Chiral Center asymmetric carbon The general formula for α-amino acid. 20 different R groups in the commonly occurring amino acids.

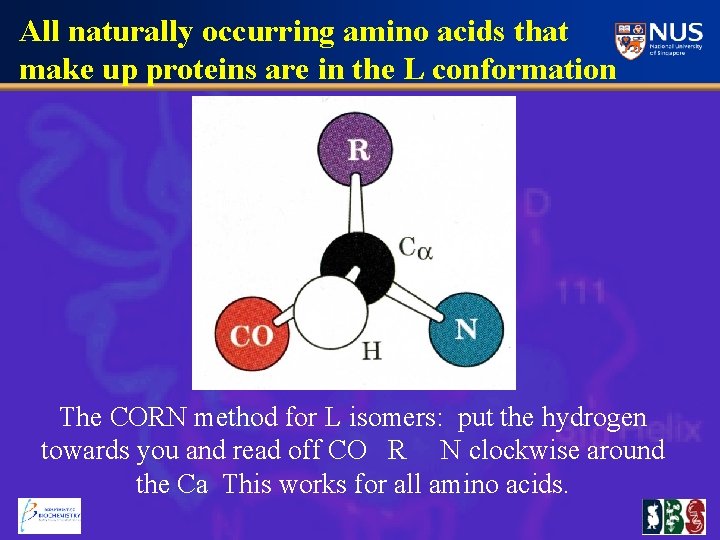

All naturally occurring amino acids that make up proteins are in the L conformation The CORN method for L isomers: put the hydrogen towards you and read off CO R N clockwise around the Ca This works for all amino acids.

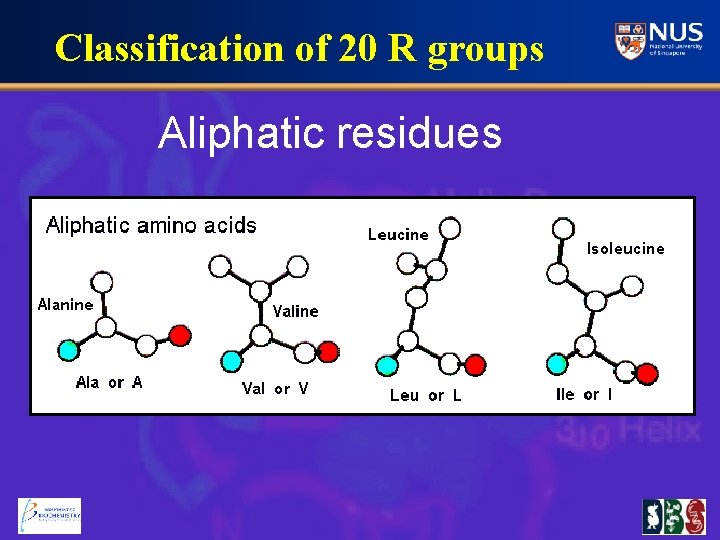

Classification of 20 R groups Aliphatic residues

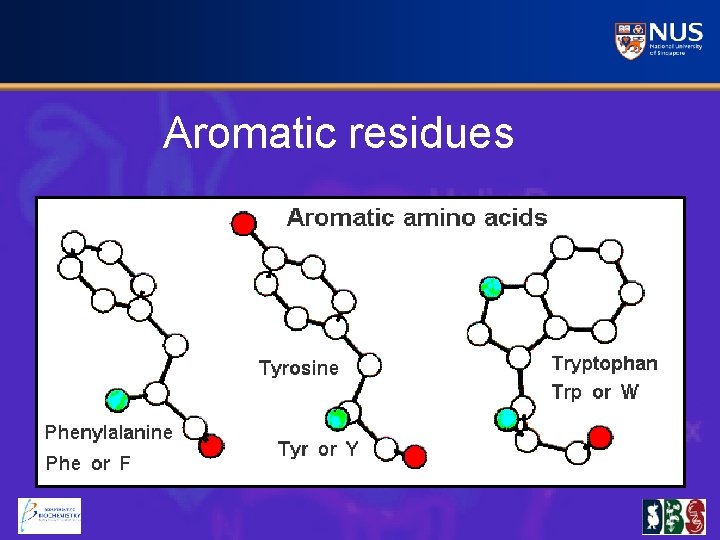

Aromatic residues

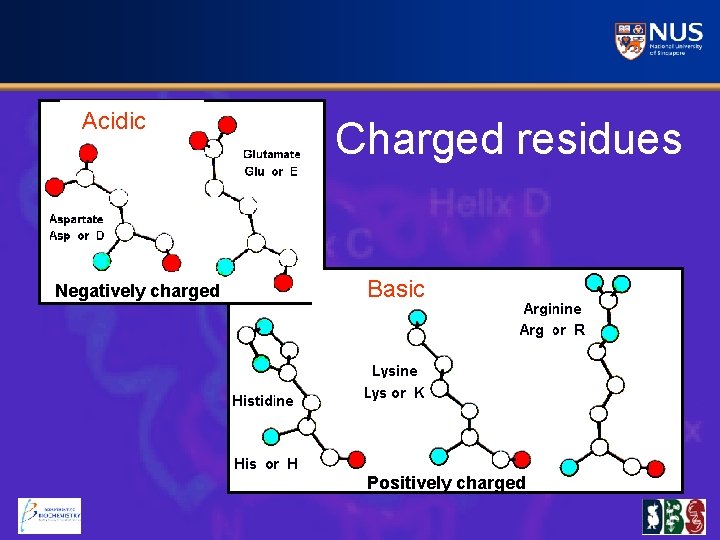

Acidic Negatively charged Charged residues Basic Positively charged

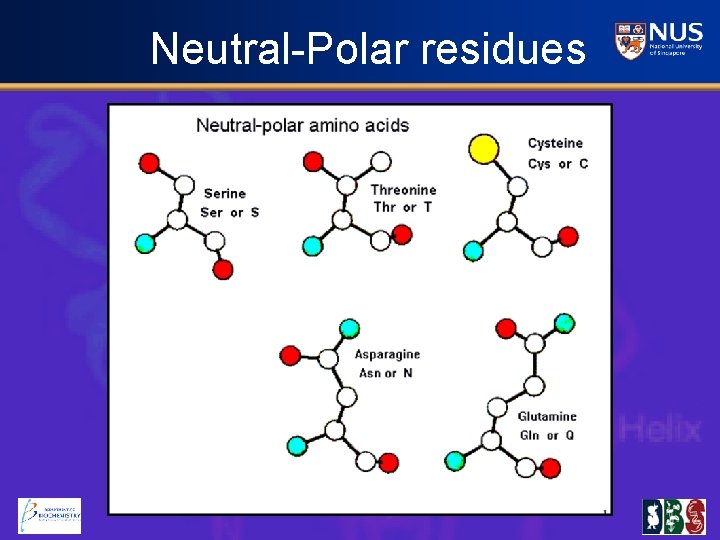

Neutral-Polar residues

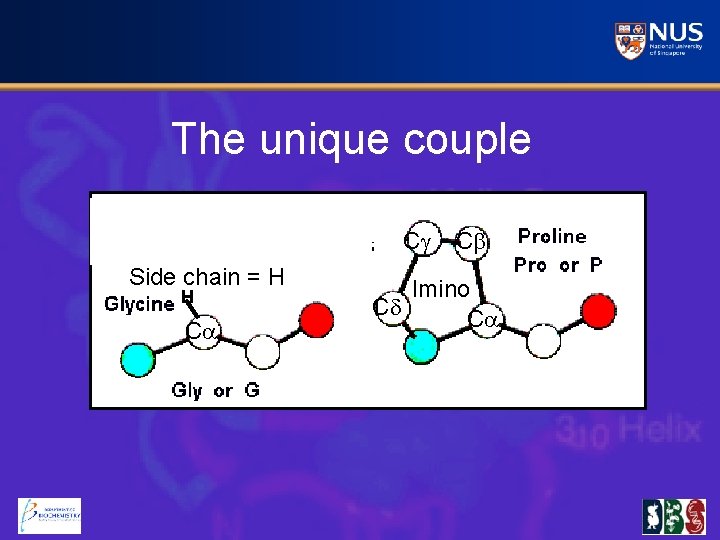

The unique couple Cg Side chain = H H Ca Cb Imino Cd Ca

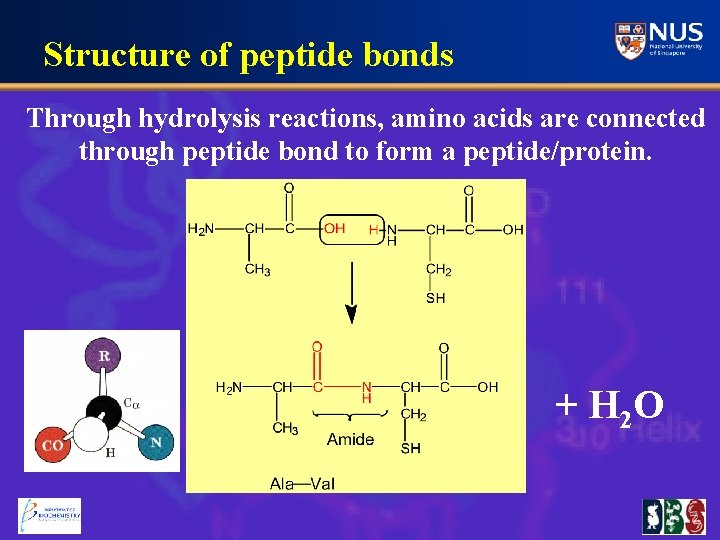

Structure of peptide bonds Through hydrolysis reactions, amino acids are connected through peptide bond to form a peptide/protein. + H 2 O

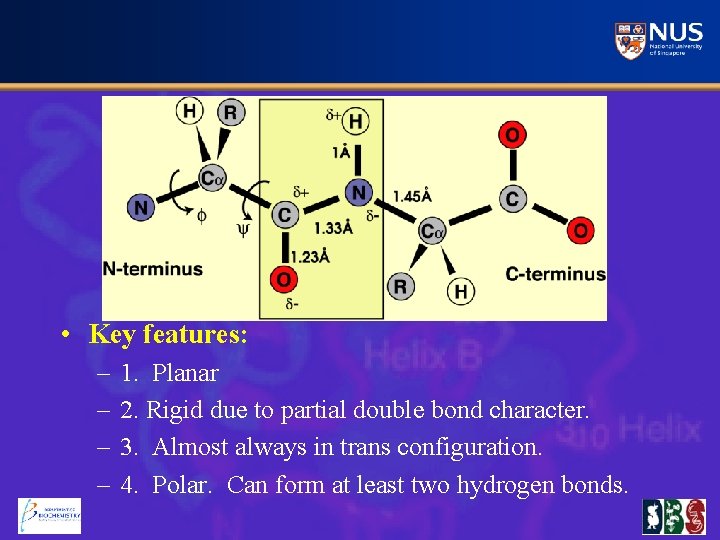

• Key features: – – 1. Planar 2. Rigid due to partial double bond character. 3. Almost always in trans configuration. 4. Polar. Can form at least two hydrogen bonds.

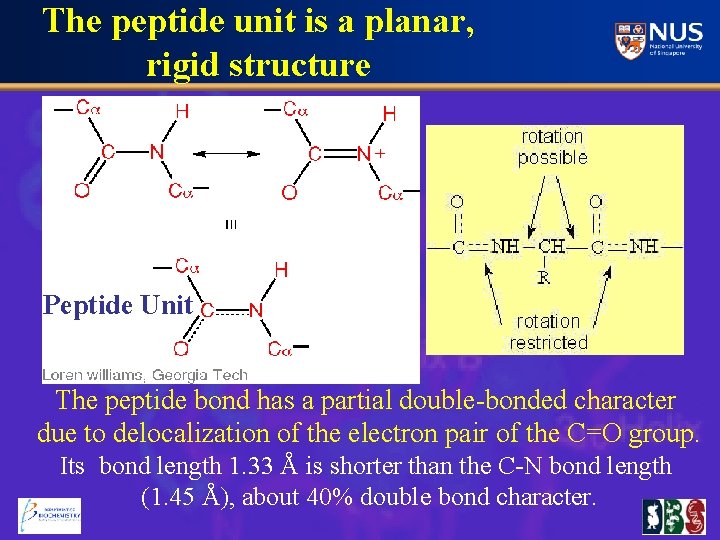

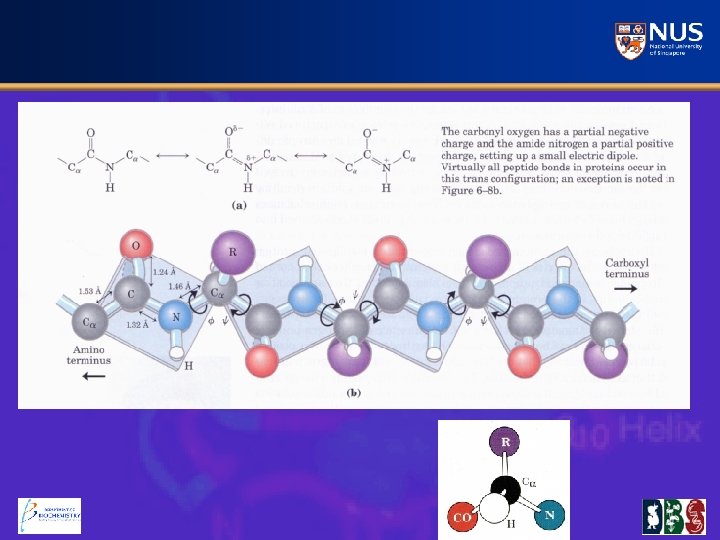

The peptide unit is a planar, rigid structure Peptide Unit The peptide bond has a partial double-bonded character due to delocalization of the electron pair of the C=O group. Its bond length 1. 33 Å is shorter than the C-N bond length (1. 45 Å), about 40% double bond character.

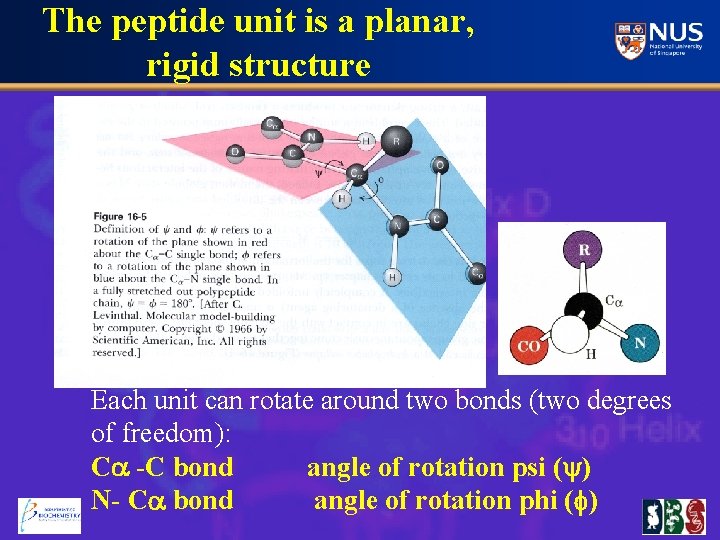

The peptide unit is a planar, rigid structure Each unit can rotate around two bonds (two degrees of freedom): C -C bond angle of rotation psi ( ) N- C bond angle of rotation phi ( )

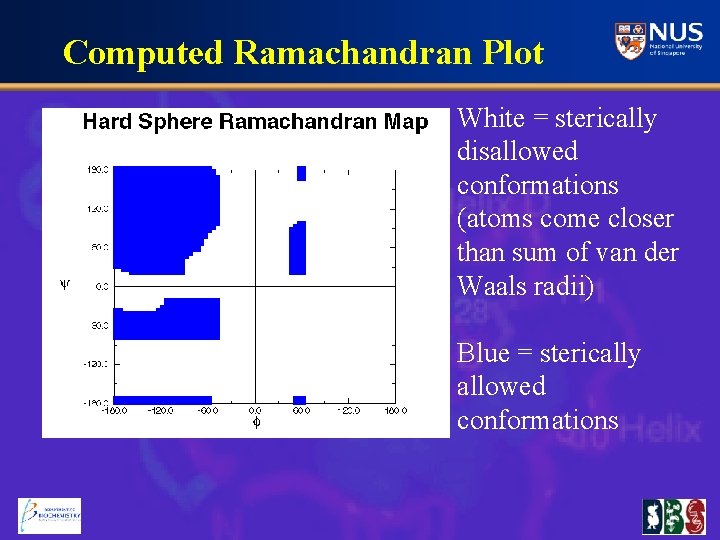

Computed Ramachandran Plot White = sterically disallowed conformations (atoms come closer than sum of van der Waals radii) Blue = sterically allowed conformations

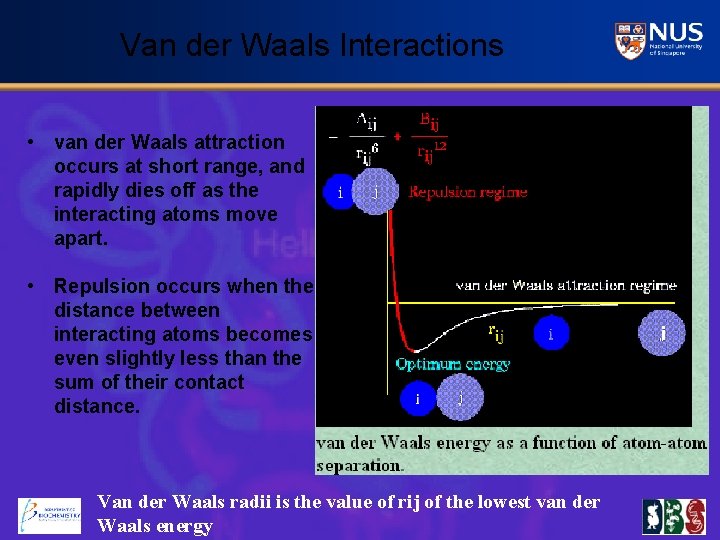

Van der Waals Interactions • van der Waals attraction occurs at short range, and rapidly dies off as the interacting atoms move apart. • Repulsion occurs when the distance between interacting atoms becomes even slightly less than the sum of their contact distance. Van der Waals radii is the value of rij of the lowest van der Waals energy

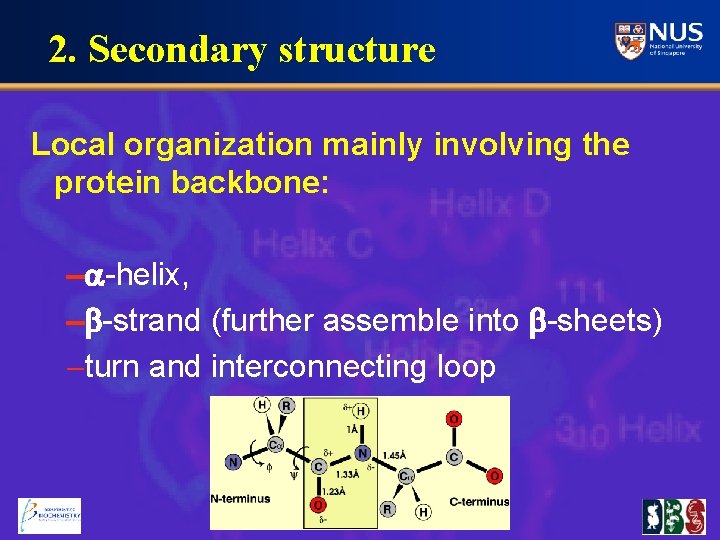

2. Secondary structure Local organization mainly involving the protein backbone: - -helix, -b-strand (further assemble into b-sheets) -turn and interconnecting loop

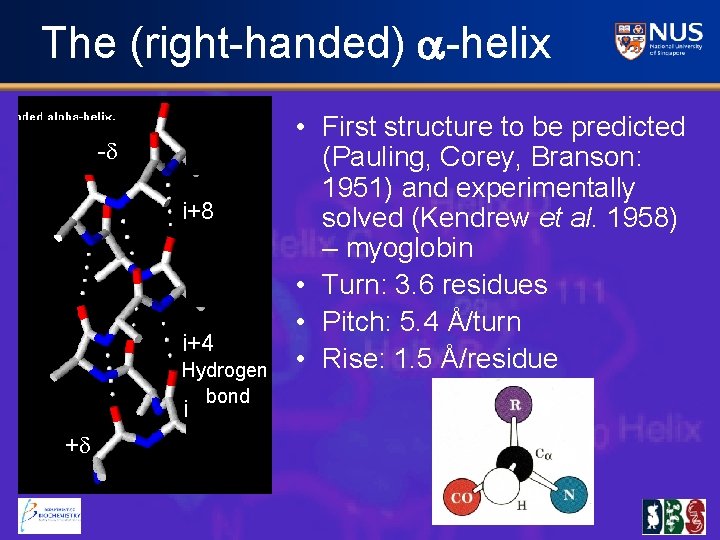

The (right-handed) -helix -d i+8 i+4 Hydrogen bond i +d • First structure to be predicted (Pauling, Corey, Branson: 1951) and experimentally solved (Kendrew et al. 1958) – myoglobin • Turn: 3. 6 residues • Pitch: 5. 4 Å/turn • Rise: 1. 5 Å/residue

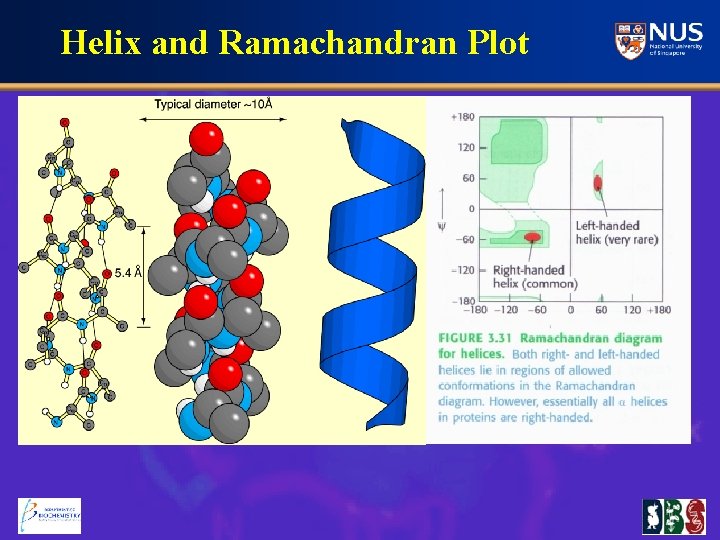

Helix and Ramachandran Plot

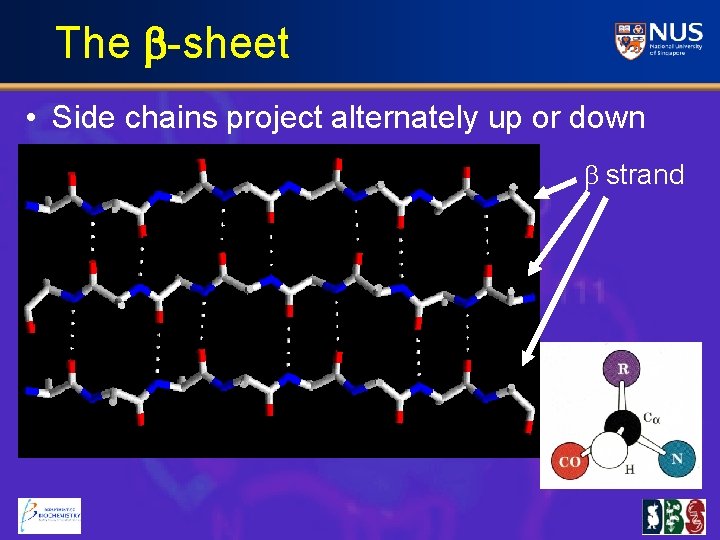

The b-sheet • Side chains project alternately up or down b strand

b-Sheet and Ramachandran Plot

Turn Structures

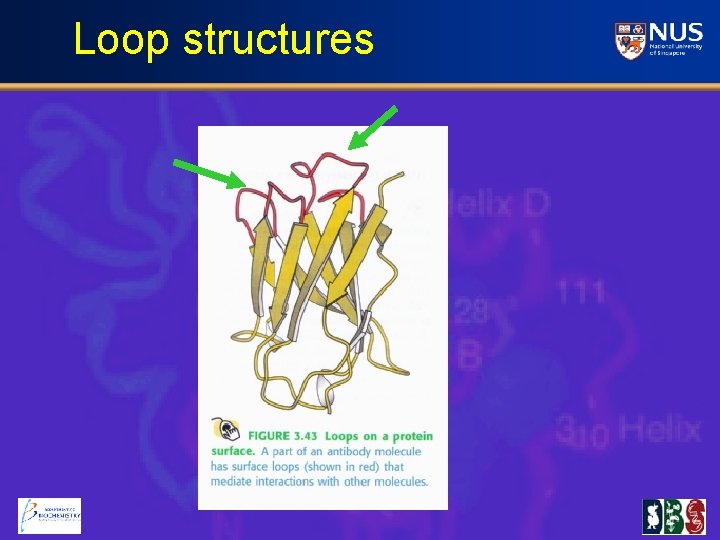

Loop structures

Ramachandran plot and Secondary Structure

3. Super secondary structure & motif Super secondary & motif: Secondary structures organized in specific geometric arrangements. 4. 1. b-hairpins: the most simple super secondary structure 4. 2. b-corners 4. 3. Helix hairpins Combination of basic secondary structures 4. 4. The - corner 4. 5. Helix-turn-helix 4. 6. b- -b motifs Details: http: //www. expasy. org/swissmod/course/text/chapter 2. htm

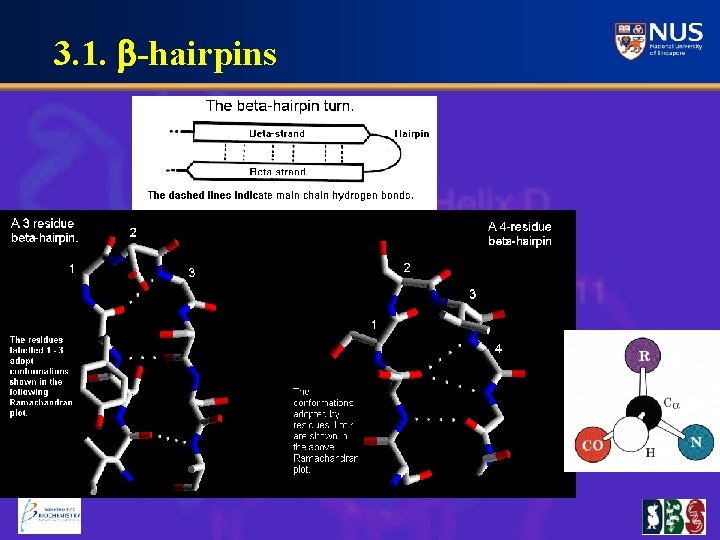

3. 1. b-hairpins

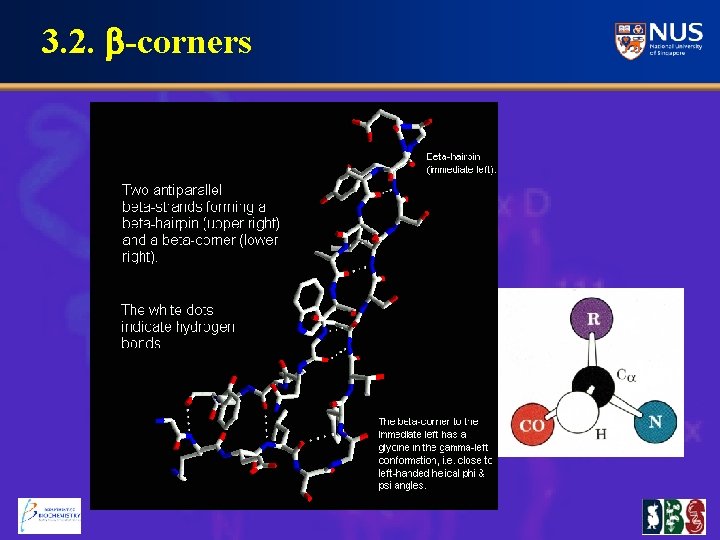

3. 2. b-corners

3. 3. Helix hairpins

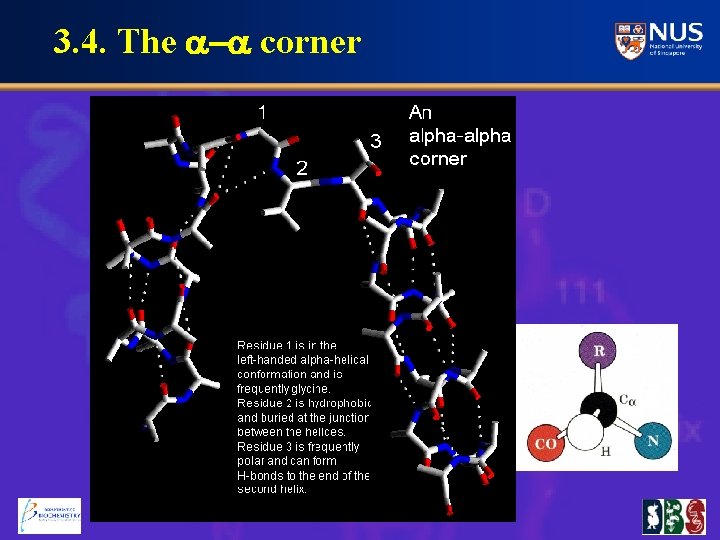

3. 4. The - corner

3. 5. Helix-turn-helix

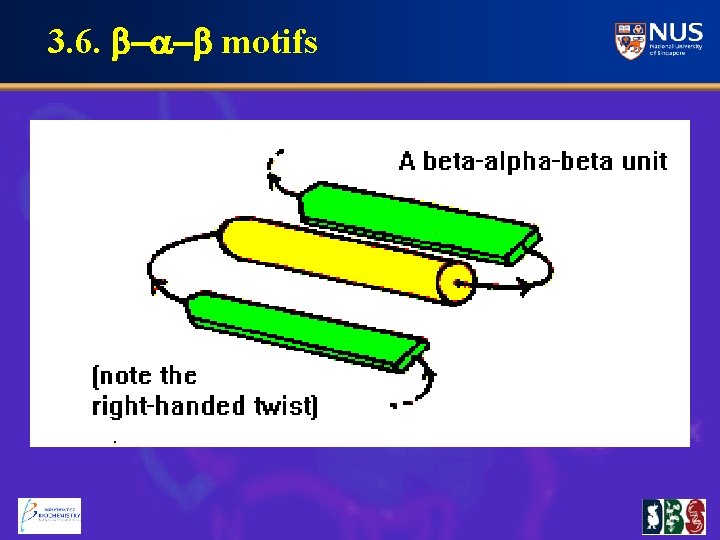

3. 6. b- -b motifs

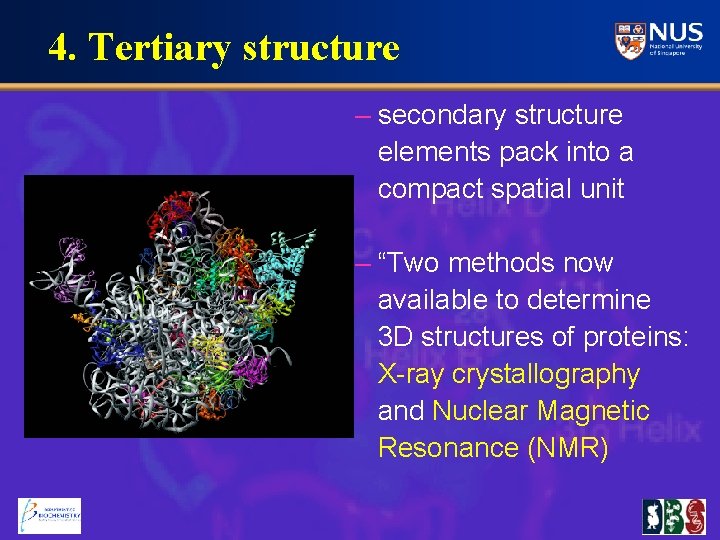

4. Tertiary structure – secondary structure elements pack into a compact spatial unit – “Two methods now available to determine 3 D structures of proteins: X-ray crystallography and Nuclear Magnetic Resonance (NMR)

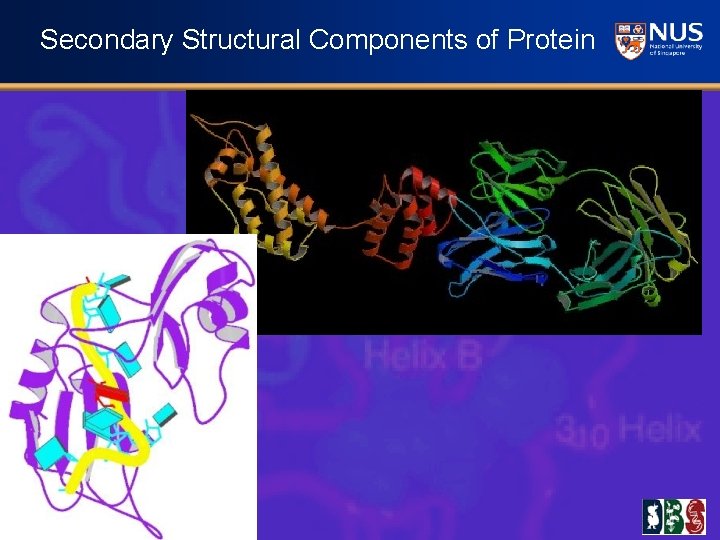

Secondary Structural Components of Protein

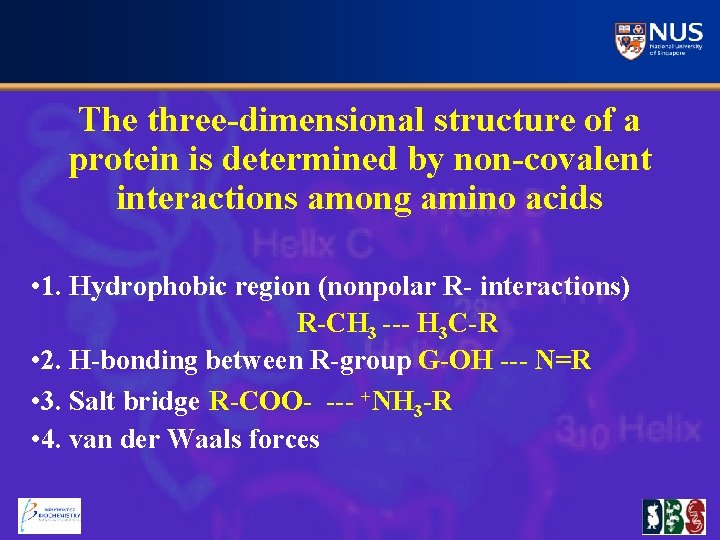

The three-dimensional structure of a protein is determined by non-covalent interactions among amino acids • 1. Hydrophobic region (nonpolar R- interactions) R-CH 3 --- H 3 C-R • 2. H-bonding between R-group G-OH --- N=R • 3. Salt bridge R-COO- --- +NH 3 -R • 4. van der Waals forces

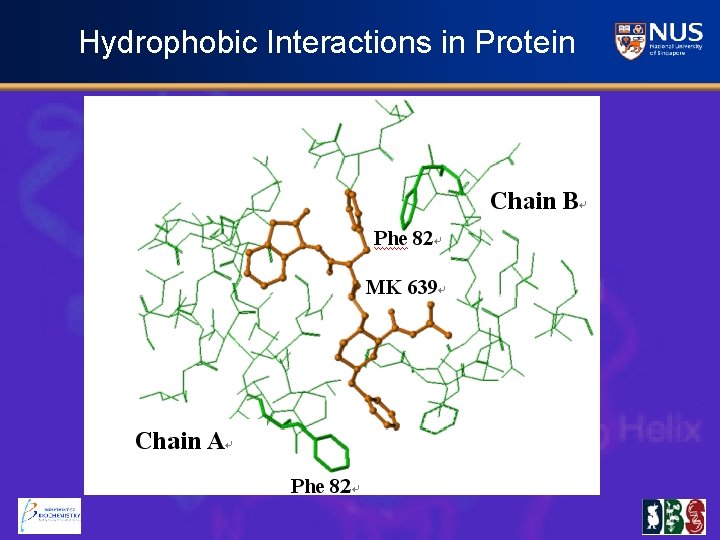

Hydrophobic Interactions in Protein

Hydrogen Bond Interactions in Protein

The classic experiment by Anfinsen in 1950 s on Ribonuclease Native state catalytically active addition of urea and mercaptoethanol Unfolded state; inactive. Disulfide reduced removal of urea and mercaptoethanol Native, catalytically active state. Disulfide correctly re-formed.

Disulfide Bridges n Disulfide bridges in extracellular proteins n oxidation of 2 cysteine SH groups n Covalent S-S bond formed.

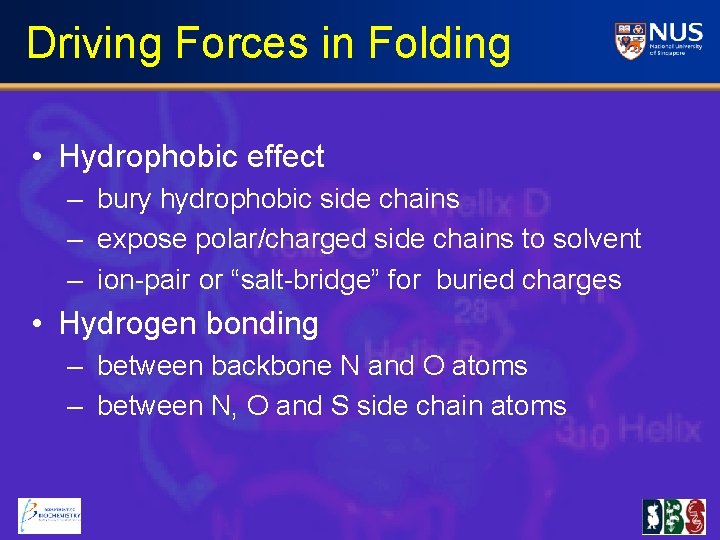

Driving Forces in Folding • Hydrophobic effect – bury hydrophobic side chains – expose polar/charged side chains to solvent – ion-pair or “salt-bridge” for buried charges • Hydrogen bonding – between backbone N and O atoms – between N, O and S side chain atoms

Side-chain Interaction • Amino acid sidechains interact with each other and irresponsible for the globular shape of the protein.

5. Quaternary Structure Highest level of protein organization Referring to the arrangement of homo - or heteromeric subunits (i. e. , chains) and prosthetic groups i. e. , non-amino acid portion) fit as an organized whole.

The quaternary structure of deoxyhemoglobin Hemoglobin - 4 chains: 2 - chain, 2 -b chain (Heme- four iron groups)

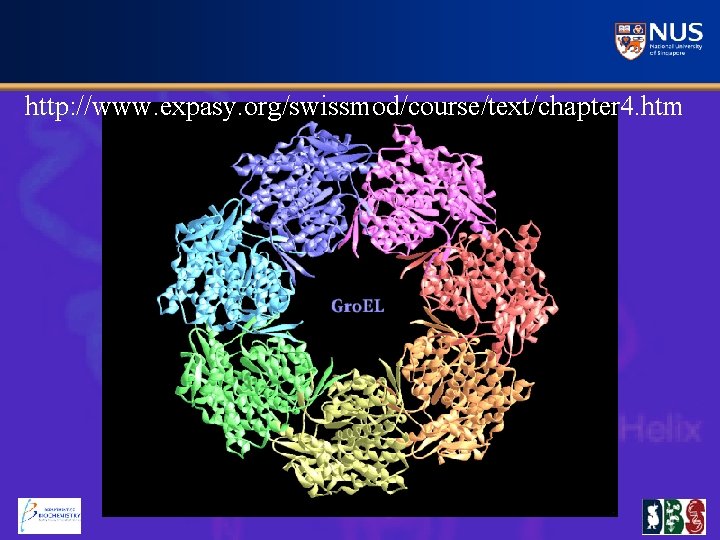

http: //www. expasy. org/swissmod/course/text/chapter 4. htm

Viral particles Nano-structures

6. Multi-Domain Protein n Beads-on-a-string: sequential location: tyrosine-protein kinase receptor TIE-1 (immunoglobulin, EGF, fibronectin type-3 and protein kinase); Grb 4 adaptor protein n Domain insertions: “plugged-in” - pyruvate kinase (1 pkn) /b-1 All-b /b-1 /b-2

Example of the Multi-domain Proteins Beads-on-a-string SH 2 SH 3 SH 2 PH C 2

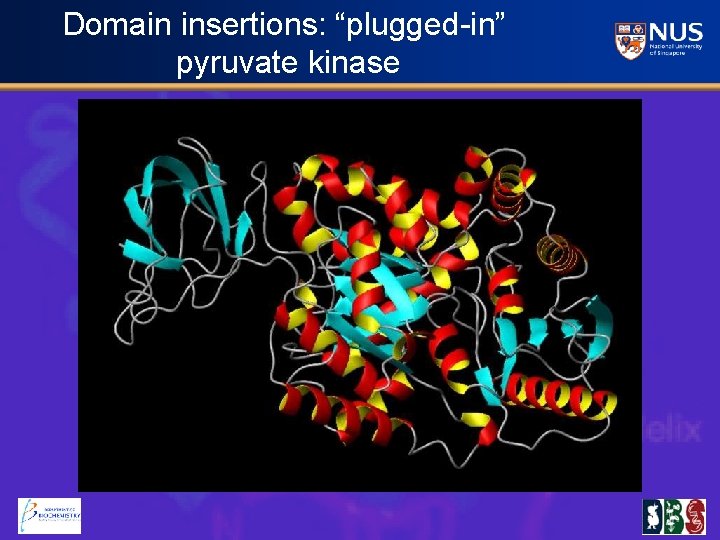

Domain insertions: “plugged-in” pyruvate kinase

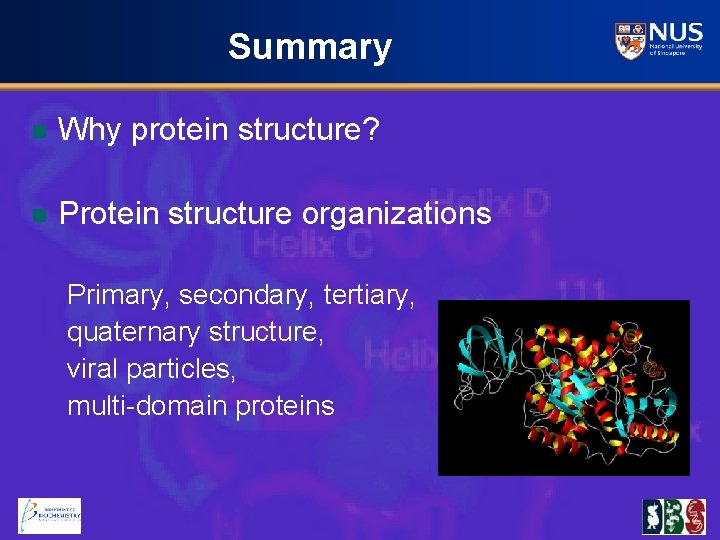

Summary n Why protein structure? n Protein structure organizations Primary, secondary, tertiary, quaternary structure, viral particles, multi-domain proteins
