LSA standards technology and experience in Russia Dmitry

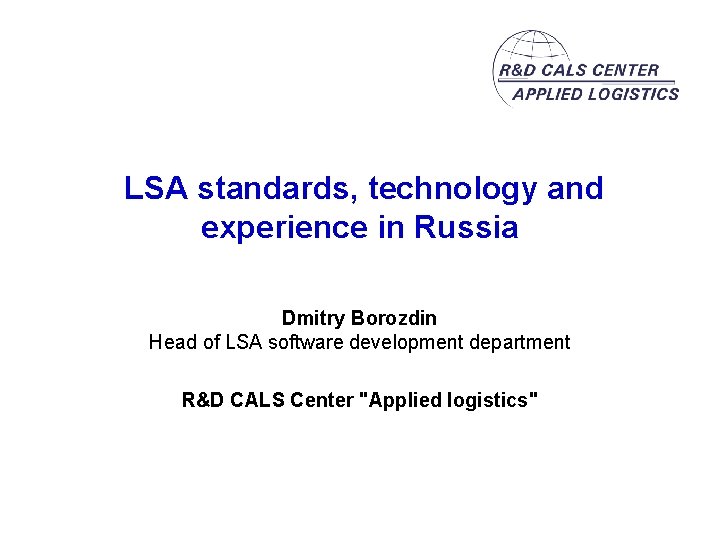

LSA standards, technology and experience in Russia Dmitry Borozdin Head of LSA software development department R&D CALS Center "Applied logistics"

ILS and LSA standards development Russian Federal Agency on Technical Regulation and Metrology Technical Committee 51 Technical Committee 323 Technical Committee 459 Engineering documentation Aircrafts Product Life Cycle Information Support Member observer Steering Committee April 2011 LSA standards, technology and experience in Russia

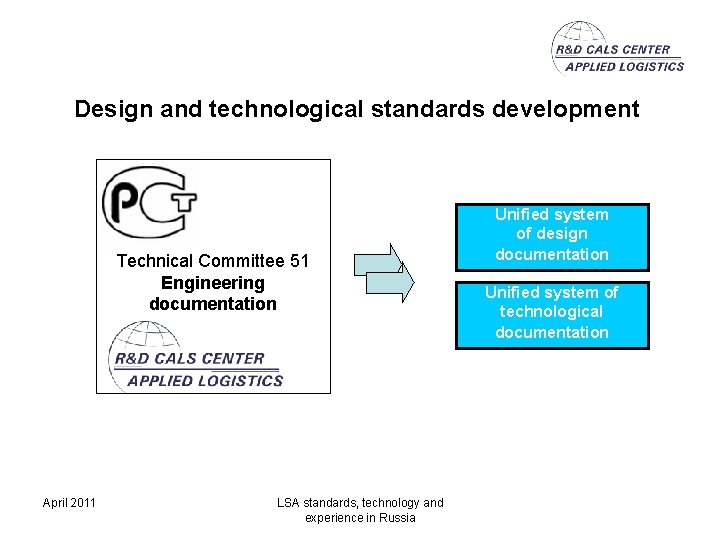

Design and technological standards development Technical Committee 51 Engineering documentation April 2011 LSA standards, technology and experience in Russia Unified system of design documentation Unified system of technological documentation

Aviation documentation standards development S 1000 DR-2007 ASD S 1000 D 2. 3 authentic translation Technical Committee 323 Aircraft “Harmonized” Russian Aviation Standard 18675 Aircraft maintenance and repair documentation Predecessor of S 5000 F? Aircraft electronic dossier April 2011 LSA standards, technology and experience in Russia

ILS and LSA standards development ISO 10303 translation* Standard for the Exchange of Product model data ISO 13584 translation* Technical Committee 459 Product Life Cycle Information Support Parts library Russian ILS standard for civil aviation Russian LSA standard * - published as GOST R April 2011 LSA standards, technology and experience in Russia

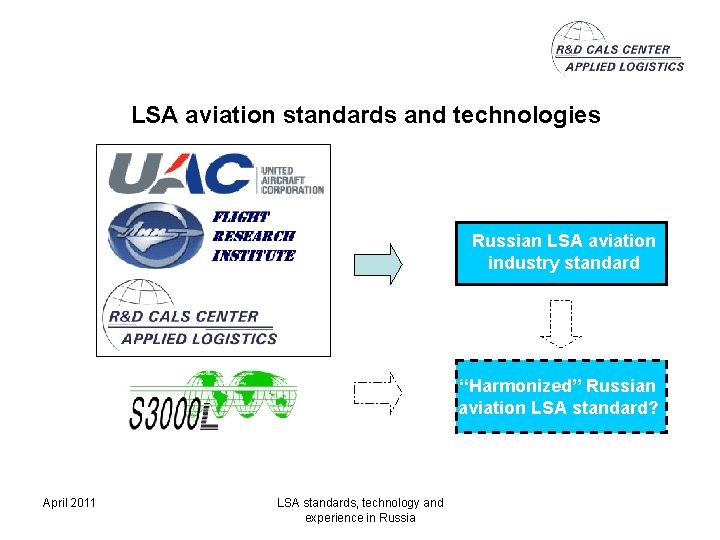

LSA aviation standards and technologies Russian LSA aviation industry standard “Harmonized” Russian aviation LSA standard? April 2011 LSA standards, technology and experience in Russia

LSA aviation standard data model Base data models LSAR data model ISO 10303 (STEP) DEF STAN 00 -600 ASD S 2000 M ASD S 1000 D Spec 2. 3 April 2011 LSA standards, technology and experience in Russia

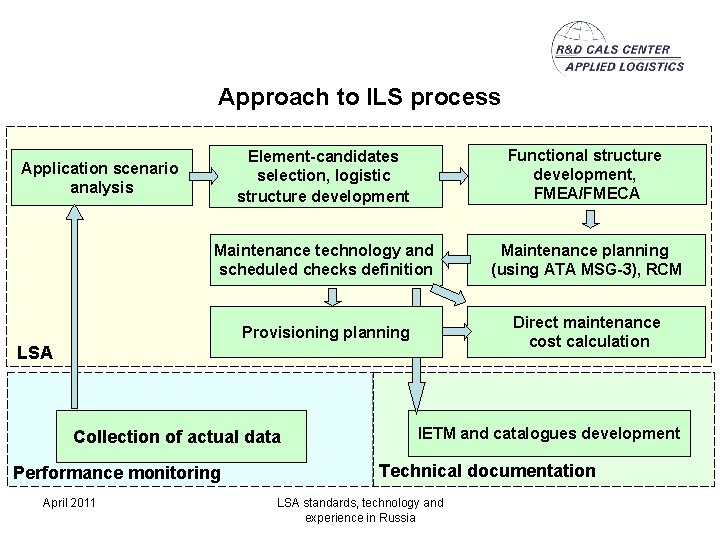

Approach to ILS process Element-candidates selection, logistic structure development Functional structure development, FMEA/FMECA Maintenance technology and scheduled checks definition Maintenance planning (using ATA MSG-3), RCM Provisioning planning Direct maintenance cost calculation Application scenario analysis LSA Collection of actual data Performance monitoring April 2011 IETM and catalogues development Technical documentation LSA standards, technology and experience in Russia

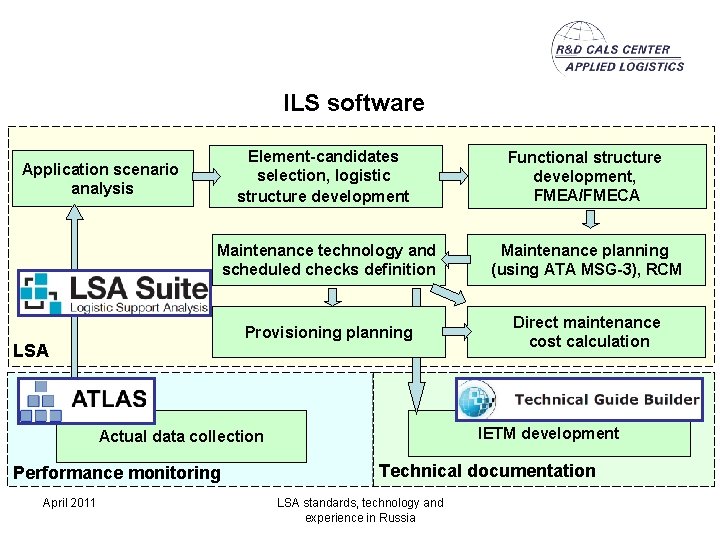

ILS software Element-candidates selection, logistic structure development Functional structure development, FMEA/FMECA Maintenance technology and scheduled checks definition Maintenance planning (using ATA MSG-3), RCM Provisioning planning Direct maintenance cost calculation Application scenario analysis LSA IETM development Actual data collection Performance monitoring April 2011 Technical documentation LSA standards, technology and experience in Russia

LSA software interfaces Logistic product structure (XML) PDM Step Suite Use S 5000 F? LSA database PDM database Design data (ISO 10303 API) April 2011 Performance monitoring database Reliability data (XML or DEXX) DMRL, procedural and IPC/IPL data modules content (S 1000 D XML) LSA standards, technology and experience in Russia CSDB

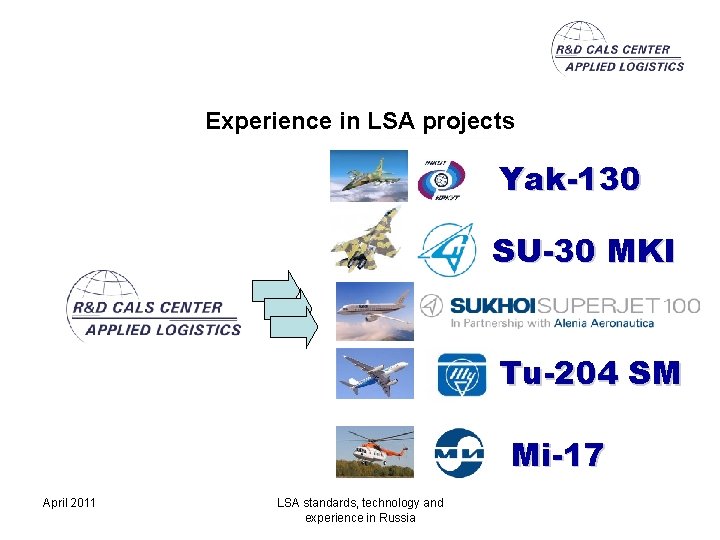

Experience in LSA projects Yak-130 SU-30 MKI Tu-204 SM Mi-17 April 2011 LSA standards, technology and experience in Russia

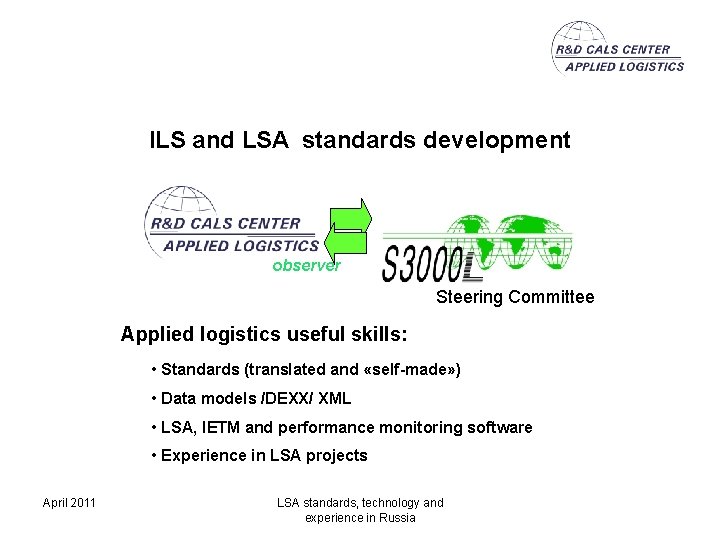

ILS and LSA standards development observer Steering Committee Applied logistics useful skills: • Standards (translated and «self-made» ) • Data models /DEXX/ XML • LSA, IETM and performance monitoring software • Experience in LSA projects April 2011 LSA standards, technology and experience in Russia

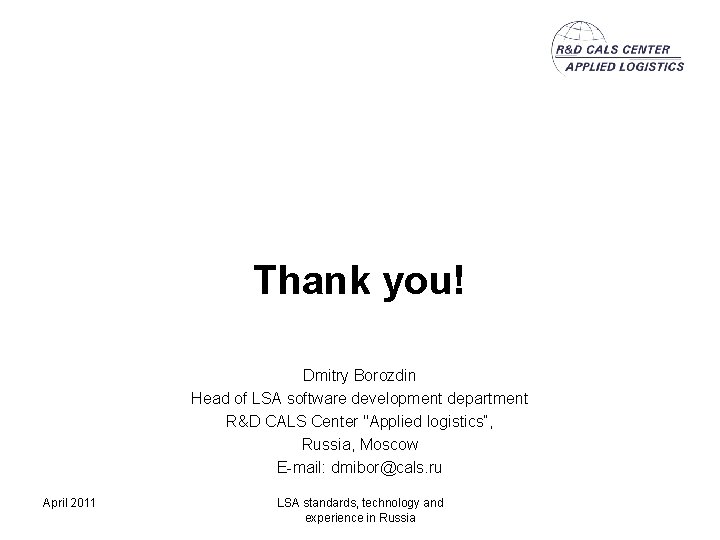

Thank you! Dmitry Borozdin Head of LSA software development department R&D CALS Center "Applied logistics“, Russia, Moscow E-mail: dmibor@cals. ru April 2011 LSA standards, technology and experience in Russia
