LHC LS 2 Baseline V 3. 0 27. 11. 2020 LS 2 planning meeting LHC-PM-MS-0018 v. 3. 0 44

Current master schedule (v 42) • Schedule v 42: • • • Stop ITS operation on Mon Jan 4 th 2021 Stop MFT operation on Mon Nov 12 th 16 w global commissioning at the end • LS 2 schedule review 23 Oct LS 2 end date 1 st February 2022 • ALICE vacuum closed by June 2021 OK to inject low intensity beam by last week September 2021 • This plan foresees 3 months contingency with respect to the LS 2 end date v 42 3 m 27. 11. 2020 LS 2 planning meeting 5

Optical fibers (COMSA) 1/2 All fibers routed in front of A 19 cable trays this afternoon Connection and test next week 27. 11. 2020 LS 2 planning meeting 6

Optical fibers (COMSA) 2/2 27. 11. 2020 LS 2 planning meeting 7

ITS/MFT ventilation pipe Pipe in place 27. 11. 2020 LS 2 planning meeting 8

TPC laser tube To be checked when Borge is at CERN 27. 11. 2020 LS 2 planning meeting 9

TPC cooling hoses Done (except Res-Rods) 27. 11. 2020 LS 2 planning meeting 10

ITS/MFT cooling hoses O-side done I-side will be done next week 27. 11. 2020 LS 2 planning meeting 11

TPC PP 0 connections 27. 11. 2020 LS 2 planning meeting 12

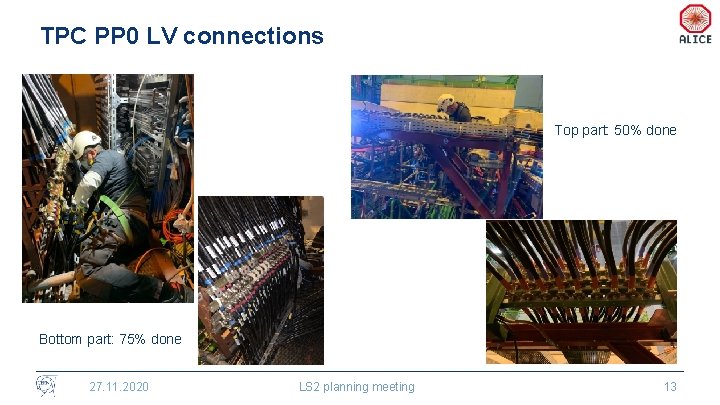

TPC PP 0 LV connections Top part: 50% done Bottom part: 75% done 27. 11. 2020 LS 2 planning meeting 13

ITS/MFT cooling plant cable trays 27. 11. 2020 LS 2 planning meeting 14

ITS PPA 27. 11. 2020 LS 2 planning meeting 15

Miniframe front part 27. 11. 2020 LS 2 planning meeting 16

Activities until end of year v 42 27. 11. 2020 LS 2 planning meeting 17

MFT&FIT-C transportation schedule Lundi 30/11 16 h : levage et pose sur le camion au 167 du MFT top (H 1) • https: //edh. cern. ch/Document/Supply. Chain/SIT/8521859 Mardi 01/12 4 h : transport 167 ->P 2 du MFT top (H 1) • https: //edh. cern. ch/Document/Supply. Chain/SIT/8521861 Mardi 01/12 9 h : levage et descente sur la low beta du MFT top (H 1) • https: //edh. cern. ch/Document/Supply. Chain/SIT/8521891 Mardi 01/12 14 h : transport cadre chassis P 2 ->167 • https: //edh. cern. ch/Document/Supply. Chain/SIT/8521894 Mercredi 02/12 16 h : levage et pose sur le camion au 167 du MFT bottom (H 0) • https: //edh. cern. ch/Document/Supply. Chain/SIT/8521898 Jeudi 03/12 4 h : transport 167 ->P 2 du MFT bottom (H 0) • https: //edh. cern. ch/Document/Supply. Chain/SIT/8521900 Jeudi 03/12 9 h : levage et descente sur la low beta du MFT bottom (H 0) • https: //edh. cern. ch/Document/Supply. Chain/SIT/8521924 27. 11. 2020 LS 2 planning meeting 18

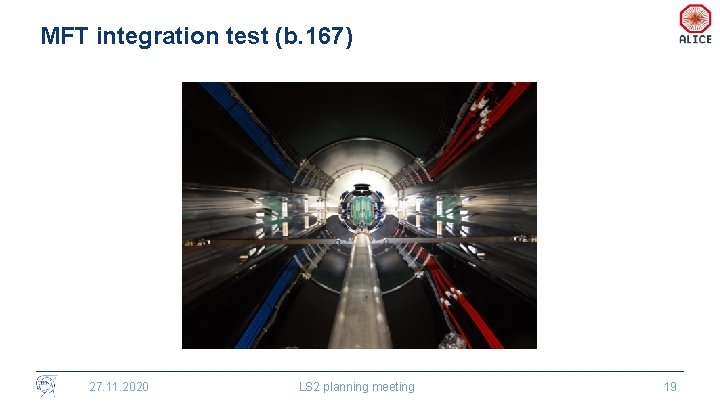

MFT integration test (b. 167) 27. 11. 2020 LS 2 planning meeting 19

Detailed plan 2021 v 42 Jan 4 th : stop ITS operation in b. 167 Jan 5 th – Feb 26 th: transfer ITS services from b. 167 to P 2 Mar 1 st – May 21 st: ITS installation May 24 th – 28 th: FIT-A installation May 31 st – Oct 29 th: ITS-MFT-FIT commissioning / global commissioning / close Experiment 27. 11. 2020 LS 2 planning meeting 20

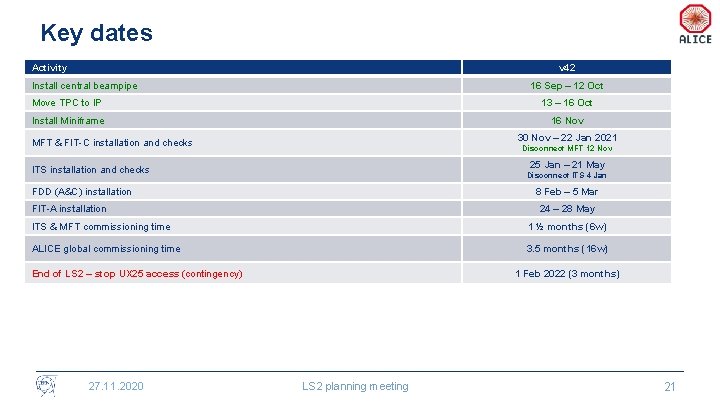

Key dates Activity v 42 Install central beampipe 16 Sep – 12 Oct Move TPC to IP 13 – 16 Oct Install Miniframe 16 Nov 30 Nov – 22 Jan 2021 MFT & FIT-C installation and checks Disconnect MFT 12 Nov 25 Jan – 21 May ITS installation and checks Disconnect ITS 4 Jan FDD (A&C) installation 8 Feb – 5 Mar FIT-A installation 24 – 28 May ITS & MFT commissioning time 1 ½ months (6 w) ALICE global commissioning time 3. 5 months (16 w) End of LS 2 – stop UX 25 access (contingency) 27. 11. 2020 1 Feb 2022 (3 months) LS 2 planning meeting 21

Services status • Cables (EN-EA): • • Cooling: All cables installed and tested Unfold Miniframe cables: 18 -19 Nov Complete TPC BNC (laser) cables (back-frame and laser-hut): 26 -27 Nov 30 Nov ? Install cable trays for ITS cooling plant: 24 -27 Nov Cut and put connectors on FIT-A signal cables in Miniframe: 18 -21 Jan Complete FDD-A connectors: 22 Jan • Optical fibers (EN-EL): • • • Installation 6 trunk cables between IT 1 -IT 2 (CR 0) DONE w 46 Unfold and connect ITS and TPC trunk cables and install 2 conventional cables for direct trigger CTP-ITS 19 -27 Nov – ongoing Installation 3 FDD optical cables w 49 ? • • Wiener LVPS consolidation (EN-EA): • • • 192 water cooled power supplies in total (LV and VME) Rework in batches (~16 units/week), was started in week 32 192 have been processed (100%) • Rack turbines replacement: • • 27. 11. 2020 MFT crates: pressure test repeated this week ITS/MFT/TPC: connections between Miniframe and PP 0 w 48 -49 – ongoing Connection of ITS and inox pipes to ITS cooling plant (Rampower) w 4 80 units in total, the first batch (30 units) delivered to SX 2. 10 more have been delivered this week, rest early next year Replacement without cutting the power in the rack LS 2 planning meeting 22

EN-CV interventions • Big maintenance: • • • SF: from Nov 2019 to mid Jan 2020. NO impact on ALICE as both magnets will be OFF – done UW: stop UX mixed water for 2 days in week 41/2019 (October) – Tue 8 and Wed 9 Oct – done SU: various small perturbations + 1 day stop all cooling UX + 1 day stop all cooling SXL 2 in week 16/2020 (April) • Small maintenance: • • UW: from w 34 to w 37 2020. Stop UX mixed water on Monday 7 September 2020 – done SF+SU: weeks 44 -47/2020: cleaning towers (stop SF w 44 -45, no impact) + 1 day stop all cooling UX (9 Nov) + 1 day stop SXL 2 cleanroom ventilation (9 Nov) – done • Ventilation: • • ARC – done SXL 2 CLR: w 43 (19 -21 Oct) – done SG 2: w 44 (26 -28 Oct) – done UX 25 cavern – done MCH and MTG – done L 3: replace extractor – done ITS – done 27. 11. 2020 LS 2 planning meeting 23

EN-EL interventions • UPS maintenance: • • Battery replacement on ALICE UPSes • Intervention without power interruption, but no battery backup during replacement (UPS bypassed, no protection for glitches) • 19 – 21/10: UPS for CR 0, CR 1, ARC – done • 22 – 23/10: UPS for CR 3, CR 4 – done • 23 – 24/11: Diesel UPS – done Annual on ALICE UPSes • Intervention without power interruption, no battery backup during 30 minutes for each UPS • Week 46 – done • AUG test of the “zone administrative” (Meyrin) on Saturday 28 November • 12 -year maintenance diesel generator • Week 3 (some access restrictions outside working hours, need EL piquet on site) • Short preventive maintenance on UPS • Week 4 (preventively change a card, without power interruption but no battery backup during 45 mins/UPS) 27. 11. 2020 LS 2 planning meeting 24

Racks status • Racks currently powered on: • • • HMPID: I 01, I 02 PHOS-CPV: A 16, A 17 CTP: C 21, C 22, C 24, C 25, C 26, C 27 (CTP) (and VME crates on) MCH: C 08, C 09, C 10, C 11, C 36, C 37, C 38, C 39 TOF: O 03, O 04, O 05, O 30, O 31, O 32, I 03, I 04, I 05, I 30, I 31, I 32 TRD: O 06, O 08, O 26 -29, I 06, I 08, I 26 -29, C 16 -19, C 29 TPC: O 25, I 25 Dcal, EMcal: A 14, O 12 MFT: I 24 a, I 24 b and A 15 ITS: A 03 • Detectors can be powered, compatible with current activities inside L 3 27. 11. 2020 LS 2 planning meeting 25

CR 1 status 27. 11. 2020 LS 2 planning meeting 26

L 3 magnet test • We had foreseen to ramp up the L 3 magnet on January 14 th, 2021. Unfortunately the new cooling plant for the L 3 power converter will not be ready before end of January. • We have therefore to postpone this test. Tentative planning: • • w 7: 15 -19/2 close and bolt both L 3 doors w 8: Mon 22/2 ramp-up L 3; Tue 23/2 - Thu 25/2 reopen both doors • The closure of the magnet doors to verify that there are no mechanical interferences will be done anyway in w 51 (Tue-Thu) 27. 11. 2020 LS 2 planning meeting 27

CERN access during EOY closure • As for previous years, access to CERN sites during the Annual end-of-year closure during 2020/2021 is restricted as follows: • The COVID-19 related restrictions laid out in the KB 0006553 remain applicable • All personnel (except Contractors) shall require previous explicit authorization from their department • CERN personnel shall address their requests to their department contact, who shall manage the appropriate e-group. For ALICE please send the request to Arturo Tauro. Access is restricted to colleagues who have specific duties in the experiment. No authorisation for office work. • Contractors shall require a valid AET (Avis d'Execution de Travaux) for this period: • Employers should complete the AET form and send a signed copy to access. surveillance@cern. ch • During the annual end-of-year closure, urgent unplanned access for interventions may be requested via the CCC TI Operation Desk (Tel 72201) • There will again be regular tours of P 2 (UX 25, SG 2, SXL 2, CR 0), every 2 nd day, and people can contact Andre in case they want to have specific things checked. 27. 11. 2020 LS 2 planning meeting 28

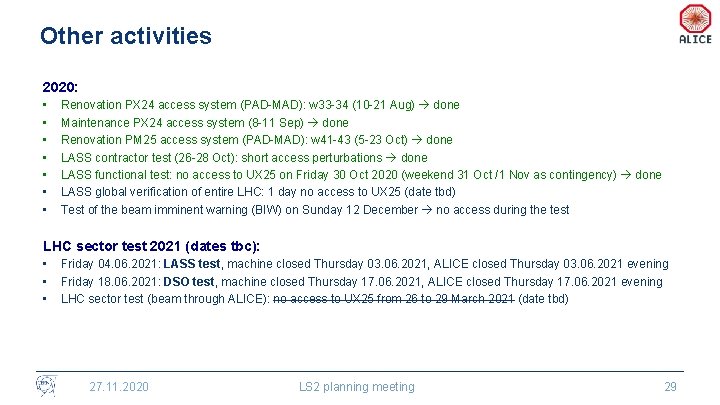

Other activities 2020: • • Renovation PX 24 access system (PAD-MAD): w 33 -34 (10 -21 Aug) done Maintenance PX 24 access system (8 -11 Sep) done Renovation PM 25 access system (PAD-MAD): w 41 -43 (5 -23 Oct) done LASS contractor test (26 -28 Oct): short access perturbations done LASS functional test: no access to UX 25 on Friday 30 Oct 2020 (weekend 31 Oct /1 Nov as contingency) done LASS global verification of entire LHC: 1 day no access to UX 25 (date tbd) Test of the beam imminent warning (BIW) on Sunday 12 December no access during the test LHC sector test 2021 (dates tbc): • • • Friday 04. 06. 2021: LASS test, machine closed Thursday 03. 06. 2021, ALICE closed Thursday 03. 06. 2021 evening Friday 18. 06. 2021: DSO test, machine closed Thursday 17. 06. 2021, ALICE closed Thursday 17. 06. 2021 evening LHC sector test (beam through ALICE): no access to UX 25 from 26 to 29 March 2021 (date tbd) 27. 11. 2020 LS 2 planning meeting 29

Scaffoldings • • • Sem. 43 • Lun 19 Oct (7: 30): installation échafaudage dans le Baby-Frame + enlever liaison Miniframe Sem. 45 • Mar 3 Nov (13: 30): dépose liaison entre Delphi-Frame et la partie devant la TPC + dépose liaison entre Delphi-Frame et PP 0 • Ven 6 Nov (7: 30): dépose de l'accès aux blocs du Delphi-Frame + dépose roulant devant cooling plant ITS Sem. 46 • Lun 9 Nov: dépose échafaudage devant la tour laser en SX 2 + dépose échafaudage PP 0 • Mer 11 Nov: dépose échafaudages Miniframe en SX 2 + dépose échafaudage dans L 3 (coté C/O) + dépose jonction au fond de L 3 • • • (partie haute) Ven 13 Nov: dépose échafaudage dans le baby-frame (supervision Célim) Sem. 47 • Mar 17 Nov: installation petit échafaudage dans Miniframe en UX 25 (deuxième rampe escalier) Sem. 48 • Lun 23 Nov: dépose échafaudage Low-Beta (coté I) + installation échafaudage cooling plant ITS (pour Philippe) Sem. 49 • Lun 30 Nov: depose échafaudage derriere porte aimant L 3 (coté O) Sem. 51 • Lun 14 Dec: dépose jonction au fond de L 3 (partie basse) + dépose plancher L 3 + dépose échafaudage cooling plant ITS (pour Philippe) 27. 11. 2020 LS 2 planning meeting 30

Day-by-day sequence w 48 ALICE technicians Institutes EN-EL Rampower 27. 11. 2020 Transport Scaffolding EN-EA LS 2 planning meeting Other CERN groups 31

UX 25 activities w 48 – Mon 23 Nov 2020 Diesel UPS battery exchange (Mon-Tue) EN-CV: new supervision program UX 25 and L 3 ventilation (Mon-Tue) BE-ICS: maintenance fire detection systems – test SX 2, SXL 2, SG 2 sirens between 6: 00 and 8: 00 ITS ventilation (ENGIE) Remove scaffolding Under Miniframe. Use nacelle OUTSIDE + driver ALTEAD Scaffolding ITS cable trays 27. 11. 2020 LS 2 planning meeting MCH TOF gas sensor 32

Top beampipe protection Connect TPC CO 2 (Nastia) Reinstall TPC LV blocks (Philippe, Cedric) Miniframe activities w 48 – Mon 23 Nov 2020 Unfold and connect optical fibers to A 19 Connect TPC cooling hoses (nacelle) 27. 11. 2020 LS 2 planning meeting 33

UX 25 activities w 48 – Tue 24 Nov 2020 Cleaning cavern (Topnet): 13: 00 to 15: 00 ITS ventilation (ENGIE) Install ITS cable trays 27. 11. 2020 LS 2 planning meeting Back-frame ladder (Samuel) Remove scaffolding above A 19 Inspection of PPEs (3294 R-008) MCH Trap (Samuel) 34

Miniframe activities w 48 – Tue 24 Nov 2020 Top beampipe protection Connect ITS/MFT cooling hoses (nacelle) (PM) Connect TPC cooling hoses (nacelle) (AM) 27. 11. 2020 LS 2 planning meeting 35

Laser tube 27. 11. 2020 LS 2 planning meeting MFT crate cooling (Cedric, Philippe) Inside baby-Frame. Use nacelle OUTSIDE CTP-ITS optical cables UX 25 activities w 48 – Wed 25 Nov 2020 MCH 36

Miniframe activities w 48 – Wed 25 Nov 2020 Connect TPC CTP-ITS optical cables 27. 11. 2020 LS 2 planning meeting Top beampipe protection Connect ITS/MFT cooling hoses (nacelle) (PM) 37

UX 25 activities w 48 – Thu 26 Nov 2020 MCH 27. 11. 2020 LS 2 planning meeting 38

Miniframe activities w 48 – Thu 26 Nov 2020 Connect ITS/MFT cooling hoses (nacelle) Connect TPC-A ITS PP 0 labels Connect TPC LV ITS PP 1 work Scaffolding 27. 11. 2020 LS 2 planning meeting 39

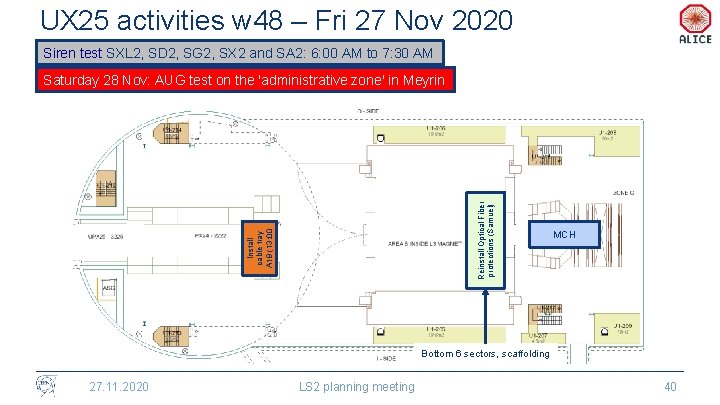

UX 25 activities w 48 – Fri 27 Nov 2020 Siren test SXL 2, SD 2, SG 2, SX 2 and SA 2: 6: 00 AM to 7: 30 AM Install cable tray A 19 (13: 00 Reinstall Optical Fiber protections (Samuel) Saturday 28 Nov: AUG test on the 'administrative zone' in Meyrin MCH Bottom 6 sectors, scaffolding 27. 11. 2020 LS 2 planning meeting 40

Connect TPC-A Connect TPC LV Miniframe activities w 48 – Fri 27 Nov 2020 Connect TPC LV Connect ITS/MFT cooling hoses (nacelle) 27. 11. 2020 LS 2 planning meeting 41

Day-by-day sequence w 49 ALICE technicians Institutes EN-EL Rampower 27. 11. 2020 Transport Scaffolding EN-EA LS 2 planning meeting Other CERN groups 42

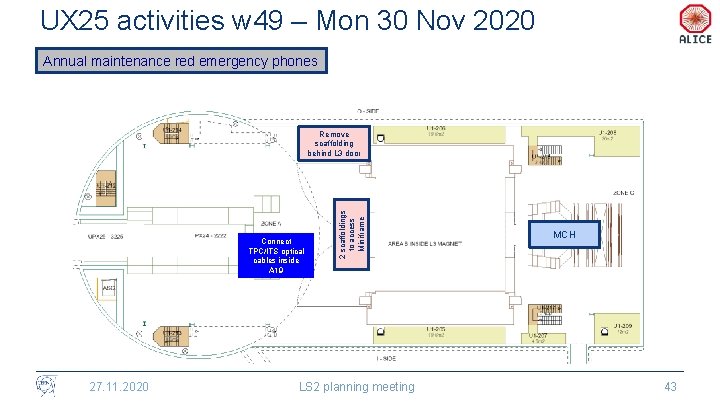

UX 25 activities w 49 – Mon 30 Nov 2020 Annual maintenance red emergency phones Connect TPC/ITS optical cables inside A 19 27. 11. 2020 2 scaffoldings to access Miniframe Remove scaffolding behind L 3 door LS 2 planning meeting MCH 43

Miniframe activities w 49 – Mon 30 Nov 2020 Connect TPC-A MFT load test (empty support structure) at 14: 00 Install platform (AM) (Mimmo, Yannick) Connect MFT cables PP 0 (16: 00) TPC BNC cables (nacelle) Connect ITS/MFT cooling hoses (nacelle) 27. 11. 2020 LS 2 planning meeting 44

UX 25 activities w 49 – Tue 1 Dec 2020 Transportation MFT&FIT-C (H 1) from b. 167 to P 2 (4: 00 AM) FIT-C low-beta test (AM) Connect TPC/ITS optical cables inside A 19 MFT&FIT-C installation Cleaning cavern (Topnet): 13: 00 to 15: 00 MCH Full test of the first FIT-C half at low-beta. Partial re-insertion of FIT cables to the caterpillars. 27. 11. 2020 LS 2 planning meeting 45

MFT & FIT-C Installation (H 1) Connect TPC-A (access from bottom) Connect TPC LV Miniframe activities w 49 – Tue 1 Dec 2020 Connect ITS/MFT cooling hoses (nacelle) 27. 11. 2020 LS 2 planning meeting 46

MFT&FIT-C installation UX 25 activities w 49 – Wed 2 Dec 2020 27. 11. 2020 LS 2 planning meeting MCH 47

MFT & FIT-C Installation (H 1) Connect ITS/MFT cooling hoses (nacelle) 27. 11. 2020 Connect TPC-A (access from bottom) Connect TPC LV Miniframe activities w 49 – Wed 2 Dec 2020 Remove beampipe protection (~3 h) TPC access tbd LS 2 planning meeting 48

UX 25 activities w 49 – Thu 3 Dec 2020 Transportation MFT&FIT-C (H 2) from b. 167 to P 2 (4: 00 AM) MFT&FIT-C installation CR 0: move old servers from IT 2 to IT 3 (Philippe, Cedric, 2 ALTEAD, Johannes) – 2 -3 days FIT-C low-beta test (AM) MCH Full test of the second FIT-C half at low-beta. Partial re-insertion of FIT cables to the caterpillars. 27. 11. 2020 LS 2 planning meeting 49

Connect ITS O-side cables to PP 0 MFT & FIT-C Installation (H 2) 27. 11. 2020 LS 2 planning meeting Connect TPC-A (access from bottom) Miniframe activities w 49 – Thu 3 Dec 2020 50

UX 25 activities w 49 – Fri 4 Dec 2020 MFT&FIT-C installation Cavern lift maintenance (AS-724): no access to UX 25 from 6: 00 AM to 8: 00 AM 27. 11. 2020 LS 2 planning meeting MCH 51

Miniframe activities w 49 – Fri 4 Dec 2020 Connect ITS O-side cables to PP 0 MFT & FIT-C Installation (H 2) Connect TPC-A (access from bottom) Cavern lift maintenance (AS-724): no access to UX 25 from 6: 00 AM to 8: 00 AM Remove beampipe protection (~3 h) TPC access tbd 27. 11. 2020 LS 2 planning meeting 52
