LRS102 General Availability Version 3 44 LRS102 Ver

LRS-102 General Availability Version 3. 44 LRS-102 Ver. 3. 44– 2012 Slide 1

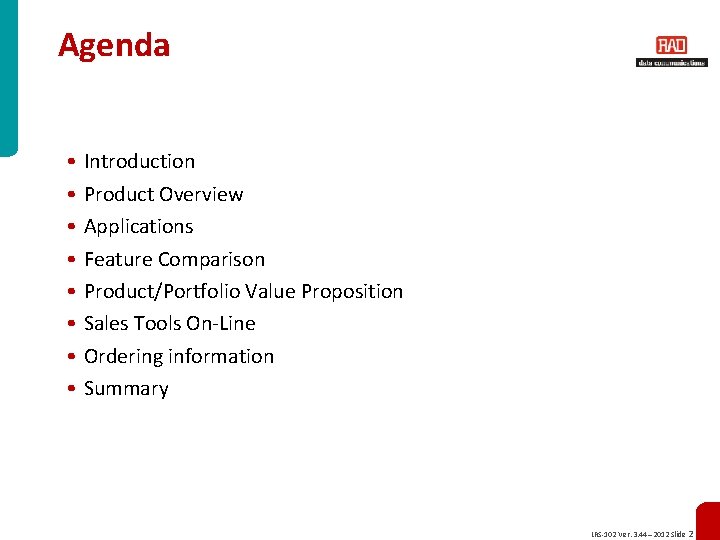

Agenda • Introduction • Product Overview • Applications • Feature Comparison • Product/Portfolio Value Proposition • Sales Tools On-Line • Ordering information • Summary LRS-102 Ver. 3. 44– 2012 Slide 2

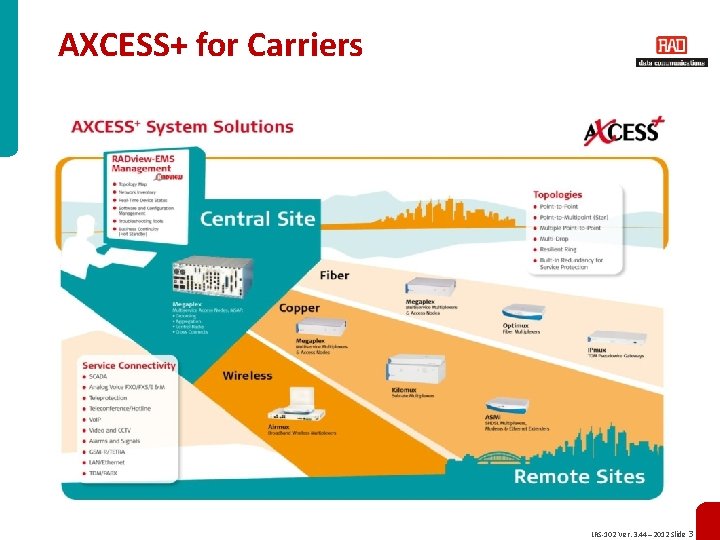

AXCESS+ for Carriers LRS-102 Ver. 3. 44– 2012 Slide 3

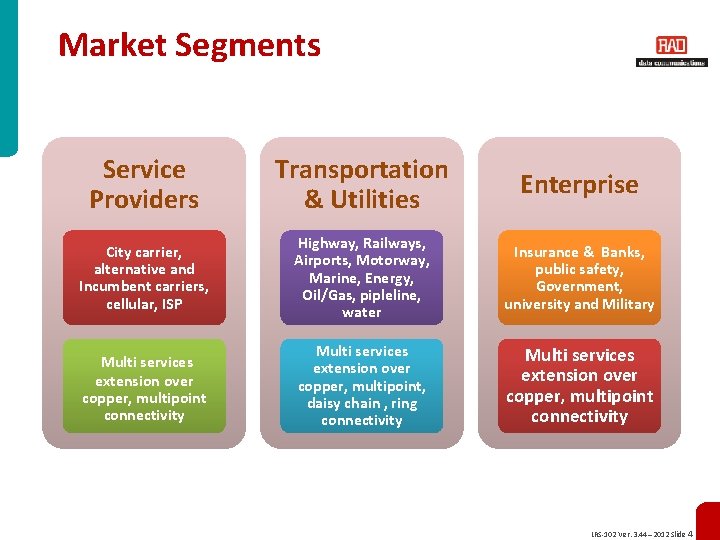

Market Segments Service Providers Transportation & Utilities Enterprise City carrier, alternative and Incumbent carriers, cellular, ISP Highway, Railways, Airports, Motorway, Marine, Energy, Oil/Gas, pipleline, water Insurance & Banks, public safety, Government, university and Military Multi services extension over copper, multipoint connectivity Multi services extension over copper, multipoint, daisy chain , ring connectivity Multi services extension over copper, multipoint connectivity LRS-102 Ver. 3. 44– 2012 Slide 4

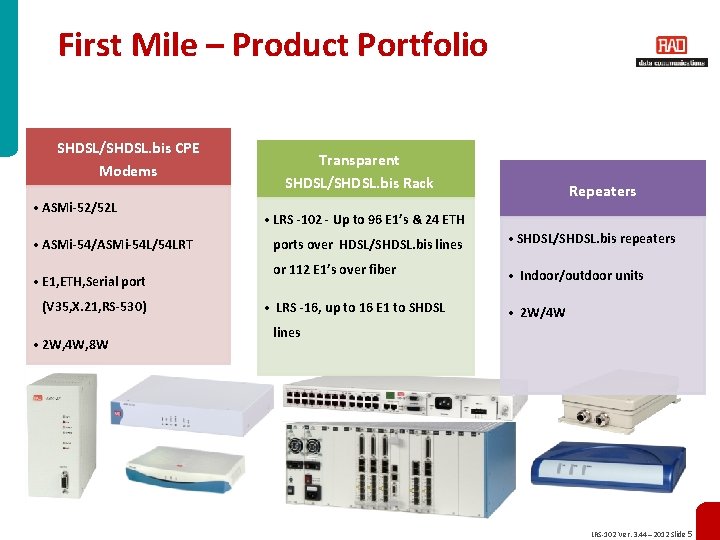

First Mile – Product Portfolio SHDSL/SHDSL. bis CPE Modems • ASMi-52/52 L • ASMi-54/ASMi-54 L/54 LRT • E 1, ETH, Serial port (V 35, X. 21, RS-530) • 2 W, 4 W, 8 W Transparent SHDSL/SHDSL. bis Rack Repeaters • LRS -102 - Up to 96 E 1’s & 24 ETH ports over HDSL/SHDSL. bis lines • SHDSL/SHDSL. bis repeaters or 112 E 1’s over fiber • Indoor/outdoor units • LRS -16, up to 16 E 1 to SHDSL • 2 W/4 W lines LRS-102 Ver. 3. 44– 2012 Slide 5

LRS-102 Introduction • Central transparent rack solution for E 1 and ETH connectivity over fiber and copper • Single box solution for TDM and IP networks, reduce Opex & Capex • RADview SNMP management for convenient and low-cost maintenance on PC or Unix (HPOV) platforms LRS-102 Ver. 3. 44– 2012 Slide 6

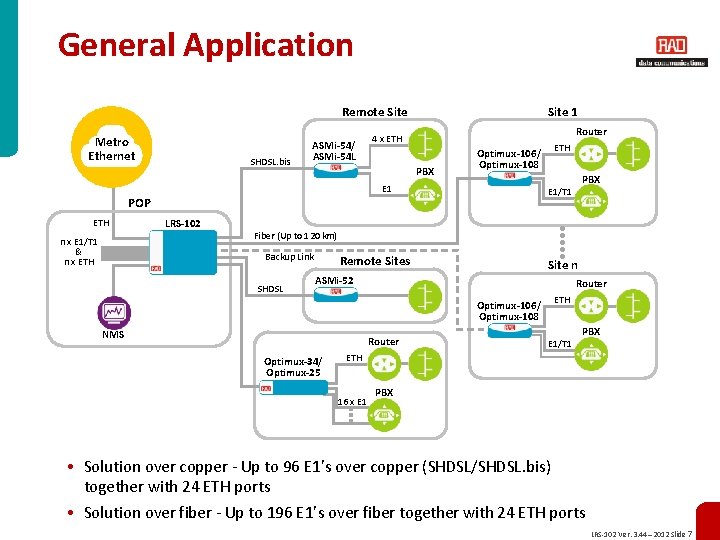

General Application Remote Site Metro Ethernet SHDSL. bis ASMi-54/ ASMi-54 L Site 1 Router 4 x ETH PBX E 1/T 1 POP ETH Optimux-106/ Optimux-108 LRS-102 Fiber (Up to 120 km) n x E 1/T 1 & n x ETH Backup Link SHDSL Remote Sites Site n ASMi-52 Router ETH Optimux-106/ Optimux-108 NMS Router Optimux-34/ Optimux-25 E 1/T 1 PBX ETH 16 x E 1 PBX • Solution over copper - Up to 96 E 1’s over copper (SHDSL/SHDSL. bis) together with 24 ETH ports • Solution over fiber - Up to 196 E 1’s over fiber together with 24 ETH ports LRS-102 Ver. 3. 44– 2012 Slide 7

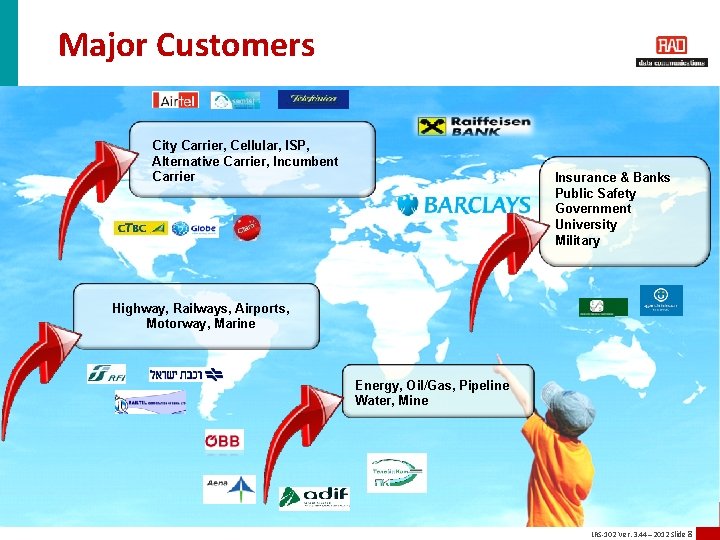

Major Customers City Carrier, Cellular, ISP, Alternative Carrier, Incumbent Carrier Insurance & Banks Public Safety Government University Military Highway, Railways, Airports, Motorway, Marine Energy, Oil/Gas, Pipeline Water, Mine LRS-102 Ver. 3. 44– 2012 Slide 8

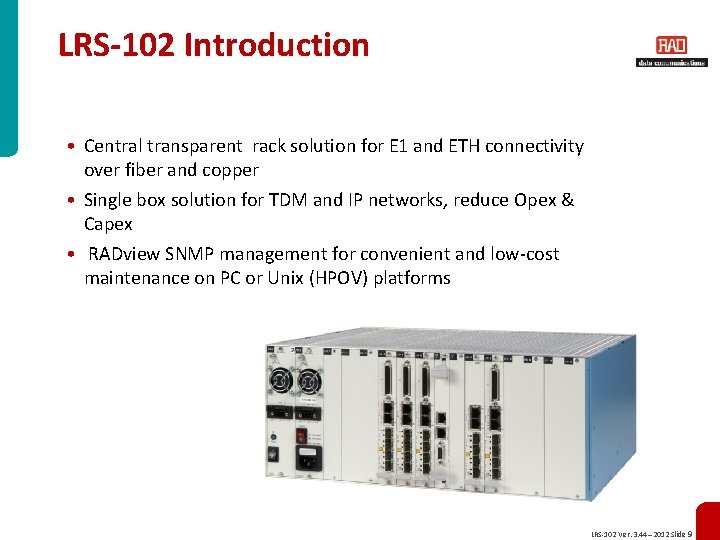

LRS-102 Introduction • Central transparent rack solution for E 1 and ETH connectivity over fiber and copper • Single box solution for TDM and IP networks, reduce Opex & Capex • RADview SNMP management for convenient and low-cost maintenance on PC or Unix (HPOV) platforms LRS-102 Ver. 3. 44– 2012 Slide 9

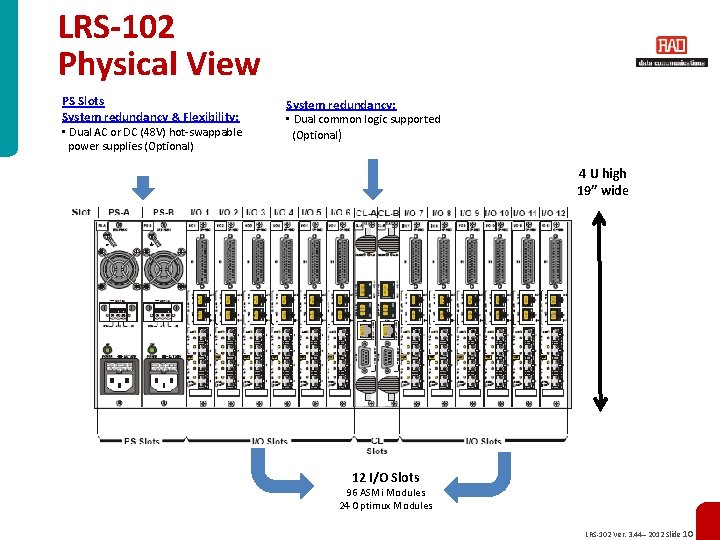

LRS-102 Physical View PS Slots System redundancy & Flexibility: • Dual AC or DC (48 V) hot-swappable power supplies (Optional) System redundancy: • Dual common logic supported (Optional) 4 U high 19” wide 12 I/O Slots 96 ASMi Modules 24 Optimux Modules LRS-102 Ver. 3. 44– 2012 Slide 10

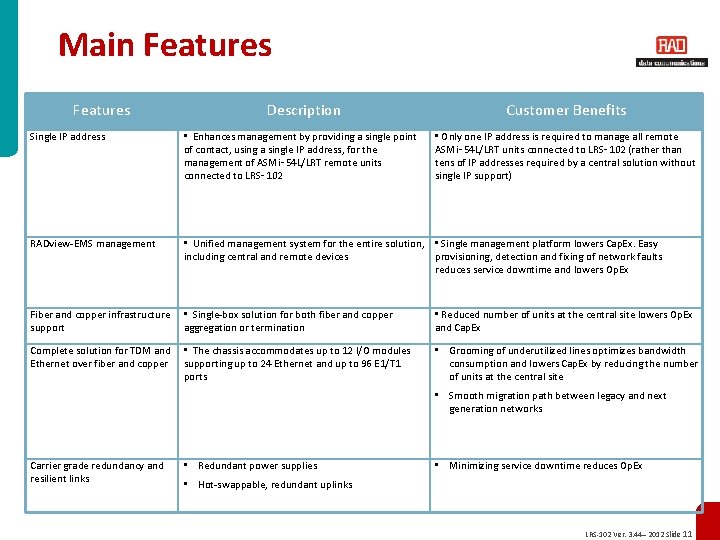

Main Features Description Customer Benefits Single IP address • Enhances management by providing a single point of contact, using a single IP address, for the management of ASMi‑ 54 L/LRT remote units connected to LRS‑ 102 • Only one IP address is required to manage all remote ASMi‑ 54 L/LRT units connected to LRS‑ 102 (rather than tens of IP addresses required by a central solution without single IP support) RADview-EMS management • Unified management system for the entire solution, • Single management platform lowers Cap. Ex. Easy including central and remote devices provisioning, detection and fixing of network faults reduces service downtime and lowers Op. Ex Fiber and copper infrastructure support • Single-box solution for both fiber and copper aggregation or termination • Reduced number of units at the central site lowers Op. Ex and Cap. Ex Complete solution for TDM and Ethernet over fiber and copper • The chassis accommodates up to 12 I/O modules supporting up to 24 Ethernet and up to 96 E 1/T 1 ports • Grooming of underutilized lines optimizes bandwidth consumption and lowers Cap. Ex by reducing the number of units at the central site • Smooth migration path between legacy and next generation networks Carrier grade redundancy and resilient links • Redundant power supplies • Minimizing service downtime reduces Op. Ex • Hot-swappable, redundant uplinks LRS-102 Ver. 3. 44– 2012 Slide 11

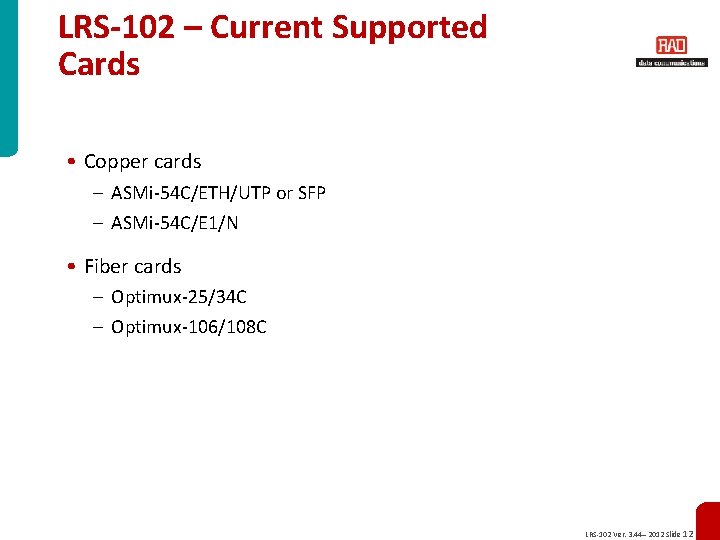

LRS-102 – Current Supported Cards • Copper cards – ASMi-54 C/ETH/UTP or SFP – ASMi-54 C/E 1/N • Fiber cards – Optimux-25/34 C – Optimux-106/108 C LRS-102 Ver. 3. 44– 2012 Slide 12

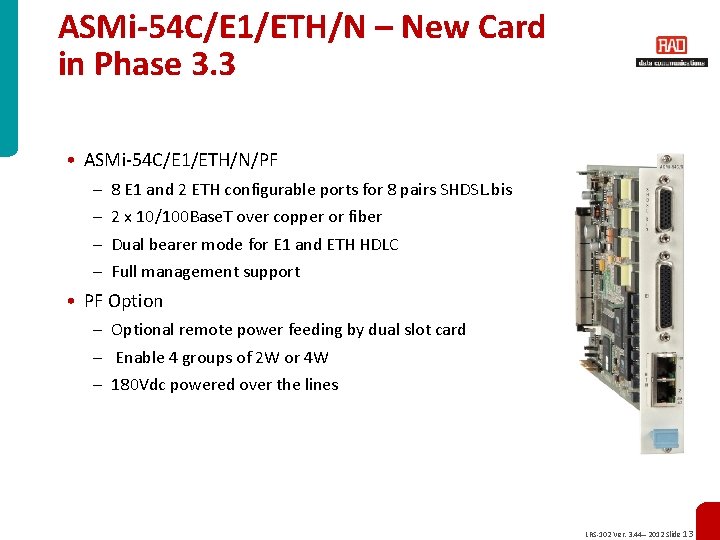

ASMi-54 C/E 1/ETH/N – New Card in Phase 3. 3 • ASMi-54 C/E 1/ETH/N/PF – – 8 E 1 and 2 ETH configurable ports for 8 pairs SHDSL. bis 2 x 10/100 Base. T over copper or fiber Dual bearer mode for E 1 and ETH HDLC Full management support • PF Option – Optional remote power feeding by dual slot card – Enable 4 groups of 2 W or 4 W – 180 Vdc powered over the lines LRS-102 Ver. 3. 44– 2012 Slide 13

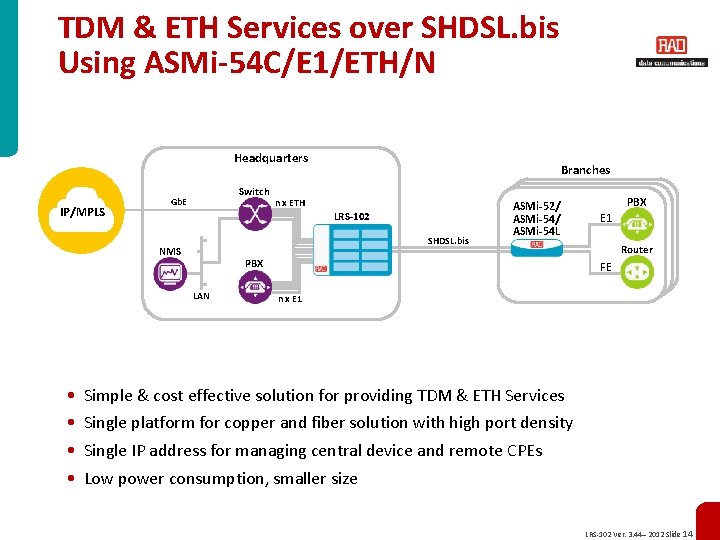

TDM & ETH Services over SHDSL. bis Using ASMi-54 C/E 1/ETH/N Headquarters IP/MPLS Switch Gb. E n x ETH LRS-102 SHDSL. bis NMS ASMi-52/ ASMi-54 L PBX LAN • • Branches PBX E 1 Router FE n x E 1 Simple & cost effective solution for providing TDM & ETH Services Single platform for copper and fiber solution with high port density Single IP address for managing central device and remote CPEs Low power consumption, smaller size LRS-102 Ver. 3. 44– 2012 Slide 14

ASMi-54 C/ETH • High density – 2 ETH ports over 8 SHDSL/SHDSL. bis lines – Up to 96 pairs of ETH EFM lines • High Reliability – EFM bonding support in case of failure of one of the DSL line • Advanced ETH performance – QOS – queuing based on VLAN priority bit – Up to 8 user flows (based on VLAN) • Single NMS platform – low Opex LRS-102 Ver. 3. 44– 2012 Slide 15

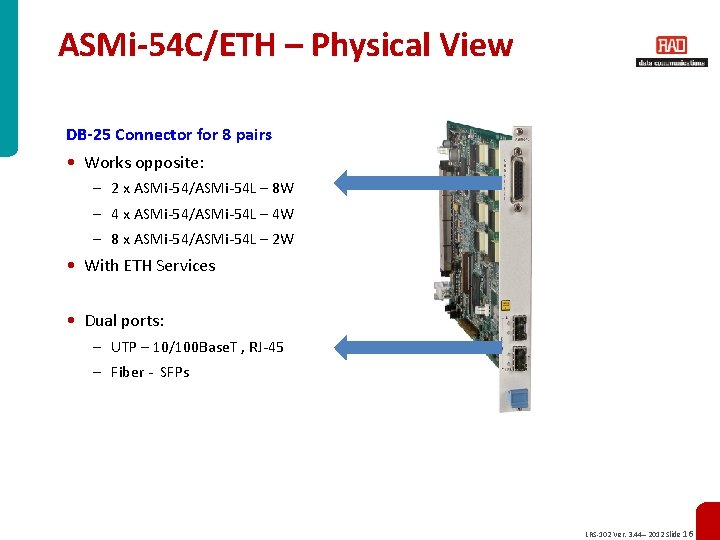

ASMi-54 C/ETH – Physical View DB-25 Connector for 8 pairs • Works opposite: – 2 x ASMi-54/ASMi-54 L – 8 W – 4 x ASMi-54/ASMi-54 L – 4 W – 8 x ASMi-54/ASMi-54 L – 2 W • With ETH Services • Dual ports: – UTP – 10/100 Base. T , RJ-45 – Fiber - SFPs LRS-102 Ver. 3. 44– 2012 Slide 16

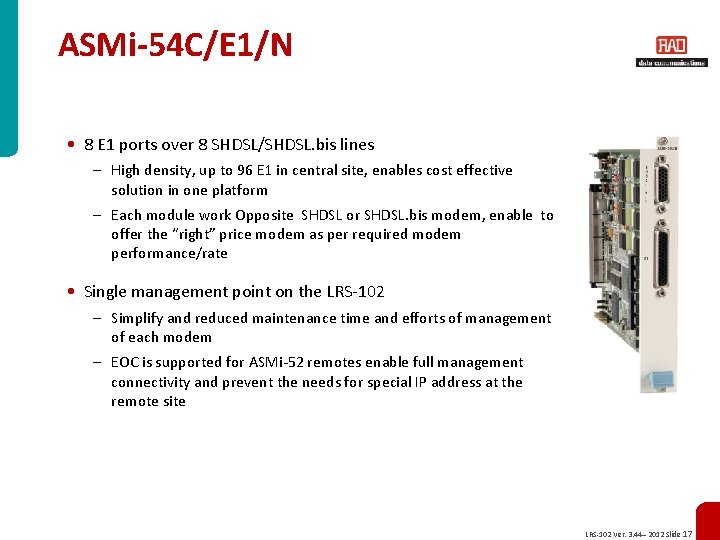

ASMi-54 C/E 1/N • 8 E 1 ports over 8 SHDSL/SHDSL. bis lines – High density, up to 96 E 1 in central site, enables cost effective solution in one platform – Each module work Opposite SHDSL or SHDSL. bis modem, enable to offer the “right” price modem as per required modem performance/rate • Single management point on the LRS-102 – Simplify and reduced maintenance time and efforts of management of each modem – EOC is supported for ASMi-52 remotes enable full management connectivity and prevent the needs for special IP address at the remote site LRS-102 Ver. 3. 44– 2012 Slide 17

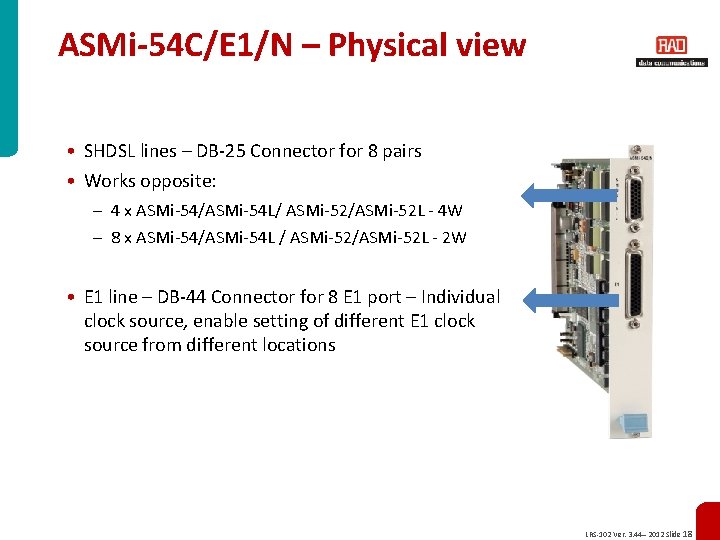

ASMi-54 C/E 1/N – Physical view • SHDSL lines – DB-25 Connector for 8 pairs • Works opposite: – 4 x ASMi-54/ASMi-54 L/ ASMi-52/ASMi-52 L - 4 W – 8 x ASMi-54/ASMi-54 L / ASMi-52/ASMi-52 L - 2 W • E 1 line – DB-44 Connector for 8 E 1 port – Individual clock source, enable setting of different E 1 clock source from different locations LRS-102 Ver. 3. 44– 2012 Slide 18

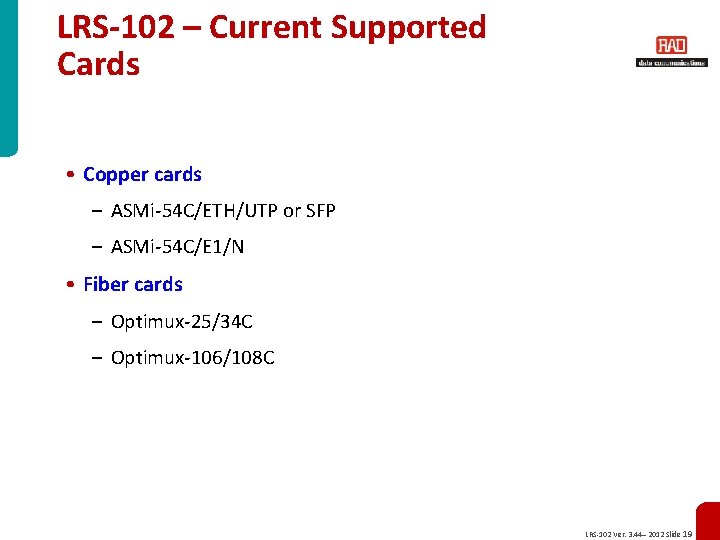

LRS-102 – Current Supported Cards • Copper cards – ASMi-54 C/ETH/UTP or SFP – ASMi-54 C/E 1/N • Fiber cards – Optimux-25/34 C – Optimux-106/108 C LRS-102 Ver. 3. 44– 2012 Slide 19

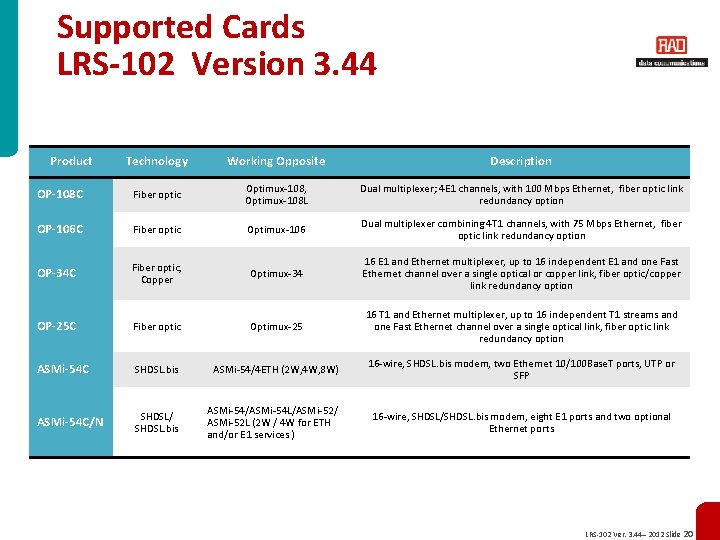

Supported Cards LRS-102 Version 3. 44 Product Technology Working Opposite Description OP-108 C Fiber optic Optimux-108, Optimux-108 L Dual multiplexer; 4 E 1 channels, with 100 Mbps Ethernet, fiber optic link redundancy option OP-106 C Fiber optic Optimux-106 Dual multiplexer combining 4 T 1 channels, with 75 Mbps Ethernet, fiber optic link redundancy option OP-34 C Fiber optic, Copper Optimux-34 16 E 1 and Ethernet multiplexer, up to 16 independent E 1 and one Fast Ethernet channel over a single optical or copper link, fiber optic/copper link redundancy option OP-25 C Fiber optic Optimux-25 16 T 1 and Ethernet multiplexer, up to 16 independent T 1 streams and one Fast Ethernet channel over a single optical link, fiber optic link redundancy option ASMi-54 C SHDSL. bis ASMi-54/4 ETH (2 W, 4 W, 8 W) 16 -wire, SHDSL. bis modem, two Ethernet 10/100 Base. T ports, UTP or SFP ASMi-54 C/N SHDSL/ SHDSL. bis ASMi-54/ASMi-54 L/ASMi-52/ ASMi-52 L (2 W / 4 W for ETH and/or E 1 services ) 16 -wire, SHDSL/SHDSL. bis modem, eight E 1 ports and two optional Ethernet ports LRS-102 Ver. 3. 44– 2012 Slide 20

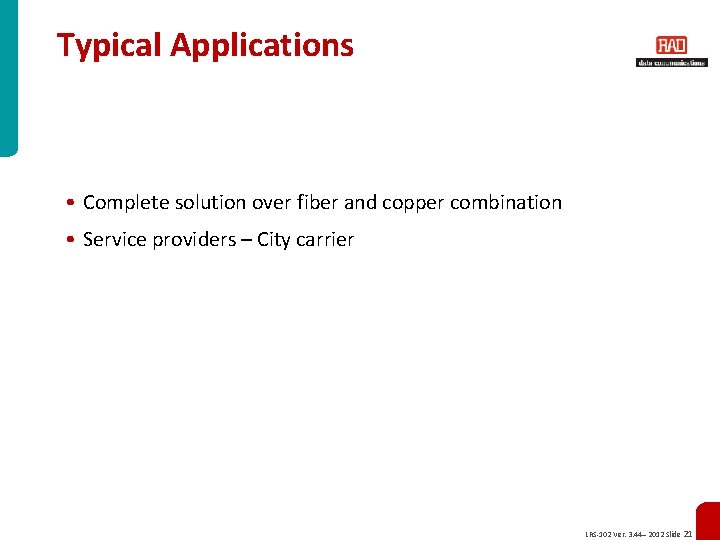

Typical Applications • Complete solution over fiber and copper combination • Service providers – City carrier LRS-102 Ver. 3. 44– 2012 Slide 21

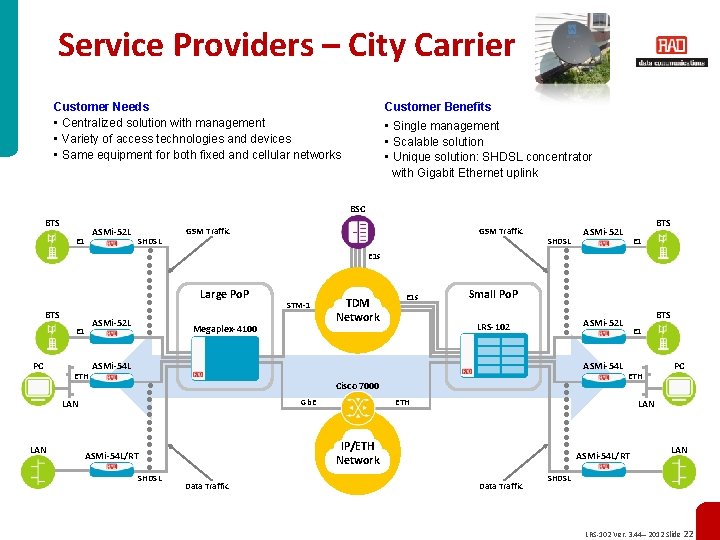

Service Providers – City Carrier Customer Needs • Centralized solution with management • Variety of access technologies and devices • Same equipment for both fixed and cellular networks Customer Benefits • Single management • Scalable solution • Unique solution: SHDSL concentrator with Gigabit Ethernet uplink BSC BTS ASMi-52 L E 1 SHDSL GSM Traffic SHDSL BTS ASMi-52 L E 1 s Large Po. P BTS ASMi-52 L E 1 PC ETH Megaplex-4100 TDM Network E 1 s Small Po. P ASMi-54 L Cisco 7000 SHDSL ETH PC LAN IP/ETH Network Data Traffic E 1 ETH Gb. E ASMi-54 L/RT BTS ASMi-52 L LRS-102 ASMi-54 L LAN STM-1 ASMi-54 L/RT Data Traffic LAN SHDSL LRS-102 Ver. 3. 44– 2012 Slide 22

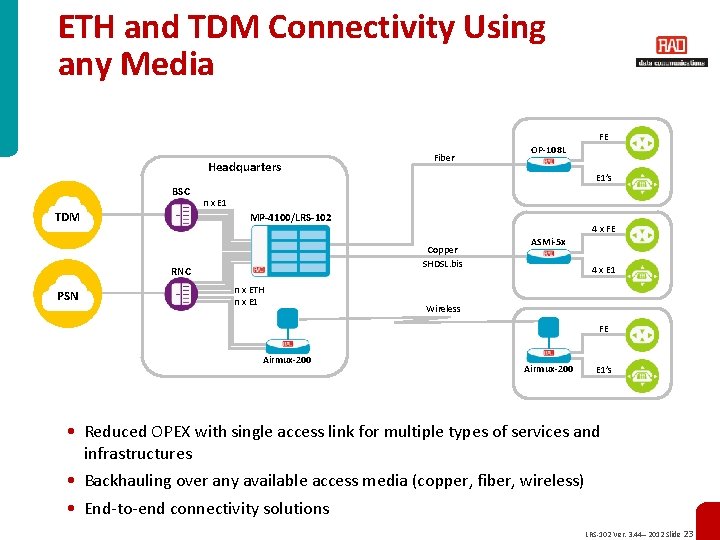

ETH and TDM Connectivity Using any Media FE Headquarters BSC TDM OP-108 L E 1’s n x E 1 MP-4100/LRS-102 4 x FE Copper SHDSL. bis RNC PSN Fiber n x ETH n x E 1 ASMi-5 x 4 x E 1 Wireless FE Airmux-200 E 1’s • Reduced OPEX with single access link for multiple types of services and infrastructures • Backhauling over any available access media (copper, fiber, wireless) • End-to-end connectivity solutions LRS-102 Ver. 3. 44– 2012 Slide 23

Management RADview-EMS is a unified carrier-class management platform for RAD devices using a variety of access channels as SNMPv 1/3, HTTP/S, TFTP and Telnet/SSH. In addition, it features third-party device monitoring capabilities LRS-102 Ver. 3. 44– 2012 Slide 24

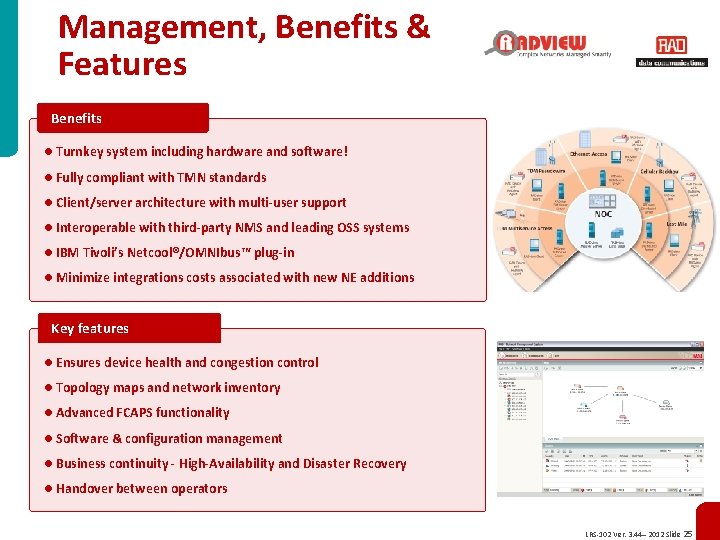

Management, Benefits & Features Benefits ● Turnkey system including hardware and software! ● Fully compliant with TMN standards ● Client/server architecture with multi-user support ● Interoperable with third-party NMS and leading OSS systems ● IBM Tivoli’s Netcool®/OMNIbus™ plug-in ● Minimize integrations costs associated with new NE additions Key features ● Ensures device health and congestion control ● Topology maps and network inventory ● Advanced FCAPS functionality ● Software & configuration management ● Business continuity - High-Availability and Disaster Recovery ● Handover between operators LRS-102 Ver. 3. 44– 2012 Slide 25

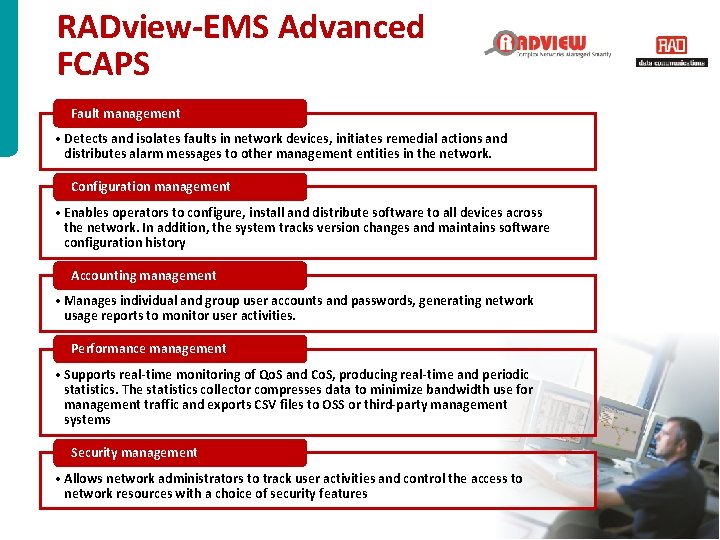

RADview-EMS Advanced FCAPS Fault management • Detects and isolates faults in network devices, initiates remedial actions and distributes alarm messages to other management entities in the network. Configuration management • Enables operators to configure, install and distribute software to all devices across the network. In addition, the system tracks version changes and maintains software configuration history Accounting management • Manages individual and group user accounts and passwords, generating network usage reports to monitor user activities. Performance management • Supports real-time monitoring of Qo. S and Co. S, producing real-time and periodic statistics. The statistics collector compresses data to minimize bandwidth use for management traffic and exports CSV files to OSS or third-party management systems Security management • Allows network administrators to track user activities and control the access to network resources with a choice of security features LRS-102 Ver. 3. 44– 2012 Slide 26

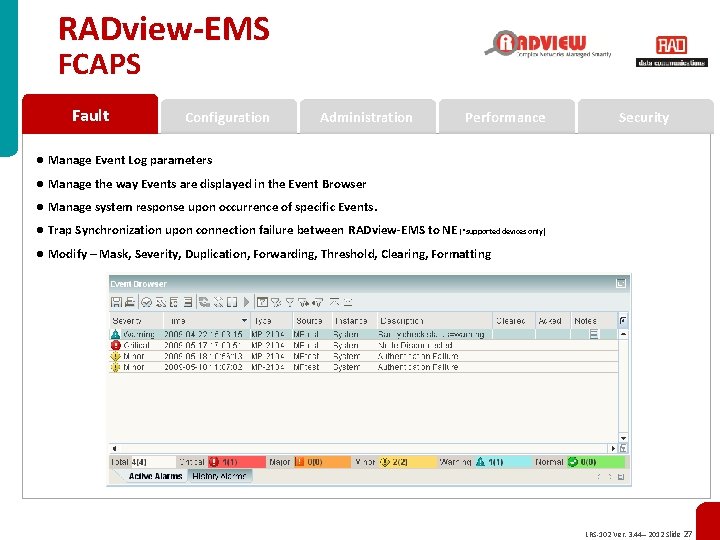

RADview-EMS FCAPS Fault Configuration Administration Performance Security ● Manage Event Log parameters ● Manage the way Events are displayed in the Event Browser ● Manage system response upon occurrence of specific Events. ● Trap Synchronization upon connection failure between RADview-EMS to NE (*supported devices only) ● Modify – Mask, Severity, Duplication, Forwarding, Threshold, Clearing, Formatting LRS-102 Ver. 3. 44– 2012 Slide 27

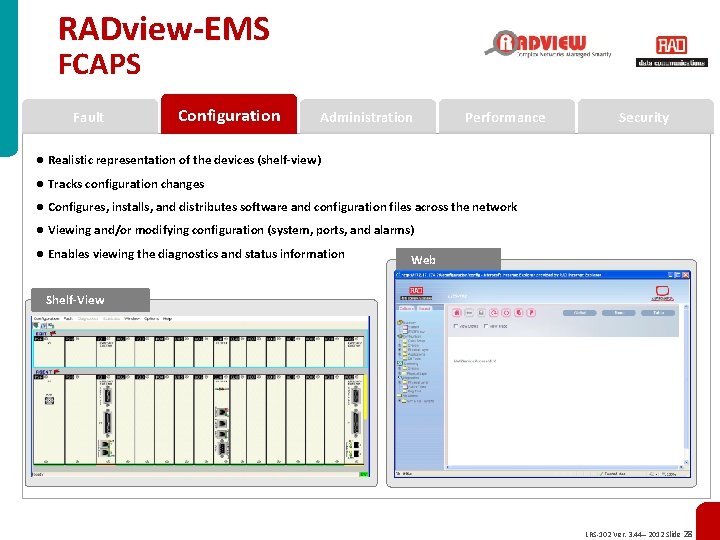

RADview-EMS FCAPS Fault Configuration Administration Performance Security ● Realistic representation of the devices (shelf-view) ● Tracks configuration changes ● Configures, installs, and distributes software and configuration files across the network ● Viewing and/or modifying configuration (system, ports, and alarms) ● Enables viewing the diagnostics and status information Web Shelf-View LRS-102 Ver. 3. 44– 2012 Slide 28

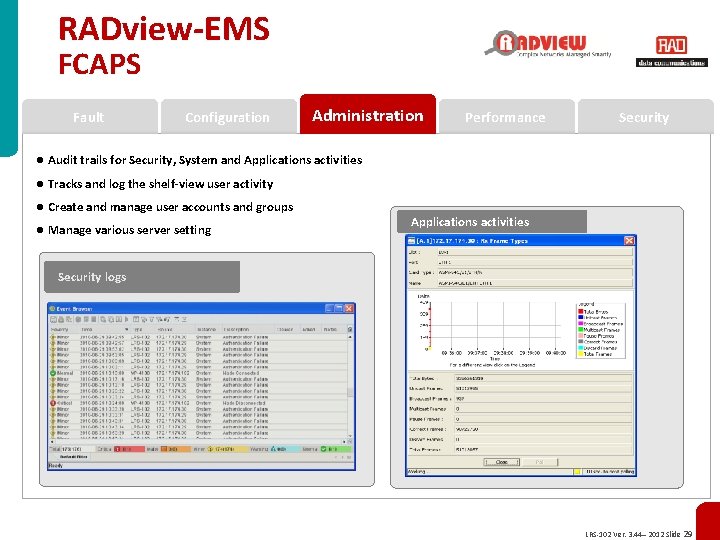

RADview-EMS FCAPS Fault Configuration Administration Performance Security ● Audit trails for Security, System and Applications activities ● Tracks and log the shelf-view user activity ● Create and manage user accounts and groups ● Manage various server setting Applications activities Security logs LRS-102 Ver. 3. 44– 2012 Slide 29

RADview-EMS FCAPS Fault Configuration Administration Performance Security ● Monitors network performance (Qo. S, Co. S) ● Current statistics (Real-time) Statistics ● Intervals statistics ● Reflects Agent statistics ● RADview statistics collector (*supported devices only) ● Collect and compress the data ● Retrieved lost data upon connection failure ● Minimizing management traffic ● Exports CSV ASCII files for OSS LRS-102 Ver. 3. 44– 2012 Slide 30

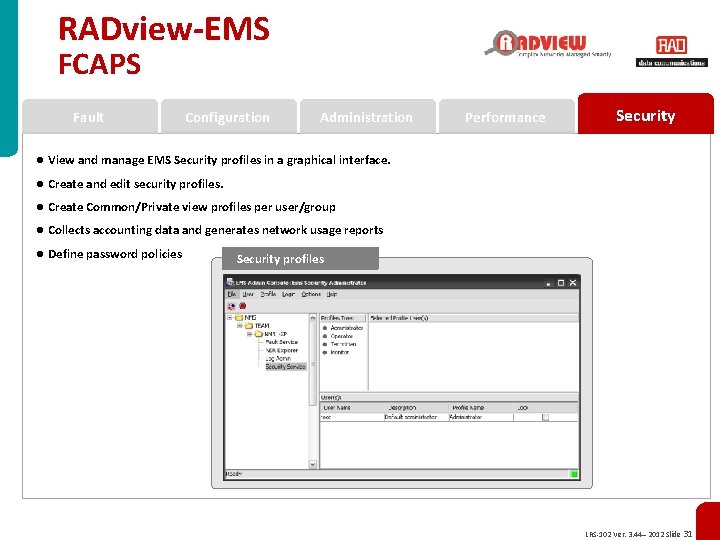

RADview-EMS FCAPS Fault Configuration Administration Performance Security ● View and manage EMS Security profiles in a graphical interface. ● Create and edit security profiles. ● Create Common/Private view profiles per user/group ● Collects accounting data and generates network usage reports ● Define password policies Security profiles LRS-102 Ver. 3. 44– 2012 Slide 31

Device Management • RAD products support the following management capabilities Device Management ● SNTP ● Menu driven terminal ● Radius ● TFTP ● Web-GUI ● SNMP v 1, v 3 ● Out-of-band mgt port ● In-band mgt ● ICMP LRS-102 Ver. 3. 44– 2012 Slide 32

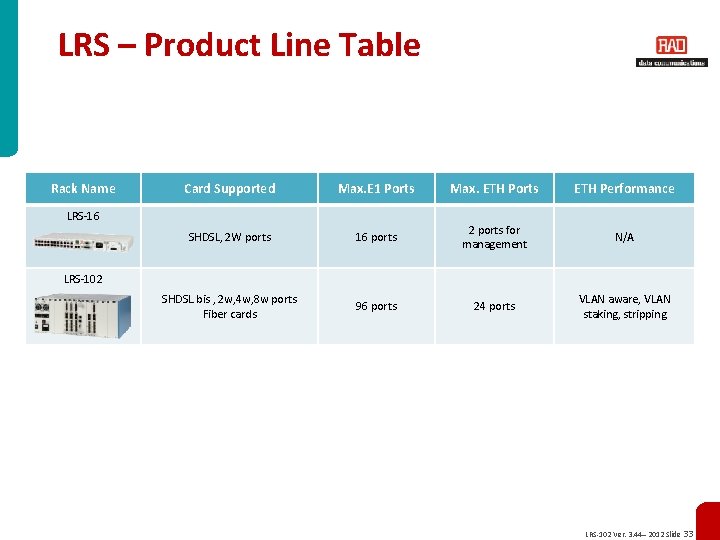

LRS – Product Line Table Rack Name Card Supported Max. E 1 Ports Max. ETH Ports ETH Performance SHDSL, 2 W ports 16 ports 2 ports for management N/A SHDSL. bis , 2 w, 4 w, 8 w ports Fiber cards 96 ports 24 ports VLAN aware, VLAN staking, stripping LRS-16 LRS-102 Ver. 3. 44– 2012 Slide 33

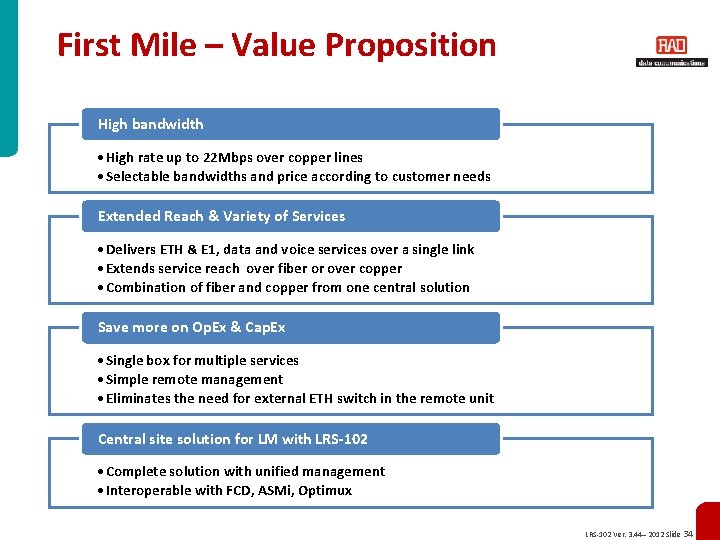

First Mile – Value Proposition High bandwidth • High rate up to 22 Mbps over copper lines • Selectable bandwidths and price according to customer needs Extended Reach & Variety of Services • Delivers ETH & E 1, data and voice services over a single link • Extends service reach over fiber or over copper • Combination of fiber and copper from one central solution Save more on Op. Ex & Cap. Ex • Single box for multiple services • Simple remote management • Eliminates the need for external ETH switch in the remote unit Central site solution for LM with LRS-102 • Complete solution with unified management • Interoperable with FCD, ASMi, Optimux LRS-102 Ver. 3. 44– 2012 Slide 34

Ordering Information Ordering Option Description LRS-102/ACR/CL 1 R 12 -slot modem rack with SNMP management, redundant AC power supply, redundant common logic module LRS-102/DCR/CL 1 R 12 -slot modem rack with SNMP management, redundant DC power supply, redundant common logic module LRS-102/UNBAL/DCR/CL 1 12 -slot modem rack with SNMP management, Unbalanced E 1 port, redundant DC power supply, Common Logic module LRS-102/UNBAL/DCR/CL 1 R 12 -slot modem rack with SNMP management, Unbalanced E 1 port, redundant DC power supply, redundant common logic module LRS-102/DCR/CL 1 12 -slot modem rack with SNMP management, redundant DC power supply, Common Logic module LRS-102 Ver. 3. 44– 2012 Slide 35

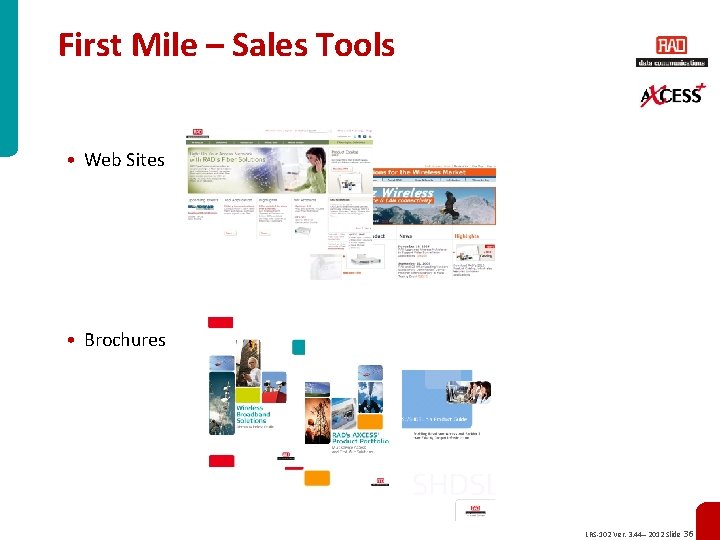

First Mile – Sales Tools • Web Sites • Brochures LRS-102 Ver. 3. 44– 2012 Slide 36

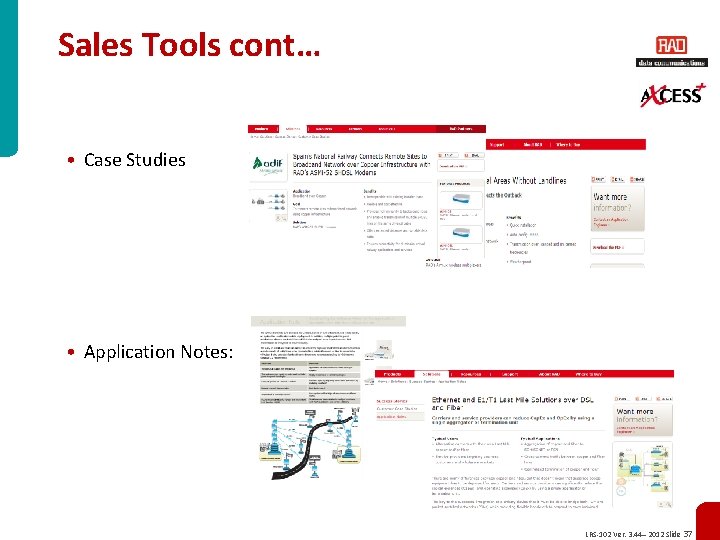

Sales Tools cont… • Case Studies • Application Notes: LRS-102 Ver. 3. 44– 2012 Slide 37

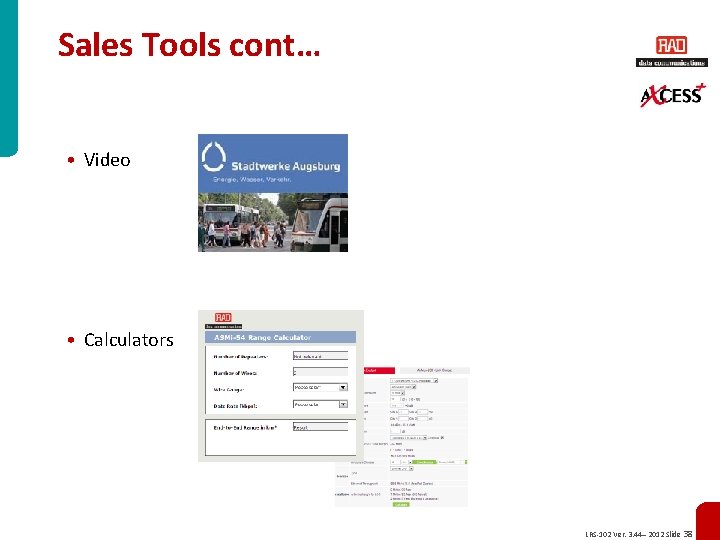

Sales Tools cont… • Video • Calculators LRS-102 Ver. 3. 44– 2012 Slide 38

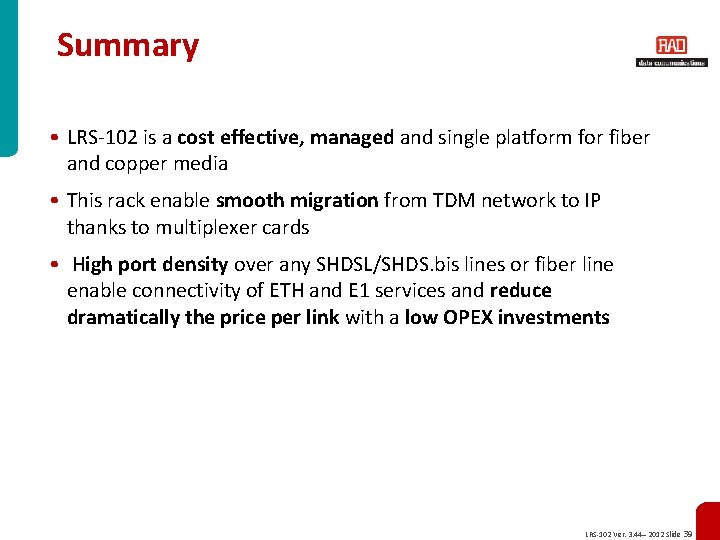

Summary • LRS-102 is a cost effective, managed and single platform for fiber and copper media • This rack enable smooth migration from TDM network to IP thanks to multiplexer cards • High port density over any SHDSL/SHDS. bis lines or fiber line enable connectivity of ETH and E 1 services and reduce dramatically the price per link with a low OPEX investments LRS-102 Ver. 3. 44– 2012 Slide 39

Thank You For Your Attention www. rad. com LRS-102 Ver. 3. 44– 2012 Slide 40
