Lower Laguna Madre Water Quality Tim Cawthon Nonpoint

Lower Laguna Madre Water Quality Tim Cawthon Nonpoint Source Program Texas Commission on Environmental Quality

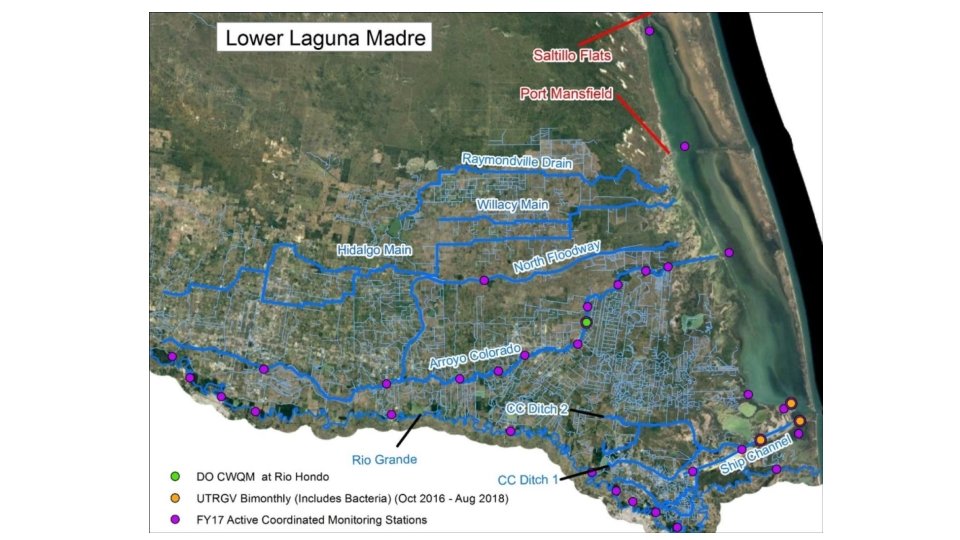

Coordinated Monitoring • Coordinated Monitoring Schedule - https: //cms. lcra. org/ • Coordinated Monitoring Meetings held annually by each Clean Rivers Program Partner • IBWC – Rio Grande River Basin • Nueces River Authority – Nueces-Rio Grande Coastal Basin • (Basin includes Brownsville Ship Channel, Lower Laguna Madre, Arroyo Colorado, and areas north)

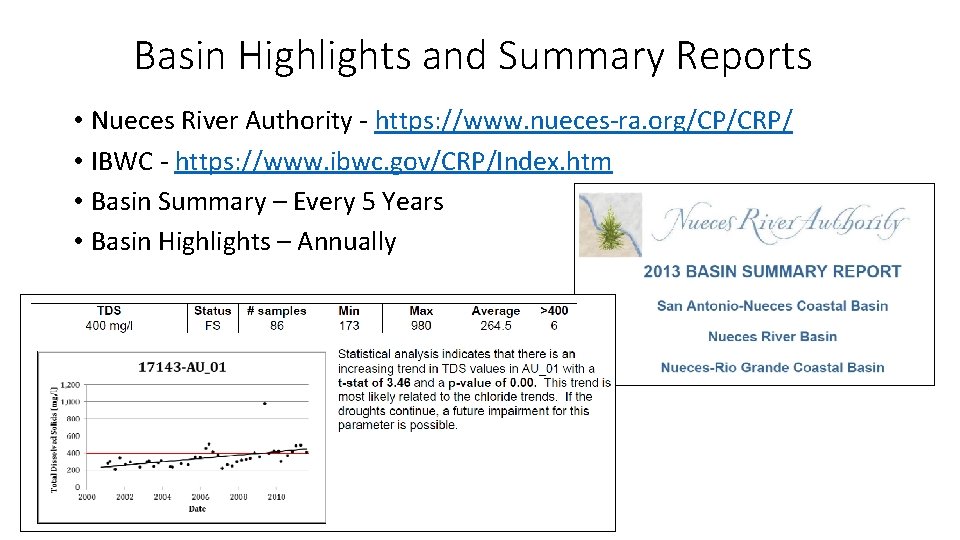

Basin Highlights and Summary Reports • Nueces River Authority - https: //www. nueces-ra. org/CP/CRP/ • IBWC - https: //www. ibwc. gov/CRP/Index. htm • Basin Summary – Every 5 Years • Basin Highlights – Annually

Texas Surface Water Quality Standards

Texas Surface Water Quality Standards • Proposed every 3 years • Standards consist of two parts: • Uses, or purposes • Presumed vs Designated • Criteria, or indicators to determine use attainment • Five general categories: • • • Aquatic life Contact recreation Public water supply Fish consumption General uses http: //www. tceq. state. tx. us/waterquality/standards

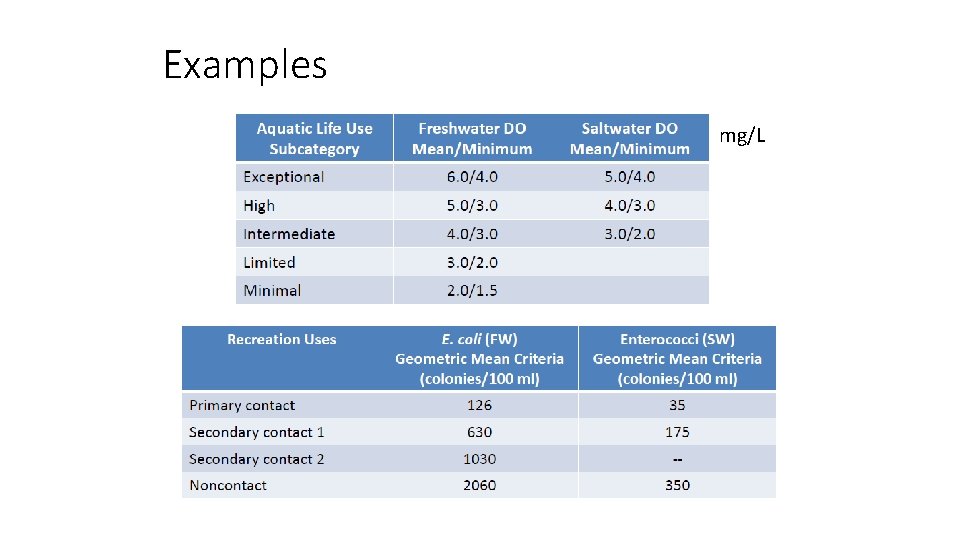

Examples mg/L

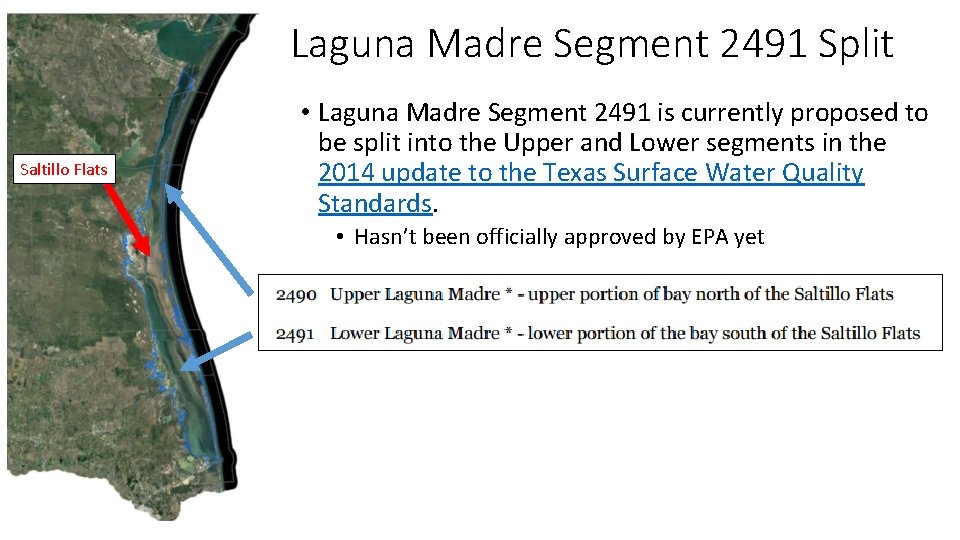

Laguna Madre Segment 2491 Split Saltillo Flats • Laguna Madre Segment 2491 is currently proposed to be split into the Upper and Lower segments in the 2014 update to the Texas Surface Water Quality Standards. • Hasn’t been officially approved by EPA yet

TCEQ Assessment

Texas Integrated Report • Assessment of water bodies every 2 years • 7 year rolling average of data • Identify impaired water bodies • 303 (d) List of Impaired Waters • Categories • 5 a – TMDL, watershed action plan • 5 b – Evaluate water quality standard • 5 c – Additional data needed https: //www. tceq. texas. gov/waterquality/assessment

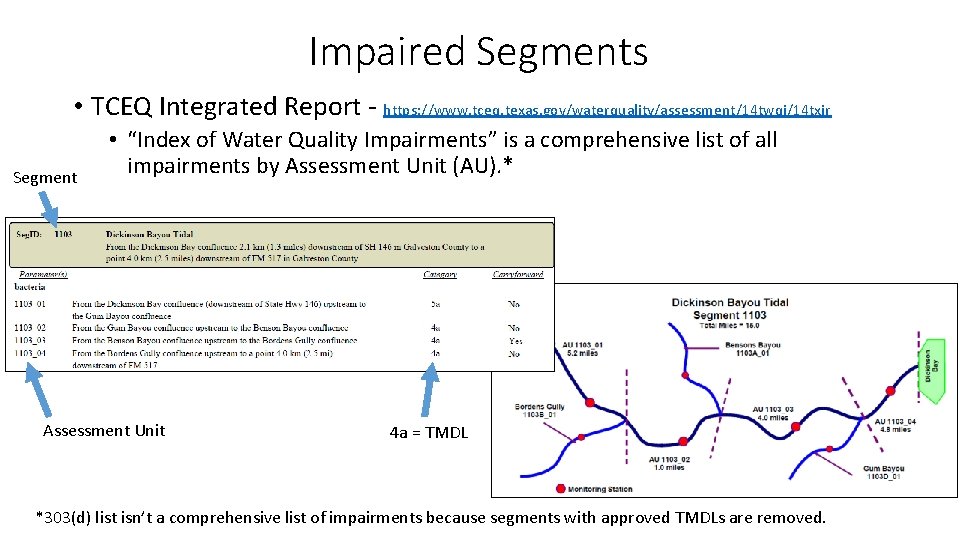

Impaired Segments • TCEQ Integrated Report - https: //www. tceq. texas. gov/waterquality/assessment/14 twqi/14 txir Segment • “Index of Water Quality Impairments” is a comprehensive list of all impairments by Assessment Unit (AU). * Assessment Unit 4 a = TMDL *303(d) list isn’t a comprehensive list of impairments because segments with approved TMDLs are removed.

SWQM Viewer • http: //tceq. maps. arcgis. com/apps/webappviewer/index. html? id=b 0 ab 6 bac 411 a 49189106064 b 70 bbe 778 • Monitoring stations (Includes Inactive Stations) • Segments (No Assessment Units)

Stations Used • Water Bodies Evaluated Report - https: //www. tceq. texas. gov/assets/public/waterquality/swqm/assess/14 txir/2014_wbevaluated. pdf

Assessment Results • Assessment by Basin - https: //www. tceq. texas. gov/waterquality/assessment/14 twqi/14 basinlist

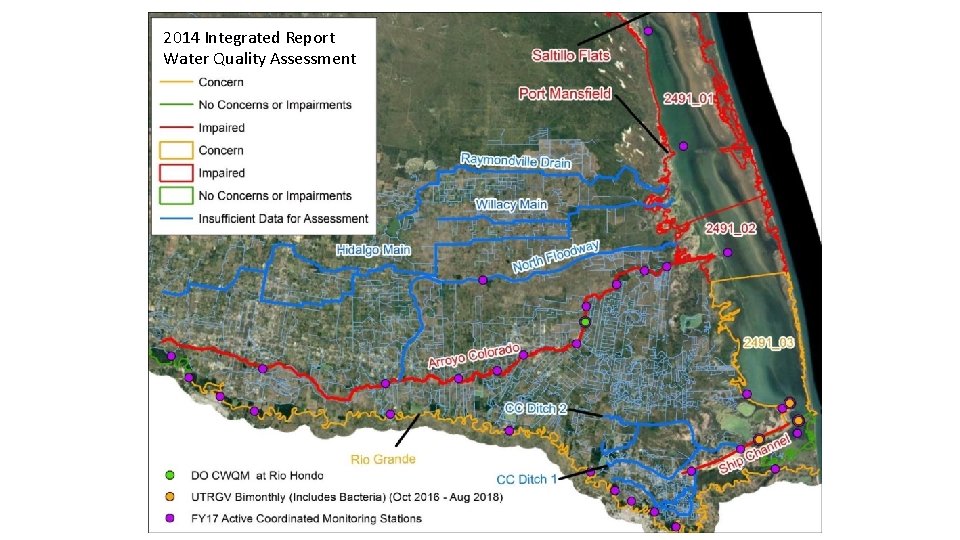

2014 Integrated Report Water Quality Assessment

2014 Integrated Report Water Quality Assessment Laguna Madre (2491)* Low Dissolved Oxygen Chlorophyll-a Low Dissolved Oxygen Bacteria Ammonia Nitrate Chlorophyll-a Low Dissolved Oxygen Port Isabel Fishing Harbor (2494 A) Bacteria Brownsville Ship Channel (2494) Bacteria Low Dissolved Oxygen *Segment 2491 is currently proposed to be split into the Upper and Lower segments in the 2014 update to the Texas Surface Water Quality Standards. Lower Segment will be the bay south of the Saltillo Flats.

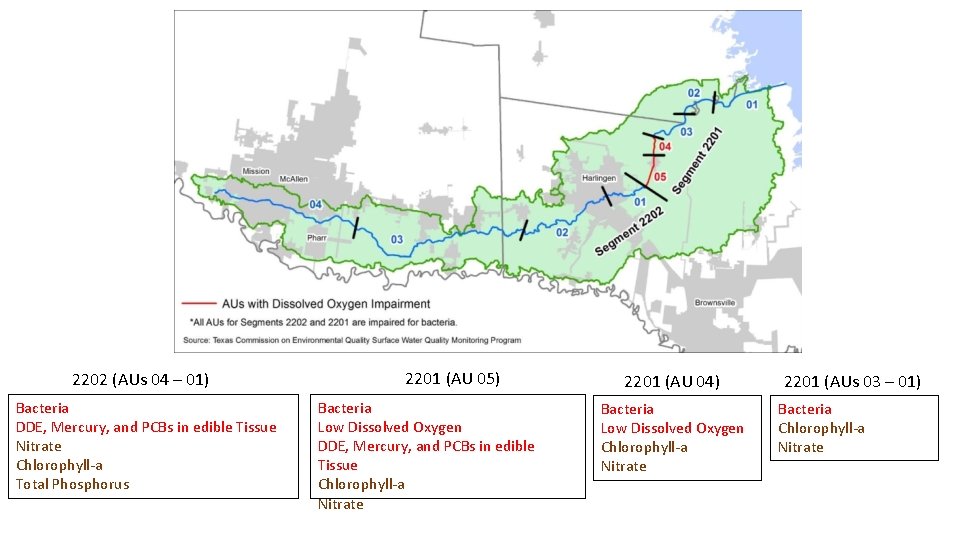

2202 (AUs 04 – 01) Bacteria DDE, Mercury, and PCBs in edible Tissue Nitrate Chlorophyll-a Total Phosphorus 2201 (AU 05) Bacteria Low Dissolved Oxygen DDE, Mercury, and PCBs in edible Tissue Chlorophyll-a Nitrate 2201 (AU 04) Bacteria Low Dissolved Oxygen Chlorophyll-a Nitrate 2201 (AUs 03 – 01) Bacteria Chlorophyll-a Nitrate

Downloading and Viewing Data

Water Quality Data Sources • • • SWQMIS Public Viewer - https: //www 80. tceq. texas. gov/Swqmis. Public/public/default. htm STORET – https: //www. waterqualitydata. us/portal/ USGS WQ - https: //waterwatch. usgs. gov/wqwatch/map? state=tx&pcode=00010 Stream Team - https: //aqua. meadowscenter. txstate. edu/basins. aspx Beach Watch - https: //cgis. glo. texas. gov/Beachwatch/ CWQM Stations - https: //www. tceq. texas. gov/waterquality/monitoring/cwqmn-data-links

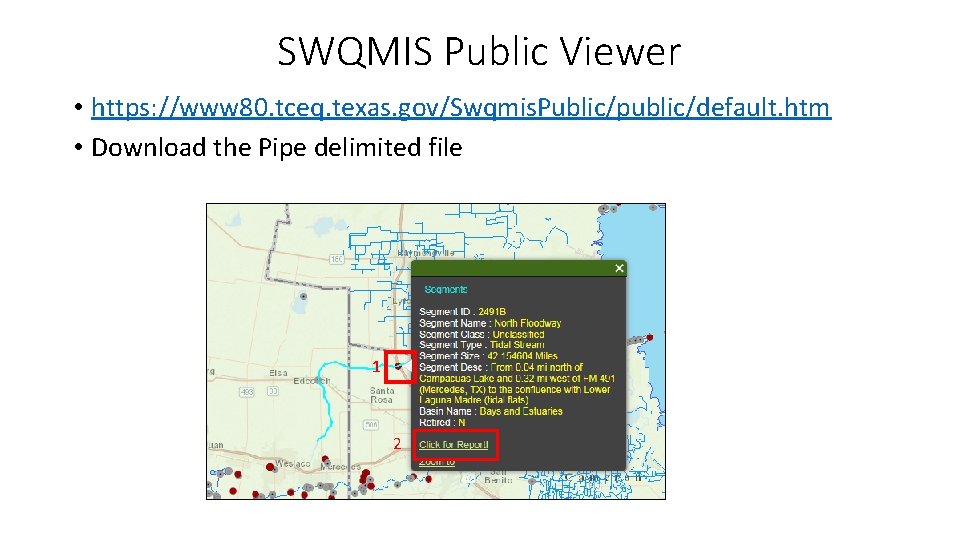

SWQMIS Public Viewer • https: //www 80. tceq. texas. gov/Swqmis. Public/public/default. htm • Download the Pipe delimited file 1 2

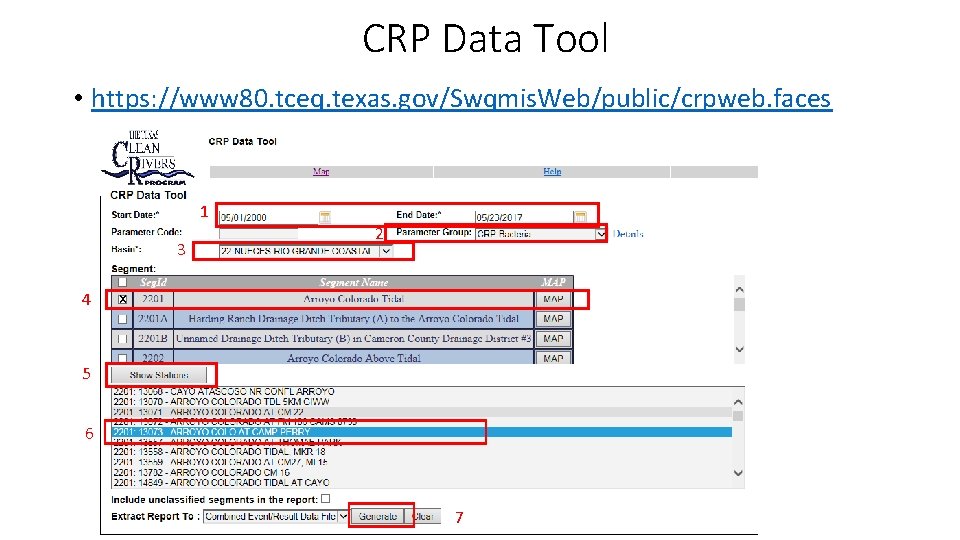

CRP Data Tool • https: //www 80. tceq. texas. gov/Swqmis. Web/public/crpweb. faces 1 3 4 2 x 5 6 7

Opening Pipe Delimited file in Excel • Open Microsoft Excel. • Select the Data tab. • Click From Text. • Browse to the text file and select it. • Click Import. The Text Import Wizard will begin. • Select Delimited and click Next. • Uncheck Tab and select Other. • Enter in pipe symbol |. Hold shift key and press button above Enter key. • Click Next. Click Finish. Click Ok • Data can now be viewed in Excel

Questions?
