Low Power Artificial Retina By Duha Jabakhanji Objectives
Low Power Artificial Retina By Duha Jabakhanji
Objectives • Design a subretinal implant. • Design a temperature variable supply voltage (TVS). • Integrate the two designs together. • Lower power with increasing temperature. • Examine the effects of temperature on ocular implants.
Challenges • Simulating the artificial retina: photodiode needed. • Simulating a pixel matrix. • Designing the TVS and integrating it with the artificial retina.
Design: Photodiode • Photodiode: – Accurately models a photodiode. – Vary the current source.

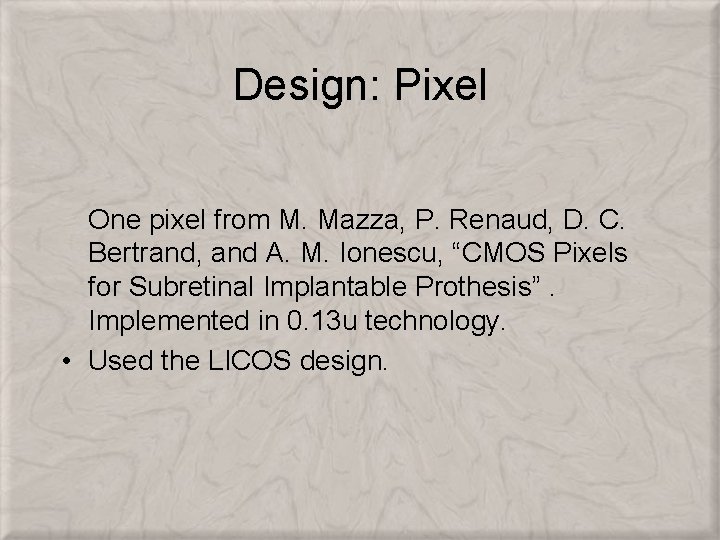

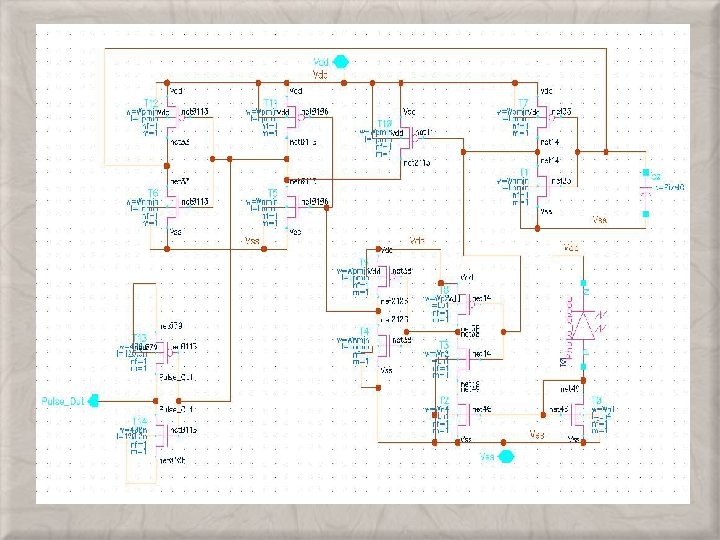

Design: Pixel One pixel from M. Mazza, P. Renaud, D. C. Bertrand, and A. M. Ionescu, “CMOS Pixels for Subretinal Implantable Prothesis”. Implemented in 0. 13 u technology. • Used the LICOS design.
Design: Sensor • Temperature sensor: – Used NPN BJT for better resolution.
Design: TVS • The proposed design was too large. • ADC too large to implement. • A subtractor was used instead. Solar Panel Control Circuit A/D converter Temperature Sensor VDD
Design: TVS
Results: 10 X 10 array
Conclusion • • TVS Artificial Retina was a success. Provides a good diagnostic tool. Is self regulatory. Designers should take into consideration varying temperatures and design the implant to withstand it. • Heat damage could be an issue in some cases.
