Lordosis Depuy Bengal Stackable Cage System Biomaterials BIOL
Lordosis (Depuy Bengal® Stackable Cage System) Biomaterials (BIOL 1120) Professor Beth Zielinski Professor Jeffrey R. Scott Jacqueline Chang Timothy Chou

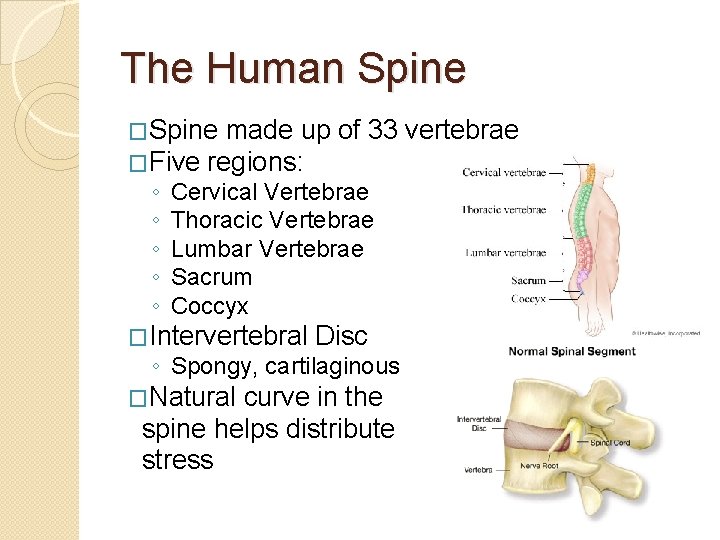

The Human Spine �Spine made up �Five regions: ◦ ◦ ◦ of 33 vertebrae Cervical Vertebrae Thoracic Vertebrae Lumbar Vertebrae Sacrum Coccyx �Intervertebral Disc ◦ Spongy, cartilaginous �Natural curve in the spine helps distribute stress
Pathophysiology of Lordosis � Background ◦ Inward curvature of the lumbar and cervical vertebrae (swayback appearance) ◦ Anterior pelvic tilt, when the pelvis tips forward when resting on top of the femurs ◦ Can cause herniated disc � Symptoms ◦ Severe lower back pain ◦ Exaggerated Posture � Diagnosis ◦ Physical Examination ◦ MRI/CT Scan � Who is at risk? ◦ ◦ ◦ Discitis Spondylolisthesis Kyphosis Osteoporosis Obesity
Treatment Methods �Drugs ◦ Nonsteroidal antiinflammatory drugs ◦ Prevent discomfort and swelling �Physical Therapy ◦ Strengthening of muscles ◦ Improving posture ◦ Reducing body weight �Brace ◦ Lordactiv™ lumbar belt �Surgery ◦ Depuy Bengal® Stackable Cage System
Product �Used to treat �Materials vertebrae T 1 -L 5 ◦ Carbon Fiber Reinforced Polymer (CFRP) ◦ Titanium Rods ◦ Tantalum Beads �Versatile ◦ Adjustable height and angles options �Stackable Cage System ◦ Replace excised vertebral tissue ◦ Used singularly or stacked ◦ Similar in dimension to normal vertebrae
Advantages over other Methods �Structure supports loads with modulus of elasticity close to that of cortical bone �Ridges and teeth resist rotation and migration �Cavities accept bone graft �Radiolucent so healing can be assessed by normal radiographic methods

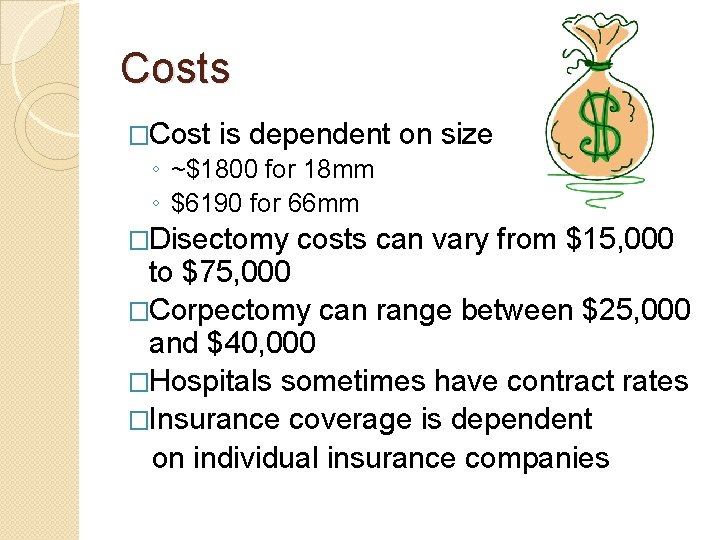

Costs �Cost is dependent on size ◦ ~$1800 for 18 mm ◦ $6190 for 66 mm �Disectomy costs can vary from $15, 000 to $75, 000 �Corpectomy can range between $25, 000 and $40, 000 �Hospitals sometimes have contract rates �Insurance coverage is dependent on individual insurance companies
Surgical Protocol � Disectomy ◦ Removes the herniated or affected disc ◦ Incision down the center of the back, muscles and nerves moved aside and problematic disc is removed and device is implanted ◦ Suture or metal staples are used to close up � Corpectomy ◦ Removes multiple vertebrae, more invasive ◦ Device implanted in the removed area ◦ Suture or metal staples are used to close up � Caliper to determine defect height � Fluorscopy to determine lordotic angle
Recovery After Surgery � Most patients go home 1 -2 days (disectomy) or 4 -5 days (corpectomy) later � 1 -4 weeks recovery time. � 8 -12 weeks recovery needed for more labor intensive jobs � Surgical tape to affix suture, keep wound dry and clean � Narcotic medication may be taken for pain for 2 -4 weeks (not more because addictive) � Physical therapy recommended � Do not sit for long periods of time or drive for the first 2 -4 weeks
Possible Complications �Potential ◦ ◦ Complications of Surgery Haematoma Skin necrosis outside operation region Deep infection around implantation Thrombosis �Osteoporosis patients may encounter problems with device fixation �Obesity (too much stress)
Improvements after Procedure � 80 -90% of patients show good results �Better sitting posture �Improved sagittal balance �Reduced pain �Optimized fusion environment
Sources � � � � http: //www. depuy. com/healthcare-professionals/productdetails/bengal-stackable-cagesystem? s=search_1367019904981314&i=0&consulta=t&specialty=0 &category=0&focus=0&family=0&keyword=benga&company=0 http: //www. spineedu. com/Link. Click. aspx? fileticket=0 z 79104 Vdvs%3 D&tabid=76 http: //www. uscspine. com/treatment/anterior-cervical-corpectomy. cfm http: //www. allaboutbackandneckpain. com/explore/corpectomy. asp http: //www. mayfieldclinic. com/PE-Lum. Discectomy. htm http: //www. orthospineinst. com/cervical-1. php http: //www. webmd. com/back-pain/guide/types-of-spine-curvaturedisorders http: //www. cedars-sinai. edu/Patients/Health-Conditions/Swayback. Lordosis. aspx http: //www. backsurgerycost. com/how-much-does-a-discectomy-cost/ http: //www. spine-health. com/treatment/back-surgery/anteriorcervical-corpectomy-spine-surgery http: //quizlet. com/5949981/print http: //www. cure-back-pain. org/lordosis-treatment. html http: //www. spineuniverse. com/anatomy/vertebral-column http: //www. allaboutbackandneckpain. com/explore/surgical-
