Loops In Pascal In this section of notes
- Slides: 31
Loops In Pascal In this section of notes you will learn how to rerun parts of your program without having to duplicate the code. James Tam
The Need For Repetition (Loops) Writing out a simple counting program (1 – 3). program counting (output); begin writeln('1'); writeln('2'); writeln('3'); end. James Tam
The Need For Repetition (2) Simple program but what if changes need to be made? • The source code must be re-edited and re-compiled each time that a change is needed. What if you need the program to count many times? James Tam
Basic Structure Of Loops 1) Initialize the control a) Control – typically a variable that determines whether or not the loop executes or not. 2) Testing the control against a condition 3) Executing the body of the loop 4) Update the value of the control James Tam
Types Of Loops 1. Pre-test loops • Check the stopping condition before executing the body of the loop. • The loop executes zero or more times. • Pascal implementation: while-do, for 2. Post-test loops • Checking the stopping condition after executing the body of the loop. • The loop executes one or more times. • Pascal implementation: repeat-until James Tam
Pre-Test Loops 1. Initialize loop control 2. Check if the stopping condition has been met a. If it’s been met then the loop ends b. If it hasn’t been met then proceed to the next step 3. Execute the body of the loop (the part to be repeated) 4. Update the loop control Conditio n met? Yes No Execute body Update control 5. Go to step 2 After the loop (done looping) James Tam
Pre-Test Loop: While-Do Can be used for almost any stopping condition. Loop executes as long as the Boolean expression is true. Format: while (Boolean expression) do body Example (The full program can be found in UNIX under /home/231/examples/loops/while. Do. p) var i : integer; i: = 1; while (i <= 5) do begin writeln('i = ', i); i : = i + 1; end; (* while *) James Tam
Pre-Test Loop: While-Do Can be used for almost any stopping condition. Loop executes as long as the Boolean expression is true. Format: while (Boolean expression) do body Example (The full program can be found in UNIX under /home/231/examples/loops/while. Do. p) var i : integer; 1) Initialize control i: = 1; while (i <= 5) do 2) Check condition begin writeln('i = ', i); 3) Execute body i : = i + 1; end; (* while *) 4) Update control James Tam
Tracing The While Loop Execution Variables >. /while. Do i James Tam
Pre-Test Loop: For Typically used when it is known in advance how many times that the loop will execute (counting loops). Loop executes until the loop control would go past the stopping condition. Format (counting up): for initialize control to final value do body Format (counting down): for initialize control downto final value do body Note: For loops are only supposed to count up (‘to’) or down (‘downto’) by one. If the program must go up or down by other multiples then use a while-do loop instead. NEVER modify the loop control of a Pascal for loop in the body of the loop! James Tam
First For Loop Example one (The full program can be found in UNIX under /home/231/examples/loops/for. Loop. Up. p): begin var i : integer; var total : integer; total : = 0; for i : = 1 to 5 do begin total : = total + i; writeln('i=', i, ‘ total=', total); end; (* for *) end. James Tam
First For Loop Example one (The full program can be found in UNIX under /home/231/examples/loops/for. Loop. Up. p): begin 1) Initialize control var i : integer; 3) Update control var total : integer; total : = 0; for i : = 1 to 5 do begin 2) Test condition total : = total + i; 4) Execute body writeln('i=', i, ‘ total=', total); end; (* for *) end. James Tam
Tracing The First For Loop Example Execution >. / for. Loop. Up Variables i total James Tam
Second For Loop Example two (The full program can be found in UNIX under /home/231/examples/loops/for. Loop. Down. p) begin var i : integer; var total : integer; total : = 0; for i : = 5 downto 1 do begin total : = total + i; writeln('i=', i, ' total=', total); end; (* for *) end. James Tam
Tracing The Second For Loop Example Execution >. /for. Loop. Down Variables i total James Tam
Post-Test Loops 1. Initialize loop control (sometimes not needed because initialization occurs when the control is updated) Initialize loop control 2. Execute the body of the loop (the part to be repeated) Execute body 3. Update the loop control Update control 4. Check if the stopping condition has been met a. If it’s been met then the loop ends b. If it hasn’t been met then return to step 2. No Conditio n met? Yes After the loop (done looping) James Tam
Post Test Loops: Repeat-Until Can be used instead of a while-do loop if you need the loop to execute the loop at least once. (Note: A while-loop can also be modified so that it is guaranteed to execute at least once by initializing the loop control to value that will result in a true evaluation of the Boolean expression). Loop executes while some Boolean expression is false, it stops when it’s true. Format: repeat body until (Boolean expression); James Tam
Repeat-Until: An Example: The full version can be found in UNIX under: /home/231/examples/loops/repeat. Until. p James Tam
Repeat-Until: An Example (2) program repeat. Until (output); begin var i : integer; i: = 1; repeat begin writeln('i = ', i); i : = i + 1; end; (* loop *) until (i > 5); end. James Tam
Repeat-Until: An Example (2) program repeat. Until (output); begin 1) Initialize control var i : integer; i: = 1; repeat begin writeln('i = ', i); i : = i + 1; end; (* loop *) 3) Update control until (i > 5); end. 2) Execute body 4) Test condition James Tam
Tracing Repeat-Until Loop Example Execution Variable >. / repeat. Until i James Tam
Solving A Problem Using Loops Problem: Write a program that will execute a game: • The program will randomly generate a number between one and ten. • The player will be prompted to enter their guess. • The program will continue the game until the player indicates that they no longer want to continue. The full program can be found in UNIX under: /home/231/examples/loops/guessing. Game. p James Tam
Repeat-Until: An Example (2) var guess : integer; var answer : integer; var choice : char; repeat answer : = random(10) + 1; write('Enter your guess: '); readln(guess); if (guess = answer) then writeln('You guessed correctly!') else writeln('You guessed incorrectly'); writeln('Number was ', answer, ', your guess was ', guess); write('Play again? Enter “n” to quit or anything else to continue'); write('Choice: '); readln(choice); writeln; until (choice = 'N') OR (choice = 'n'); James Tam
Recap: What Looping Constructs Are Available In Pascal/When To Use Them Construct When To Use Pre-test loops You want the stopping condition to be checked before the loop body is executed (typically used when you want a loop to execute zero or more times). • While-do • For Post-test: Repeat-until • The most powerful looping construct: you can write a ‘while-do’ loop to mimic the behavior of any other type of loop. In general it should be used when you want a pre-test loop which can be used for most any arbitrary stopping condition e. g. , execute the loop as long as the user doesn’t enter a negative number. • A ‘counting loop’: You want a simple loop to count up or down a certain number of times. You want to execute the body of the loop before checking the stopping condition (typically used to ensure that the body of the loop will execute at least once). James Tam
Logical Operators Can Be Used In Conjunction With Loops Operator Format AND while (BE 1) AND (BE 2) do repeat until (BE 1) AND (BE 2); OR while (BE 1) OR (BE 2) do repeat until (BE 1) OR (BE 2); NOT while NOT (BE) do repeat until NOT (BE); James Tam
Infinite Loops Infinite loops never end (the stopping condition is never met). They can be caused by logical errors: • The loop control is never updated (Example 1 – below). • The updating of the loop control never brings it closer to the stopping condition (Example 2 – next slide). Example 1 (The full version can be found in UNIX under /home/231/examples/loops/infinite 1. p) var i : integer; i : = 1; while (i <=10) do writeln('i=', i); i : = i + 1; To stop a program with an infinite loop in UNIX simultaneously press the <ctrl> and the <c> keys James Tam
Infinite Loops (2) Example 2 (The full version can be found in UNIX under /home/231/examples/loops/infinite 2. p) var i : integer; i : = 10; while (i > 0) do begin writeln('i = ', i); i : = i + 1; end; To stop a program with an infinite loop in UNIX simultaneously press the <ctrl> and the <c> keys James Tam

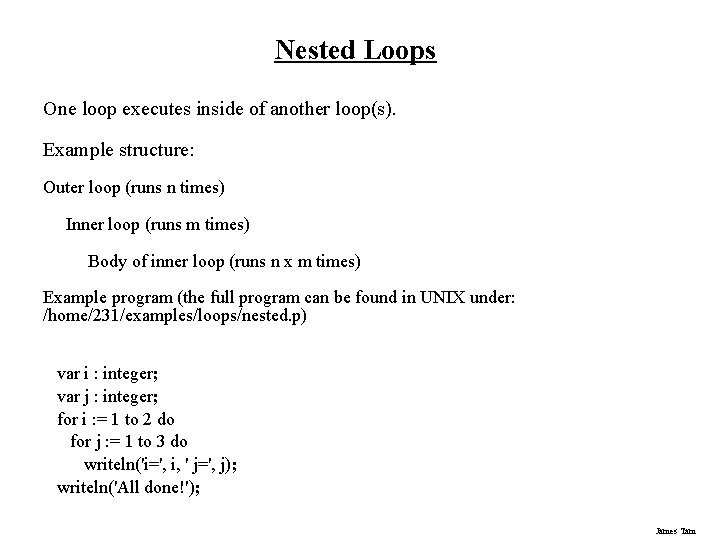

Nested Loops One loop executes inside of another loop(s). Example structure: Outer loop (runs n times) Inner loop (runs m times) Body of inner loop (runs n x m times) Example program (the full program can be found in UNIX under: /home/231/examples/loops/nested. p) var i : integer; var j : integer; for i : = 1 to 2 do for j : = 1 to 3 do writeln('i=', i, ' j=', j); writeln('All done!'); James Tam
Testing Loops Make sure that the loop executes the proper number of times. Test conditions: 1) Loop does not run 2) Loop runs exactly once 3) Loop runs exactly ‘n’ times James Tam
Testing Loops: An Example program test. Loops (input, output); begin var sum : integer; var i : integer; var last : integer; sum : = 0; i : = 1; write ('Enter the last number in the sequence to sum : '); readln (last); while (i <= last) do begin sum : = sum + i; writeln('i=', i); i : = i + 1; end; writeln ('sum=', sum); end. James Tam
You Should Now Know When and why are loops used in computer programs What is the difference between pre-test loops and post-test loops How to trace the execution of pre and post-test loops How to properly write the code for a loop in a program What are nested loops and how do you trace their execution How to test a loop James Tam
