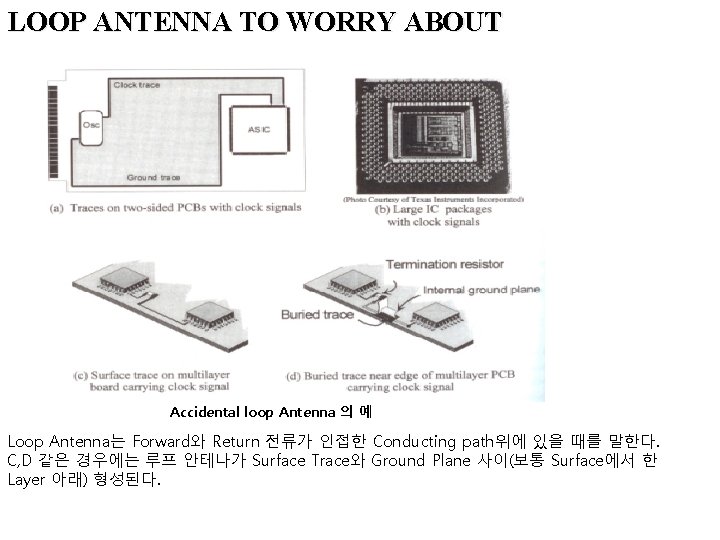

LOOP ANTENNA TO WORRY ABOUT Accidental loop Antenna 의 예 Loop Antenna는 Forward와 Return 전류가 인접한 Conducting path위에 있을 때를 말한다. C, D 같은 경우에는 루프 안테나가 Surface Trace와 Ground Plane 사이(보통 Surface에서 한 Layer 아래) 형성된다.

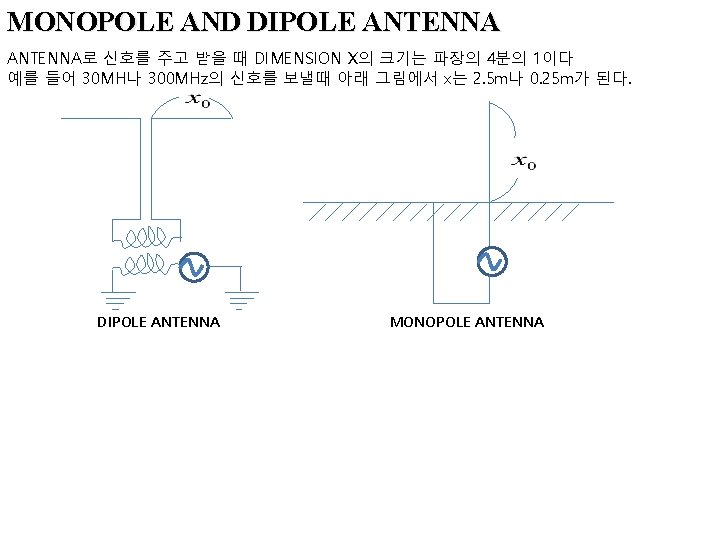

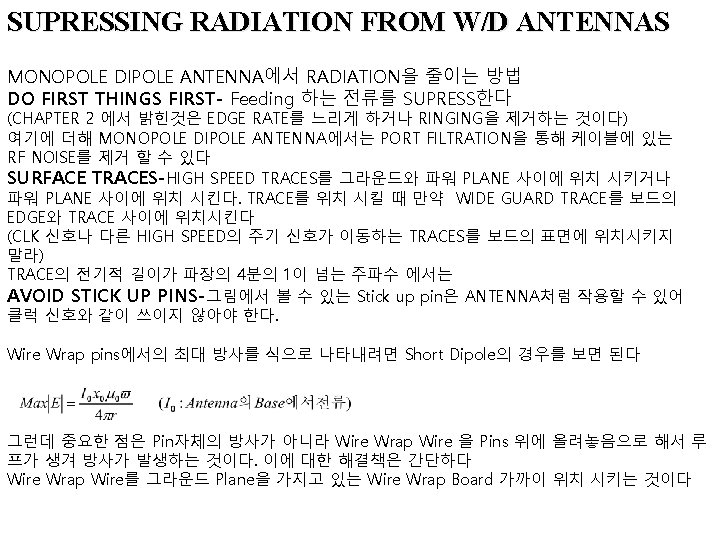

MONOPOLE AND DIPOLE ANTENNA로 신호를 주고 받을 때 DIMENSION X의 크기는 파장의 4분의 1이다 예를 들어 30 MH나 300 MHz의 신호를 보낼때 아래 그림에서 x는 2. 5 m나 0. 25 m가 된다. DIPOLE ANTENNA MONOPOLE ANTENNA

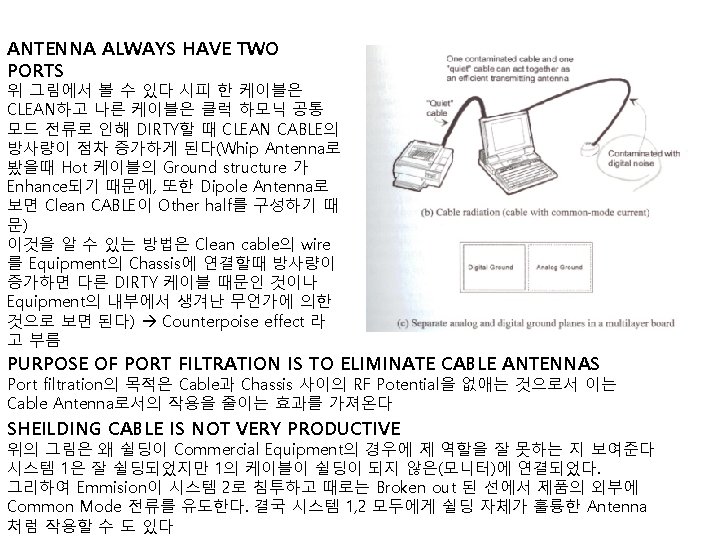

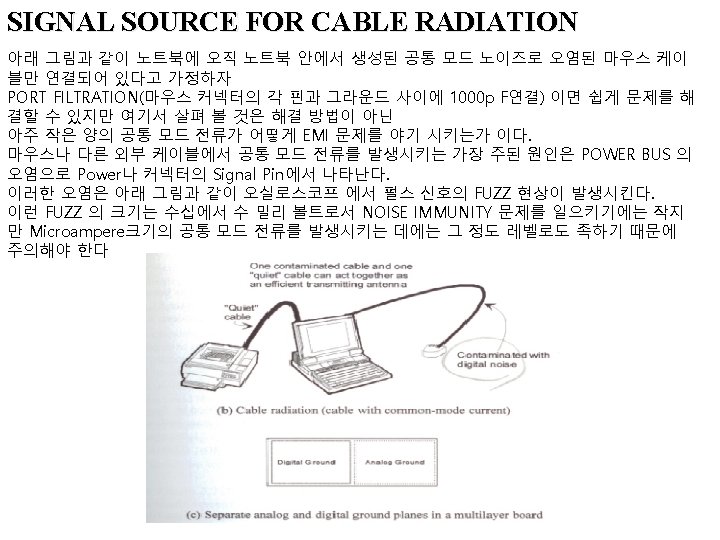

Real Whip Antenna의 예 Real Dipole Antenna의 예 Clean Cable increase radiation because it enhances the ground structure for the hot cable whip part of the antenna. It becomes an extension of the equipment that constitutes the other half of a dipole antenna (Counterpoise effect)
