Long Reach Po E Solution 1 PLANET Long

Long Reach Po. E Solution 1

PLANET Long Reach Po. E Solution u PLANET LRP series Long Reach Po. E Solution → to extend IP Ethernet transmission and inject power over an existing coaxial cable or UTP cable for distance up to 1 km (3280 ft) to Po. E IP camera, Po. E Wireless AP and any 802. 3 af/at compliant powered device (PD) 2

PLANET Long Reach Po. E Solution ü Easy to upgrade analogue CCTV to IP surveillance system ü Eliminates Power cabling with Po. E over Coaxial ü Ethernet over coaxial up to 1 km (3280 ft) with 5 C 2 V/RG 6 75Ωcable ü Ethernet over UTP up to 500 m (1640 ft) with 2 -wire / 8 -wire UTP cable ü Remote LRP Extender complies with IEEE 802. 3 af / 802. 3 at Po. E on RJ-45 port ü Supports Po. E Power up to 25 watts (Vary on Power Source and Coaxial Distance) ü Plug and Play, shorten Installation Time 3

Cabling Limitation of IP Surveillance u Transportation and Public Area Surveillance Issue of Distance • Need Issue of Power Source more than 100 m • Highway • Tunnel • Street Issue of Bandwidth • High-Resolution • High-Quality • More than one camera 4

Roadmap – Long Reach Po. E Solution Receiver On Going LRP-101 CE 1 x BNC 1 x FE RJ 45 Po. E LRP-102 CE LRP-104 CE LRP-101 UE LRP-822 CS LRP-1622 CS LRP-410 US 1 x BNC 2 x FE RJ 45 Po. E 1 x BNC 4 x FE RJ 45 Po. E 1 x UTP 1 x FE RJ 45 Po. E LRP-102 UE 1 x UTP 2 x FE RJ 45 Po. E Planning LRP-104 UE 1 x UTP 4 x FE RJ 45 Po. E LRP-422 CST Injector Hub Transmitter Switch 4 x BNC Po. E 2 x Gb. E RJ 45 2 x Gb. E SFP Industrial LRP-410 CS 4 x BNC Po. E 1 x FE RJ 45 Unmanaged Switch External 120 W PWR 8 x BNC Po. E 2 G TP, 2 G SFP Managed Switch 250 W PWR 16 x BNC Po. E 2 G TP, 2 G SFP Managed Switch 500 W PWR 4 x UTP Po. E 1 x FE RJ 45 Unmanaged Switch (Realtek) External 120 W PWR LRP-822 US 8 x UTP Po. E 2 G TP, 2 G SFP Managed Switch (Realtek) 250 W PWR LRP-1600 CH 1 x BNC Po. E 1 x FE RJ 45 PD External 65 W PWR LRP-400 CH 4 x BNC Po. E 4 x FE RJ 45 Injector Hub External 120 W PWR LRP-800 CH 8 x BNC Po. E 8 x FE RJ 45 Injector Hub Ethernet Extender over Coaxial 16 x UTP Po. E 2 G TP, 2 G SFP Managed Switch (Realtek) 500 W PWR LRP-1600 UH 16 x BNC Po. E 16 x FE RJ 45 Injector Hub LRP-101 CH LRP-1622 US 16 x BNC Po. E 16 x FE RJ 45 Injector Hub LRP-101 UH 1 x UTP Po. E 1 x FE RJ 45 PD External 65 W PWR LRP-400 UH 4 x UTP Po. E 4 x FE RJ 45 Injector Hub External 120 W PWR LRP-800 UH 8 x UTP Po. E 8 x FE RJ 45 Injector Hub Ethernet Extender over Copper 5

Naming Rule Po. E over Coaxial or Po. E over UTP LRP-822 CST Wide Temp. Device Type No. of LRP Coax/UTP No. of Uplink SFP No. of Uplink TP X 1: Main LRP Port Number • • • 1 – 1 -port coax or UTP 8 – 8 -port Coax or UTP 16 -16 -port Coax or UTP X 2: TP Uplink Port Number • 2 – 2 -port 10/1000 Base-T or 2 -port 10/100 Base-TX X 3: SFP Uplink Port Number • Z: LRP Port Type • C - Coaxial • U – Cat 5 UTP or Phone Wire • CU – Coax. + Cat 5 UTP y: Device Type • S – Switch • H – Injector / Injector Hub • E – Extender (remote site) 2 – 2 -port 100/1000 Base-X SFP 6

Long Reach Power over Ethernet Category PLANET PN # Description LRP-822 CS 8 -Port Coax + 2 -port 10/1000 T + 2 -port 100/1000 X SFP Long Reach Po. E over Coaxial Managed Switch (250 W Power, IPv 6, L 2/L 4, SNMP) LRP-1622 CS 16 -Port Coax + 2 -port 10/1000 T + 2 -port 100/1000 X SFP Long Reach Po. E over Coaxial Managed Switch (500 W Power, IPv 6, L 2/L 4, SNMP) LRP-422 CST Industrial 4 -prt Coax + 2 -port Gigabit TP Long Reach Po. E over coaxial Switch (External power, IPv 6, L 2/L 4, SNMP) LRP-101 CH 1 -Port 10/100 TX Po. E PD + 1 -Port Coax Long Reach Po. E Injector (External 65 W) LRP-101 CE 1 -Port 10/100 TX Po. E PSE + 1 -Port Coax Long Reach Po. E Extender LRP 7

Point-to-Point Application T-connector 8

Multi-Point-to-Point Application ü Central Power Management ü Per LRP port power Enable/disable control ü Remote PD alive check and reboot ü Schedule power reboot ü IPv 4/IPv 6 Management ü 4 -port Gigabit Uplink ü Data Link redundant ü IGMP Snooping 9

Long Reach Po. E Switch – BNC interface u LRP-822 CS 2 x 10/1000 T RJ 45 8 x LRP BNC With 56 V DC output u LRP-1622 CS 2 x 100/1000 X SFP 2 x 10/1000 T RJ 45 16 x LRP BNC With 56 V DC output 2 x 100/1000 X SFP 10

Long Reach Po. E Switch – RJ 45 interface u LRP-822 US 2 x 10/1000 T RJ 45 8 x LRP RJ 45 With 56 V DC output u LRP-1622 US 2 x 100/1000 X SFP 2 x 10/1000 T RJ 45 16 x LRP RJ 45 With 56 V DC output 2 x 100/1000 X SFP Note: Do Not connect the LRP RJ 45 port to other non-LRP Extender, otherwise the device would be damaged. 11

Long Reach Po. E Extender u LRP-101 CE Coaxial Cable u LRP-101 UE UTP Cable 12

Industrial Long Reach Po. E Switch u LRP-422 CST ü -20~70 degrees C operating temperature ü IP 30 metal case ü Redundant Power input ü IPv 4/IPv 6 Management ü 802. 1 Q VLAN / Spanning Tree ü Loop protection ü IGMP/MLD Snooping 2 x 100/1000 X SFP 2 x 10/1000 T RJ 45 4 x LRP BNC With 56 V DC output 13

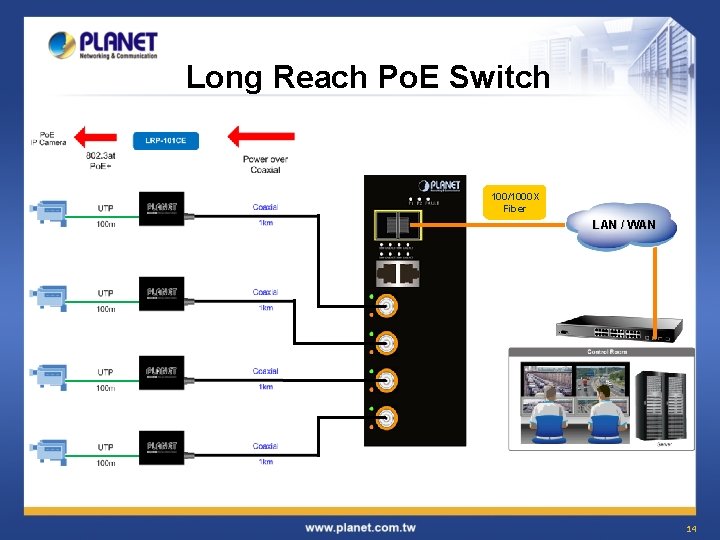

Long Reach Po. E Switch 100/1000 X Fiber LAN / WAN 14

Long Reach Po. E Performance u Performance Table è 1 km Coaxial Cable Throughput Report Model Fixed 64 bytes performance Fixed 1518 bytes performance Random packet size performance (Download / Upload) LRP-101 CH LRP-101 CE 63 Mbps / 62 Mbps 49 Mbps / 46 Mbps 48 Mbps / 46 Mbps VC-203 PT VC-203 PR 58 Mbps / 52 Mbps 51 Mbps / 43 Mbps è 1 km Coaxial Po. E Budget Report Model Power Usage of DUT in the idle time Power Budget of DUT (PR)’s Po. E output 200 m 400 m 800 m 1000 m LRP-101 CH LRP-101 CE 4. 48 watts 25 watts 18 watts 11 watts 8. 89 watts VC-203 PT VC-203 PR 10. 32 watts 20 watts 15 watts 8 watts 5 watts 15

16
