Logic Works 의 화면구성 Drawing window - 회로 구성의 Schematic영역 Simulation Window- 회로의 Simulation결과

Logic Works 의 화면구성 Drawing window - 회로 구성의 Schematic영역 Simulation Window- 회로의 Simulation결과 출력 영역 Part Window- 사용할 Part를 선택 하는 영역 Drawing Tools- 회로를 그리는 도 구들로 구성된 Tool bar. Simulation Tools- Simulation 작 업을 수행하는 Tool bar.

Simulation Tool bar의 주요 기 능 • ① Show/Hide Simulation: Simulation window를 표시/숨김 •

Simulation Tool bar의 주요 기 능 • ① Show/Hide Simulation: Simulation window를 표시/숨김 • • • ② Add signal to timing : Simulation Window에 다른 Signal 추가 ③ Trigger(특정 Signal 위주로 Simulation. . . ) ④ Reset Simulator(Simulation Window를 Clear. . . ) ⑤ Zoom in Simulation window ⑥ Zoom out Simulation window ⑦ Normal Size ⑧ Single Step Simulator ⑨ Stop Simulator ⑩ Simulator Speed ⑪ Run Simulator

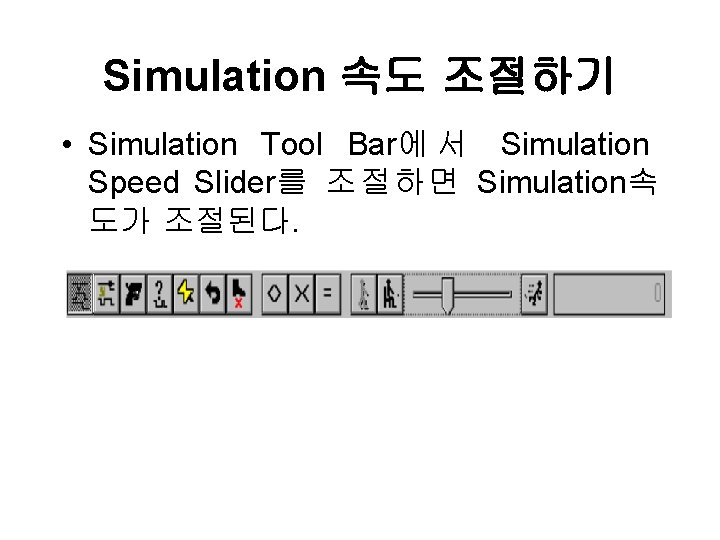

Simulation 속도 조절하기 • Simulation Tool Bar에 서 Simulation Speed Slider를 조절하면 Simulation속 도가

Simulation 속도 조절하기 • Simulation Tool Bar에 서 Simulation Speed Slider를 조절하면 Simulation속 도가 조절된다.

Simulation 중단하기 • Simulation Tool Bar에서 Stop Simulator 버튼을 클릭하면 Simulation이 중단된 다.

Simulation 중단하기 • Simulation Tool Bar에서 Stop Simulator 버튼을 클릭하면 Simulation이 중단된 다.

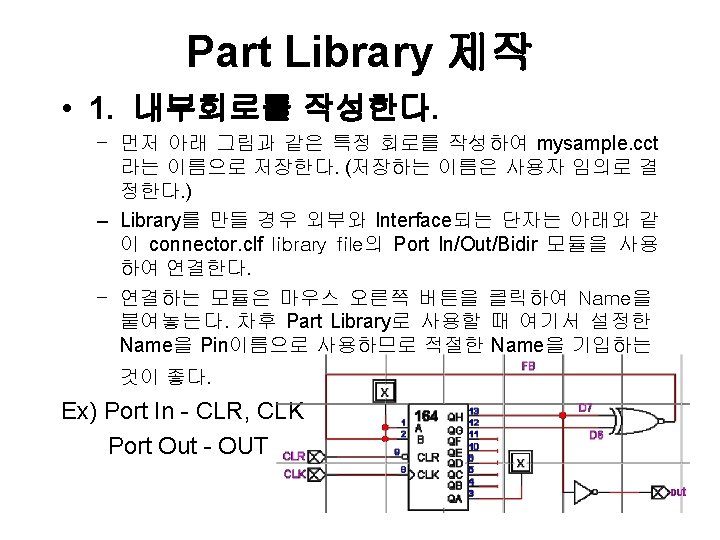

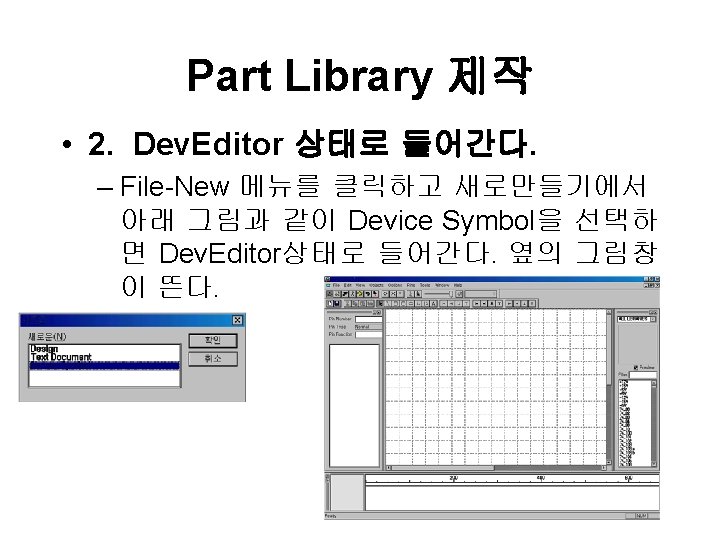

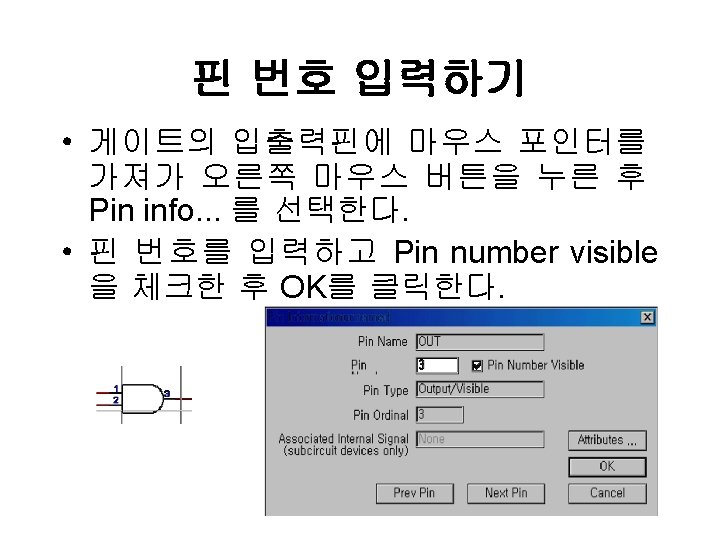

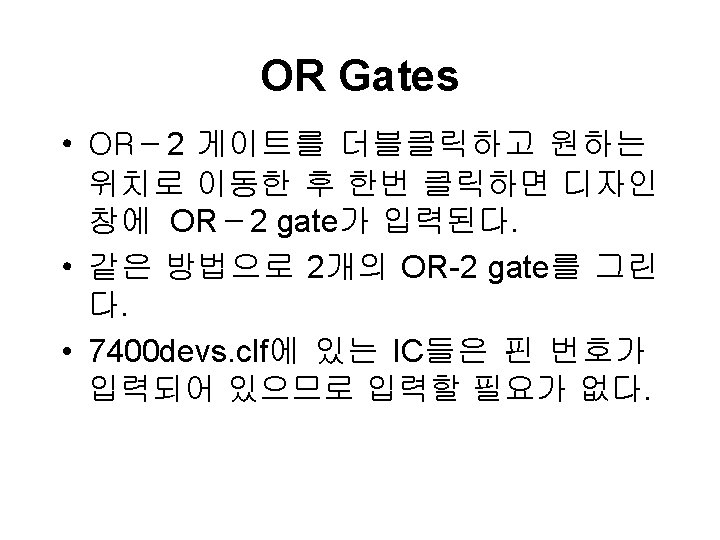

Part Library 제작 • 3. 내부회로를 삽입한다. – Options 메뉴의 Subcircuits/Part Type. . .

Part Library 제작 • 3. 내부회로를 삽입한다. – Options 메뉴의 Subcircuits/Part Type. . . 을 선 택하여 'Create a sub-circuit symbol and select an open circuit to attach'항목을 선택한다. – 삽입하고자 하는 회로(mysample. cct)를 옆의 그림과 같이 선택하고, Part Type을 완료한다.
