Logic Programming Two possible work modes 1 At

Logic Programming Two possible work modes: 1. At the lab: Use SICstus Prolog. To load a prolog file (*. pl or *. pro extension) to the interpreter, use: ? - ['myfile. pl']. 2. Install SWIProlog (See “Useful links” in the course web page). You can work with the editor provided with SWIProlog: • Use “File->edit” to open the editor. • Use “File->Reload modified files” to load the changes to the interpreter. • Use “File->Navigator” to view files and procedure definitions. 1

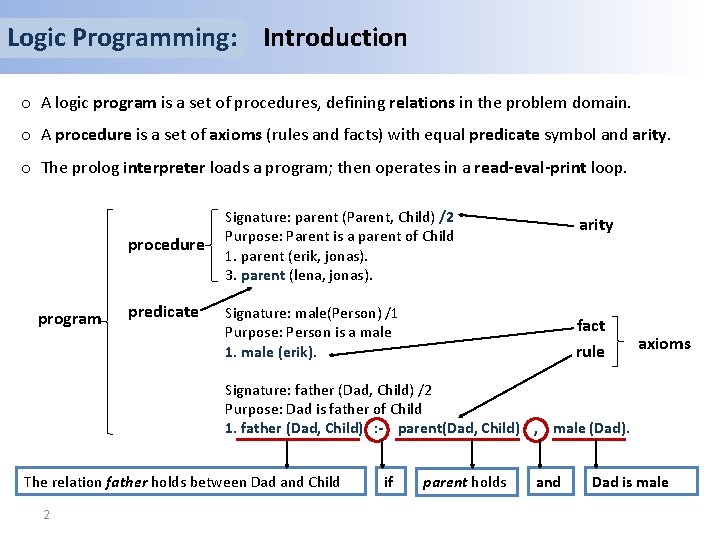

Logic Programming: Introduction o A logic program is a set of procedures, defining relations in the problem domain. o A procedure is a set of axioms (rules and facts) with equal predicate symbol and arity. o The prolog interpreter loads a program; then operates in a read-eval-print loop. procedure program predicate Signature: parent (Parent, Child) /2 Purpose: Parent is a parent of Child 1. parent (erik, jonas). 3. parent (lena, jonas). arity Signature: male(Person) /1 Purpose: Person is a male 1. male (erik). fact rule axioms Signature: father (Dad, Child) /2 Purpose: Dad is father of Child 1. father (Dad, Child) : - parent(Dad, Child) , male (Dad). The relation father holds between Dad and Child 2 if parent holds and Dad is male

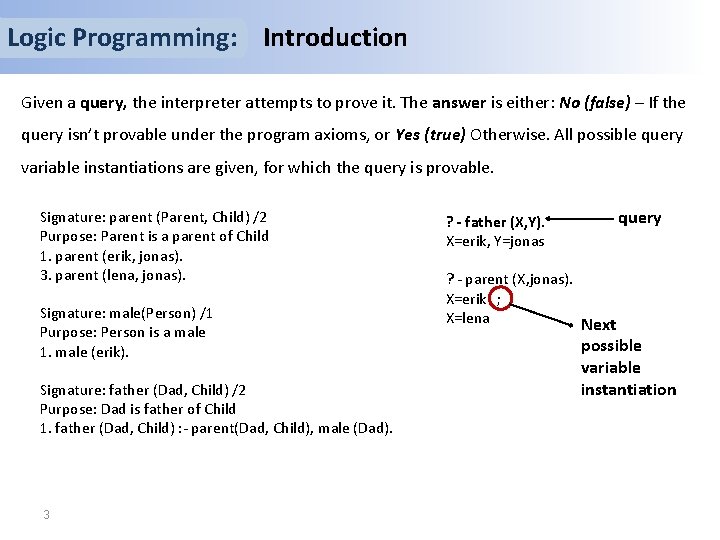

Logic Programming: Introduction Given a query, the interpreter attempts to prove it. The answer is either: No (false) – If the query isn’t provable under the program axioms, or Yes (true) Otherwise. All possible query variable instantiations are given, for which the query is provable. Signature: parent (Parent, Child) /2 Purpose: Parent is a parent of Child 1. parent (erik, jonas). 3. parent (lena, jonas). Signature: male(Person) /1 Purpose: Person is a male 1. male (erik). Signature: father (Dad, Child) /2 Purpose: Dad is father of Child 1. father (Dad, Child) : - parent(Dad, Child), male (Dad). 3 query ? - father (X, Y). X=erik, Y=jonas ? - parent (X, jonas). X=erik ; X=lena Next possible variable instantiation

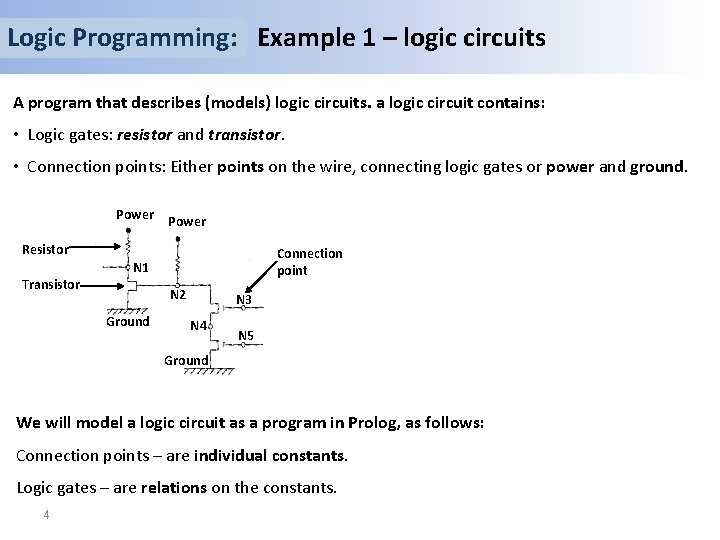

Logic Programming: Example 1 – logic circuits A program that describes (models) logic circuits. a logic circuit contains: • Logic gates: resistor and transistor. • Connection points: Either points on the wire, connecting logic gates or power and ground. Power Resistor Connection point N 1 Transistor N 2 Ground N 3 N 4 N 5 Ground We will model a logic circuit as a program in Prolog, as follows: Connection points – are individual constants. Logic gates – are relations on the constants. 4

Logic Programming: Example 1 – logic circuits Power Resistor procedure Power Resistor Connection point N 1 Transistor N 2 Ground N 3 N 4 Ground 5 N 5 % Signature: resistor(End 1, End 2)/2 % Purpose: A resistor component connects two ends 1 resistor(power, n 1). 2 resistor(power, n 2). 3 resistor(n 1, power). 4 resistor(n 2, power).

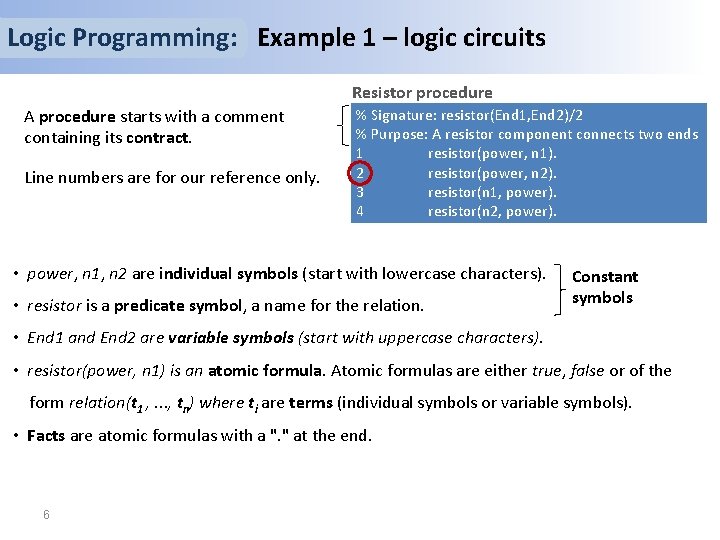

Logic Programming: Example 1 – logic circuits Resistor procedure A procedure starts with a comment containing its contract. Line numbers are for our reference only. % Signature: resistor(End 1, End 2)/2 % Purpose: A resistor component connects two ends 1 resistor(power, n 1). 2 resistor(power, n 2). 3 resistor(n 1, power). 4 resistor(n 2, power). • power, n 1, n 2 are individual symbols (start with lowercase characters). • resistor is a predicate symbol, a name for the relation. Constant symbols • End 1 and End 2 are variable symbols (start with uppercase characters). • resistor(power, n 1) is an atomic formula. Atomic formulas are either true, false or of the form relation(t 1 , . . . , tn) where ti are terms (individual symbols or variable symbols). • Facts are atomic formulas with a ". " at the end. 6

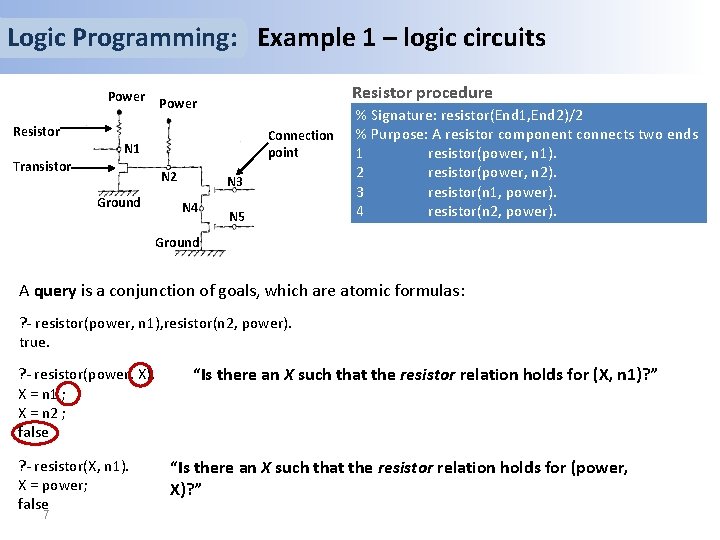

Logic Programming: Example 1 – logic circuits Power Resistor procedure Power Resistor Connection point N 1 Transistor N 2 Ground N 3 N 4 N 5 % Signature: resistor(End 1, End 2)/2 % Purpose: A resistor component connects two ends 1 resistor(power, n 1). 2 resistor(power, n 2). 3 resistor(n 1, power). 4 resistor(n 2, power). Ground A query is a conjunction of goals, which are atomic formulas: ? - resistor(power, n 1), resistor(n 2, power). true. ? - resistor(power, X). X = n 1 ; X = n 2 ; false ? - resistor(X, n 1). X = power; false 7 “Is there an X such that the resistor relation holds for (X, n 1)? ” “Is there an X such that the resistor relation holds for (power, X)? ”

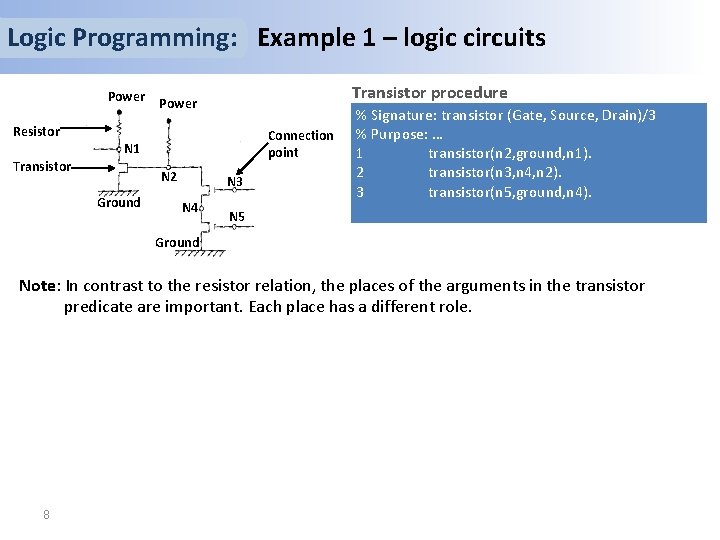

Logic Programming: Example 1 – logic circuits Power Transistor procedure Power Resistor Connection point N 1 Transistor N 2 Ground N 3 N 4 % Signature: transistor (Gate, Source, Drain)/3 % Purpose: … 1 transistor(n 2, ground, n 1). 2 transistor(n 3, n 4, n 2). 3 transistor(n 5, ground, n 4). N 5 Ground Note: In contrast to the resistor relation, the places of the arguments in the transistor predicate are important. Each place has a different role. 8

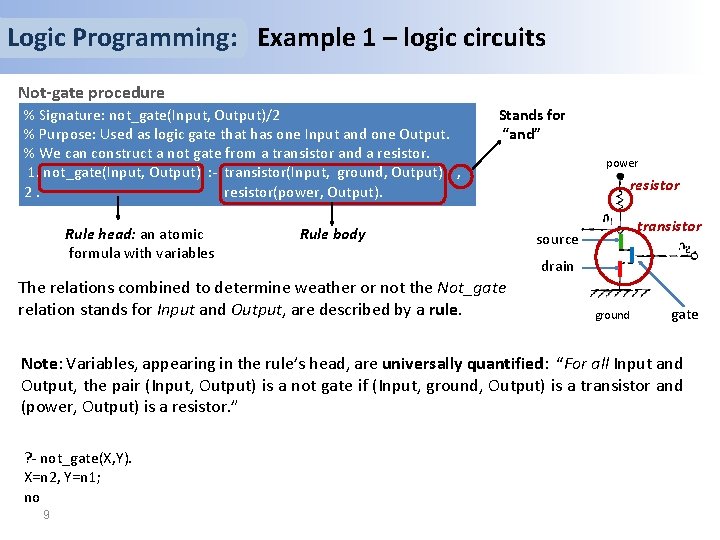

Logic Programming: Example 1 – logic circuits Not-gate procedure % Signature: not_gate(Input, Output)/2 % Purpose: Used as logic gate that has one Input and one Output. % We can construct a not gate from a transistor and a resistor. 1. not_gate(Input, Output) : - transistor(Input, ground, Output) , 2. resistor(power, Output). Rule head: an atomic formula with variables Stands for “and” Rule body The relations combined to determine weather or not the Not_gate relation stands for Input and Output, are described by a rule. power resistor transistor source drain ground gate Note: Variables, appearing in the rule’s head, are universally quantified: “For all Input and Output, the pair (Input, Output) is a not gate if (Input, ground, Output) is a transistor and (power, Output) is a resistor. ” ? - not_gate(X, Y). X=n 2, Y=n 1; no 9

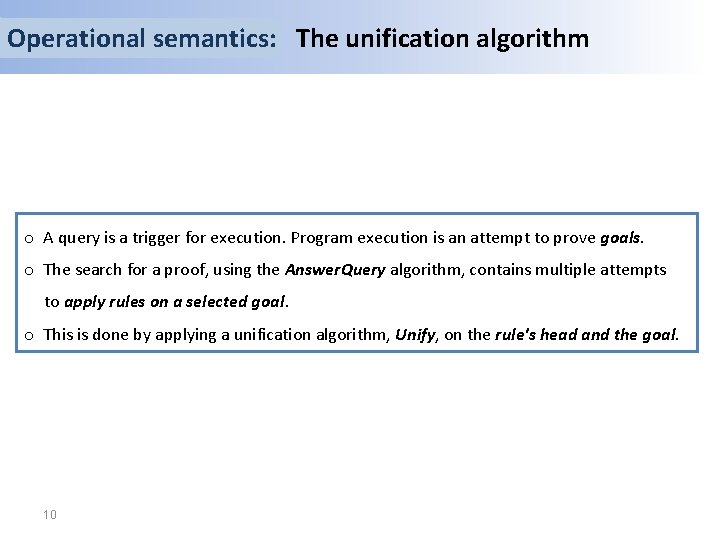

Operational semantics: The unification algorithm o A query is a trigger for execution. Program execution is an attempt to prove goals. o The search for a proof, using the Answer. Query algorithm, contains multiple attempts to apply rules on a selected goal. o This is done by applying a unification algorithm, Unify, on the rule's head and the goal. 10

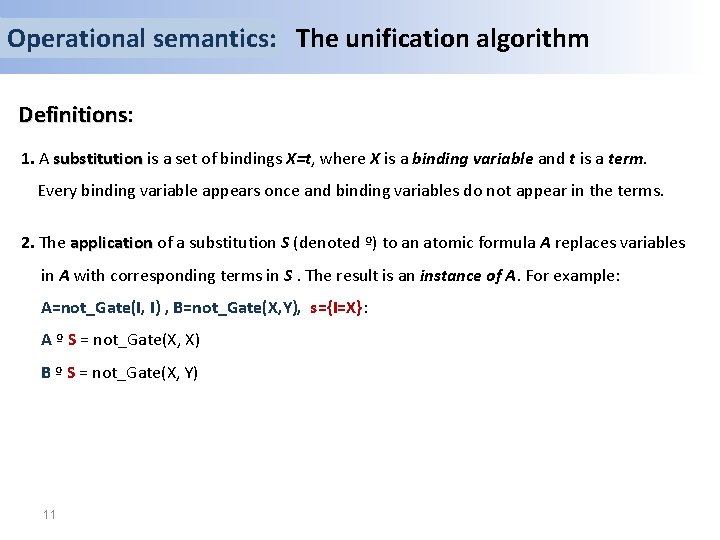

Operational semantics: The unification algorithm Definitions: Definitions 1. A substitution is a set of bindings X=t, where X is a binding variable and t is a term. Every binding variable appears once and binding variables do not appear in the terms. 2. The application of a substitution S (denoted º) to an atomic formula A replaces variables in A with corresponding terms in S. The result is an instance of A. For example: A=not_Gate(I, I) , B=not_Gate(X, Y), s={I=X}: A º S = not_Gate(X, X) B º S = not_Gate(X, Y) 11

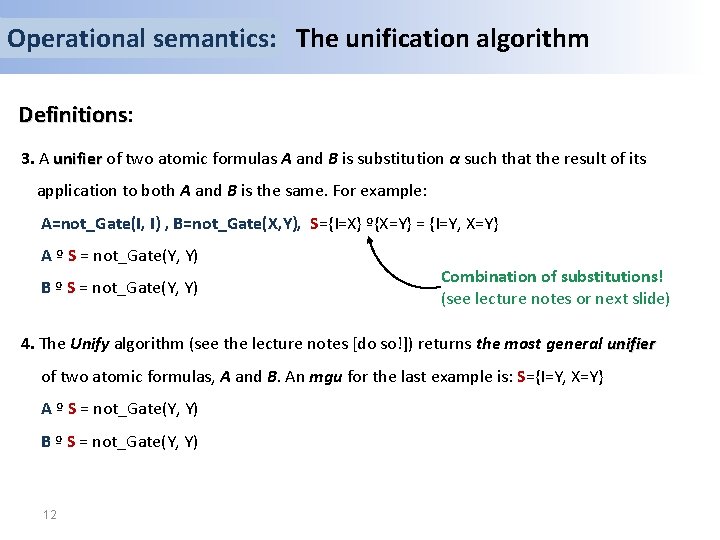

Operational semantics: The unification algorithm Definitions: Definitions 3. A unifier of two atomic formulas A and B is substitution α such that the result of its application to both A and B is the same. For example: A=not_Gate(I, I) , B=not_Gate(X, Y), S={I=X} º{X=Y} = {I=Y, X=Y} A º S = not_Gate(Y, Y) B º S = not_Gate(Y, Y) Combination of substitutions! (see lecture notes or next slide) 4. The Unify algorithm (see the lecture notes [do so!]) returns the most general unifier of two atomic formulas, A and B. An mgu for the last example is: S={I=Y, X=Y} A º S = not_Gate(Y, Y) B º S = not_Gate(Y, Y) 12

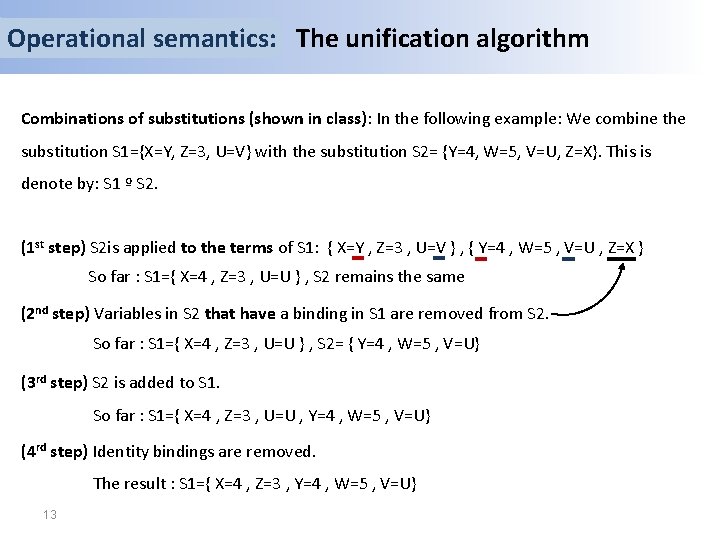

Operational semantics: The unification algorithm Combinations of substitutions (shown in class): In the following example: We combine the substitution S 1={X=Y, Z=3, U=V} with the substitution S 2= {Y=4, W=5, V=U, Z=X}. This is denote by: S 1 º S 2. (1 st step) S 2 is applied to the terms of S 1: { X=Y , Z=3 , U=V } , { Y=4 , W=5 , V=U , Z=X } So far : S 1={ X=4 , Z=3 , U=U } , S 2 remains the same (2 nd step) Variables in S 2 that have a binding in S 1 are removed from S 2. So far : S 1={ X=4 , Z=3 , U=U } , S 2= { Y=4 , W=5 , V=U} (3 rd step) S 2 is added to S 1. So far : S 1={ X=4 , Z=3 , U=U , Y=4 , W=5 , V=U} (4 rd step) Identity bindings are removed. The result : S 1={ X=4 , Z=3 , Y=4 , W=5 , V=U} 13

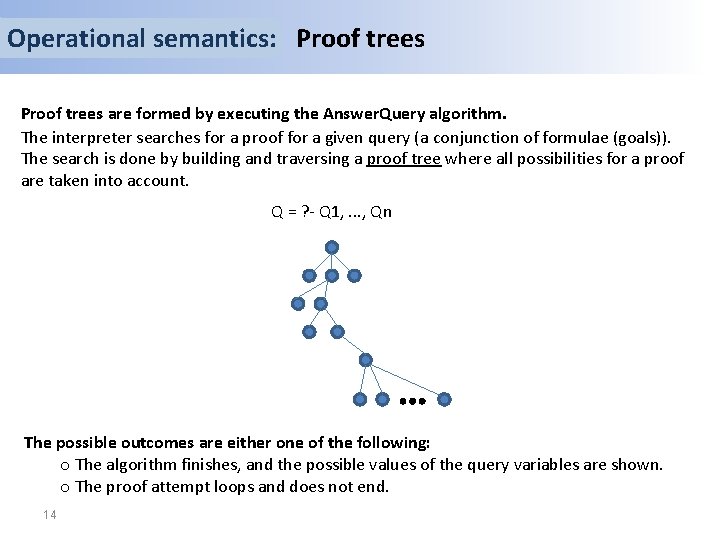

Operational semantics: Proof trees are formed by executing the Answer. Query algorithm. The interpreter searches for a proof for a given query (a conjunction of formulae (goals)). The search is done by building and traversing a proof tree where all possibilities for a proof are taken into account. Q = ? - Q 1, . . . , Qn The possible outcomes are either one of the following: o The algorithm finishes, and the possible values of the query variables are shown. o The proof attempt loops and does not end. 14

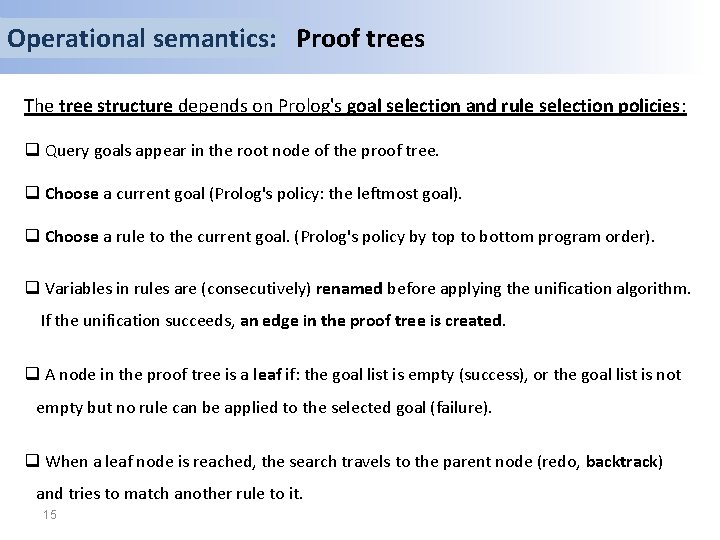

Operational semantics: Proof trees The tree structure depends on Prolog's goal selection and rule selection policies: q Query goals appear in the root node of the proof tree. q Choose a current goal (Prolog's policy: the leftmost goal). q Choose a rule to the current goal. (Prolog's policy by top to bottom program order). q Variables in rules are (consecutively) renamed before applying the unification algorithm. If the unification succeeds, an edge in the proof tree is created. q A node in the proof tree is a leaf if: the goal list is empty (success), or the goal list is not empty but no rule can be applied to the selected goal (failure). q When a leaf node is reached, the search travels to the parent node (redo, backtrack) and tries to match another rule to it. 15

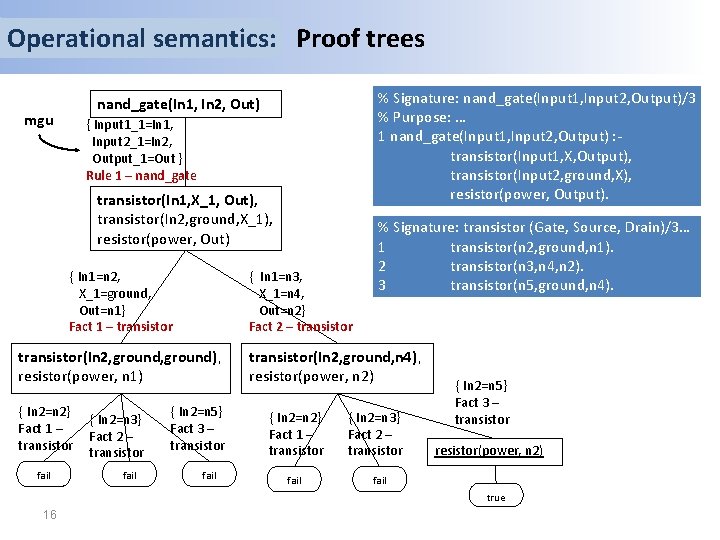

Operational semantics: Proof trees % Signature: nand_gate(Input 1, Input 2, Output)/3 % Purpose: … 1 nand_gate(Input 1, Input 2, Output) : transistor(Input 1, X, Output), transistor(Input 2, ground, X), resistor(power, Output). nand_gate(In 1, In 2, Out) mgu { Input 1_1=In 1, Input 2_1=In 2, Output_1=Out } Rule 1 – nand_gate transistor(In 1, X_1, Out), transistor(In 2, ground, X_1), resistor(power, Out) { In 1=n 2, X_1=ground, Out=n 1} Fact 1 – transistor { In 1=n 3, X_1=n 4, Out=n 2} Fact 2 – transistor(In 2, ground), resistor(power, n 1) { In 2=n 2} Fact 1 – transistor fail { In 2=n 3} Fact 2 – transistor fail { In 2=n 5} Fact 3 – transistor fail % Signature: transistor (Gate, Source, Drain)/3… 1 transistor(n 2, ground, n 1). 2 transistor(n 3, n 4, n 2). 3 transistor(n 5, ground, n 4). transistor(In 2, ground, n 4), resistor(power, n 2) { In 2=n 2} Fact 1 – transistor fail { In 2=n 3} Fact 2 – transistor { In 2=n 5} Fact 3 – transistor resistor(power, n 2) fail true 16

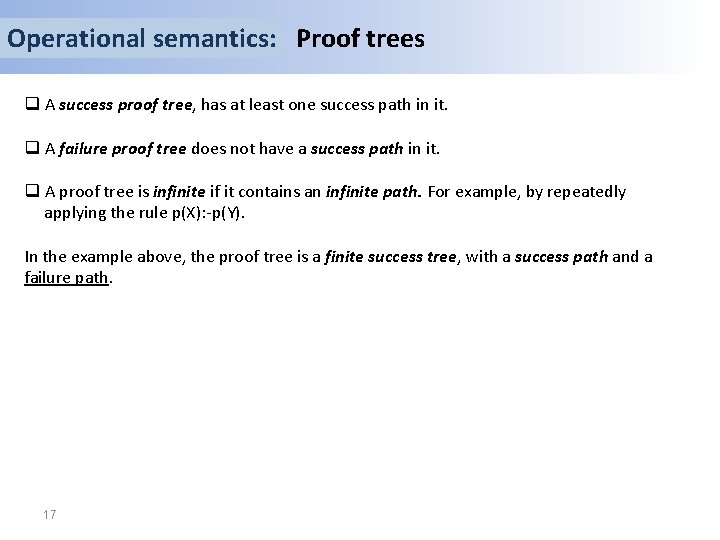

Operational semantics: Proof trees q A success proof tree, has at least one success path in it. q A failure proof tree does not have a success path in it. q A proof tree is infinite if it contains an infinite path. For example, by repeatedly applying the rule p(X): -p(Y). In the example above, the proof tree is a finite success tree, with a success path and a failure path. 17

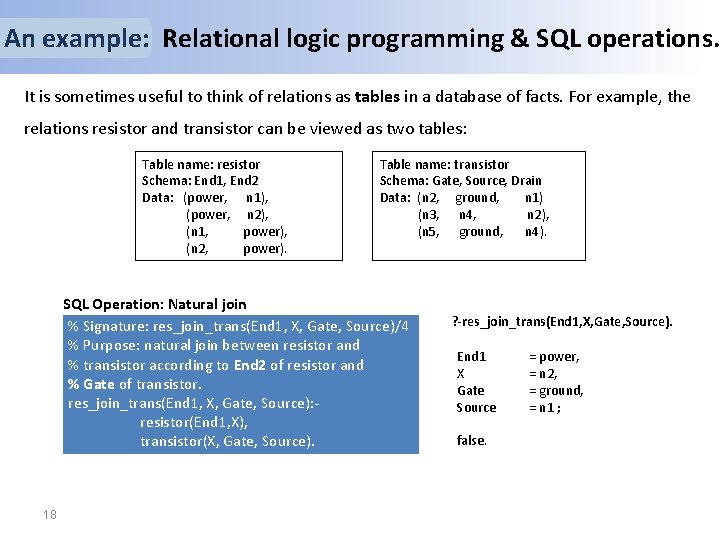

An example: Relational logic programming & SQL operations. It is sometimes useful to think of relations as tables in a database of facts. For example, the relations resistor and transistor can be viewed as two tables: Table name: resistor Schema: End 1, End 2 Data: (power, n 1), (power, n 2), (n 1, power), (n 2, power). Table name: transistor Schema: Gate, Source, Drain Data: (n 2, ground, n 1) (n 3, n 4, n 2), (n 5, ground, n 4). SQL Operation: Natural join % Signature: res_join_trans(End 1, X, Gate, Source)/4 % Purpose: natural join between resistor and % transistor according to End 2 of resistor and % Gate of transistor. res_join_trans(End 1, X, Gate, Source): resistor(End 1, X), transistor(X, Gate, Source). 18 ? -res_join_trans(End 1, X, Gate, Source). End 1 X Gate Source false. = power, = n 2, = ground, = n 1 ;

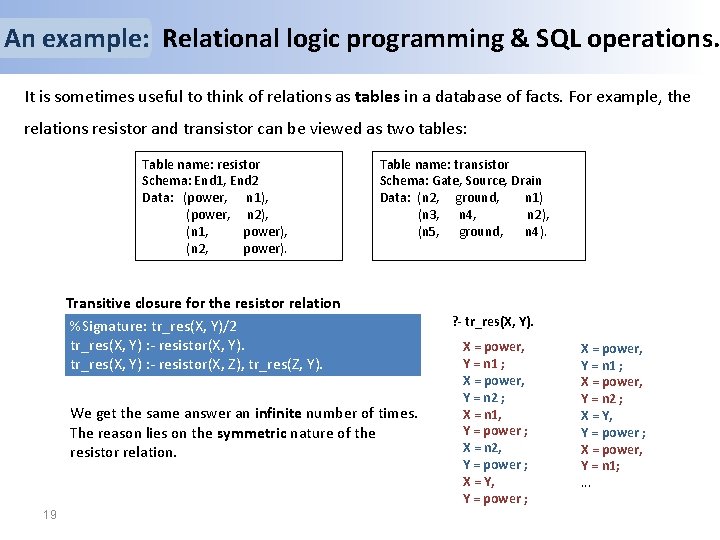

An example: Relational logic programming & SQL operations. It is sometimes useful to think of relations as tables in a database of facts. For example, the relations resistor and transistor can be viewed as two tables: Table name: resistor Schema: End 1, End 2 Data: (power, n 1), (power, n 2), (n 1, power), (n 2, power). Table name: transistor Schema: Gate, Source, Drain Data: (n 2, ground, n 1) (n 3, n 4, n 2), (n 5, ground, n 4). Transitive closure for the resistor relation %Signature: tr_res(X, Y)/2 tr_res(X, Y) : - resistor(X, Y). tr_res(X, Y) : - resistor(X, Z), tr_res(Z, Y). We get the same answer an infinite number of times. The reason lies on the symmetric nature of the resistor relation. 19 ? - tr_res(X, Y). X = power, Y = n 1 ; X = power, Y = n 2 ; X = n 1, Y = power ; X = n 2, Y = power ; X = Y, Y = power ; X = power, Y = n 1 ; X = power, Y = n 2 ; X = Y, Y = power ; X = power, Y = n 1; . . .

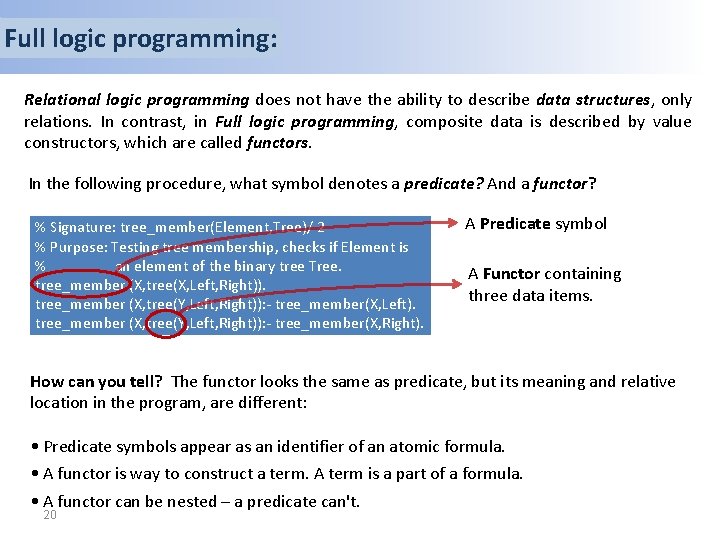

Full logic programming: Relational logic programming does not have the ability to describe data structures, only relations. In contrast, in Full logic programming, composite data is described by value constructors, which are called functors. In the following procedure, what symbol denotes a predicate? And a functor? % Signature: tree_member(Element, Tree)/ 2 % Purpose: Testing tree membership, checks if Element is % an element of the binary tree Tree. tree_member (X, tree(X, Left, Right)). tree_member (X, tree(Y, Left, Right)): - tree_member(X, Left). tree_member (X, tree(Y, Left, Right)): - tree_member(X, Right). A Predicate symbol A Functor containing three data items. How can you tell? The functor looks the same as predicate, but its meaning and relative location in the program, are different: • Predicate symbols appear as an identifier of an atomic formula. • A functor is way to construct a term. A term is a part of a formula. • A functor can be nested – a predicate can't. 20

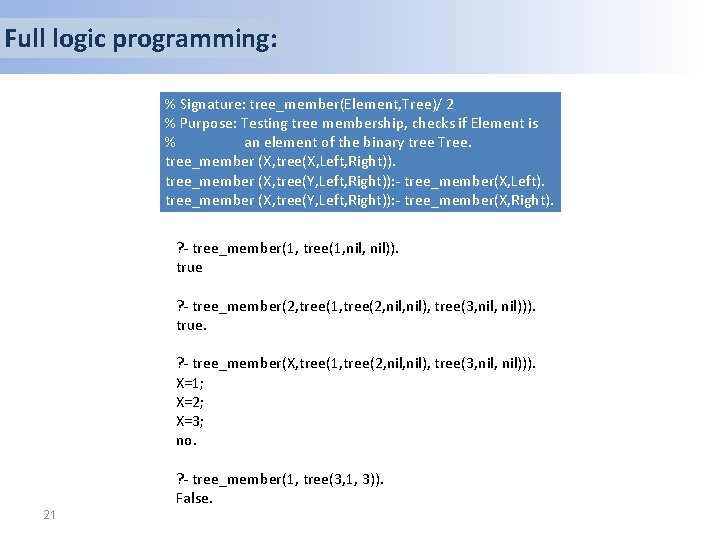

Full logic programming: % Signature: tree_member(Element, Tree)/ 2 % Purpose: Testing tree membership, checks if Element is % an element of the binary tree Tree. tree_member (X, tree(X, Left, Right)). tree_member (X, tree(Y, Left, Right)): - tree_member(X, Left). tree_member (X, tree(Y, Left, Right)): - tree_member(X, Right). ? - tree_member(1, tree(1, nil)). true ? - tree_member(2, tree(1, tree(2, nil), tree(3, nil))). true. ? - tree_member(X, tree(1, tree(2, nil), tree(3, nil))). X=1; X=2; X=3; no. ? - tree_member(1, tree(3, 1, 3)). False. 21

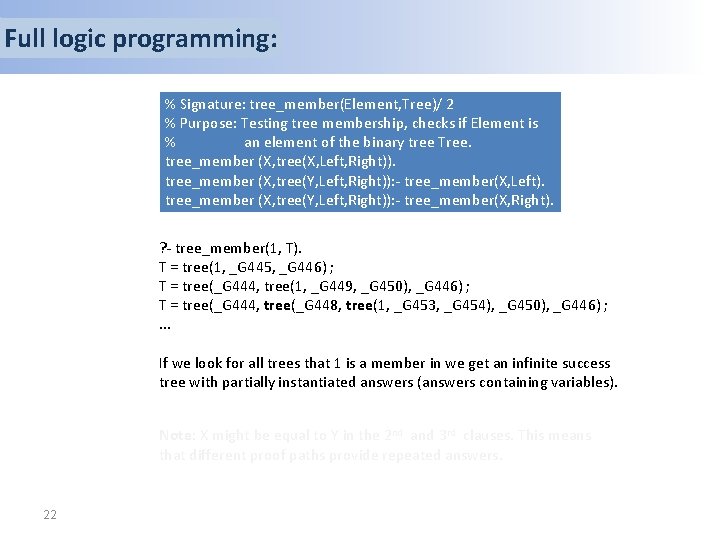

Full logic programming: % Signature: tree_member(Element, Tree)/ 2 % Purpose: Testing tree membership, checks if Element is % an element of the binary tree Tree. tree_member (X, tree(X, Left, Right)). tree_member (X, tree(Y, Left, Right)): - tree_member(X, Left). tree_member (X, tree(Y, Left, Right)): - tree_member(X, Right). ? - tree_member(1, T). T = tree(1, _G 445, _G 446) ; T = tree(_G 444, tree(1, _G 449, _G 450), _G 446) ; T = tree(_G 444, tree(_G 448, tree(1, _G 453, _G 454), _G 450), _G 446) ; . . . If we look for all trees that 1 is a member in we get an infinite success tree with partially instantiated answers (answers containing variables). Note: X might be equal to Y in the 2 nd and 3 rd clauses. This means that different proof paths provide repeated answers. 22

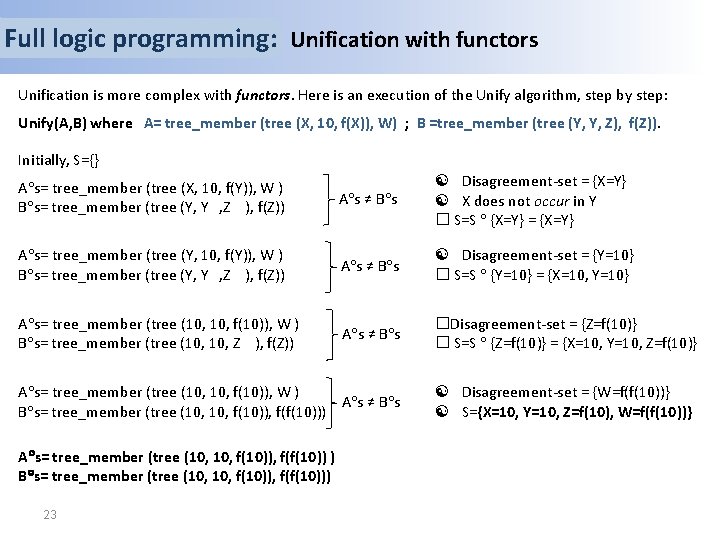

Full logic programming: Unification with functors Unification is more complex with functors. Here is an execution of the Unify algorithm, step by step: Unify(A, B) where A= tree_member (tree (X, 10, f(X)), W) ; B =tree_member (tree (Y, Y, Z), f(Z)). Initially, S={} A s= tree_member (tree (X, 10, f(Y)), W ) B s= tree_member (tree (Y, Y , Z ), f(Z)) A s ≠ B s [ Disagreement-set = {X=Y} [ X does not occur in Y � S=S {X=Y} = {X=Y} A s= tree_member (tree (Y, 10, f(Y)), W ) B s= tree_member (tree (Y, Y , Z ), f(Z)) A s ≠ B s [ Disagreement-set = {Y=10} � S=S {Y=10} = {X=10, Y=10} A s= tree_member (tree (10, f(10)), W ) B s= tree_member (tree (10, Z ), f(Z)) A s ≠ B s �Disagreement-set = {Z=f(10)} � S=S {Z=f(10)} = {X=10, Y=10, Z=f(10)} A s= tree_member (tree (10, f(10)), W ) A s ≠ B s B s= tree_member (tree (10, f(10)), f(f(10))) A s= tree_member (tree (10, f(10)), f(f(10)) ) B s= tree_member (tree (10, f(10)), f(f(10))) 23 [ Disagreement-set = {W=f(f(10))} [ S={X=10, Y=10, Z=f(10), W=f(f(10))}

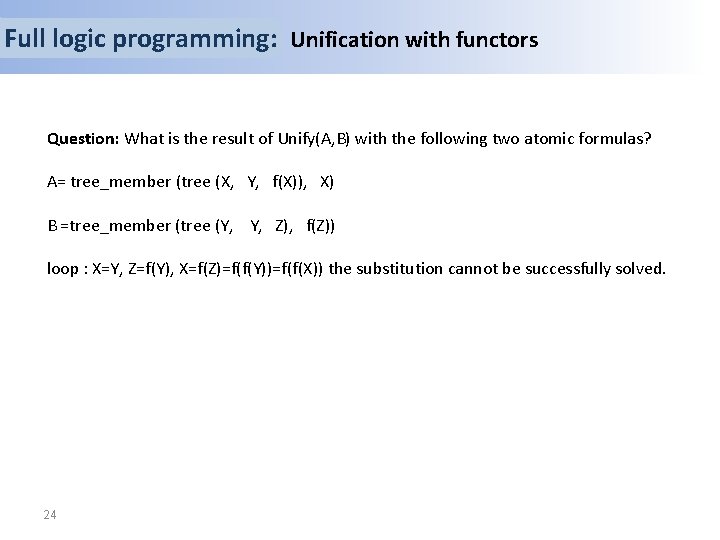

Full logic programming: Unification with functors Question: What is the result of Unify(A, B) with the following two atomic formulas? A= tree_member (tree (X, Y, f(X)), X) B =tree_member (tree (Y, Y, Z), f(Z)) loop : X=Y, Z=f(Y), X=f(Z)=f(f(Y))=f(f(X)) the substitution cannot be successfully solved. 24
