Logic Families Logic Family A collection of different
- Slides: 45
Logic Families Logic Family : A collection of different IC’s that have similar circuit characteristics The circuit design of the basic gate of each logic family is the same The most important parameters for evaluating and comparing logic families include : Logic Levels Power Dissipation Propagation delay Noise margin Fan-out ( loading ) 1
Example Logic Families General comparison or three commonly available logic families. the most important to understand 2
Implementing Logic Circuits There are several varieties of transistors – the building blocks of logic gates – the most important are: BJT (bipolar junction transistors) one of the first to be invented FET (field effect transistors) especially Metal-Oxide Semiconductor types (MOSFET’s) MOSFET’s are of two types: NMOS and PMOS 3
Transistor Size Scaling Performance improves as size is decreased: shorter switching time, lower power consumption. 2 orders of magnitude reduction in transistor size in 30 years. 4
Moore’s Law In 1965, Gordon Moore predicted that the number of transistors that can be integrated on a die would double every 18 to 14 months i. e. , grow exponentially with time Considered a visionary – million transistor/chip barrier was crossed in the 1980’s 2300 transistors, 1 MHz clock (Intel 4004/4040) - 1971 42 Million transistors, 2 GHz clock (Intel P 4) - 2001 140 Million transistors, (HP PA-8500) 5
Moore’s Law and Intel From Intel’s 4040 (2300 transistors) to Pentium II (7, 500, 000 transistors) and beyond 6
TTL and CMOS Connecting BJT’s together gives rise to a family of logic gates known as TTL Connecting NMOS and PMOS transistors together gives rise to the CMOS family of logic gates BJT transistor types MOSFET (NMOS, PMOS) TTL logic gate families CMOS 7
Electrical Parameters And Interpretation Of Data Sheets Voltages and Currents Noise Margin Power Dissipation Propagation Delay Speed-Power Product Fan-In, Fan-Out Comparison of Logic Families Interpretation of Data Sheets 8
Electrical Characteristics TTL faster (some versions) strong drive capability rugged CMOS lower power consumption simpler to make greater packing density better noise immunity • Complex IC’s contain many millions of transistors • If constructed entirely from TTL type gates would melt • A combination of technologies (families) may be used • CMOS has become most popular and has had greatest development 9
Voltage & Current For a High-state gate driving a second gate, we define: VOH (min), high-level output voltage, the minimum voltage level that a logic gate will produce as a logic 1 output. VIH (min), high-level input voltage, the minimum voltage level that a logic gate will recognize as a logic 1 input. Voltage below this level will not be accepted as high. IOH, high-level output current, current that flows from an output in the logic 1 state under specified load conditions. IIH, high-level input current, current that flows into an input when a logic 1 voltage is applied to that input. Test setup for measuring values 10
Voltage & Current For a Low-state gate driving a second gate, we define: VOL (max), low-level output voltage, the maximum voltage level that a logic gate will produce as a logic 0 output. VIL (max), low-level input voltage, the maximum voltage level that a logic gate will recognize as a logic 0 input. Voltage above this value will not be accepted as low. IOL , low-level output current, current that flows from an output in the logic 0 state under specified load conditions. IIL , low-level input current, current that flows into an input when a logic 0 voltage is applied to that input. I Inputs are connected to Vcc instead of Ground OL I IL V OL V IL 11
Electrical Characteristics logic 1 indeterminate input voltage logic 0 Important characteristics are: VOHmin value of output recognized as a ‘ 1’ VIHmin value input recognized as a ‘ 1’ VILmax value of input recognized as a ‘ 0’ VOLmax value of output recognized as a ‘ 0’ Values outside the given range are not allowed. 12
Logic Level & Voltage Range Typical acceptable voltage ranges for positive logic 1 and logic 0 are shown below A logic gate with an input at a voltage level within the ‘indeterminate’ range will produce an unpredictable output level. 5. 0 V Logic 1 3. 5 V 2. 5 V Indeterminate 0. 8 V 0 V 1. 5 V Logic 0 0 V TTL CMOS 13
Noise Margin If noise in the circuit is high enough it can push a logic 0 up or drop a logic 1 down into the indeterminate or “illegal” region The magnitude of the voltage required to reach this level is the noise margin Noise margin for logic high is: NMH = VOHmin – VIHmin logic 1 VOHmin VIHmin indeterminate input voltage logic 0 VILmax VOLmax 14
Noise Margin Difference between the worst case output voltage of one stage and worst case input voltage of next stage Greater the difference, the more unwanted signal that can be added without causing incorrect gate operation NMhigh = VOHmin - VIHmin NMlow = VILmax - VOLmax 15
Worked Example Given the following parameters, calculate the noise margin of 74 LS series. Solution: High Level Noise Margin, VNH = VOH (min) - VIH (min)=2. 7 V-2. 0 V=0. 7 V Low Level Noise Margin, VNL = VIL (max) - VOL (max)=0. 8 V-0. 4 V=0. 4 V 16
Noise Margin & Noise Immunity Noise immunity of a logic circuit refers to the circuit’s ability to tolerate noise voltages on its inputs. A quantitative measure of noise immunity is called noise margin High Level Noise Margin, VNH = VOH (min) - VIH (min) Low Level Noise Margin, VNL = VIL (max) - VOL (max) Logic 1 VOH (min) Logic 1 VNH VIH (min) VIL (max) VNL VOL (max) Logic 0 Output Voltage Ranges Logic 0 Input Voltage Ranges 17
Further Important Characteristics The propagation delay (tpd) which is the time taken for a change at the input to appear at the output The fan-out, which is the maximum number of inputs that can be driven successfully to either logic level before the output becomes invalid 18

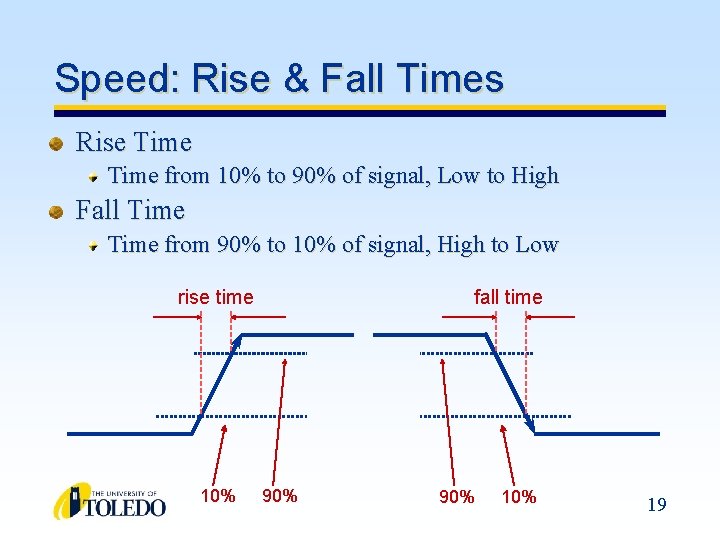

Speed: Rise & Fall Times Rise Time from 10% to 90% of signal, Low to High Fall Time from 90% to 10% of signal, High to Low rise time 10% fall time 90% 10% 19

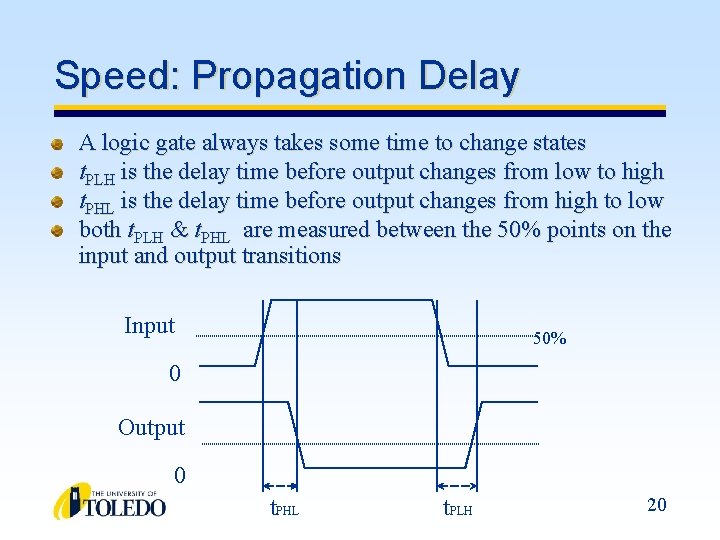

Speed: Propagation Delay A logic gate always takes some time to change states t. PLH is the delay time before output changes from low to high t. PHL is the delay time before output changes from high to low both t. PLH & t. PHL are measured between the 50% points on the input and output transitions Input 50% 0 Output 0 t. PHL t. PLH 20
Power Dissipation Static I 2 R losses due to passive components, no input signal Dynamic I 2 R losses due to charging and discharging capacitances through resistances, due to input signal 21
Speed-Power Product Speed (propagation delay) and power consumption are the two most important performance parameters of a digital IC. A simple means for measuring and comparing the overall performance of an IC family is the speedpower product (the smaller, the better). For example, an IC has an average propagation delay of 10 ns an average power dissipation of 5 m. W the speed-power product = (10 ns) x (5 m. W) = 50 pico. Joules (p. J) 22
Logic Family Tradeoffs Looking for the best speed/power product tp and Pd are normally included in the data sheet for each device Older logic families are the worst CMOS is one of the best FPGAs use CMOS 23
Comparison of Logic Families 24
TTL - Example SN 74 LS 00 Recommended operating conditions Vcc supply voltage input voltages 5 V ± 0. 5 V VIH = 2 V VIL = 0. 8 V Electrical Characteristics output voltage (worst case) max input currents propagation delay noise margins Fan-out VOH = 2. 7 V VOL = 0. 5 V IIH = 20µA IIL = -0. 4 m. A tpd = 15 n. S for a logic 0 = 0. 3 V for a logic 1 = 0. 7 V 20 TTL loads 5 Volt Input Range for 1 Output Range for 1 2. 7 2. 0 Input Range for 0 0. 8 0. 5 0 Volt Output Range for 0 25
Fan-In Number of input signals to a gate Not an electrical property Function of the manufacturing process NAND gate with a Fan-in of 8 26
Fan-Out A measure of the ability of the output of one gate to drive the input(s) of subsequent gates Usually specified as standard loads within a single family e. g. , an input to an inverter in the same family May have to compute based on current drive requirements when mixing families Although mixing families is not usually recommended 27
Current Sourcing and Sinking Current-source : the driving gate produces a outgoing current Low VOH IIH Current-sinking : the driving gate receives an incoming current High VOL IIL 28
Fan-Out An illustration of fan-out and the associated source and sink currents 29
Worked Example How many 74 LS 00 NAND gate inputs can be driven by a 74 LS 00 NAND gate outputs ? Solution: Refer to data sheet of 74 LS 00, the maximum values of IOH = 0. 4 m. A, IOL = 8 m. A, IIH = 20 u. A, and IIL = 0. 4 m. A Hence, fan-out(high) = IOH(max) / IIH (max)=0. 4 m. A/20 u. A=20 fan-out(low) = IOL(max) / IIL(max)=8 m. A/0. 4 m. A=20, the overall fan-out = fan-out(high) or fan-out(low) whichever is lower. Hence, overall fan-out = 20 30
Gate Drive Capability: Fan-Out A logic gate can supply a maximum output current IOH(max), in the high state or IOL(max), in the low state A logic gate requires a maximum input current IIH(max), in the high state or IIL(max), in the low state Ratio of output and input current decide how many logic gates can be driven by a logic gate fan-out(high) = IOH(max) / IIH (max) fan-out(low) = IOL(max) / IIL(max) overall fan-out = fan-out(high) or fan-out(low) whichever is lower A typical figure of fan-out is ten (10) 31
Wired-AND Open collector outputs connected together to a common pullup resistor Any collector can pull the signal line low Logically an AND gate 32
Tri-State Logic Both output transistors of totem-pole output are turned off Usually used to bus multiple signals on the same wire Gates not enabled present high-Z to bus and therefore do not interfere with other gates putting signals on the bus 33
Tri-State Logic Tri-state logic includes a switch at the output In the figure below, the three states are illustrated: a) Logic High output b) Logic Low output c) High impedance (Hi-Z) output 34
Electronic Combinational Logic Within each of these families there is a large variety of different devices We can break these into groups based on the number gates per device Acronym Description No Gates Example SSI Small-scale integration <12 4 NAND gates MSI Medium-scale integration 12 – 100 Adder LSI Large-scale integration 100 – 1000 6800 VLSI Very large-scale integration 1000 – 1 M 68000 ULSI Ultra large scale integration > 1 M 80486/80586 35
SSI Devices Each package contains a code identifying the package N 74 LS 00 Manufacturers Code N = National Semiconductors SN = Signetics Specification Family L LS H Member 00 = Quad 2 input NAND 02 = Quad 2 input Nor 04 = Hex Invertors 20 = Dual 4 Input NAND 36
7400 Series History 1960 s space program drove development of 7400 series Consumed all available devices for internal flight computer $1000 / device (1960 dollars) 10: 1 integration improvement over discrete transistors 1963 Minuteman missile forced 7400 into mass production Drove pricing down to $25 / circuit (1963 dollars) 37
7400 Series Evolution BJT storage time reduction by using a BC Schottky diode has a Vfw=0. 25 V. When BC junction becomes forward biased Schottky diode will bypass base current. C B 38
Characteristics: TTL and MOS Remember: TTL stands for Transistor-Transistor Logic uses BJTs MOS stands for Metal Oxide Semiconductor uses FETs MOS can be classified into three sub-families: PMOS (P-channel) NMOS (N-channel) CMOS (Complementary MOS, most common) 39
TTL Circuit Operation Table explaining the operation of the TTL NAND gate circuit A standard TTL NAND gate circuit 40
Transistor-Transistor Logic Families: 74 L Low power 74 H High speed 74 S Schottky 74 LS Low power Schottky 74 AS Advanced Schottky 74 ALS Advance Low power Schottky 41
MOS Circuit Operation A CMOS inverter circuit Table explaining the operation of the CMOS inverter circuit 42
CMOS Logic Families 40 xx/45 xx 74 C 74 HC 74 ACT Metal-gate CMOS TTL-compatible CMOS High speed CMOS Advanced CMOS -TTL compatible 43
CMOS Family Evolution CMOS Logic Trend: Reduction of dynamic losses (cross-conduction, capacitive charge/discharge cycles) by decreasing supply voltages: 12 V→ 5 V → 3. 3 V → 2. 5 V → 1. 8 V → 1. 5 V … Reduction of IC power dissipation is the key to: lower cost (packaging) higher integration improved reliability 44
Comparison of Logic Families vo vi 45
