Logic Circuits I 010 133 Digital Computer Concept

OR, AND, and NOT Operations 010. 133 Digital Computer Concept and Practice Copyright ©

Boolean Functions If e is a Boolean expression in n variables x 1, x

Number of Different Boolean Functions The number of different Boolean functions with n binary

Functional Completeness A set of Boolean operations is functionally complete if its members can

XOR and XNOR Exclusive OR and exclusive NOT-OR 010. 133 Digital Computer Concept and

NOR and NAND NOT-OR NOT-AND {NOR} and {NAND} are also functionally complete 010. 133

010. 133 Digital Computer Concept and Practice Copyright © 2012 by Jaejin Lee 8

Logic Gates A logic gate is a conceptual or physical device that performs one

Some Elementary Logic Gates 010. 133 Digital Computer Concept and Practice Copyright © 2012

Combining Logic Gates A logic gate with more complicated functionality can be implemented by

Bus Notation A bus is a collection of two or more related signal lines

Complete Set of Logic Gates Functional completeness can also be applied to logic gates

Multi-input Gates Multi-input gates can also be made by combining gates of the same

Multi-bit Logic Gates A multi-bit (n-bit) logic gate with a bit-wise Boolean operation is

Combinational Logic vs. Sequential Logic The outputs of a combinational logic circuit Totally dependent

Number Representation 010. 133 Digital Computer Concept and Practice Copyright © 2012 by Jaejin

Half Adder Adds two one-bit binary numbers x and y Two outputs: sum and

Full Adder Adds three one-bit binary numbers x, y, and a carry (cin) coming

Ripple Carry Adder We can implement an n-bit binary adder by cascading n full

Decoder Also called demultiplexer Converts binary information from the n coded inputs to a

Combining Decoders We can build a 3 -to-8 decoder by combining two 2 -to

Multiplexer Also known as a selector A digital switch that connects data from one

4 -to-1 MUX 010. 133 Digital Computer Concept and Practice Copyright © 2012 by

Combining MUXes A larger MUX can be constructed by combining smaller MUXes together 010.

Shifter S 1 = 0 and S 0 = 1 One-bit right shift Arithmetic

Arithmetic Unit Integer addition and subtraction Two’s complement representation 010. 133 Digital Computer Concept

Logic Unit Bitwise OR, AND, XOR, and NOT 010. 133 Digital Computer Concept and

ALU Arithmetic unit + logic unit 010. 133 Digital Computer Concept and Practice Copyright

ALU in a Broader Sense ALU + shifter 010. 133 Digital Computer Concept and

Slides: 30

Download presentation

Boolean Functions If e is a Boolean expression in n variables x 1, x 2, ···, and xn, then e defines a Boolean function mapping Bn into B A truth table is the simplest way to specify a Boolean function 010. 133 Digital Computer Concept and Practice Copyright © 2012 by Jaejin Lee 3

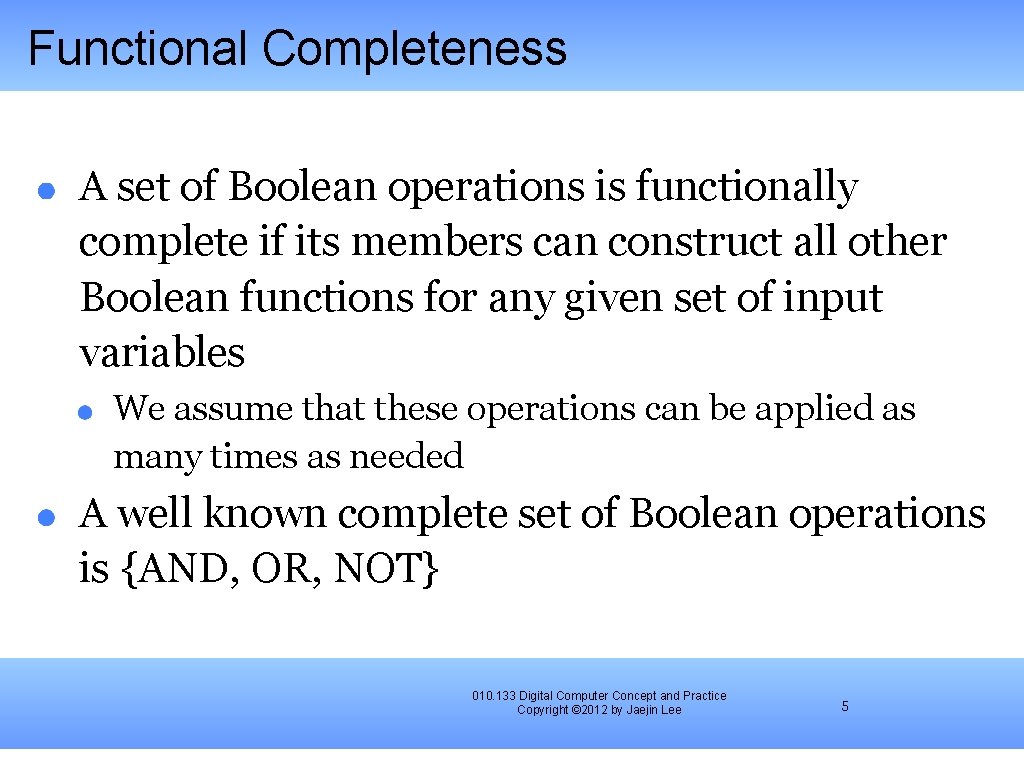

Functional Completeness A set of Boolean operations is functionally complete if its members can construct all other Boolean functions for any given set of input variables We assume that these operations can be applied as many times as needed A well known complete set of Boolean operations is {AND, OR, NOT} 010. 133 Digital Computer Concept and Practice Copyright © 2012 by Jaejin Lee 5
